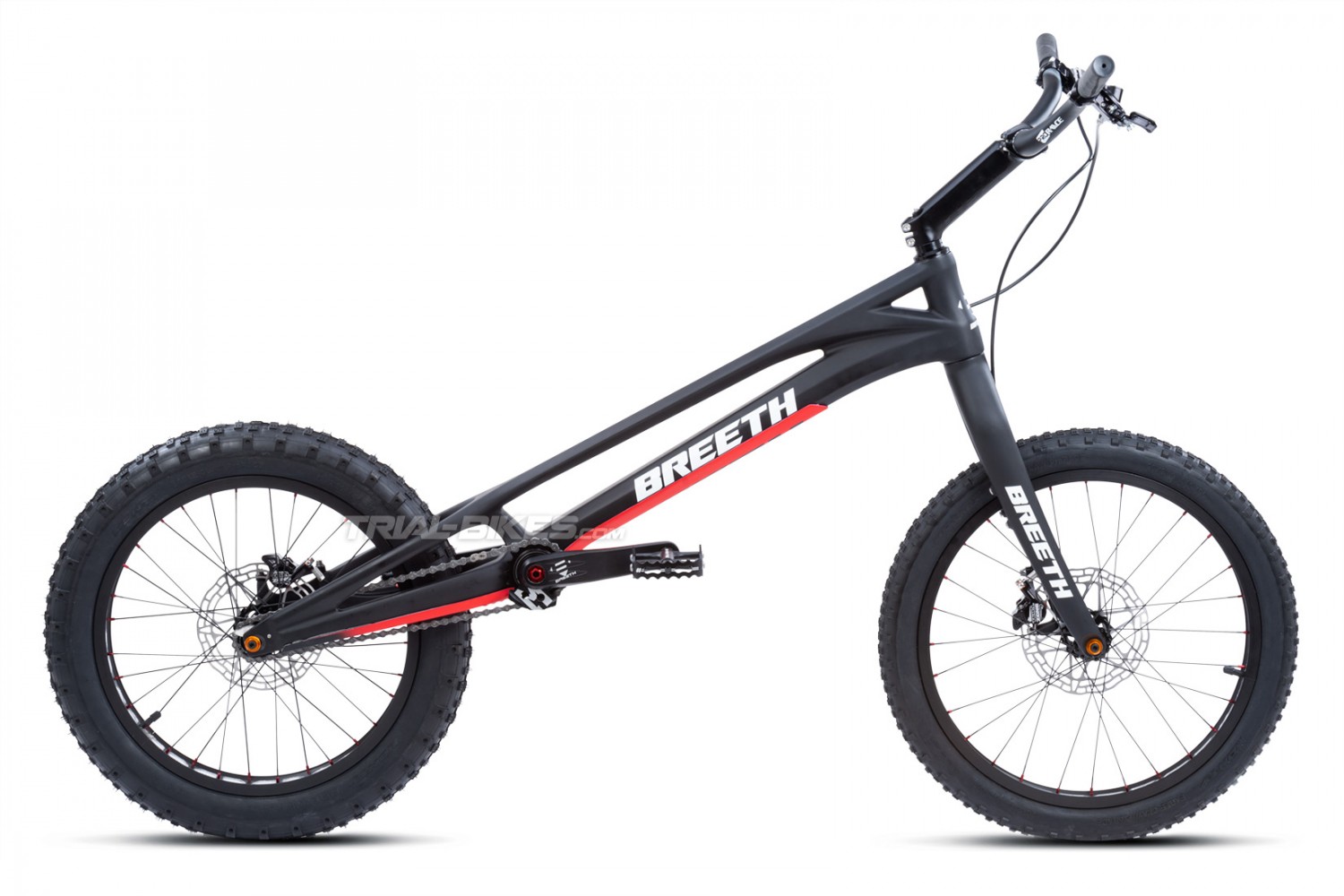

Breeth Carbon Pro TB 20” Bike

Breeth Carbon Pro TB 20” Bike

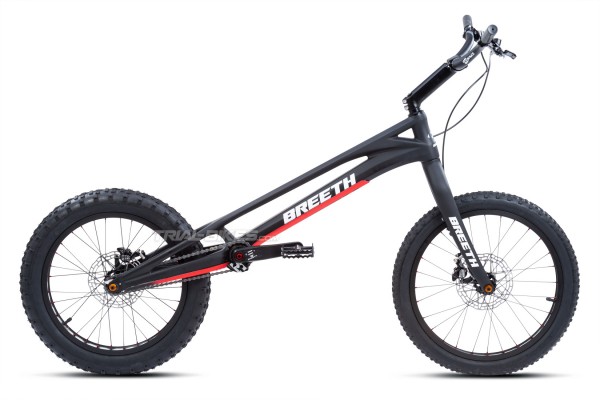

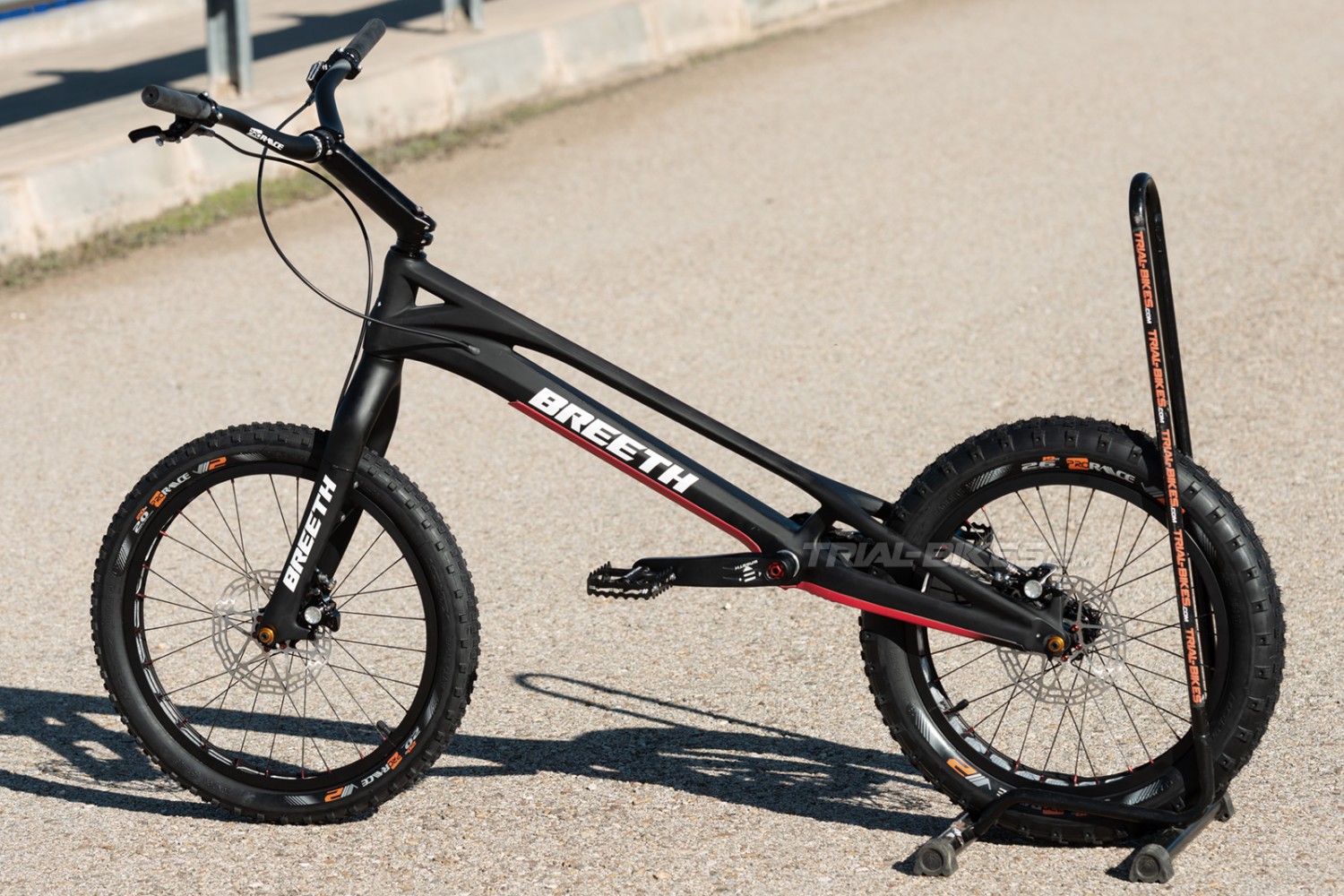

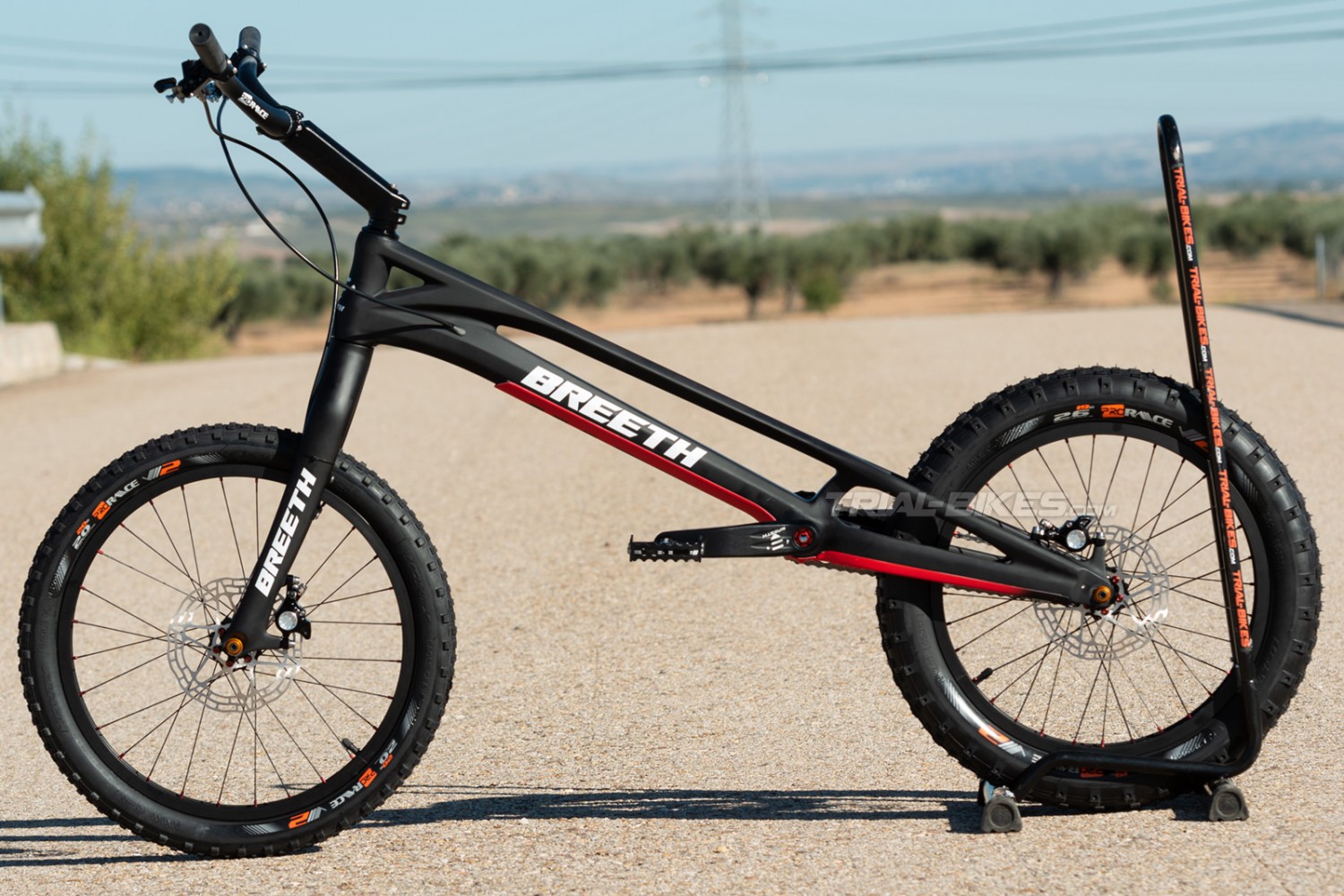

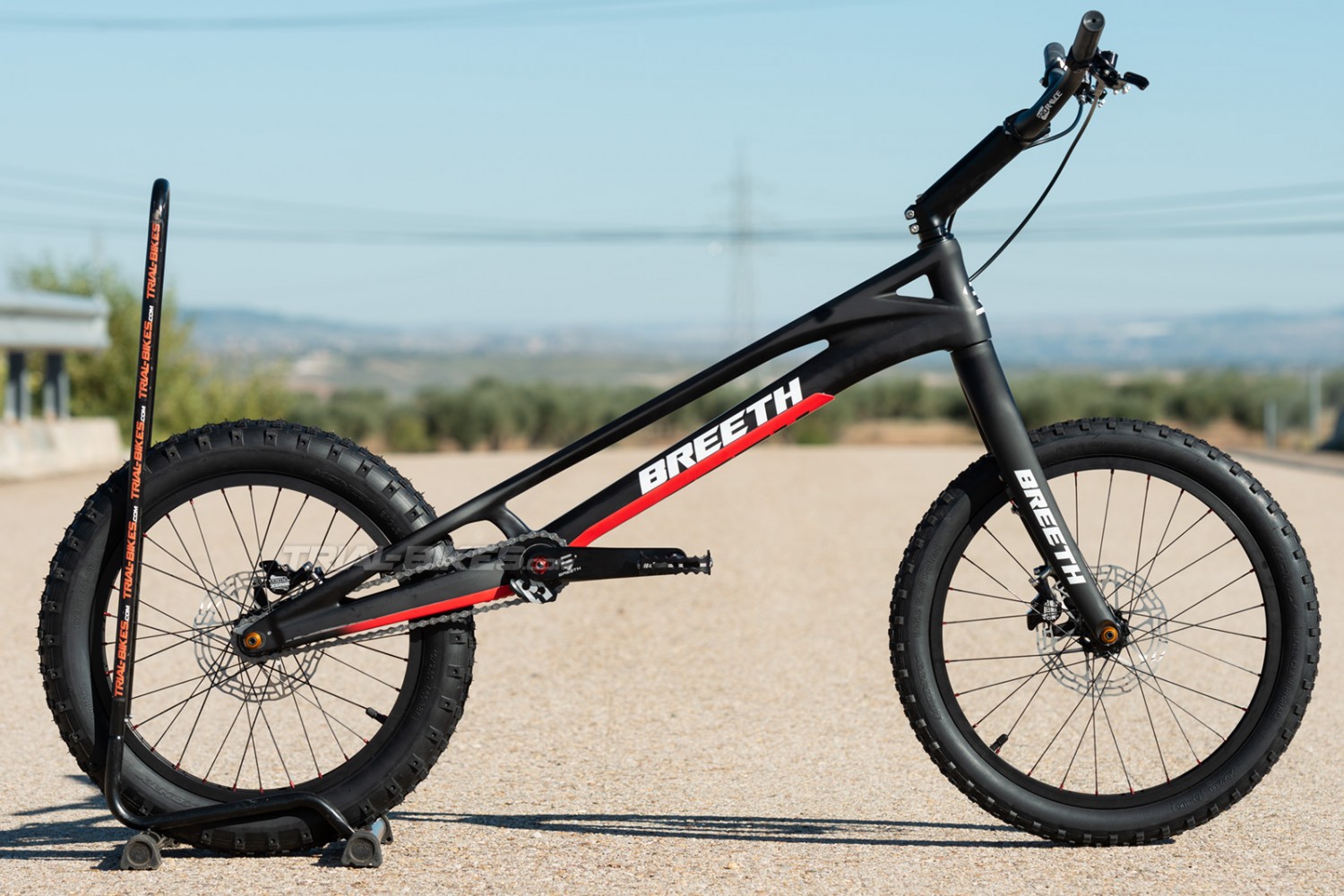

High-performance Breeth Carbon 20” trials bike, carefully built at TrialBikes with the best quality parts. Featuring the new Breeth Carbon frame and fork, Hope Tech 3 Trial Zone front and rear disc brake, Hashtagg rims…

There are two geometries available:
· Option 1: Wheelbase 1005mm.
· Option 2: Wheelbase 1018mm.

Frame and fork
- Frame: Breeth Carbon 20”, with Post Mount disc brake mounts, in black colour with white Breeth graphics.
- Forks: Breeth Carbon 20”, with rim brake mounts and disc mount Post mount, black with white Breeth graphics.

Wheels

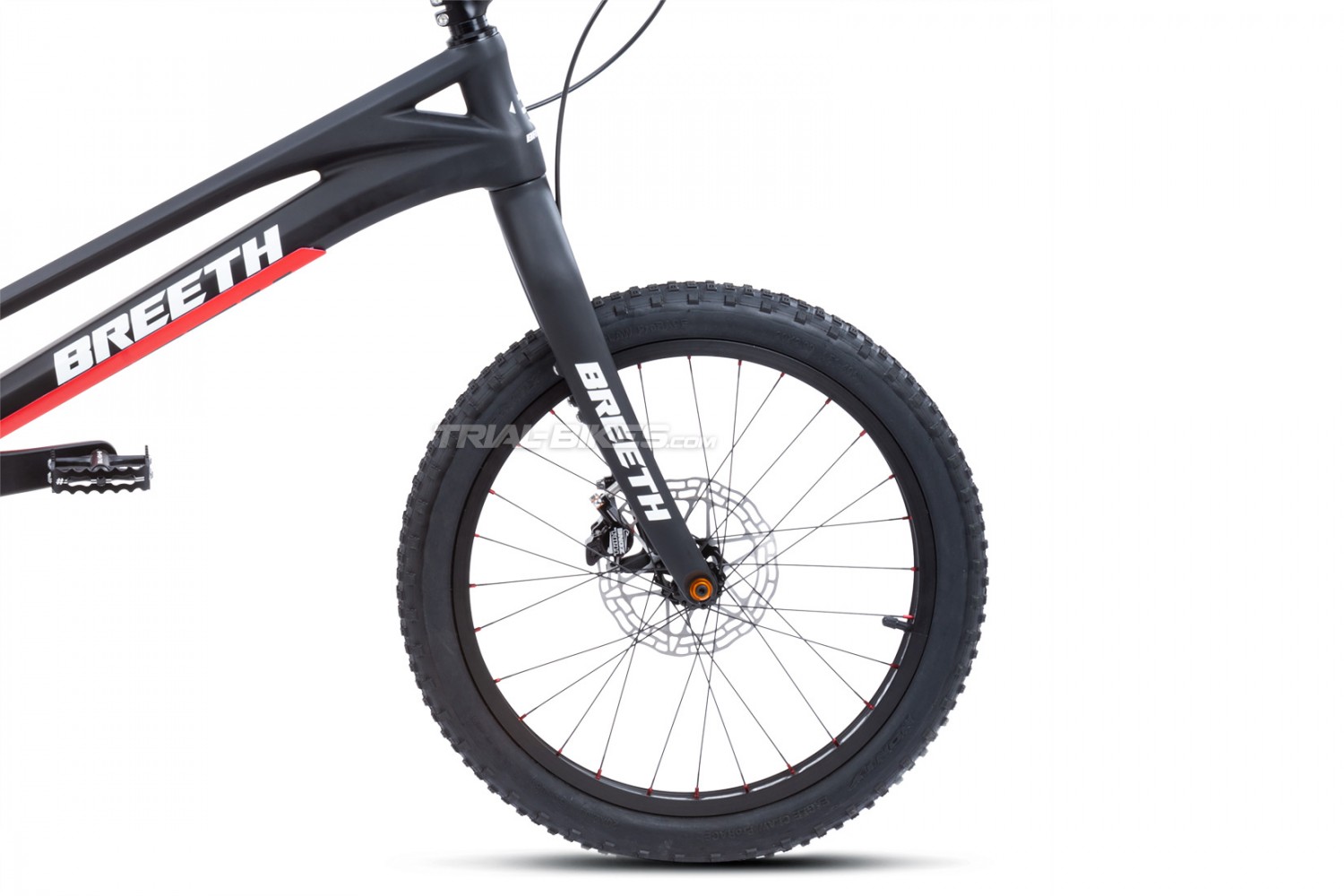

- Front hub: Rockman Slot Disc 28H 100mm, gloss black hub shell, with anodized orange bolts.

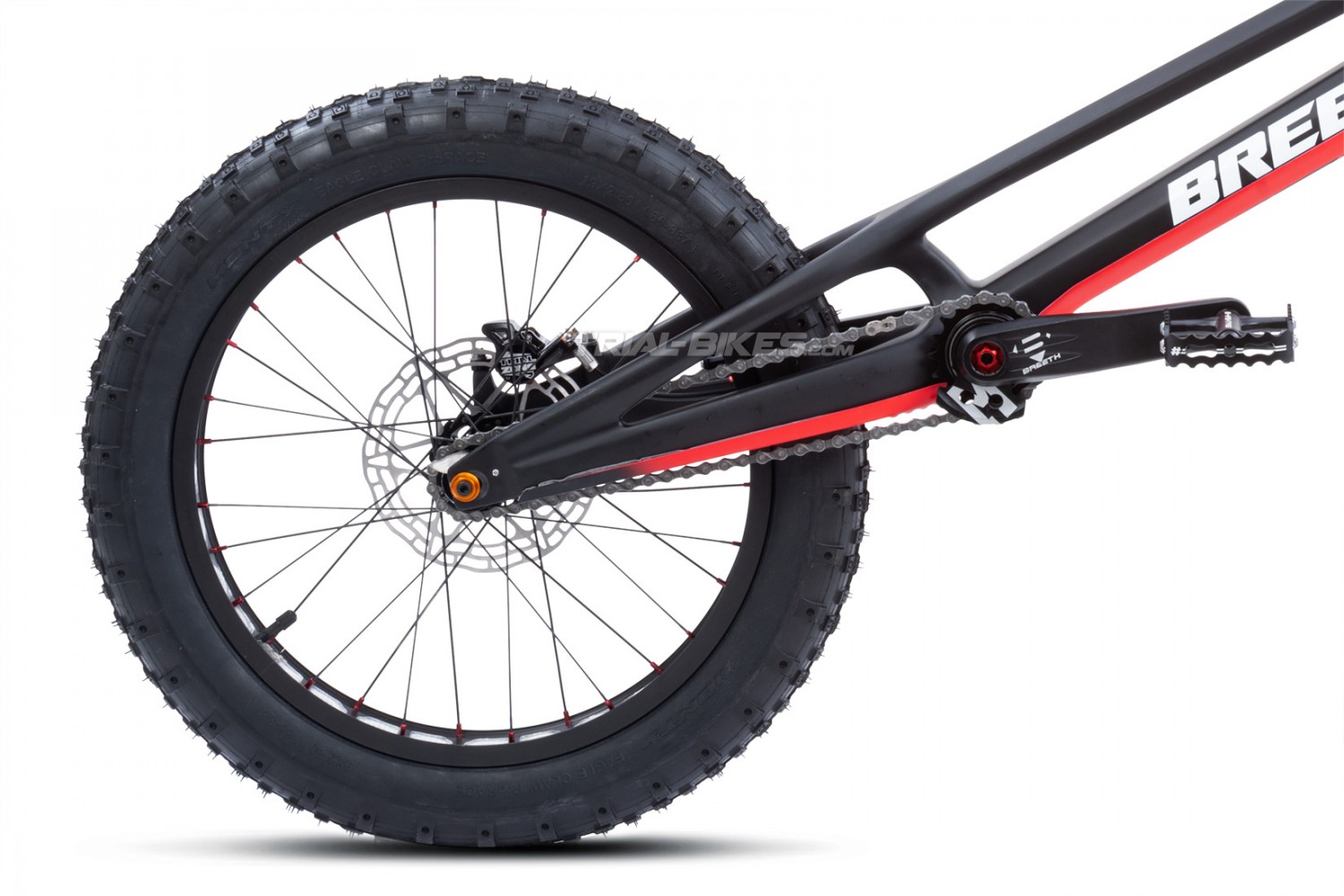

- Rear hub: Rockman Slot Disc 32H 116mm, gloss black hub shell, with anodized orange bolts.
- Chain tensioner: Jitsie Alu/Steel Snail Cams, 3mm thickness.
- Front rim: Hashtagg 20”, single wall, 32mm wide, 28 spoke holes, black.
- Rear rim: Hashtagg 19”, single wall, 47mm wide, 32 spoke holes, black.
- Spokes: Sapim Laser Superlight Spokes 2/1.5/2 (189mm x14/193mm x14, 179mm leader x14/182mm x14), black.
- Spoke nipples: Trialbikes Aluminium 7075, anodized red.
- Rim tape: TrialBikes Reinforced Ultralight.
- Front inner tube: Deestone 20”.
- Rear inner tube: Deestone 20”.
- Front tyre: Monty Pro Race V2 20”x2.00”.
- Rear tyre: Monty Pro Race V2 19”x2.60”.

Brakes
- Front brake: Hope Tech 3 Trial Zone.
- Rear brake: Hope Tech 3 Trial Zone.
-Rotors: Galfer Wave OEM.

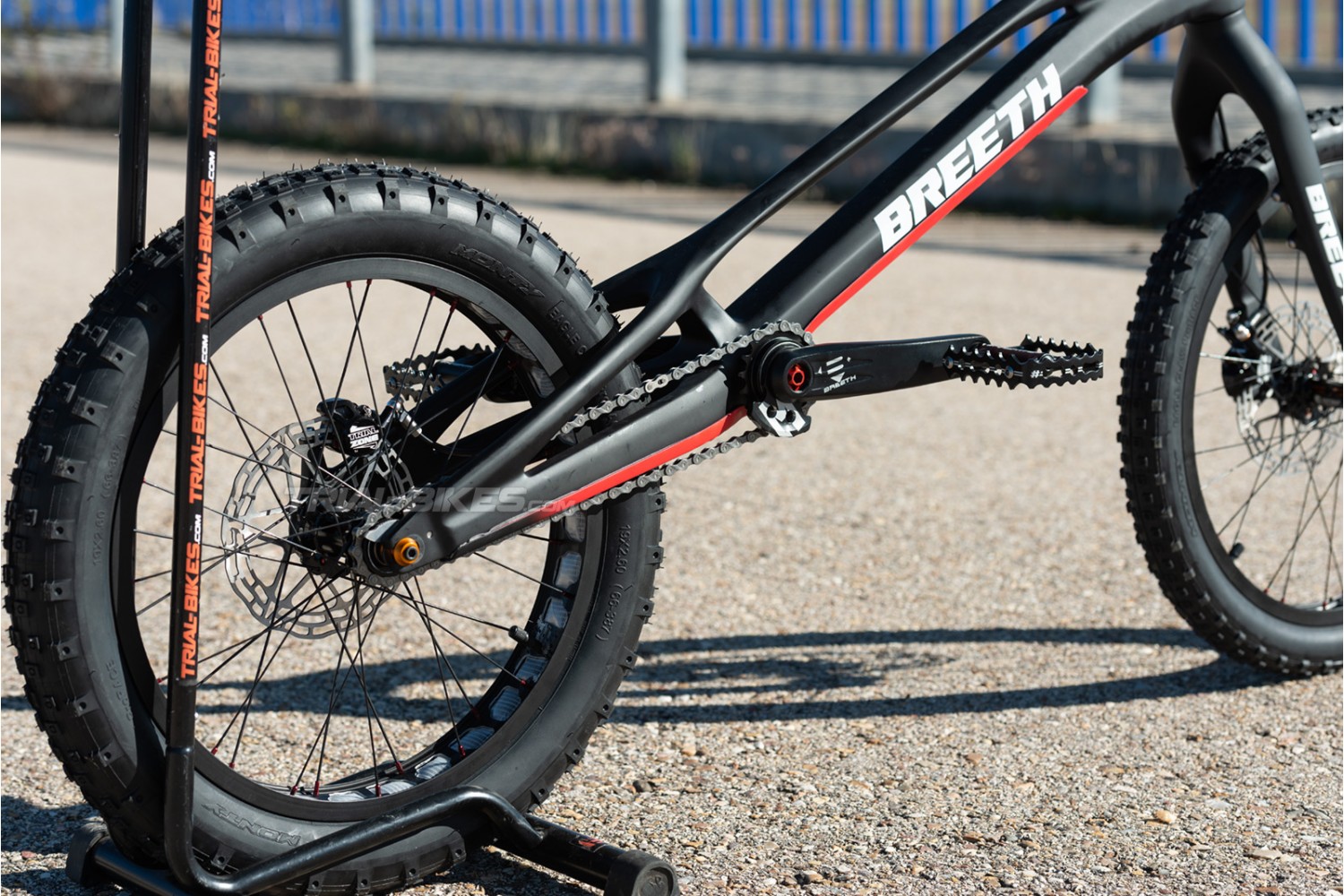

Drivetrain
- Cranks: Breeth Trials ISIS 158mm, black.
- Bottom bracket: Monty 124mm ISIS.
- Freewheel: 135 engagement points, 9 pawls and 18 teeth, black/silver.
- Chain: KMC X9-73 114 INDEX 9V.
- Rear sprocket: Clean 12T Screw-on Sprocket, made of steel, black.
- Pedals: Hashtagg Single Cage 7075, black.
- Bashring: Echo SL, black.

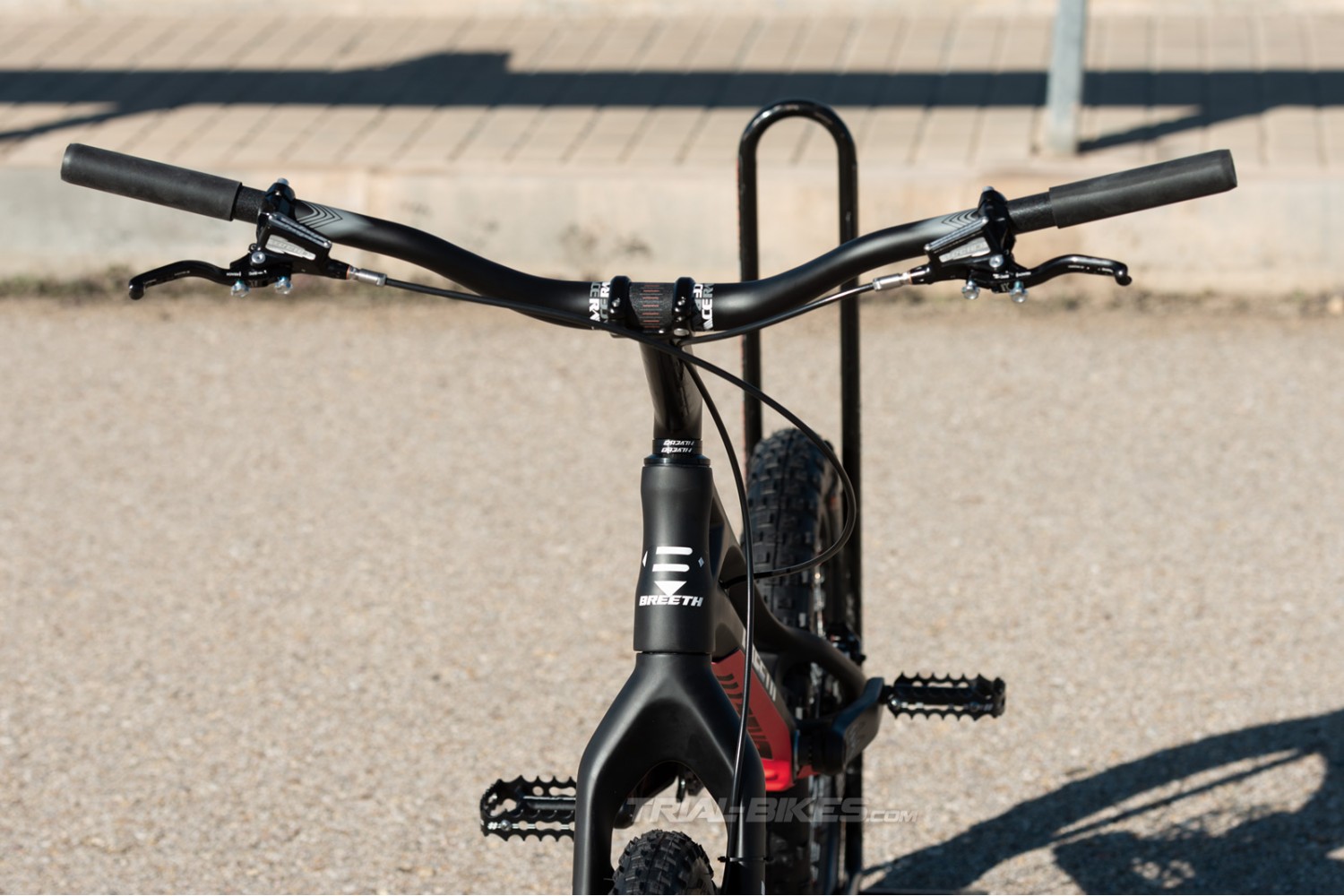

Steering
- Headset: Breeth Integrated Tapered 1 1/8” – 1 3/8”, with sealed bearings.
- Stem: Clean Pro 24º Super light 155mm x 24º, anodized black, with M6 steel bolts.
- Grips: TrialBikes rubber, black.
- Handlebar: Monty Pro Race Carbon, 730mm long, 110mm rise, matt black UD.

Geometry (based on a Breeth Carbon fork of 375mm and +45mm offset)
Available in 2 versions:

Option 1:
- Wheelbase: 1005mm.
- Chain stay length: 350mm.
- BB Rise: +90mm.
- Head Angle: 72º.

Option 2:
- Wheelbase: 1018mm.
- Chain stay length: 363mm.
- BB Rise: +90mm.
- Head Angle: 72º.

Weight
- 7.190Kg.

Modifications
This bike is built with top-quality parts, but if you’d still like to modify some of them, just get in touch and we will customize the setup for you!

Additional information:
Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any further doubts, please get in touch at info@trial-bikes.com.
