Clean K1 10th Anniversary

The Clean K1 10th Anniversary Bike is based on the successful K1 20", now redesigned in three limited editions to celebrate the 10th anniversary of Clean Trials.

Available in 4 versions:

  • Pro Edition HS-Disc: Clean X3 103 mm carbon fibre handlebar, Clean Trials Pro Steam, Trialtech Sport HP Back Edition front rim brake and Hope Tech 4 Trial Zone rear disc brake.
  • Pro Edition Disc-Disc: Clean X3 103 mm carbon fibre handlebar, Clean Trials Pro Steam, Hope Tech 4 front and rear disc brakes.
  • WC Edition HS-Disc: Combo carbon fibre, Trialtech Sport HP Back Edtion front rim brake and Hope Tech 4 Trial Zone rear disc brake.
  • WC Edition Disc-Disc: Combo carbon fibre, , Hope Tech 4 front and rear disc brakes.


Check the following list to see the components of each setup option.


Frame and fork

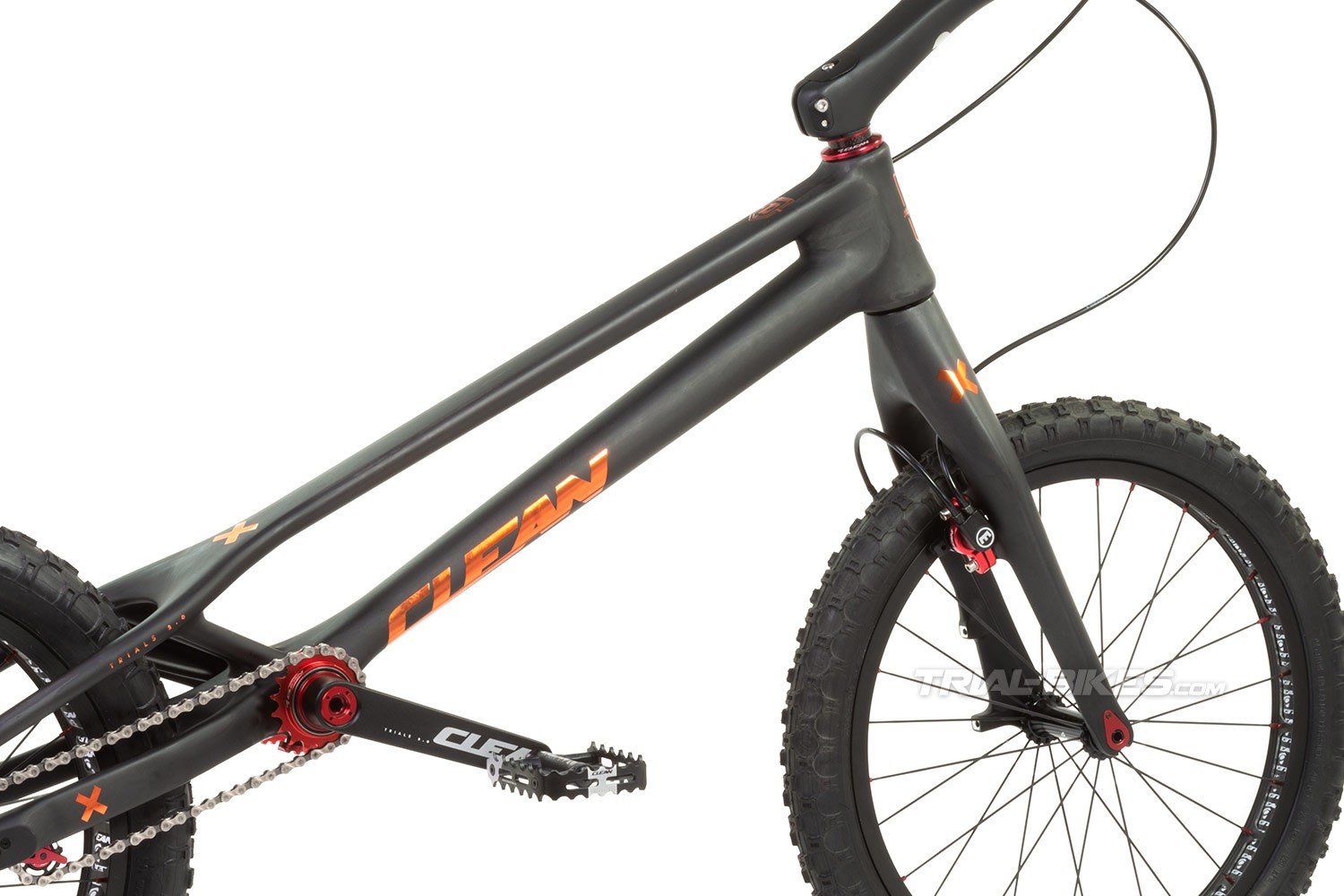

- Frame: Clean K1 2024 20”, made of high-modulus carbon fibre, with Post Mount disc brake mounts and exchangeable dropout inserts
- Forks: Clean K1 2024 20” Carbon tapered 1 1/8” – 1.5”, made of carbon fibre, with Post Mount disc brake mounts, 4-bolt rim brake mounts and exchangeable dropout inserts


Wheels
- Front hub: Clean X3 28 spoke holes, 12 mm through-axle, 104 mm spacing
- Rear hub: Clean X3 32 spoke holes, 12 mm through-axle and rotor mounts, 120 mm spacing, Shimano HG splines.
- Chain tensioner: Clean X2 PRO integrated, with two 10T jockey wheels made of 7075 T6 aluminium
- Front rim: Clean Trials PRO 20”, single wall, 34 mm wide, 28 spoke holes, anodized black
- Rear rim: Clean Trials PRO 19”, single wall, 48 mm wide, 32 spoke holes, anodized black
- Spokes: Aero Ultra light spokes, black
- Rim tape: Clean, black
- Front inner tube: Clean 20"
- Rear inner tube: Clean 20"
- Front tyre: Clean Koala 20” x 2.00”
- Rear tyre: Clean Koala 19” x 2.60”


Brakes
- Front brake: Hope Tech 4 Trial Zone or Trialtech HP HS rim brake (depending on brakes choice)
- Rear brake: Hope Tech 4 Trial Zone
- Rotors: Clean RS, 160 mm
- Disc protector: Clean
- Rim brake pads: Clean X2
- Brake clamps: Clean X2 Washerless


Drivetrain
- Crankset: New Clean X2 3-piece set, with Press Fit BB30 30 mm diameter BB axle, CNC machined, with a new adjustment system. 160 mm long cranks, for Shimano HG-splined freewheel, available in black with Clean silver graphics
- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC X9, silver
- Rear sprocket: Clean 12T splined, made from 7075-T6 aluminium alloy, anodized black
- Pedals: Clean single cage, 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red


Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Grips: Extra-thin Clean foam, black

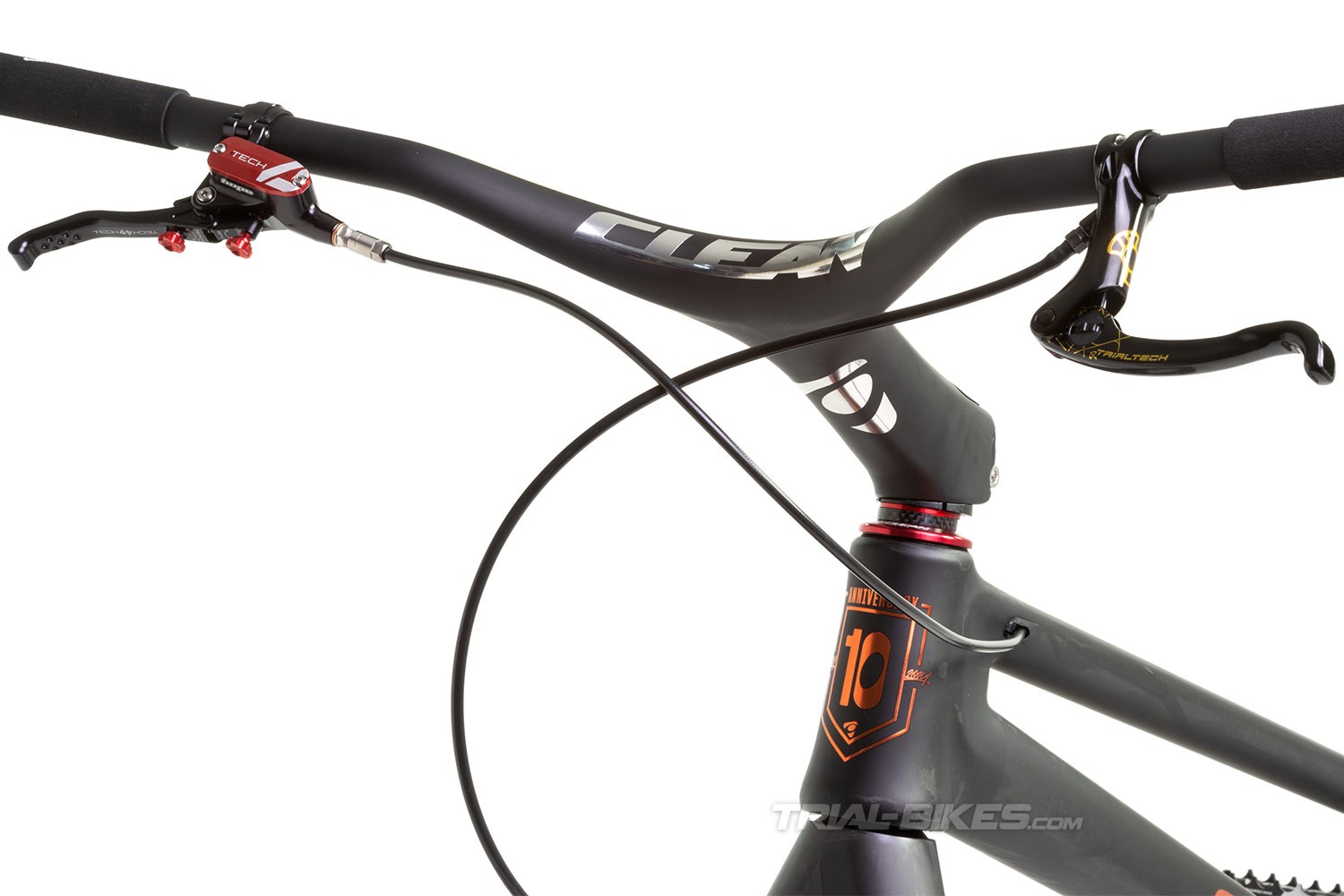

- Handlebar: Combo carbon fibre or Clean X3 103 mm carbon fibre (depending on choice).
- Steam: Combo carbon fibre or Clean Trials Pro, 155 mm x 24º (depending on choice).


Geometry
(1) Wheelbase: 1005 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +87 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------

Geometrias en bicicletas de Trial

Finishes
Available in 3 colours:

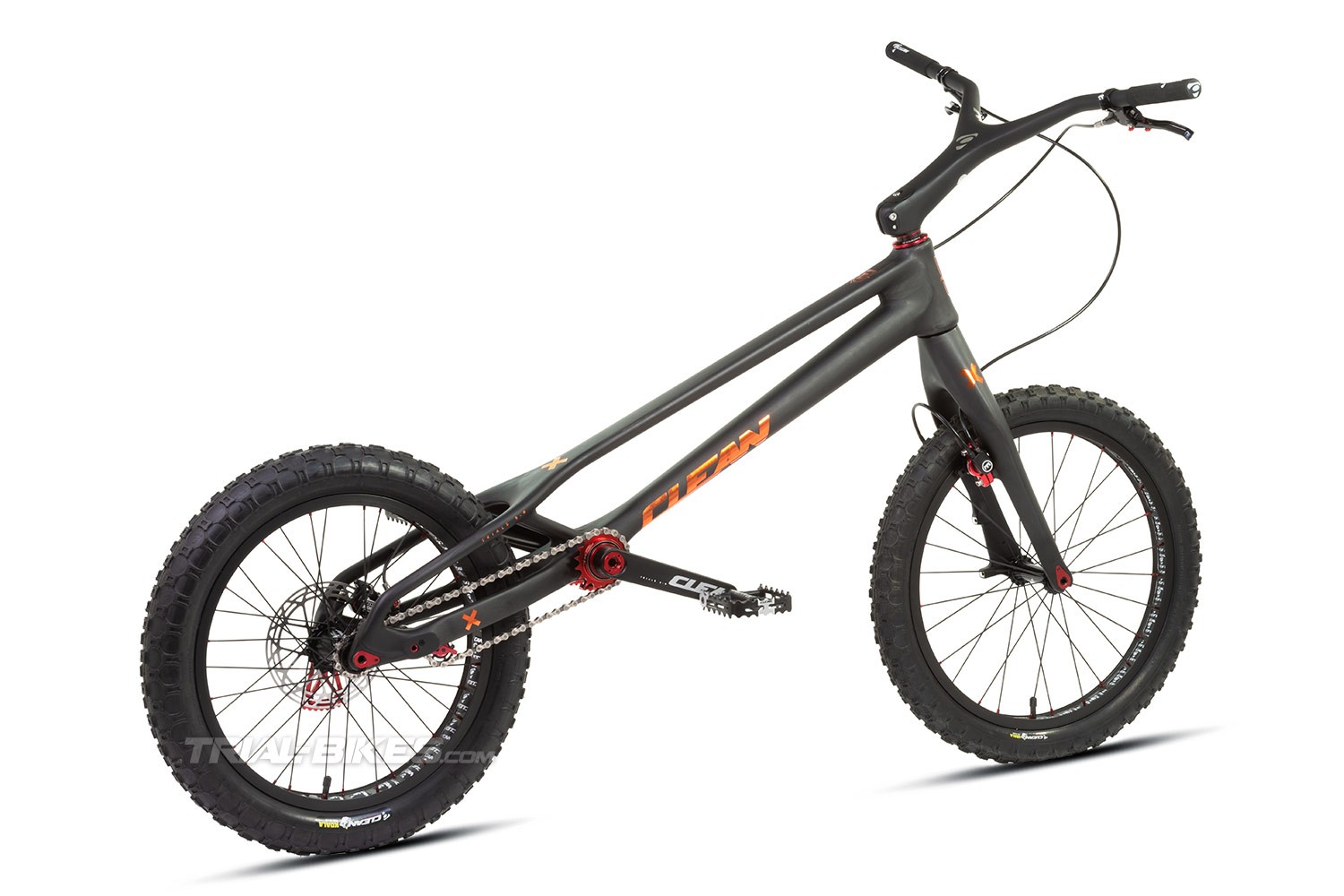

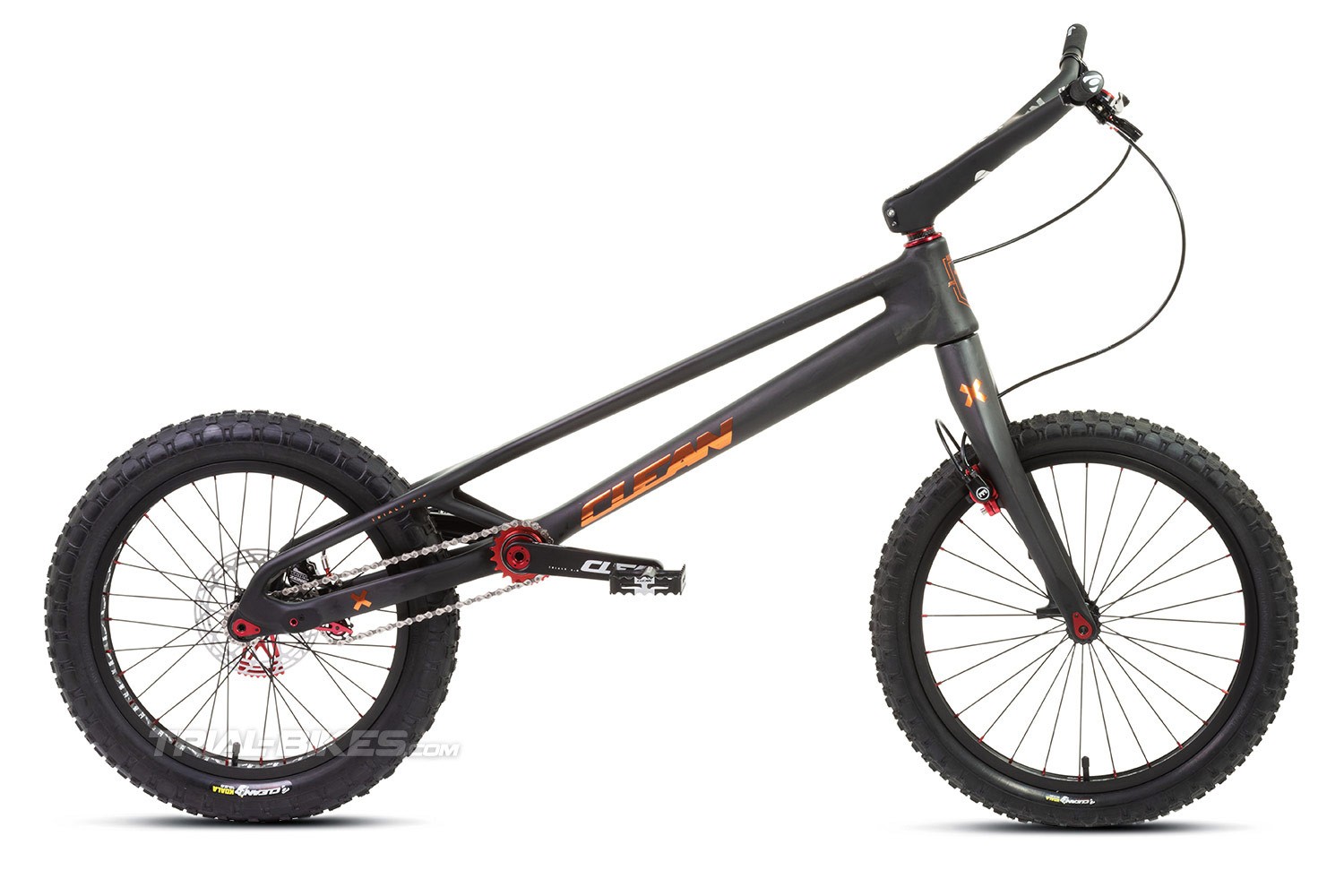

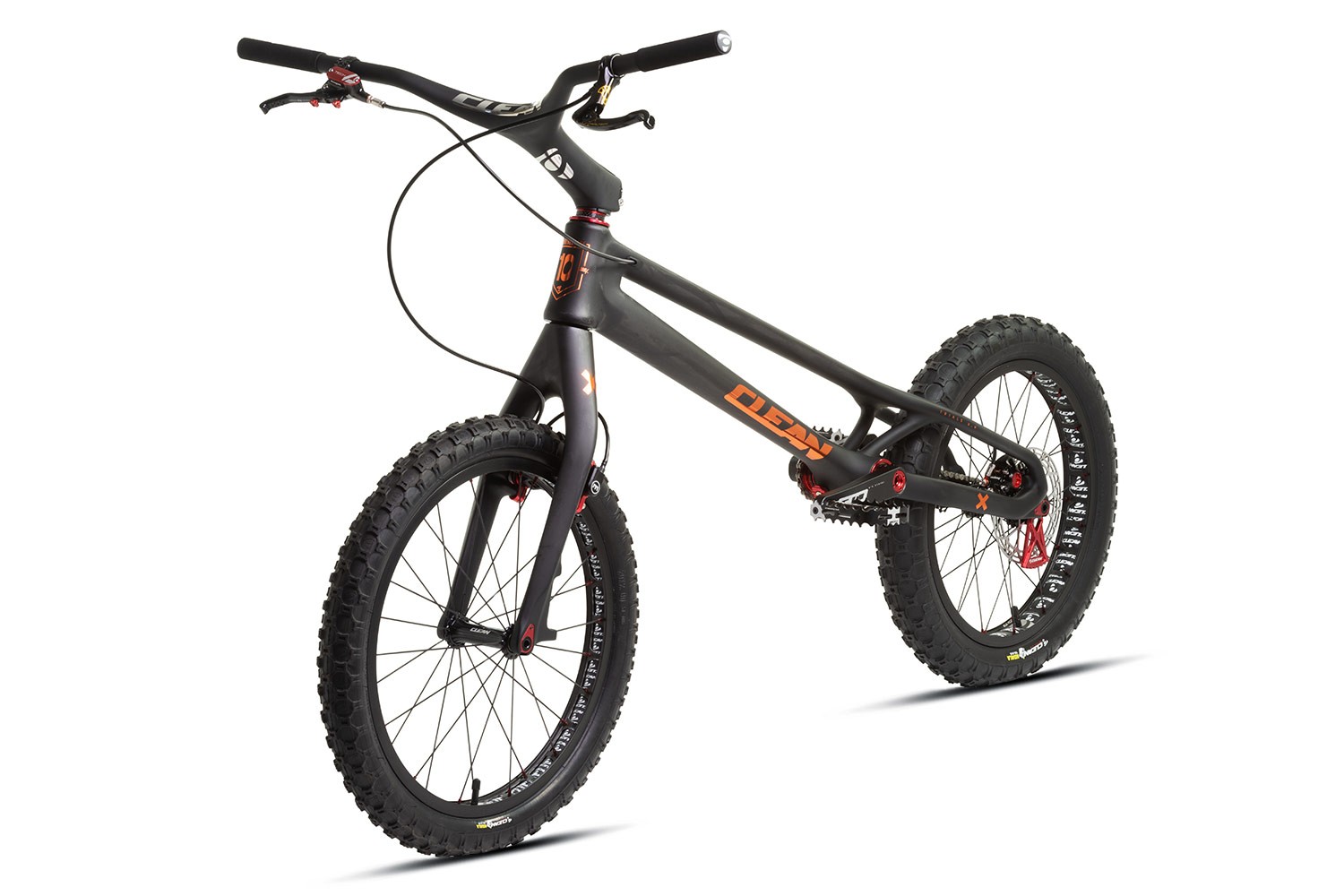

  • Black, with Clean 10th Anniversary graphics in orange.

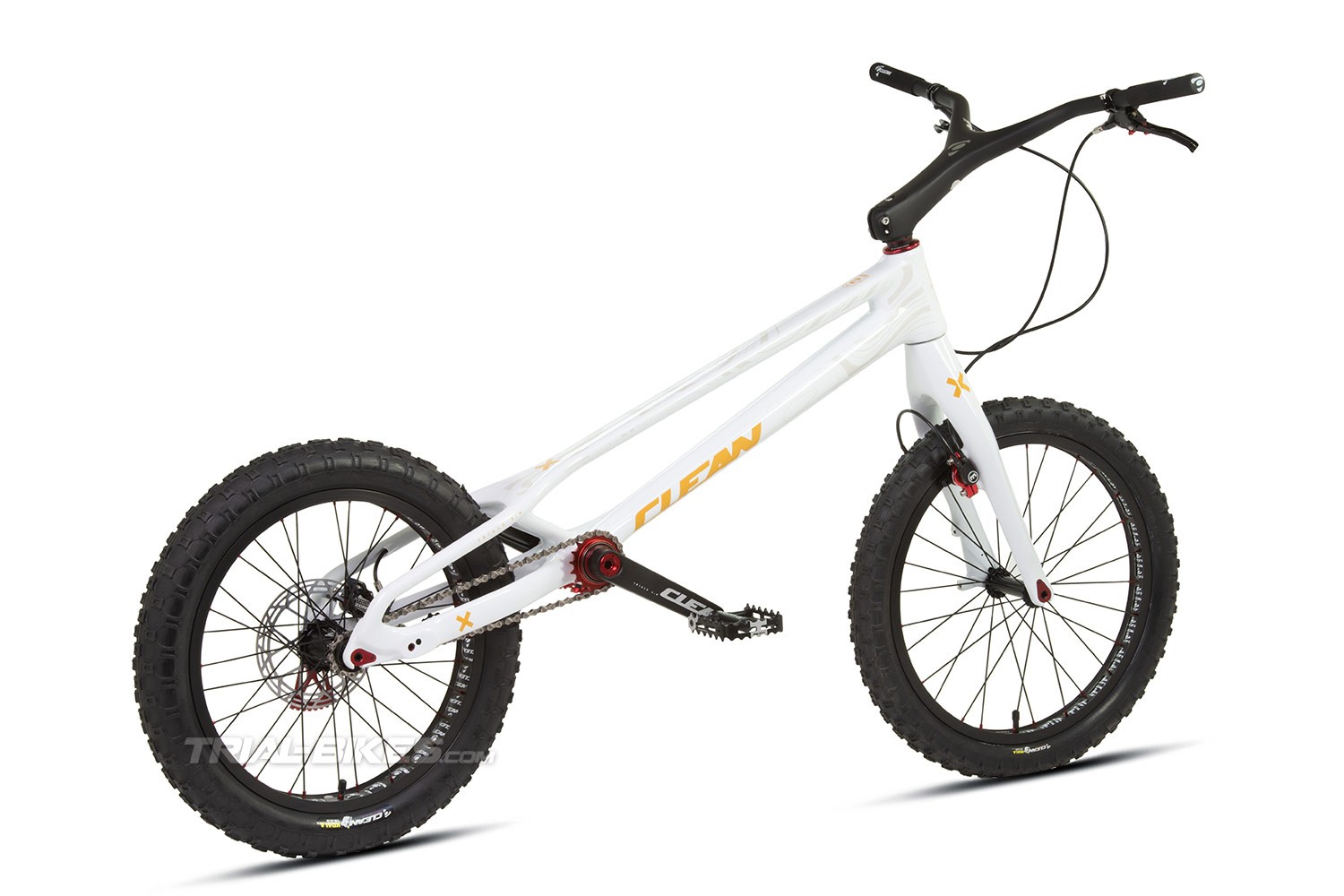

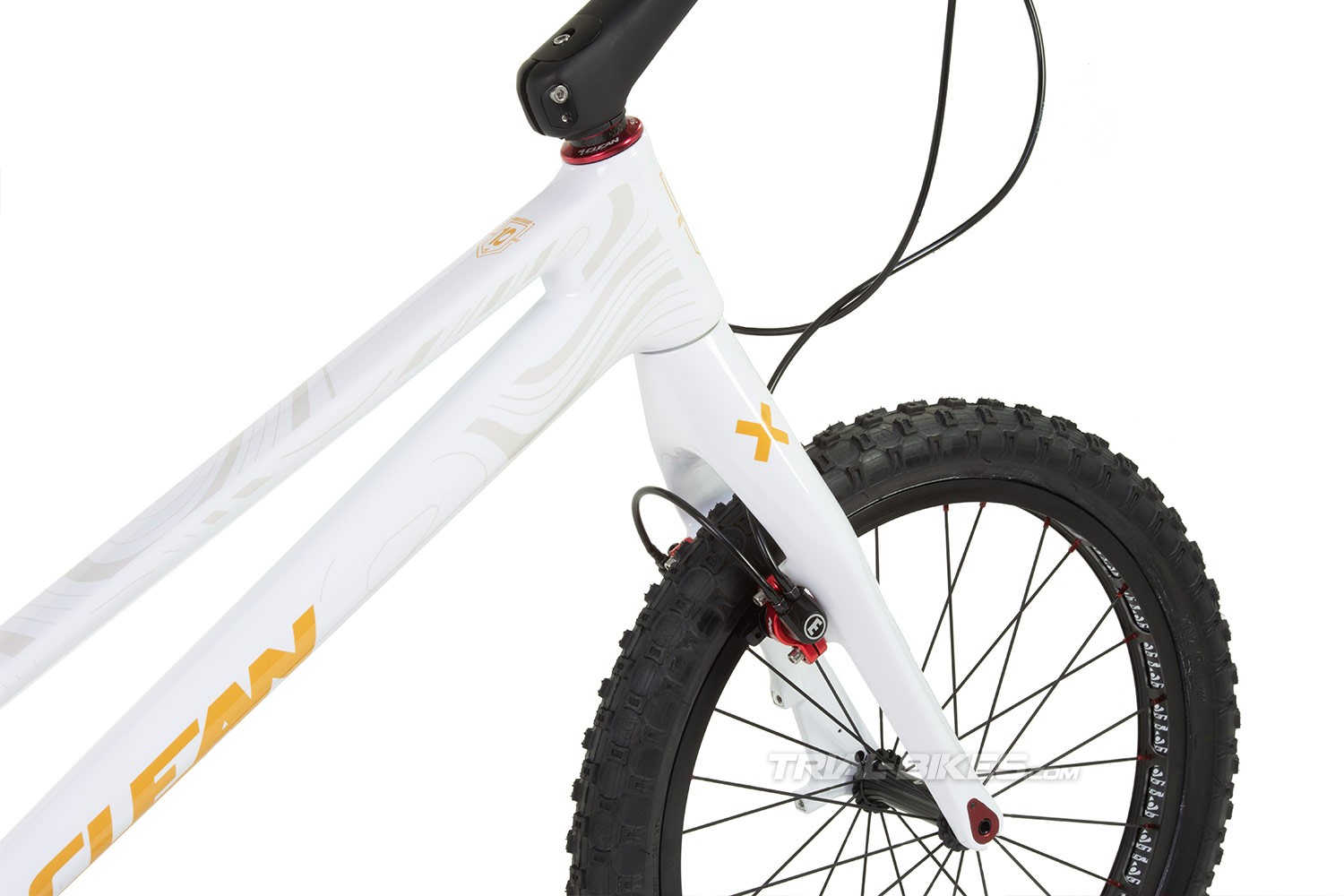

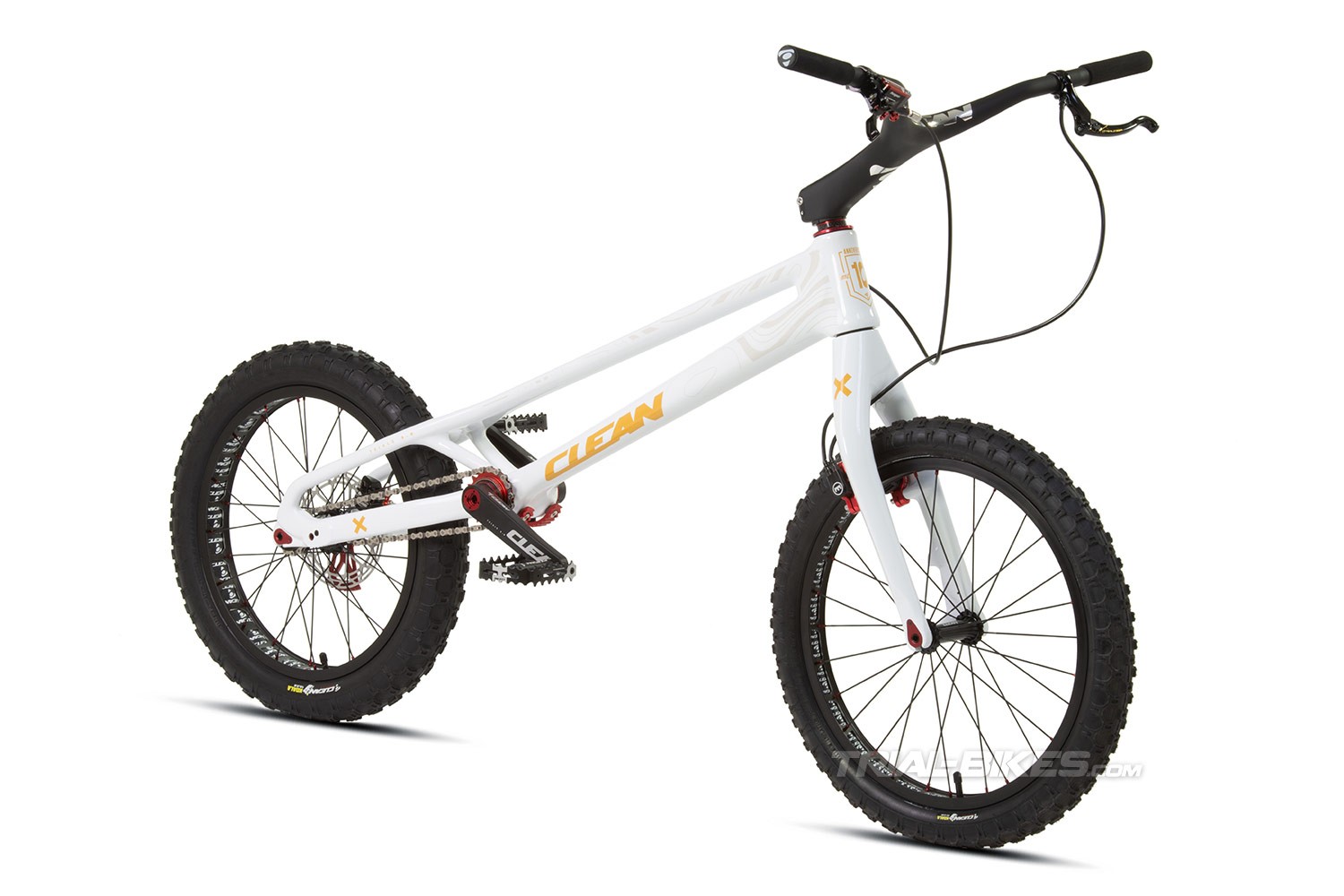

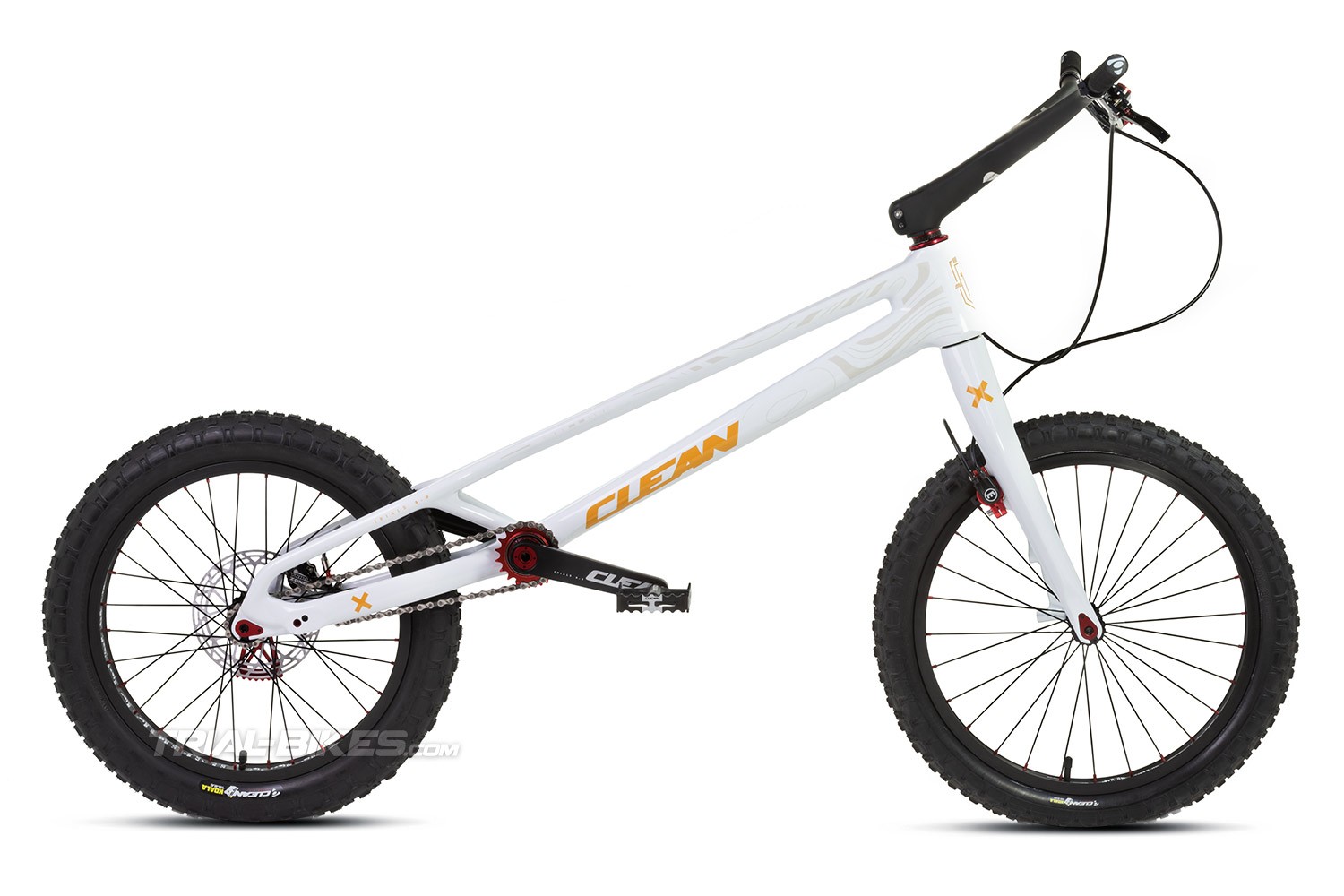

  • White, with Clean 10th Anniversary graphics in ochre.

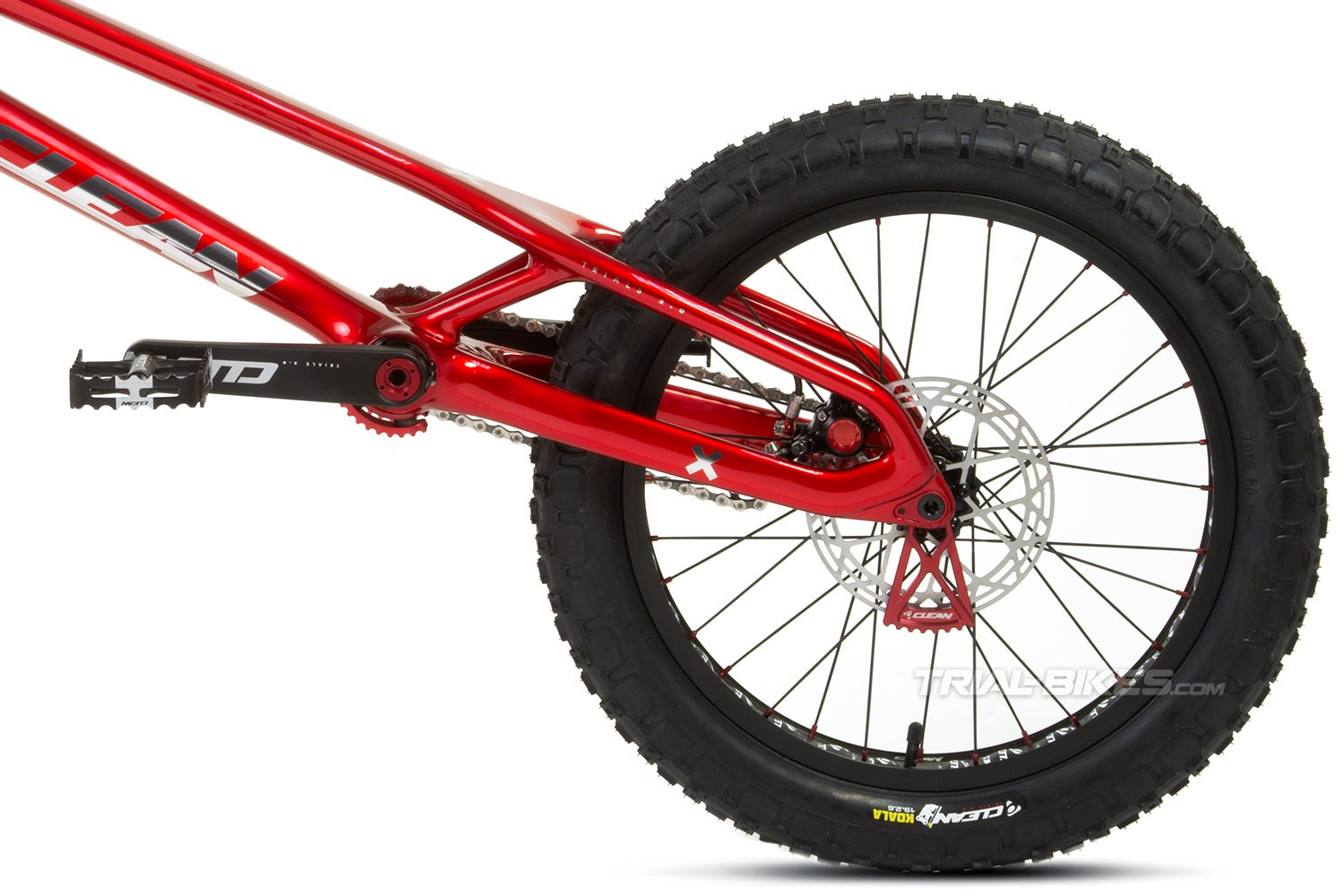

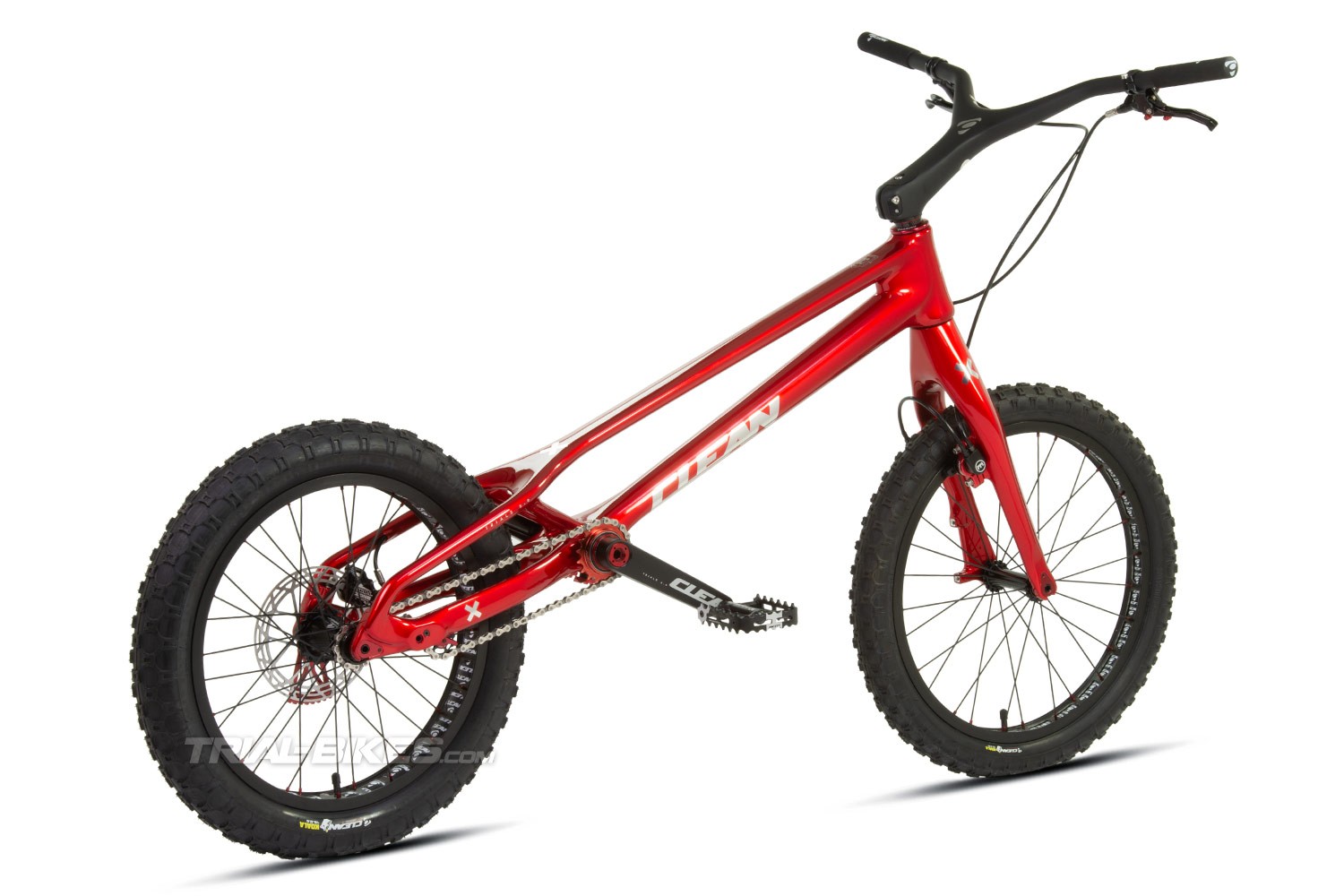

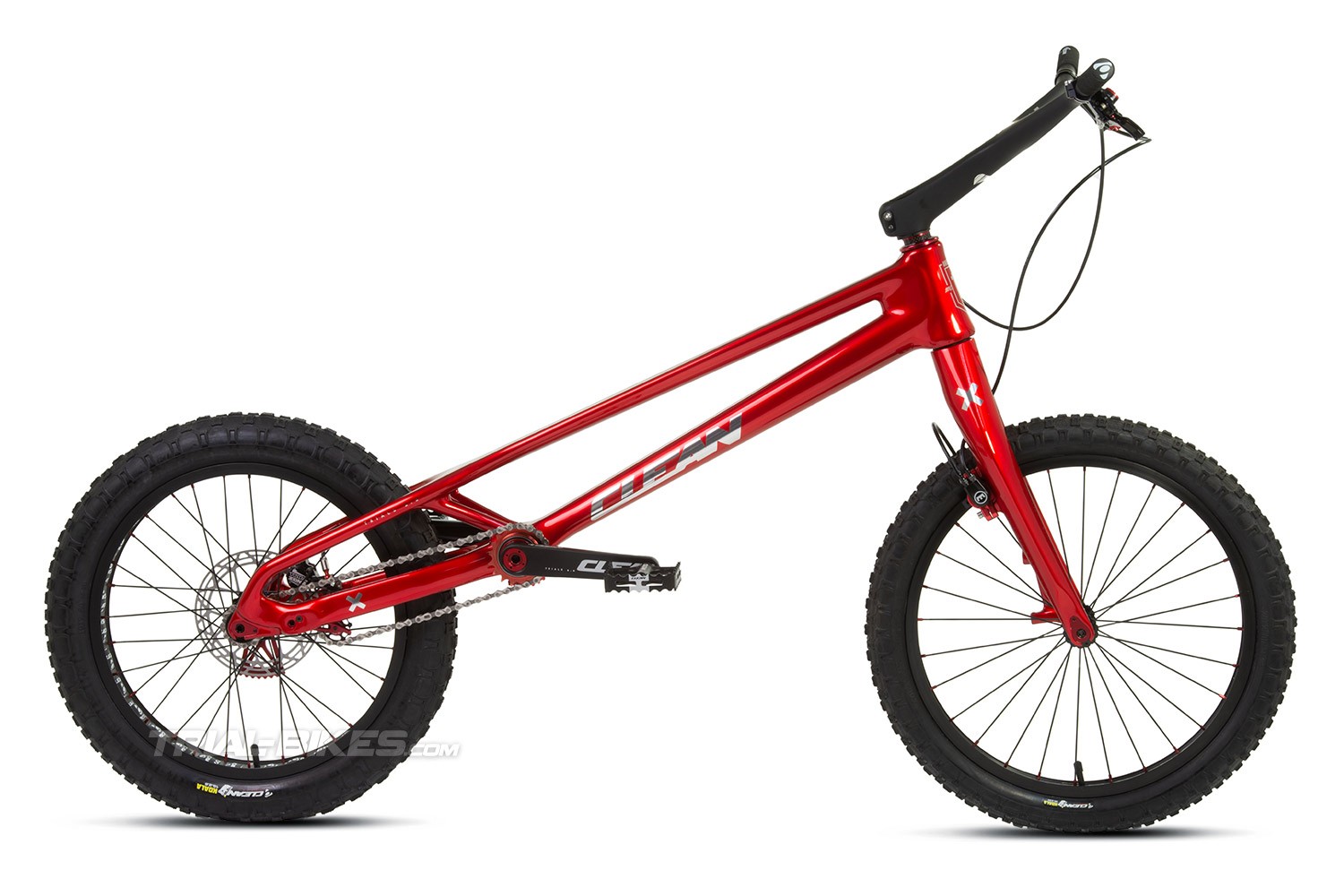

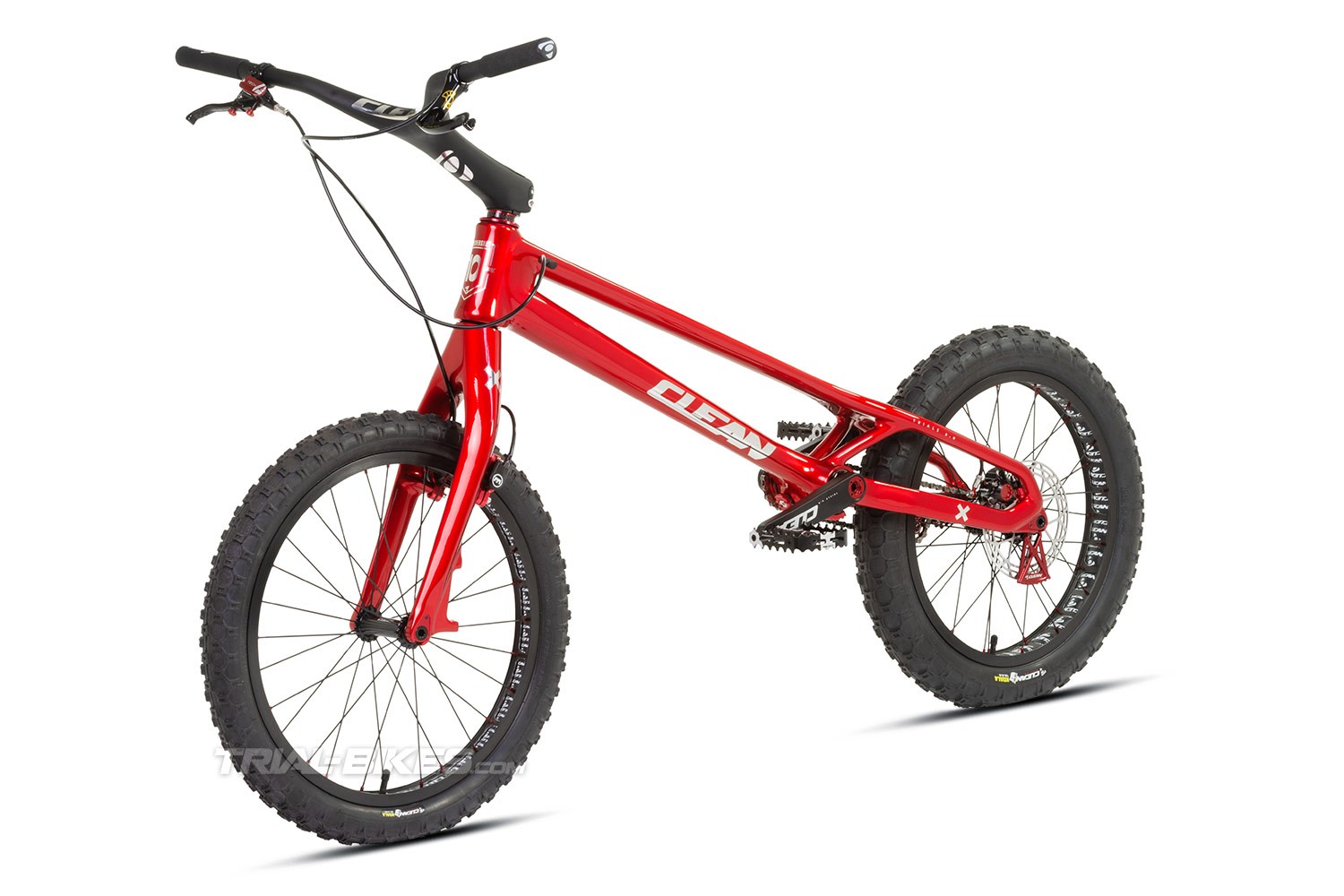

  • Red, with Clean 10th Anniversary graphics in silver.


Weight

- 7.06 Kg (WC Edition HS-Disc version), verified by TrialBikes!


Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.
Some pictures may not match the item described, so please read the description carefully.
Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.
If you have any doubts, please contact us on info@trial-bikes.com.

FRONT BRAKE Disc
REAR BRAKE Disc
