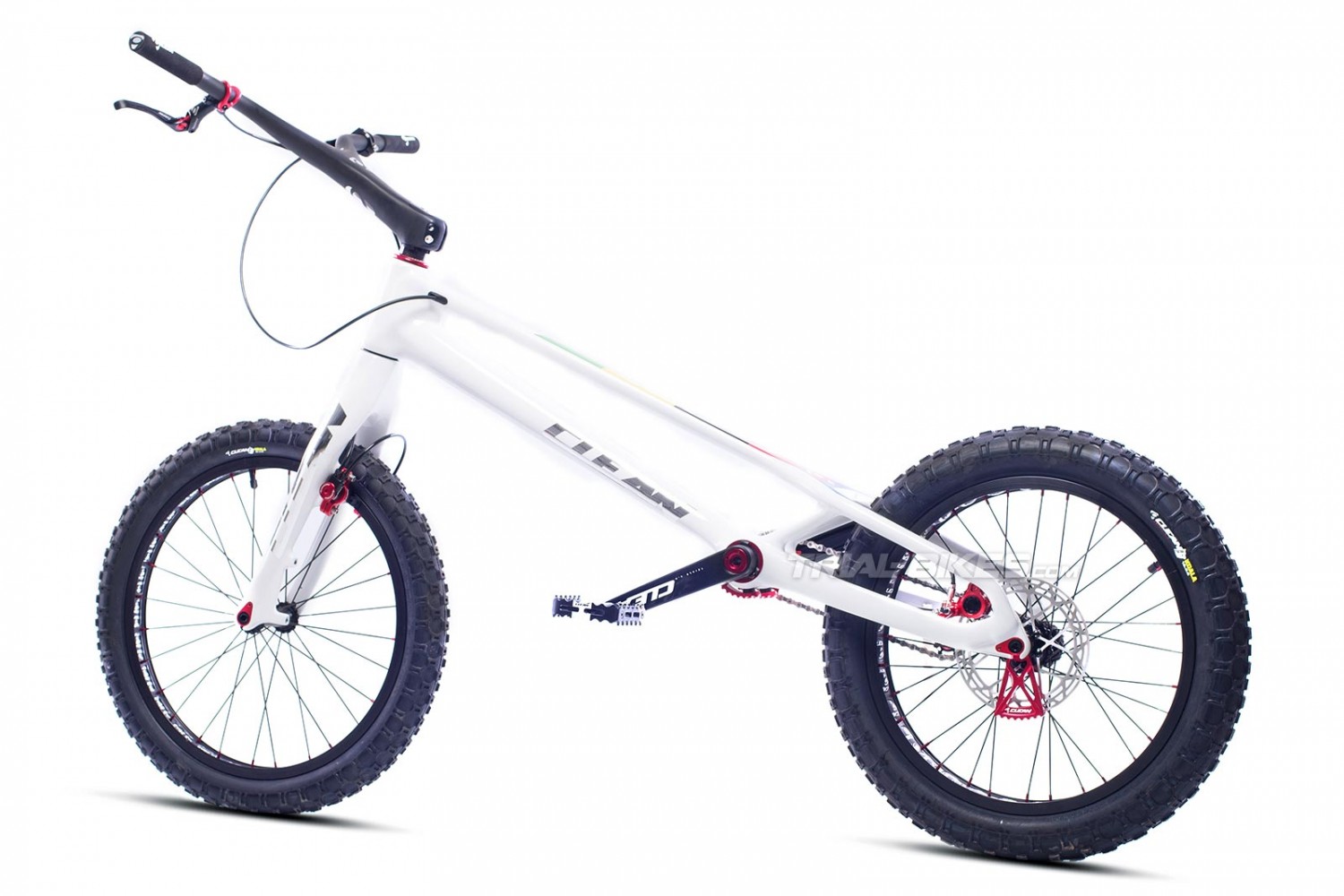

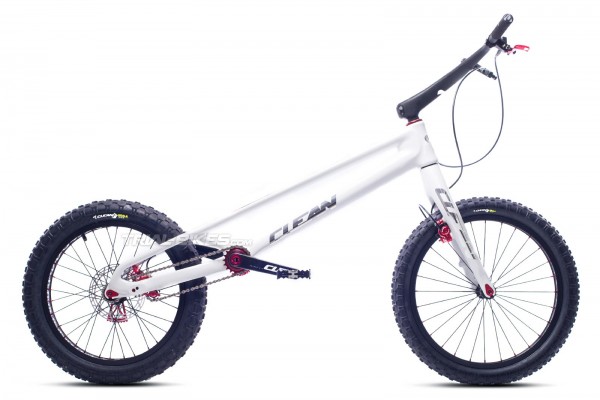

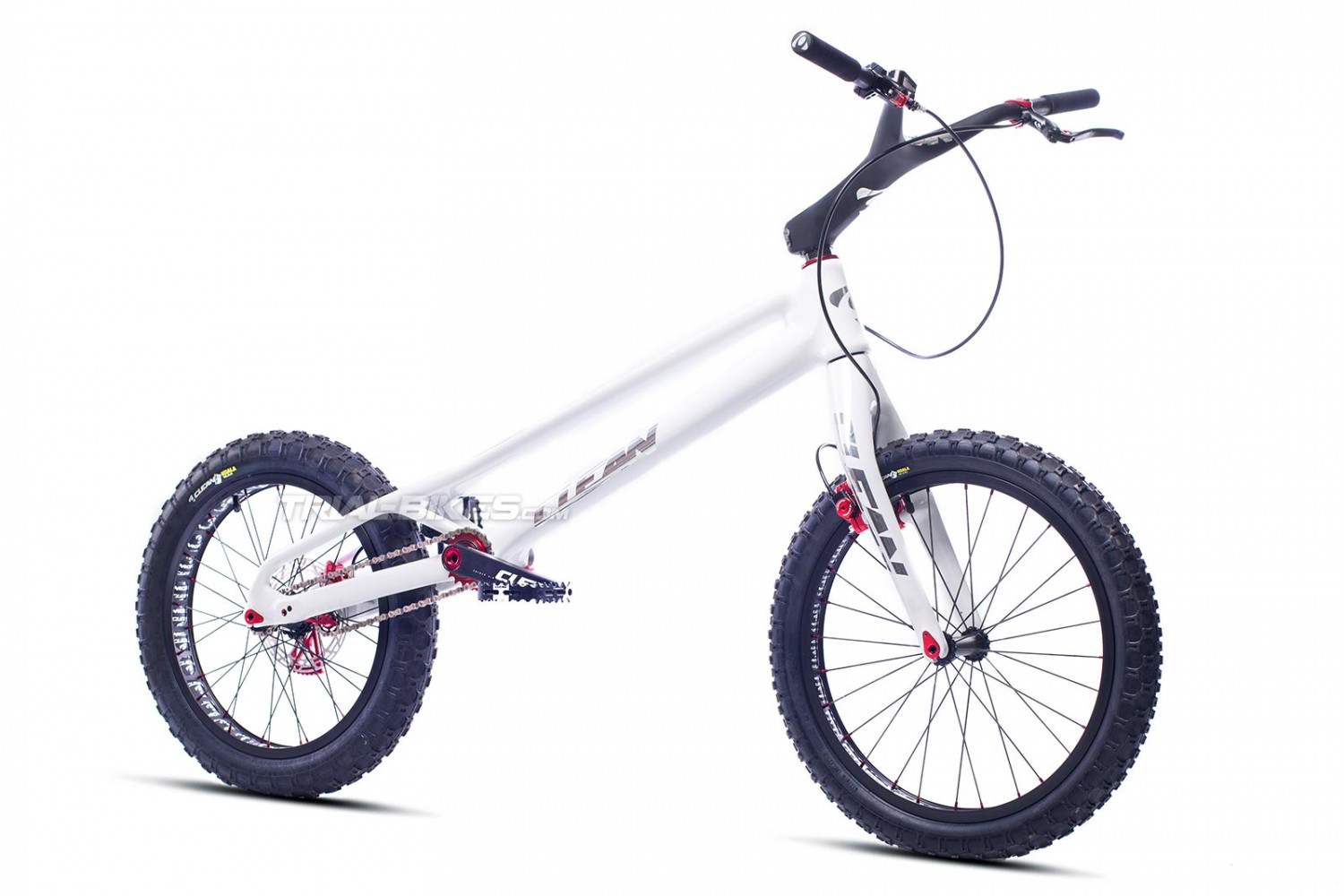

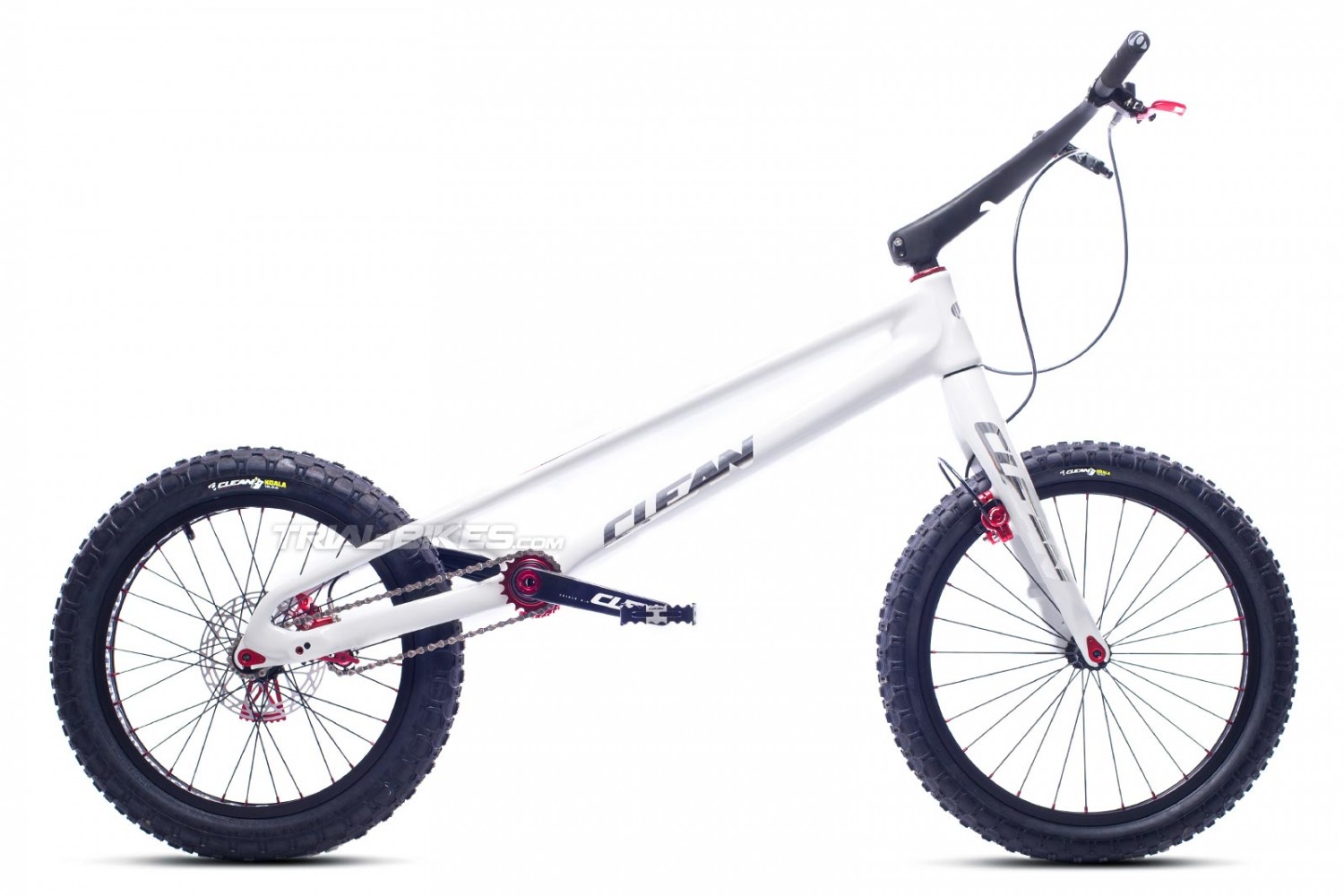

Clean K1 Borja Conejos Edition 970mm 20" Bike

Clean K1 Borja Conejos Edition 970mm 20" Bike

• The bike trials specialists Clean have developed the new Clean K1 20" 970 mm version carbon kid bike.
• Suitable for riders up to 14 years of age or approximately 1.60 m tall.


• Available in 2 versions:
  · Option 1: Hope Tech 4 Trial Zone front and rear disc brakes (Disc/Disc).
  · Option 2: Trialtech front rim brake and Hope Tech 4 Trial Zone rear disc brake (HS/Disc).

Check the following list to see the components of each setup option.

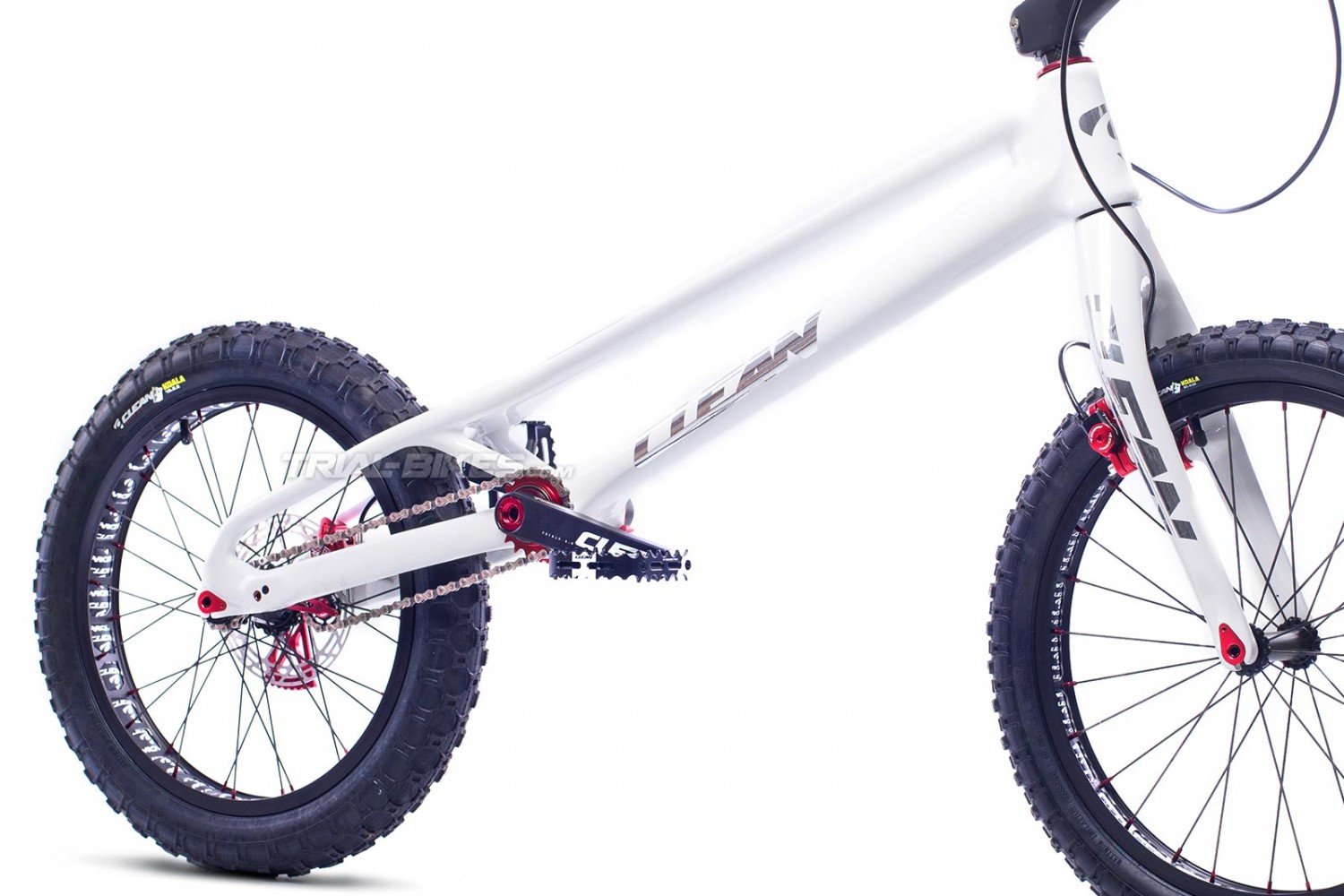

Frame and fork
- Frame: Clean K1 Borja Conejos Edition20”, made of high-modulus carbon fibre, with Post Mount disc brake mounts and exchangeable dropout inserts.
- Forks: Clean K1 Borja Conejos Edition 20” Carbon tapered 1 1/8” – 1.5”, made of carbon fibre, with Post Mount disc brake mounts and 4-bolt rim brake mounts, black or white color depending on availability.

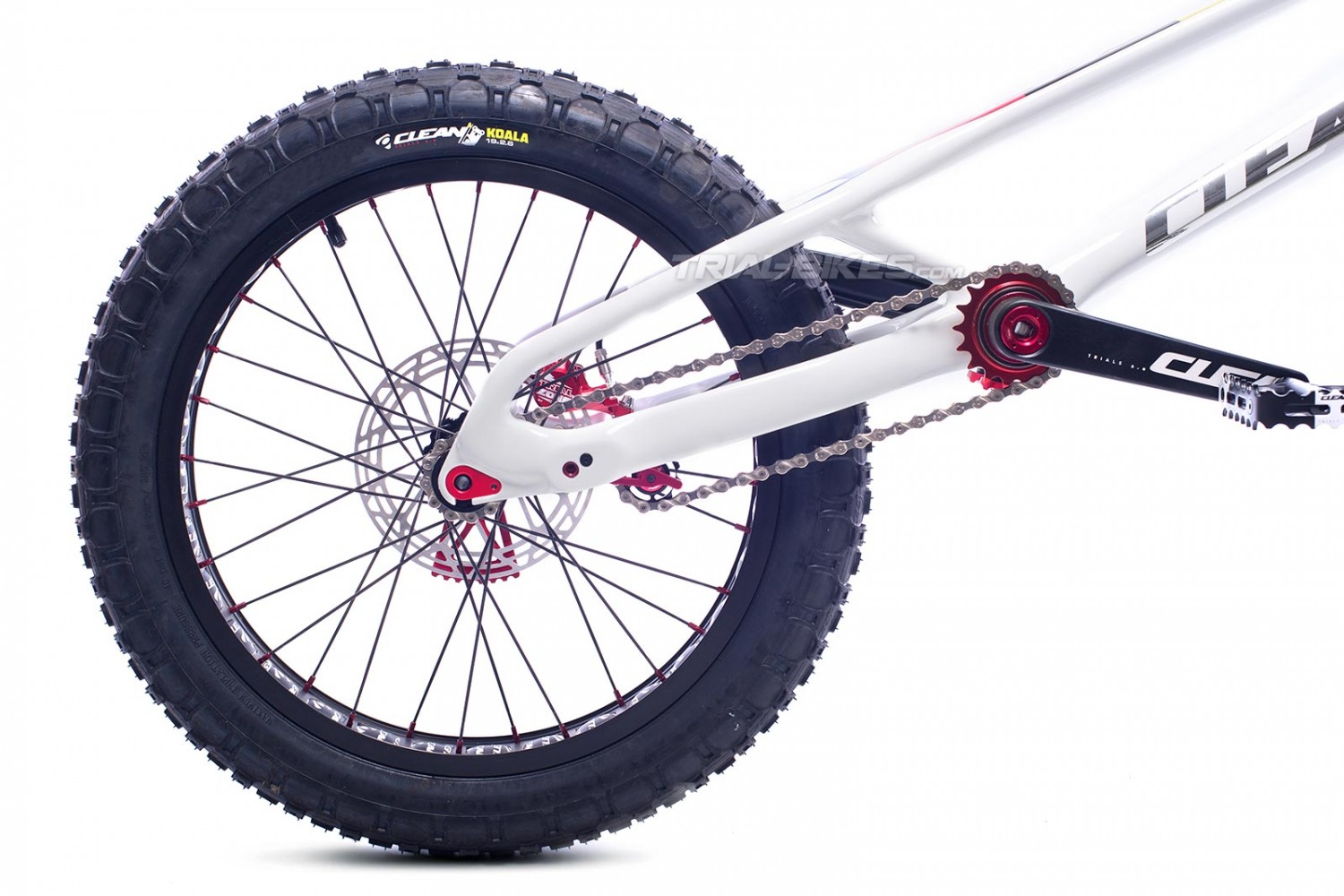

Wheels
- Front hub: Clean X3 28 spoke holes, 12 mm through-axle, 104 mm spacing
- Rear hub: Clean X3 32 spoke holes, 12 mm through-axle and rotor mounts, 120 mm spacing, Shimano HG splines.
- Chain tensioner: Clean X2 PRO integrated, with two 10T jockey wheels made of 7075 T6 aluminium
- Front rim: Clean V2 20", single wall, 34 mm wide, 28 spoke holes, anodized black
- Rear rim: Clean Trials PRO 19”, single wall, 48 mm wide, 32 spoke holes, anodized black
- Spokes: Aero Ultra light spokes, black
- Rim tape: Clean, black
- Front inner tube: Clean 20"
- Rear inner tube: Clean 20"
- Front tyre: Clean Koala 20” x 2.00”
- Rear tyre: Clean Koala 19” x 2.60”

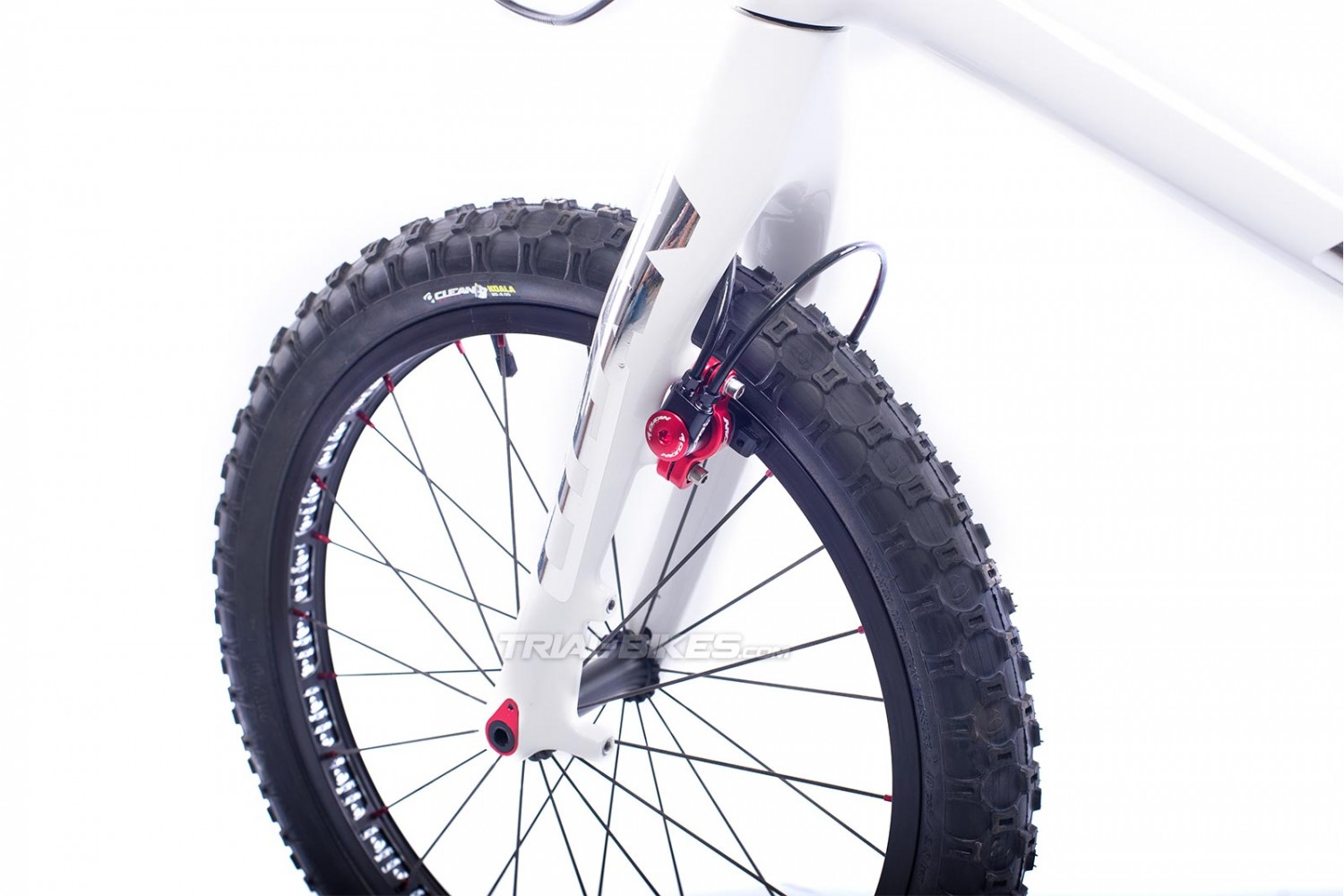

Brakes
- Front brake: Hope Tech 4 Trial Zone or  Trialtech HS rim brake (depending on brakes choice)
- Rear brake: Hope Tech 4 Trial Zone
- Rotors: Clean RS, 160 mm
- Disc protector: Clean
- Rim brake pads: Magura HS black
- Brake clamps: Clean X2 Washerless

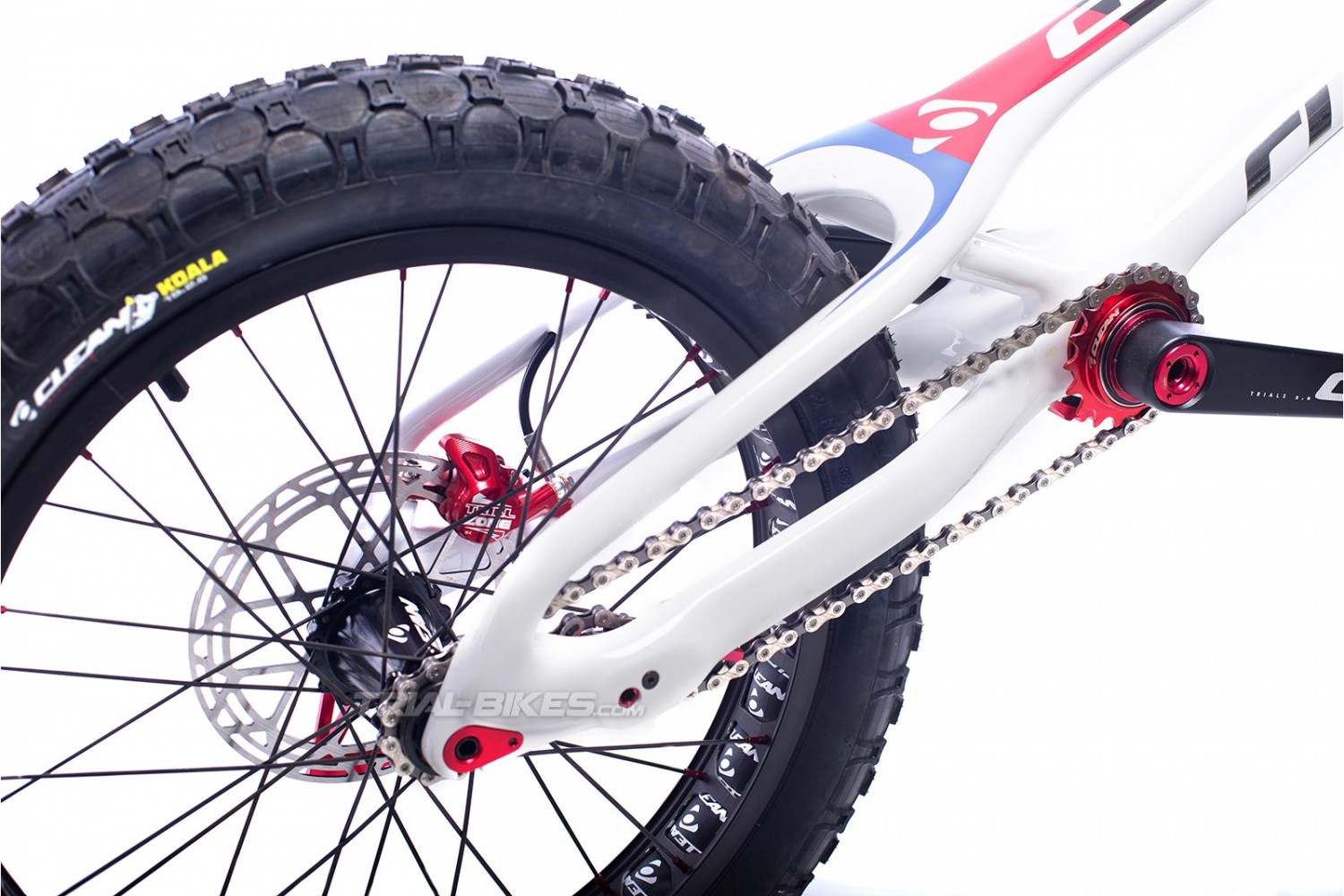

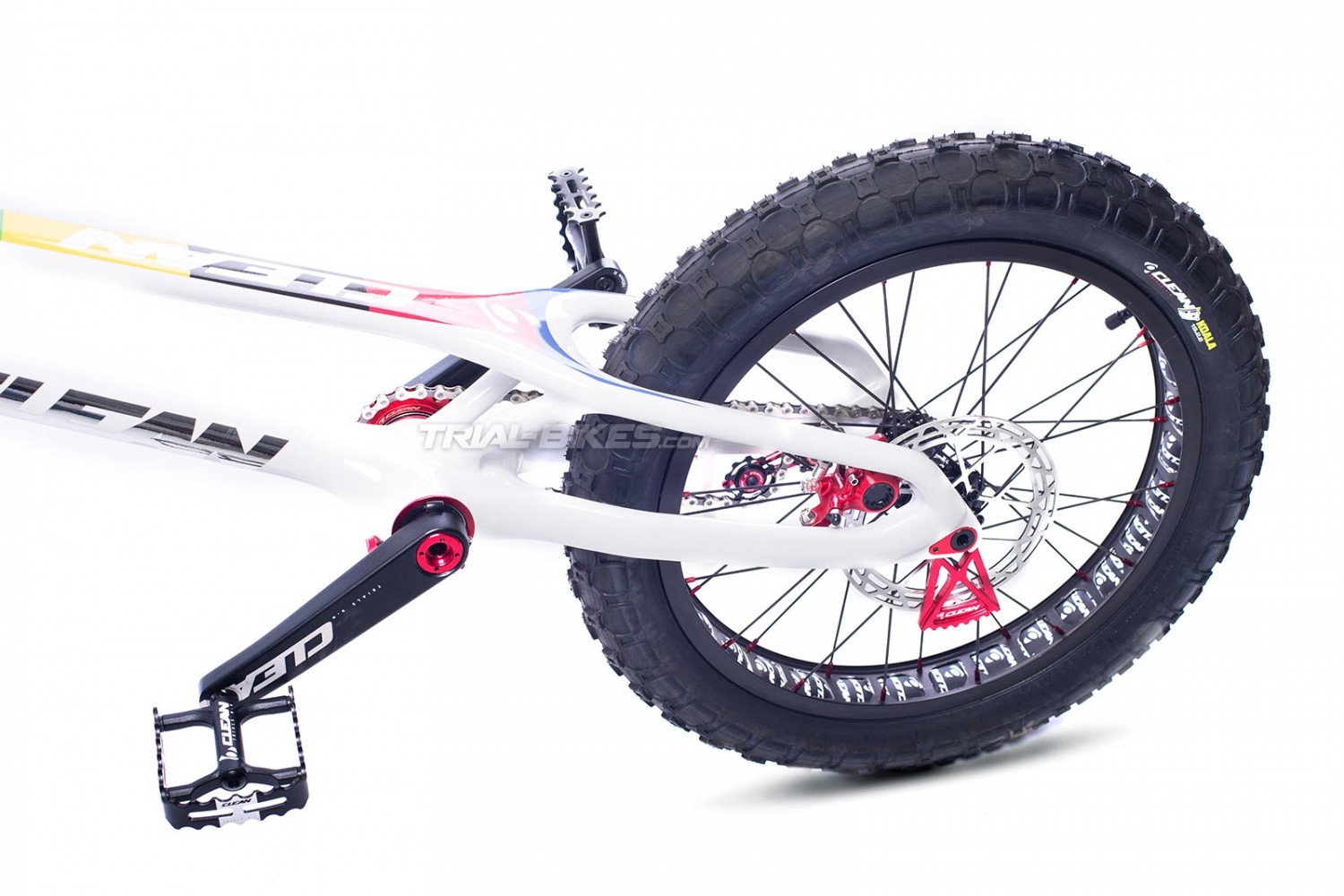

Drivetrain
- Crankset: New Clean X2 3-piece set, with Press Fit BB30 30 mm diameter BB axle, CNC machined, with a new adjustment system. 160 mm long cranks, for Shimano HG-splined freewheel, available in black with Clean silver graphics
- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC X9, silver
- Rear sprocket: Clean 13T splined, steel, black
- Pedals: Clean single cage, 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red

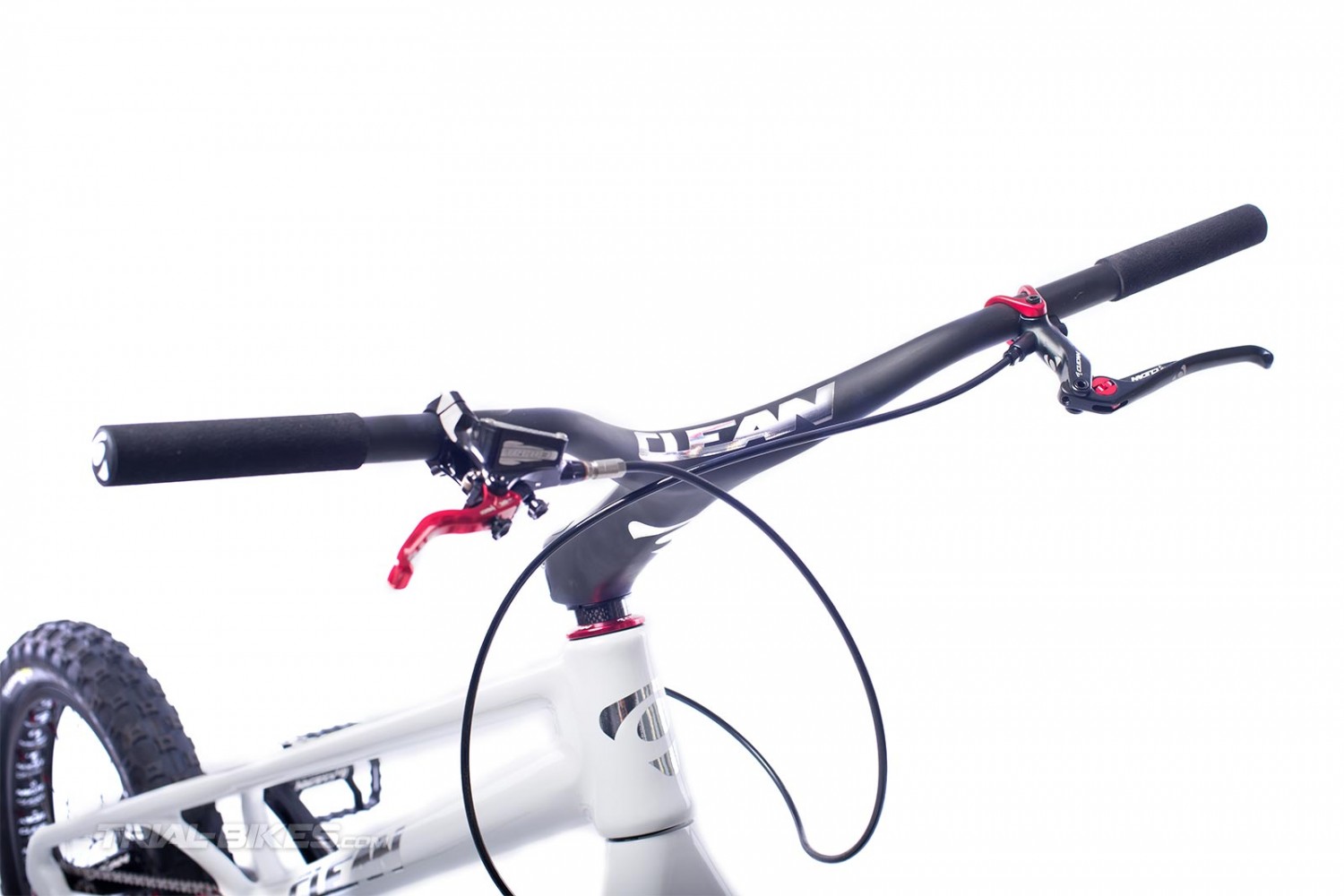

Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Grips: Extra-thin Clean foam, black
- Stem: Clean Trials Pro, 135 mm x 24º.
- Handlebar: Clean X3 103 mm carbon fibre, white.

Geometry

(1) Wheelbase: 970 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +87 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------

Weight
- 7.39Kg (full disc)

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.
Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.
If you have any doubts, please contact us on info@trial-bikes.com.
