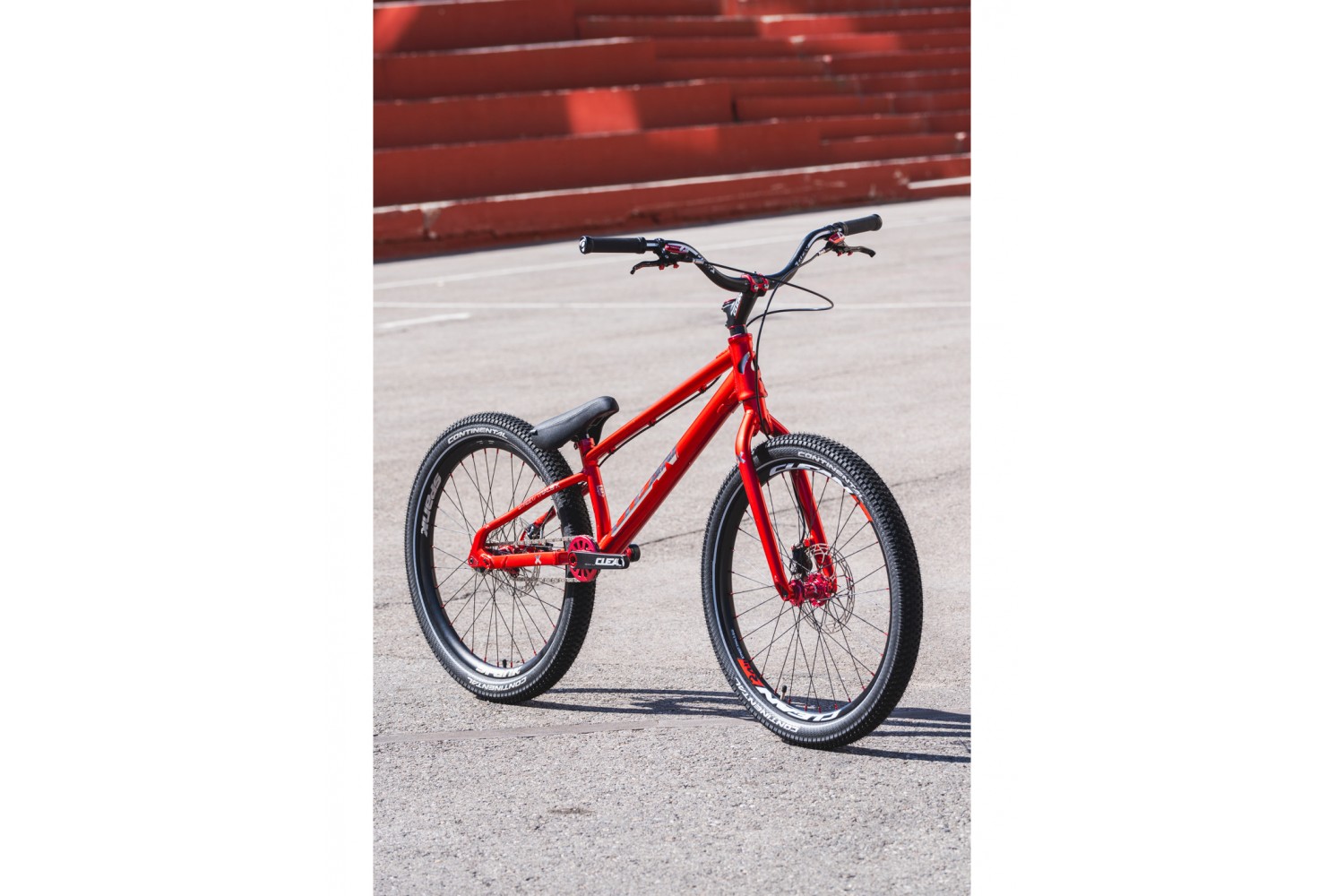

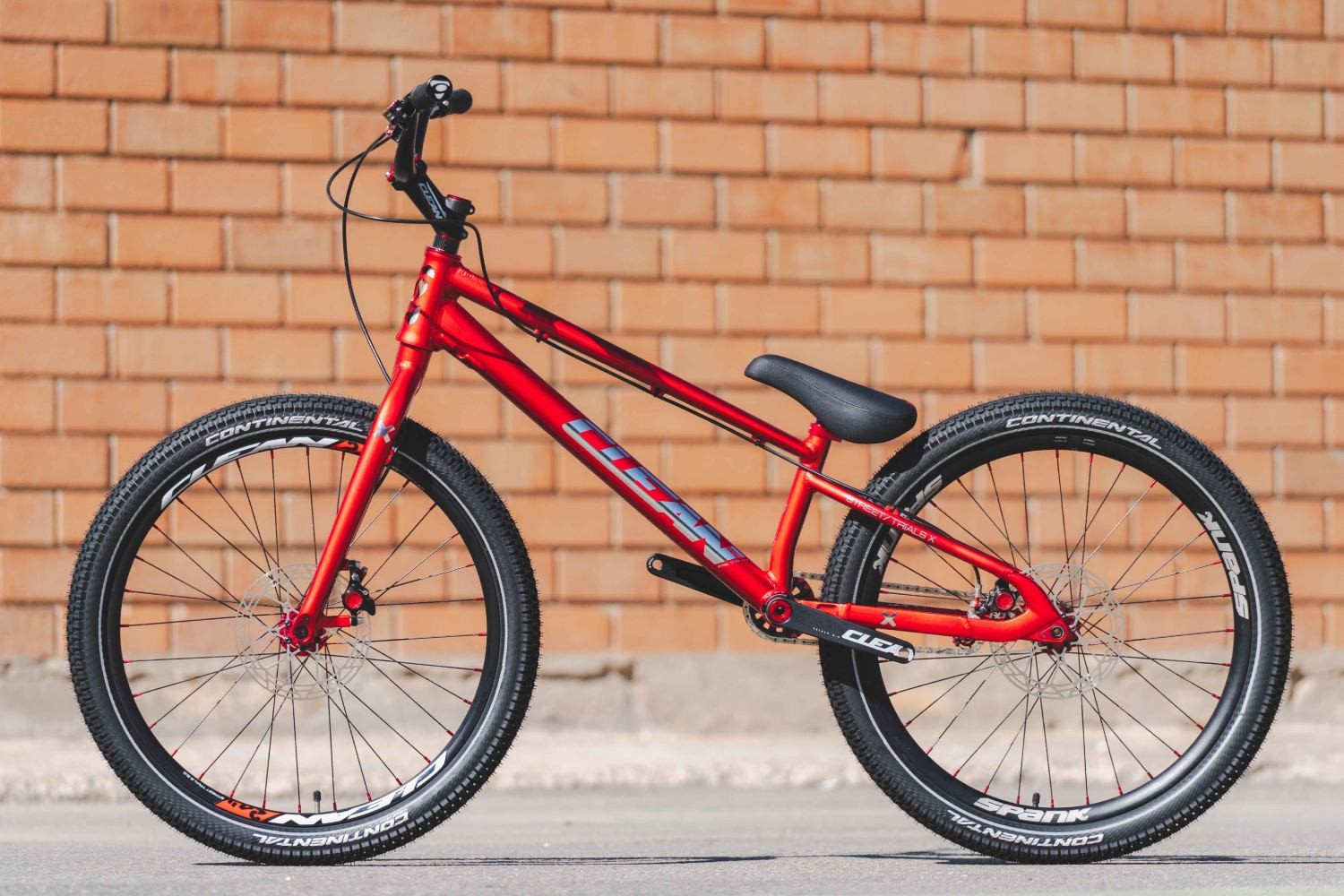

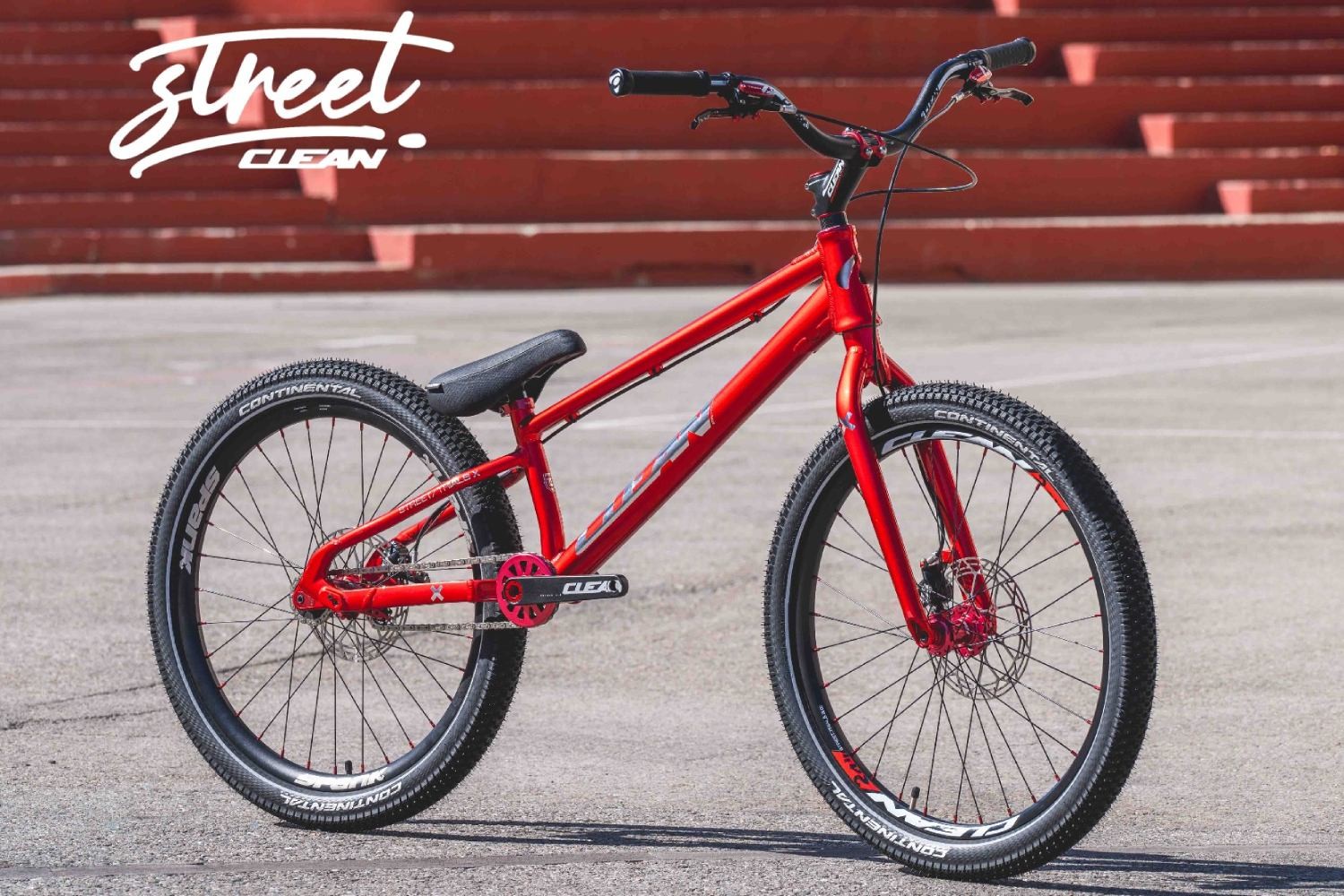

Clean Street 24” Bike

Clean Street ST 24" Bike

Frame and Fork
- Frame: Clean Street 24" Disc 120 mm, 6066 aluminum, 12 mm tru-axle, 180 mm PM disc brake mount, candy red color.
- Fork: Clean Street 24" Disc, tapered steerer, 1 1/8” upper diameter and 1.5” lower, 15 mm tru-axle, candy red color.

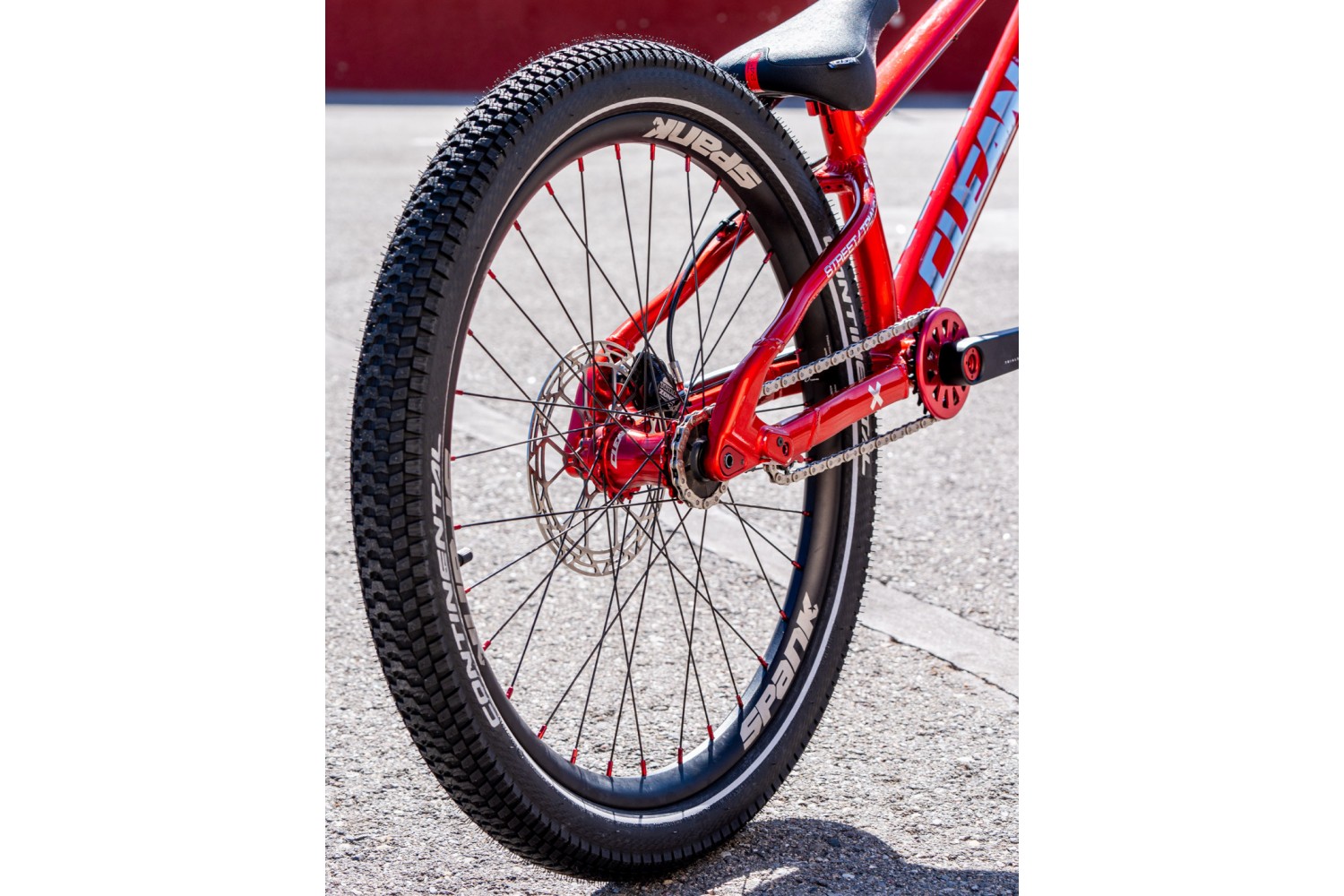

Wheels
- Front Hub: Clean Street 15 mm tru-axle, 32H, 100 mm wide, anodized red.
- Rear Hub: Clean x3 Disc, 12 mm tru-axle, 120 mm spacing.
- Chain Tensioner: Clean X2 PRO Integrated Tensioner, with two 10-tooth wheels made of 7075 T-6 Aluminum.
- Front Rim: Clean Street 24", 32 holes, 30 mm wide.
- Rear Rim: Clean Street 24", 32 holes, 30 mm wide.
- Spokes: Stainless Steel 2 mm, black color.
- Rim Tape: Clean, black.
- Front Tube: Clean 24”.
- Rear Tube: Clean 24”.
- Front Tire: Continental Air King MacAskill Silver Edition 24” x 2.40”.
- Rear Tire: Continental Air King MacAskill Silver Edition 24” x 2.40”.

Brakes
- Front Brake: Magura MT Sport.
- Rear Brake: Magura MT Sport.
- Rotors: Clean 180 mm

Drivetrain
- Cranks: Clean X1 ISIS Cranks 170 mm.
- Front Sprocket: Clean 108.9 Freewheel 18T.
- Bashring: Clean X1.
- Chain: KMC Z1.
- Rear Sprocket: Clean Screw-On Sprocket 13T.
- Pedals: Clean Single Cage Pedals.

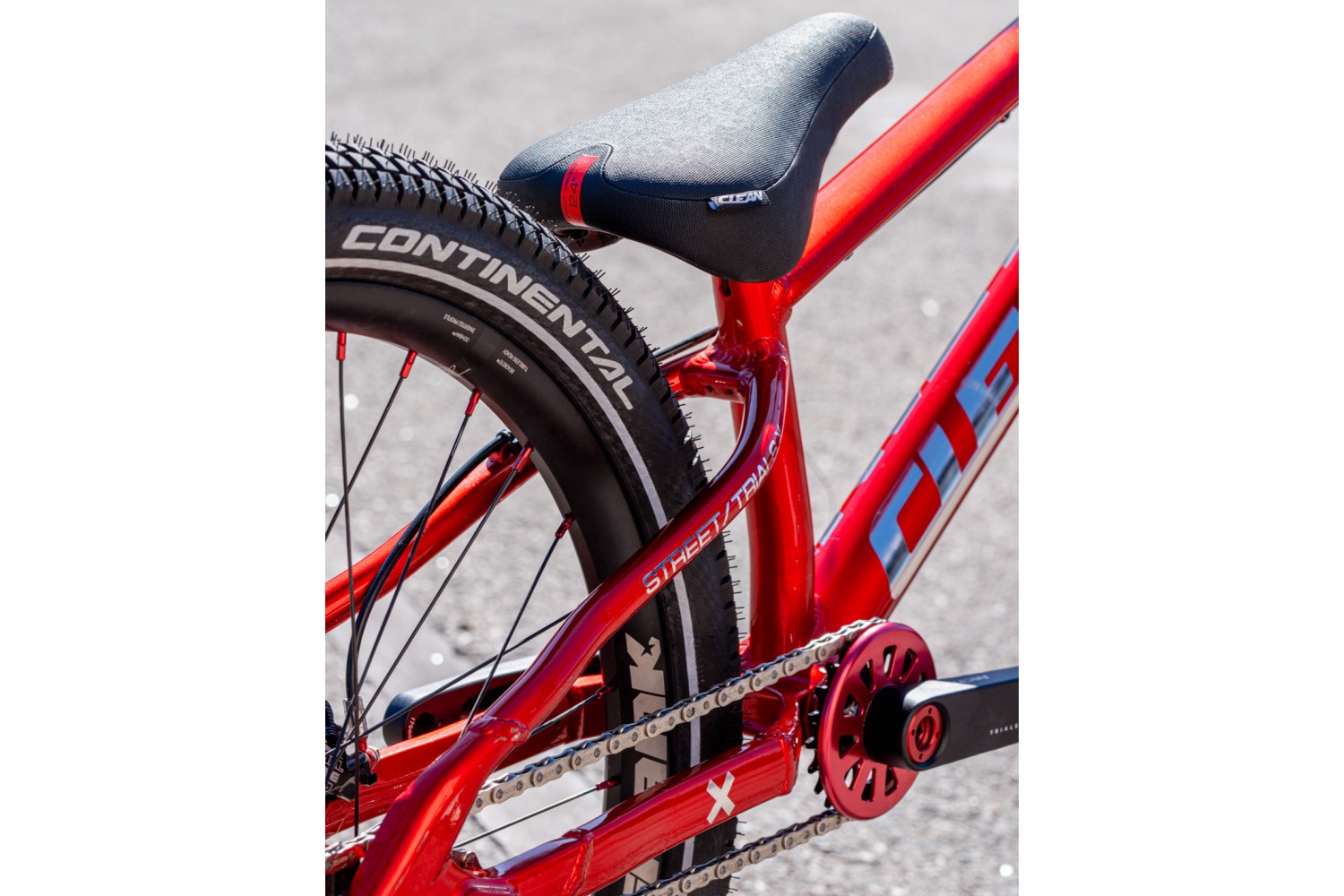

Saddle Set
- Seatpost: Clean Street Tripod.
- Saddle: Clean Street Tripod.
- Seatpost Clamp: Clean Street, anodized red.

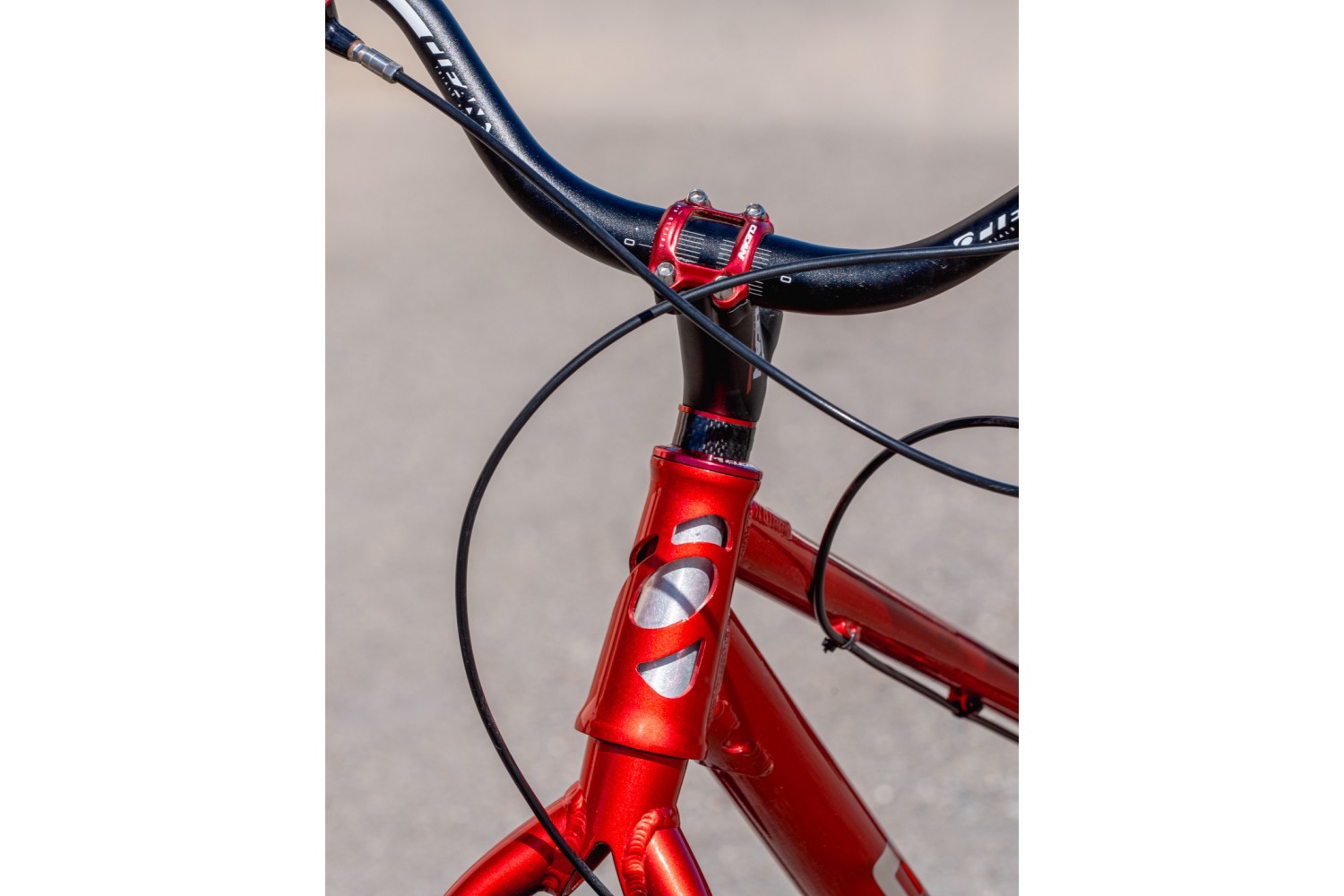

Steering Set
- Headset: Clean K1.2 Integrated 1 1/8" - 1.5".
- Stem: Clean 90 mm x 35º.
- Grips: Clean lock-on rubber grips.
- Handlebar: Clean Street 7075-T6, high-rise, height 750 mm, 5º rise and 9º backsweep, max height: 108 mm.

Geometry
(1) Wheelbase: 990 mm.
-----------------------------------------------
(2) Rear End: 362 mm.
-----------------------------------------------
(3) Bottom Bracket Height: +26 mm.
-----------------------------------------------
(4) Head Angle: 73.2°.
-----------------------------------------------
(5) Bottom Bracket to top-center of headtube:
-----------------------------------------------
(6) Reach: 444 mm.
-----------------------------------------------
(7) Stack: 466 mm.

Weight
- 12 kg (including pedals).

Additional Information
Some images may not match the product description, please carefully review the specifications.

This bike comes partially assembled.

For any questions or additional modifications, feel free to contact us at info@trial-bikes.com.
