Clean X1 20" 1005mm Bike

Clean X1 20" 1005mm Bike

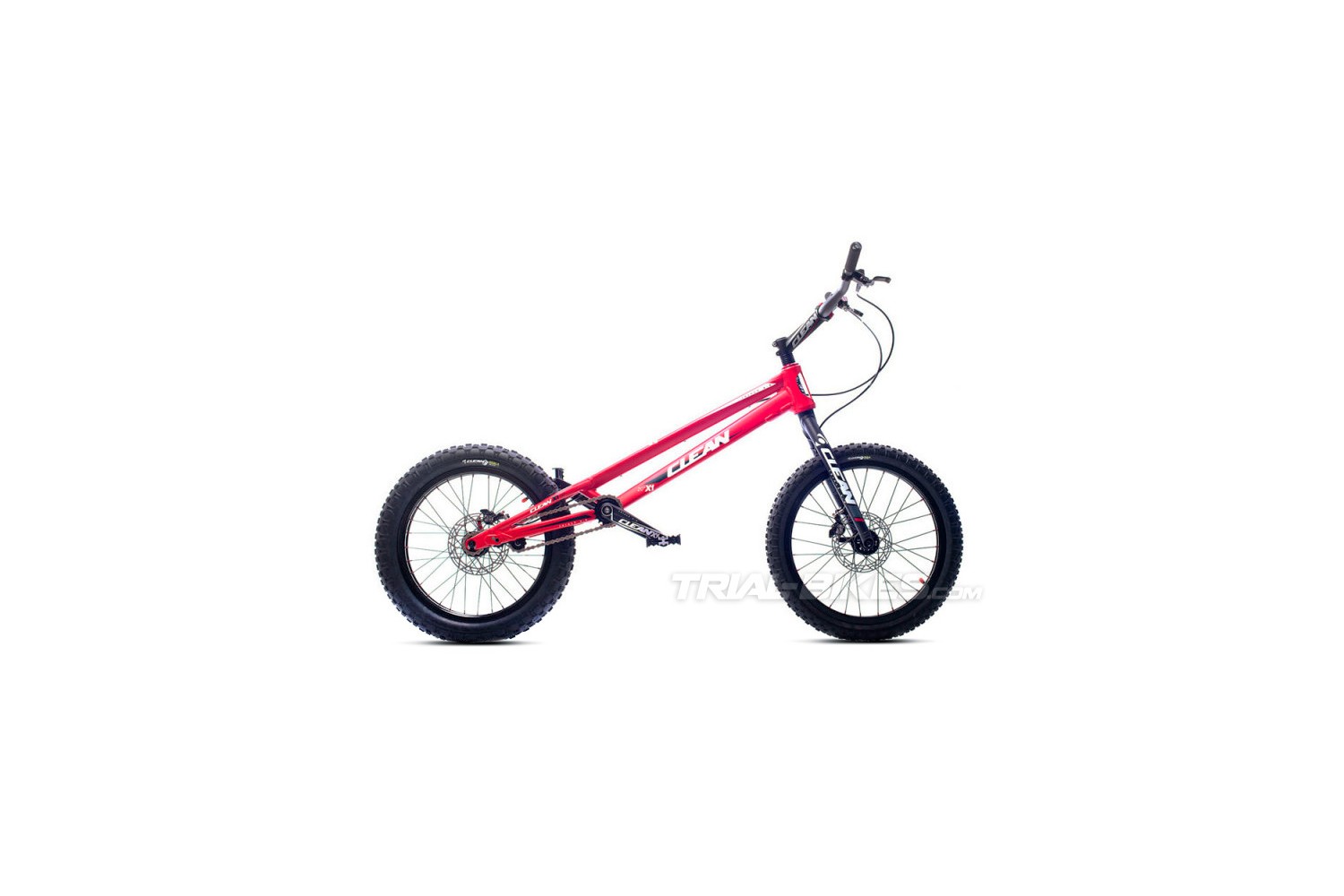

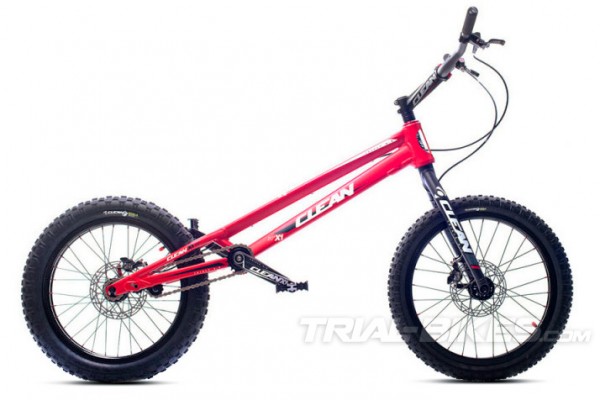

The new Clean X1 20” bike combines the technology applied on the X2 frame, like the new hydro formed downtube, 2-wheel sprung tensioner, tapered headset… And it comes with a new red finish with white and black graphics!

It’s available in two different setup options:
           · Option 1: Magura MT2 front and rear disc brakes (Disc/Disc).
           · Option 2: Hope Tech3 front disc brake and  Hope Tech3 rear disc brake.

Frame and fork
- Frame: Clean X1 20”, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts
- Forks: Clean X2 20” tapered 1 1/8” – 1.5” frame, made from 7005-T6 aluminium alloy, with Post Mount disc brake mounts.

Wheels
- Front hub: Clean Expert 28 spoke holes, with rotor mounts or Clean X2 (Hope brakes version).
- Rear hub: Clean Expert 32 spoke holes, with rotor mounts or Clean X2 (Hope brakes version).
- Chain tensioner: Clean X2 integrated, with two 11T jockey wheels made of plastic, black
- Front rim: Clean V2 20”, single wall, 34mm wide, 28 spoke holes, anodized black
- Rear rim: Clean 19”, single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: 1.8mm spokes, black
- Rim tape: Clean, grey
- Front inner tube: Maxxis Extra Light
- Rear inner tube: Maxxis Extra Light
- Front tyre: Clean Koala 20”x2.00”
- Rear tyre: Clean Koala 19”x2.60”

Brakes
- Front brake: Magura MT2 or Hope Tech3
- Rear brake: Magura MT2 or Hope Tech3

- Rotors: Clean RS, 160mm (front), 162.5mm (rear)
- Disc protector: Clean


Drivetrain
- Cranks: Clean ISIS 7075-T6 160mm, black with silver Clean graphics
- Bottom Bracket: Clean 128mm, BSA 68mm, 1.37”x24tpi, thread
- Freewheel: Clean X2 108.9 18T screw-on, with 108 engagement points, 9 pawls and 18 teeth
- Chain: KMC 610HX, silver
- Rear sprocket: Clean 12T Screw-on, made from 7075-T6 aluminium alloy, anodized black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red

Steering
- Headset: Clean Internal Tapered 1 1/8” - 1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Clean 150mm x 35º, 31.8mm Oversized handlebar diameter, black with silver Clean graphics
- Grips: Clean foam, black
- Handlebar: Clean 7075 103mm, 31.8mm Oversized handlebar diameter, black finish with white and red Clean graphics or Clean X2 Carbon 103mm Handlebar (version Hope).

Geometry:
- Wheelbase: 1005mm
- Chainstay length: 350mm
- Bottom bracket rise: +87mm
- Head angle: 72º

Weight
- 8.16Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .
