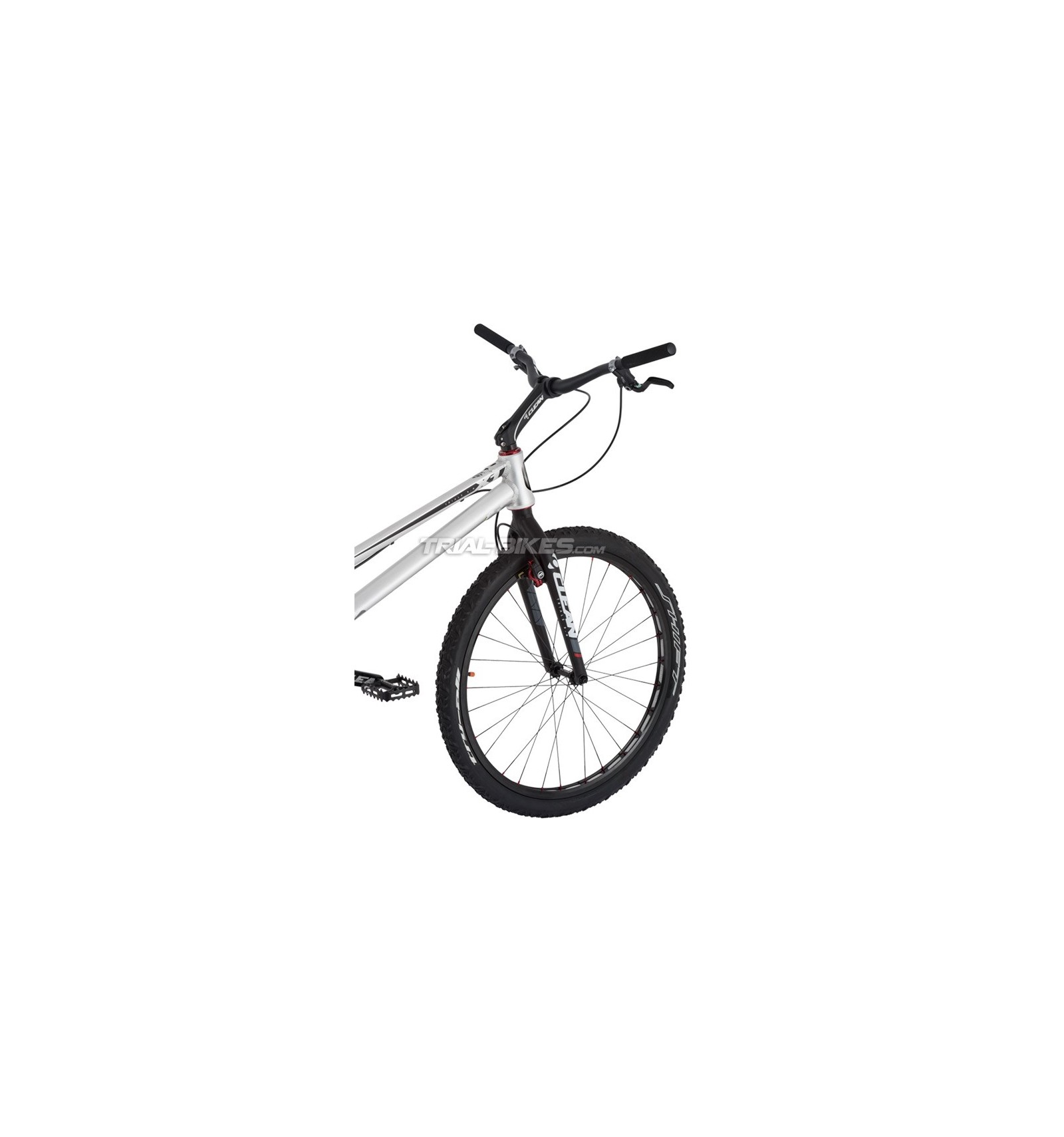

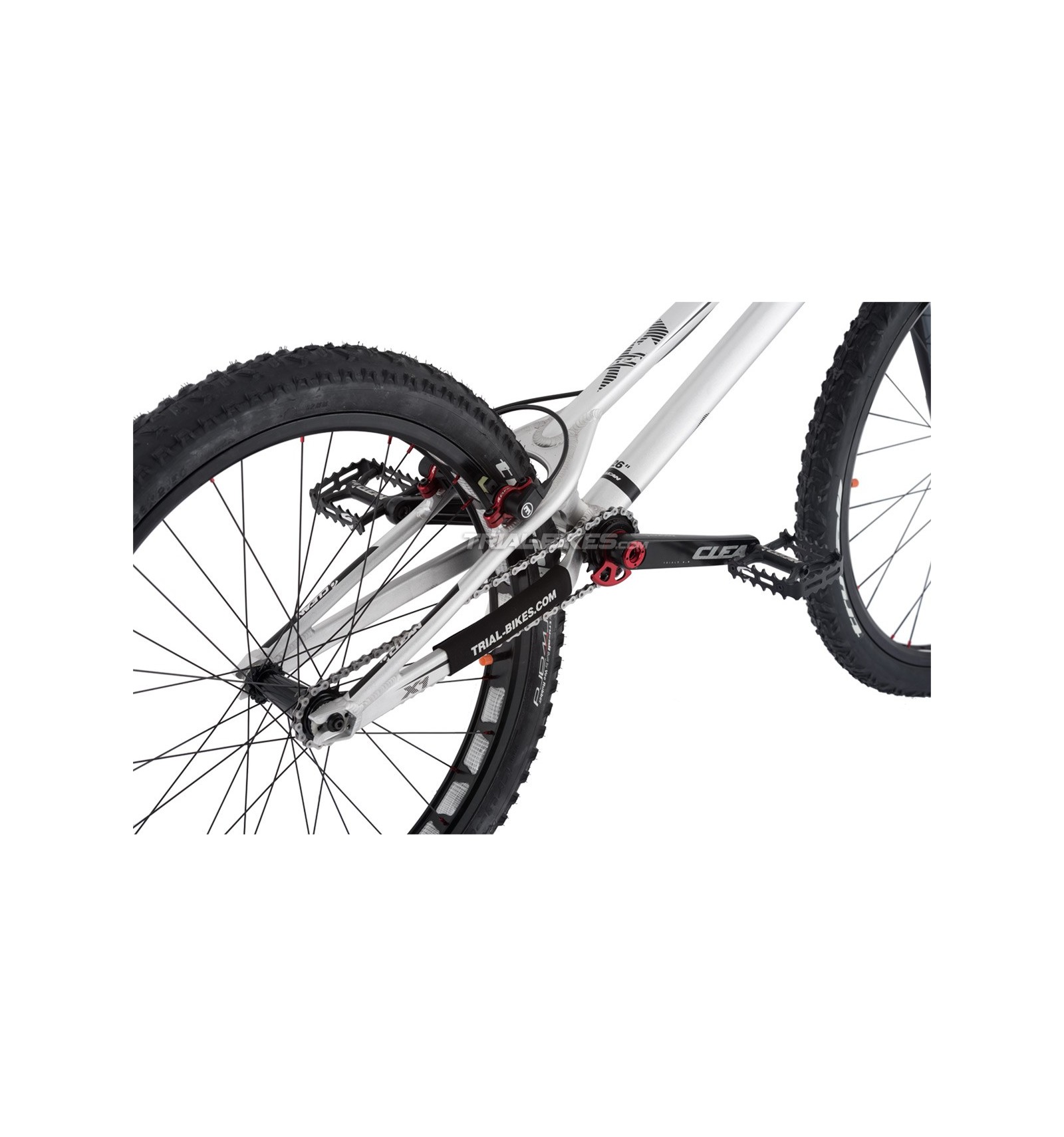

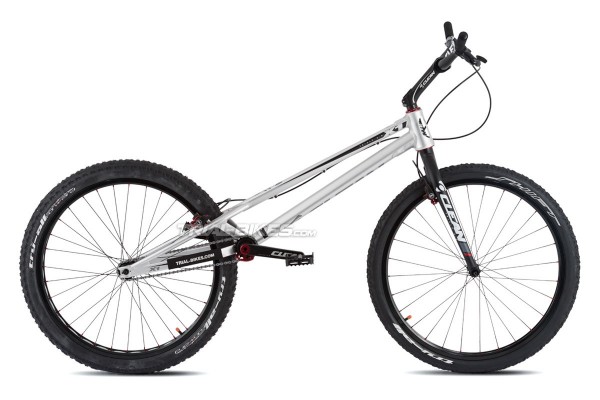

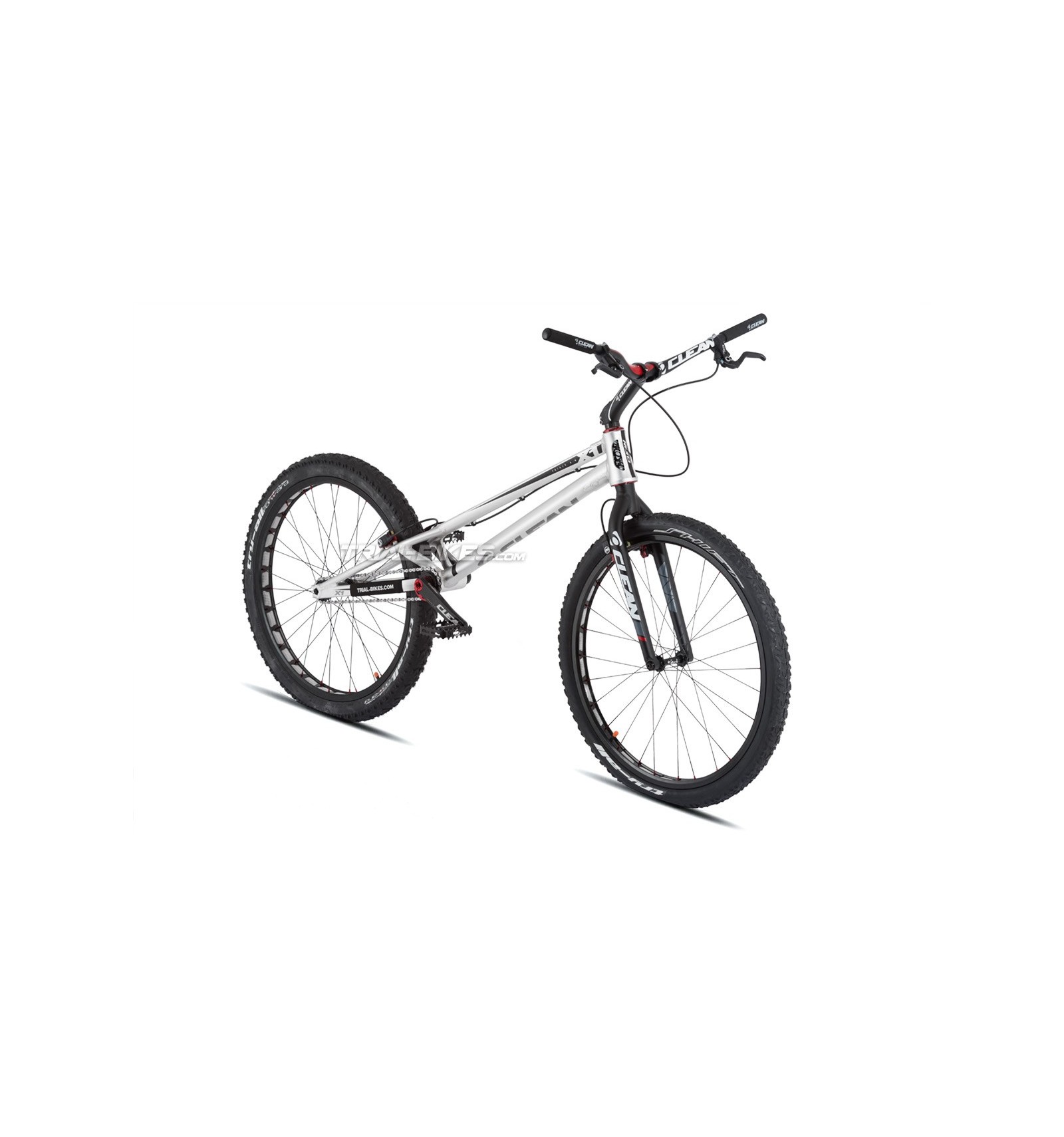

Clean X1 26'' Bike

The new Clean X1 26” bike is the first 26 inches bike manufactures by Spanish brand Clean. Therefore, every detail has been carefully analyzed, after months of development and testing carried out by world class riders Sergi Llongueras and Gilles Coustellier! So, this model now leads the market with new features like its tapered headset, twin seat tubes, Press Fit BB30 bottom bracket, super stiff design and high quality components!

Frame and fork
- Frame: Clean X1 26”, made from 6061-T6 + 7075-T6 aluminium alloys, with 4-bolt rim brake mounts
- Forks: Clean X2 26” tapered 1 1/8” – 1.5”, made from 7005-T6 aluminium alloy, with 4-bolt rim brake mounts

Wheels
- Front hub: Clean HS 28 spoke holes, 100mm spacing, anodized black
- Rear hub: Clean X2 32 spoke holes, 116mm spacing, anodized black
- Chain tensioner: Clean snail cams, silver
- Front rim: Clean X2 26”, single wall, 31mm wide, 28 spoke holes, anodized black
- Rear rim: Clean X2 26”, single wall, 49mm wide, 32 spoke holes, anodized black
- Spokes: Sapim Double Butted, black
- Rim tape: Clean, grey
- Front inner tube: Maxxis Extra Light
- Rear inner tube: Maxxis Extra Light
- Front tyre: Try-All Shift Light 26”x2.00”
- Rear tyre: Try-All Forward 26”x2.50”

Brakes
- Front brake: Magura HS33 2014
- Rear brake: Magura HS33 2014

- Rim brake pads: Clean X2
- Brake clamps: Clean X2 Washerless

Drivetrain
- Crankset: Clean X2 3-piece set, with Press Fit BB30 30mm diameter BB axle, CNC machined. 160mm long cranks, for Cassette Shimano-type freewheel, available in black with Clean silver graphics
- Freewheel: Clean X2 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, black
- Chain: KMC X101, silver
- Rear sprocket: Clean 15T Screw-on, made from 7075-T6 aluminium alloy, anodized black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean bashring, anodized black

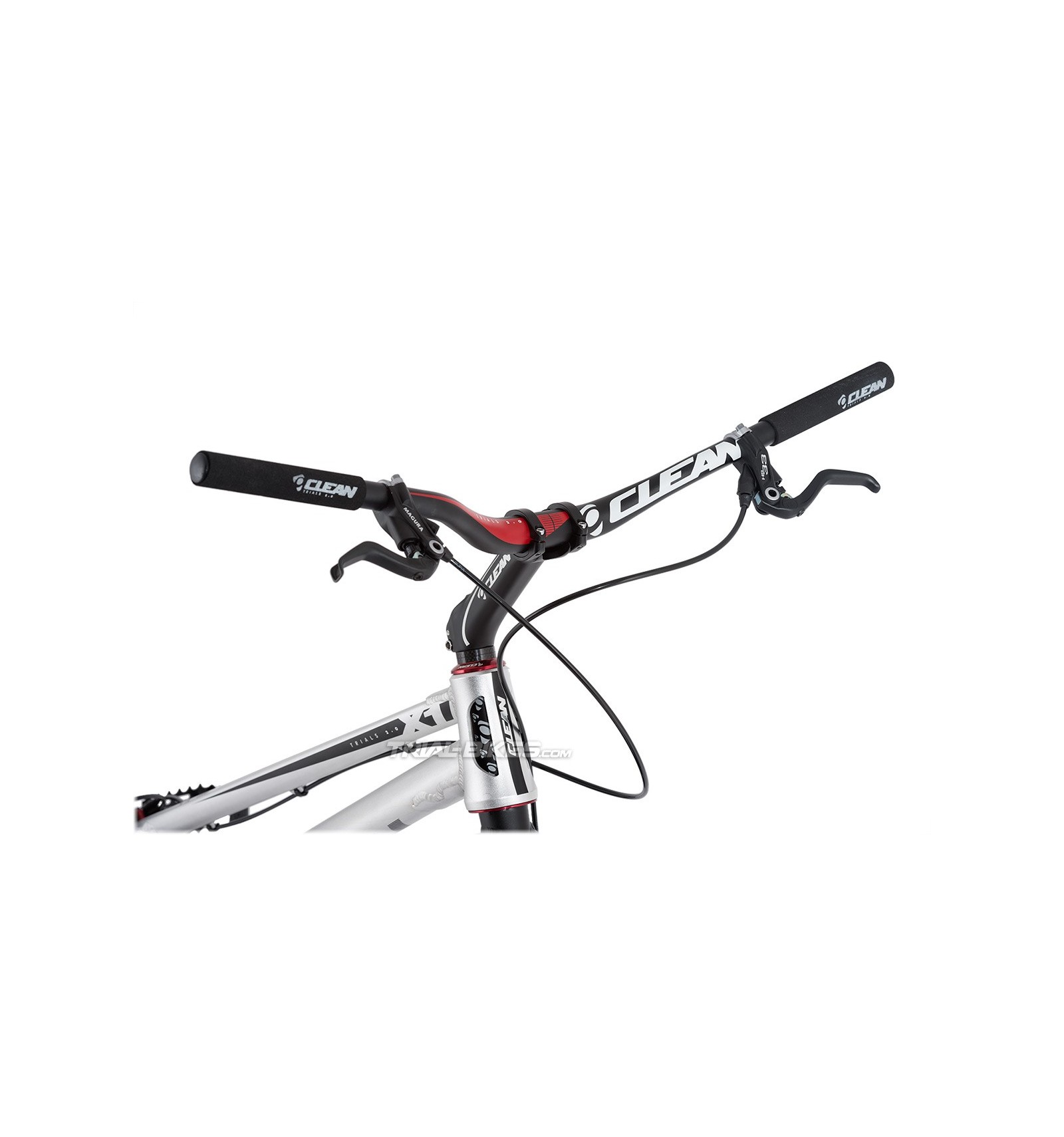

Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Clean 152mm x 31.6º, 31.8mm Oversized handlebar diameter, black with silver Clean graphics
- Grips: Clean foam, black
- Handlebar: Clean Alu, 720mm long, 31.8mm Oversized handlebar diameter, black finish with white and red Clean graphics

Geometry:
- Wheelbase: 1090mm (1085mm measured by TrialBikes)
- Chainstay length: 380mm
- Bottom bracket rise: +68mm
- Head angle: 72º

Weight
- 8,620Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .
