Clean X2 20'' WC Edition 2019 Bike

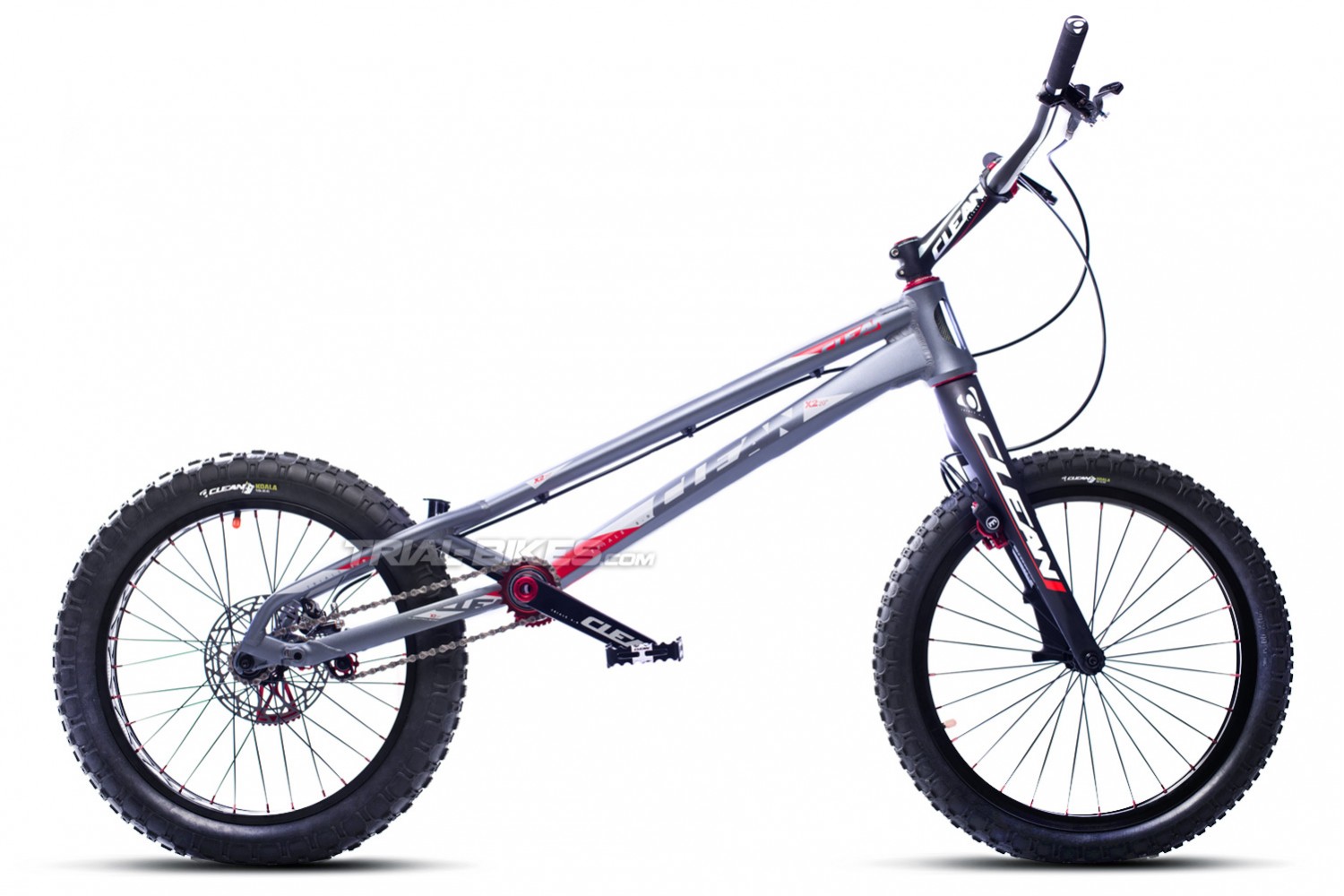

Clean X2 20” WC Edition 2019 trials bike

The Clean X2 20” WC Edition trials bike is Clean’s top of the range 20” aluminium trials bike for 2019, and now features new grey, white and red graphics. This bike is built using ultra light, high-end parts: Clean carbon fork, Clean carbon handlebar, Clean BB30 crankset, sprung chain tensioner, tapered headset…

It’s available in two different setup options:
· Option 1: Hope Tech 3 Trial Zone front and rear disc brakes (Disc/Disc).
· Option 2: Clean T13 front rim brake and Hope Tech 3 Trial Zone rear disc brake (HS/Disc).

Check the following list to see the components of each setup option.

Frame and fork
- Frame: Clean X2 20” 2019, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts
- Forks: Clean X2 20” Carbon tapered 1 1/8” – 1.5”, made from carbon fibre, with Post Mount disc brake mounts and 4-bolt rim brake mounts

Wheels
- Front hub: Clean X2 28 spoke holes, with or without rotor mounts (depending on brakes choice), 100mm spacing, anodized black
- Rear hub: Clean X2 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Clean X2 integrated, with two 11T jockey wheels made of plastic, black
- Front rim: Clean X2 High Profile 20”, single wall, 34mm wide, 28 spoke holes, anodized black
- Rear rim: Clean T 19”, single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: 1.8mm spokes, black
- Rim tape: Clean, grey
- Front inner tube: Maxxis Extra Light
- Rear inner tube: Maxxis Extra Light
- Front tyre: Clean Koala 20”x2.00”
- Rear tyre: Clean Koala 19”x2.60”

Brakes
- Front brake: Hope Tech 3 Trial Zone or Clean T13 rim brake (depending on brakes choice)
- Rear brake: Hope Tech 3 Trial Zone

- Rotors: Clean RS, 160mm (front), 162.5mm (rear)
- Disc protector: Clean

- Rim brake pads: Clean X2
- Brake clamps: Clean X2 7075-T6 CNC Washerless

Drivetrain
- Crankset: Clean X2 3-piece set, with Press Fit BB30 30mm diameter BB axle, CNC machined. 160mm long cranks, for Cassette Shimano HG-type freewheel, available in black with Clean silver graphics
- Freewheel: Clean X2 BB30 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC X9-73
- Rear sprocket: Clean 12T Screw-on, made from 7075-T6 aluminium alloy, anodized black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red

Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Clean 145mm x 25º, 31.8mm Oversized handlebar diameter, black with silver Clean graphics
- Grips: Clean foam, black
- Handlebar: Clean X2 103mm carbon fibre, 720mm long, 31.8mm Oversized handlebar diameter, black finish with white Clean graphics

Geometry:
- Wheelbase: 1005mm
- Chainstay length: 350mm
- Bottom bracket rise: +87mm
- Head angle: 72º

Weight
- To be confirmed

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.

Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.

If you have any doubts, please contact to info@trial-bikes.com.
