Comas Entry 20" 1008mm Bike

Comas Entry 20" 1008mm Bike

Available in 2 different versions:

1. With cable disc brakes.
2. With Tektro HDM275 hydraulic disc brakes.

Frame and Fork
- Frame: Comas Entry 20”, 1008mm, Features a headtube, for 1 1/8” headsets, Post Mount disc brake mounts , orange color.
- Fork: Comas Entry 20”, 1 1/8”, Post Mount disc brake mounts, BLACK COLOR.

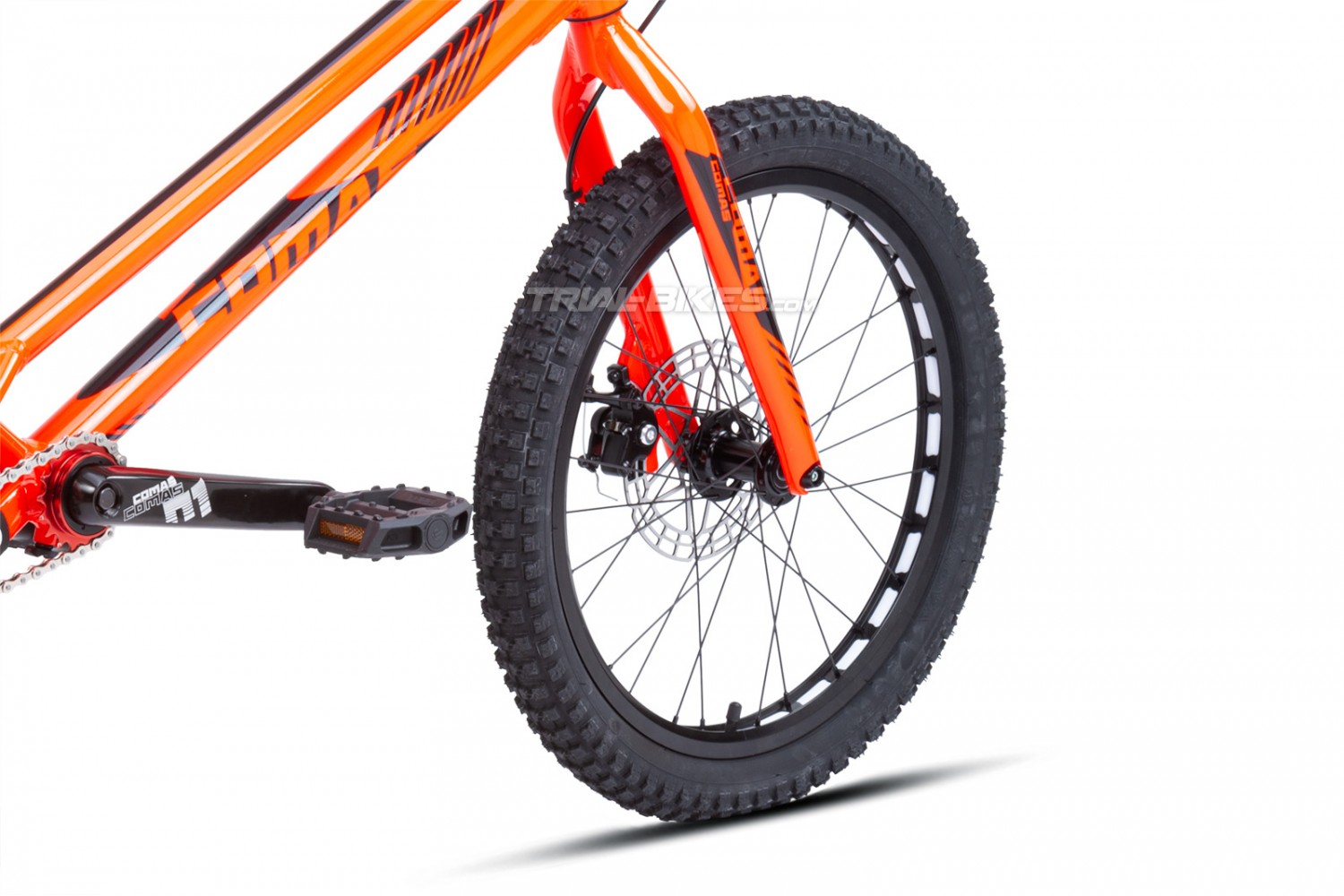

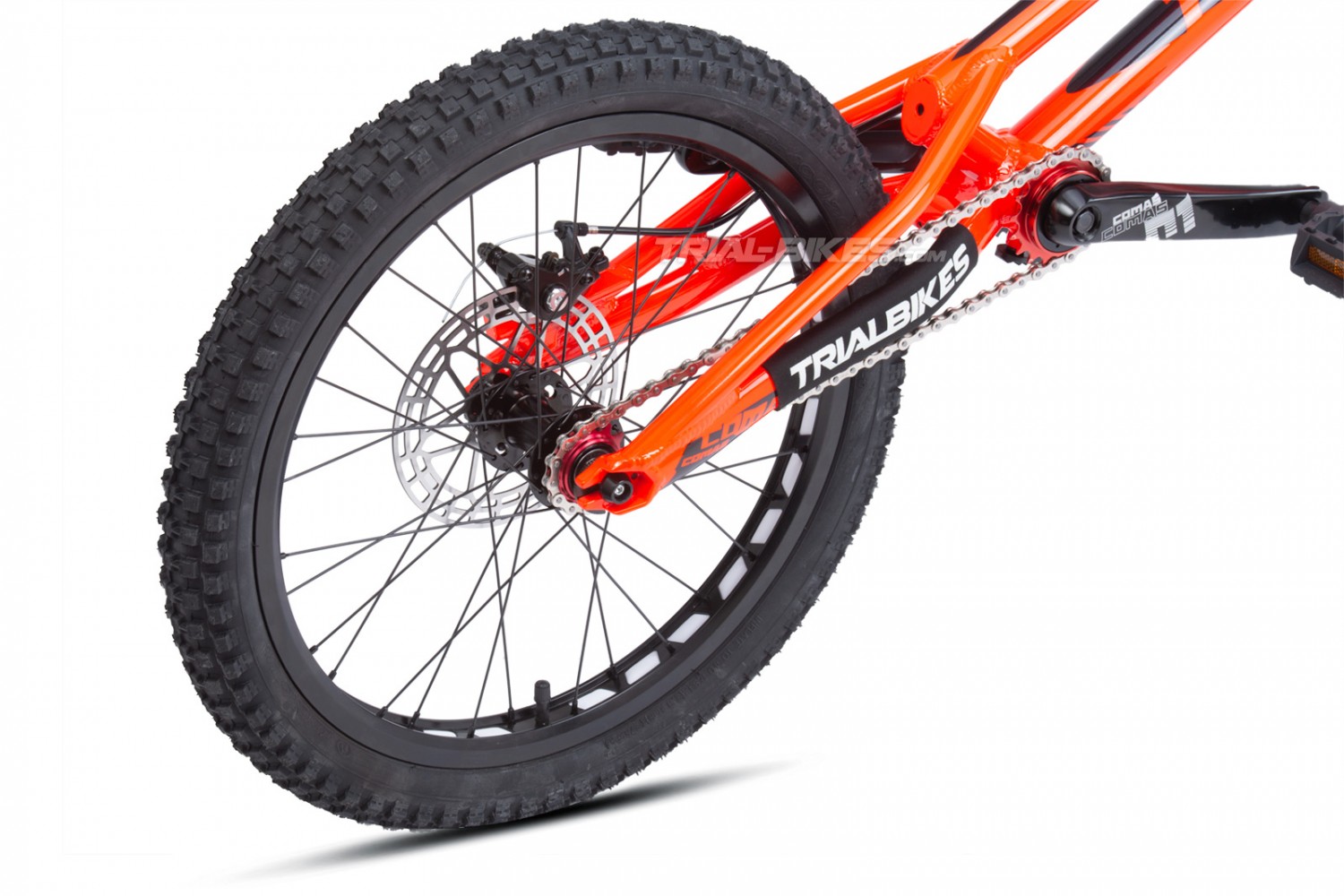

Wheels
- Front hub: Comas Disc 28 spoke holes, with rotor mounts, 100mm spacing, anodized black.
- Rear hub: Comas Disc 32 spoke holes, with rotor mounts, 116mm spacing, anodized black.
- Chain tensioner: Comas snail cams, black.
- Front rim: Comas 20'', single wall, 32mm wide, 28 spoke holes, anodized black.
- Rear rim: Comas 20”, single wall, 48mm wide, 32 spoke holes, anodized black.
- Spokes: Comas 13G (1.8mm), made of steel, black.
- Nipples: Aluminium 13G, black.
- Rim tape: Comas, white.
- Front inner tube: Comas 20”x 1.75.
- Rear inner tube: Comas 20”x 1.75.
- Front tyre: Innova 20”x2.25”.
- Rear tyre: Monty ProRace 20”x2.25”.

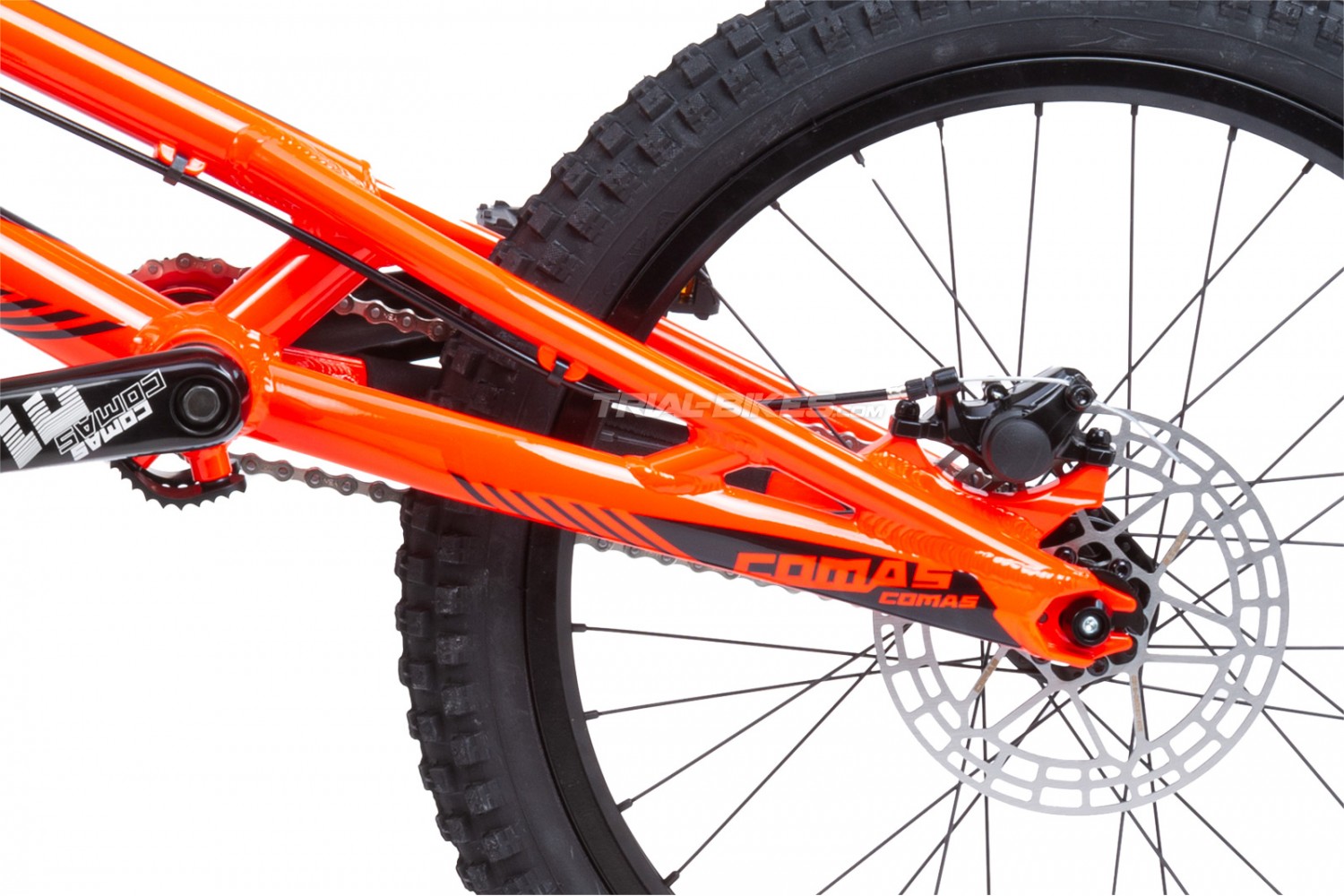

Brakes
- Front brake: Cable disc brakes or Tektro hydraulic  disc brake 160mm, Post mount (optional).
- Rear brake: Cable disc brakes or Tektro hydraulic disc brake 160mm, Post mount (optional).
- Rotors: Comas Race 160mm.

Drivetrain
- Cranks: Comas JIS (square), 170mm long.
- Bottom bracket: Comas JIS (square), 124.5mm axle.
- Freewheel: Comas 30.6 18T, with 30.6 engagement points, 18 teeth.
- Chain: YBN S20, 1/2x3/32”.
- Rear sprocket: Comas 12T Screw-on, Aluminum 7075-T6.
- Pedals: Plastic pedals (we recommend replacing them for some higher quality pedals).
- Bashring: Comas ultralight bashring, anodized black.

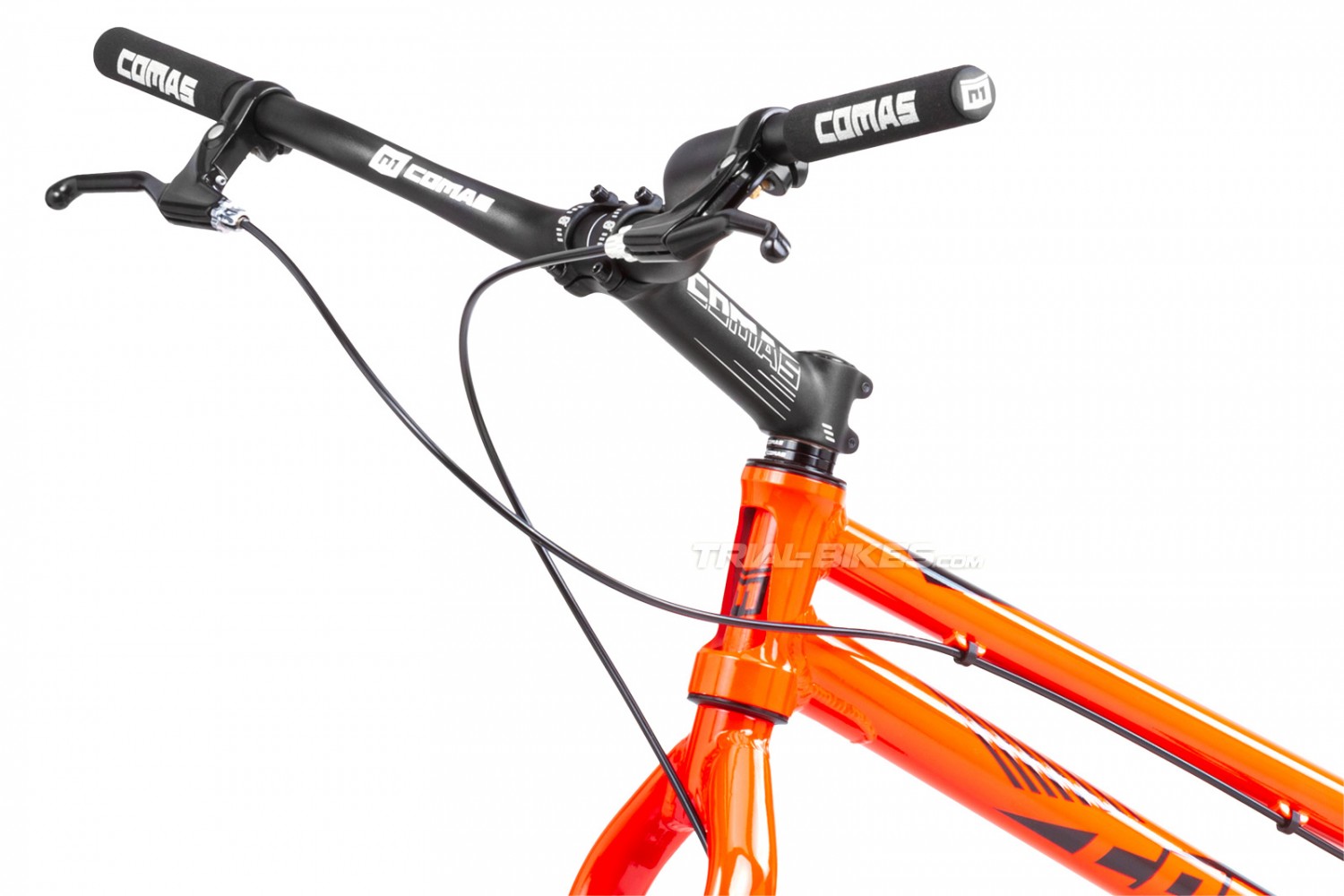

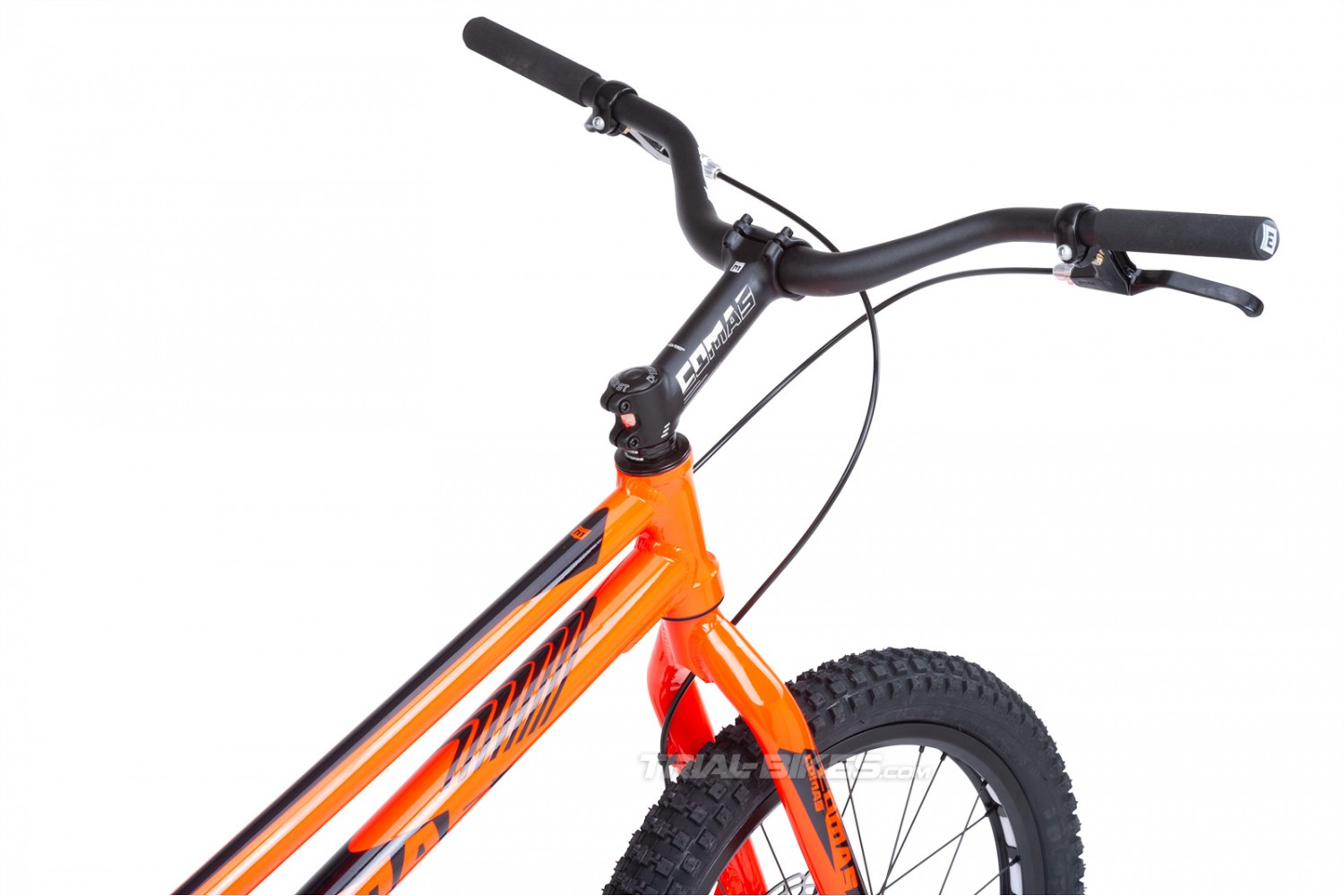

Steering
- Headset: Comas 1 1/8" internal , black.
- Stem: Comas 20º, 150mm x 20º, 31.8mm Oversized handlebar diameter, black with white Comas graphics.
- Grips: Comas rubber grips.
- Handlebar: Comas Entry, 720mm long, 105mm rise, 31.8mm Oversized handlebar diameter, black with white Comas graphics.

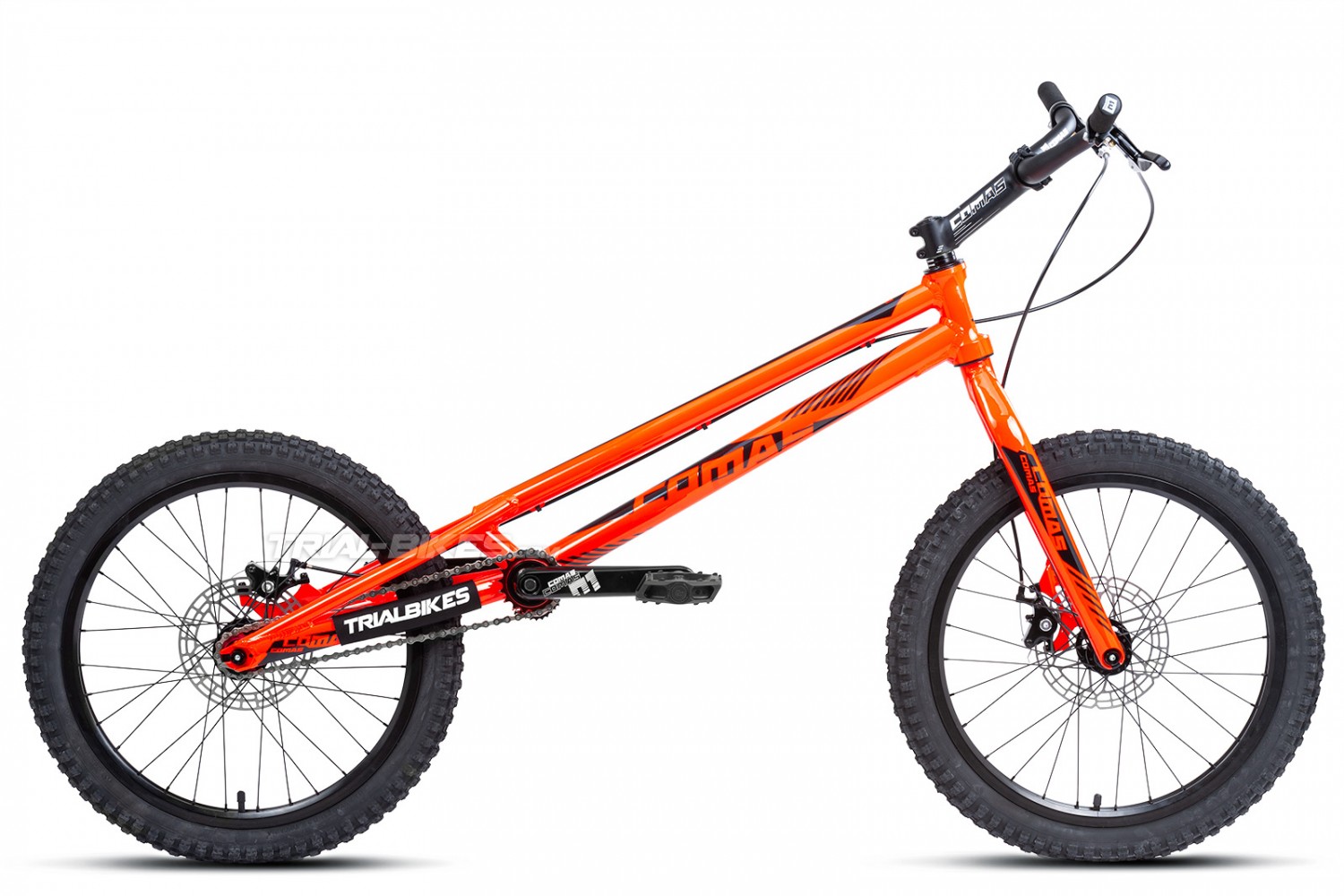

Geometry (based on Comas fork 370mm and +40mm offset)

(1) Wheelbase: 1008 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +85 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------

Weight
- 8,990 Kg ( Cable disc brakes version and with plastic pedals at 342 g)

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.
Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up by our workshop, so the customer will only have to wheels, chain, pedals, and the headset up.

If you have any doubts, please contact to info@trial-bikes.com.
