Comas R2 26” Bike

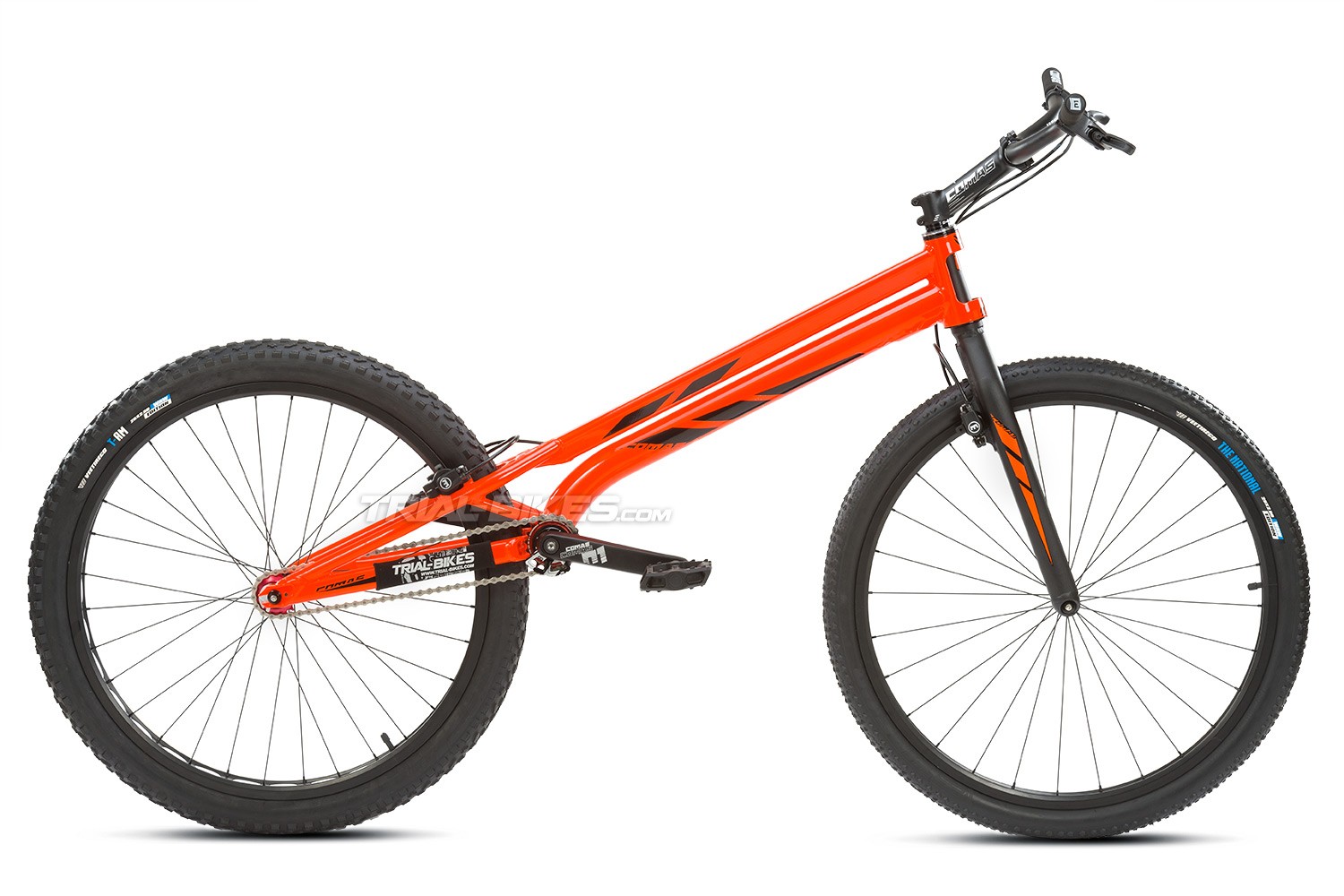

Comas R2 26" 2021 Trials Bike

The Comas R2 26" 2021 is the bike ridden by UCI World Champion Sergi Llongueras. Featuring Comas’ exclusive design, tested and improved throughout the years, now achieving top-level performance thanks to its low weight and quality components.

 This is the bike ridden by UCI World Champion Sergi Llongueras.
 New design for 2021 with bright orange and black Comas graphics.
 Built with Comas 108.9 freewheel, 170mm forged cranks, Magura hydraulic rim brakes, 140mm x 20º forged stem, ultralight hubs, drilled rims, single-cage aluminium pedals, etc.

Frame and fork
- Frame: Comas R2 26” 2021, made from 6082-T6 aluminium alloy, with optimized curvatures and thickness, integrated BB tube, CNC dropouts, 4-bolt rim brake mounts, bright orange and black Comas graphics.
- Forks: Comas 26” tapered 1 1/8” – 1.5”, made of 6082-T6 aluminium alloy, with optimized curvatures, CNC steerer tube, CNC dropouts, 4-bolt rim brake mounts.

Wheels
- Front hub: Comas Ultralight HS, 28 spoke holes, without rotor mounts, 100mm spacing, 9mm axle
- Rear hub: Comas Ultralight HS, 32 spoke holes, without rotor mounts, 116mm spacing, 10mm axle
- Chain tensioner: Comas snail cams 7075-T6, 49 positions
- Front rim: Comas 26”, single wall, 32mm wide, 28 spoke holes
- Rear rim: Comas 26”, single wall, 47mm wide, 32 spoke holes
- Spokes: Comas Ultralight 1.8mm spokes, black
- Rim tape: Comas, grey
- Front tyre: Vee Rubber Waw Edition 26”x2.00”
- Rear tyre: Vee Rubber Waw Edition 26”x2.50”

Brakes
- Front brake: Magura HS11
- Rear brake: Magura HS11

- Brake clamps: Magura

Drivetrain
- Cranks: Comas ISIS 170mm, offset 33mm, for screw-on freewheel
- Bottom bracket: Comas ISIS 128mm
- Freewheel: Comas 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, red
- Chain: YBN s20, 1/2x3/32”
- Rear sprocket: Comas 15T Screw-on, made from 7075-T6 aluminium alloy, 12mm wide
- Pedals: Plastic pedals (we recommend replacing them for some higher quality pedals)
- Bashring: Comas ultralight bashring

Steering
- Headset: Comas Internal Tapered 1 1/8”-1.5”, sealed bearings
- Stem: Comas 140mm x 20º, 31.8mm Oversized handlebar diameter, black with silver Comas graphics
- Grips: Comas foam 4mm, black
- Handlebar: Comas 7075 high rise, 105mm rise, 31.8mm Oversized handlebar diameter

Geometry:
- Wheelbase: 1088mm
- Chainstay length: 380mm
- Bottom bracket rise: +70mm
- Head angle: 72º

Weight
- 9,12Kg

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.

Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.
