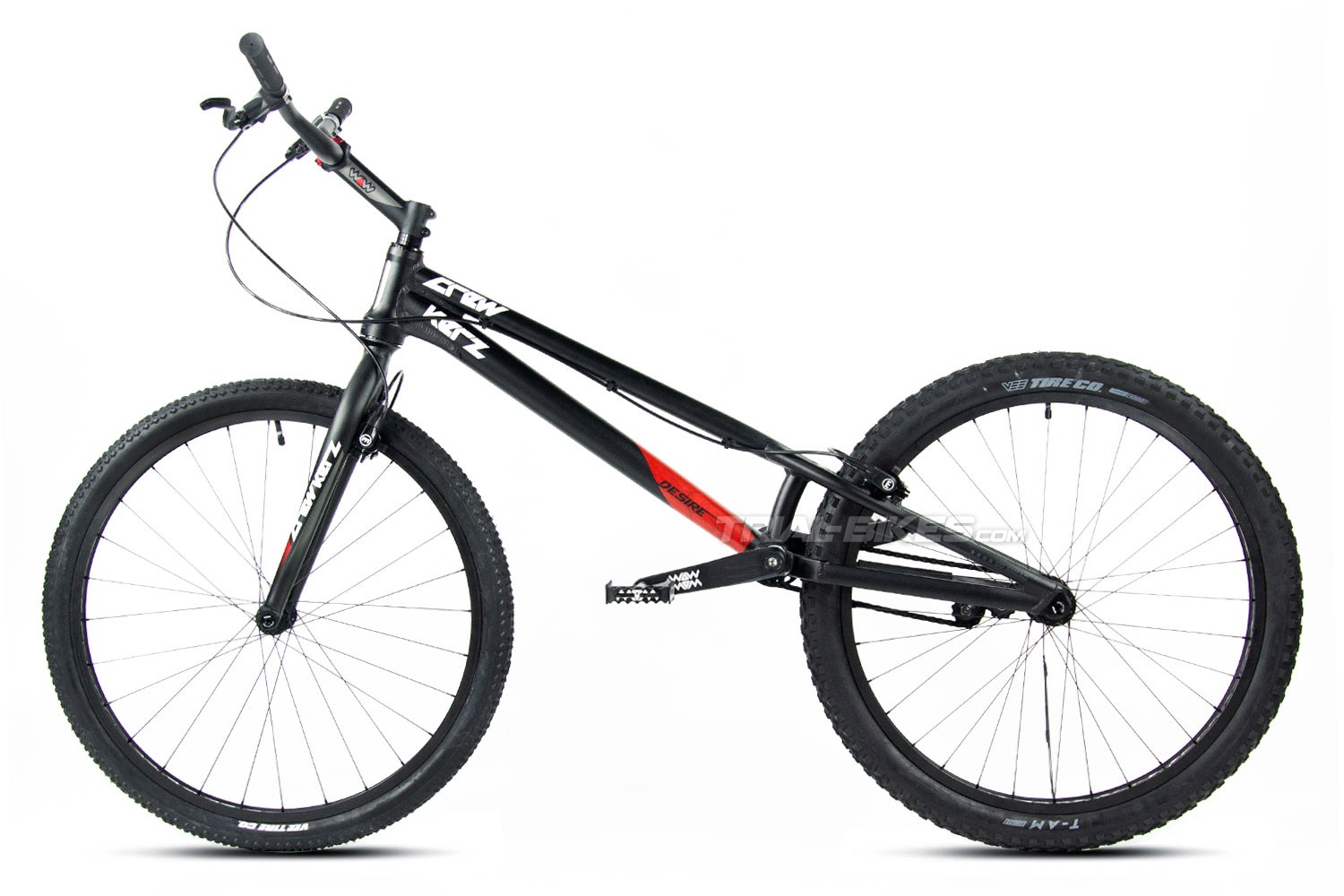

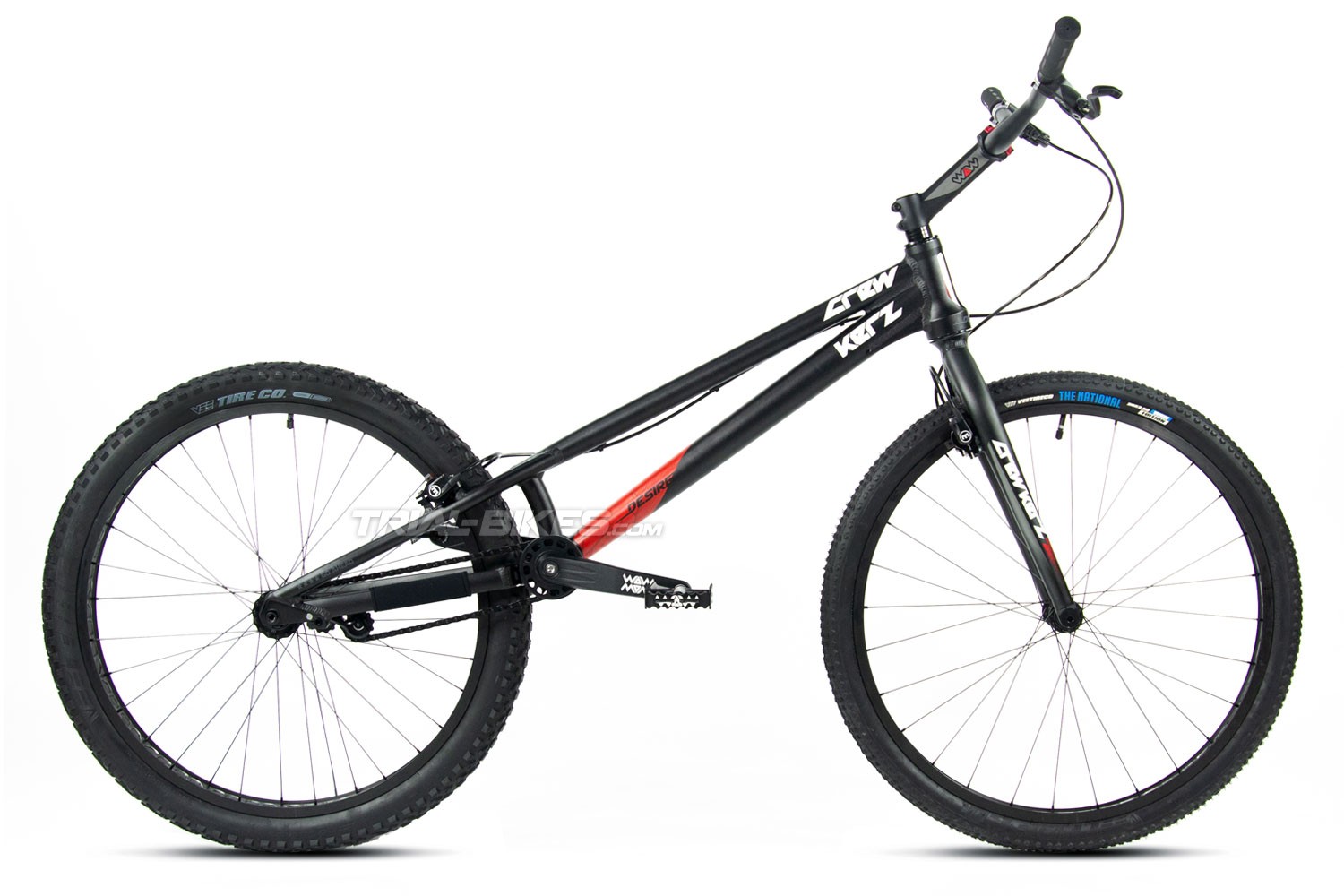

Crewkerz Desire 26'' Bike 2024

Crewkerz Desire 26" Bike 2024

The French brand Crewkerz has created the new Desire range to offer an unbeatable quality/price ratio.
This bike introduces the new Crewkerz Desire 26” 2024 frame and fork, manufactured with reliability and stiffness as main premises. It uses high-quality components: Magura HS33 rim brakes, tapered headset, dual-pulley chain tensioner, Vee Rubber tires, CNC machined cranks, 108.9 sprocket, etc.

Frame and Fork

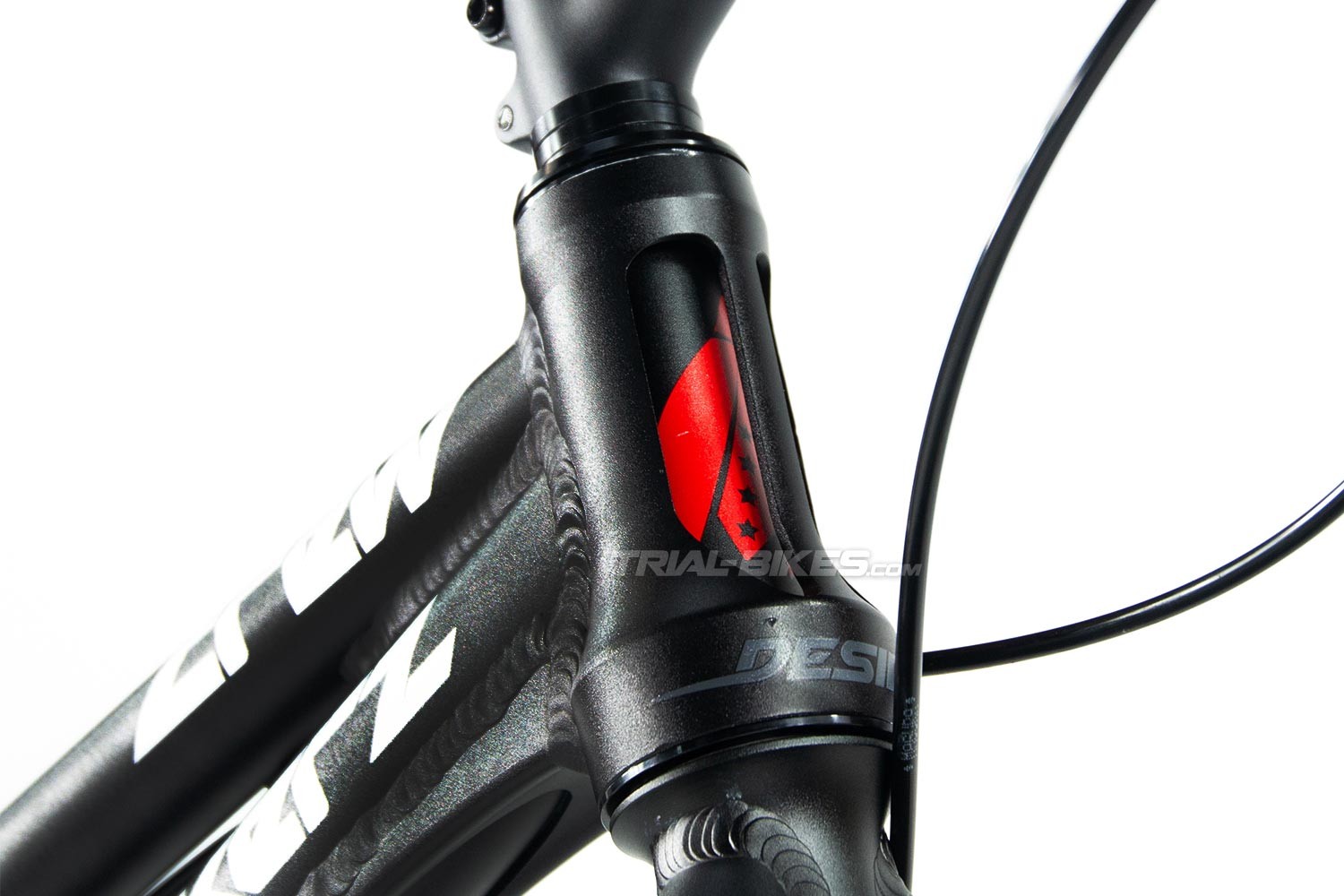

- Frame: Desire 26’’ 2024, with a tapered 1 1/8” – 1.5” head tube and rim brake mounts.
- Fork: Crewkerz Jealousy Alu Tapered, with a tapered 1 1/8” – 1.5” design and rim brake mounts.

Wheels
- Front Hub: Crewkerz WAW 26″, 9 mm thru-axle, 100 mm wide.

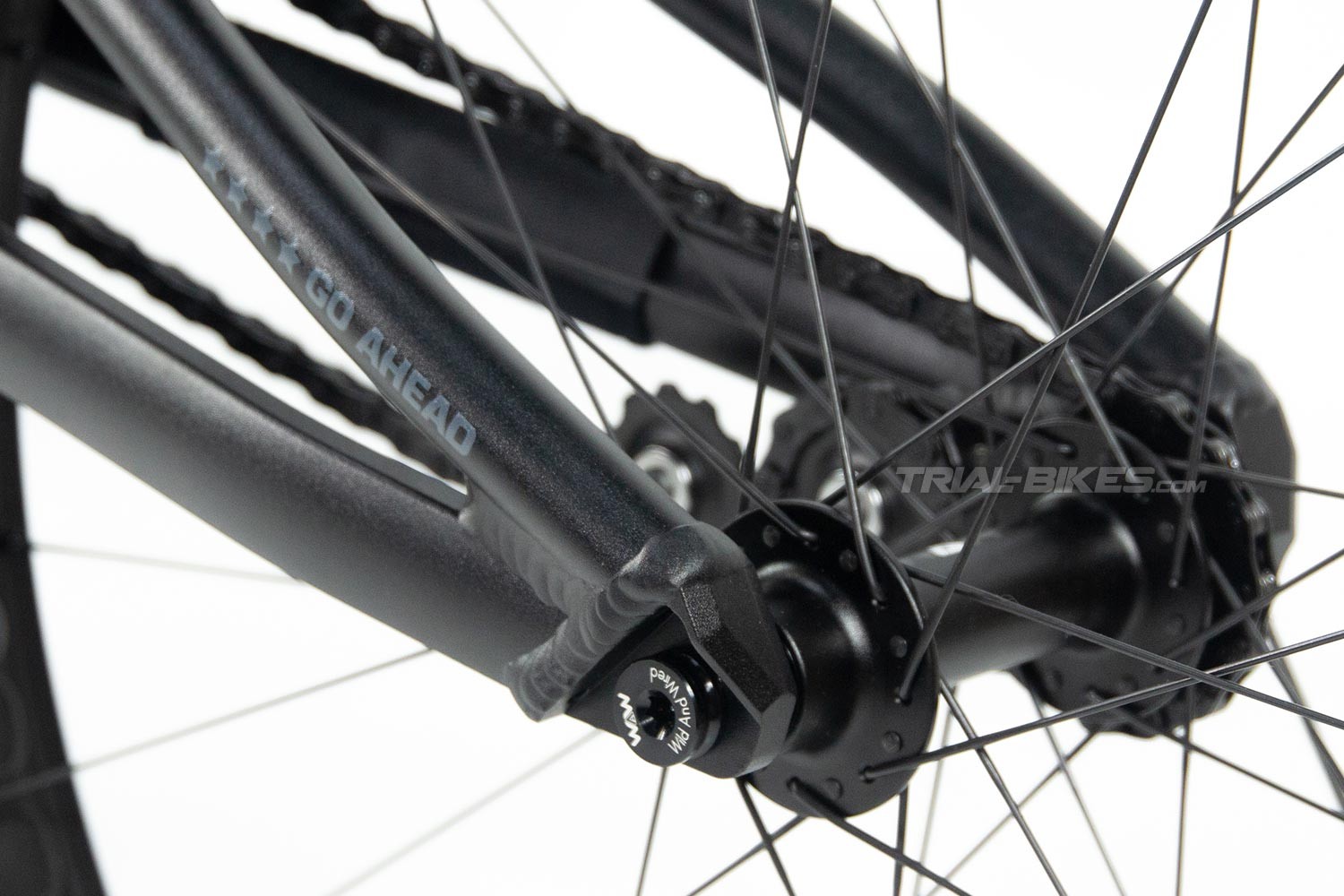

- Rear Hub: Crewkerz WAW 26″, 12 mm thru-axle, 135 mm wide.
- Chain Tensioner: Crewkerz, with two  jockey wheels.
- Front Rim: Hashtagg 26", lightweight single-wall design, 32 mm wide, 32 spoke holes.
- Rear Rim: Hashtagg 26'', lightweight single-wall design, 48 mm wide, 32 spoke holes.
- Spokes: Crewkerz 2 mm.
- Rim Tape: Crewkerz.
- Front Tube: Vee Rubber 26”.
- Rear Tube: Vee Rubber 26”.
- Front Tire: Vee Tire WAW Edition 26” 2.0.
- Rear Tire: Vee Tire WAW Edition 26” 2.5.

Brakes

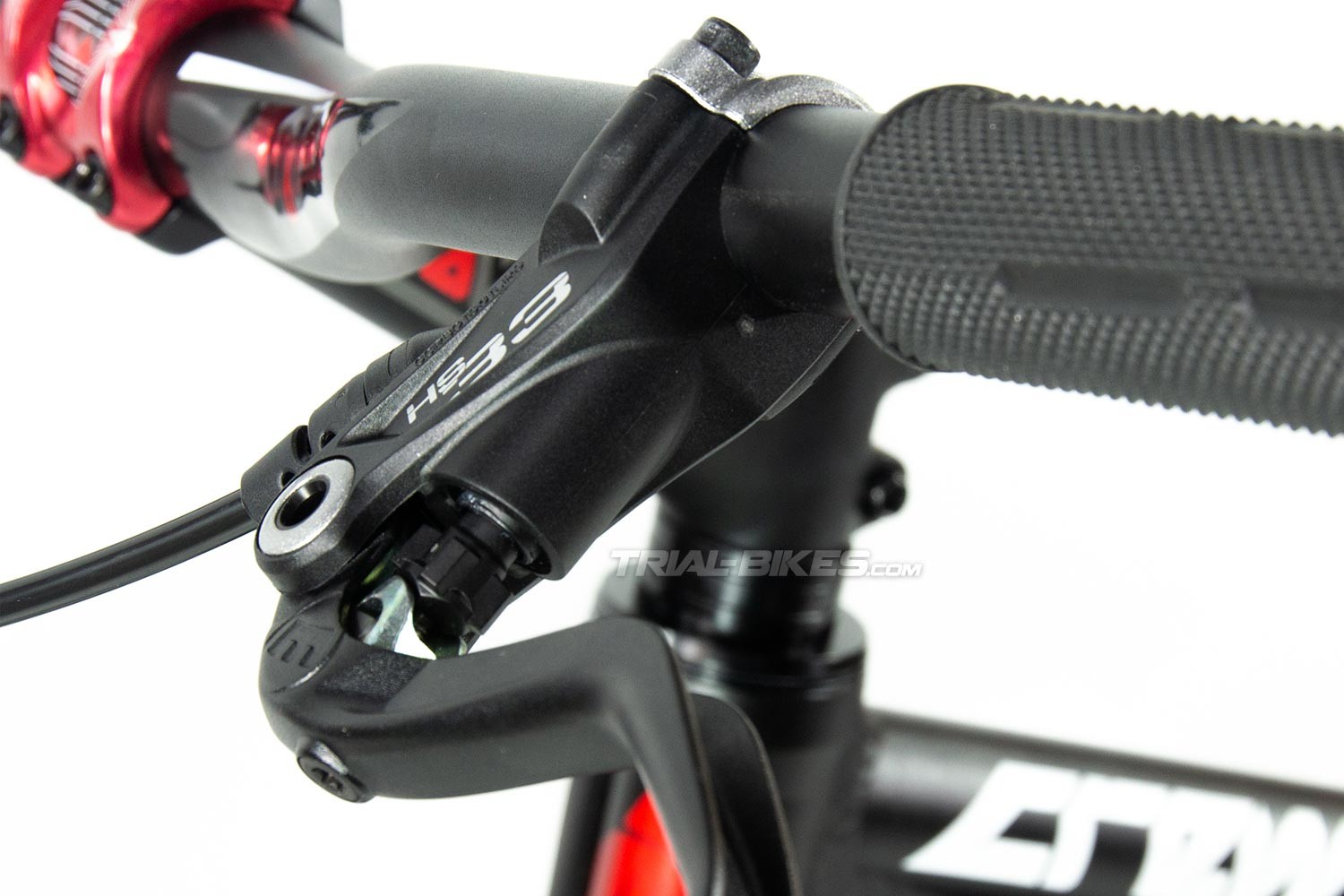

- Front Brake: Magura HS33.
- Rear Brake: Magura HS33 Rojas.

- Brake Pads: Magura.
- Brake Mounts: Magura.

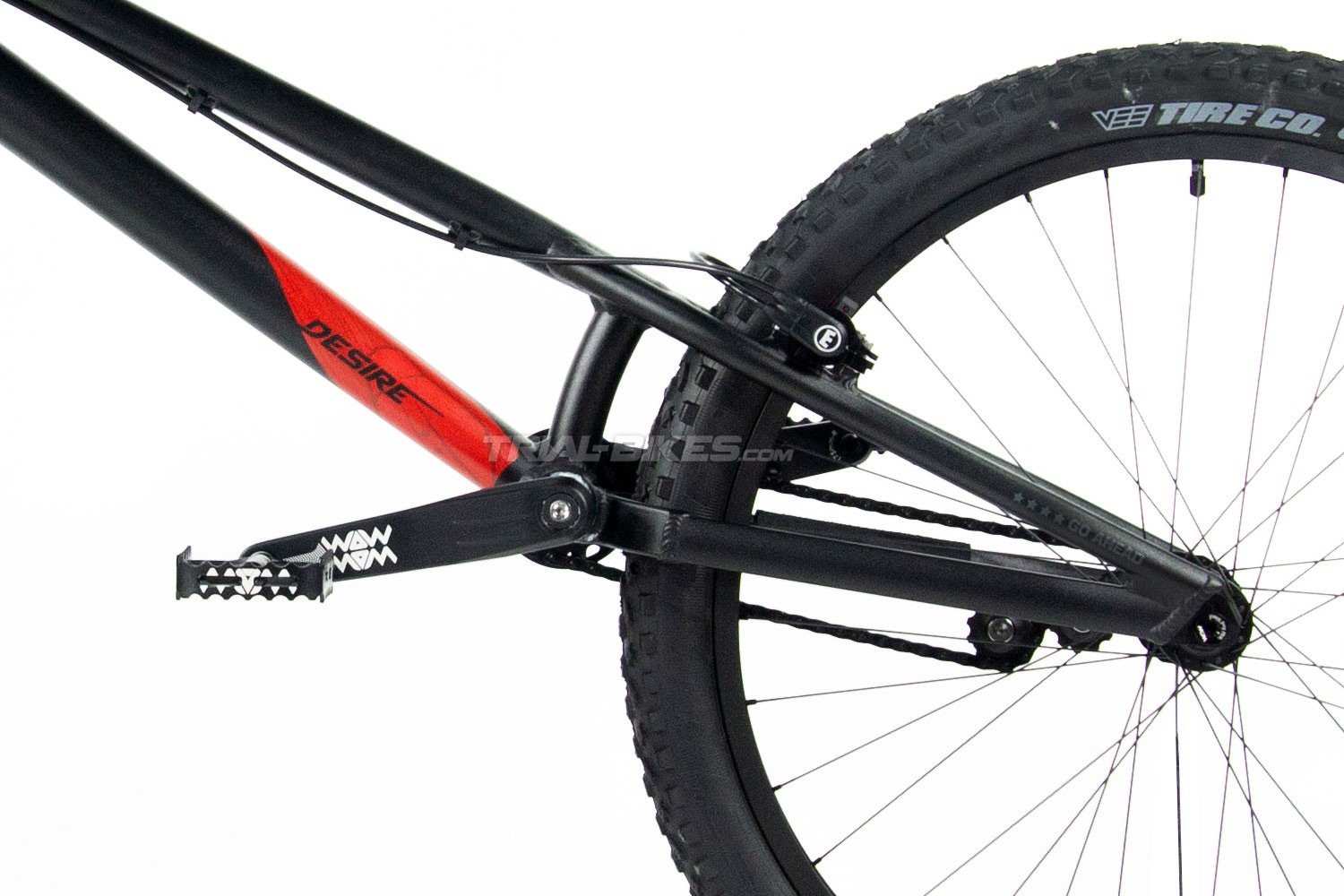

Drivetrain

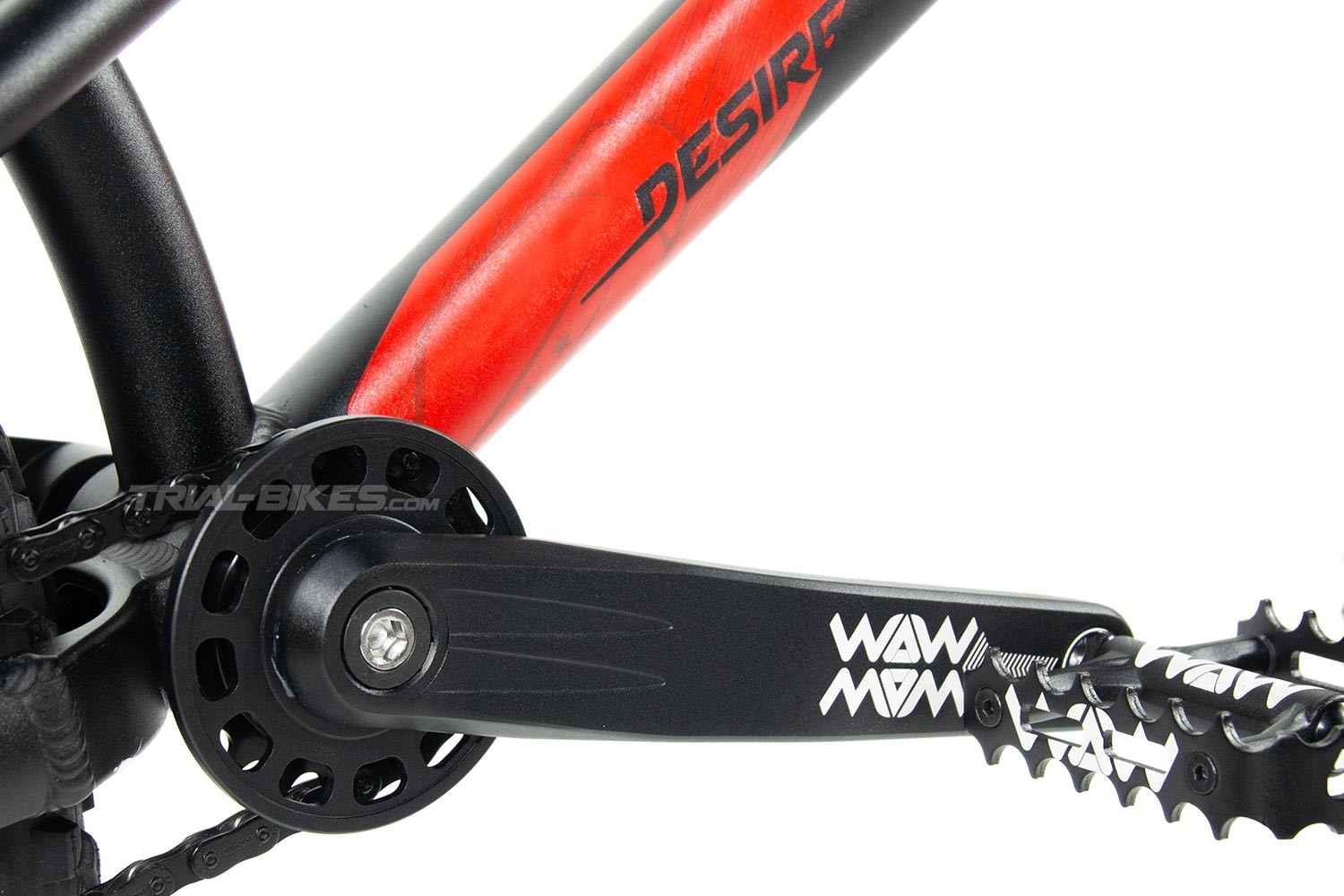

- Cranks: Crewkerz ISIS CNC 175 mm, standard 1.37”x24tpi thread.
- Bottom Bracket: Crewkerz ISIS threaded, 128 mm wide.
- Freewheel: Crewkerz 108.9 18T, with 108 engagement points, 9 pawls, and 18 teeth.
- Chain: KMC Z1 eHX Black.
- Fixed Sprocket: Crewkerz 15T 3/32” threaded.
- Pedals: Crewkerz WAW 7075-T6 single cage.
- Bashring: Crewkerz.

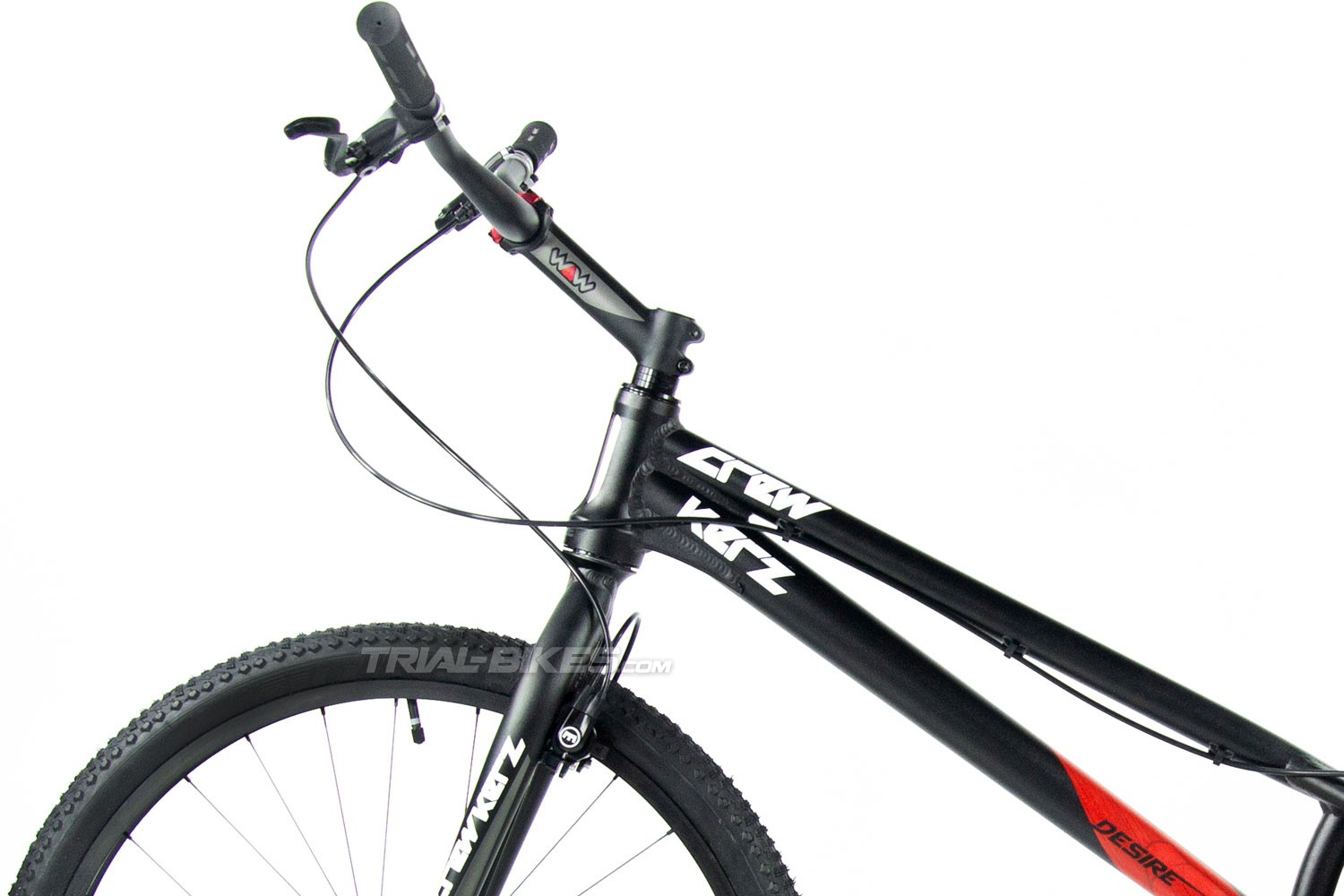

Steering
- Headset: Crewkerz Semi-integrated Tapered 1 1/8” - 1.5”, with 7075-T6 aluminum cups, sealed bearings.
- Stem: Crewkerz WAW 145 mm with a 25° rise, Oversized 31.8 mm handlebar diameter.
- Grips: Kraton.
- Handlebar: Crewkerz WAW 720 mm, 102 mm rise.

Geometry

(1) Wheelbase: 1065 mm.
-----------------------------------------------
(2) Chainstay Length: 380 mm.
-----------------------------------------------
(3) Bottom Bracket Height: +65 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Bottom Bracket to Top of Head Tube: 662 mm.
-----------------------------------------------
(6) Reach: 497 mm.
-----------------------------------------------
(7) Stack: 415 mm.
-----------------------------------------------

Weight
- To be confirmed.

Additional Information:
Some images may not correspond to the product description, please read the features carefully.

This bike is delivered partially assembled, the customer only needs to install the front wheel and the steering assembly.
For any questions or additional modifications, please contact us at info@trial-bikes.com .
