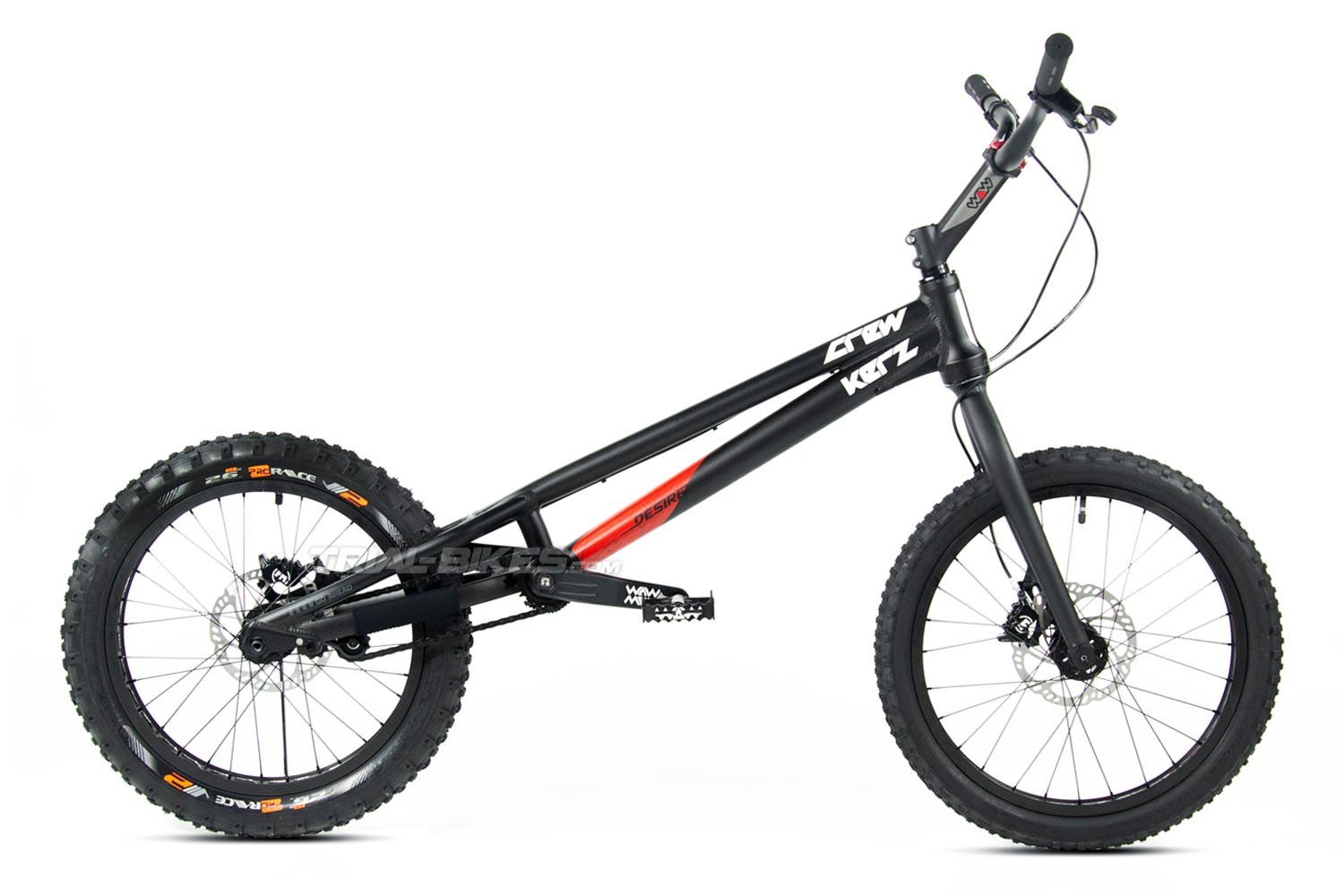

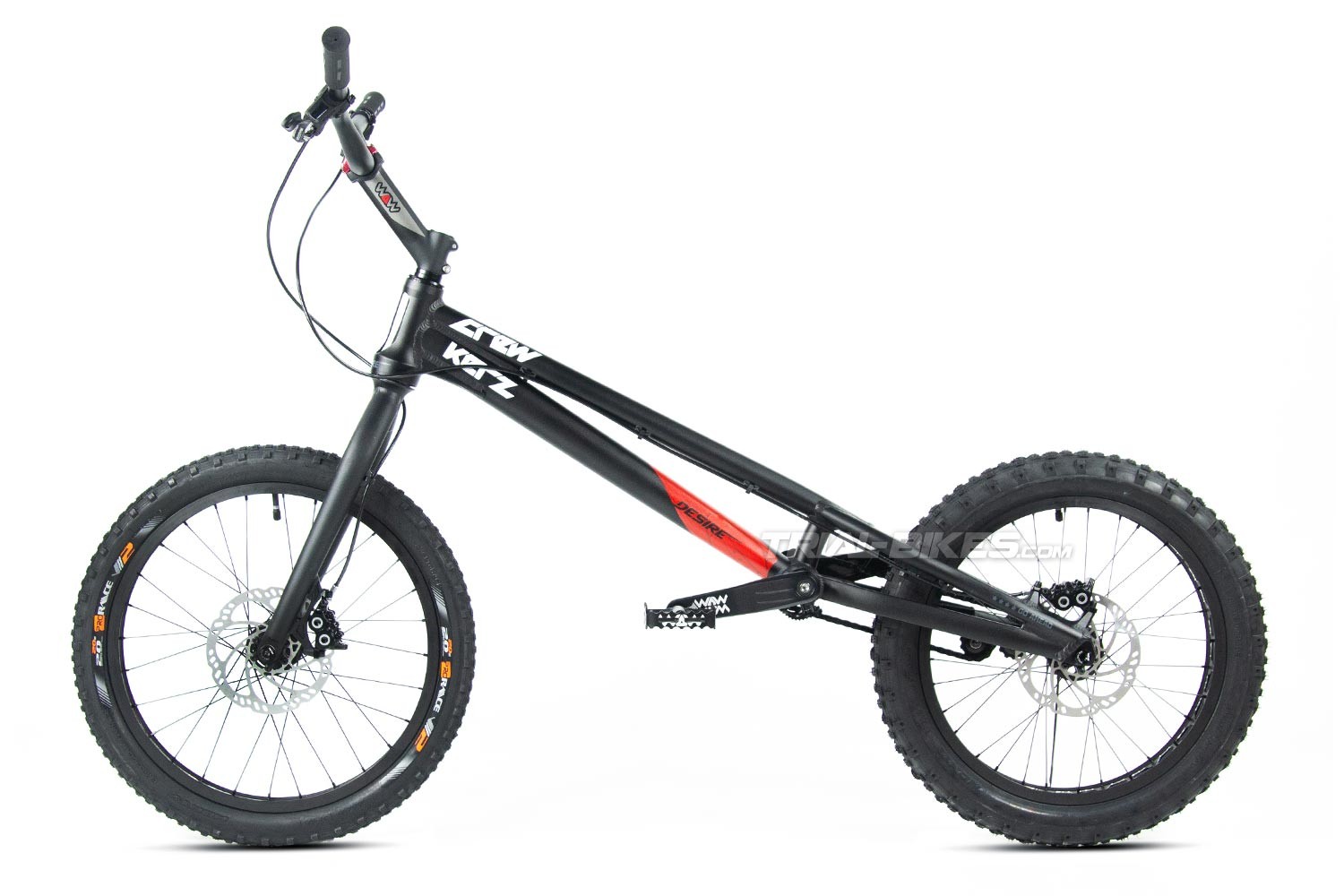

Crewkerz Desire 20" Bike 2024

Crewkerz Desire 20" 2024 Bike

The French brand Crewkerz has created the new Desire range to offer an unbeatable value for money.

With a frame and fork designed to provide exceptional reliability and stiffness, this bike ensures optimal performance. Equipped with Magura MT5 HC3 disc brakes and high-quality components to provide the utmost comfort to its riders.

Frame and Fork

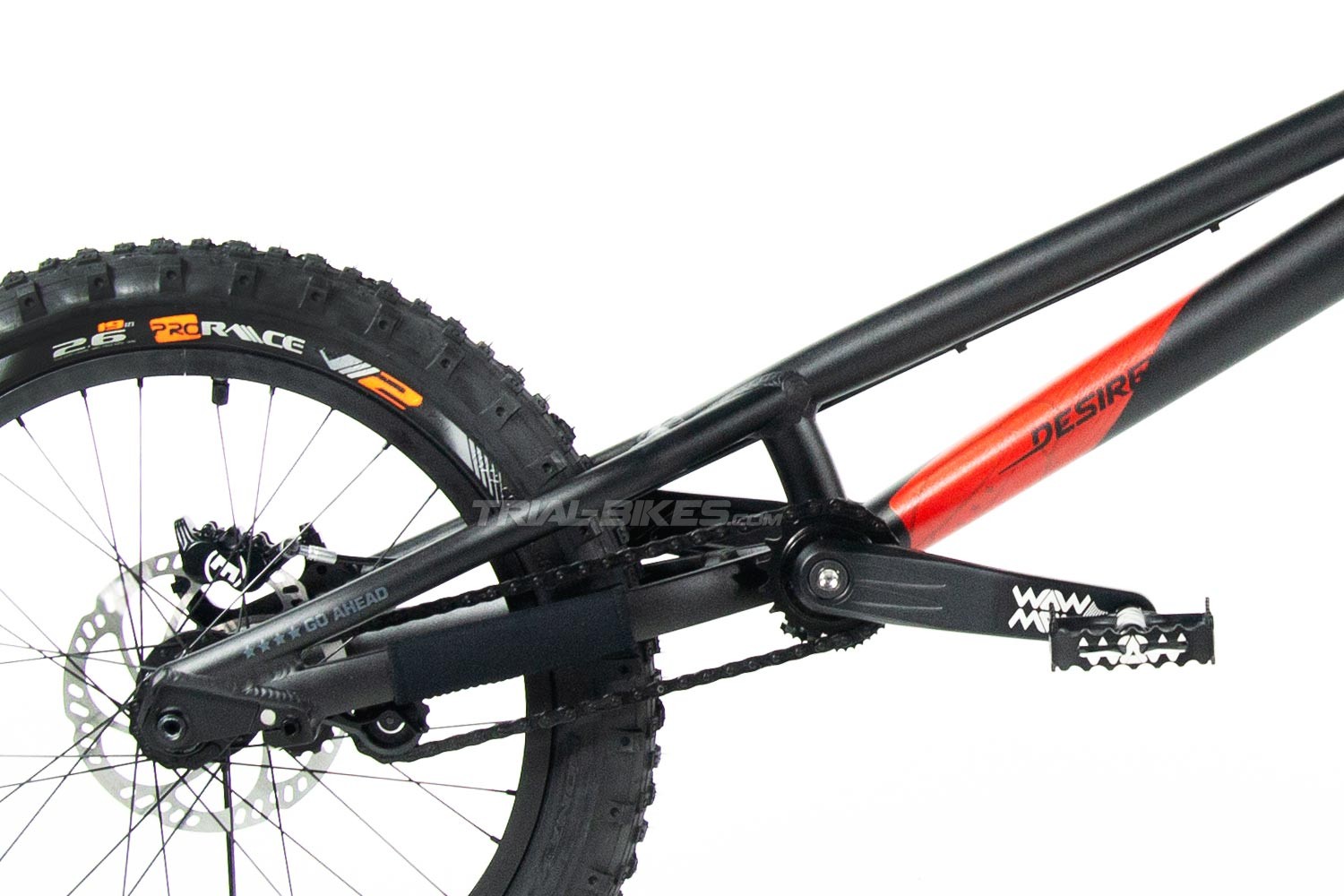

- Frame: Crewkerz Desire 20”, with Post Mount disc brake mount.
- Fork: Crewkerz Desire 20”, tapered design (1 1/8” – 1.5"), with Post Mount disc brake mount.

Wheels
- Front Hub: Crewkerz WAW 32 spokes, with disc mounts, 9 mm thru-axle, and 100 mm width.
- Rear Hub: Crewkerz WAW 32 spokes, with disc mounts, 12 mm thru-axle, and 135 mm width.
- Chain Tensioner: Crewkerz, with two pulleys.
- Front Rim: Hashtagg 20", single-layer design, 32 mm width, 32 spoke holes.
- Rear Rim: Hashtagg 20'', single-layer design, 48 mm width, 32 spoke holes.
- Spokes: Crewkerz 2 mm.
- Rim Tape: Crewkerz.
- Front Inner Tube: Vee Rubber 20”.
- Rear Inner Tube: Vee Rubber 20”.
- Front Tire: Monty Pro Race 20”x2.00”.
- Rear Tire: Monty Pro Race 19”x2.50”.

Brakes

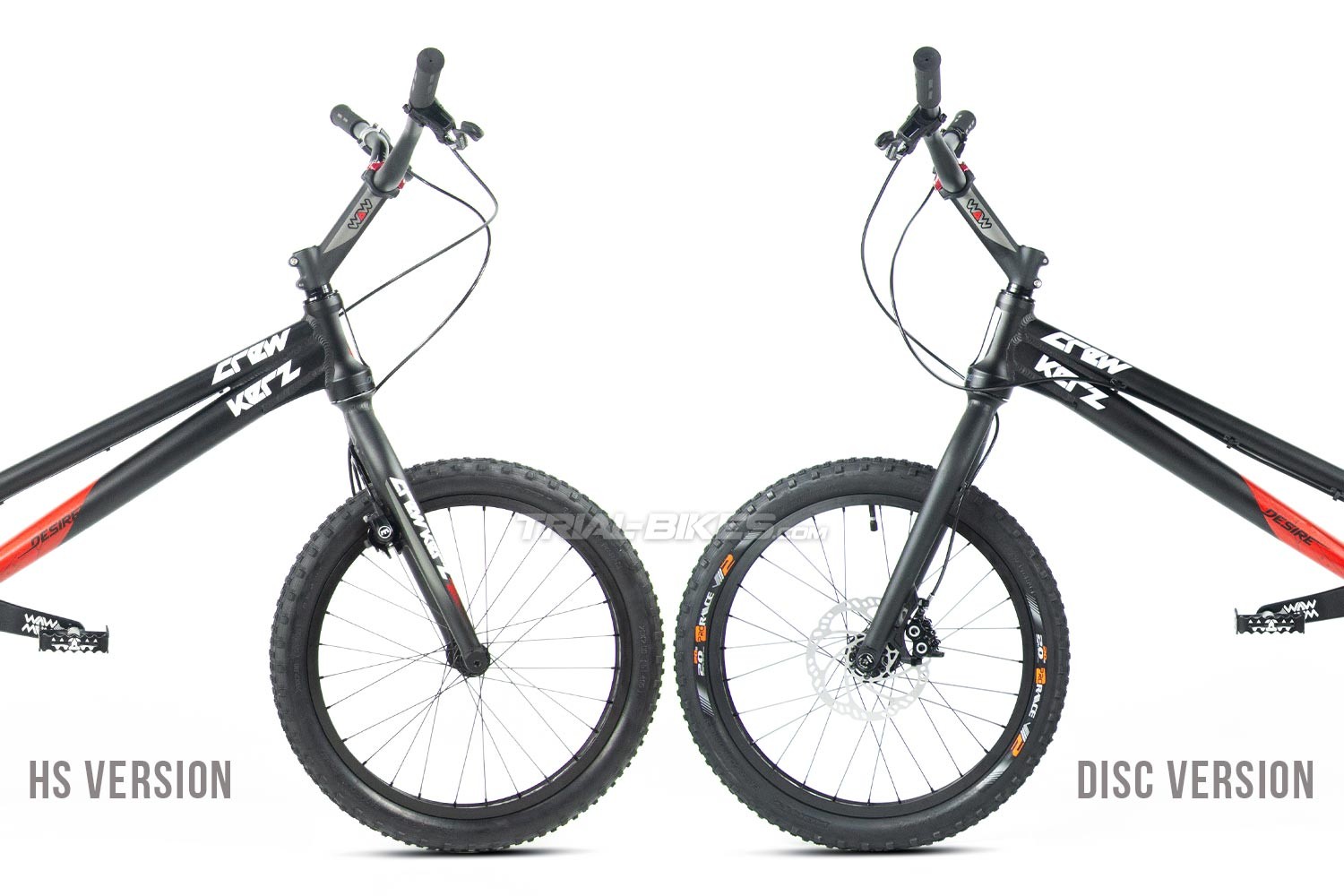

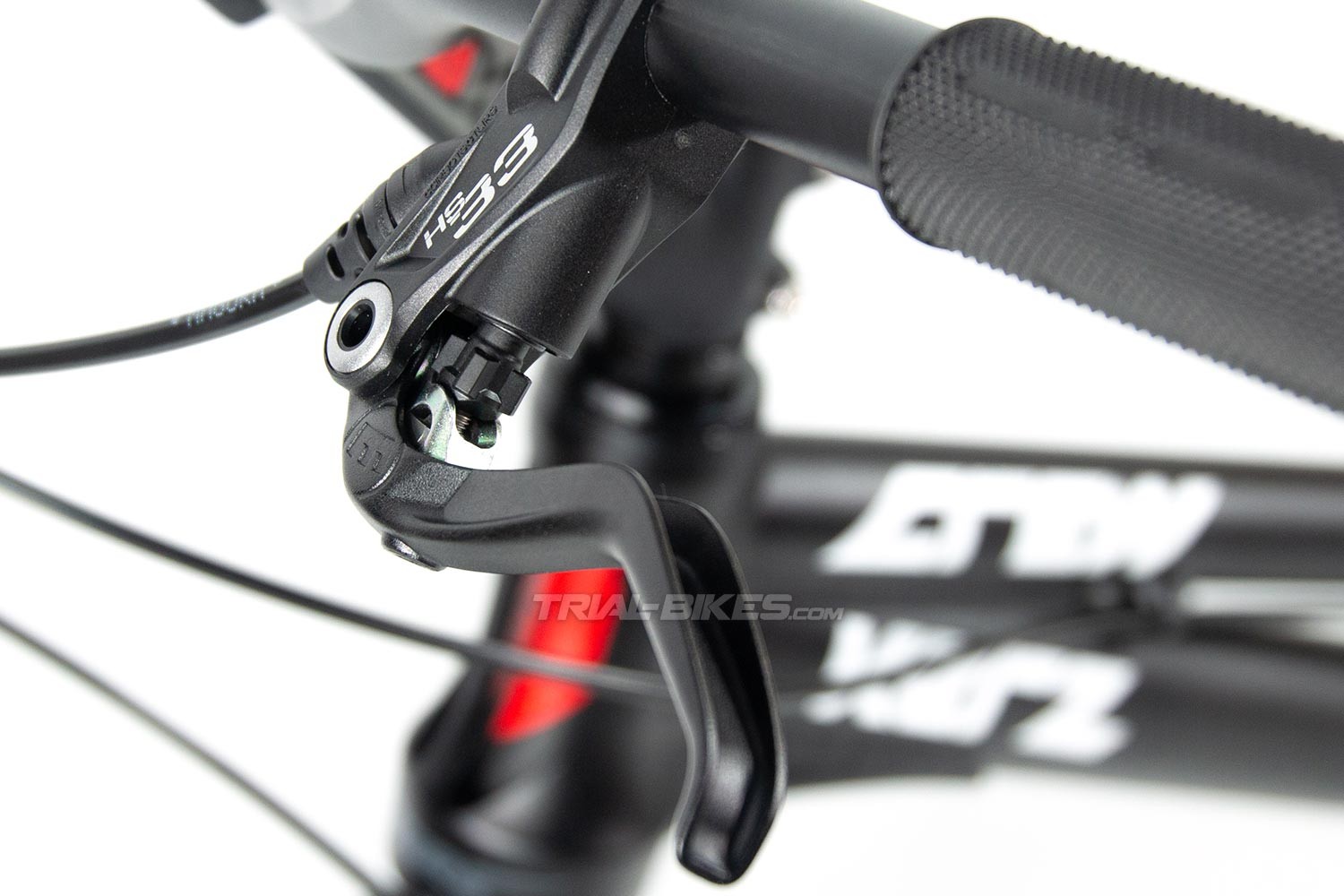

- Front Brake: Magura MT5 HC3 lever or Magura HS33 (depending on version).
- Rear Brake: Magura MT5 HC3 lever.

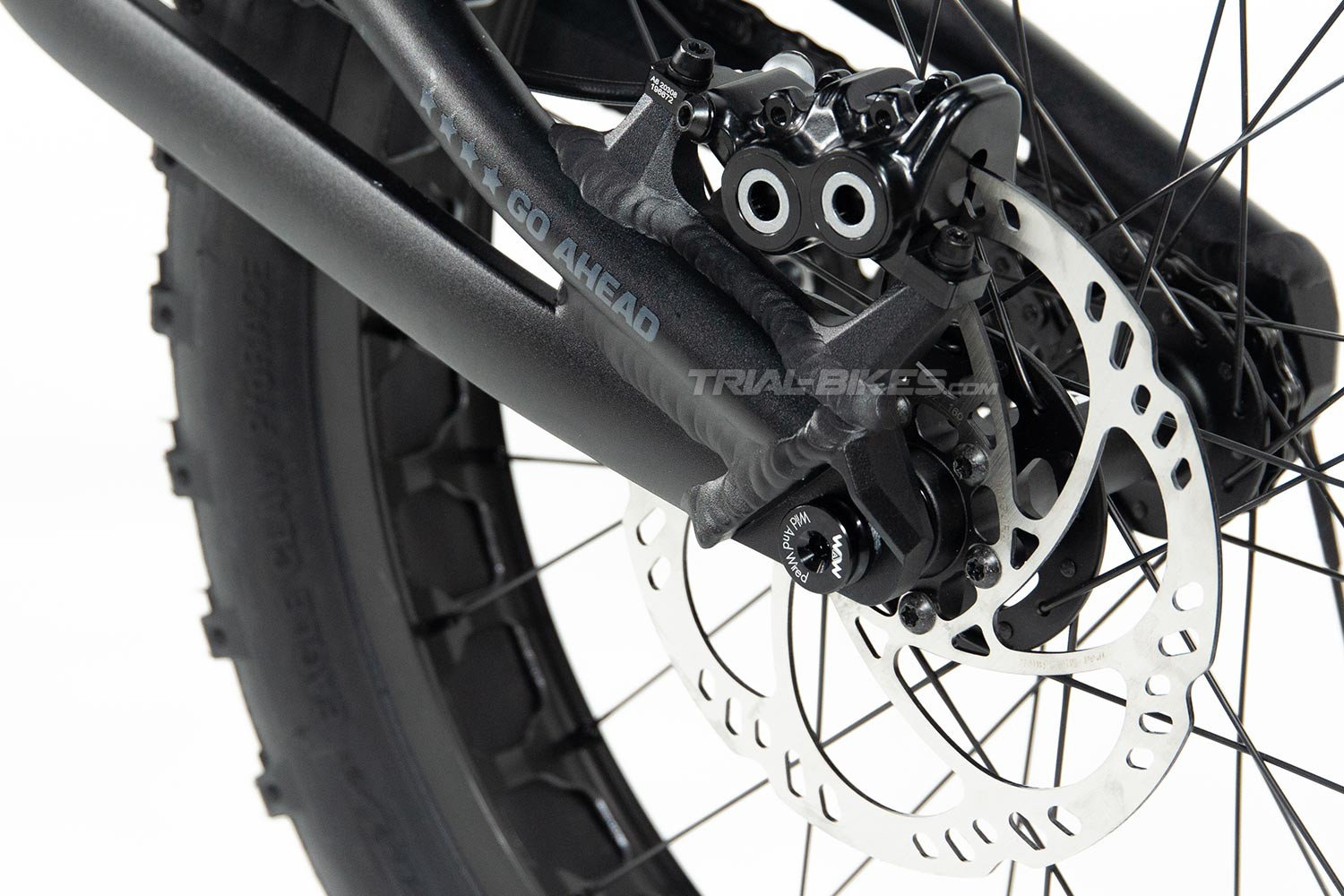

- Brake Rotors: Magura 160 mm.
- Brake Pads: Magura Red.

Drivetrain

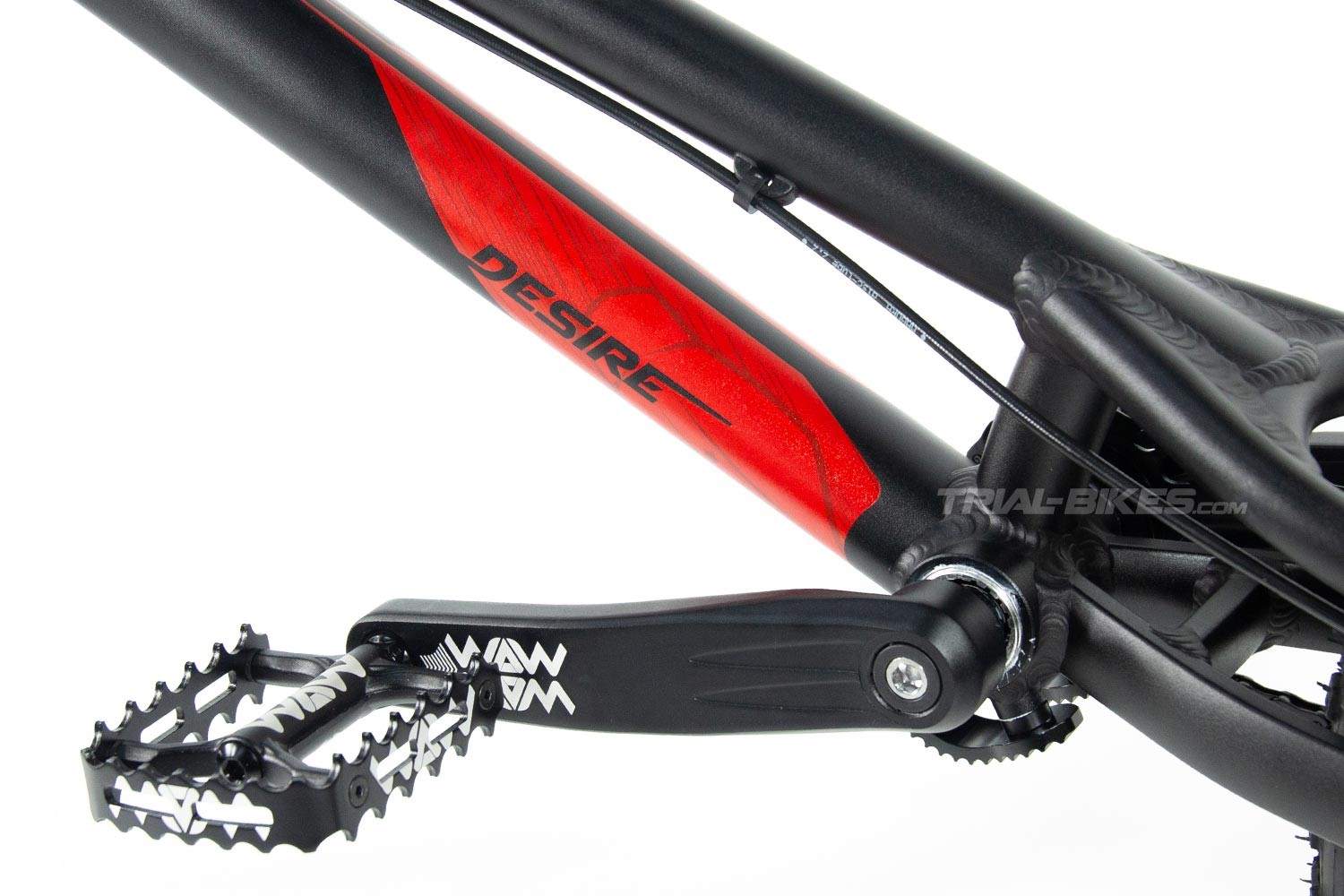

- Cranks: Crewkerz ISIS CNC 165 mm, standard 1.37”x24tpi thread.
- Bottom Bracket: Crewkerz ISIS threaded, 128 mm width.
- Freewheel: Crewkerz 108.9 18T, with 108 engagement points, 9 pawls, and 18 teeth.
- Chain: KMC K710, black.
- Fixed Sprocket: Crewkerz 12T 3/32” threaded.
- Pedals: Crewkerz single cage 7075-T6.
- Bashguard: Crewkerz 4-bolt mini-bashguard.

Steering

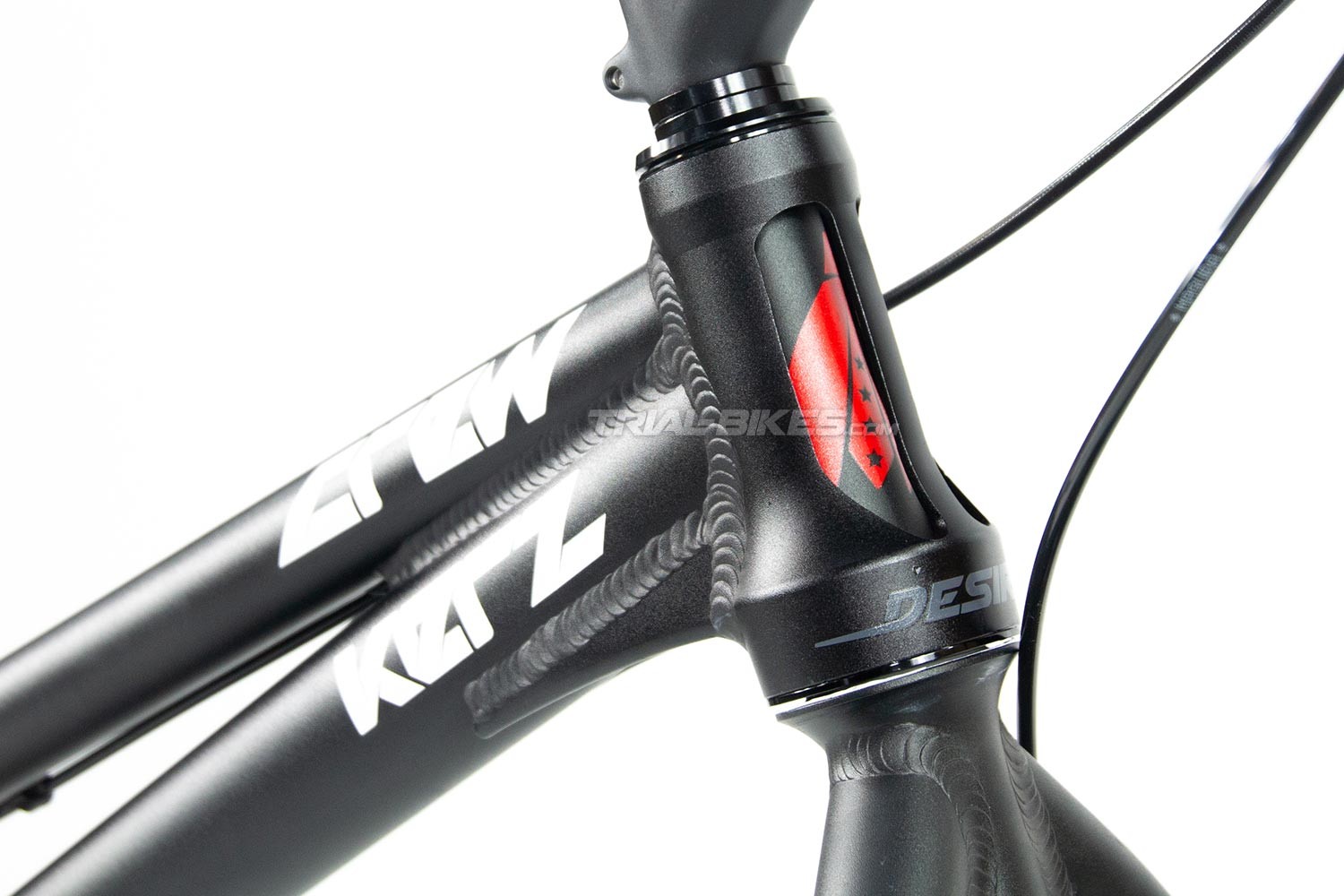

- Headset: Crewkerz Semi-integrated Tapered 1 1/8” - 1.5”, with 7075-T6 aluminum cups, sealed bearings.
- Stem: Crewkerz, 150 mm length, 35º angle, 31.8 mm Oversized handlebar diameter.
- Grips: Kraton rubber grips.
- Handlebar: Crewkerz WAW 102 mm rise, 720 mm length, 31.8 mm Oversized diameter.

Geometry

(1) Wheelbase: 1010 mm.
-----------------------------------------------
(2) Chainstay Length: 355 mm.
-----------------------------------------------
(3) Bottom Bracket Rise: +83 mm.
-----------------------------------------------
(4) Head Angle: 71.5°.
-----------------------------------------------
(5) Bottom Bracket Center to Top Tube Center: 597 mm.
-----------------------------------------------
(6) Reach: 473 mm.
-----------------------------------------------
(7) Stack: 364 mm.
-----------------------------------------------

Weight
- To be confirmed.

Additional Information:
Some images may not correspond with the product description, so please read the features carefully.

This bike comes partially assembled; the customer only needs to install the front wheel and the headset.

For any doubts or additional modifications, please contact us at info@trial-bikes.com.
