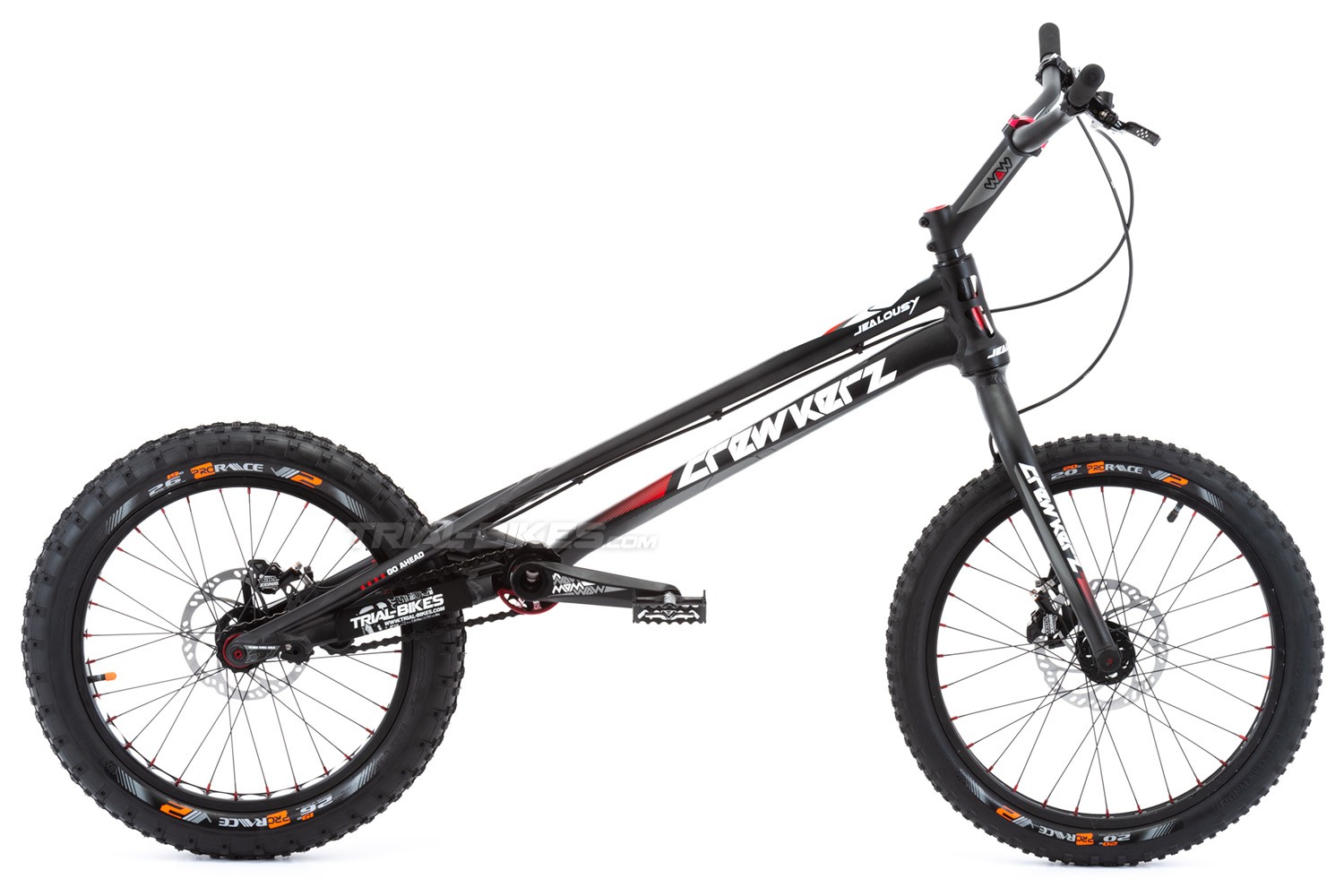

Crewkerz Jealousy 20" Full Disc Bike

Crewkerz Jealousy 20" Full Disc Bike

New Crewkerz Jealousy 20”. Upgraded spec, built with Hope Tech 3 Trial Zone disc brakes, thru-axles, Monty Pro Race tyres, Crewkerz WAW AS30 crankset, tapered fork and headset…

Frame and fork
- Frame: Crewkerz Jealousy 20” 1 1/8” – 1.5” tapered, with Post Mount disc brake mounts
- Forks: Crewkerz Tapered 20”, with 1 1/8” – 1.5” tapered steerer tube

Wheels
- Front hub: Crewkerz Waw Disc 100mm 32H, with 9mm thru-axle
- Rear hub: Crewkerz Waw Disc 135mm 32H, with 12mm thru-axle
- Chain tensioner: Crewkerz Integrated, with two 11T plastic wheels
- Front rim: Crewkerz 20”, 32 spoke holes
- Rear rim: Crewkerz 19”, 32 spoke holes
- Spokes: Crewkerz 1.8mm
- Spoke nipples: Aluminium, anodized red
- Rim tape: Crewkerz black
- Front inner tube: Crewkerz 20”
- Rear inner tube: Crewkerz 20”
- Front tyre: Monty Pro Race V2 20”x2.00”
- Rear tyre: Monty Pro Race V2 19”x2.60”

Brakes
- Front brake: Hope Tech 3 Trial Zone Post Mount, black
- Rear brake: Hope Tech 3 Trial Zone Post Mount, black

- Rear rotor: Magura Storm HC 160mm

Drivetrain
- Crankset: Crewkerz WAW AS30 crankset, CNC machined from 7075-T6 aluminium alloy. Comes with 160mm cranks and Shimano HG splines, black
- Freewheel: Crewkerz 108.9, with 18 teeth, black
- Chain: KMC 610HX, black
- Rear sprocket: Crewkerz 12T splined, made of steel
- Pedals: Crewkerz WAW Single-cage 7075-T6
- Bashring: Crewkerz WAW, anodized red

Steering
- Headset: Crewkerz Internal Tapered 1 1/8” – 1.5”, anodized black
- Stem: Crewkerz WAW 150mm x 35º
- Top cap: Crewkerz WAW, anodized red
- Grips: TrialBikes super-thin foam, black
- Handlebar: Crewkerz WAW, 103mm high, 720mm long

Geometry
- Wheelbase: 1010mm
- Chainstay length: 350mm
- Bottom bracket rise: +85mm
- Head angle: 71.5º

Weight
- 8.22Kg

Additional information:
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any doubts, please contact to info@trial-bikes.com
