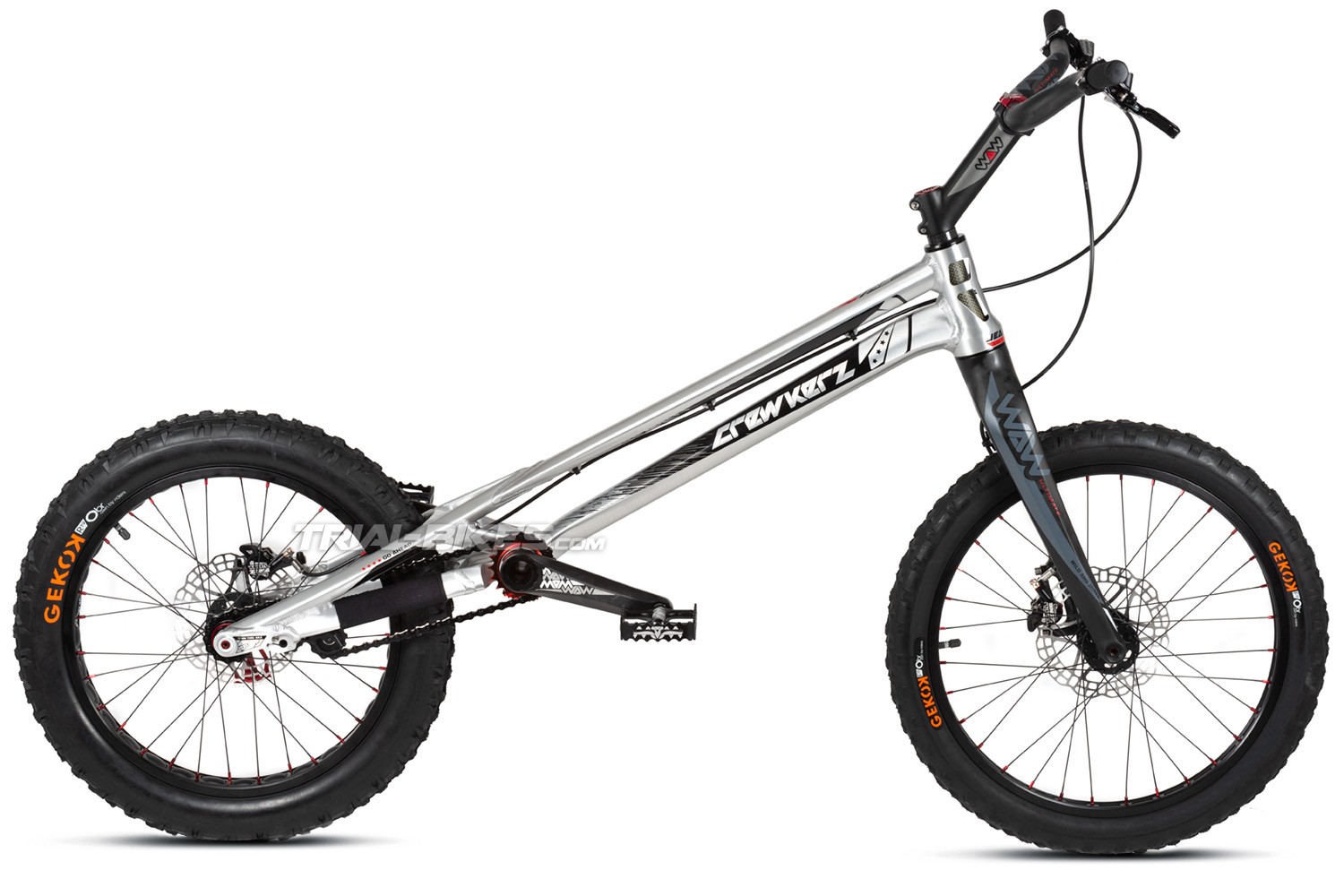

The new Crewkerz Jealousy 2019 Ultimate 20” bike arrives as the technology king of trials bikes for the new season. The frame’s smart design is now complete with the addition of a mini-bashplate. And it’s built with through-axles, Crewkerz WAW carbon fork and handlebar, Hope Tech 3 disc brakes, AS30 bottom bracket…
This product is no longer in stock
The new Crewkerz Jealousy 2019 Ultimate 20” bike arrives as the technology king of trials bikes for the new season. The frame’s smart design is now complete with the addition of a mini-bashplate. And it’s built with through-axles, Crewkerz WAW carbon fork and handlebar, Hope Tech 3 disc brakes, AS30 bottom bracket…
Frame and fork
- Frame: Crewkerz Jealousy Ultimate 20” 1 1/8” – 1.5” tapered, with Post Mount disc brake mounts, polished aluminium finish
- Forks: Crewkerz Carbon 20”, with 1 1/8” – 1.5” tapered steerer tube
Wheels
- Front hub: Crewkerz Waw HS 100mm 28H, with 9mm thru-axle
- Rear hub: Crewkerz Waw Disc 135mm 32H, with 12mm thru-axle
- Chain tensioner: Crewkerz Integrated, with two 11T plastic wheels
- Front rim: Crewkerz 20”, 28 spoke holes
- Rear rim: Crewkerz 19”, 32 spoke holes
- Rim stickers: TrialBikes
- Spokes: Crewkerz 1.8mm
- Spoke nipples: Aluminium, anodized red
- Rim tape: Ultralight, black
- Front inner tube: Maxxis 20”
- Rear inner tube: Maxxis 20”
- Front tyre: OBR Gekok 20”x2.00”
- Rear tyre: OBR Gekok 19”x2.60”
Brakes
- Front brake: Hope Tech 3 Trial Zone Post Mount, black
- Rear brake: Hope Tech 3 Trial Zone Post Mount, black
- Rear rotor: Hope Trial V2 160mm
Drivetrain
- Crankset: Crewkerz WAW AS30 crankset, CNC machined from 7075-T6 aluminium alloy. Comes with 165mm cranks and Shimano HG splines, black
- Freewheel: Crewkerz 135.9, with 18 teeth, red
- Chain: KMC 610HX, black
- Rear sprocket: Crewkerz 12T splined, made of steel
- Pedals: Crewkerz WAW Single-cage 7075-T6
- Basplate: Crewkerz WAW, anodized red
Steering
- Headset: Crewkerz Internal Tapered 1 1/8” – 1.5”, anodized black
- Stem: Crewkerz WAW 150mm x 35º
- Top cap: Crewkerz WAW, anodized red
- Grips: TrialBikes super-thin foam, black
- Handlebar: Crewkerz Ultimate Carbon, 108mm high, 720mm long
Geometry
- Wheelbase: 1010mm
- Chainstay length: 350mm
- Bottom bracket rise: +85mm
- Head angle: 71.5º
Weight
- 7.90Kg
Additional information:
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .
FRONT BRAKE | Disc |
REAR BRAKE | Disc |
