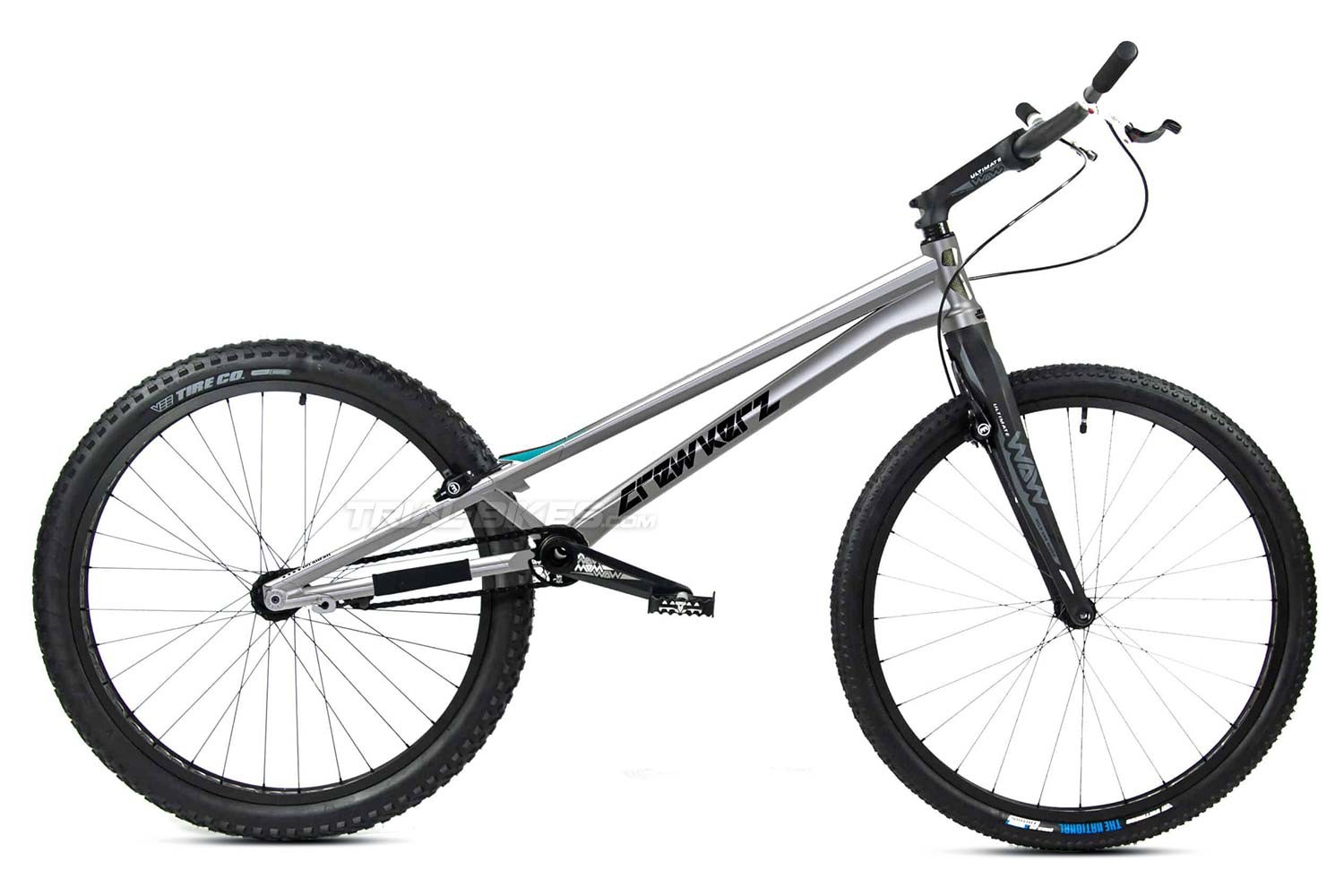

Crewkerz Nextgen 26" Bike

Crewkerz Nextgen 26" Bike

Frame and fork

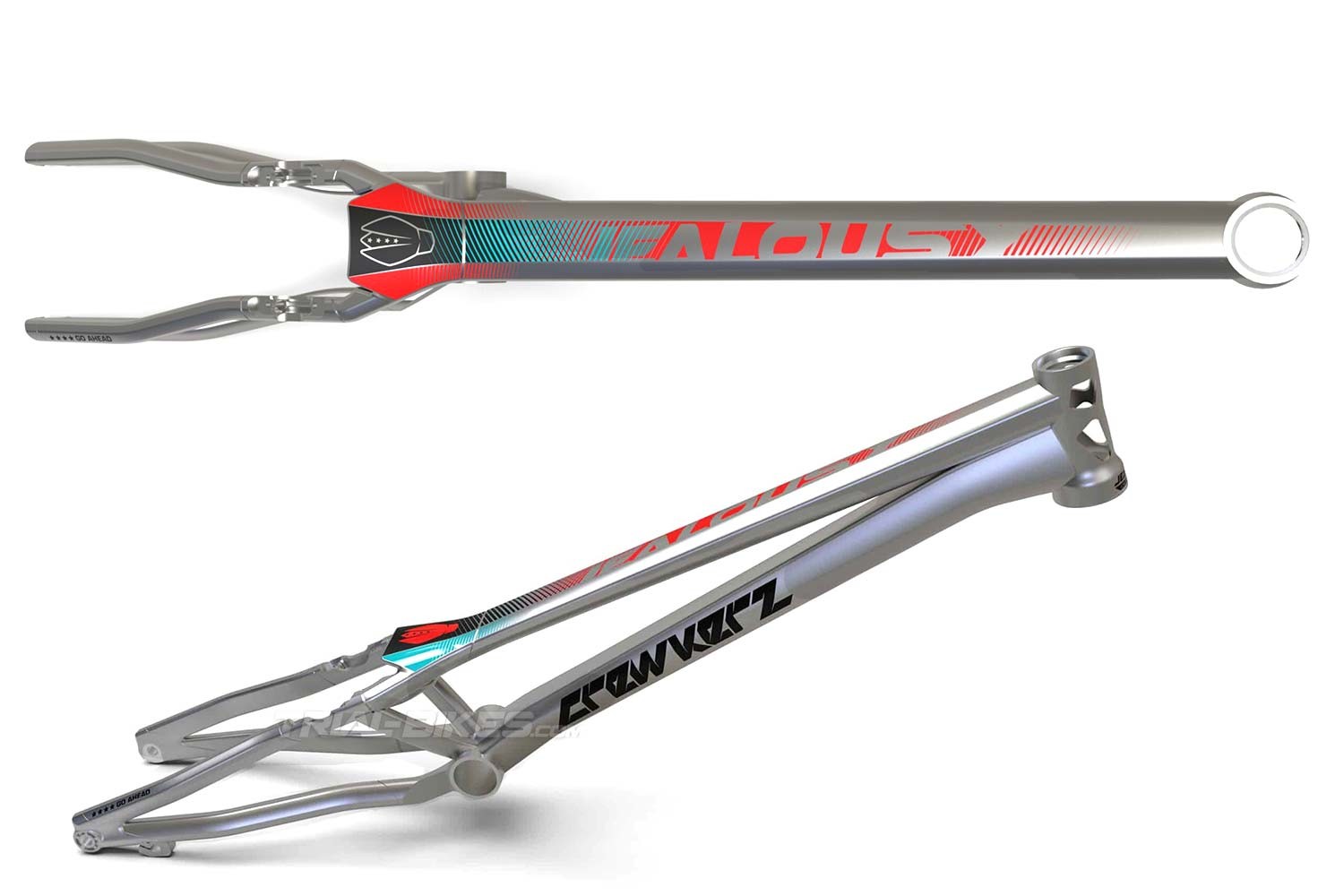

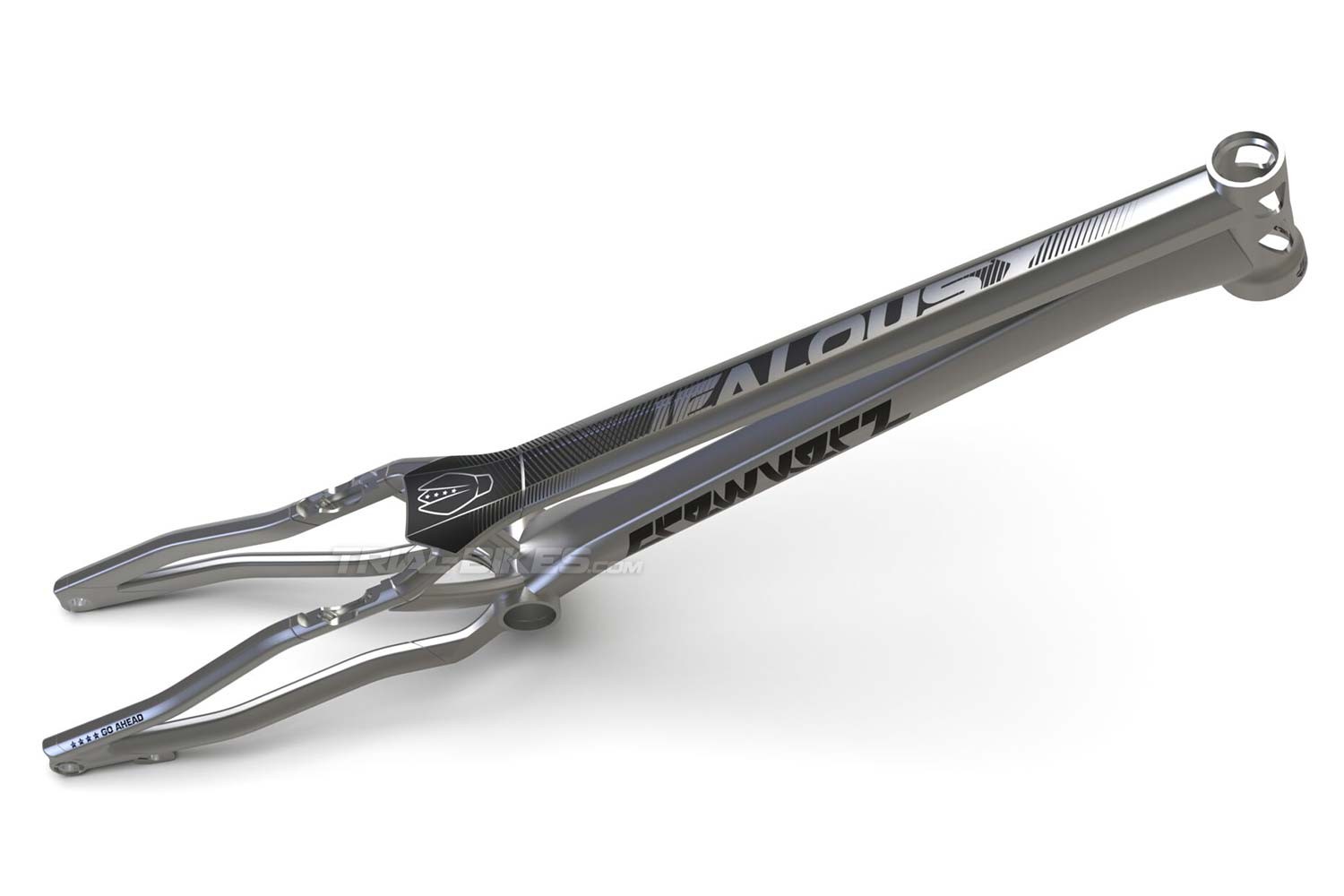

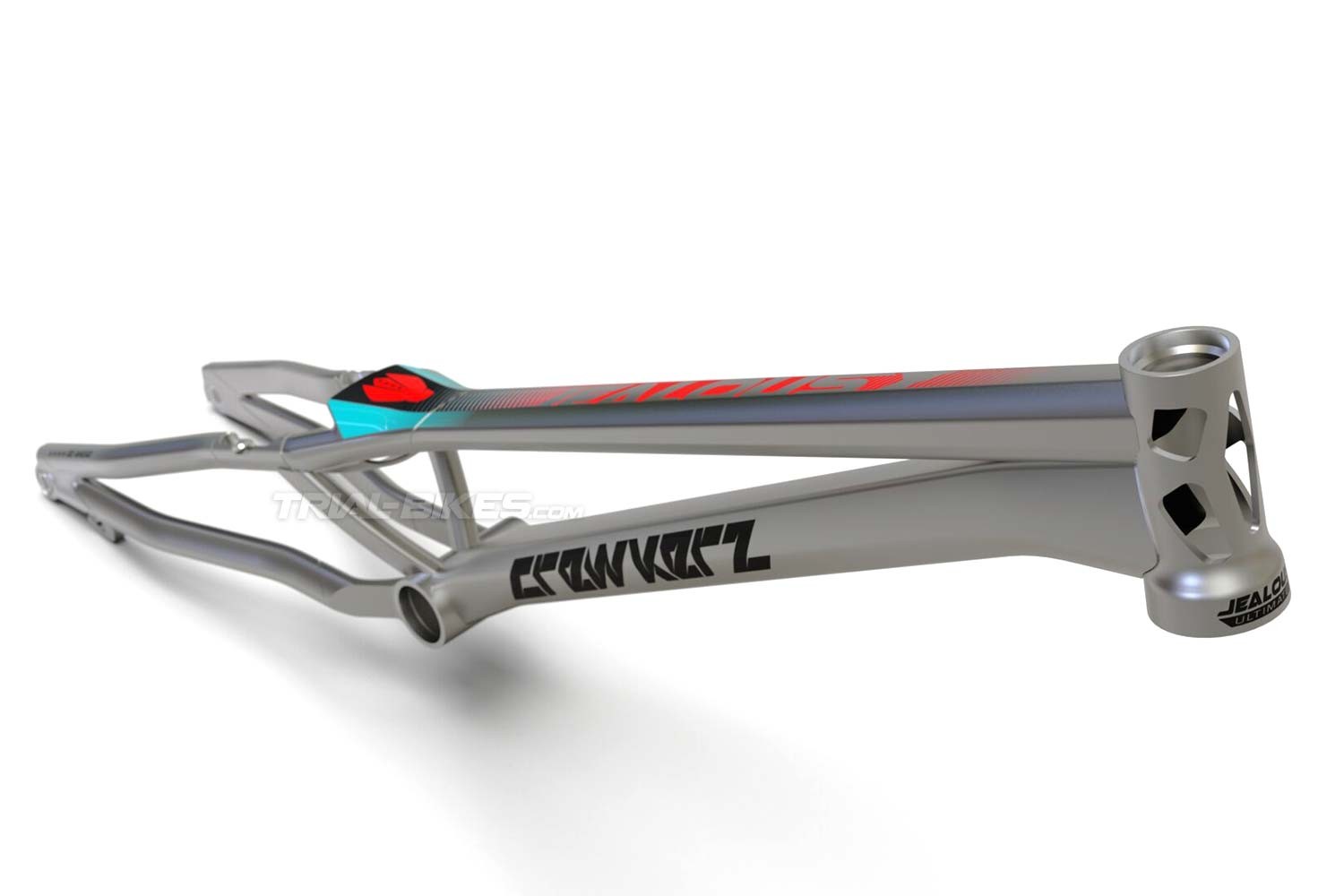

- Frame: Crewkerz  Nextgen 26” made from 6066 T6/T7 alloy,  1 1/8” – 1.5” tapered.
- Forks: Crewkerz Carbon 26”, with 1 1/8” – 1.5” tapered steerer tube.

Wheels
- Front hub: Crewkerz Waw HS 100 mm HS 32H, with 9mm thru-axle.
- Rear hub: Crewkerz Waw HS 135 mm 32H, with 12mm thru-axle.
- Chain tensioner: Crewkerz WAW Carbon Chain Tensioner, with two 9T wheels.
- Front rim: Hashtagg 26” 28H , 32 mm wide.
- Rear rim: Hashtagg 26" 32H, 47 mm wide.
- Spokes: Sapim Laser Superlight.
- Spoke nipples: Aluminium, black.
- Rim tape: Ultralight, black.
- Front inner tube: Crewkerz 26”.
- Rear inner tube: Crewkerz 26”.
- Front tyre: Vee Rubber Waw Kevlar Edition 26" x 2.0 Tyre.
- Rear tyre: Vee Rubber 26'' Kevlar Tech Rear Tyre.

Brakes
- Front brake: Trialtech Carthy Signature Series 2022 Brake lever, Magura HS33 slave cylinders.
- Rear brake: Trialtech Carthy Signature Series 2022 Brake leve, Magura HS33 slave cylinders.

- Brake pads: Crewkerz, red.
- Brake clamps: Crewkerz WaW, black.

Drivetrain
- Crankset: Crewkerz WAW AS30 crankset, CNC machined from 7075-T6 aluminium alloy. Comes with 170 mm cranks and Shimano HG splines, black.
- Freewheel: Crewkerz 135.9, with 18 teeth.
- Chain: KMC Z1eHX, black.
- Rear sprocket: Crewkerz 15T splined, made of steel.
- Pedals: Crewkerz WAW Single-cage 7075-T6.
- Bashring: Crewkerz WAW, black.

Steering
- Headset: Crewkerz Internal Tapered 1 1/8” – 1.5”, anodized black.
- Stem: Crewkerz WAW Ultimate 145 mm x 20º.
- Grips: TrialBikes super-thin foam, black.
- Handlebar: Crewkerz Waw Carbon, 102 mm high, 720 mm long.

Geometry Size S

(1) Wheelbase: 1060 mm.
-----------------------------------------------
(2) Rear End: 380 mm.
-----------------------------------------------
(3) Bottom Bracket Height: +65 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 650 mm.
-----------------------------------------------
(6) Reach: 487 mm.
-----------------------------------------------
(7) Stack: 436 mm.
-----------------------------------------------

Geometry Size M

(1) Wheelbase: 1070 mm.
-----------------------------------------------
(2) Rear End: 380 mm.
-----------------------------------------------
(3) Bottom Bracket Height: +65 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 657 mm.
-----------------------------------------------
(6) Reach: 597 mm.
-----------------------------------------------
(7) Stack: 436 mm.
-----------------------------------------------

Geometry Size L

(1) Wheelbase: 1080 mm.
-----------------------------------------------
(2) Rear End: 380 mm.
-----------------------------------------------
(3) Bottom Bracket Height: +65 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 664 mm.
-----------------------------------------------
(6) Reach: 507 mm.
-----------------------------------------------
(7) Stack: 436 mm.
-----------------------------------------------

Weight
- To be confirmed.

Additional information:
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any doubts, please contact to info@trial-bikes.com .
