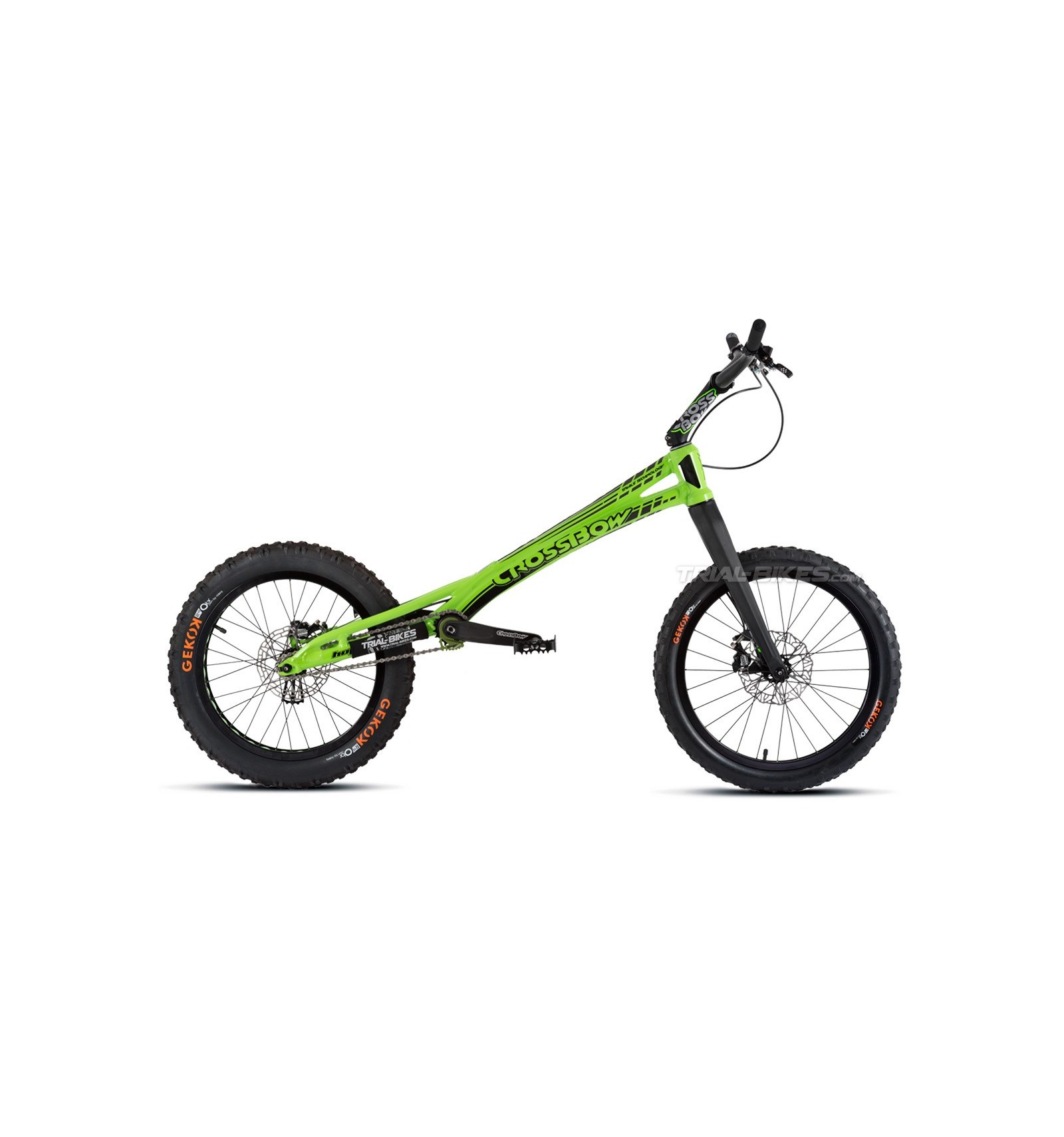

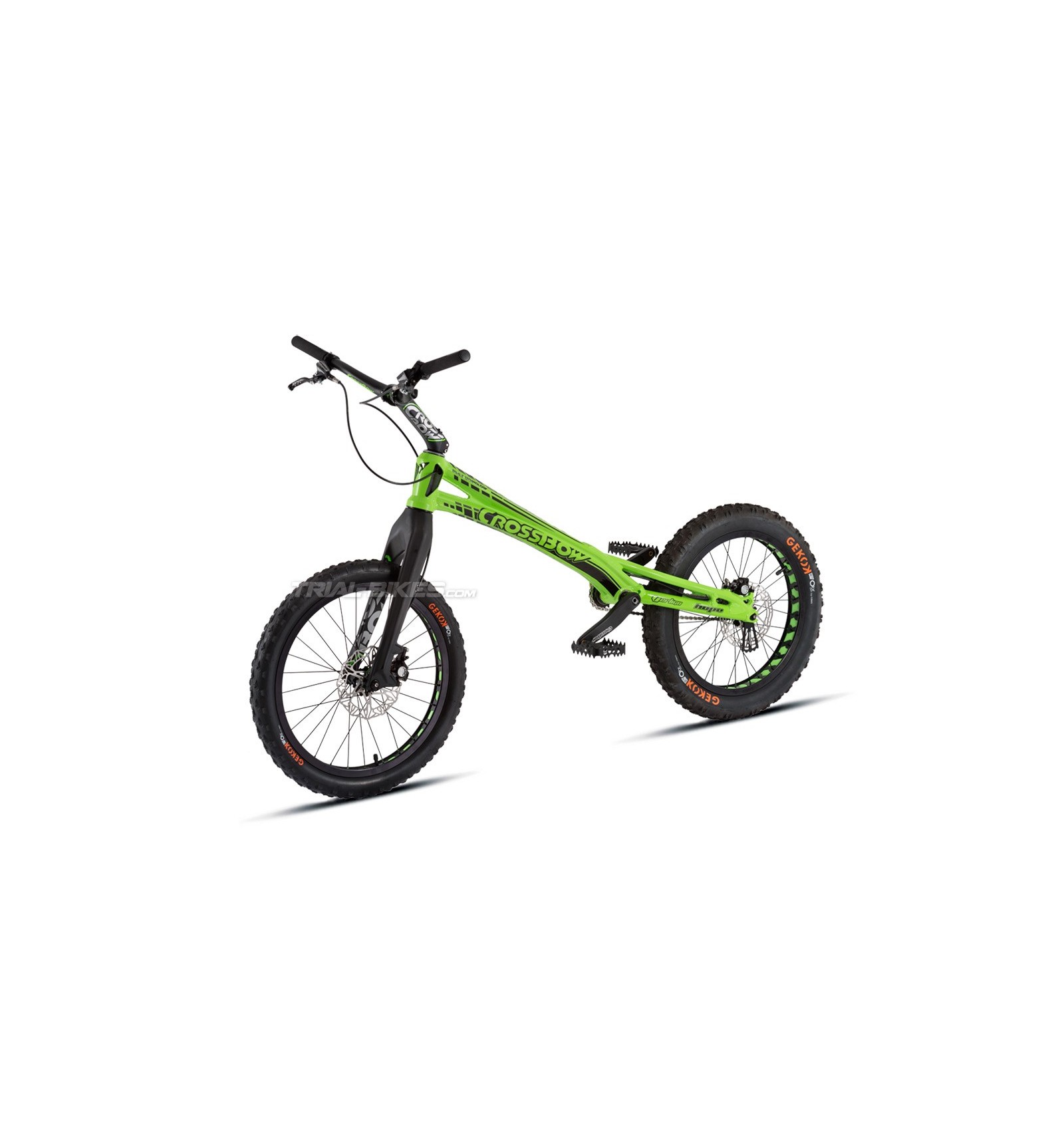

Crossbow 20'' Bike

The new Crossbow 20” bike is the result of years of development and top level testing. As part of the Vertigo family, this bike has the highest quality standard. The frame has a unique, exclusive design by Crossbow, with the new high quality Crossbow components, featuring the new ultralight carbon fork and handlebar. Uses ultralight aluminium and titanium bolts.
And if this wasn’t enough, this is the current 20” Junior UCI World Champion Eloi Palau’s bike!

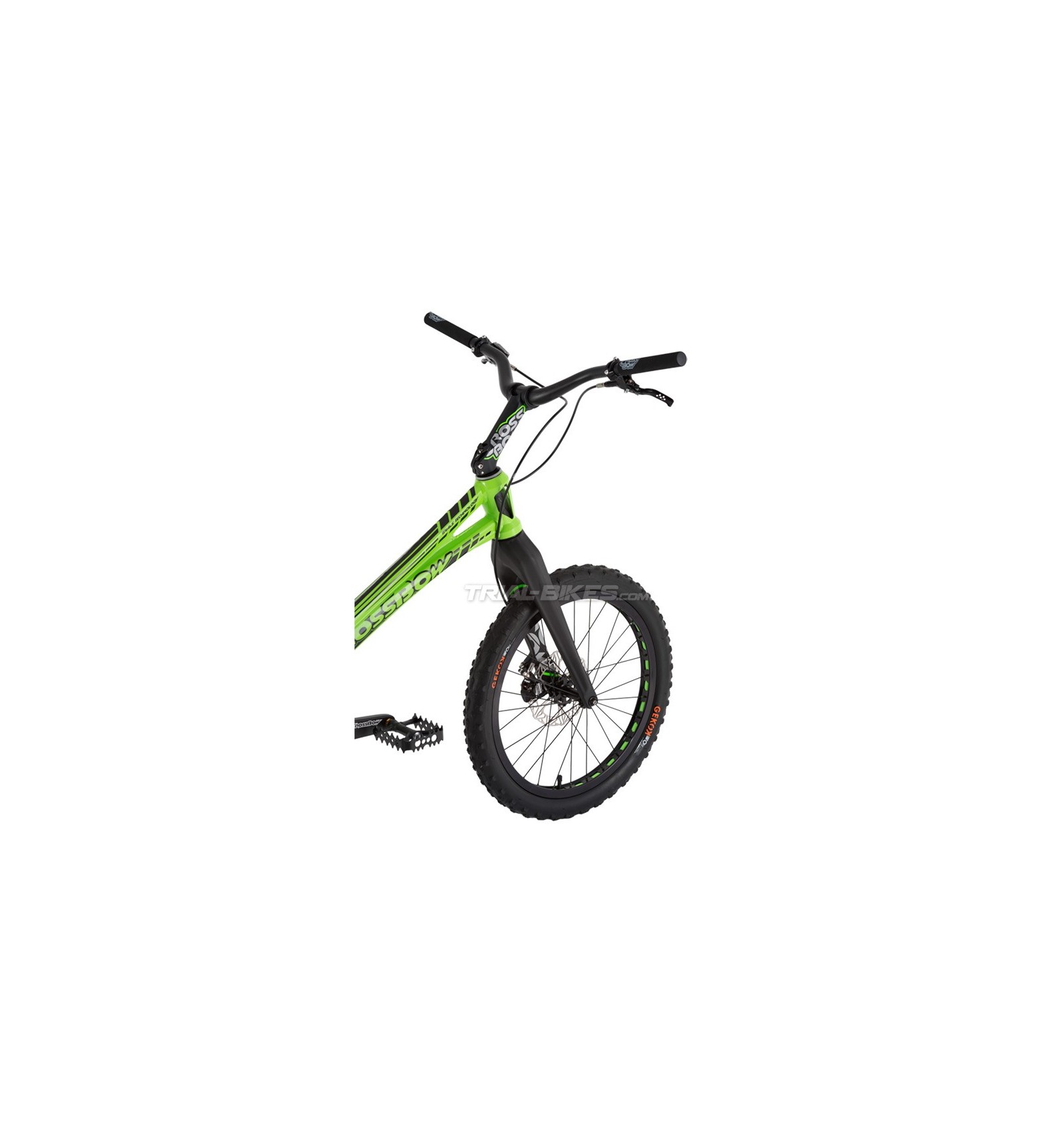

Frame and fork
- Frame: Crossbow 20” 1010mm Tapered, made from 6082-T6 aluminium alloy, with Post Mount disc brake mounts, in fluro green with black Crossbow graphics.
- Forks: Crossbow Carbon 20” Tapered UD, with Post Mount disc brake mounts, black with white Crossbow graphics

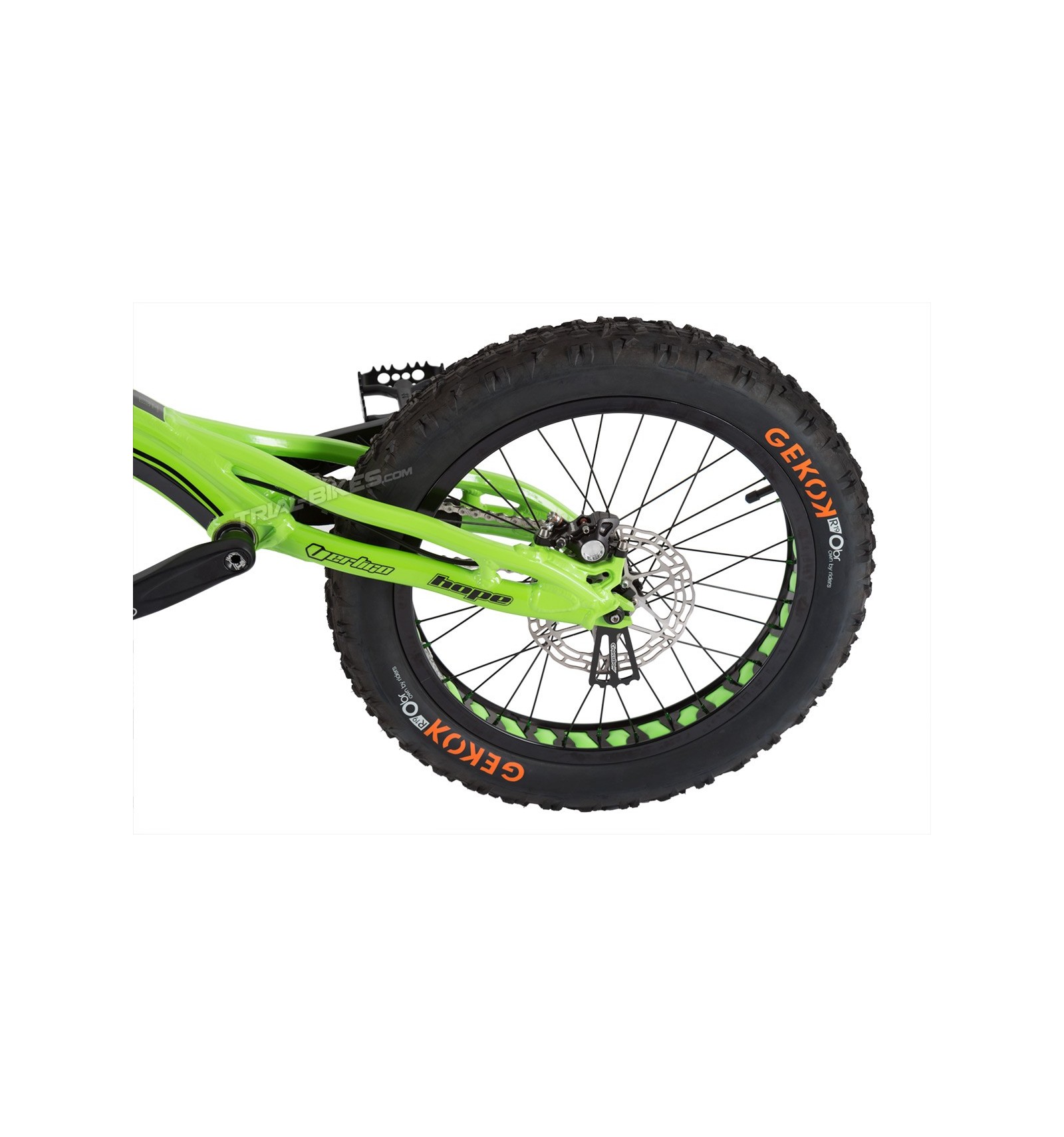

Wheels
- Front hub: Crossbow 28 spoke holes, with rotor mounts, 100mm spacing, anodized black with white Crossbow logo
- Rear hub: Crossbow 32 spoke holes, with rotor mounts, 116mm spacing, anodized black with white Crossbow logo
- Chain tensioner: Crossbow snail cams, black with white Crossbow logo
- Front rim: Crossbow 20”, single wall, 30mm wide, 28 spoke holes, anodized black with white Crossbow logo
- Rear rim: Crossbow 19”, single wall, 47mm wide, 32 spoke holes, anodized black with white Crossbow logo
- Spokes: Crossbow, made of steel, black
- Spoke nipples: Crossbow aluminium, anodized green
- Rim tape: Crossbow Ultralight, fluro green
- Front inner tube: Crossbow 20”
- Rear inner tube: Crossbow 20”
- Front tyre: OBR Gekok F20 20”x2.00”
- Rear tyre: OBR Gekok 19”x2.60”

Brakes
- Front brake: Hope Tech 3 Trial Zone
- Rear brake: Hope Tech 3 Trial Zone

- Rotors: Crossbow 160mm
- Disc protector: Crossbow, 3mm thick, black with white Crossbow graphics

Drivetrain
- Cranks: Crossbow ISIS 7075-T6 CNC, 160mm long, black with white Crossbow graphics
- Bottom bracket: Crossbow ISIS Spanish, 128mm wide axle, silver
- Freewheel: Crossbow 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, with white and green Crossbow logo
- Chain: KMC X9, silver
- Rear sprocket: Crossbow 12T screw-on, made of titanium, silver
- Pedals: Crossbow single-cage, with titanium axle and 7075-T6 aluminium body, black
- Bashring: Crossbow half ring, anodized green

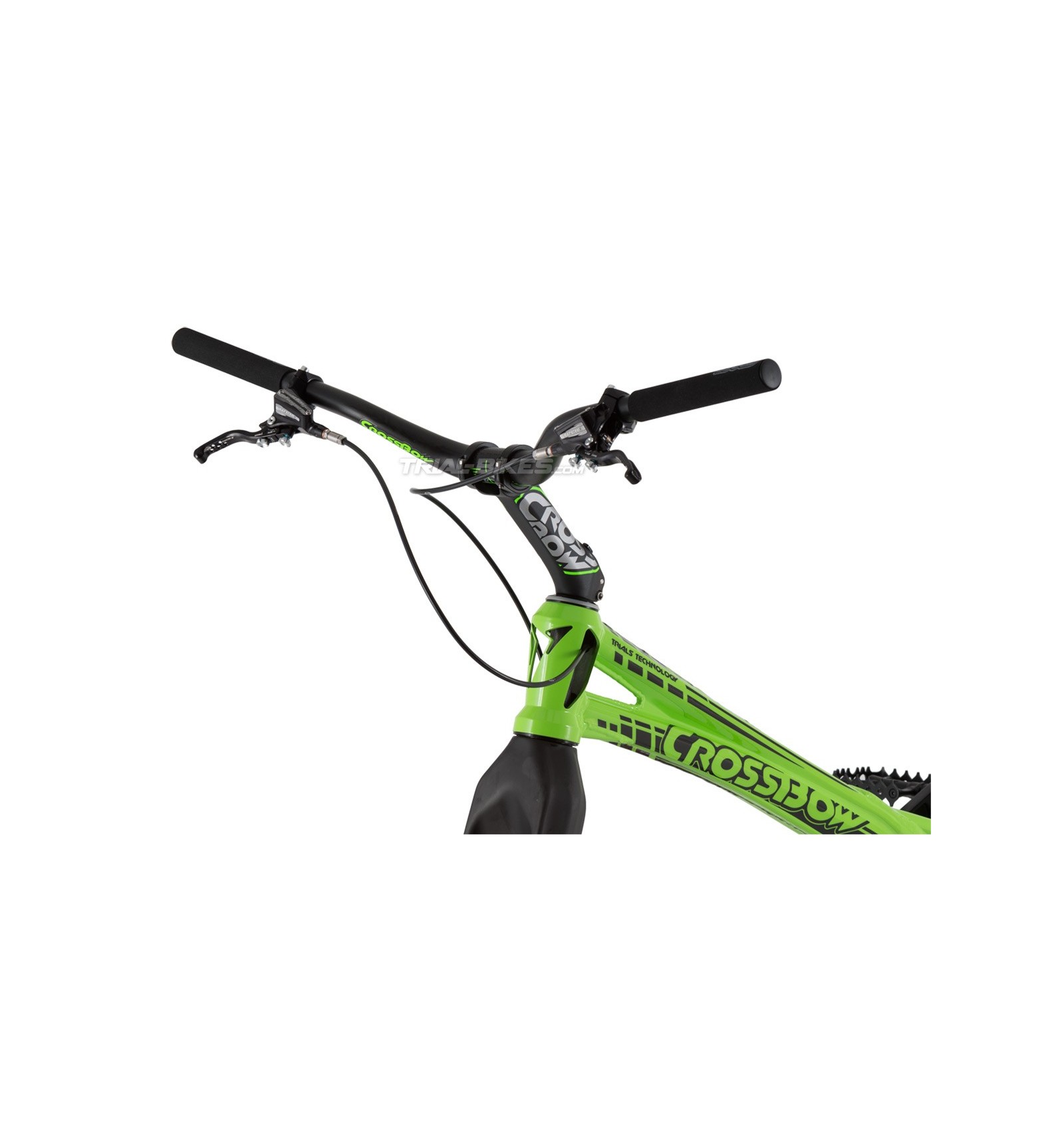

Steering
- Headset: Crossbow Tapered 1 1/8” – 1.5” internal headset, with sealed bearings, anodized black
- Stem: Crossbow 150mm x 35º, 31.8mm Oversized handlebar diameter, black with white and green Crossbow graphics
- Grips: Crossbow 2mm foam, black with white Crossbow graphics
- Handlebar: Crossbow 3K Carbon, 720mm long, 110mm rise, 31.8mm Oversized handlebar diameter, UD black with white and green Crossbow graphics

Geometry
- Wheelbase: 1010mm
- Chainstay length: 350mm
- Bottom bracket rise: +90mm
- Head angle: 71.2º

Weight
- 7.69Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact us on info@trial-bikes.com .

Watch the video below to see the key points of this new frame :
