✅ Ideal for riders up to 1.60m (12-14 years old).
✅ New 2022 finish, in anodized blue colour.
✅ Built with Clean carbon fork and handlebar, KMC X9 chain and Hope brakes with Clean rear disc protector.
This product is no longer in stock

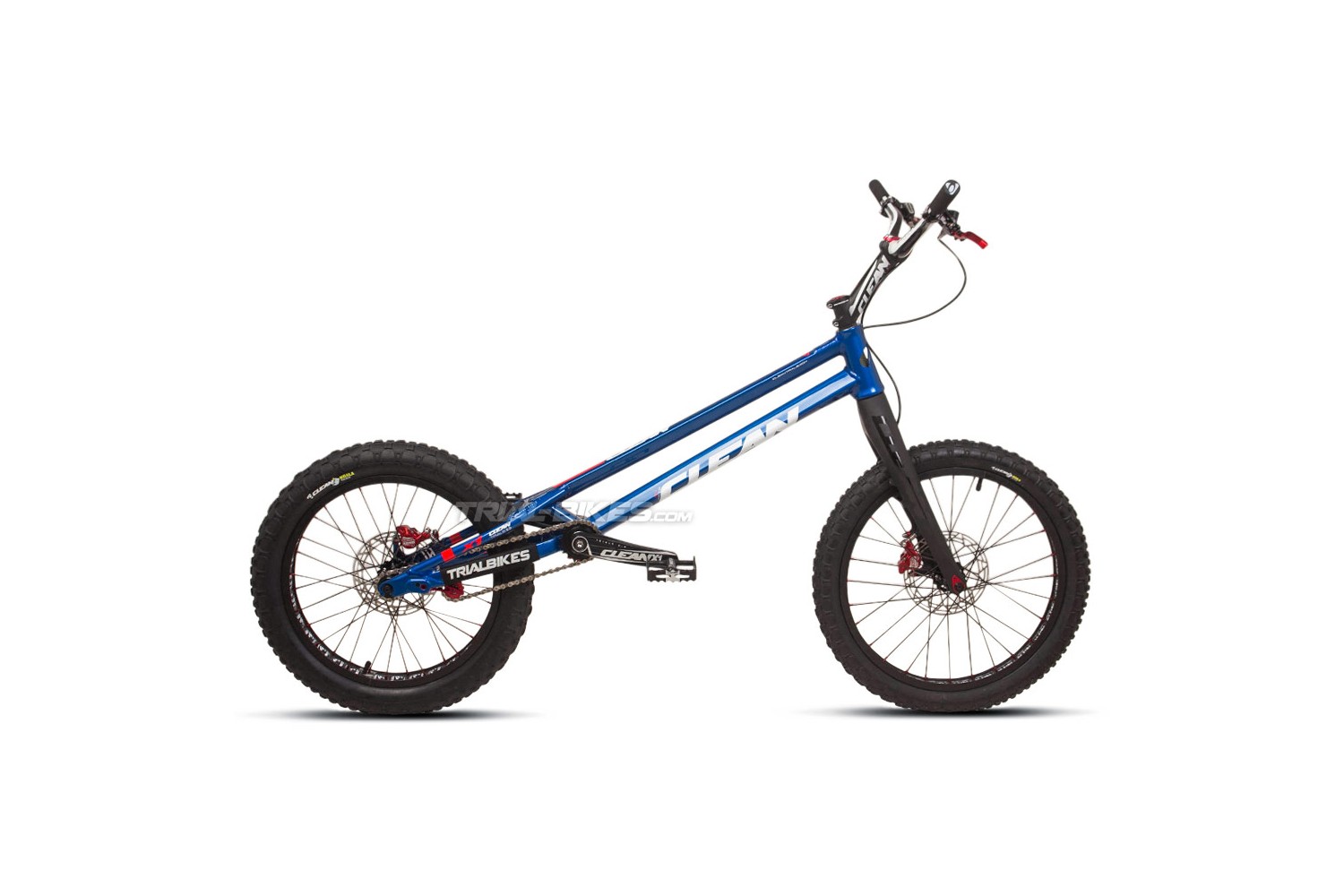

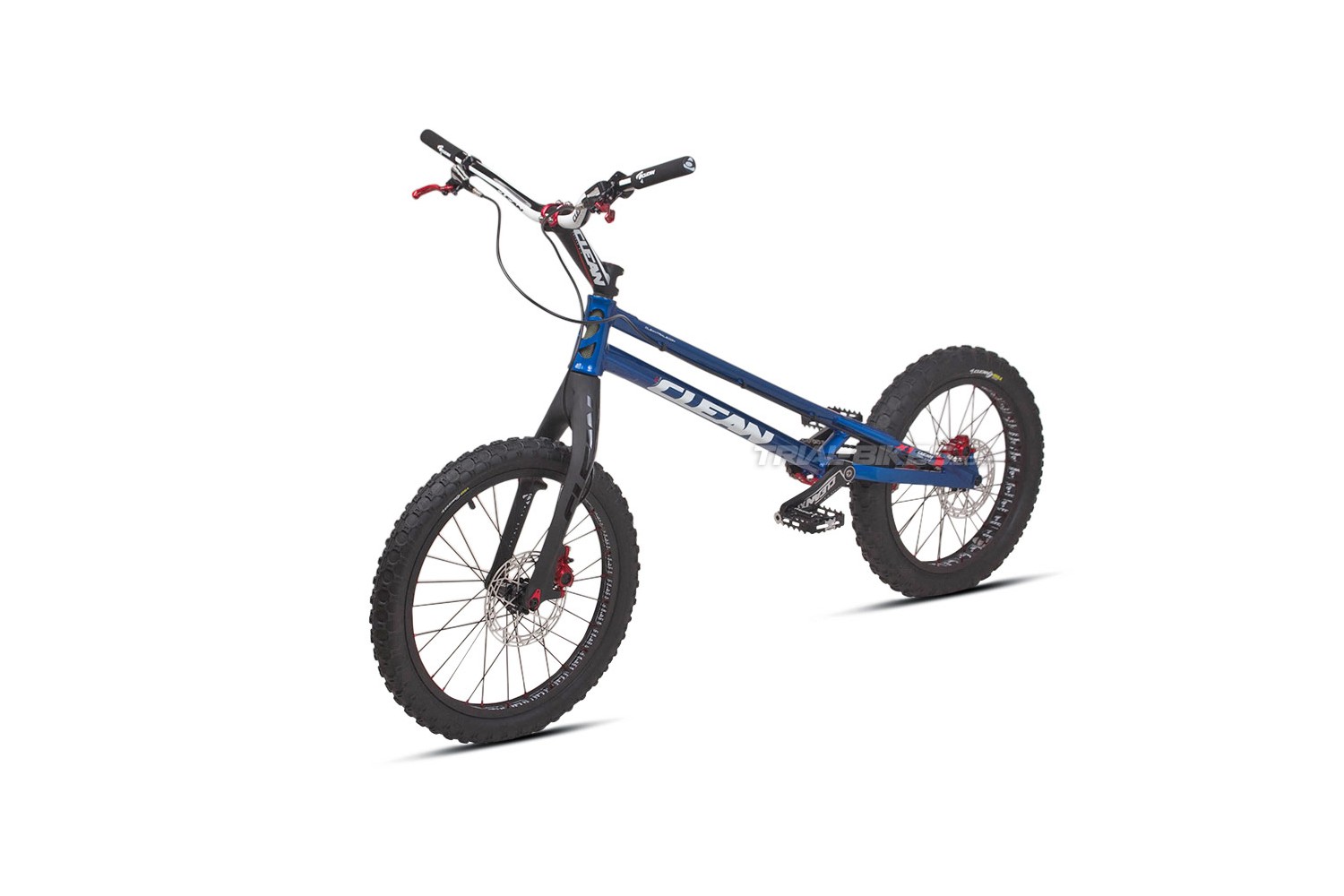

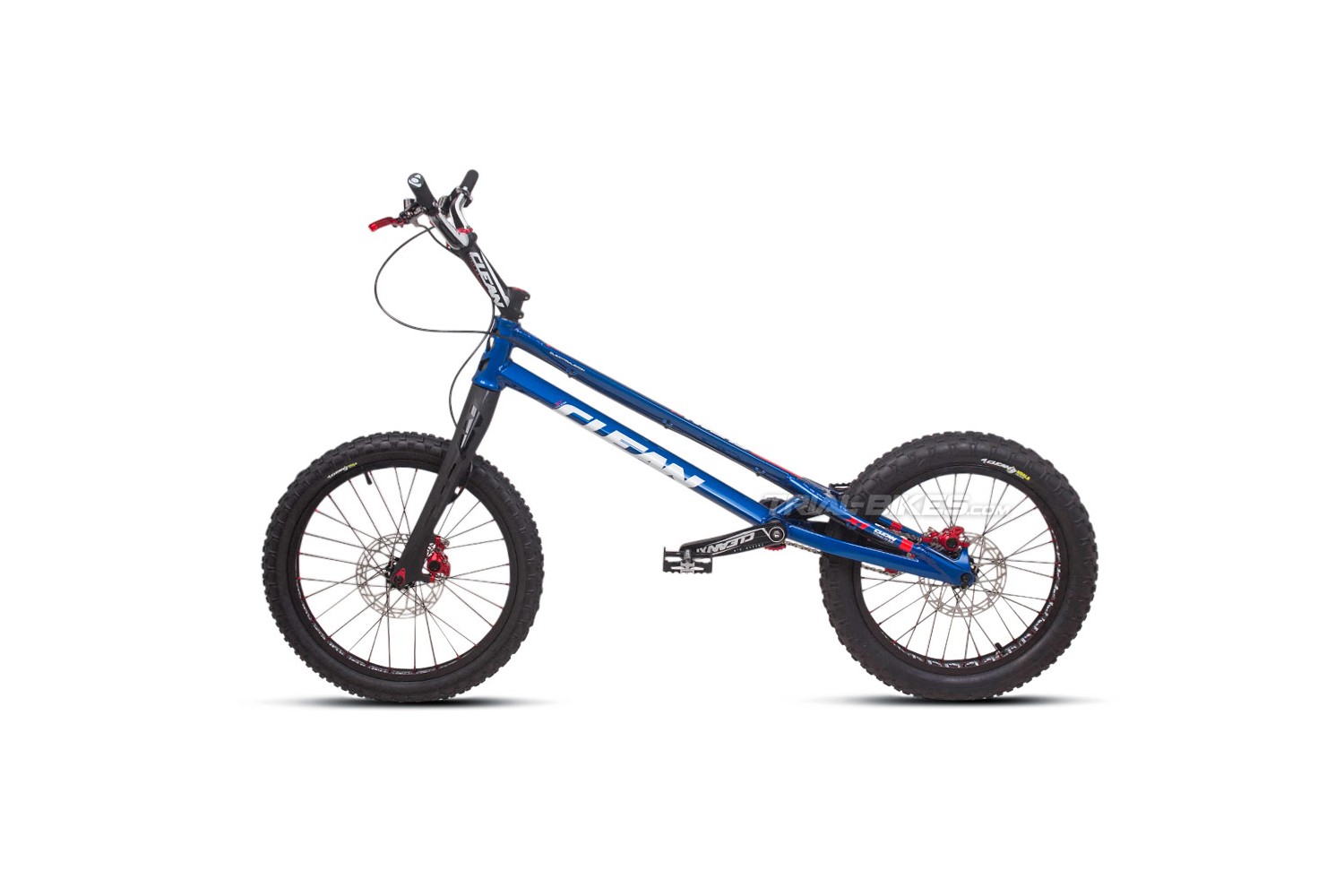

The Clean X1 WC 20" 970 mm 2022 bike combines high-end parts with a sized-down geometry for riders up to 1.60 m (illustrative ages between 12-14). Thanks to the Clean carbon fork and handlebar, combined with the best brakes for bike trials, the Hope Tech3 Trialzone, this bike is great for learning any techniques more easily, refining your skills or competing at a high level without any disadvantage opposite the Clean X1 WC 20" bike for adults.
✅ Ideal for riders up to 1.60 m (12-14 years old).
✅ New 2022 finish, in anodized blue colour.
✅ Built with Clean carbon fork and handlebar, KMC X9 chain and Hope brakes.
Please note: some of the parts listed below are yet to be confirmed. We will update the list below as soon as we receive confirmation from Clean. In case you have any doubts, please get in touch with us at info@trial-bikes.com.
Frame and forkÂ
- Frame: Clean X1 20" 970 mm, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts
- Forks: Clean X2 20" Carbon tapered 1 1/8" – 1.5" frame, made from UD carbon, with Post Mount disc brake mounts.
Wheels – To be confirmed
- Front hub: Clean X2 28 spoke holes, with rotor mounts.
- Rear hub: Clean X2 32 spoke holes, with rotor mounts.
- Chain tensioner: Clean X2 integrated, with two 10T jockey wheels made of plastic, black
- Front rim: Clean V2 20", single wall, 34 mm wide, 28 spoke holes, anodized black
- Rear rim: Clean 19", single wall, 48 mm wide, 32 spoke holes, anodized black
- Spokes: 1.8mm spokes, black
- Rim tape: Clean, grey
- Front inner tube: Maxxis Extra Light
- Rear inner tube: Maxxis Extra Light
- Front tyre: Clean Koala 20"x2.00"
- Rear tyre: Clean Koala 19"x2.60"
Brakes
- Front brake: Hope Tech3.
- Rear brake: Hope Tech3.
- Rotors: Clean RS, 160 mm (front), 162.5 mm (rear)
DrivetrainÂ
- Cranks: Clean ISIS 7075-T6 160 mm, black with silver Clean graphics
- Bottom Bracket: Clean 123 mm, BSA 68 mm, 1.37"x24tpi, thread
- Freewheel: Clean X2 108.9 18T screw-on, with 108 engagement points, 9 pawls and 18 teeth
- Chain: KMC X9-73, silver
- Rear sprocket: Clean 13T Screw-on, made steel, black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red
SteeringÂ
- Headset: Clean Internal Tapered 1 1/8" - 1.5", sealed bearings, anodized red
- Stem: Clean 135 mm x 25º, 31.8 mm Oversized handlebar diameter, black with silver Clean graphics
- Grips: Clean foam, black
- Handlebar: Clean X2 Carbon 103 mm, 31.8 mm Oversized handlebar diameter, white finish with black Clean graphics.
Geometry
(1) Wheelbase: 970Â mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +87 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube:Â 580 mm
-----------------------------------------------
Weight
-Â 7.580 Kg
Additional information:Â
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .
| SIZE | 20" |
| RIDER HEIGHT | 140cm-160cm |
| FRONT BRAKE | Disc |
| REAR BRAKE | Disc |
