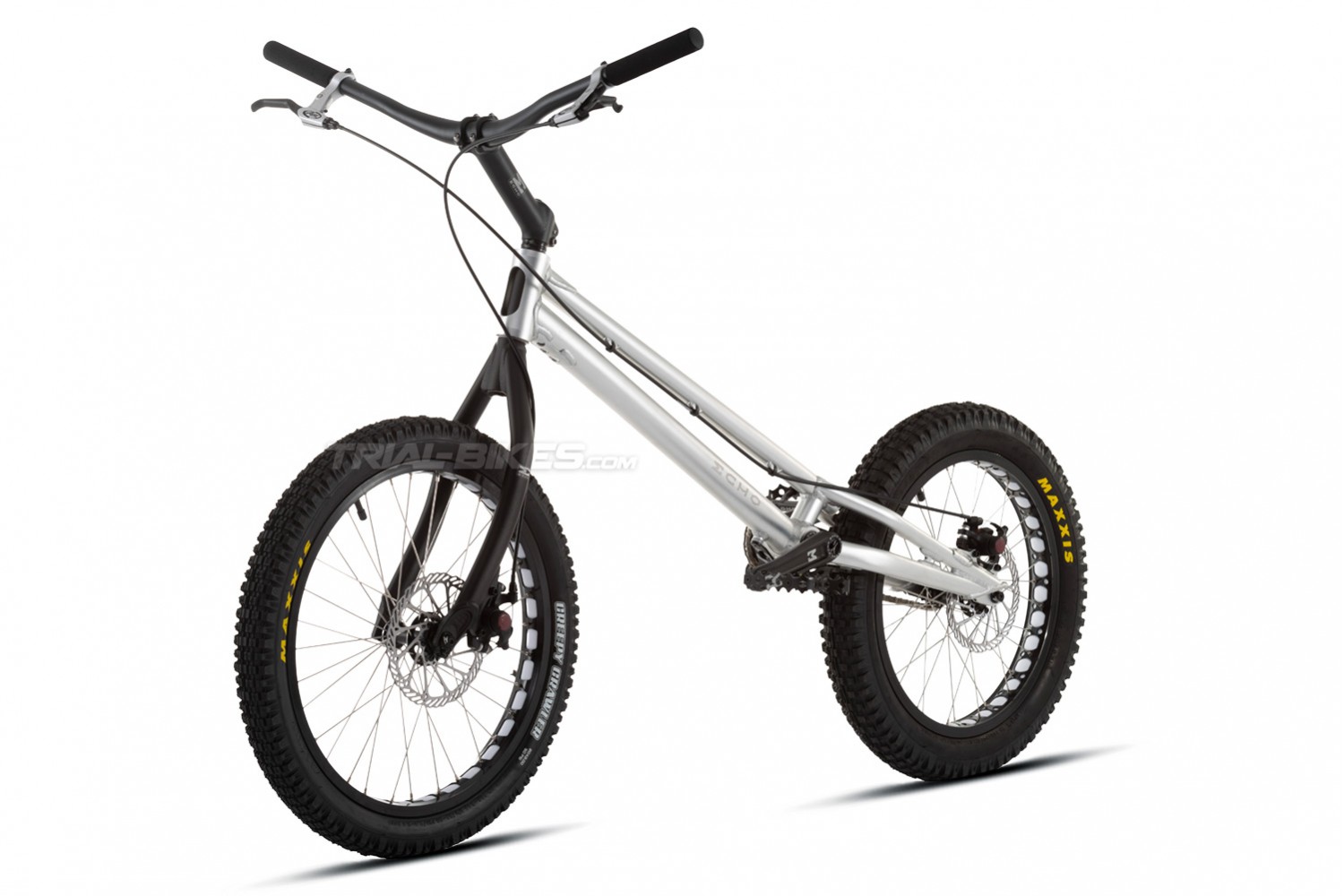

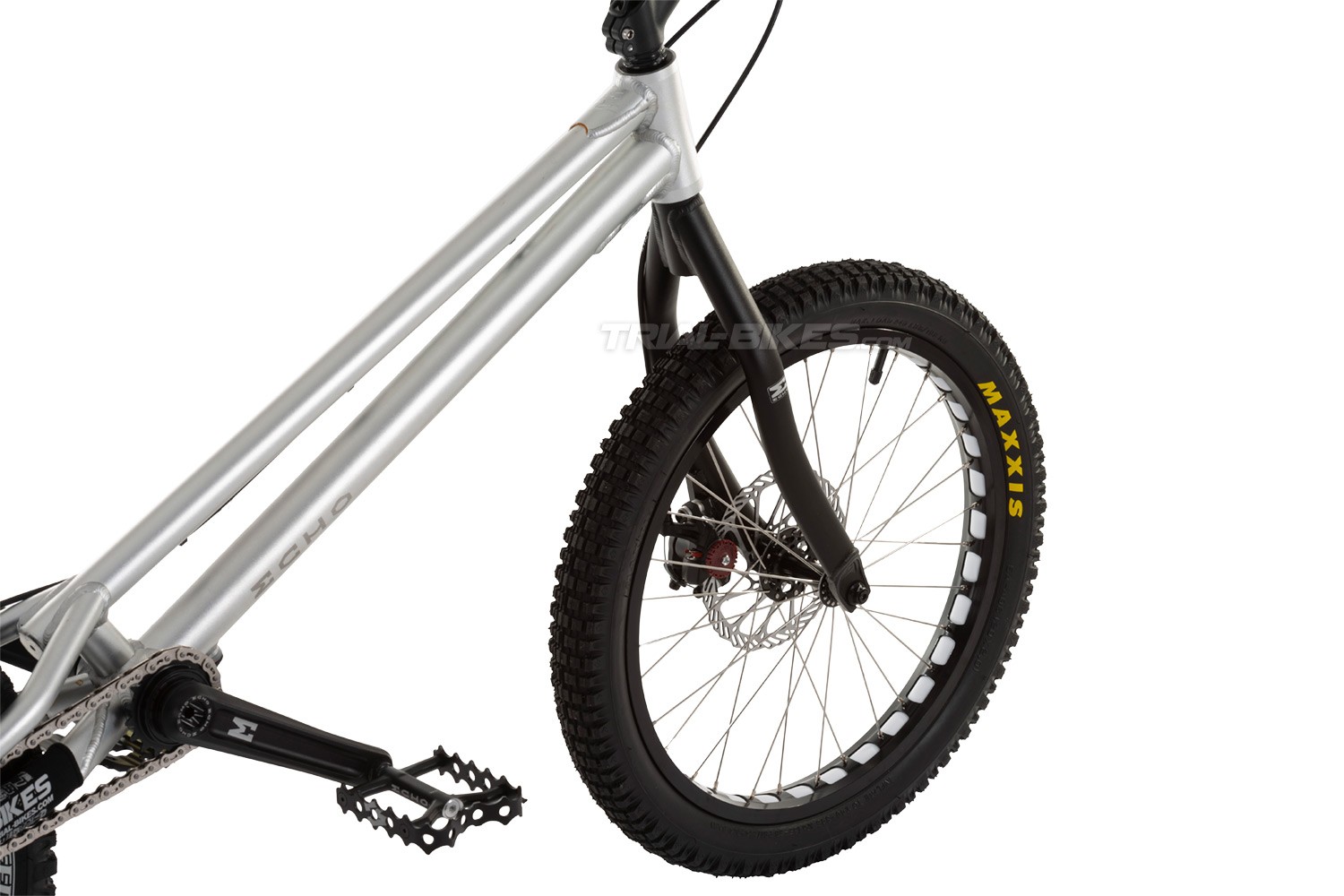

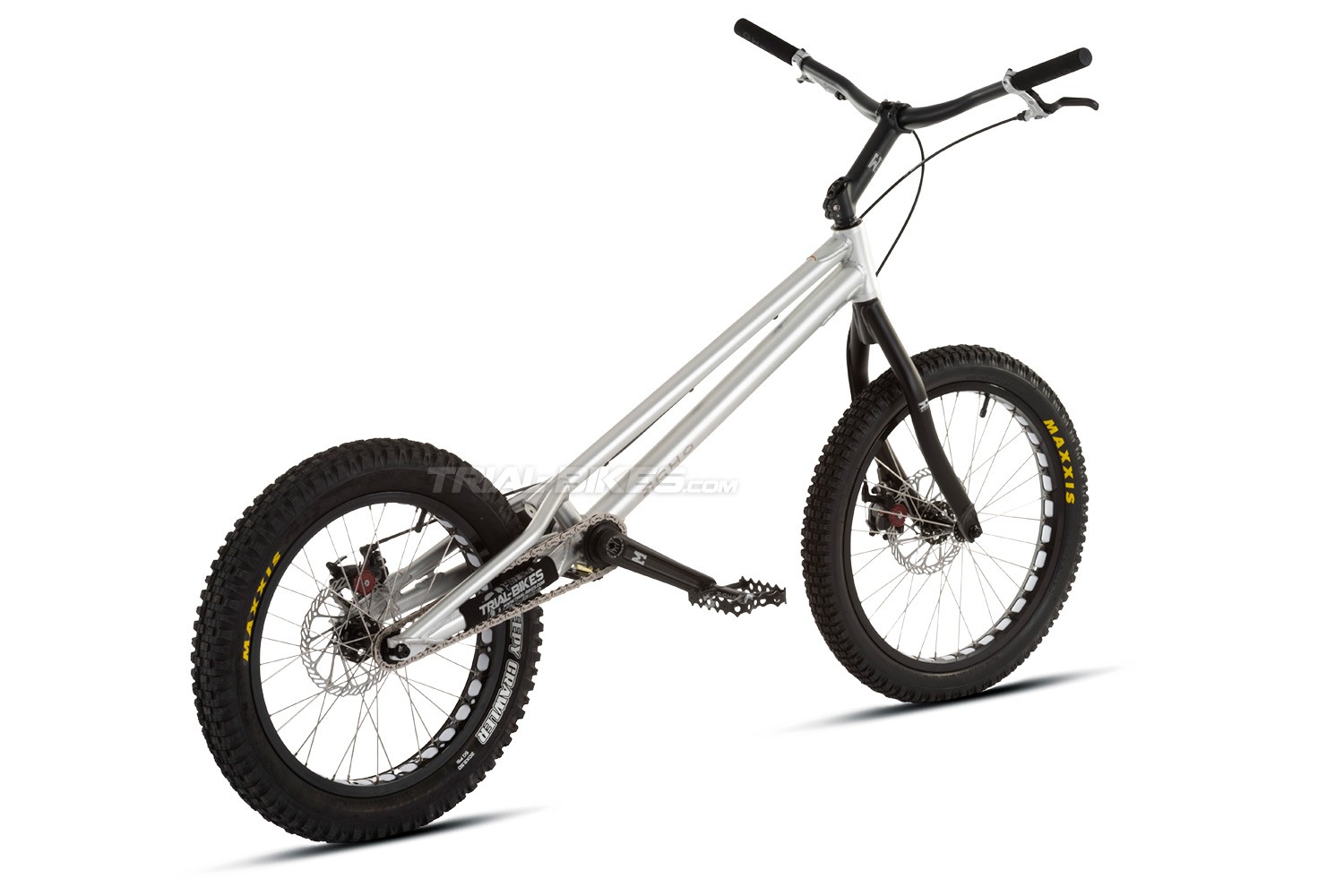

Echo Lite Mk5 20" Bike

Echo Lite Mk5 20" Bike

Frame and fork
-Frame: Echo Lite Mk5 20”, aluminium alloy, with IS disc brake mounts
- Forks: Echo SL 20”, made of aluminium, with a 1 1/8” and IS disc brake mounts

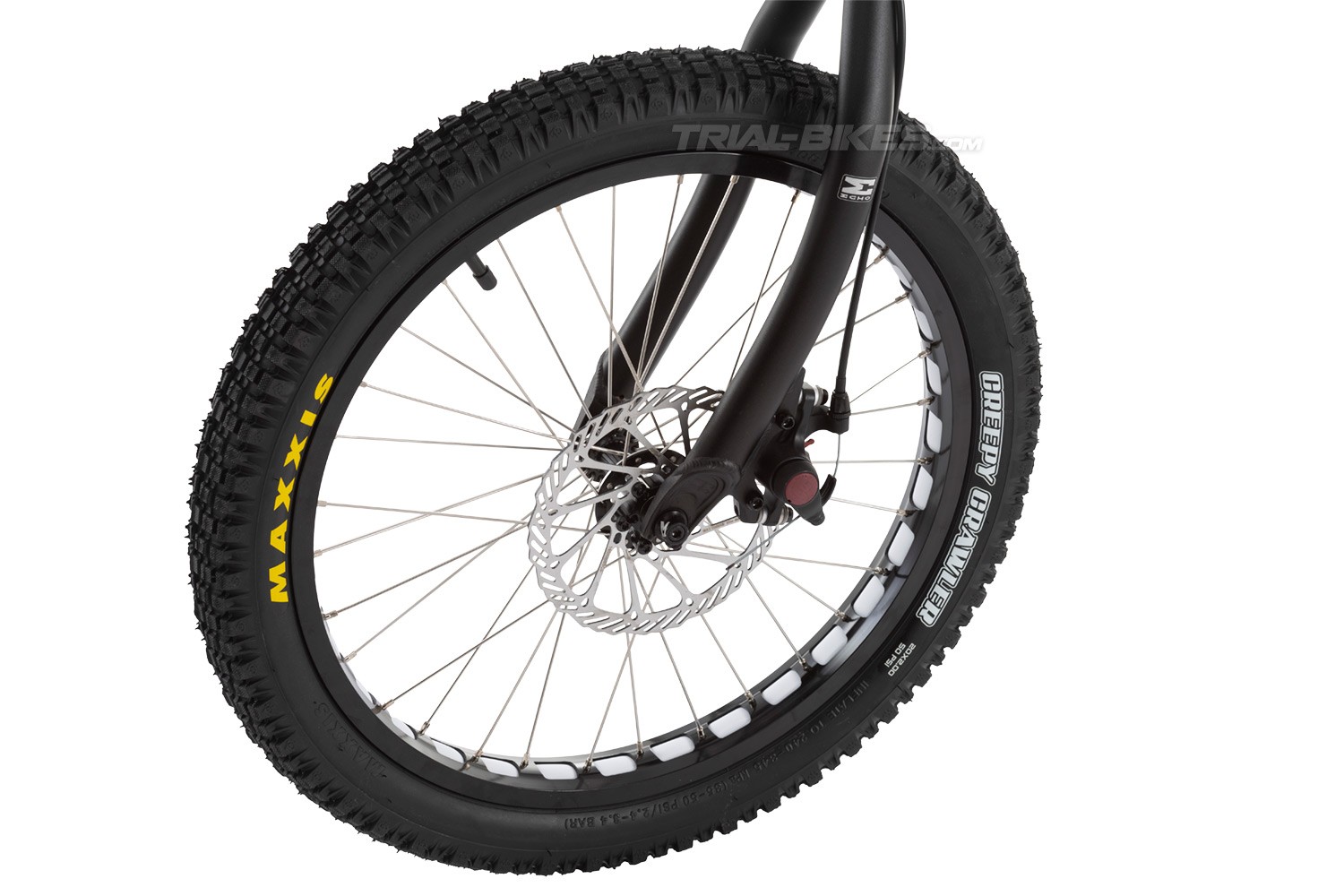

Wheels
- Front hub: Echo 32 spoke holes, with rotor mounts, 100mm spacing, anodized black
- Rear hub: Echo 32 spoke holes Splined, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Echo integrated
- Front rim: Echo SL 20”, single wall, 38mm wide, 32 spoke holes, anodized black
- Rear rim: Echo SL 19”, single wall, 45mm wide, 32 spoke holes, anodized black
- Spokes: Echo, silver
- Rim tape: Echo, white
- Front inner tube: Echo
- Rear inner tube: Echo
- Front tyre: Maxxis Creepy Crawler 20”x2.0”
- Rear tyre: Maxxis Creepy Crawler 19”x2.50”

Brakes
- Front brake: Avid FR5/BB5 Disc
- Rear brake: Avid FR5/BB5 Disc
- Rotors: Echo 160mm

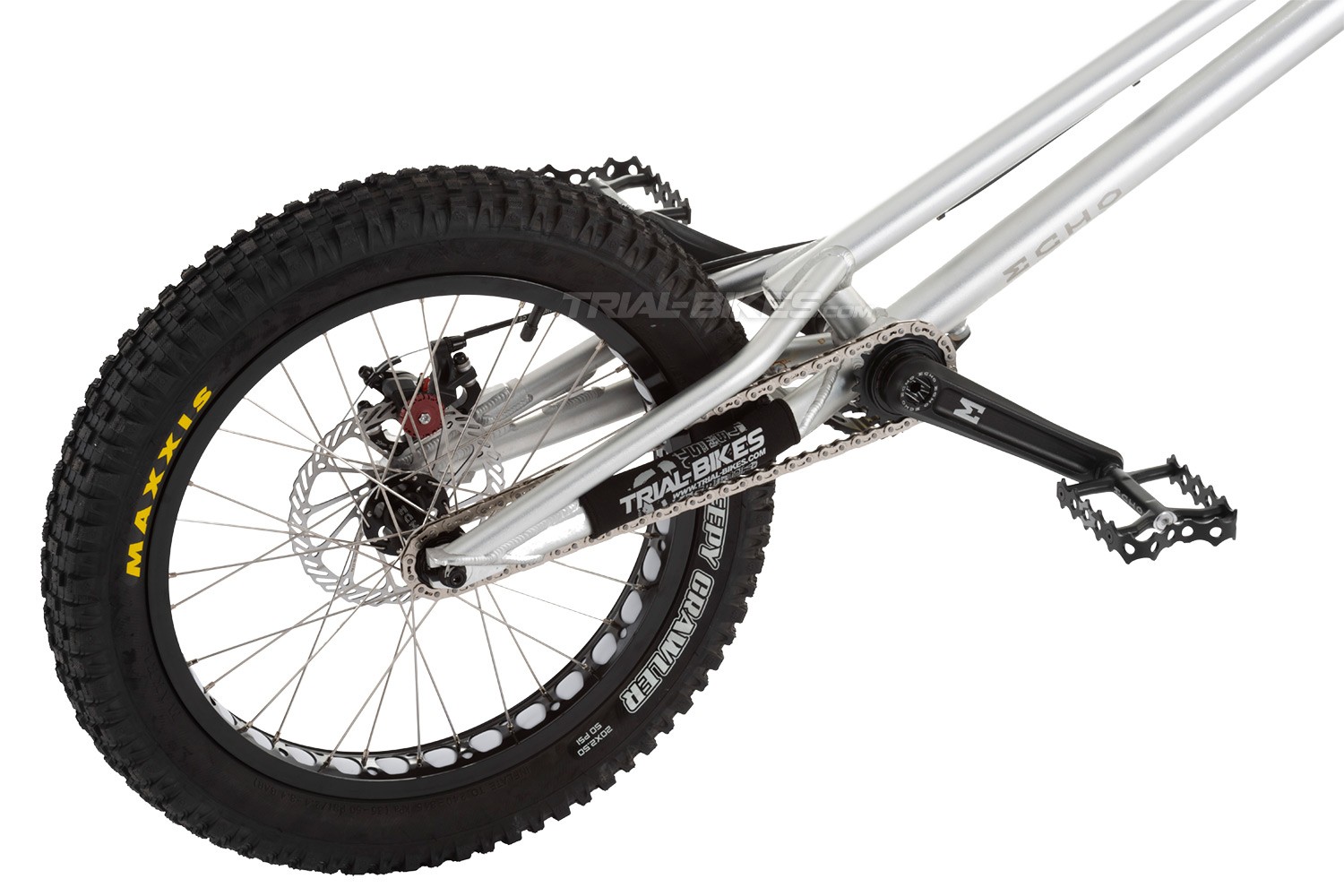

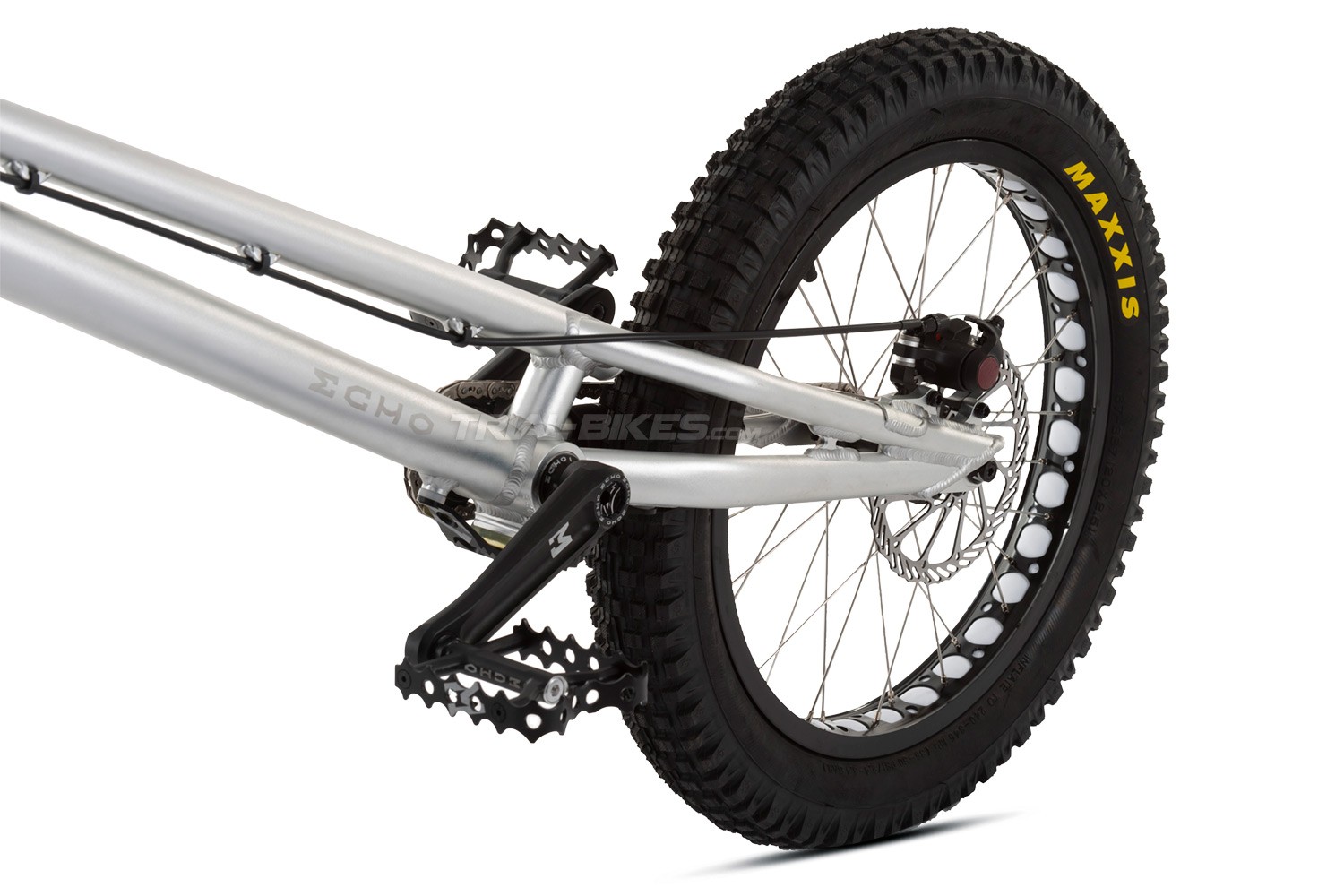

Drivetrain
- Cranks: Echo TR Splined, 160mm, ISIS, anodized black
- Bottom Bracket: Echo Spanish, for ISIS cranks
- Freewheel: Echo TR Splined, 108.9 18T, black
- Chain: Echo 3/32”, silver
- Rear sprocket: Echo 12T Splined, made of steel, black
- Pedals: Echo TR Curved, single-caged, anodized red
- Bashplate: Echo mini bashplate, anodized black

Steering
- Headset: Echo Integrated 1 1/8”, without cups, with sealed bearings
- Stem: Echo TR Forged, 150mm x 30º, 31.8mm Oversized handlebar diameter, anodized black with silver Echo graphics
- Grips: Echo foam, black
- Handlebar: Echo 7075-T6 High Rise, 740mm long, 31.8mm Oversized handlebar diameter, black finish with white Echo graphics

Geometry:
- Wheelbase: 1000mm
- Chainstay length: 350mm
- Bottom bracket rise: +85mm
- Head angle: 73.5º

Weight
- 8.64Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
You can easily save some weight off this bike, i.e. by replacing the tyres for a set of Jitsie Reverz tyres, with which you could save 535g, and final weight would be 8.10kg. If you’d like to make this or any other changes, please get in touch with us at info@trial-bikes.com and we’ll help you out!

Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
