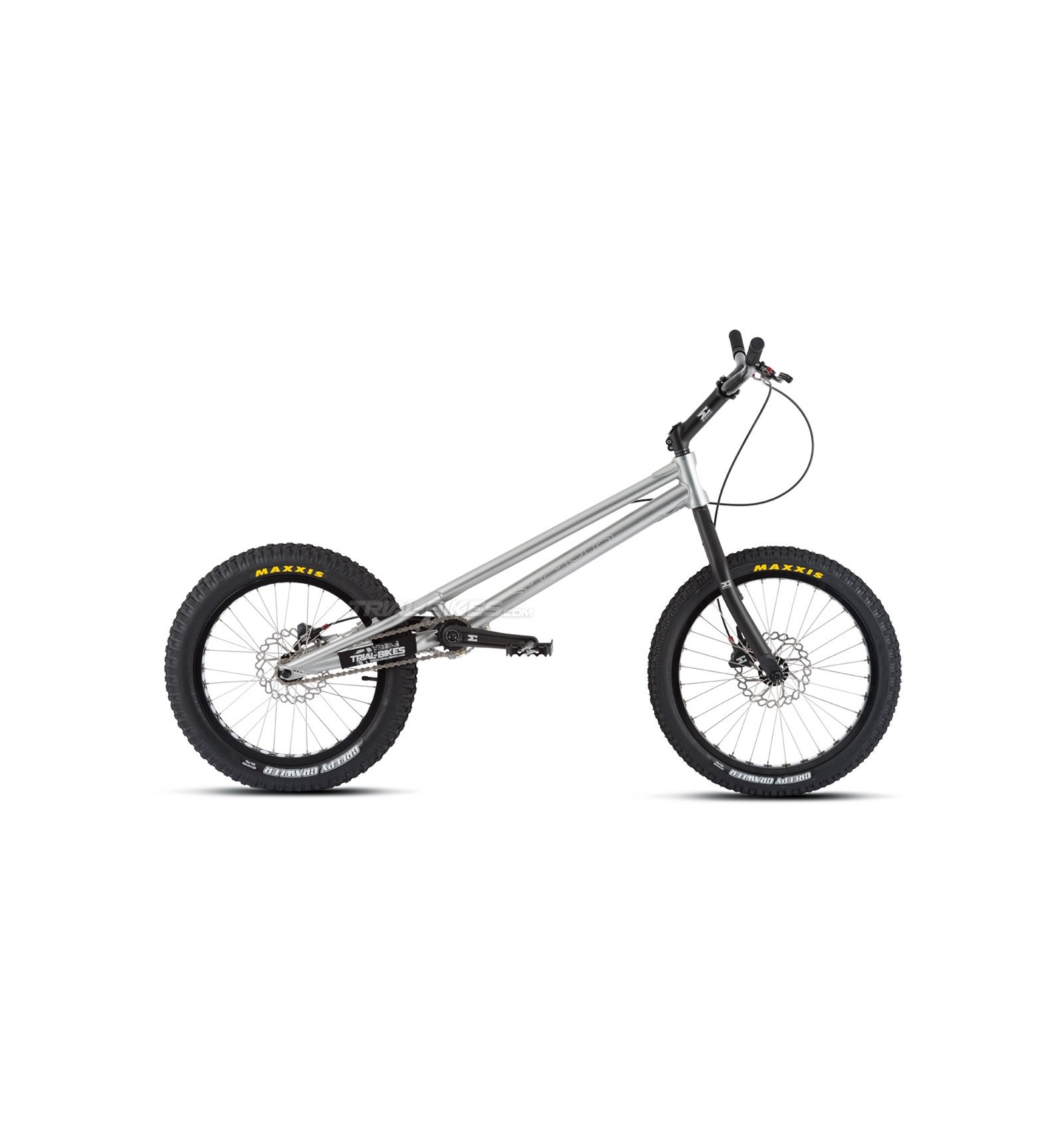

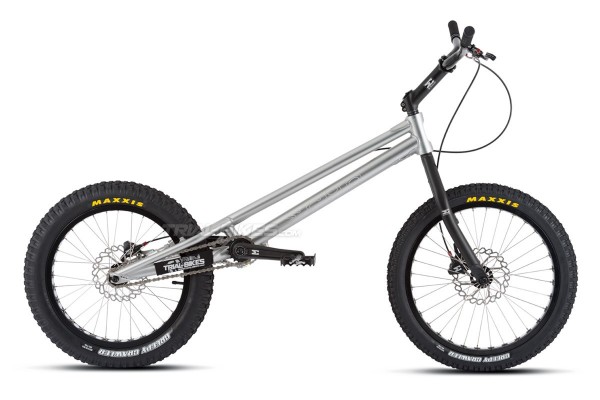

Echo Mark V 20'' Bike

When it comes to value for money, the new Echo Mark V 20” bike is unbeatable! Built with high quality components, like the Echo TR 108.9 freewheel, Echo SL single-wall rims, the new Echo TR 2016 disc brakes or the new Echo SL fork… You can’t get more for less!

Frame and fork
- Frame: Echo Mark V 20”, made from 6061-T6 aluminium alloy, with IS disc brake and HS mounts
- Forks: Echo SL 20”, made of aluminium, with IS disc brake mounts

Wheels
- Front hub: Echo 32 spoke holes, with rotor mounts, 100mm spacing, anodized black
- Rear hub: Echo 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Echo integrated
- Front rim: Echo SL 20”, single wall, 38mm wide, 32 spoke holes, anodized black
- Rear rim: Echo SL 19”, single wall, 45mm wide, 32 spoke holes, anodized black
- Spokes: Echo Double Butted, black
- Rim tape: Echo, white
- Front inner tube: Echo
- Rear inner tube: Echo
- Front tyre: Maxxis Creepy Crawler 20”x2.0”
- Rear tyre: Maxxis Creepy Crawler 19”x2.5”

Brakes
- Front brake: Echo TR Disc 2016 IS
- Rear brake: Echo TR Disc 2016 IS
- Rotors: Echo 160mm

Drivetrain
- Cranks: Echo TR Splined 6061-T6 CNC, 160mm, ISIS, Echo Splines, anodized black
- Bottom Bracket: Echo SL Spanish, 124mm long, ISIS
- Freewheel: Echo TR Splined 108.9 18T, Echo Splines, black
- Chain: KMC Z610HX, silver
- Rear sprocket: Echo 12T Splined, made of steel, Echo Splined, silver
- Pedals: Echo TR single cage, anodized black
- Bashplate: Echo bashplate, anodized black

Steering
- Headset: Echo Integrated 1 1/8”, without cups, with sealed bearings
- Stem: Echo TR Forged, 150mm x 30º, 31.8mm Oversized handlebar diameter, black with silver Echo graphics
- Grips: Echo foam, black
- Handlebar: Echo 7075-T6, 740mm long, 31.8mm Oversized handlebar diameter, black finish with white Echo graphics

Geometry:
- Wheelbase: 1000mm ( measured by TrialBikes)
- Chainstay length: 350mm
- Bottom bracket rise: +82mm
- Head angle: 72º

Weight
- 8.50Kg (With Maxxis tyres)

Additional information:
Some pictures may not match the item described, so please read the description carefully.

(MORE PICTURES SOON)
