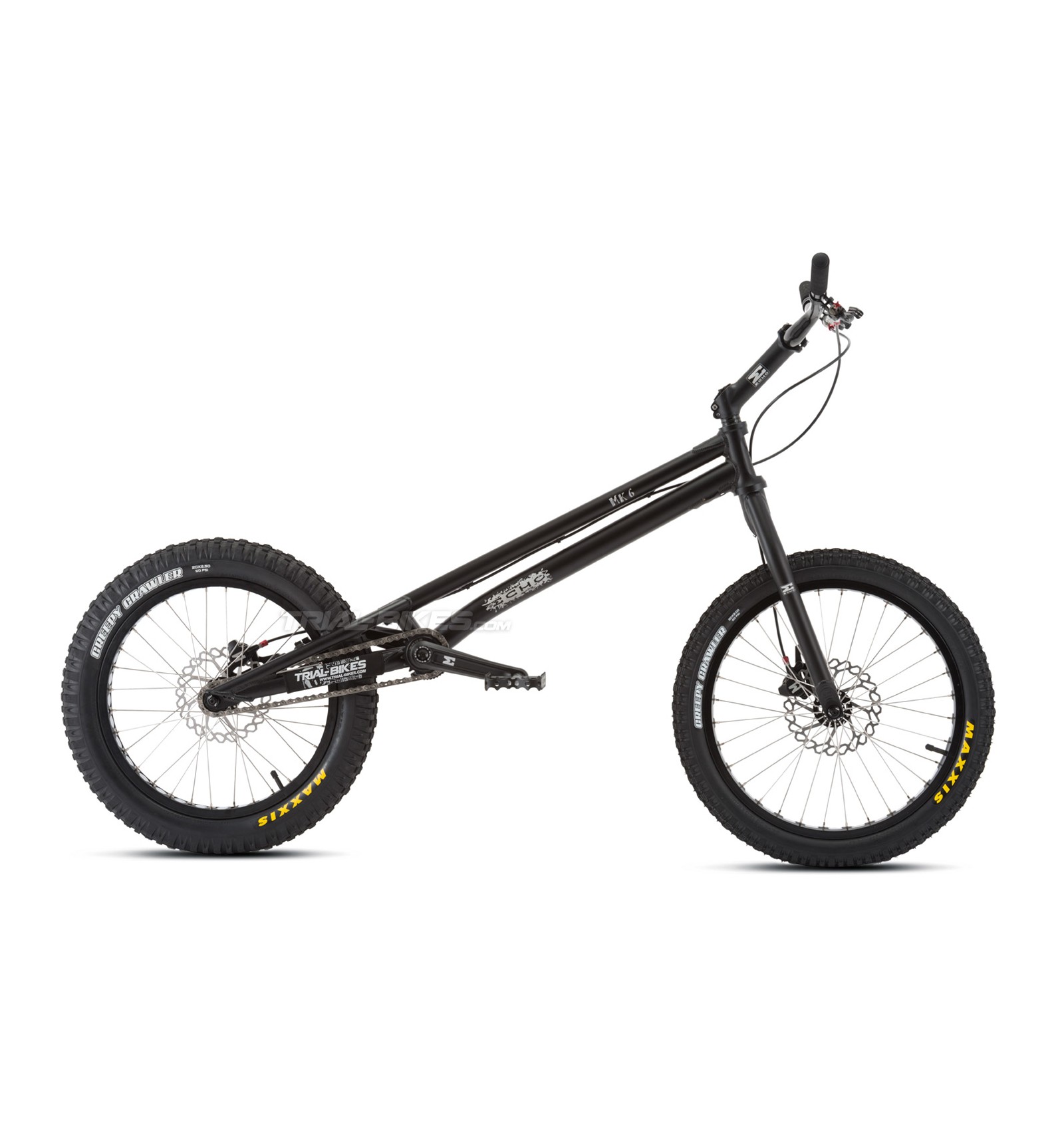

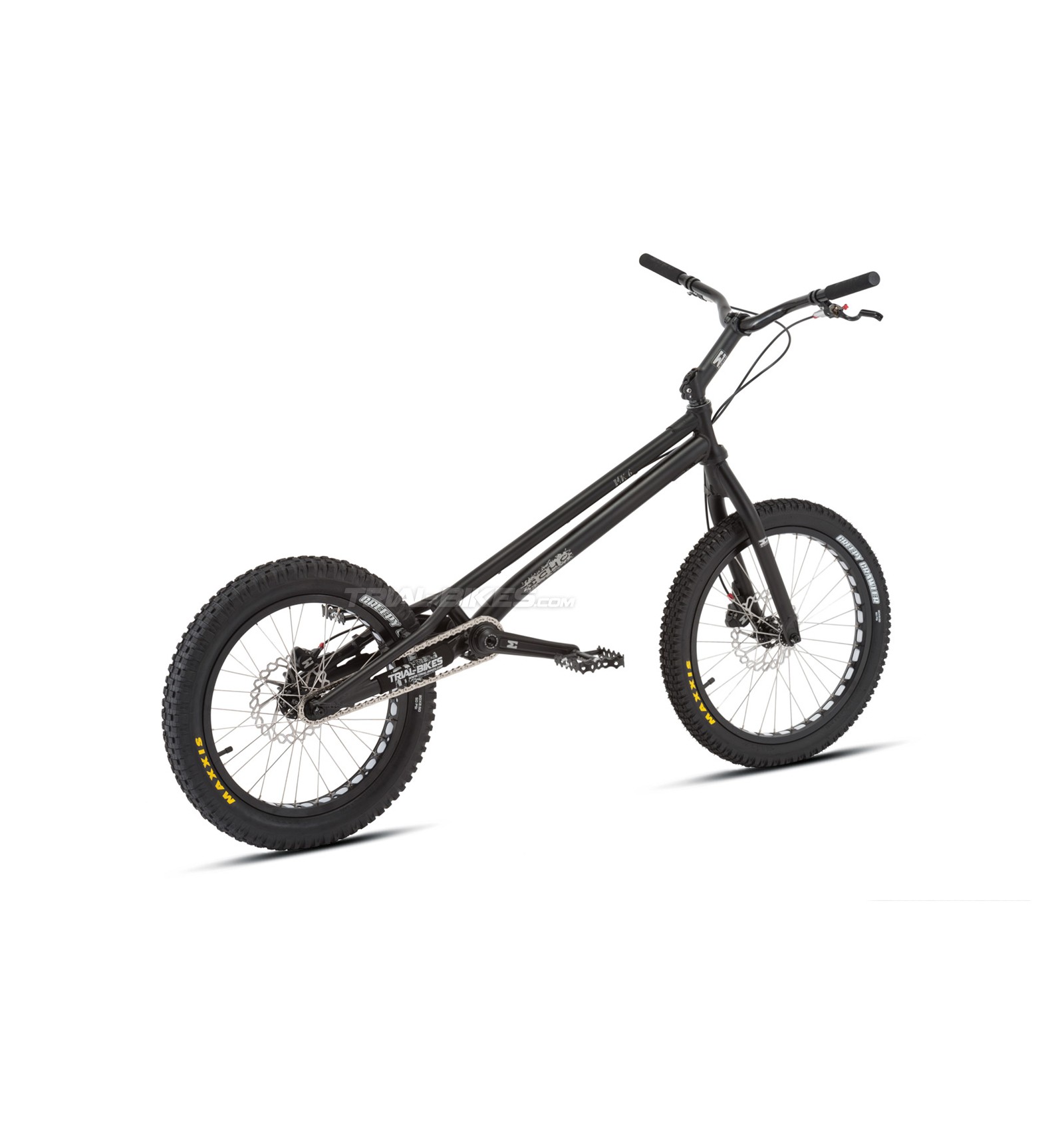

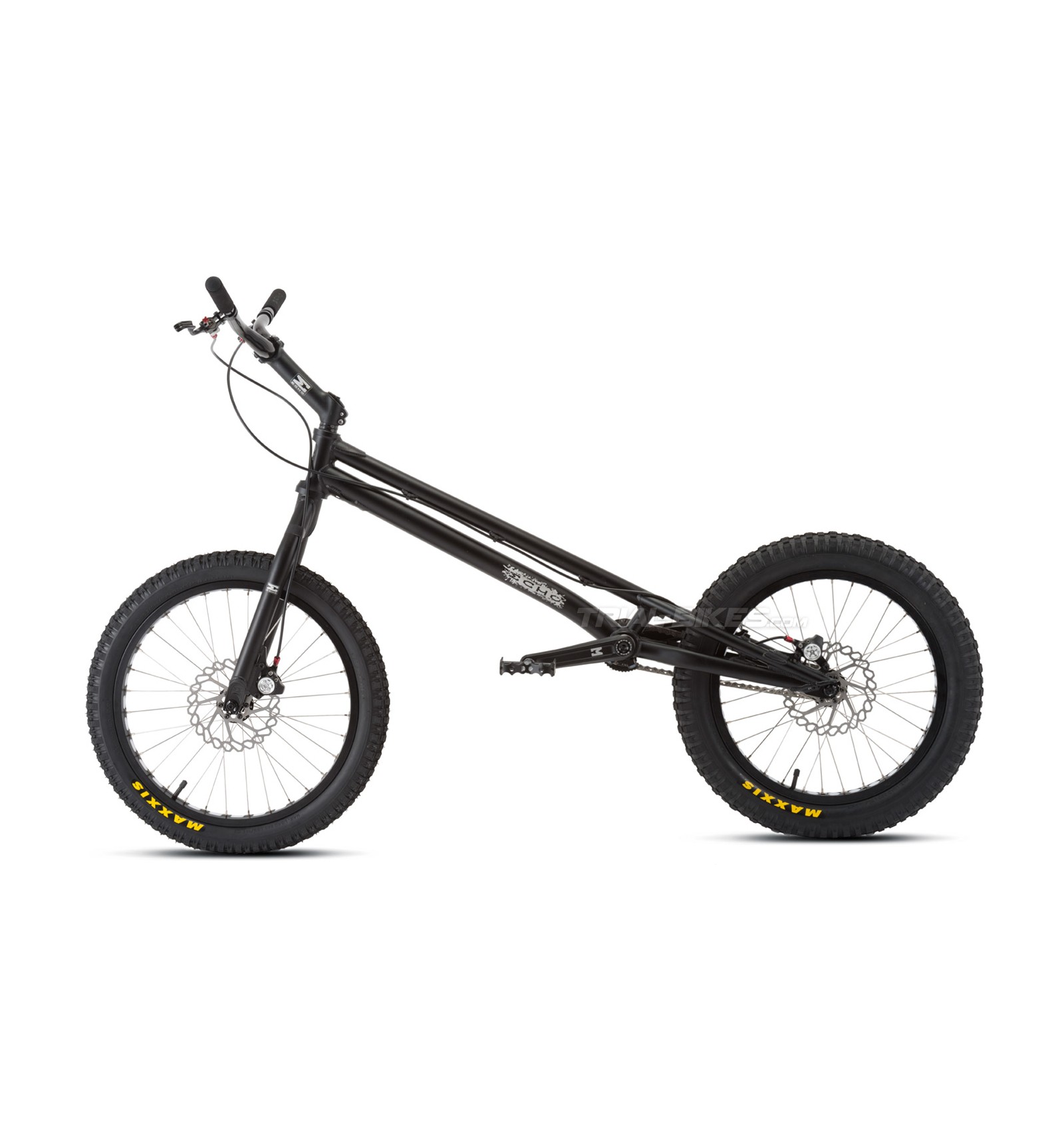

Echo Mk6 20" Bike

Once again, Echo are setting a new standard with their new Mk6. Featuring the new Mk6 tapered frame with curved down-tube, built with high quality parts and many updates to improve performance: the new Echo Curved single-caged pedals, TR 108.9 freewheeel, high-rise handlebar, new 2-piece mini bashplate, single-wall Echo rims, Echo Urban tapered fork… You can’t get more for less!

Frame and fork
- Frame: Echo Mk6 20”, aluminium alloy, with IS disc brake mounts and 4-bolt rim brake mounts
- Forks: Echo Urban 20”, made of aluminium, with a 1 1/8”-1.5” tapered steerer tube and IS disc brake mounts

Wheels
- Front hub: Echo 32 spoke holes, with rotor mounts, 100mm spacing, anodized black
- Rear hub: Echo 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Echo integrated
- Front rim: Echo SL 20”, single wall, 38mm wide, 32 spoke holes, anodized black
- Rear rim: Echo SL 19”, single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: Echo, silver
- Rim tape: Echo, white
- Front inner tube: Echo
- Rear inner tube: Echo
- Front tyre: Maxxis Creepy Crawler 20”x2.0”
- Rear tyre: Maxxis Creepy Crawler 19”x2.50”

Brakes
- Front brake: Echo TR Disc
- Rear brake: Echo TR Disc
- Rotors: Echo 160mm

Drivetrain
- Cranks: Echo TR Splined, 160mm, ISIS, Echo splines, anodized black
- Bottom Bracket: Echo Spanish, for ISIS cranks
- Freewheel: Echo TR Splined, 108.9 18T, Echo splines, black
- Chain: YBN Mask 700S2, silver
- Rear sprocket: Echo 12T Splined, made of steel, Echo splines, black
- Pedals: Echo TR Curved, single-caged, anodized black
- Bashplate: Echo 2-piece mini bashplate, anodized black

Steering
- Headset: Echo Integrated Tapered 1 1/8” - 1.5”, without cups, with sealed bearings
- Stem: Echo TR Forged, 150mm x 30º, 31.8mm Oversized handlebar diameter, anodized black with silver Echo graphics
- Grips: Echo foam, black
- Handlebar: Echo 7075-T6 High Rise, 740mm long, 31.8mm Oversized handlebar diameter, black finish with white Echo graphics

Geometry:
- Wheelbase: 1005mm
- Chainstay length: 351mm
- Bottom bracket rise: +80mm
- Head angle: 73.5º

Weight
- 8.58Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
You can easily save some weight off this bike, i.e. by replacing the tyres for a set of Jitsie Reverz tyres, with which you could save 535g, and final weight would be 8.04kg. If you’d like to make this or any other changes, please get in touch with us at info@trial-bikes.com and we’ll help you out!
