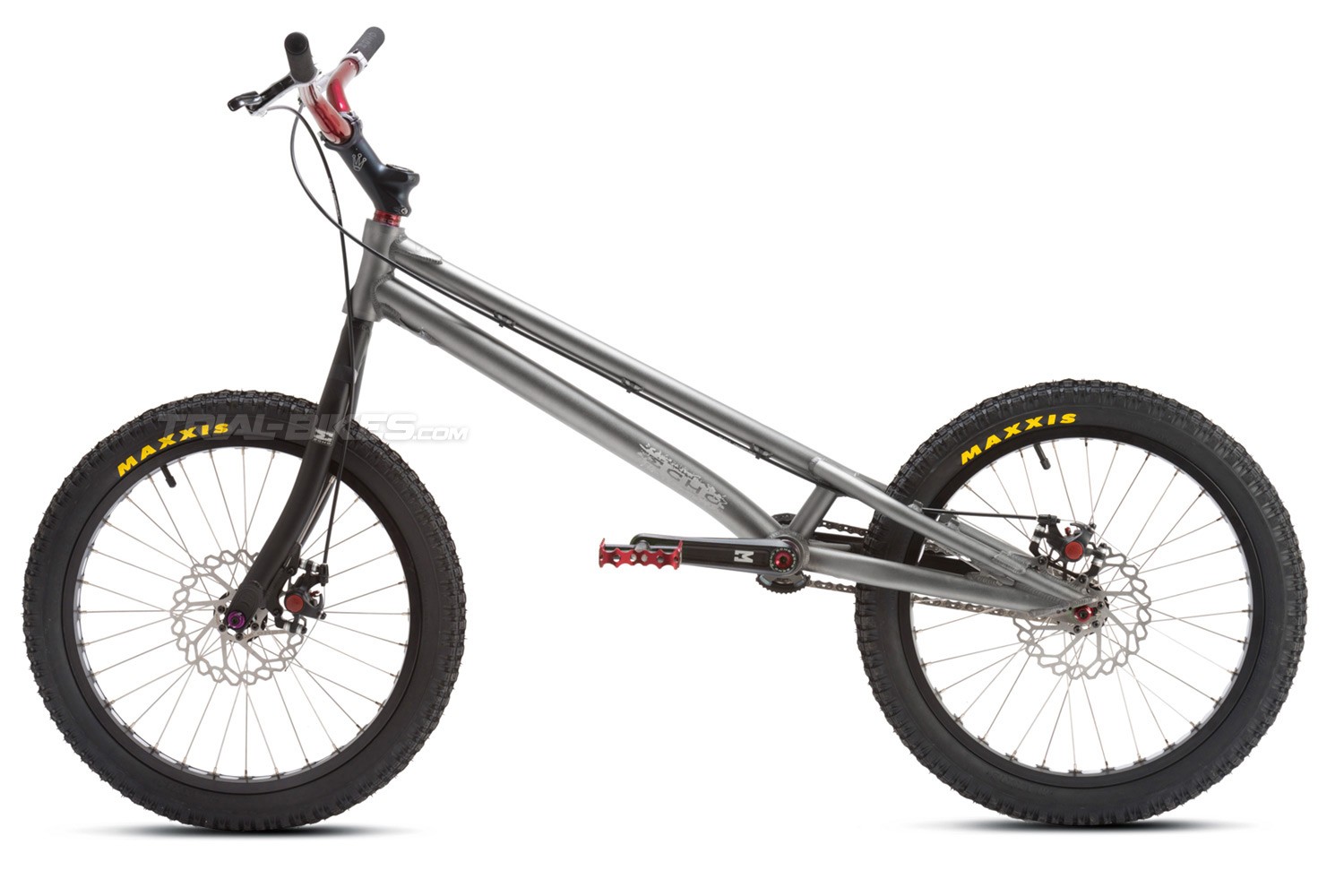

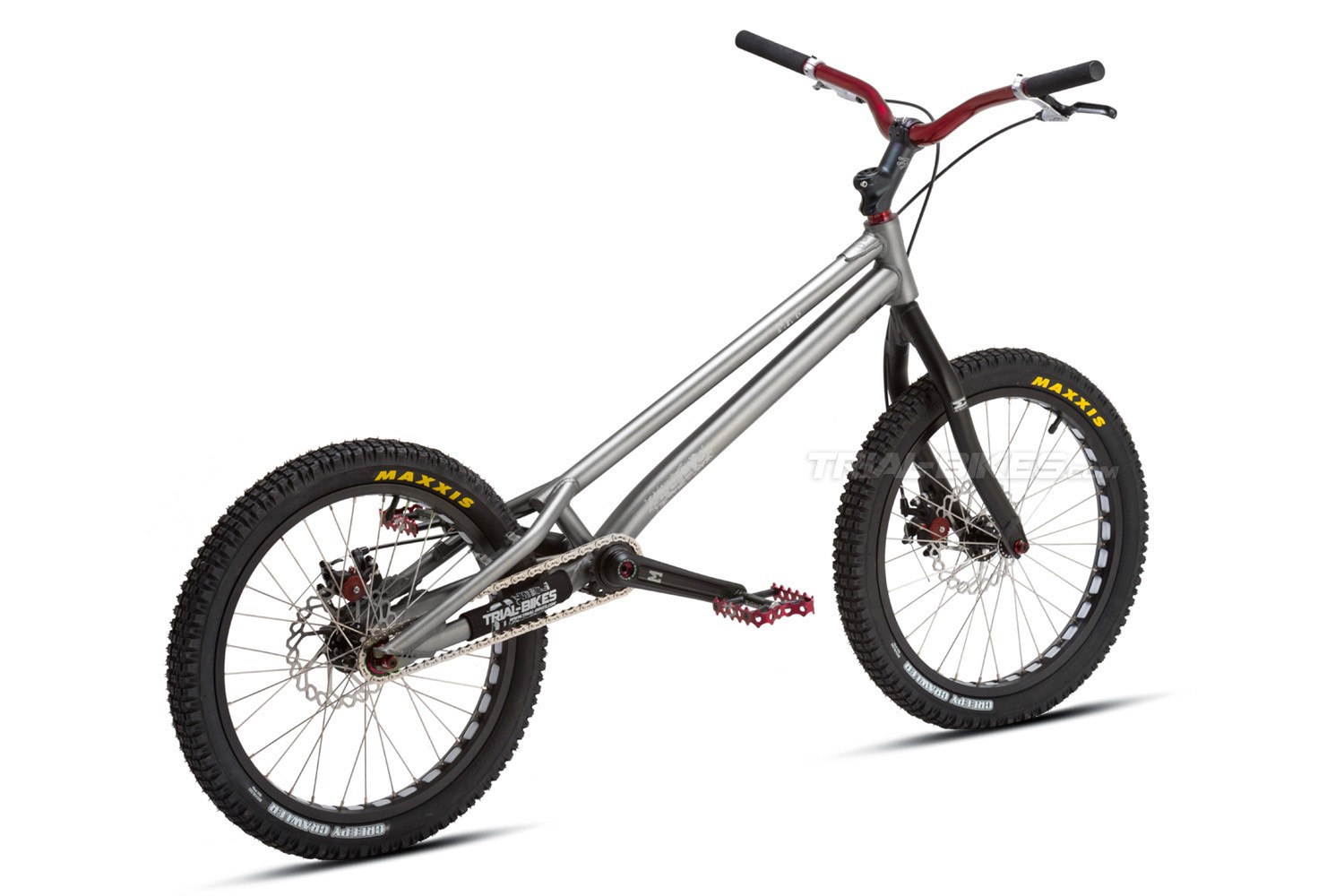

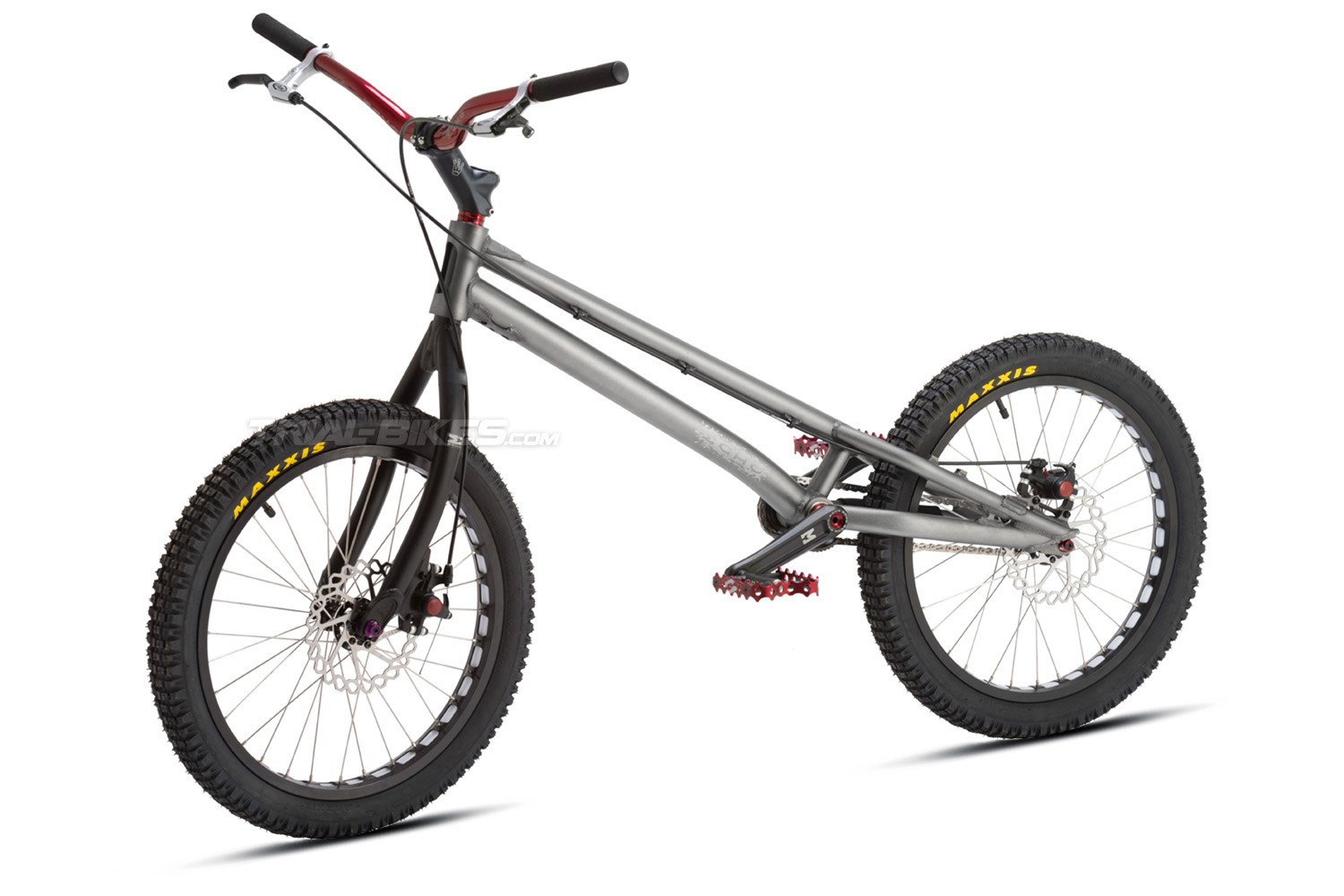

Echo Mk6 Kid 20" Bike

The new Echo Kids 20 bike is now exclusively available at TrialBikes, featuring the latest updates with special red Echo components!

The perfect bike for riders up to 1.60m (5.25 ft), thanks to its geometry and top-quality, ultralight components: Echo SL fork, single-wall rims, 108.9 freewheel, Avid disc brakes And this is built around a new, improved frame, with a curved down tube and 2-piece mini-bashplate. Superb!

Frame and fork
- Frame: Echo Kids 20, made from 6061-T6 aluminium alloy, with IS disc brake and 4-bolt rim brake mounts
- Forks: Echo SL 20, made of aluminium, with IS disc brake mounts

Wheels
- Front hub: Echo 32 spoke holes, with rotor mounts, 100mm spacing, anodized black
- Rear hub: Echo 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Echo integrated
- Front rim: Echo SL 20, single wall, 38mm wide, 32 spoke holes, anodized black
- Rear rim: Echo SL 20, single wall, 38mm wide, 32 spoke holes, anodized black
- Spokes: Echo, silver
- Rim tape: Echo, white
- Front inner tube: Echo
- Rear inner tube: Echo
- Front tyre: Maxxis Creepy Crawler 20x2.0
- Rear tyre: Maxxis Creepy Crawler 20x2.0

Brakes
- Front brake: Avid FR5/BB5 Disc
- Rear brake: Avid FR5/BB5 Disc
- Rotors: Echo 160mm

Drivetrain
- Cranks: Echo TR 6061-T6 CNC, 160mm, ISIS, anodized black
- Bottom Bracket: Echo Spanish, 124mm long, ISIS
- Freewheel: Echo TR Splined 108.9 18T, black
- Chain:Ybn Mask 700S2 1/2x1/8, silver
- Rear sprocket: Echo 13T splined
- Pedals: Echo TR single cage, anodized red
- Bashplate: Echo 2-piece mini-bashplate, anodized black

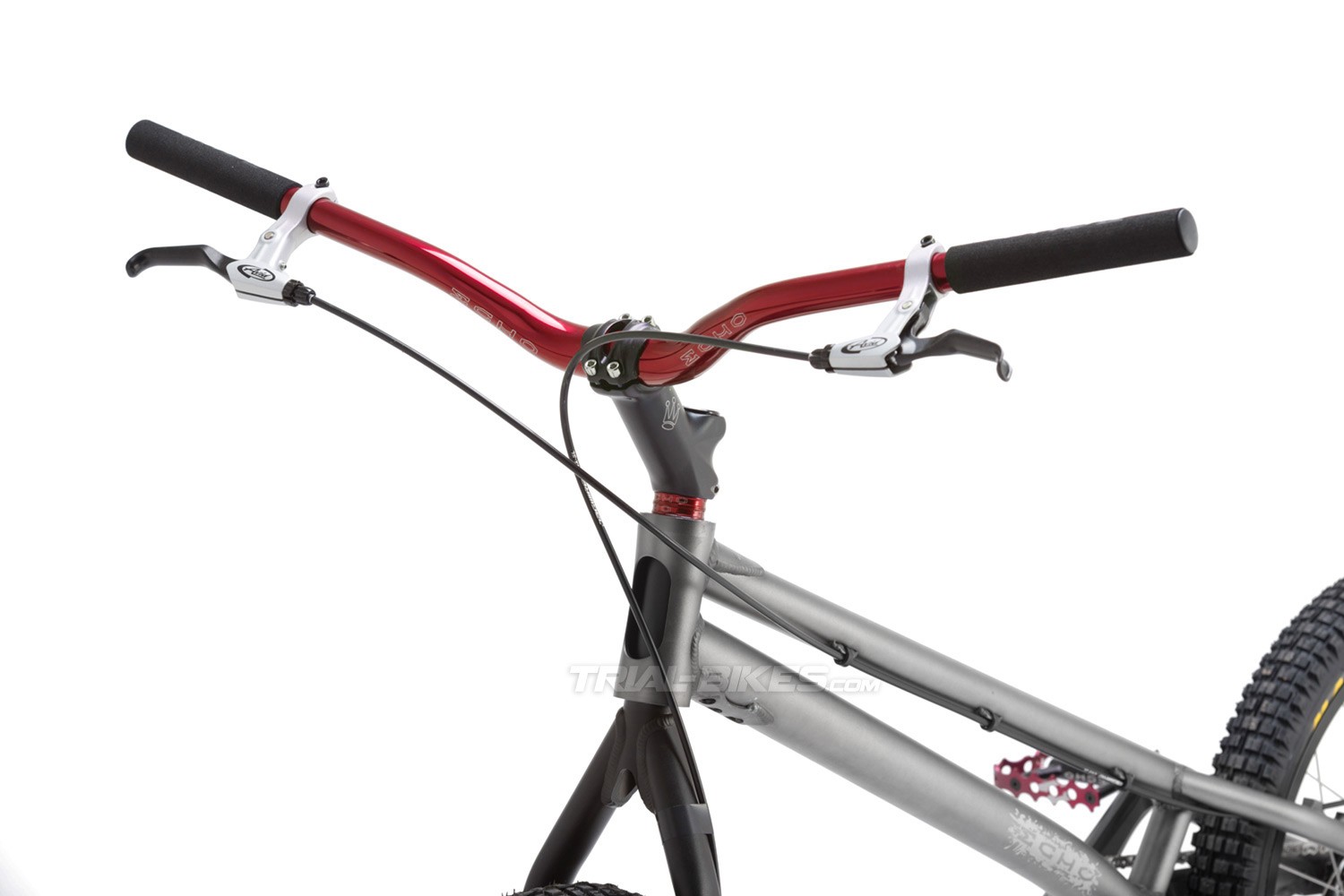

Steering
- Headset: Echo Internal 1 1/8, with sealed bearings, anodized red
- Stem: Czar 90mm x 40º, 31.8mm Oversized handlebar diameter, anodized black
- Grips: Echo foam, black
- Handlebar: Echo 7075-T6, 740mm long, 31.8mm Oversized handlebar diameter, anodized red

Geometry:
- Wheelbase: 965mm
- Chainstay length: 345mm
- Bottom bracket rise: +65mm
- Head angle: 73.5º

Weight
- 7.9kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is delivered partially set-up inside the box. The customer will only have to install the front wheel and stem.
Please get in touch if you have any further doubts regarding this bike, at info@trial-bikes.com .
