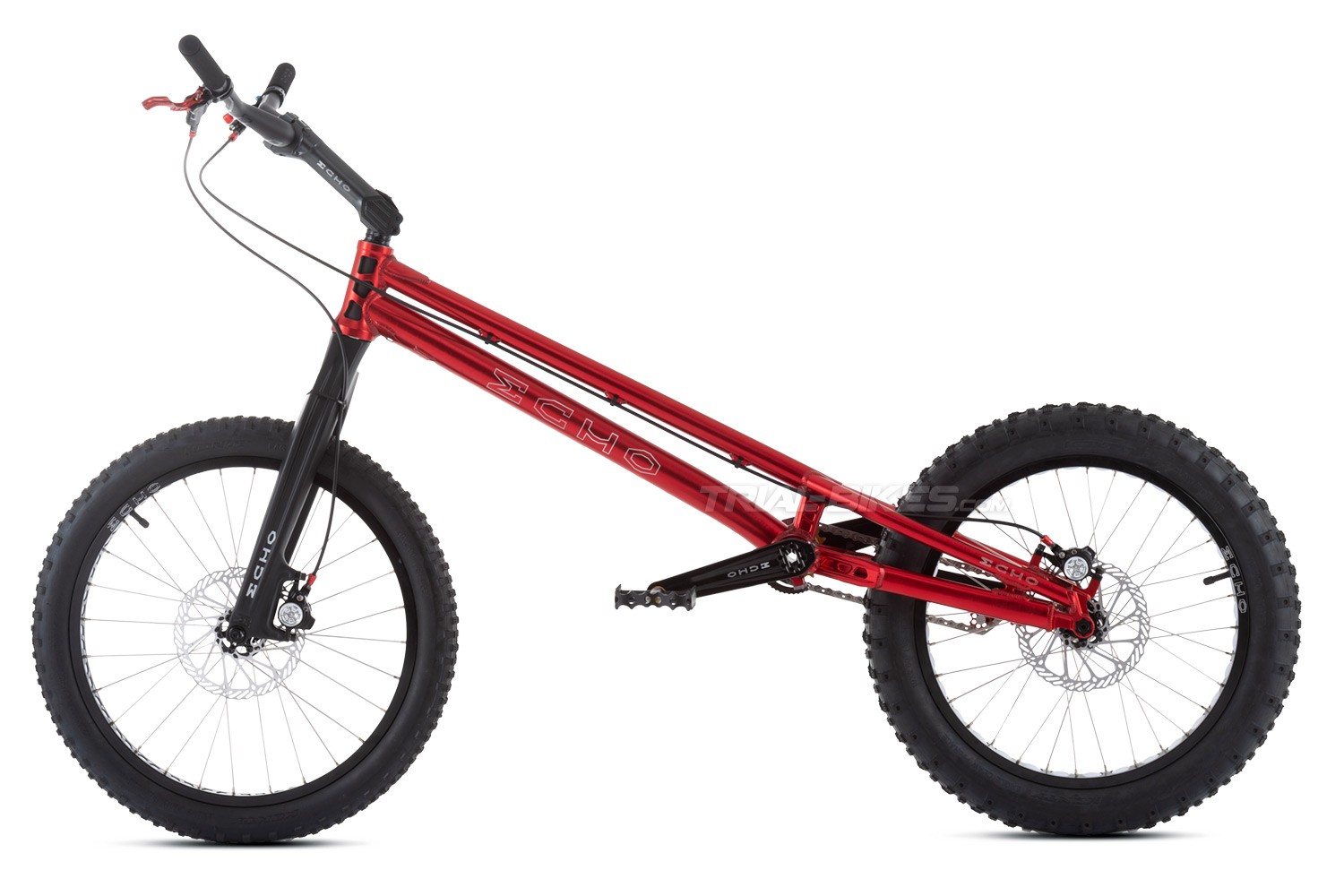

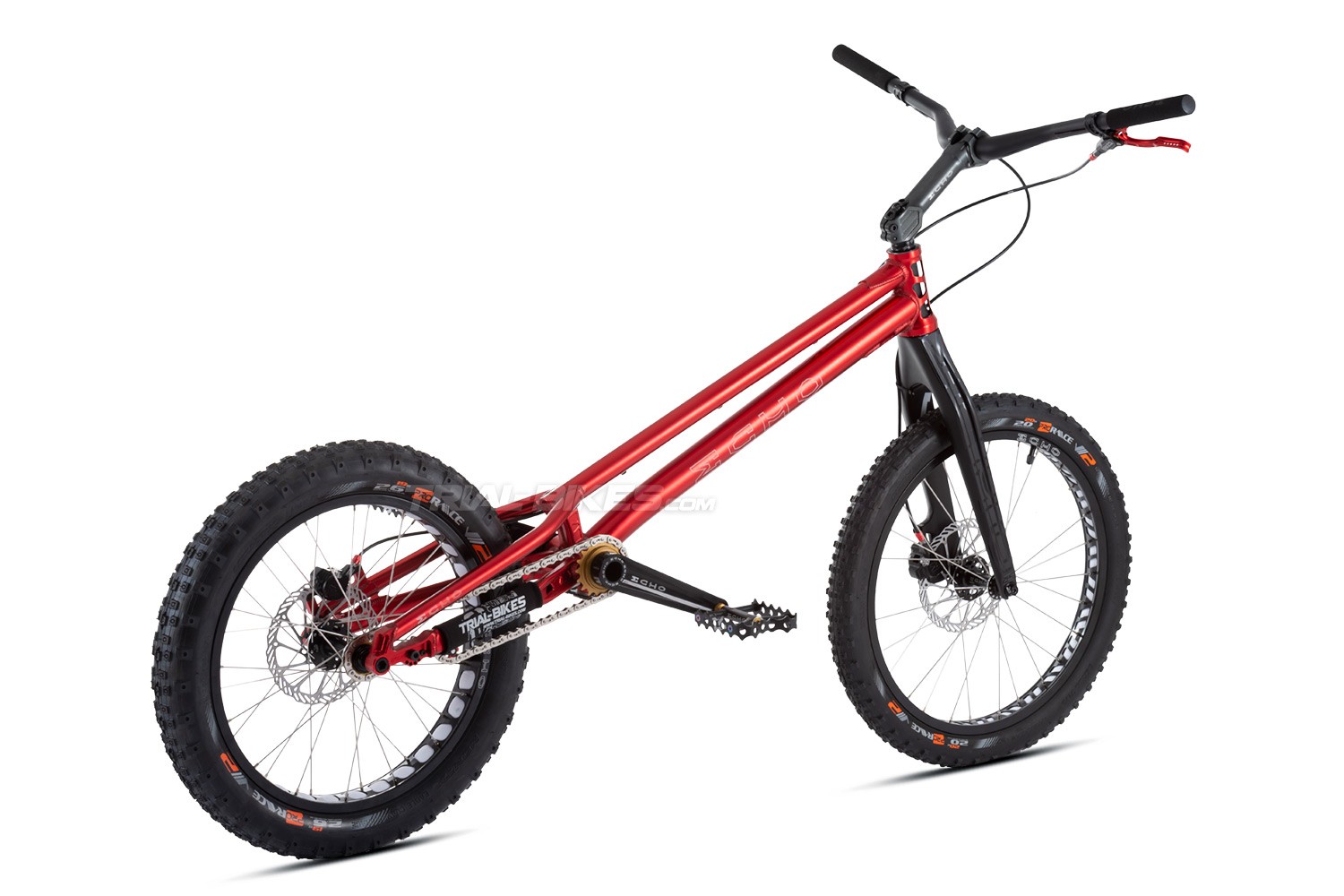

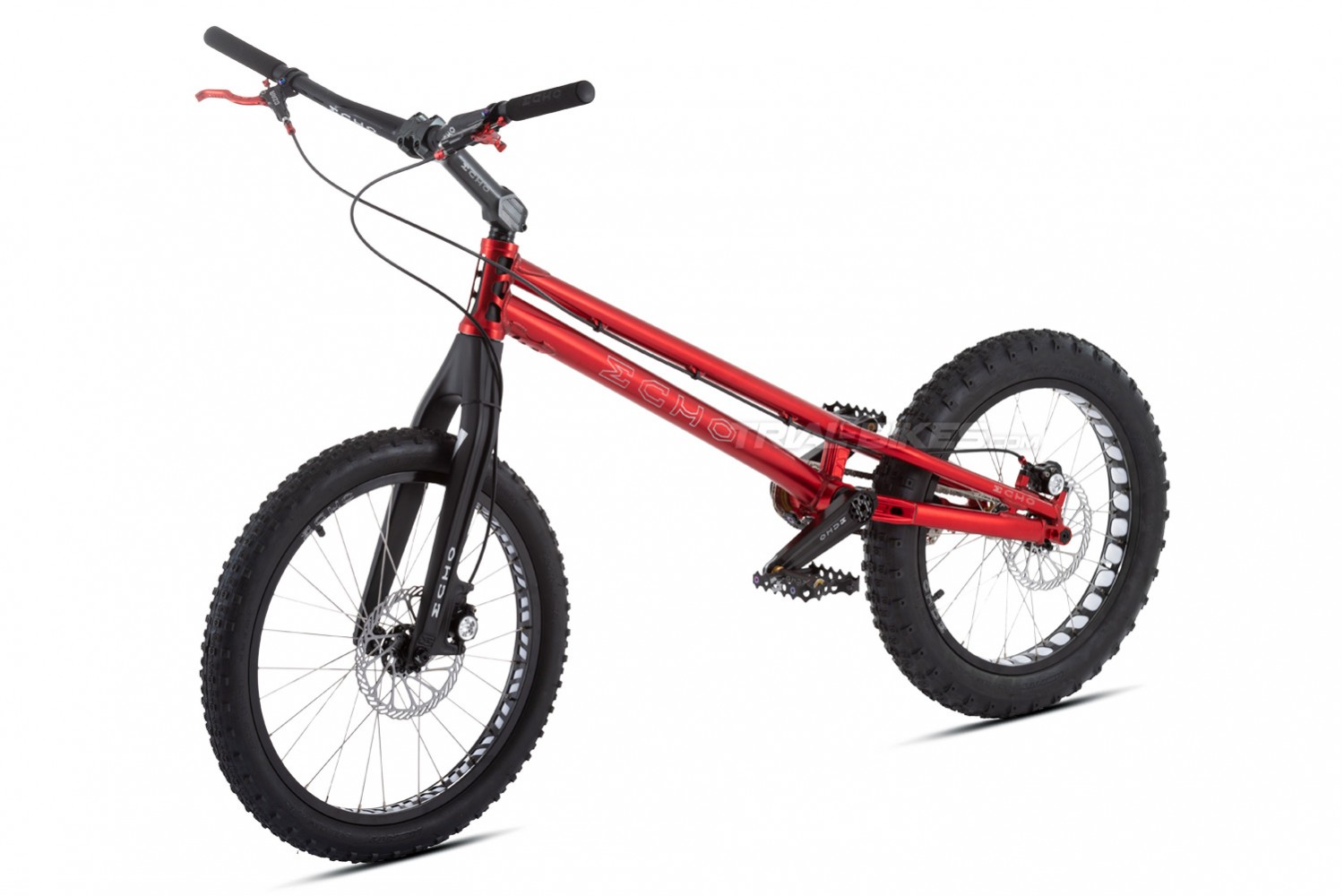

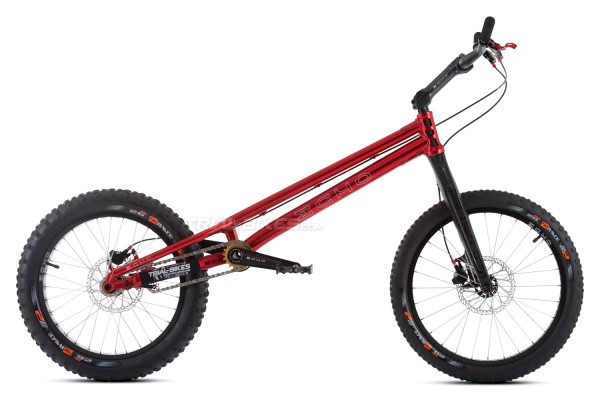

Echo Team 20” Bike

Echo Team 20” Bike

The new Echo Team 20” is Echo’s top of the range bike. New design with rear thru-axle, sprung tensioner, Post Mount, carbon fork and handlebar, titanium bolts, BB30 crankset, titanium freewheel and sprocket… The perfect trials bike for competition at unbeatable price.

Frame and fork
- Frame: Echo Team 20”, aluminium alloy, with Post Mount disc brake mounts and 12mm thru-axle, anodized red with white Echo graphics, anodized red

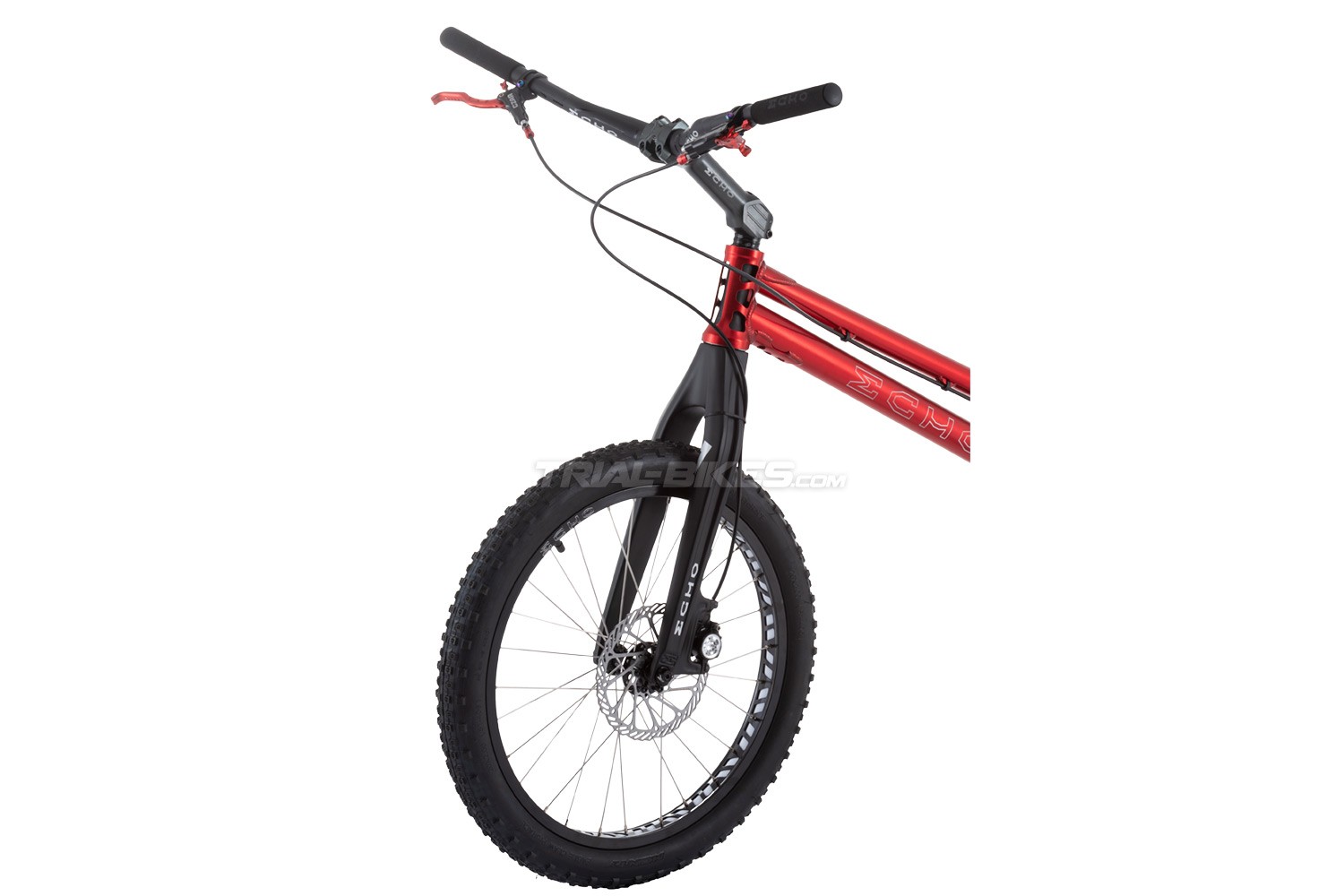

- Forks: Echo Carbon 20”, with a 1 1/8”-1.5” tapered steerer tube and Post Mount disc brake mounts

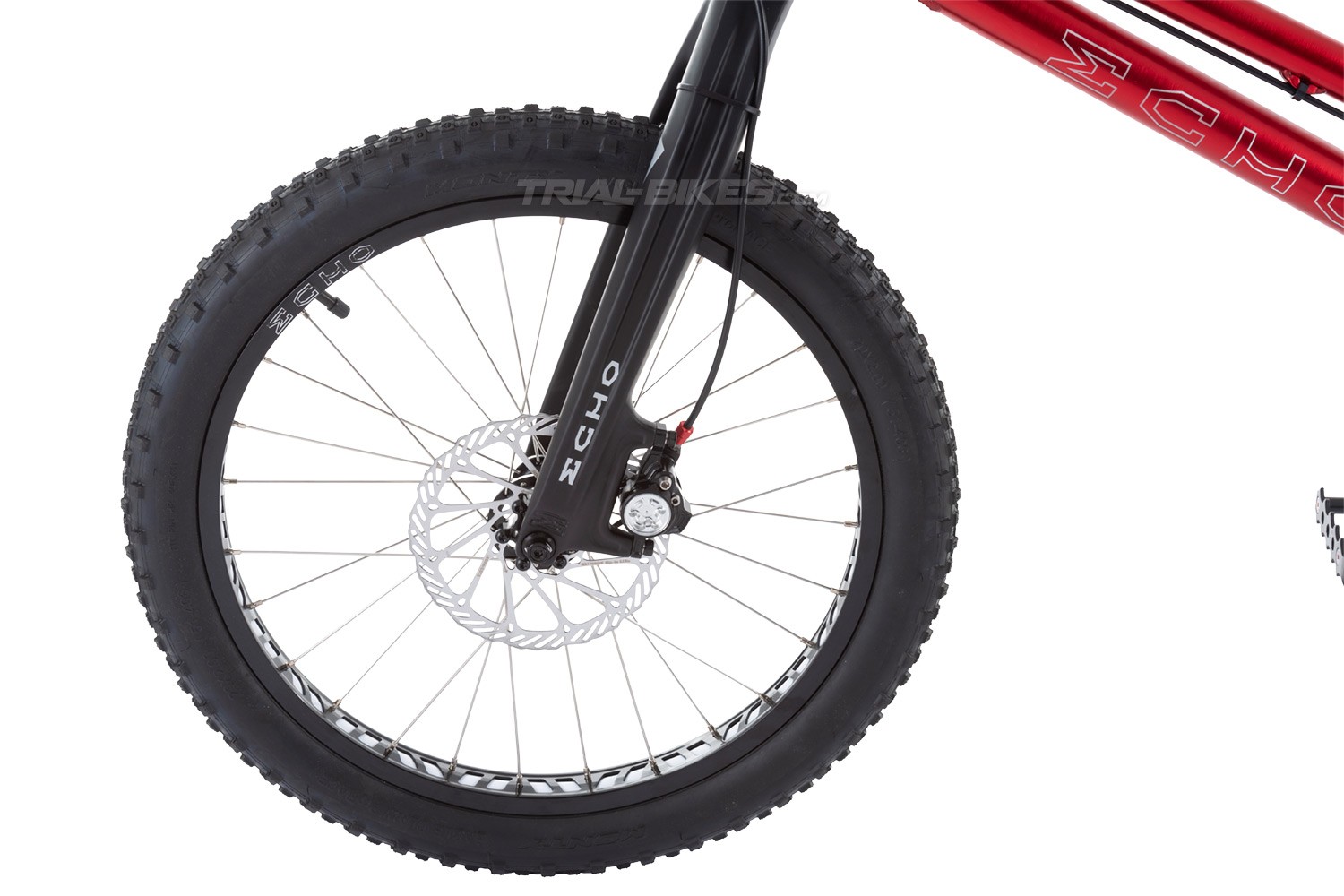

Wheels
- Front hub: Echo 32 spoke holes, with rotor mounts, 100mm spacing, anodized black
- Rear hub: Echo 32 spoke holes, with rotor mounts, 135mm spacing, 12mm thru-axle anodized black
- Chain tensioner: Echo sprung tensioner
- Front rim: Echo SL 20”, single wall, 33mm wide, 28 spoke holes, anodized black
- Rear rim: Echo SL 19”, single wall, 49mm wide, 32 spoke holes, anodized black
- Spokes: Echo, silver
- Rim tape: Echo, white
- Front inner tube: Echo
- Rear inner tube: Echo
- Front tyre: Monty Pro Race V2 20”x2.0”
- Rear tyre: Monty Pro Race V2 19”x2.60”

Brakes
- Front brake: Czar Disc CNC Post Mount
- Rear brake: Czar Disc CNC Post Mount
- Rotors: Echo 160mm

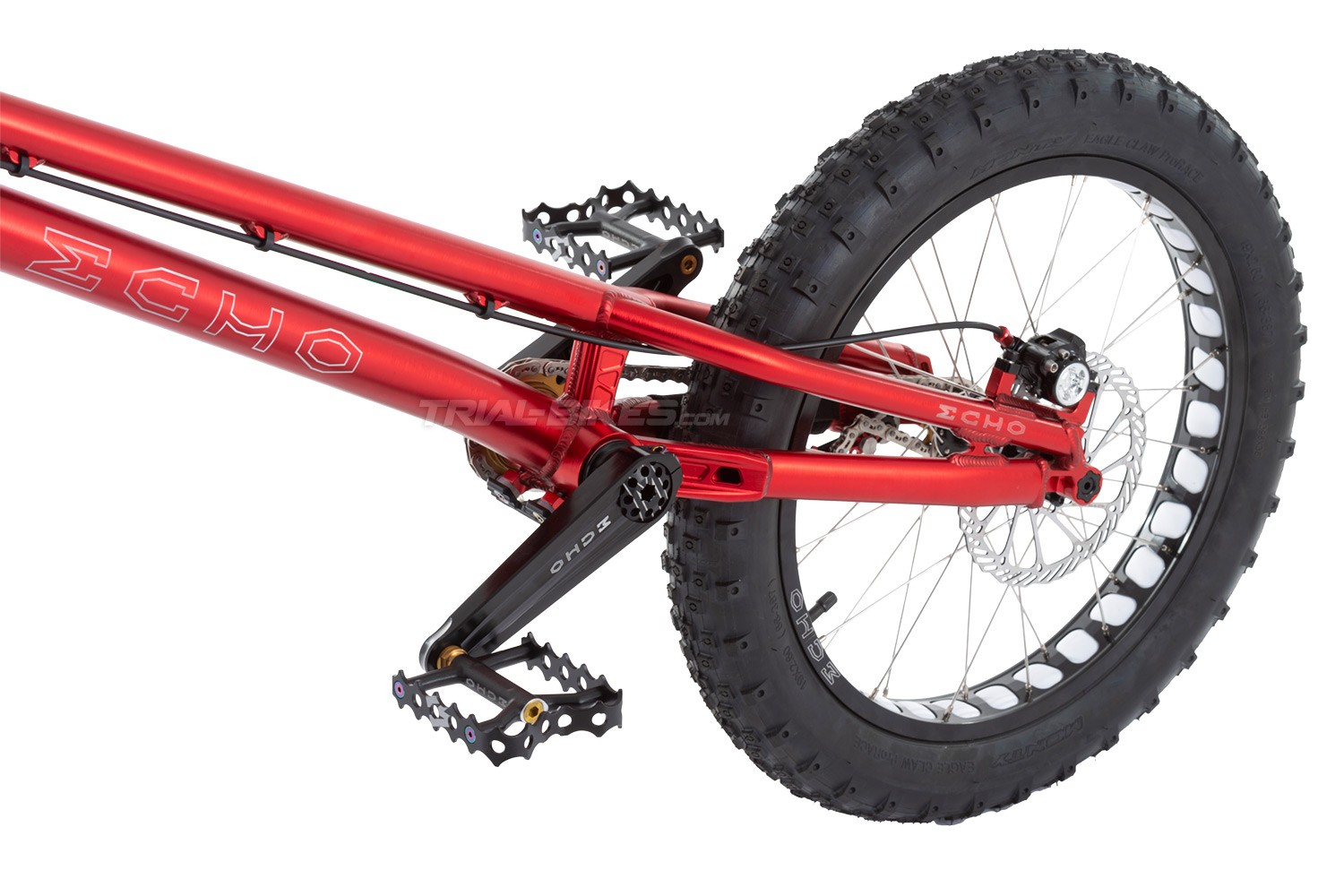

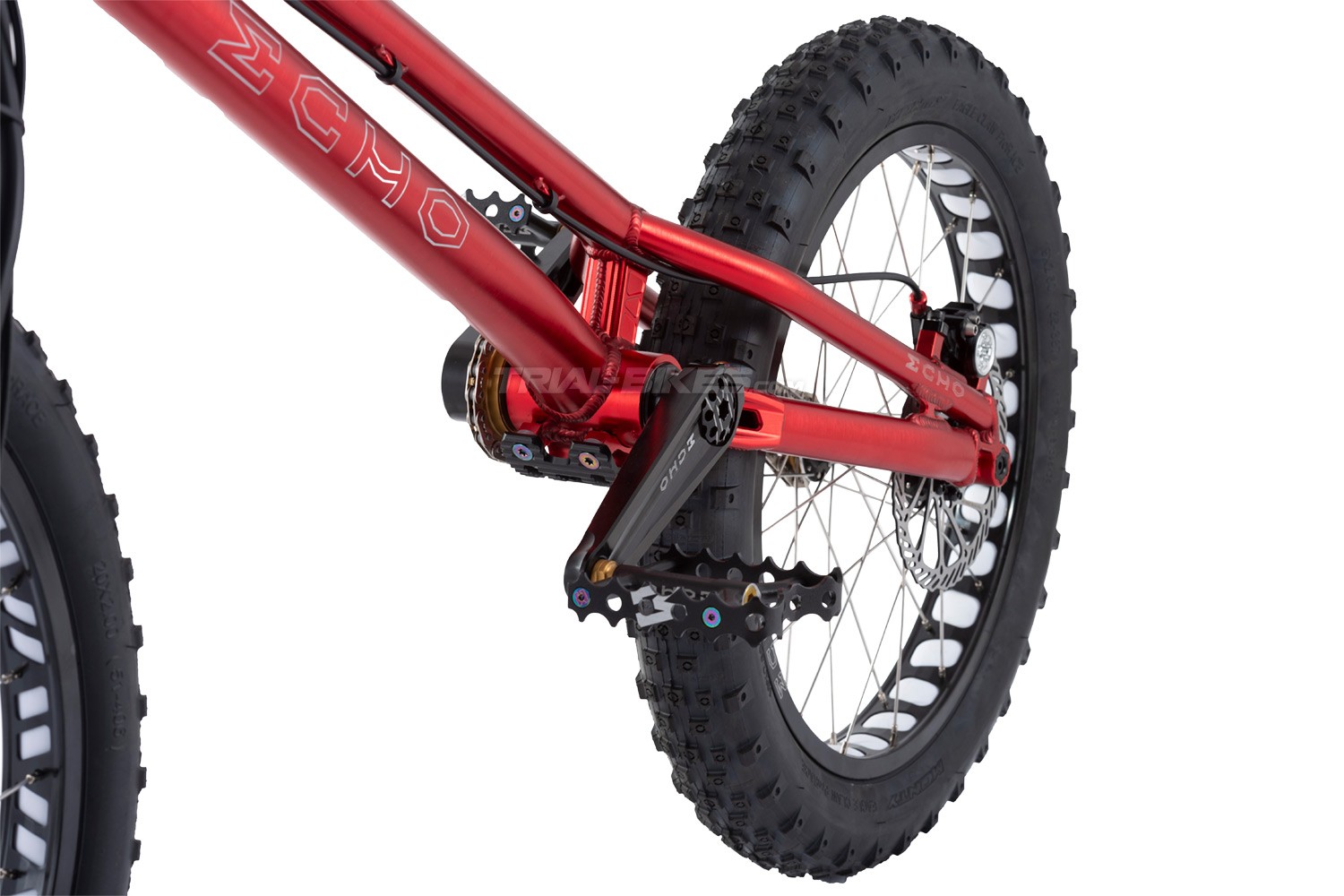

Drivetrain
- Crankset: Echo SL BB30 Integrated, 162mm Splined cranks, Echo splines, anodized black
- Freewheel: Echo SL Ti Splined, 108.9 18T, Echo splines, gold
- Chain: Echo 3/32”, silver
- Rear sprocket: Echo 12T Splined Ti, made of titanium, Echo splines, gold
- Pedals: Echo SL Ti, single-caged, anodized black
- Bashplate: Echo mini bashplate, anodized black

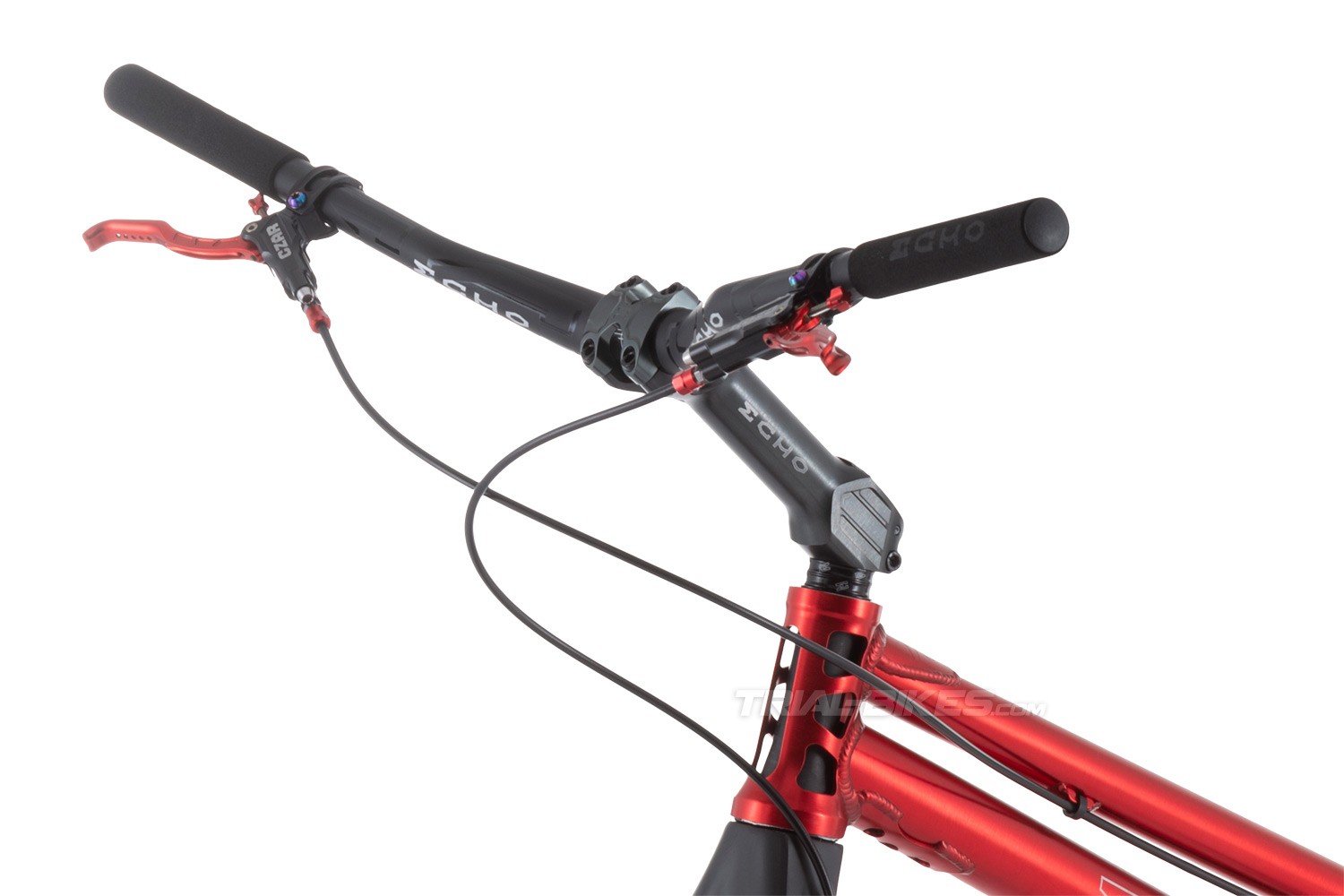

Steering
- Headset: Echo Integrated Tapered 1 1/8” - 1.5”, without cups, with sealed bearings
- Stem: Echo SL 7075-T6 CNC, 155mm x 25º, 31.8mm Oversized handlebar diameter, anodized black with silver Echo graphics
- Grips: Echo foam, black
- Handlebar: Echo SL Carbon High Rise, 720mm long, 110mm rise, 31.8mm Oversized handlebar diameter, black finish with white Echo graphics

Geometry:
- Wheelbase: 1000mm
- Chainstay length: 351mm
- Bottom bracket rise: +85mm
- Head angle: 74.5º

Weight
- 7.68Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
