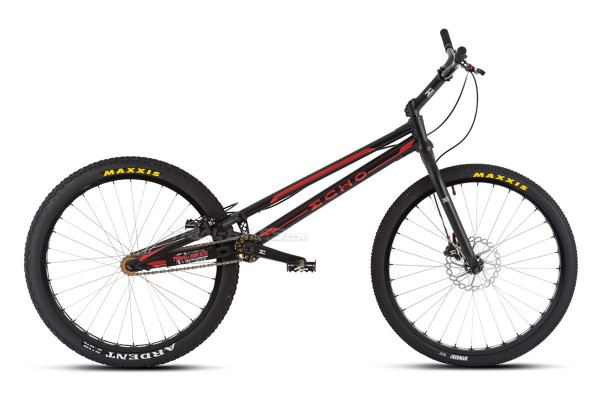

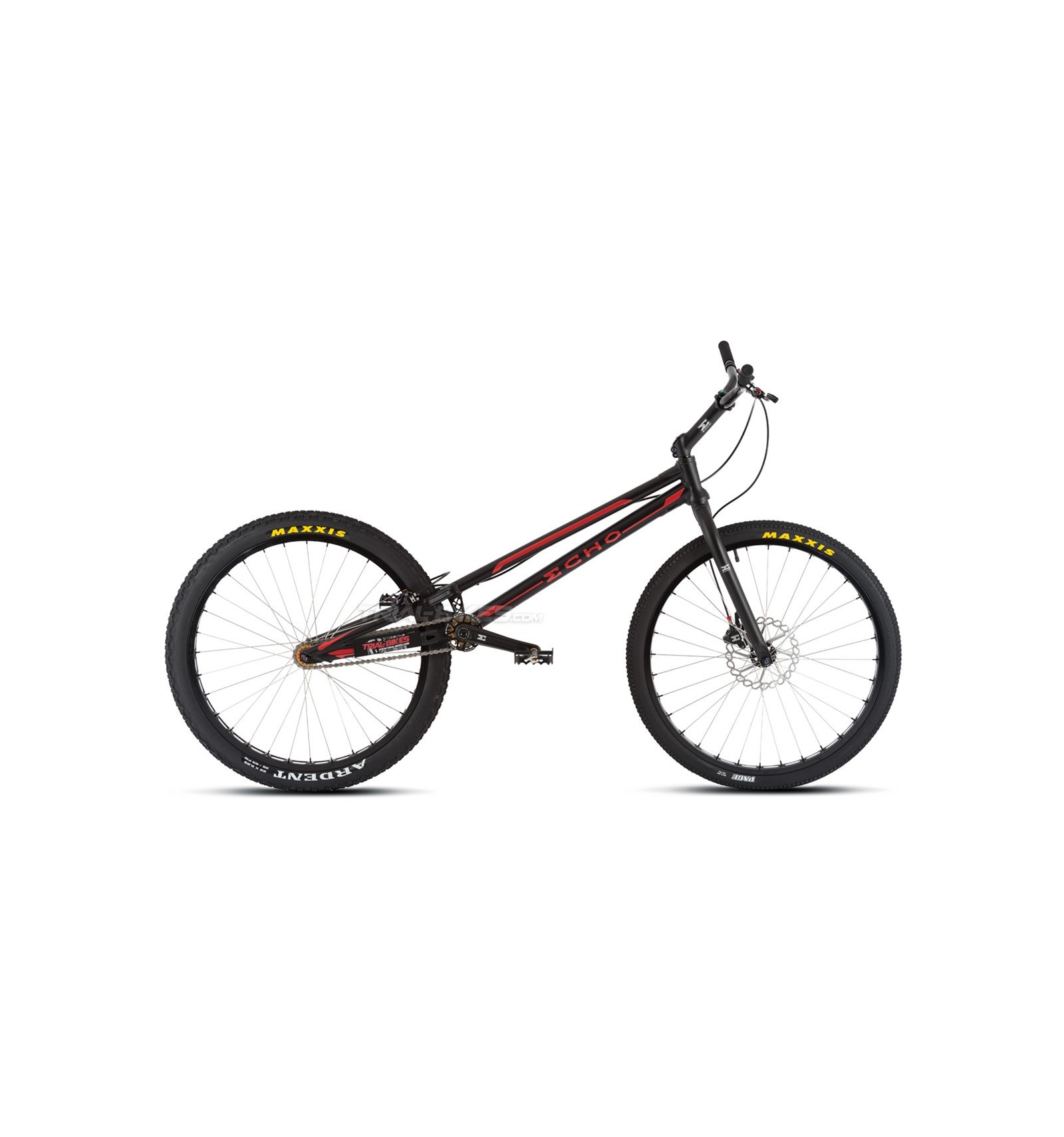

Echo Ti 26'' Bike

The new Echo Ti 26” bike is the ideal 26” option for those riders that want a high-end bike that also has an affordable price. It’s built with ultra-light titanium bolts, titanium freewheel, titanium pedals, butted spokes, the new Echo TR 2016 brakes, titanium bottom bracket, the new Echo Urban Tapered 2016 fork… And furthermore, it features CNC-machined integrated brake booster, seat tube and BB yoke! Therefore you’ll have a bike built with super high quality components without breaking the bank!

Note: this bike’s stickers are supplied but not installed, therefore you can install them as you prefer.

Frame and fork
- Frame: Echo Ti 26”, made from 6061-T6 aluminium alloy
- Forks: Echo Urban 26” tapered 1 1/8” – 1.5”, with IS disc brake mounts

Wheels
- Front hub: Echo 32 spoke holes, with rotor mounts, 100mm spacing, anodized black
- Rear hub: Echo 32 spoke holes, without rotor mounts, 135mm spacing, anodized black
- Chain tensioner: Echo integrated
- Front rim: Echo SL 26”, single wall, 37mm wide, 32 spoke holes, anodized black
- Rear rim: Echo SL 26”, single wall, 45mm wide, 32 spoke holes, anodized black
- Spokes: Echo Double Butted, silver
- Rim tape: Echo, white
- Front inner tube: Echo
- Rear inner tube: Echo
- Front tyre: Maxxis Pace  26” x 1.95”
- Rear tyre: Maxxis Ardent 26” x 2.25”

Brakes
- Front brake: Echo TR Disc 2016
- Rear brake: Echo TR 2016

- Rotor: Echo 180mm
- Rim brake pads: Echo CNC Oranges
- Rim brake mounts: Echo SL 7075-T6 CNC, anodized black with rainbow titanium bolts

Drivetrain
- Cranks: Echo TR Splined, 170mm, ISIS, Echo Splines, anodized black
- Bottom Bracket: Echo SL Spanish Titanium, 124mm long, ISIS
- Freewheel: Echo SL Titanium Splined 108.9 18T, Echo Splines, gold
- Chain: KMC Z610HX, silver
- Rear sprocket: Echo Titanium 15T Splined, Echo Splined, gold
- Pedals: Echo SL Titanium single cage, anodized black
- Bashring: Echo 7075-T6 18T bashring, anodized black

Steering
- Headset: Echo Integrated Tapered 1 1/8”-1.5”, without cups, with sealed bearings
- Stem: Echo TR Forged, 150mm x 30º, 31.8mm Oversized handlebar diameter, black with silver Echo graphics
- Grips: Echo foam, black
- Handlebar: Echo 7075-T6, 740mm long, 31.8mm Oversized handlebar diameter, black finish with white Echo graphics

Geometry:
- Wheelbase: 1085mm (1090mm measured by TrialBikes)
- Chainstay length: 378mm
- Bottom bracket rise: +65mm
- Head angle: 72º

Weight
- 8.62Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.

(MORE PICTURES SOON)
