Frame and Forks
- Frame: Inspired Flow 24", Gloss Blue
- Forks: Inspired Flow V2 (Disc Only) 24", Alloy, Screw-In Top Cap, Gloss Blue
Wheels
- Front Hub: Trialtech Disc, 32H, 100 mm wide, Sealed Bearings, Black
- Rear Hub: Trialtech Disc, 32H, 135 mm wide, Sealed Bearings, Black
- Chain Tensioner: Flow Chain Tug
- Rims: Inspired Flow, 24", Black
- Spokes: Stainless PG
- Tyres: Maxxis Holy Roller 24 x 2.4"
- Tubes: Kenda
- Rim tape: Kenda

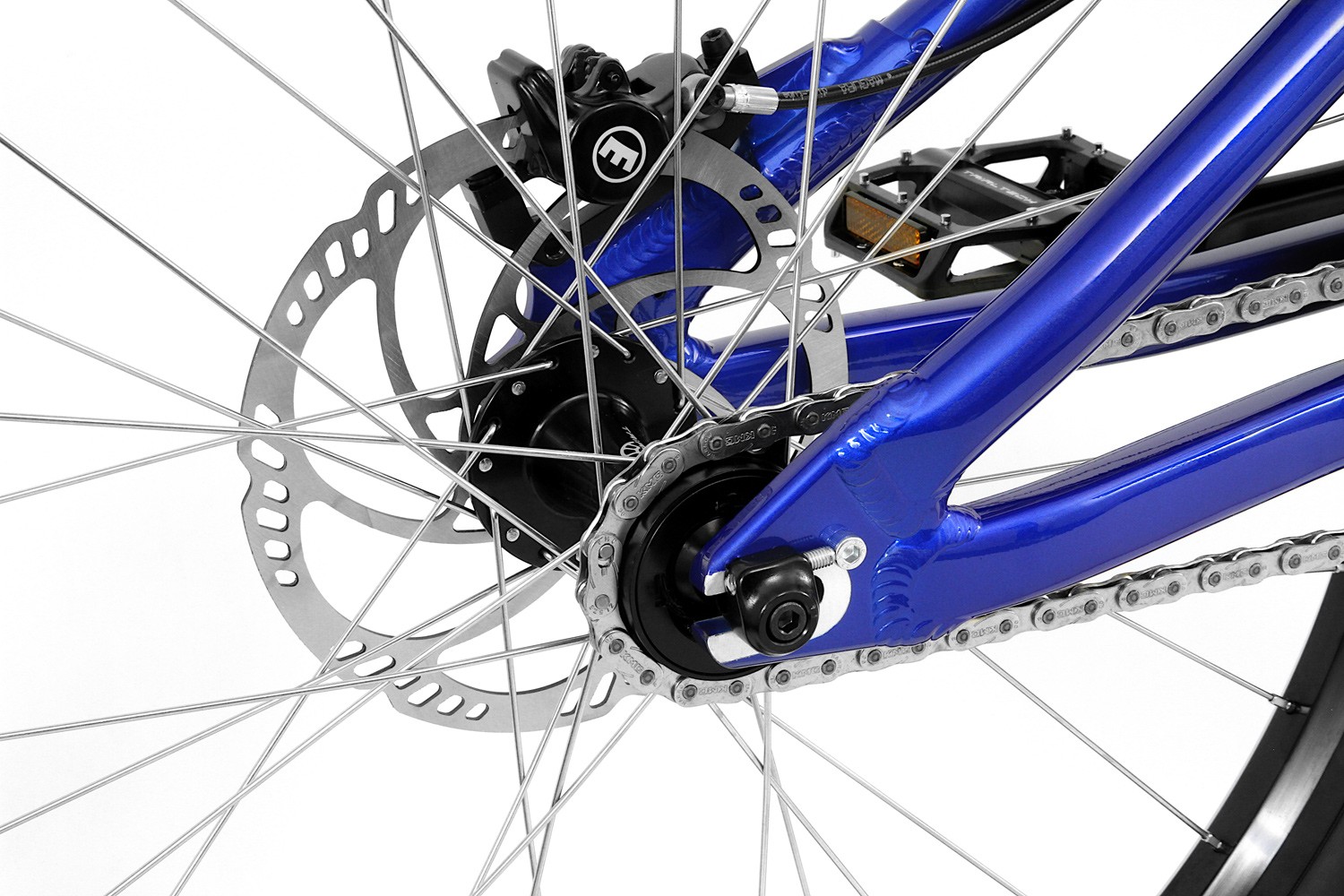

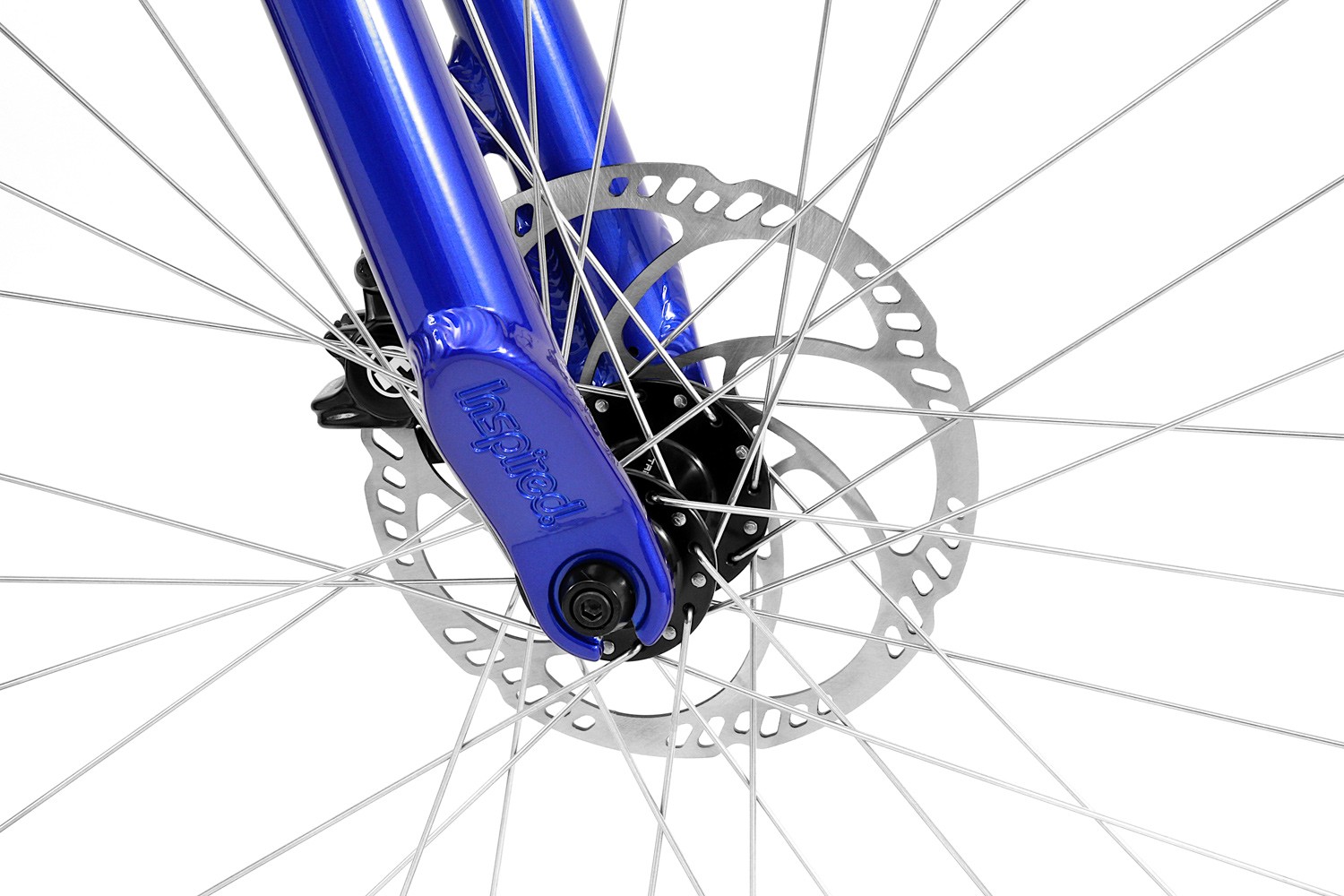

Brakes
-Â Magura MT5 hydraulic disc brakes (Free Upgrade)Â , 180 mm rotor.
The brake hose is not routed through the steerer tube as standard, this is an additional cost which can be added here.

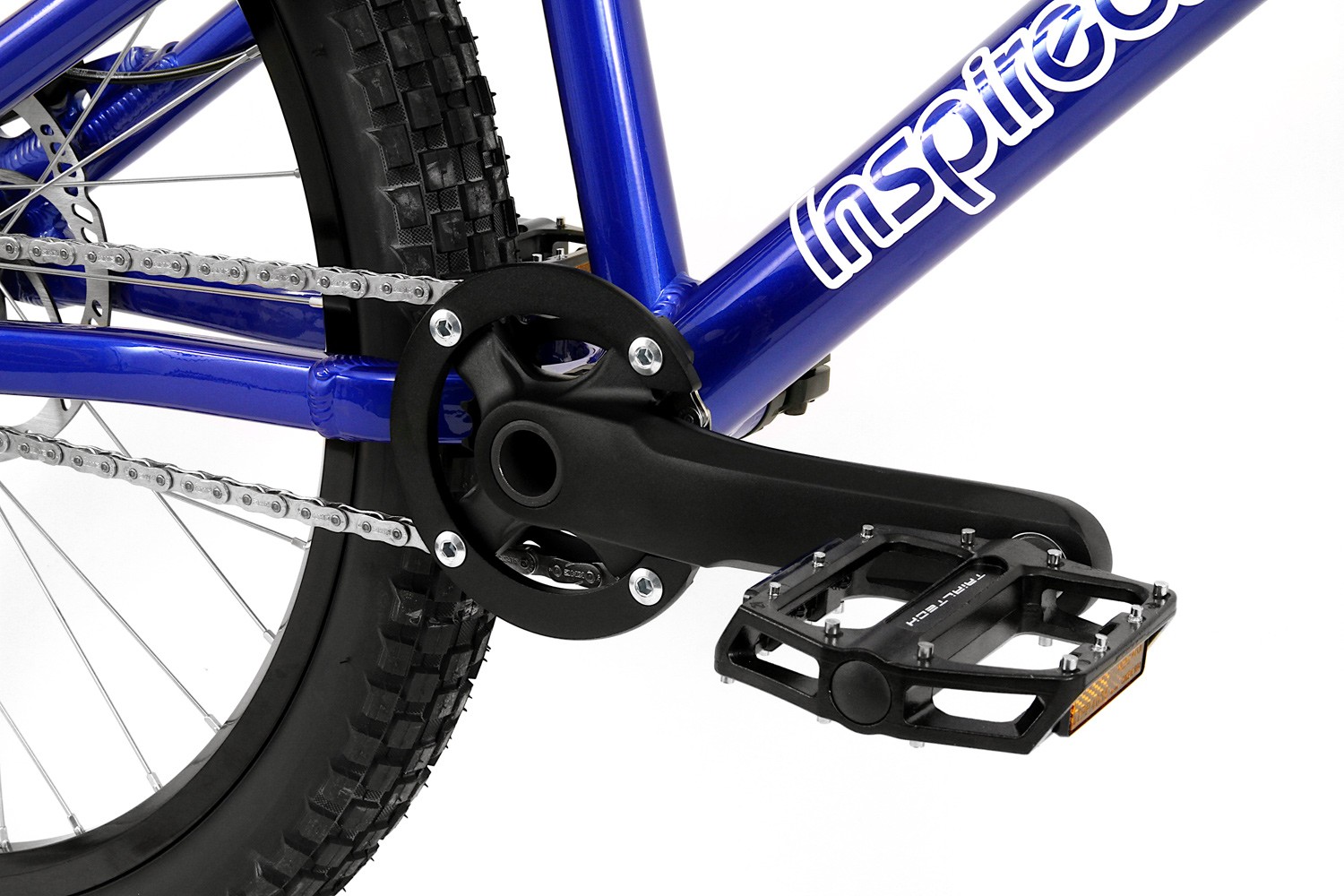

Drivetrain
- Cranks: Inspired Flow Plus, 175 mm, Black (upgrade over the standard Flow model)
- Front Sprocket: Inspired 22T (upgrade over the standard Flow model)
- Bashring: Inspired, 4-Bolt, Black
- Chain: KMCÂ Z1 eHX
- Freewheel: Trialtech Sport 16T, 72 engagement (upgrade over the standard Flow model)
- Pedals: Trialtech Race Platform or VP Alloy Platform, Black (upgrade over the standard Flow model)
- Bottom Bracket: Inspired Flow Plus 24 mm, Sealed Bearing, Black (upgrade over the standard Flow model)

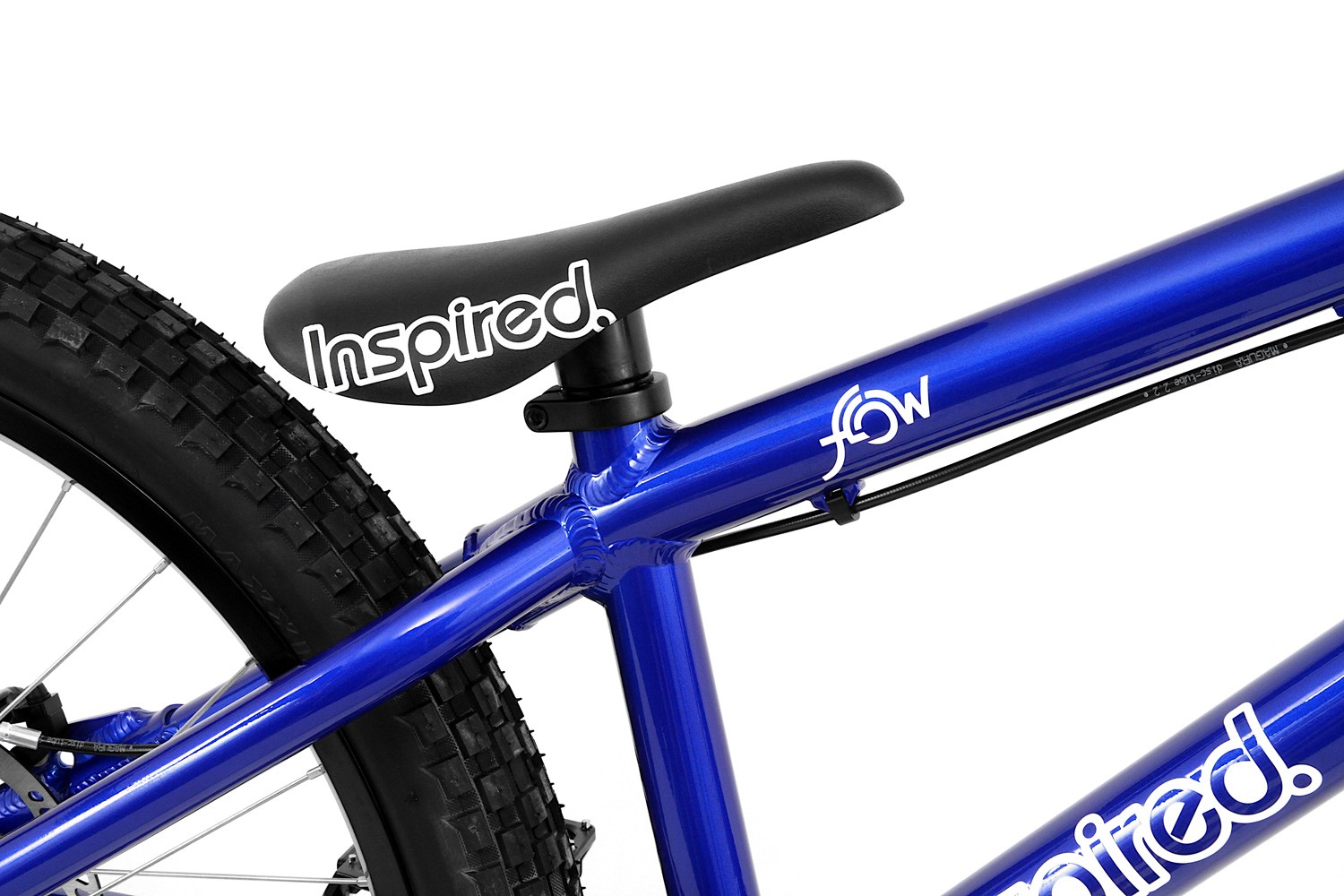

Seating
- Saddle: Inspired Integrated, Black
- Seatpost: Integrated Alloy
- Seat Clamp: Inspired, 31.8 mm, Black

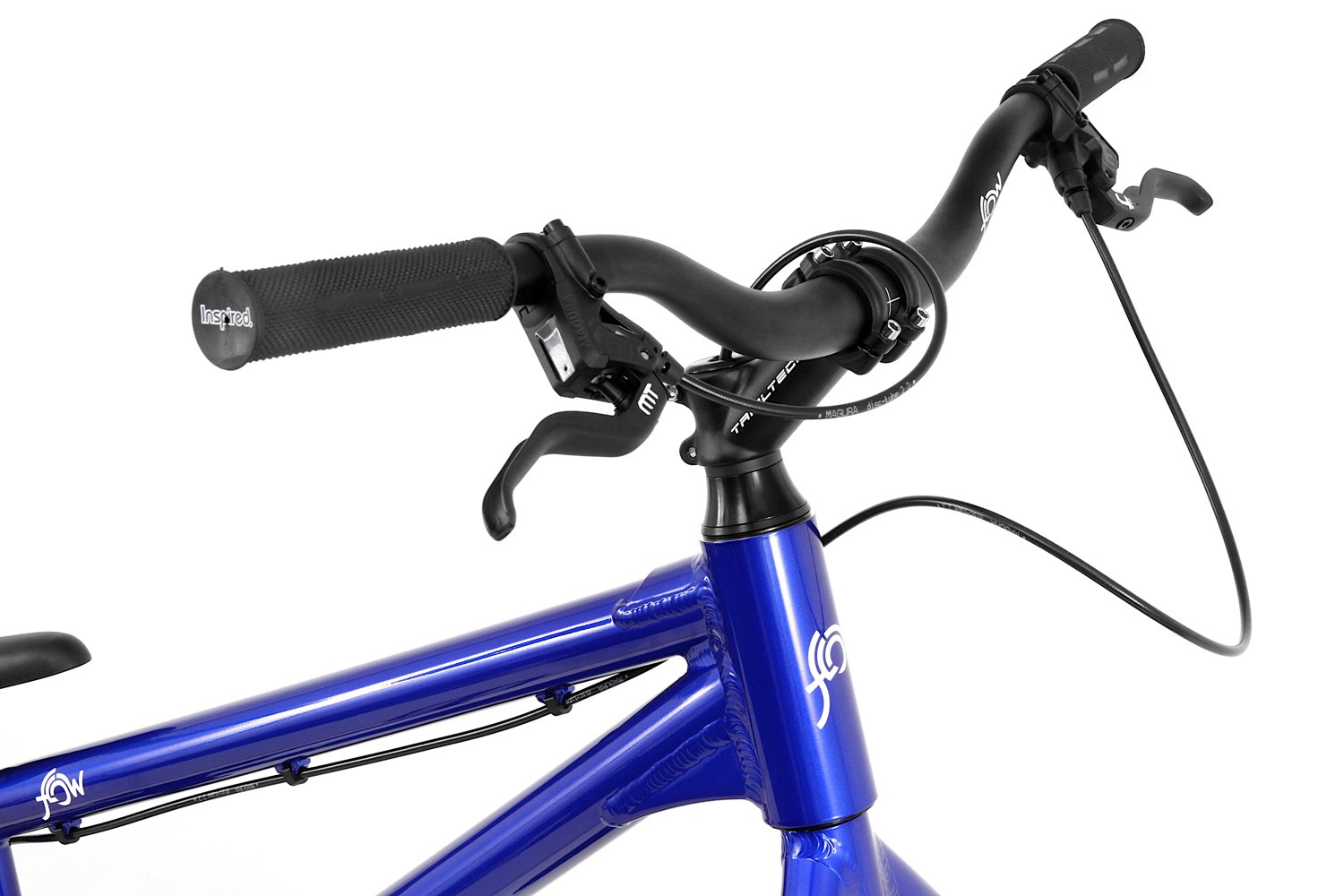

Steering
- Headset: Trialtech, 44 mm Internal, 1-1/8", Black
- Stem: Trialtech Forged, 90 mm x 35Ëš, Black
- Grips: Inspired Rubber, Black
- Handlebars: Inspired Flow Medium Riser, Black
Geometry
(1) Wheelbase: 1010 mm
-----------------------------------------------
(2) Rear End: 375 mm
-----------------------------------------------
(3) Bottom Bracket Height: +15 mm.
-----------------------------------------------
(4) Head Angle: 73°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube:Â 670 mm
-----------------------------------------------
(6)Â Reach:437 mm
-----------------------------------------------
(7)Â Stack:Â 495 mm
-----------------------------------------------
Weight
- 11.56 kg (Including pedals and Avid BB5 brakes)
Documentation
Flow Tensioner Instructions (0.4MB)
Additional information:
This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance.
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop. It will be necessary to place the handlebar, the 2 wheels, the chain and the pedals.
Handlebar, brake and chain tension adjustments will be made by the customer according to their preferences. You will need some tools (generally 4 mm, 5 mm, 6 mm and 8 mm Allen keys and a 15 mm spanner).
If you have any doubts, please contact us on info@trial-bikes.com .
| FRONT BRAKE | Disc |
| REAR BRAKE | Disc |
