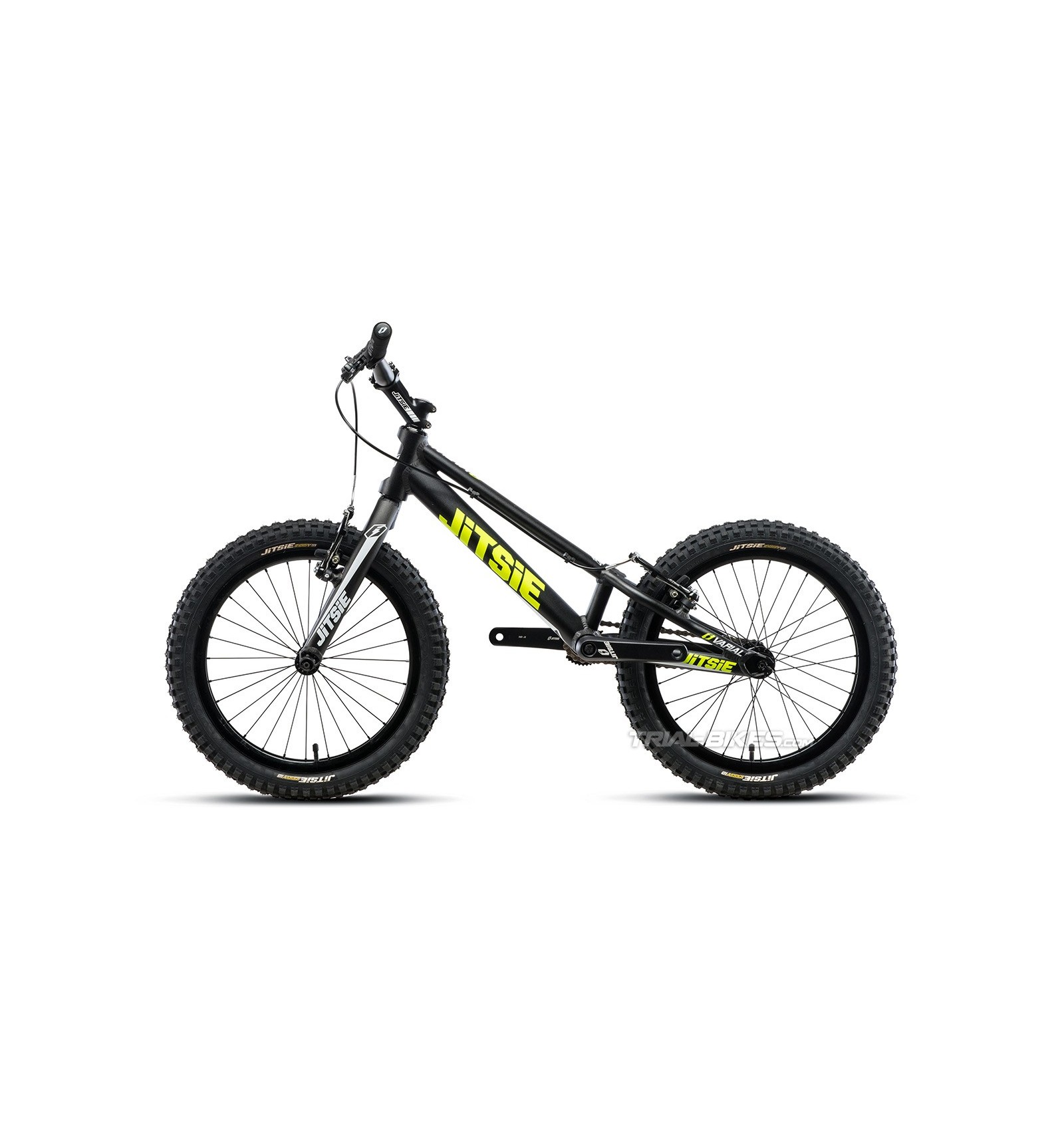

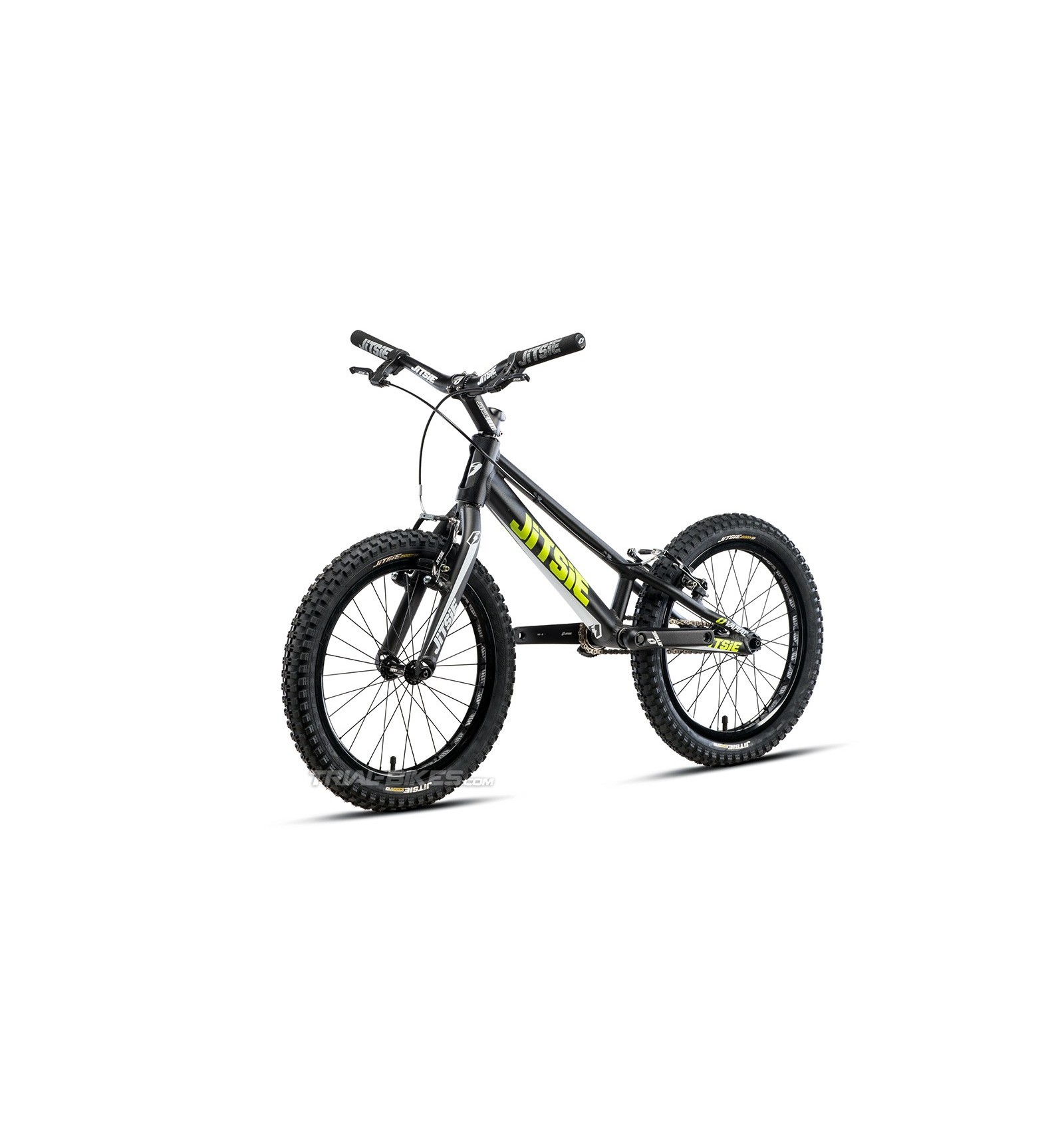

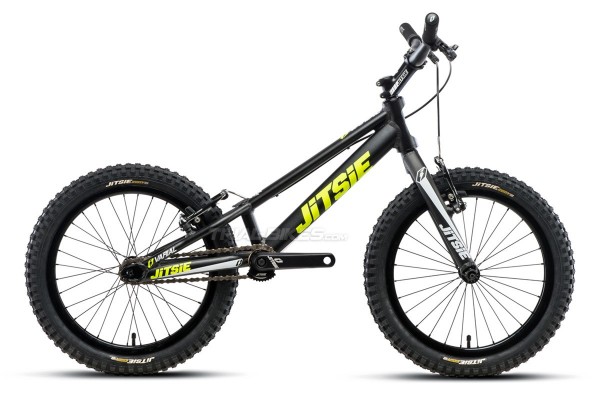

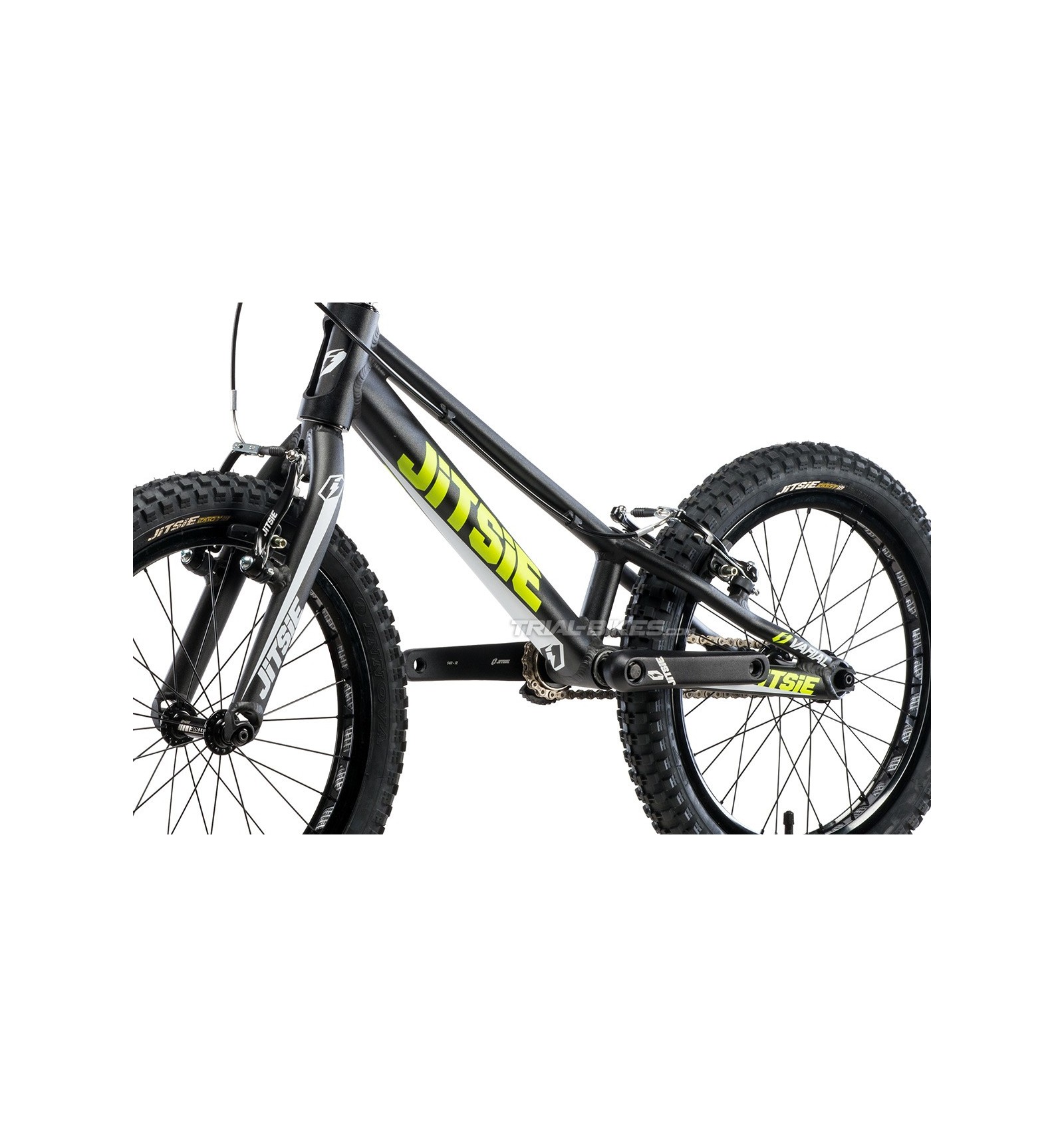

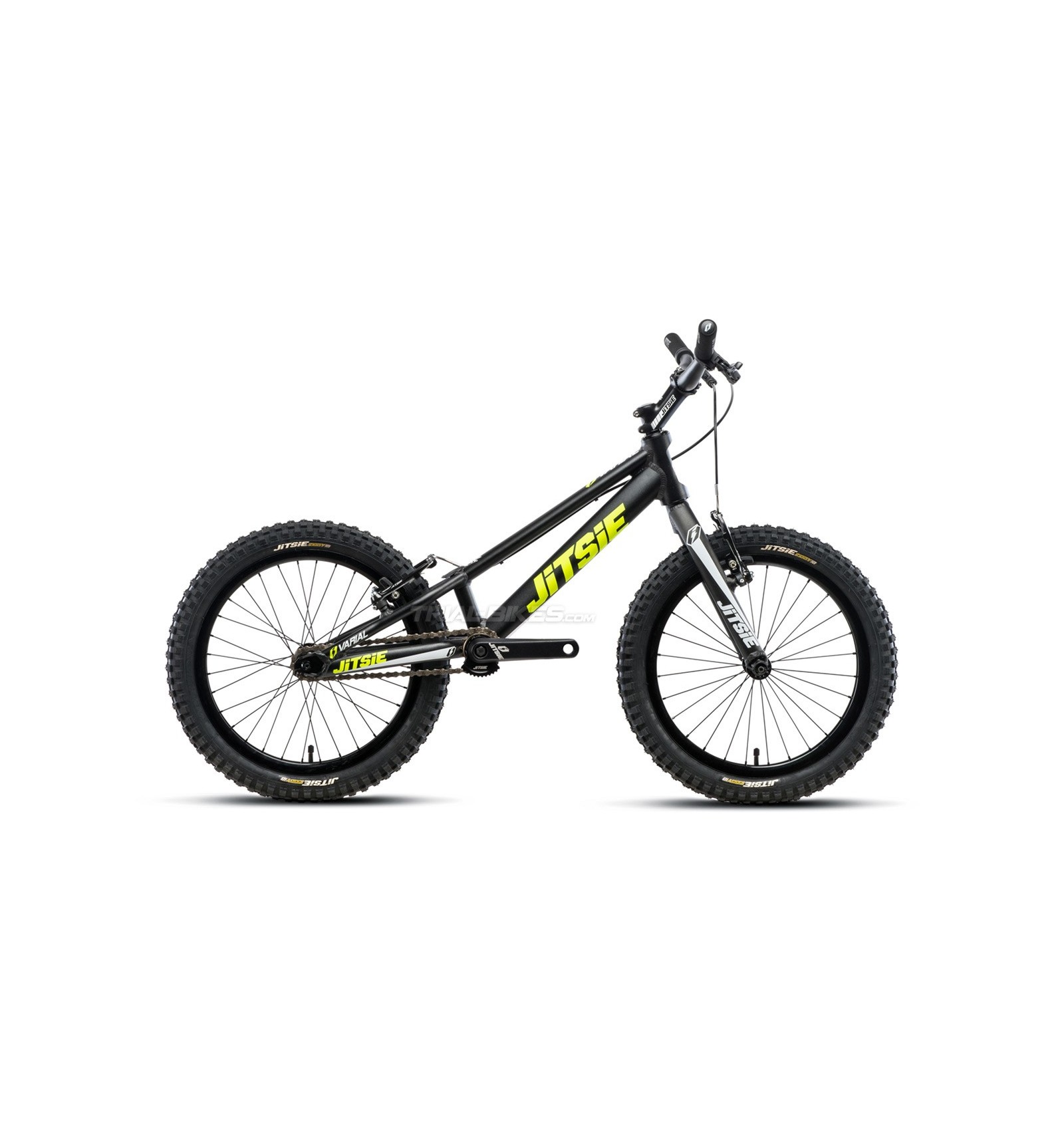

Jitsie Varial 18'' 740mm V-Brake Bike

The new Jitsie Varial 18” 740mm bike combines essential features like its simple, functional design and quality manufacturing in order to produce a top-performance bike. Furthermore, this 740mm version is ideal for the younger riders, thanks to its short, compact geometry that helps them move the bike much more easily when compared to standard 20” bikes.

Frame and fork
- Frame: Jitsie Varial 18” 740mm, made from 6061-T6 aluminium alloy, with V-brake mounts, in black with white and fluro yellow Jitsie Varial adhesives
- Forks: Jitsie Varial 300mm, with V-brake mounts, in black with white Jitsie graphics

Wheels
- Front hub: Jitsie ST 100HS 28 spoke holes, without rotor mounts, 100mm spacing, anodized black
- Rear hub: Jitsie ST 116HS 32 spoke holes, without rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Jitsie snail cams, black
- Front rim: Jitsie 18”, single wall, 32mm wide, 28 spoke holes, anodized black
- Rear rim: Jitsie 18”, single wall, 32mm wide, 32 spoke holes, anodized black
- Spokes: Jitsie 1.8mm, made of steel, black
- Rim tape: Jitsie Ultralight, silver
- Front inner tube: Jitsie Light 0.9mm 18”
- Rear inner tube: Jitsie Light 0.9mm 18”
- Front tyre: Jitsie Ziggy 18”x2.25”
- Rear tyre: Jitsie Ziggy 18”x2.25”

Brakes
- Front brake: Jitsie V-Brake
- Rear brake: Jitsie V-Brake

- Brake pads: Jitsie V-Brake
- Brake clamps: Jitsie V-Brake

Drivetrain
- Cranks: Jitsie JIS 7075, 140mm long, black with white Jitsie graphics
- Bottom bracket: Jitsie JIS, 124.5mm axle, silver
- Freewheel: Jitsie 108.9 16T, with 108 engagement points, 9 pawls and 16 teeth, silver
- Chain: KMC Z610HX, silver
- Rear sprocket: Jitsie 12T Screw-on, made of steel, silver
- Pedals: Plastic pedals (we recommend replacing them for some higher quality pedals)
- Bashplate: Jitsie bashring, anodized black

Steering
- Headset: Jitsie 1 1/8” internal headset, with sealed bearings, 5mm aluminium spacer, anodized black
- Stem: Jitsie 90mm x 35º, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics
- Grips: Jitsie foam, black with white Jitsie graphics
- Handlebar: Jitsie 7075, 580mm long, 75mm rise, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics

Geometry: (based on Jitsie Varial fork 300mm and +45mm offset)
- Wheelbase: 740mm
- Chainstay length: 280mm
- Bottom bracket rise: +25mm
- Head angle: 71.5º

Weight
- 6.8Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com

Watch the video below to see the key points of this new bike:
