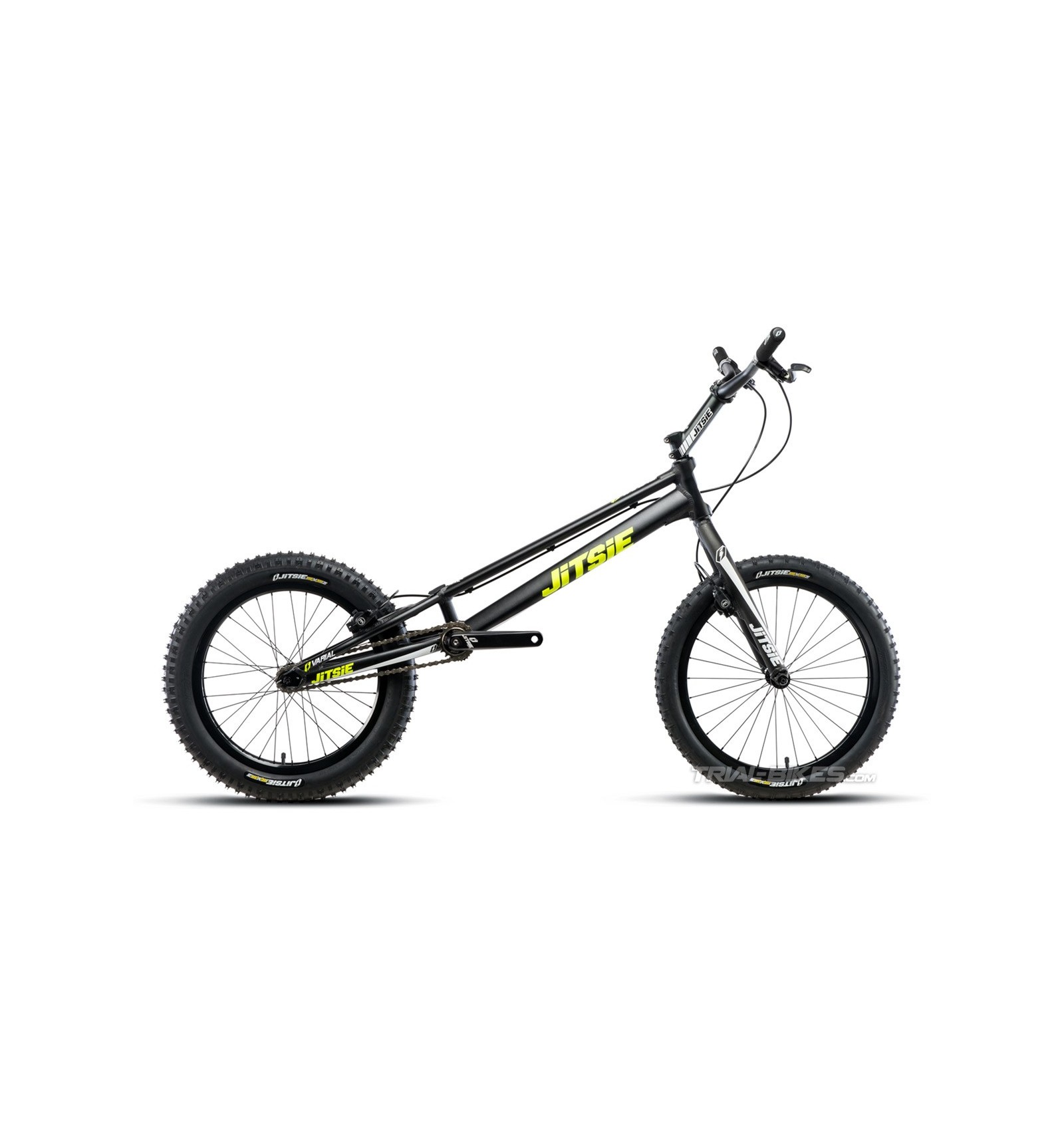

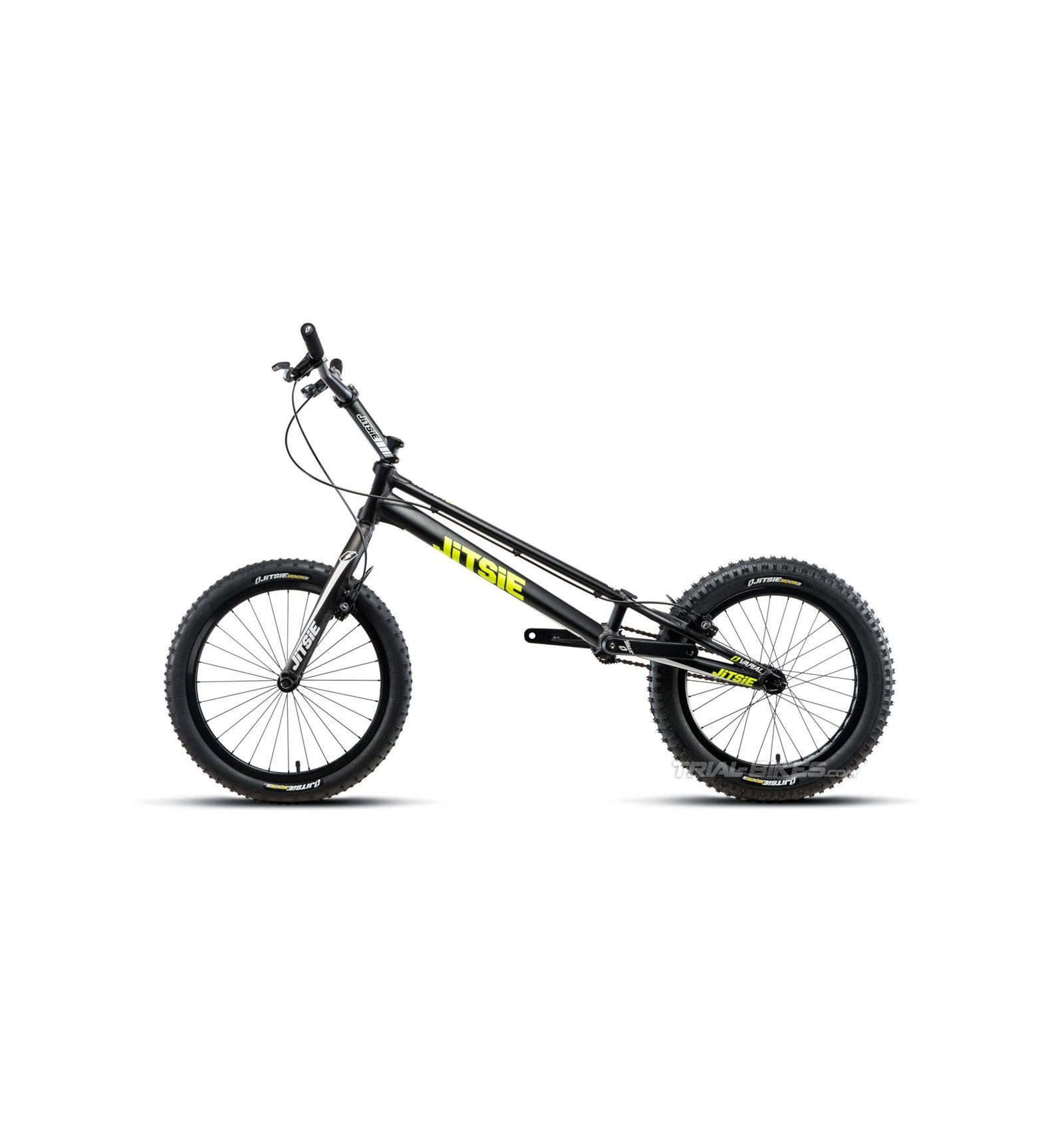

Jitsie Varial 20'' 1010mm HS Bike

The new Jitsie Varial 20” bike combines essential features like its simple, functional design and quality manufacturing in order to produce a top-performance bike. Furthermore, it uses high end components for a compact, lightweight setup. And it’s been developed and tested for months by Jitsie’s team riders Alejandro Montalvo, Nicolás Vallée and Adam Morewood!

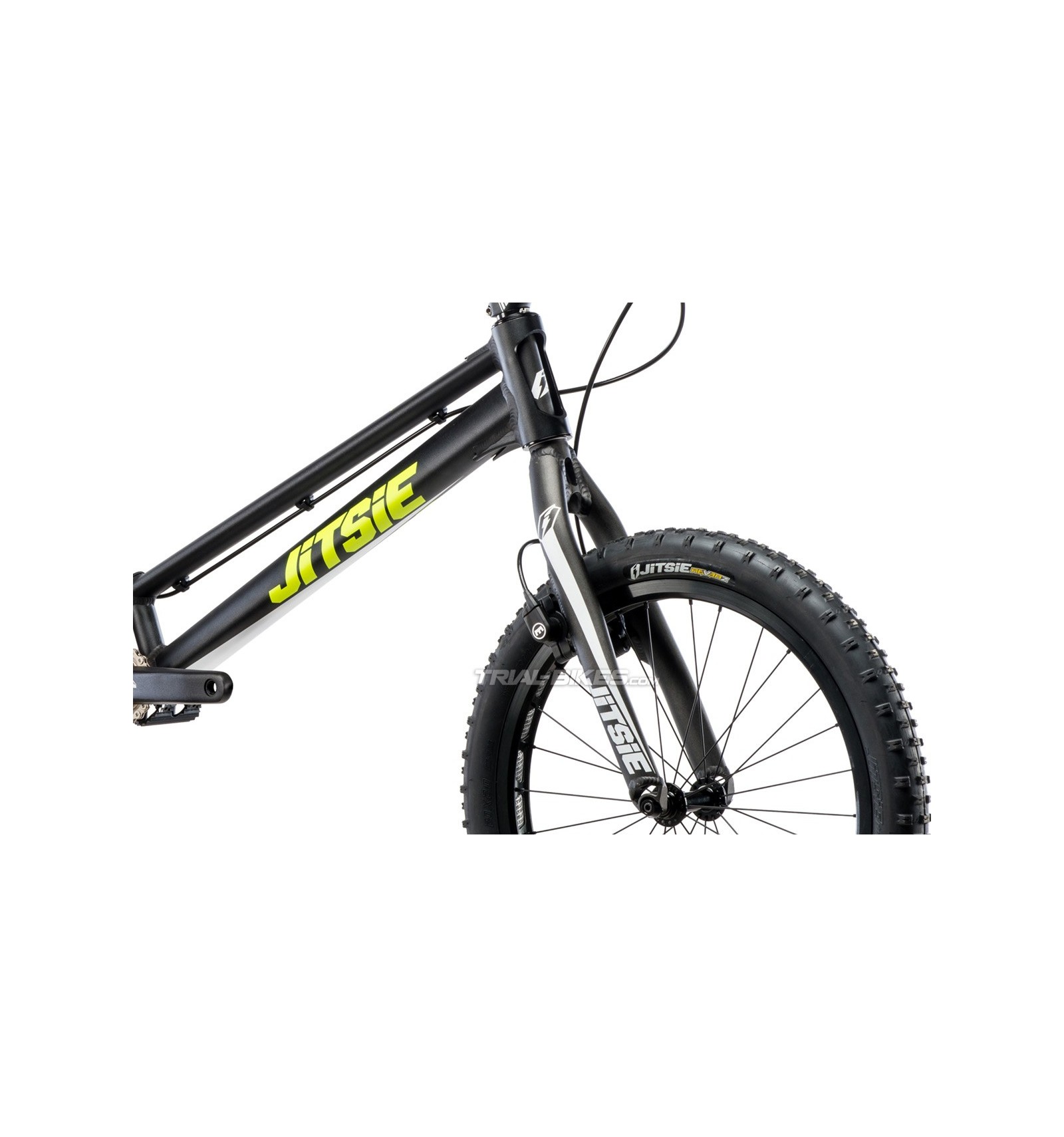

Frame and fork
- Frame: Jitsie Varial 20” 1010mm, made from 6061-T6 aluminium alloy, with 4-bolt rim brake mounts, in black with white and fluro yellow Jitsie Varial adhesives
- Forks: Jitsie Varial 370mm, with 4-bolt rim brake mounts, in black with white Jitsie graphics

Wheels
- Front hub: Jitsie ST 100HS 28 spoke holes, without rotor mounts, 100mm spacing, anodized black
- Rear hub: Jitsie ST 116HS 32 spoke holes, without rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Jitsie snail cams, black
- Front rim: Jitsie 20”, single wall, 32mm wide, 28 spoke holes, anodized black
- Rear rim: Jitsie 19”, single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: Jitsie 1.8mm, made of steel, black
- Rim tape: Jitsie Ultralight, silver
- Front inner tube: Jitsie Light 0.9mm 20”
- Rear inner tube: Jitsie Light 0.9mm 20”
- Front tyre: Jitsie Reverz 20”x2.00”
- Rear tyre: Jitsie Reverz 19”x2.60”

Brakes
- Front brake: Magura HS33 2014
- Rear brake: Magura HS33 2014

- Brake pads: Magura
- Brake clamps: Magura

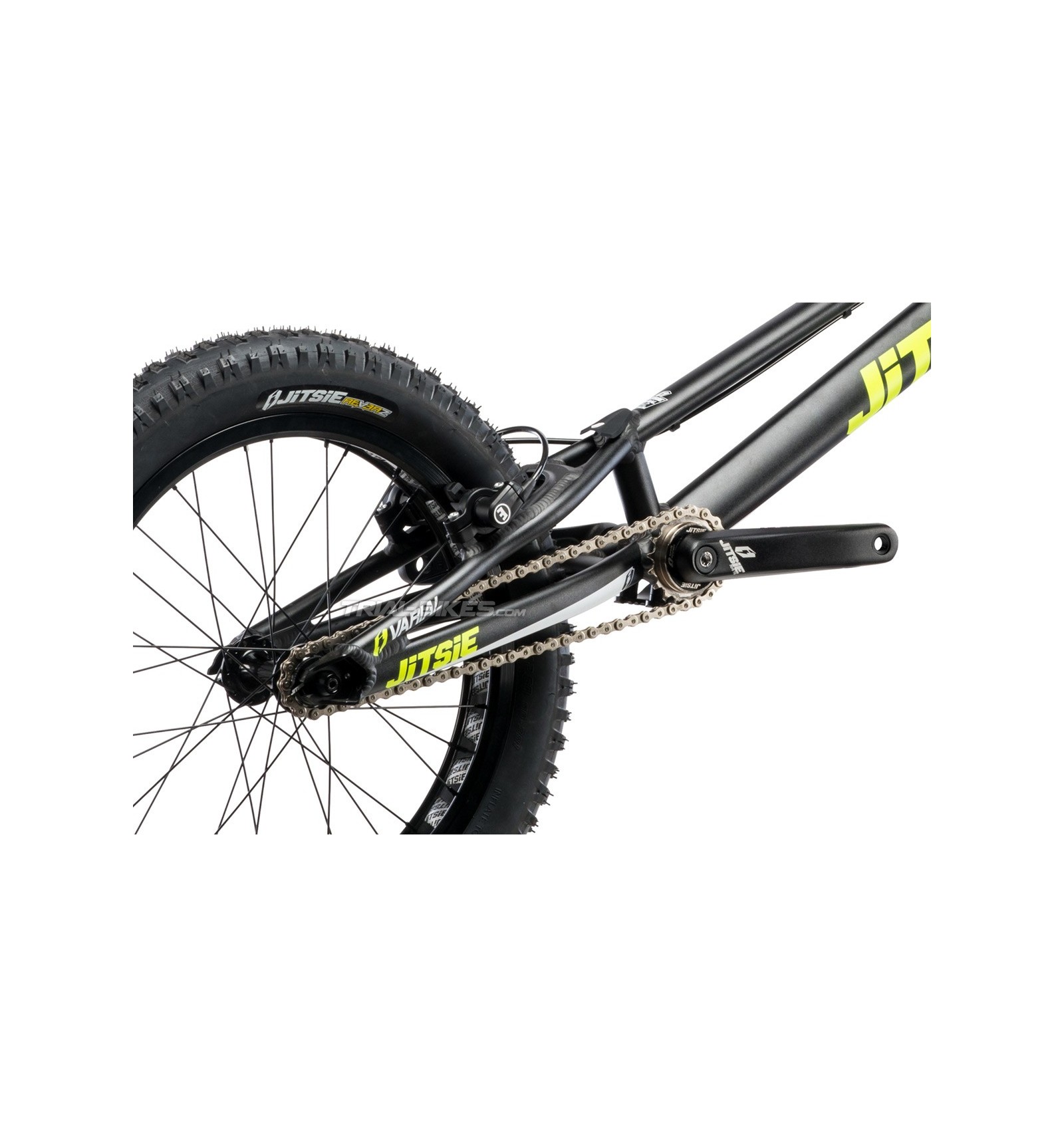

Drivetrain
- Cranks: Jitsie ISIS 7075, 160mm long, black with white Jitsie graphics
- Bottom bracket: Jitsie ISIS, 123mm axle, silver
- Freewheel: Jitsie 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, silver
- Chain: KMC Z610HX, silver
- Rear sprocket: Jitsie 12T Screw-on, made of steel, silver
- Pedals: Plastic pedals (we recommend replacing them for some higher quality pedals)
- Bashplate: Jitsie mini-bashplate, anodized black

Steering
- Headset: Jitsie 1 1/8” internal headset, with sealed bearings, 5mm aluminium spacer, anodized black
- Stem: Jitsie 150mm x 35º, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics
- Grips: Jitsie foam, black with white Jitsie graphics
- Handlebar: Jitsie 7075, 730mm long, 110mm rise, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics

Geometry (based on Jitsie Varial fork 370mm and +45mm offset)
- Wheelbase: 1010mm
- Chainstay length: 350mm
- Bottom bracket rise: +80mm
- Head angle: 71.5º

Weight
- 7.740Kg (with plastic pedals)

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com

Watch the video below to see the key points of this new bike:
