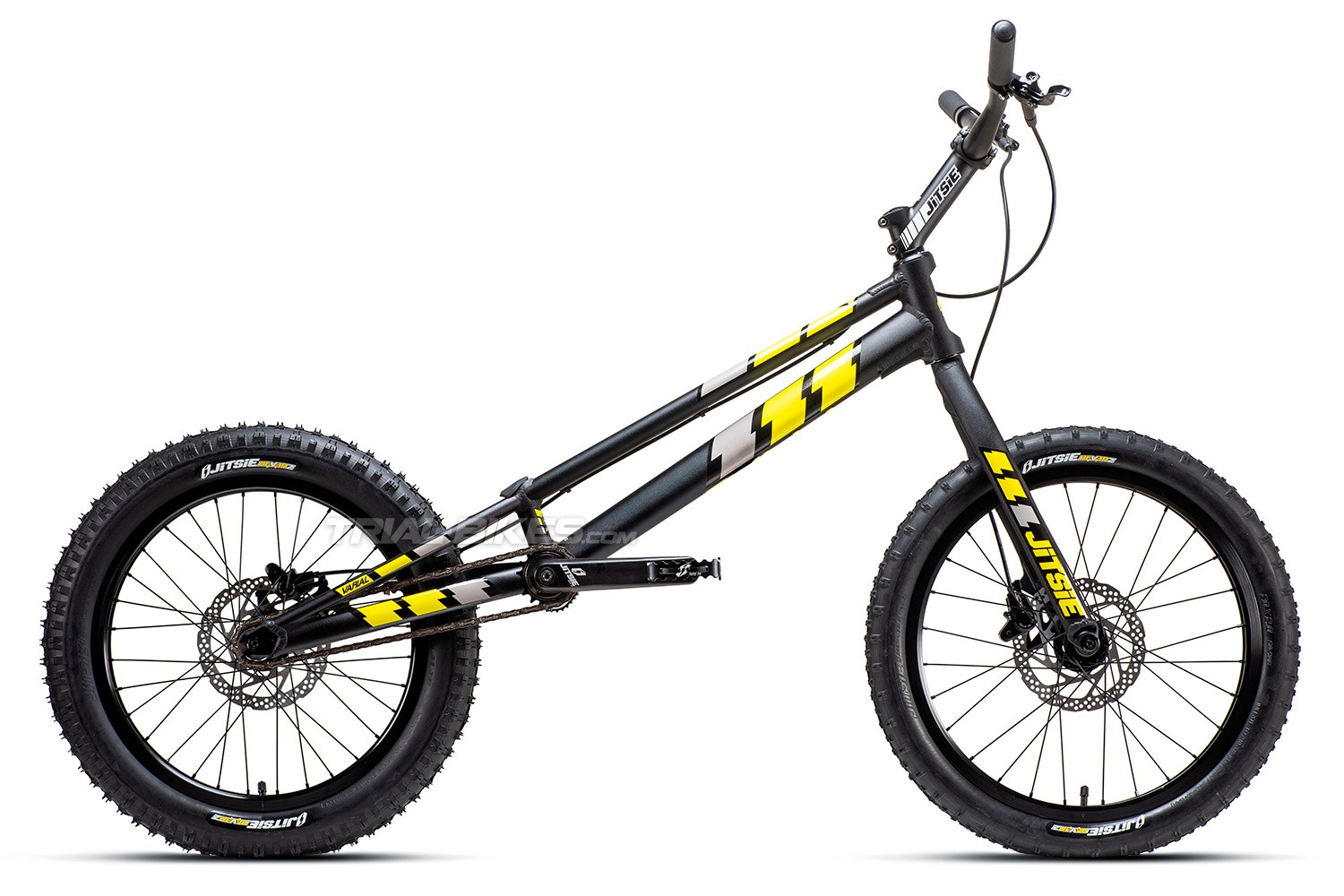

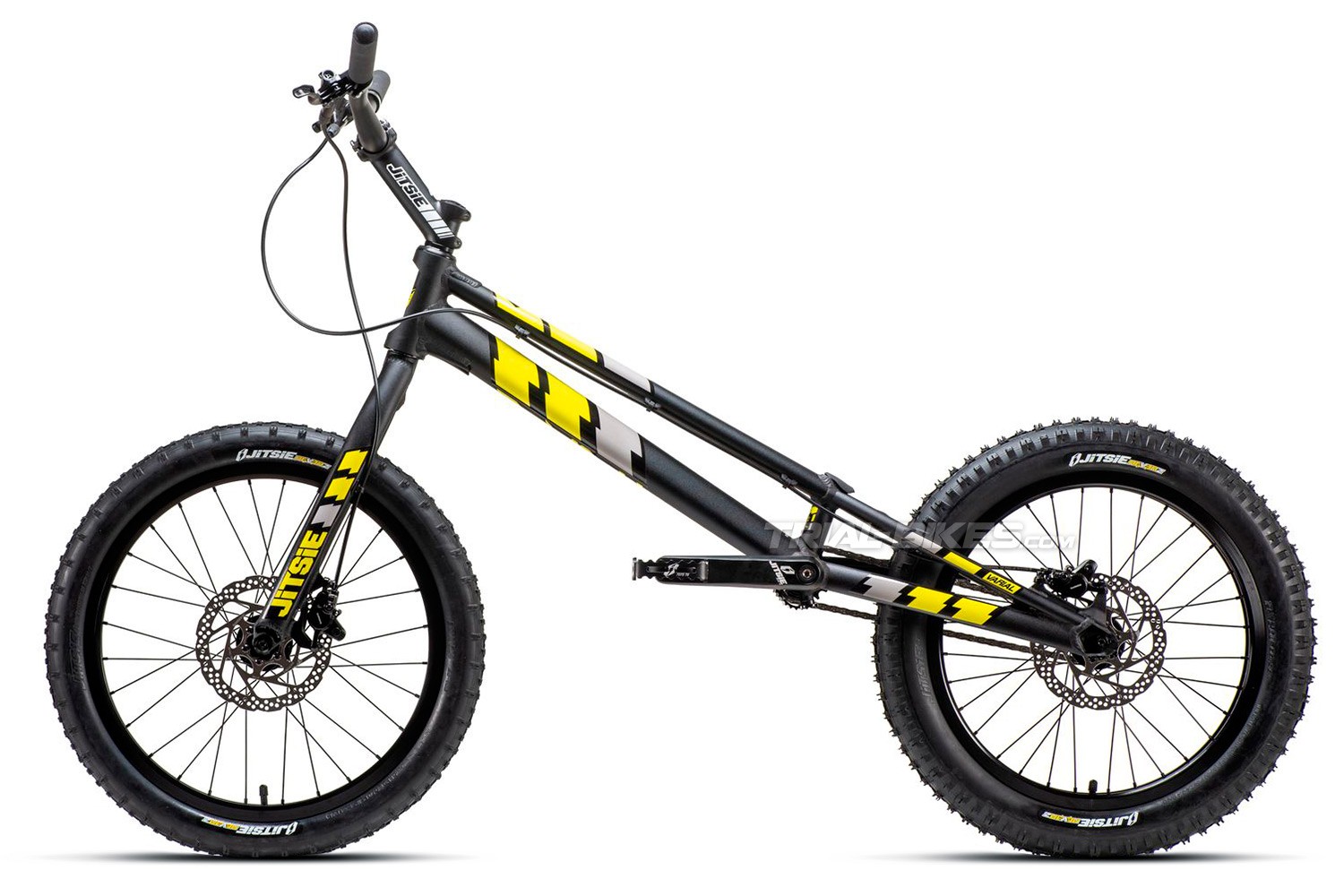

Jitsie Varial 20'' 970mm Disc Bike

Jitsie Varial 20'' 970mm Disc Bike 2021

Frame and fork
- Frame: Jitsie Varial 20” 970mm, made from 6061-T6 aluminium alloy, with Post Mount disc brake mounts, in black with Grey/black/yellow Jitsie Varial adhesives
- Forks: Jitsie Varial 370mm, with Post Mount disc brake mounts, in black with Grey/black/yellow Jitsie Varial adhesives.

Wheels

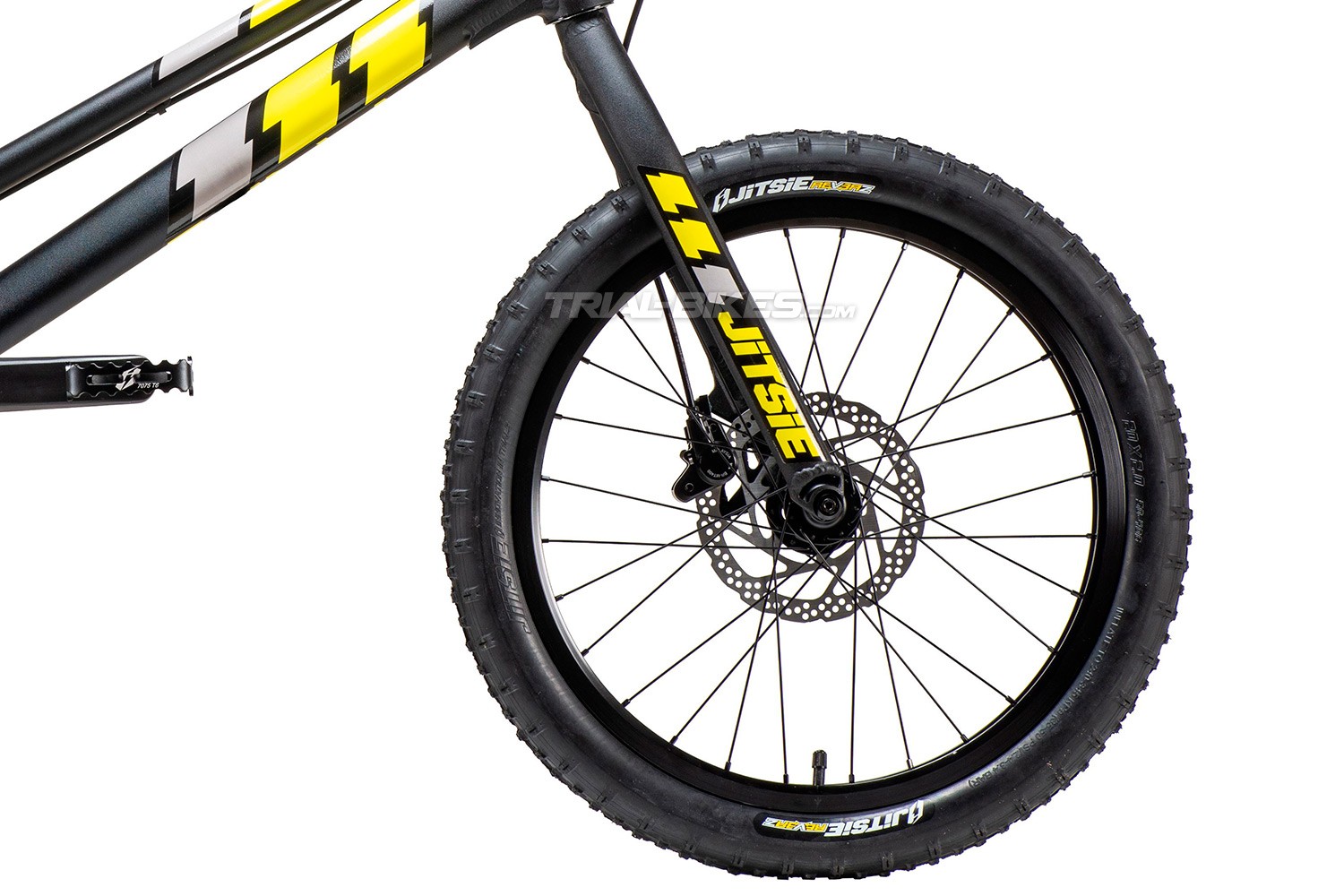

- Front hub: Jitsie ST 28 spoke holes, with rotor mounts, 100mm spacing, anodized black

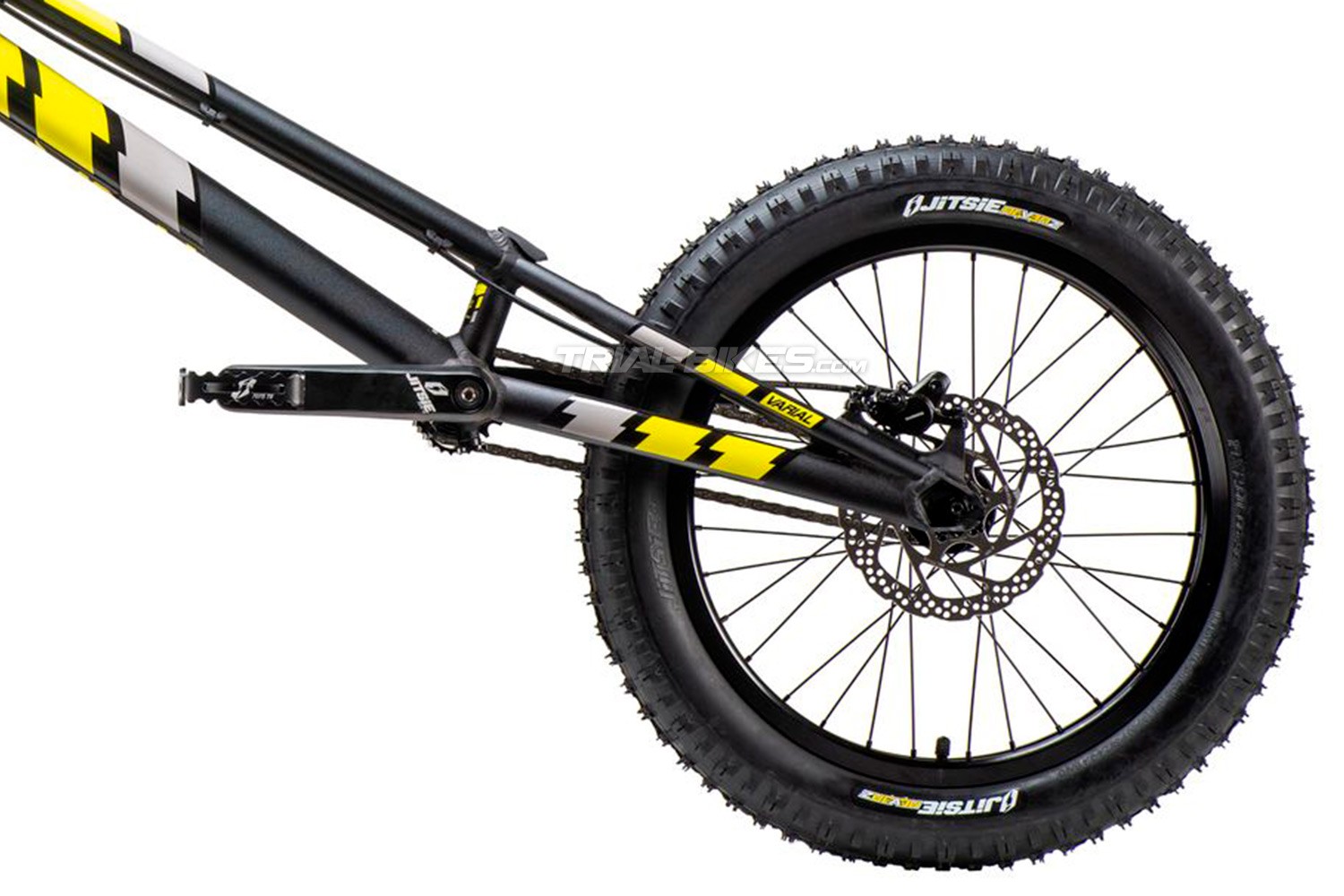

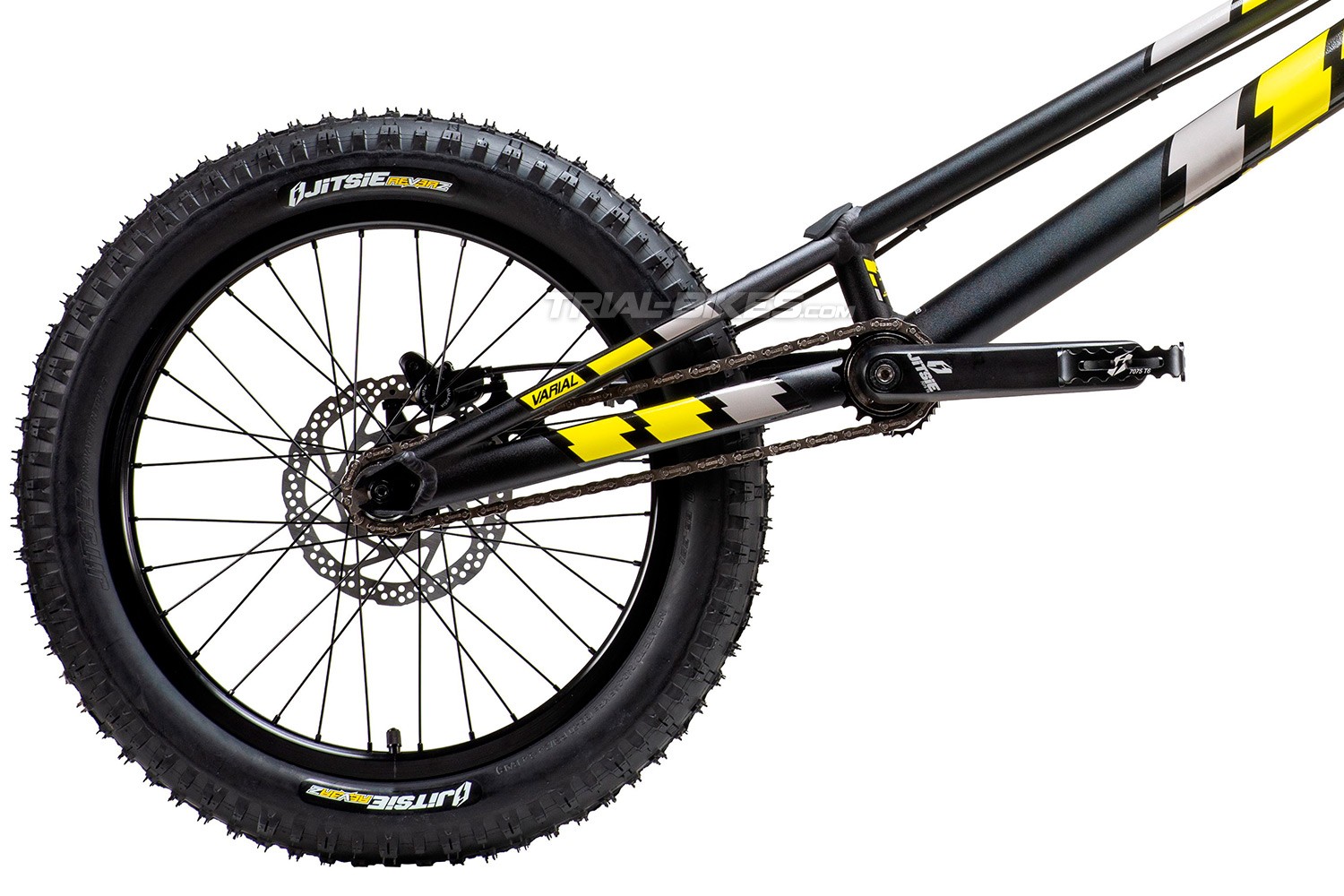

- Rear hub: Jitsie ST 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Jitsie aluminium/steel snail cams, black/silver
- Front rim: Jitsie 20”, single wall, 32mm wide, 28 spoke holes, anodized black
- Rear rim: Jitsie 19”, single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: Jitsie 1.8mm, made of steel, black
- Rim tape: Jitsie Ultralight, silver
- Front inner tube: Jitsie Light 0.9mm 20”
- Rear inner tube: Jitsie Light 0.9mm 20”
- Front tyre: Jitsie Reverz 20”x2.00”
- Rear tyre: Jitsie Reverz 19”x2.60”

Brakes
- Front brake: Magura MT400
- Rear brake: Magura MT400

- Rotors: Magura 160mm

Drivetrain
- Cranks: Jitsie ISIS 7075, 160mm long, black with white Jitsie graphics
- Bottom bracket: Jitsie ISIS, 123mm axle, silver
- Freewheel: Jitsie 108.9 17T, with 108 engagement points, 9 pawls and 17 teeth, silver
- Chain: KMC Z1 eHX narrow, silver
- Rear sprocket: Jitsie 13T Screw-on, made of steel, silver
- Pedals: Aluminium caged pedals
- Bashplate: Jitsie mini-bashplate, anodized black

Steering
- Headset: Jitsie 1 1/8” internal headset, with sealed bearings, 5mm aluminium spacer, anodized black
- Stem: Jitsie 135mm x 35º, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics
- Grips: Jitsie foam, black with white Jitsie graphics

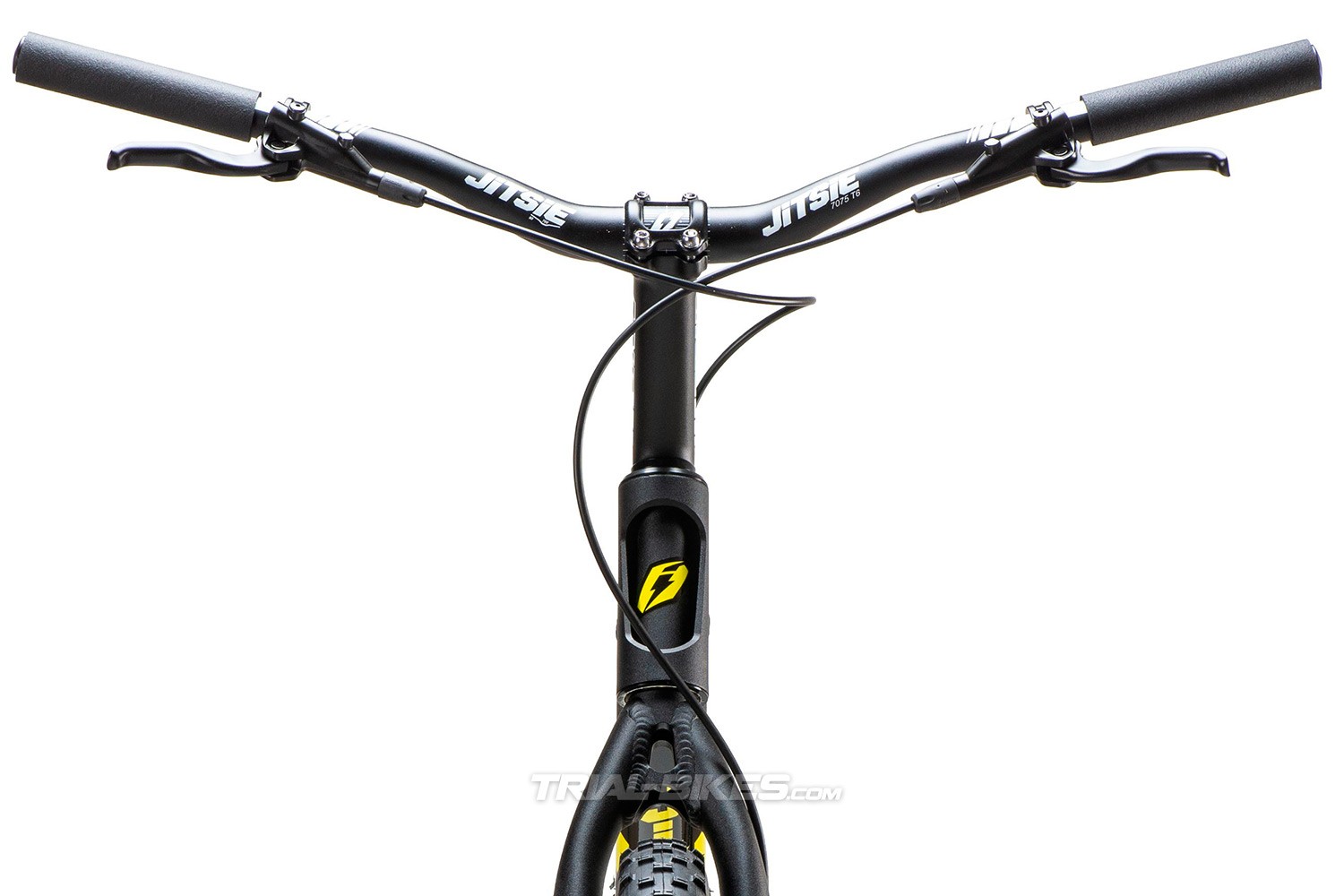

- Handlebar: Jitsie 7075, 700mm long, 90mm rise, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics

Geometry (based on Jitsie Varial fork 370mm and +45mm offset)

(1) Wheelbase: 970 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +80 mm.
-----------------------------------------------
(4) Head Angle: 71.5°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 570 mm
-----------------------------------------------
(6) Reach: 424 mm
-----------------------------------------------
(7) Stack: 378 mm
-----------------------------------------------

Weight
- 7.95Kg (Including pedals)

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
