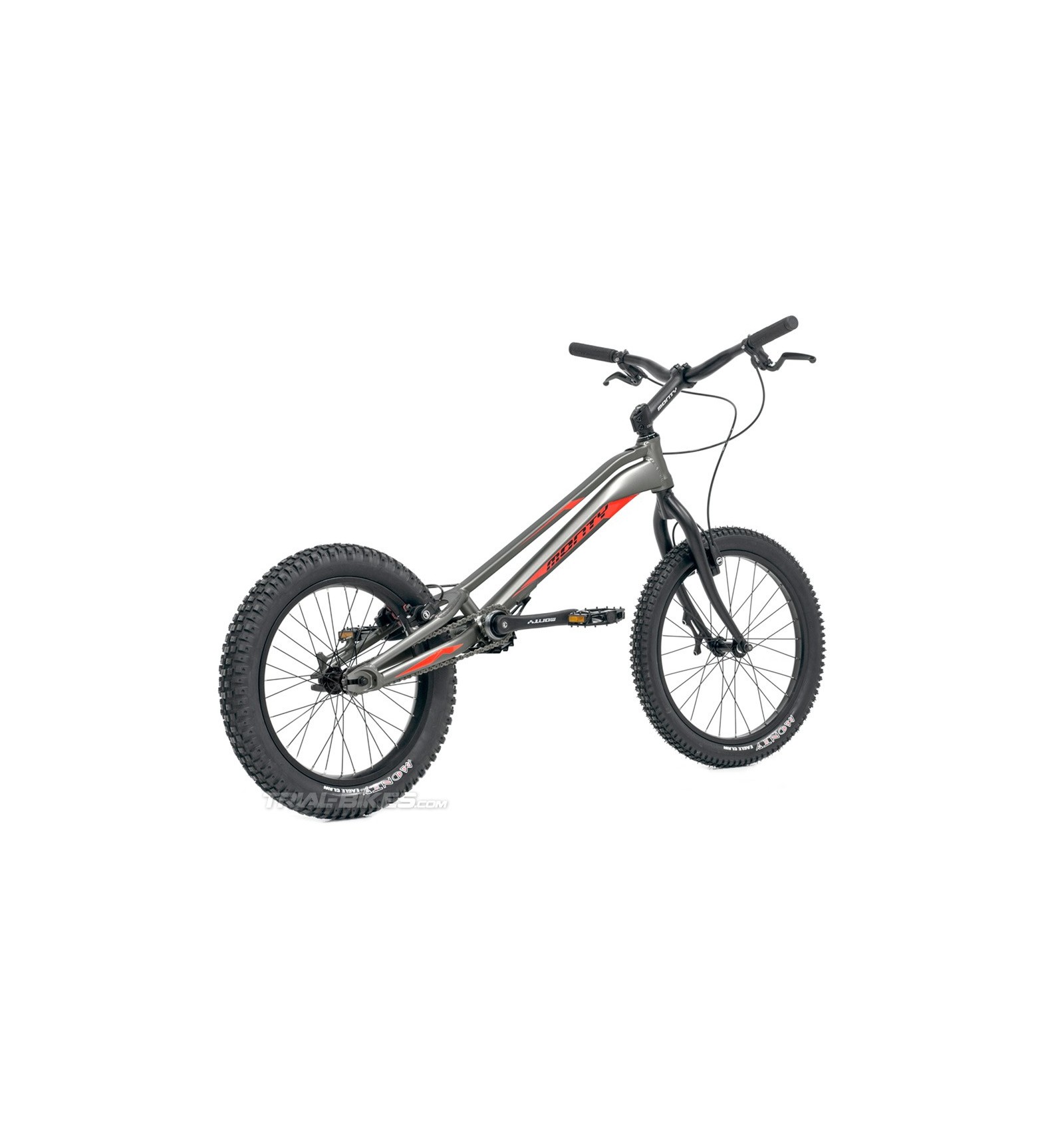

Monty 219 Kaizen 20'' Bike

.The new Monty 219 Kaizen 20” trials bike redefines Spanish brand Monty’s mid-range, combining high-performance components (TrialCORE 108.9 freewheel, Magura HS33 2014 brakes, Eagle Claw bashplate, etc.), in a bike that is the perfect choice for either taking the first steps in trials or making progress towards a more advance level.
Furthermore, the Kaizen range has been developed and tested for months by the official Monty rider Ion Areitio, until achieving the optimal design and geometry for a mid-range bike like the Monty 219 Kaizen 20’’ trials bike.

Frame and fork

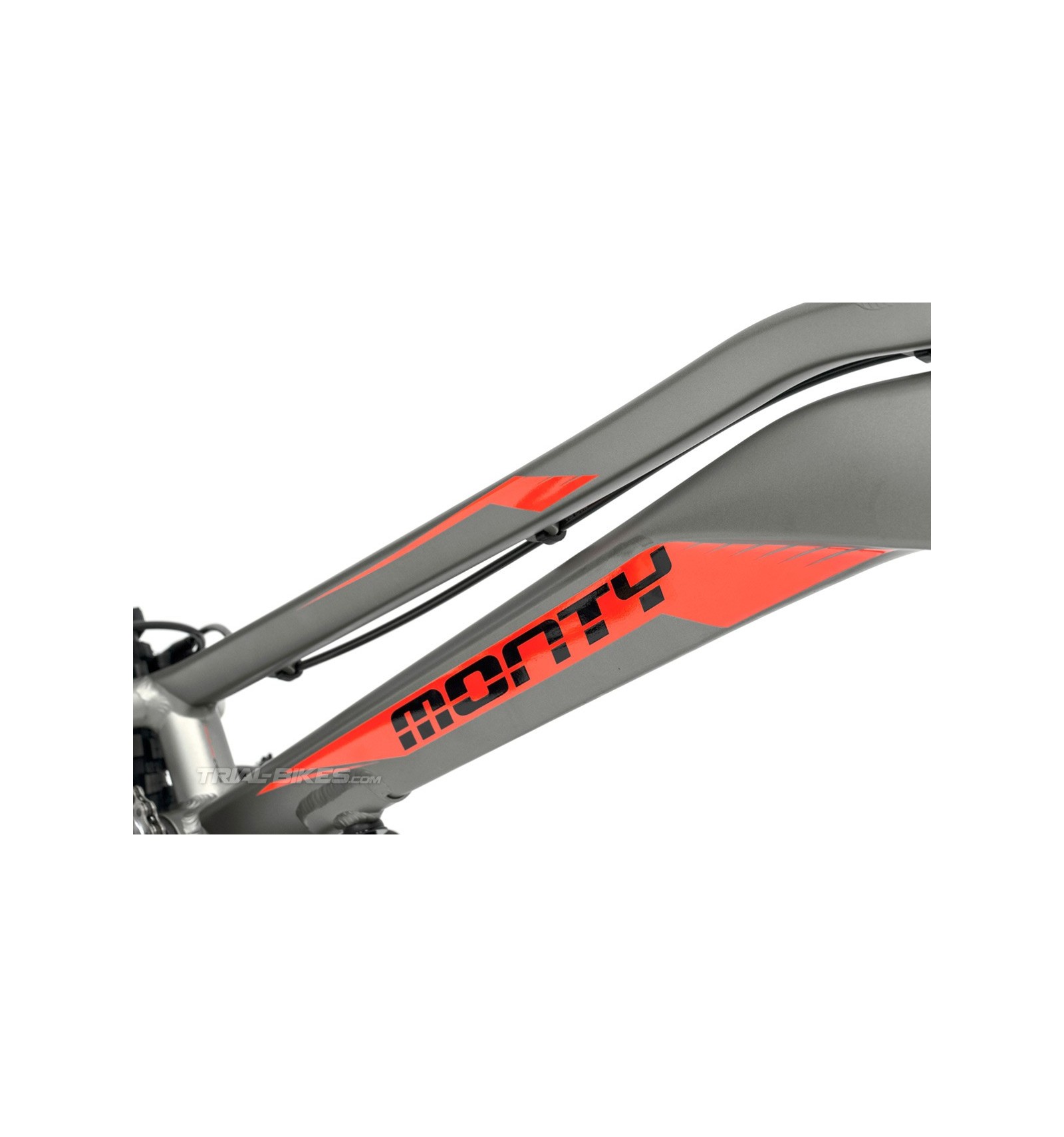

- Frame: Monty Kaizen 20”, made from 6061-T6 aluminium alloy, with 4-bolt rim brake mounts and Post Mount disc brake mounts, in grey color with orange and black Monty Kaizen graphics
- Forks: Monty 6061 20’’, with 4-bolt rim brake mounts and Post Mount disc brake mounts, black

Wheels
- Front hub: Monty 6061, 36 spoke holes, without rotor mounts, 100mm spacing, anodized black
- Rear hub: Monty 6061, 36 spoke holes, without rotor mounts, 116mm spacing, anodized black
- Front rim: Monty 6061 20”, 36 spoke holes, anodized black
- Rear rim: Monty 6061 19”, 36 spoke holes, anodized black
- Spokes: Monty, made of steel, black
- Rim tape: Monty, black
- Front inner tube: Monty 20”
- Rear inner tube: Monty 20”
- Front tyre: Monty TrialCORE 20”x2.00”
- Rear tyre: Monty TrialCORE 19”x2.60”

Brakes
- Front brake: Magura HS33 2014
- Rear brake: Magura HS33 2014

Drivetrain
- Cranks: Monty 6061, 158mm long, 35mm offset, black with white Monty graphics
- Bottom bracket: Monty, 127mm long axle, 68mm wide and standard 1.37’’x24tpi thread, silver
- Freewheel: Monty TrialCORE 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, silver and black
- Chain: KMC Z610HX, silver
- Rear sprocket: Monty 12T Screw-on, made of steel, silver
- Pedals: To be determined
- Bashplate: Monty Eagle Claw 6061 bashplate, anodized black

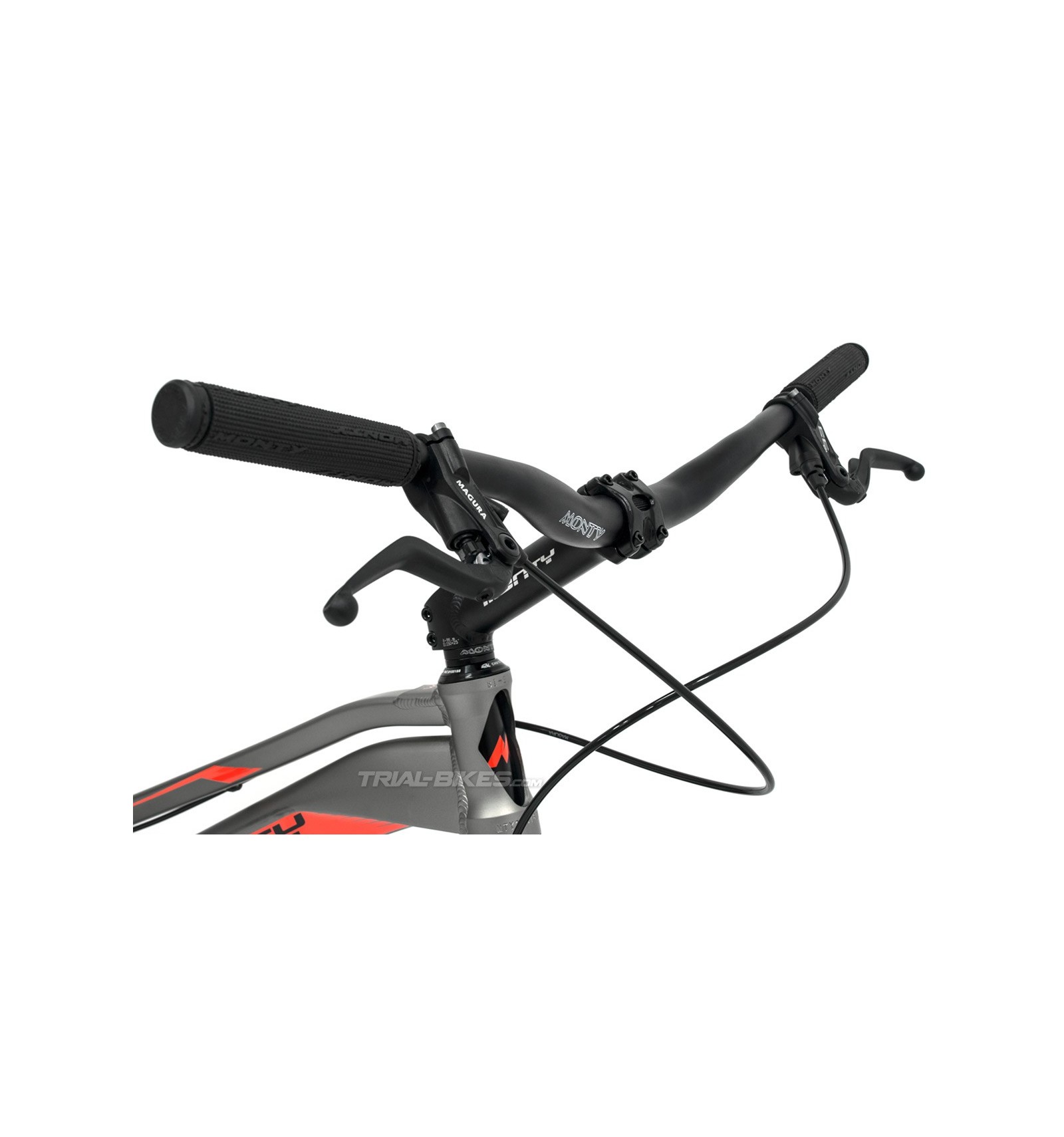

Steering

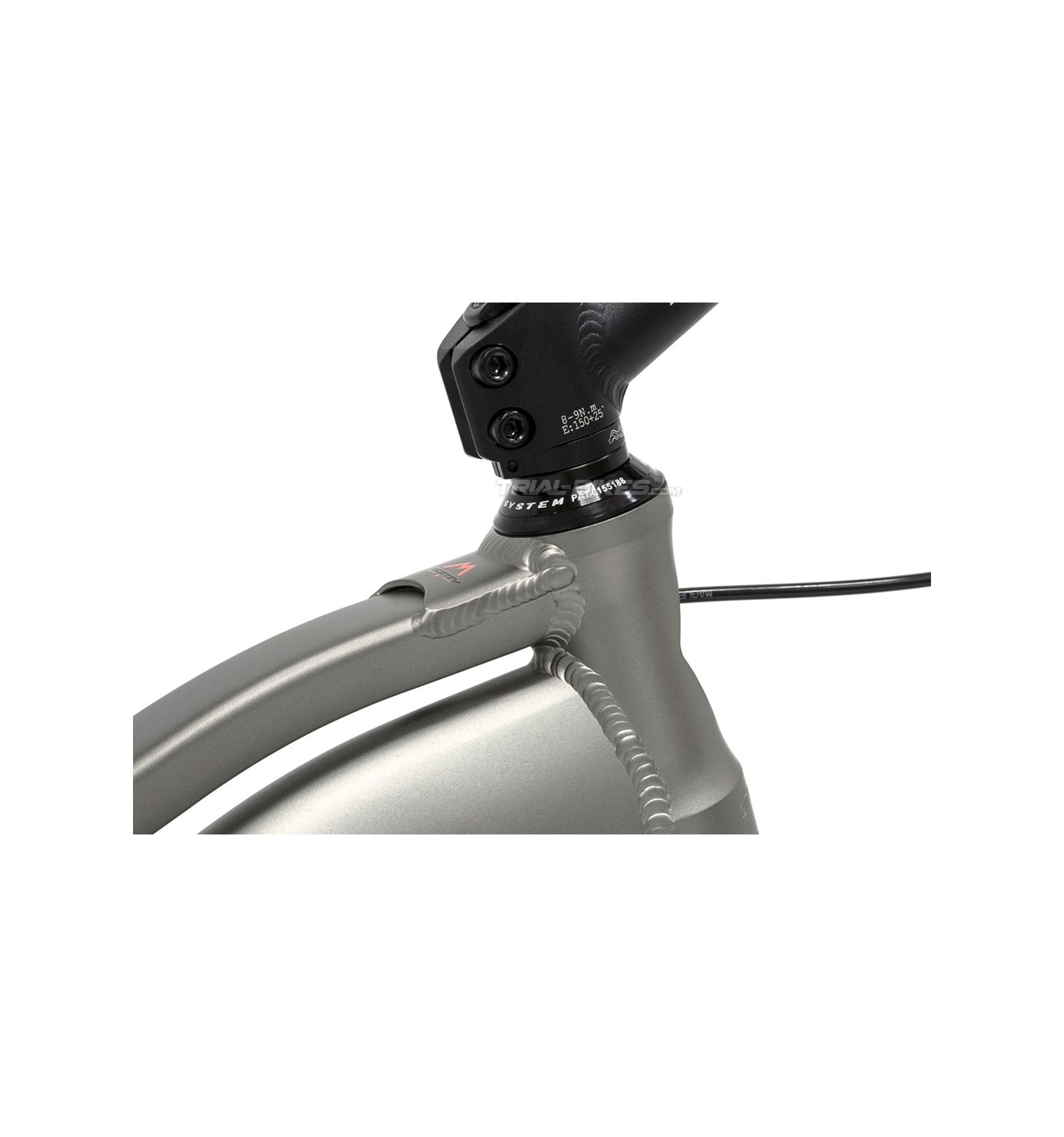

- Headset: Monty 1 1/8” internal headset, with sealed bearings, anodized black
- Stem: Monty 6061, 160mm long and 24º angle, 31.8mm Oversized handlebar diameter, black with white Monty graphics
- Grips: Monty foam, black with white Monty graphics
- Handlebar: Monty 6061, 680mm long, 10º upsweep, 31.8mm Oversized handlebar diameter, black with white and red Monty graphics

Geometry
- Wheelbase: 1008mm
- Chainstay length: 349mm
- Bottom bracket rise: +85mm
- Head angle: 71.5º

Weight
- To be determined

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact us on info@trial-bikes.com .

Below you can watch the video of the new Monty Kaizen 20’’ range:
