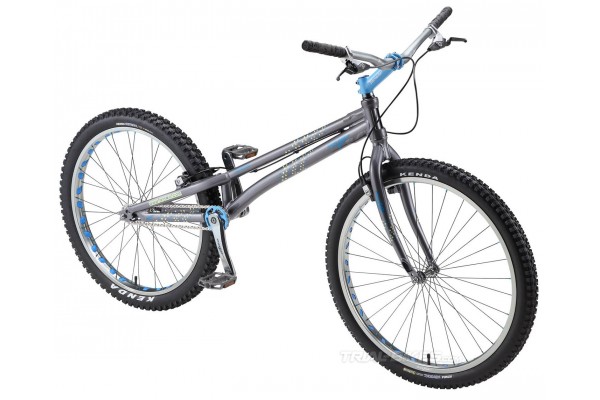

Onza Genesis 2013 26'' Bike

New for 2013, it’s the Onza Genesis 26” bike. Assembled with purely aftermarket competition spec parts and developed for over 2 years by some of the best talents in the UK. The frame features super stiff built in brake booster to give you optimum brake performance.

Frame and forks
- Frame: Onza Genesis 2013 26” Al6061 U6 ultralight, matt grey.
- Forks: Onza Genesis 2013 Light HS33 only, matt grey.

Wheels
- Front hub: Onza Diamond 32H non-disc, in silver finish.
- Rear hub: Onza Diamond 32H non-disc 135mm, in silver finish.
- Chain tensioner: Integrated tensioner system: 2 bolts push the wheel backwards from each side of the frame, to get the ideal chain tension.
- Front rim: Onza Diamond 32H single wall, in matt grey finish.
- Rear rim: Onza Diamond 32H 47mm single wall, in matt grey finish.
- Spokes: Onza Inox, black
- Rim tape: Onza, blue
- Front inner tube: Maxxis
- Rear inner tube: Maxxis
- Front tyre: Kenda Nevegal
- Rear tyre: Kenda Nevegal

Brakes
- Front brake: Magura Hs33 2011
- Rear brake: Magura Hs33 2011
- Brake clamps: Tensile Exclusive, black
- Brake pads: Magura Trial

Drivetrain
- Cranks: Onza Pro ISIS 175mm, silver
- Freewheel: Tensile 60-Click 18T
- Chain: Onza Trial
- Rear sprocket: Onza Screw-On 15T, silver
- Pedals: Onza Platform Alu, grey
- Bottom bracket: Onza Diamond ISIS
- Bashring: Onza Pro Uci bashring, blue

Steering
- Headset: Onza internal 1 1/8”, grey
- Stem: Onza Diamond forged, 31,8mm, blue
- Grips: Onza rubber, black
- Handlebar: Onza Diamond 720mm, grey

Geometry:
- Wheelbase: 1085mm
- Chainstay length: 380mm
- Bottom bracket rise: +55mm
- Head angle: 72º

Finishes available
- Frame and forks feature a matt grey finish
- Yellow and blue Onza graphics

Weight
- 9,60kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, the customer will only have to set both the front wheel and the headset up.
