Ozonys Crown 24" 2020 Bike Black

Ozonys Crown 24" 2020 Street Trials Bike

Ozonys Crown 24” Street trials bike. Featuring its high-strength steel frame and fork, built with high quality, high reliability parts, specially designed for Street trials.

The new features as shortcut:
- New finishes in Black or Blue/Green color.
- Front wheel with 15mm through-axle.

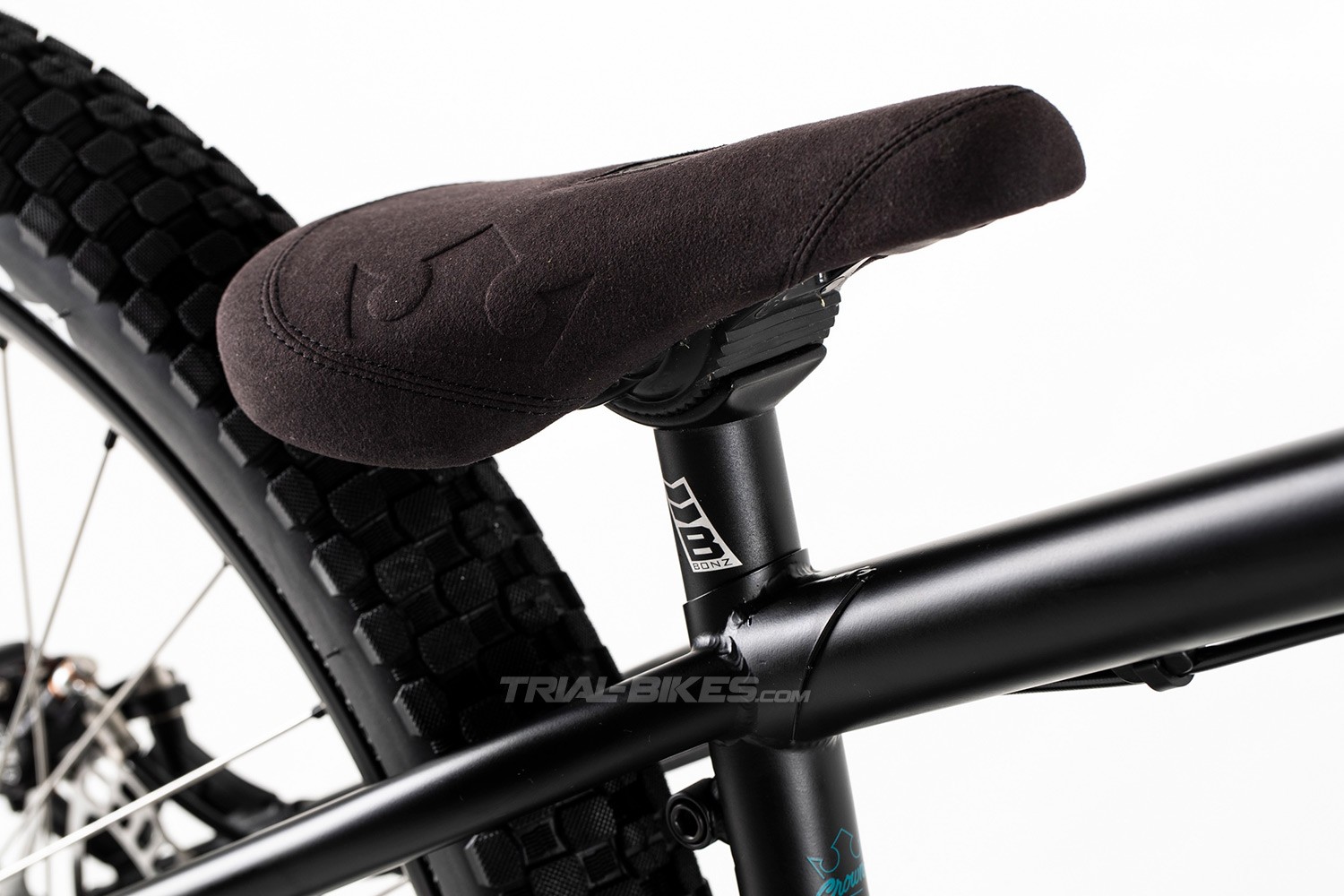

- Integrated seat clamp.
- 3 different brake options.
- Integrated headset.
- Crewkerz Waw cold forged cranks, more rigid and lighter.

Frame and fork

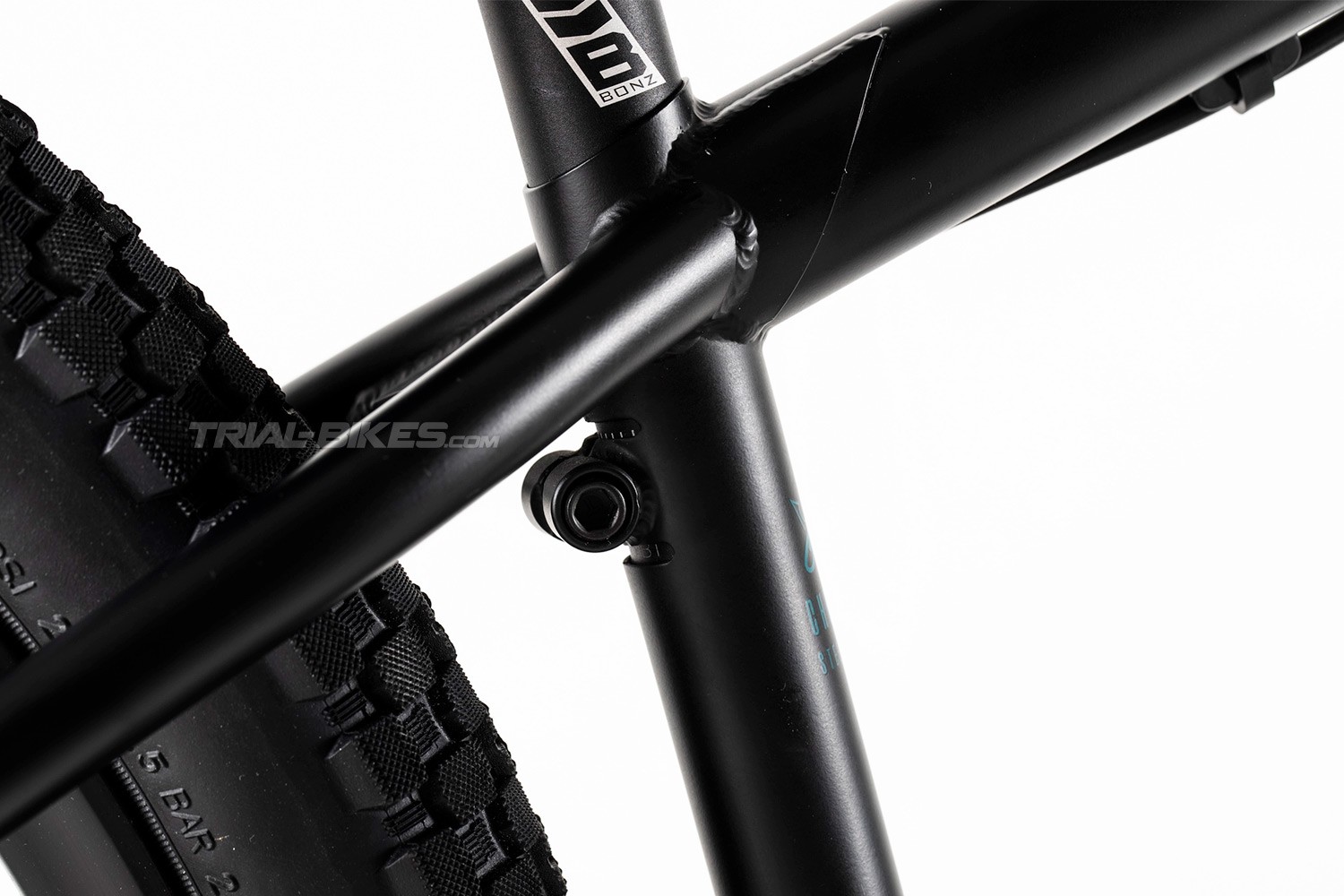

- Frame: Ozonys Crown 24”, Cr-mo Steel, with Post Mount disc brake mounts.
- Forks: Ozonys Crown 24”, Cr-mo Steel, with Post Mount disc brake mounts.

Wheels

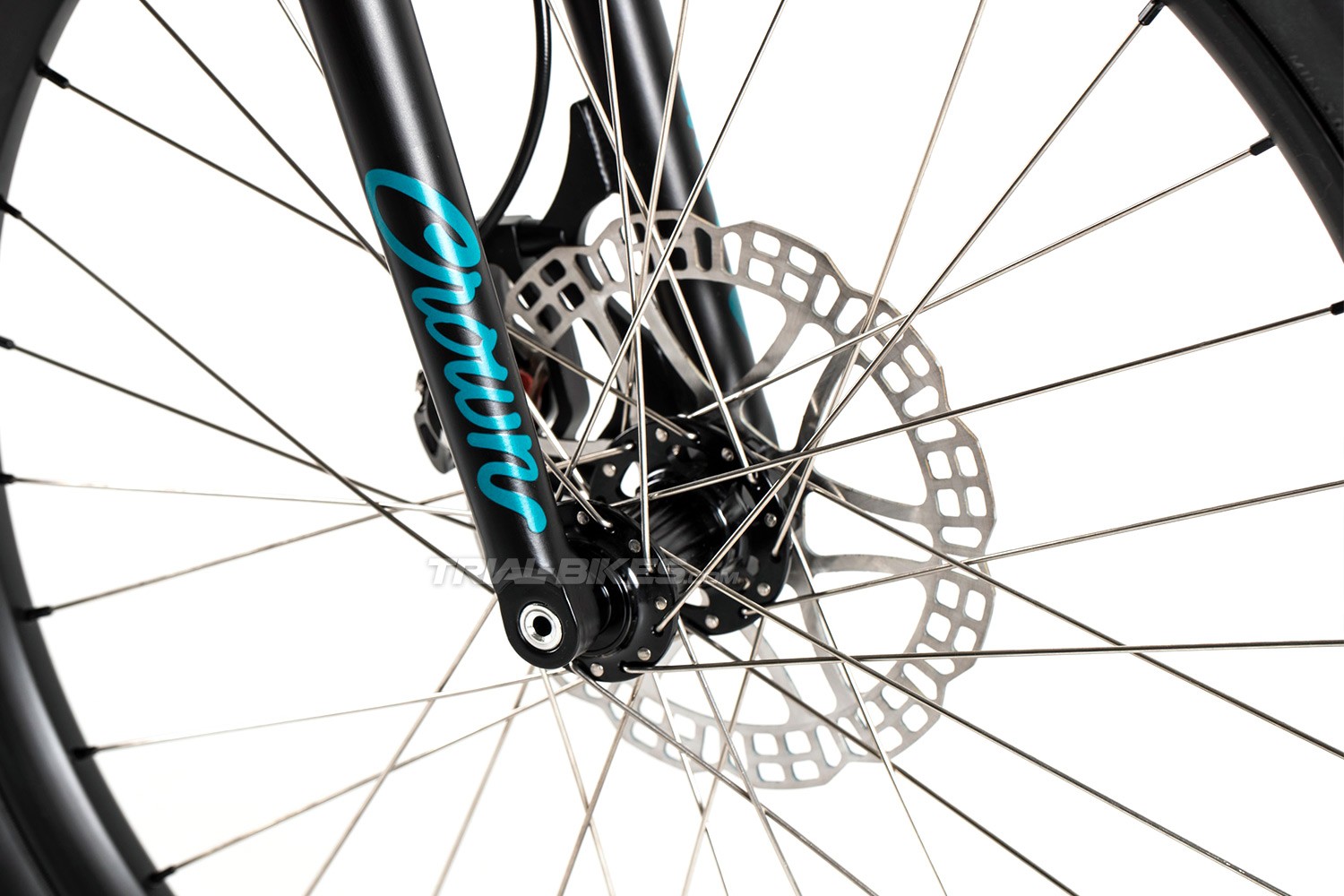

- Front hub: Bonz 100mm Disc 32H, 15mm through-axle.

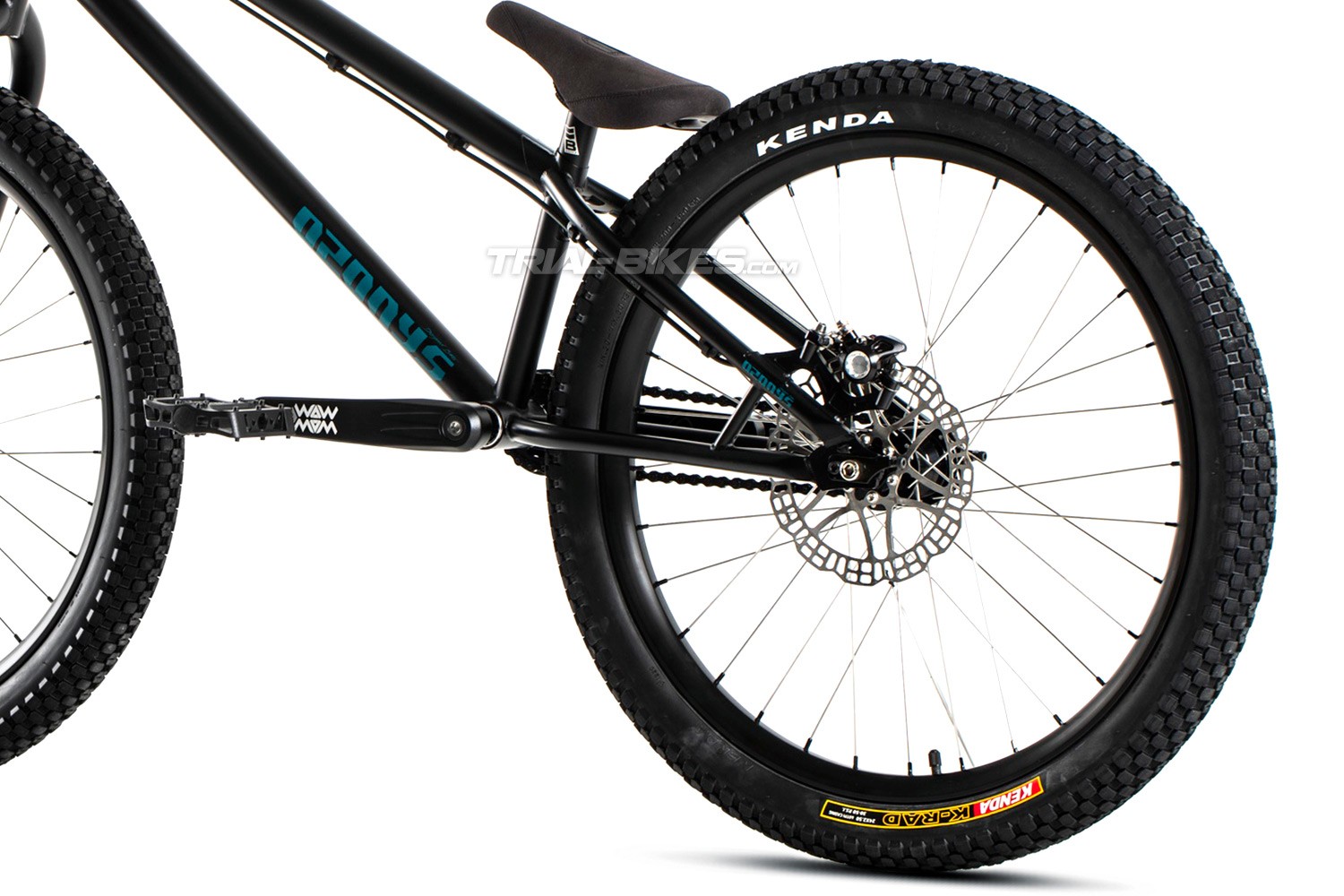

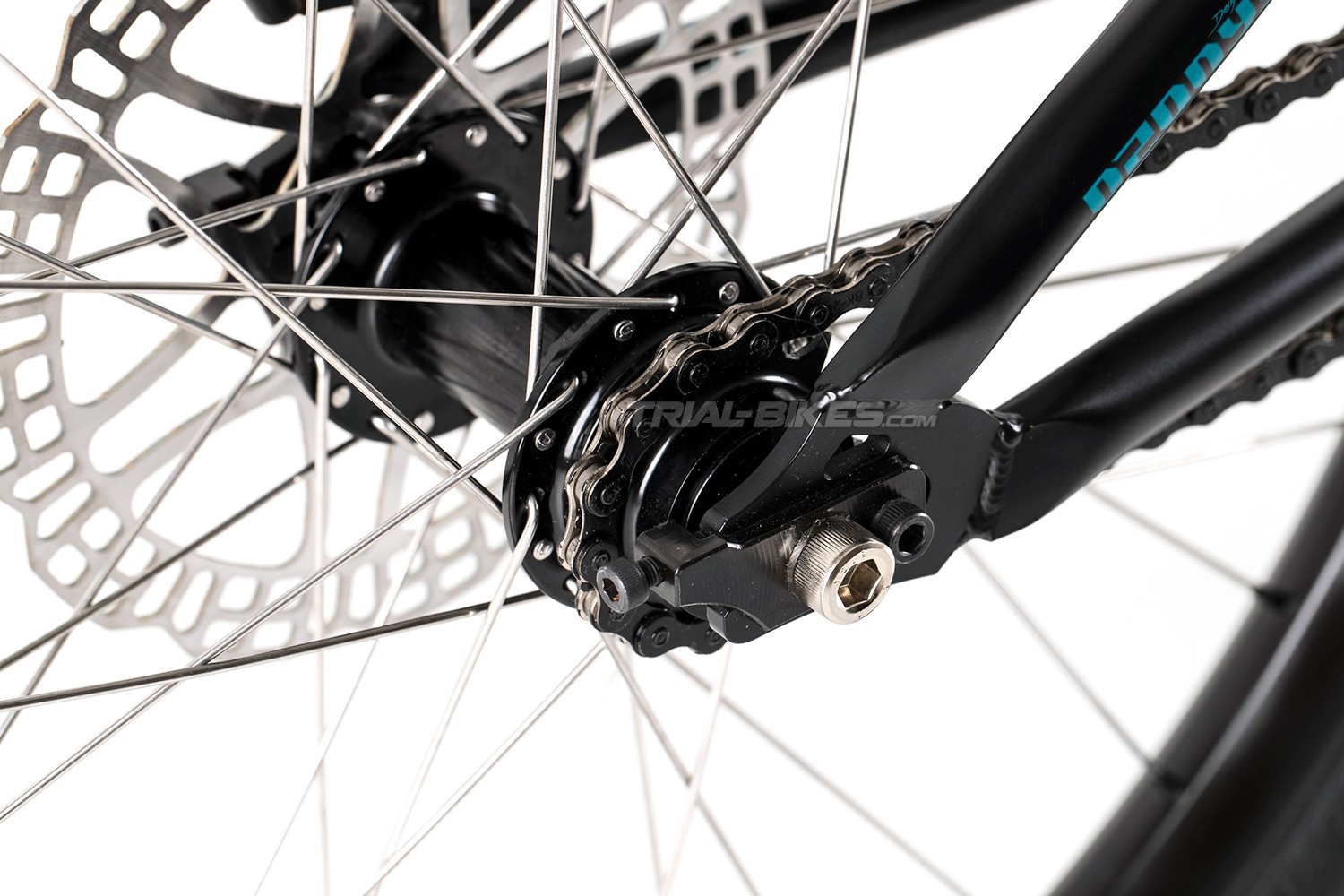

- Rear hub: Bonz 135mm Disc 32H, Cassette Lockring.
- Chain tensioner: Bonz chain tugs.
- Front rim: 32H, double-wall.
- Rear rim: 32H, double-wall.
- Spoke nipples: Black.
- Rim tape: Bonz 24”.
- Front inner tube: Bonz 24”.
- Rear inner tube: Bonz 24”.
- Front tyre: Kenda K-Rad 24”.
- Rear tyre: Kenda K-Rad 24”.

Brakes
- Front brake: Without brakes / Magura MT4 HC (180mm) / Magura MT7 (180mm) / Hope Tech 3 (180mm), (depending on brakes choice).
- Rear brake: Without brakes / Magura MT4 HC (180mm) / Magura MT7 (180mm) / Hope Tech 3 (180mm), (depending on brakes choice).

- Rotors: 180mm.

Drivetrain

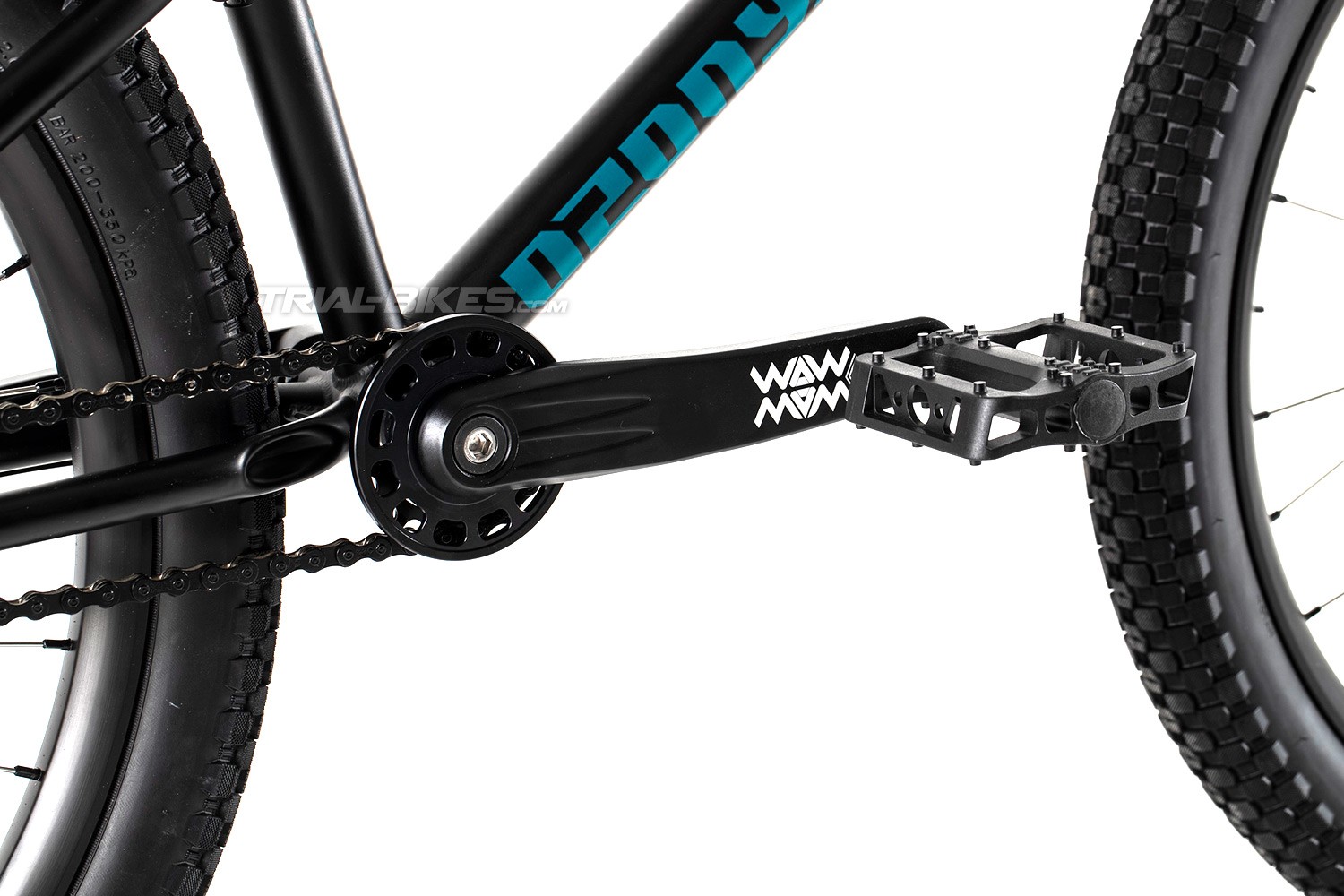

- Cranks: Crewkerz Waw, ISIS 170mm.
- Bottom bracket: Bonz Expert ISIS, 128mm.
- Plate: 18 teeth.
- Chain: KMC 610Hx.
- Rear sprocket: Bonz 14 teeth.
- Pedals: Bonz Nylon.
- Bashring: Crewkerz Waw, CNC.

Steering
- Headset: Internal 1 1/8”
- Stem: 80mm long, 25º rise
- Grips: Kraton rubber grips
- Handlebar: Bonz Pro Light Street

Geometry
- Wheelbase: 990mm
- Chainstay length: 355mm
- Bottom bracket rise: +18mm
- Head angle: 73.8º

Weight
- 11.7Kg

Additional information:
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.

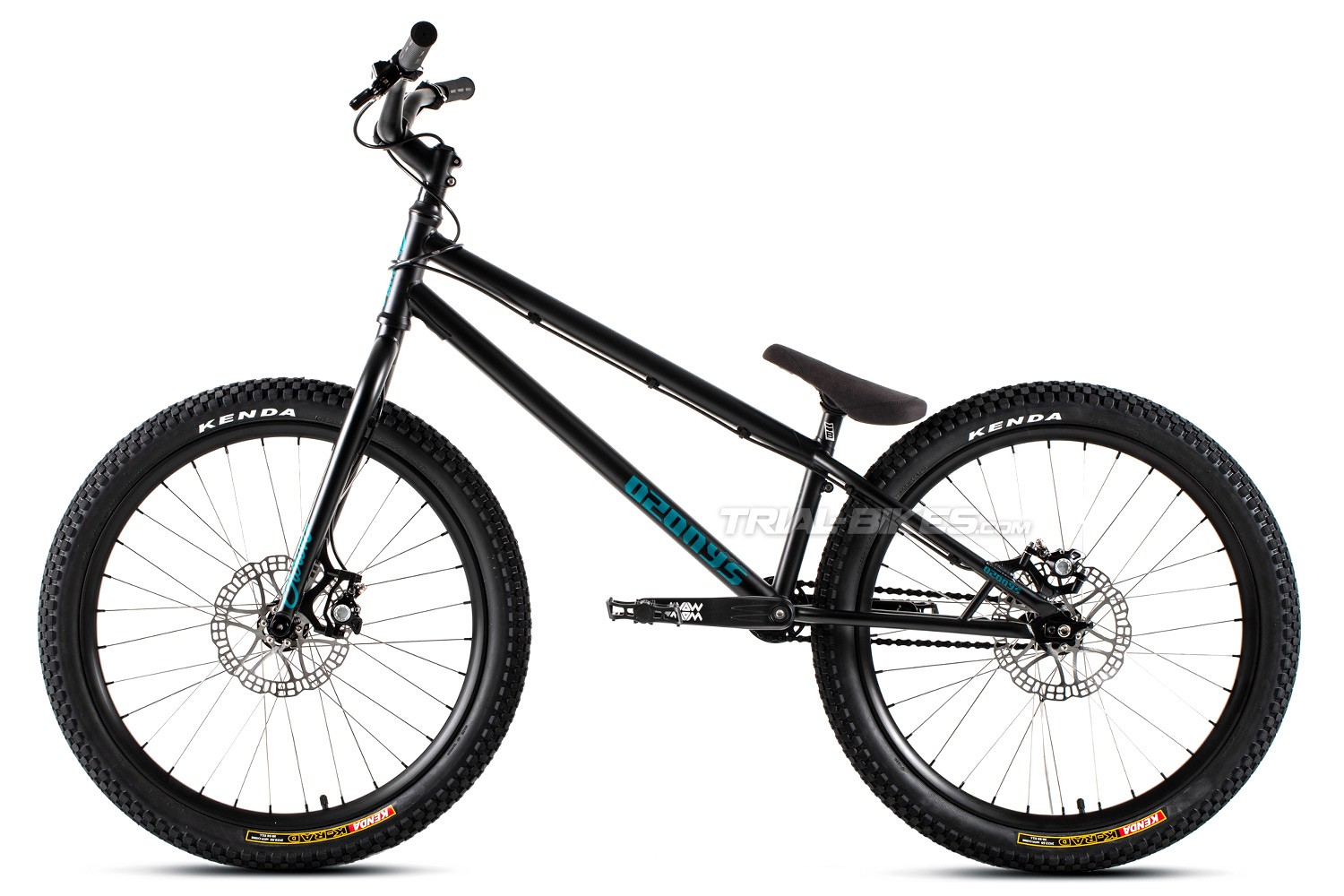

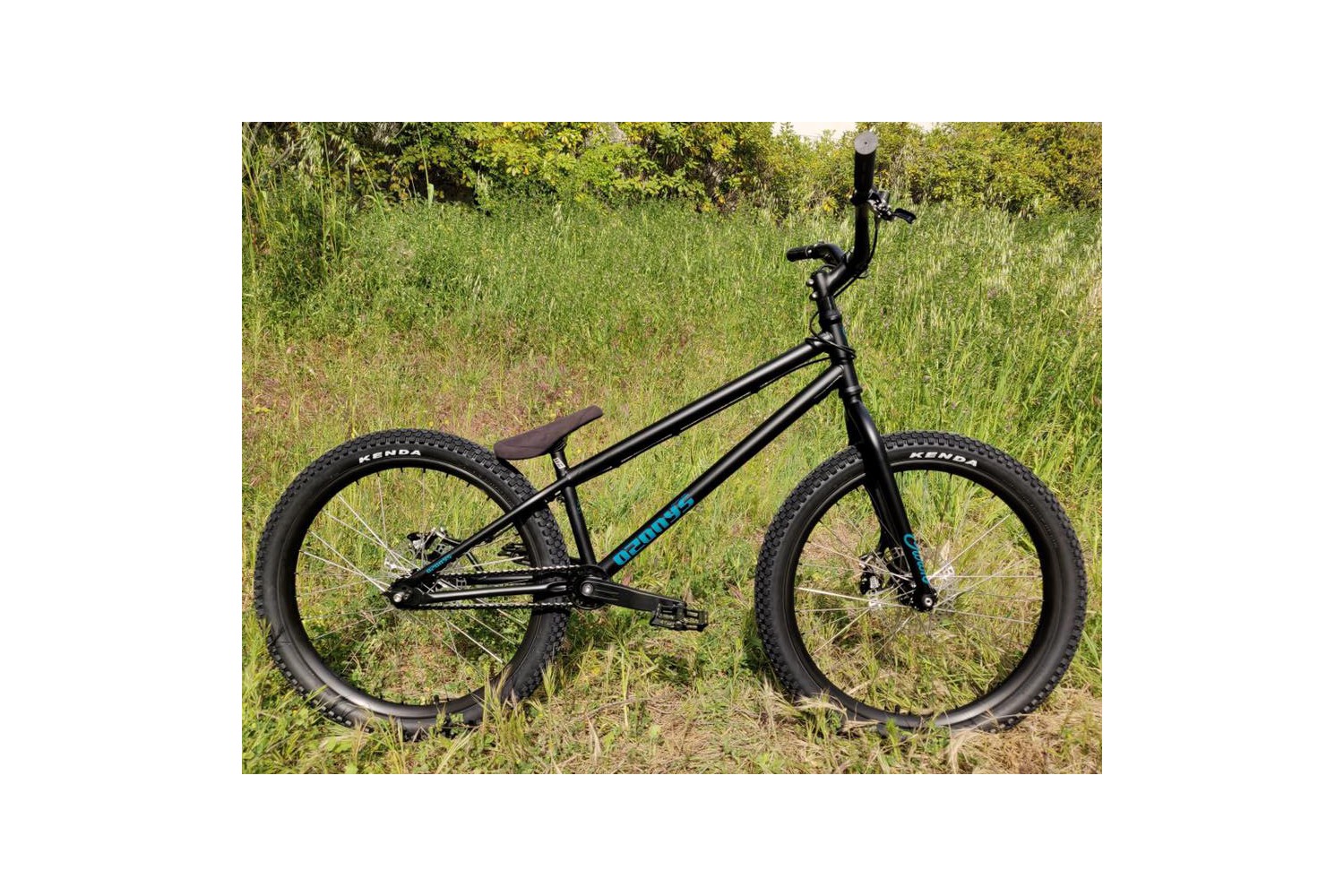

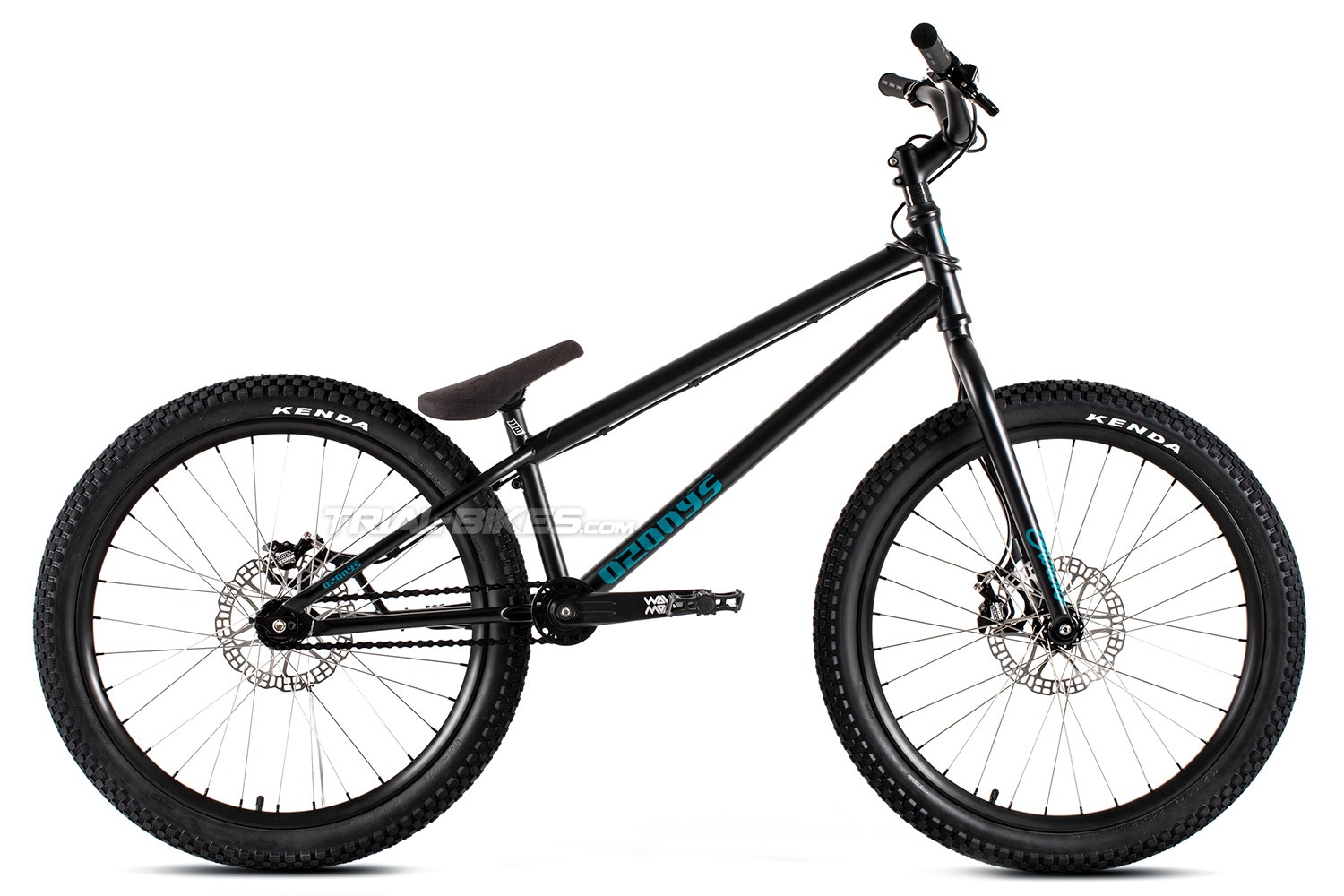

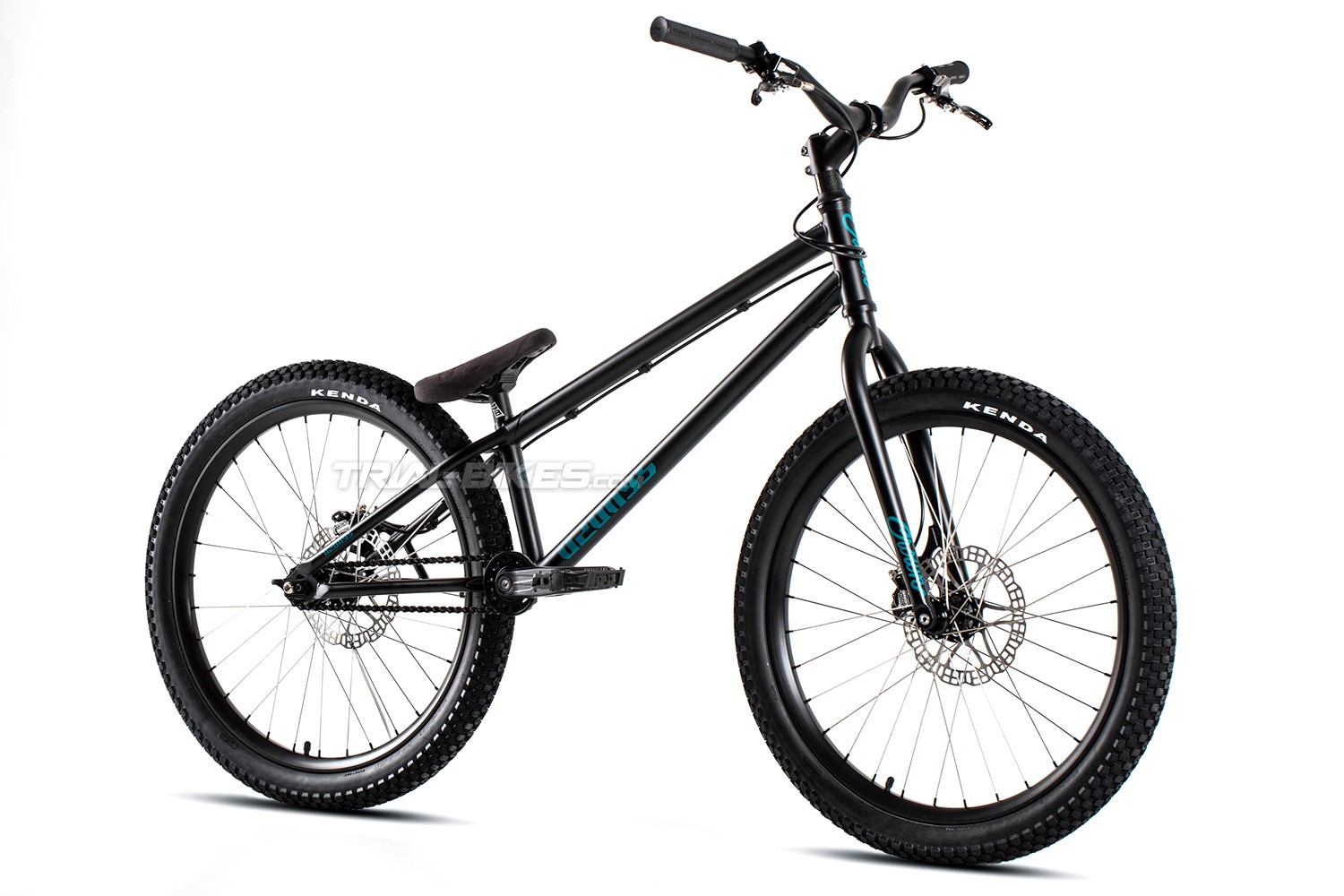

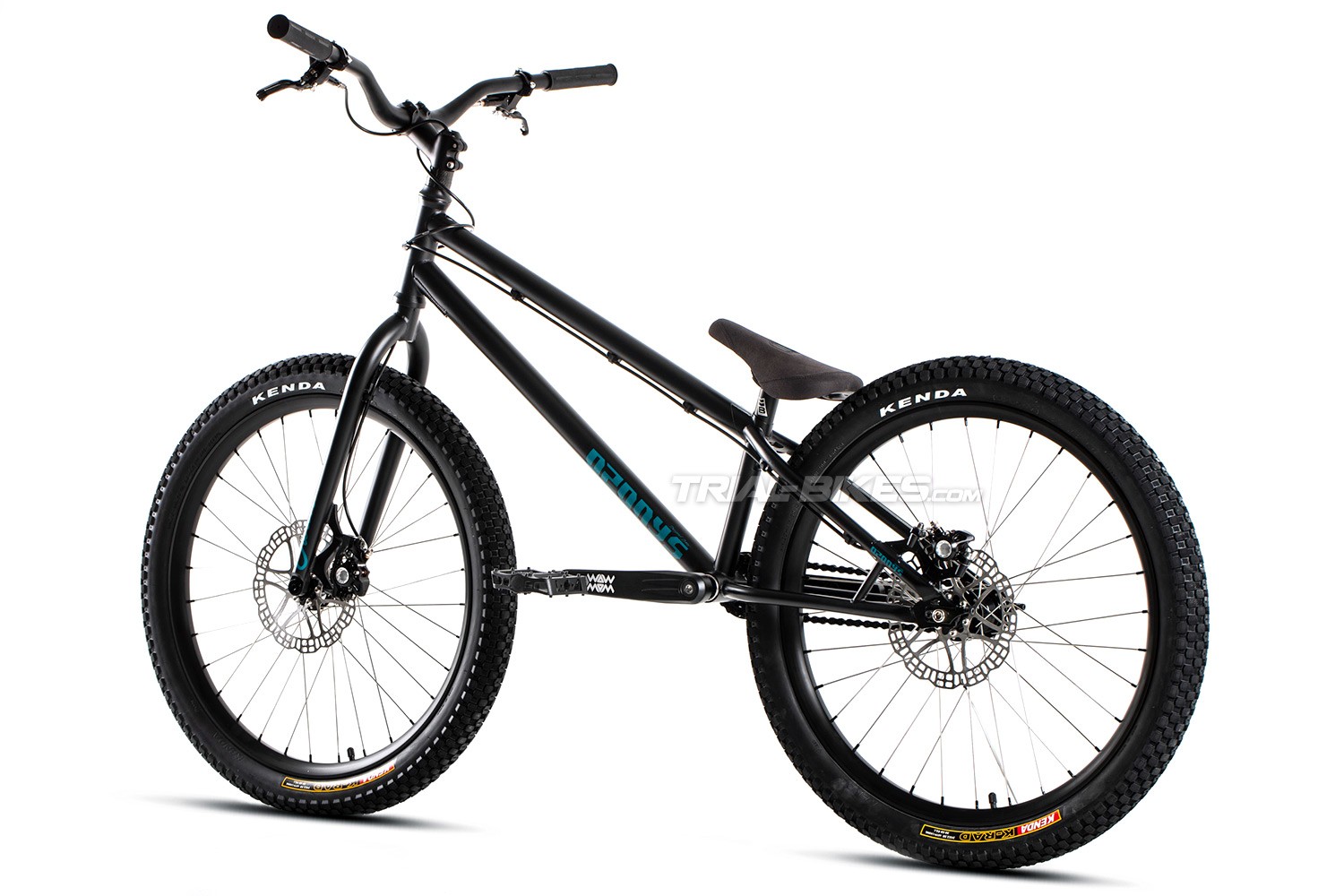

Click on the image to see the Ozonys Crown 24” Street trials bike:
