Ozonys Curve Pro 20" 1005 mm Bike 2024

Ozonys Curve Pro 20" 1005 mm Bike

New in the Ozonys Curve 2024 Trials Bike:

- Hydroformed tube revision with removal of the stamped crown and change of thickness to increase reliability and dynamism.
- Revision of the hydroformed tube with the elimination of the stamped crown and change of thickness in order to increase reliability and dynamism.
- Crankset AS30, the reference in Trials.
- WAW Ultimate Components, Hope Tech4 / Carthy Signature Brakes and WAW Hashtagg Edition wheels.
- 9 mm and 12 mm thru axles.
- New WAW carbon chain tensioner.

Note: this bike is delivered on demand. Once the order is submitted, delivery times usually oscillate between 7-15 work days.

Frame and fork

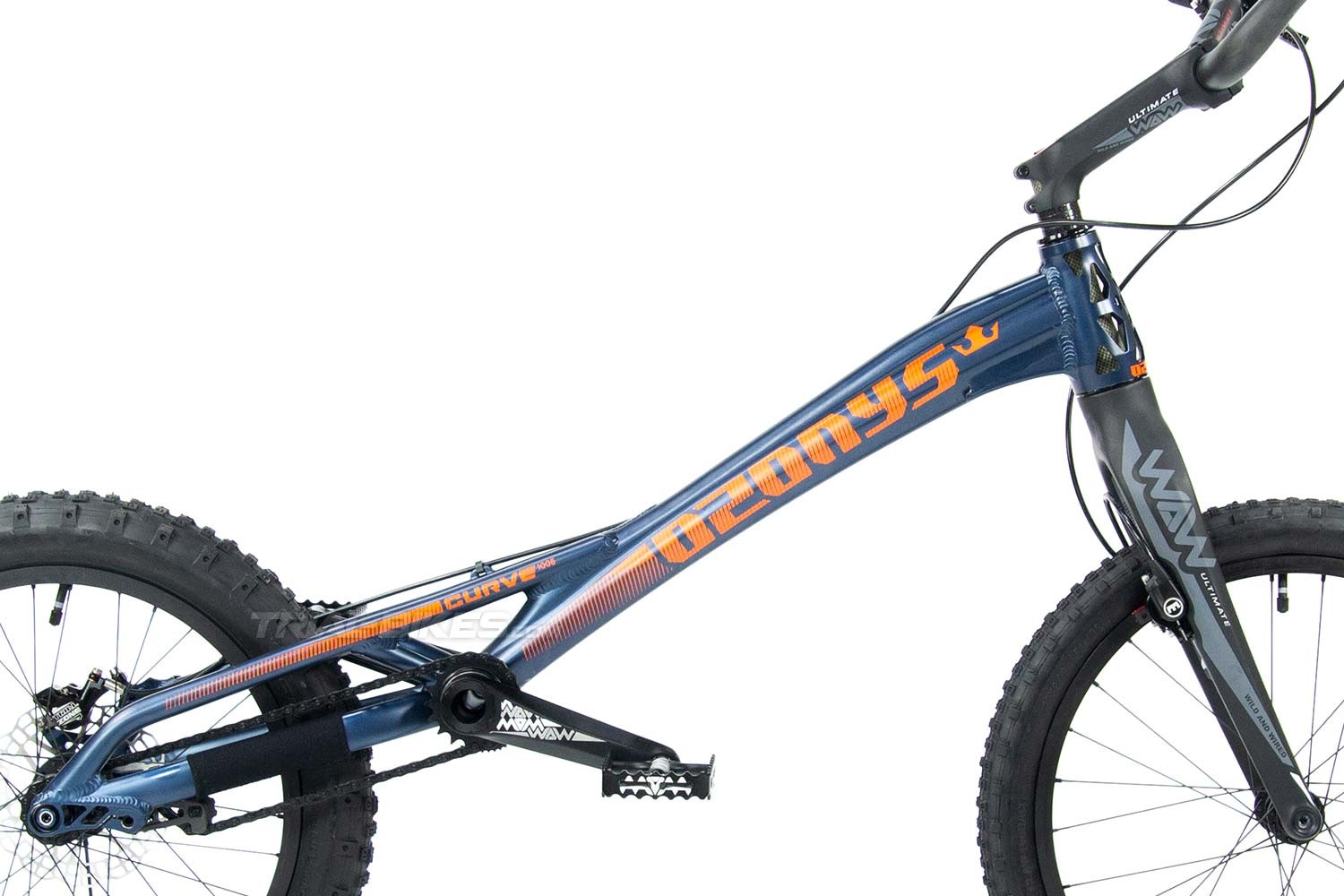

- Frame: Ozonys Curve 20", with tapered 1 1 1/8" - 1.5" ("Tapered") steerer tube and Post Mount disc brake mounts, navy blue.
- Fork: Crewkerz Waw Ultimate Carbon 20", with 1 1/8" - 1.5" tapered design.

Wheels
- Front hub: Crewkerz Waw Disc 100 mm 28H, with 9 mm thru-axle.
- Rear hub: Crewkerz Waw Disc 135 mm 32H, with 12 mm thru-axle.
- Chain tensioner: Crewkerz Waw Carbon.
- Front rim: Hashtagg 20”, 28 spoke holes.
- Rear rim: Hashtagg 19”, 32 spoke holes.
- Spokes: Crewkerz 1.8mm.
- Spoke nipples: Aluminium, 15G, anodized red.
- Rim tape: Ultralight, black.
- Front inner tube: Maxxis 20”.
- Rear inner tube: Maxxis 20”.
- Front tyre: Monty Pro Race V2 20”x2.00”.
- Rear tyre: Monty Pro Race V2 19”x2.60”.

Brakes
- Front brake: Trialtech Carthy Series V2 WC Edition rim brake.

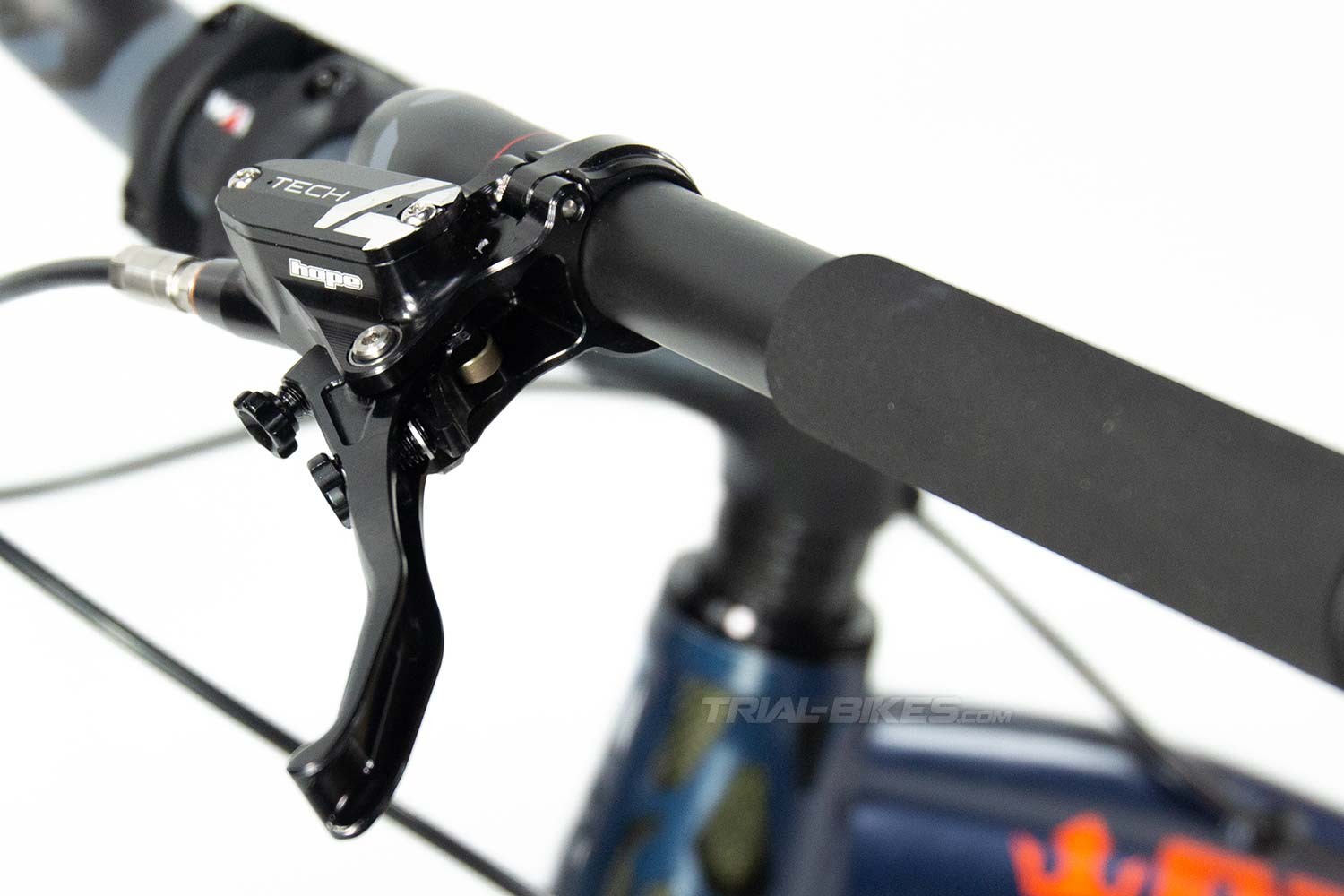

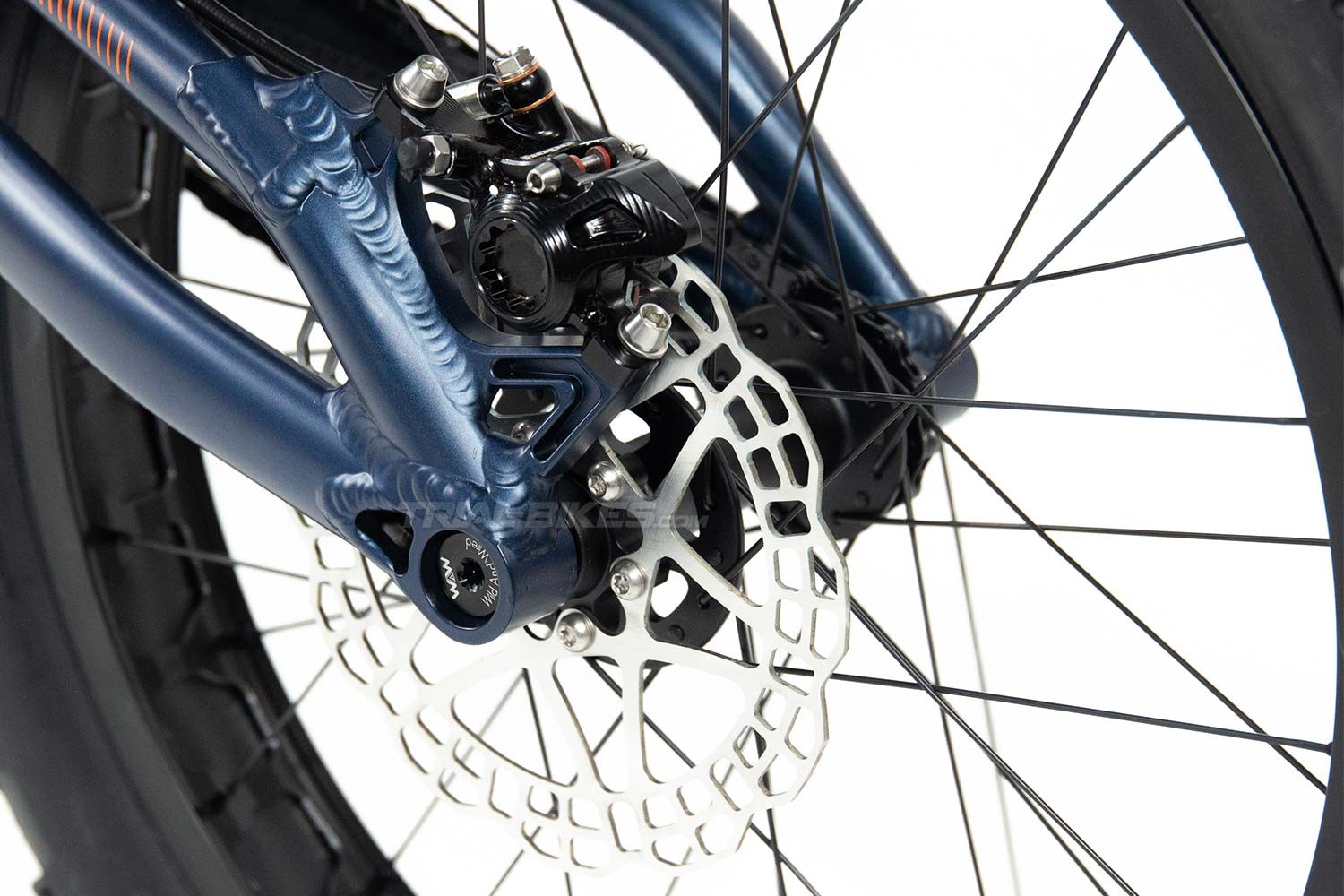

- Rear brake: Hope Tech 4 Trial Zone.

- Rotor: Hope Trial V2 160 mm.

Drivetrain
- Crankset: WAW AS30 160 mm.
- Freewheel: Crewkerz 108.9 18T, with 108 engagement points and 18 teeth.
- Chain: KMC Z1 EHX, black.
- Rear sprocket: Crewkerz 12T cassette, made of steel.
- Pedals: Crewkerz WAW Mono-Cage, 7075-T6.

Steering
- Headset: Crewkerz Semi-integrated Tapered 1 1/8" - 1.5", black finish.
- Stem: Crewkerz WAW, 150 mm x 35°.
- Grips: Bonz foam grips, black.
- Handlebars: Crewkerz Ultimate Carbon, 108 mm high, 720 mm long.

Geometry
(1) Wheelbase: 1005 mm.
-----------------------------------------------
(2) Rear: 350 mm.
-----------------------------------------------
3) Bottom bracket height: +83 mm.
-----------------------------------------------
(4) Steering angle: 71.5°.
-----------------------------------------------
(5) Bottom bracket centre to top head tube centre: 604 mm.
-----------------------------------------------
(6) Reach: 476 mm
-----------------------------------------------
(7) Stack: 372 mm
-----------------------------------------------

Weight
- 7.80Kg

Additional information:
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any doubts, please contact to info@trial-bikes.com.
