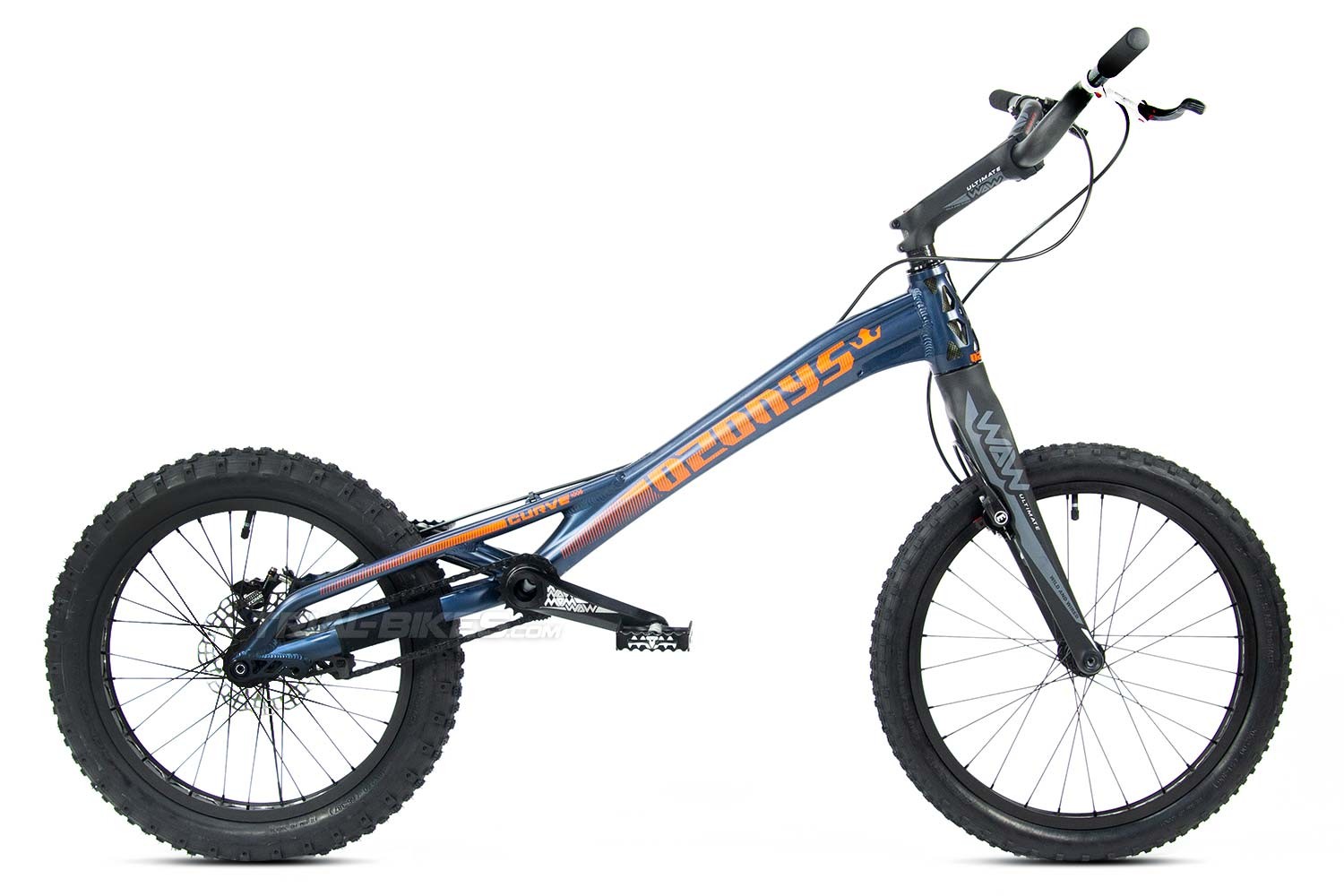

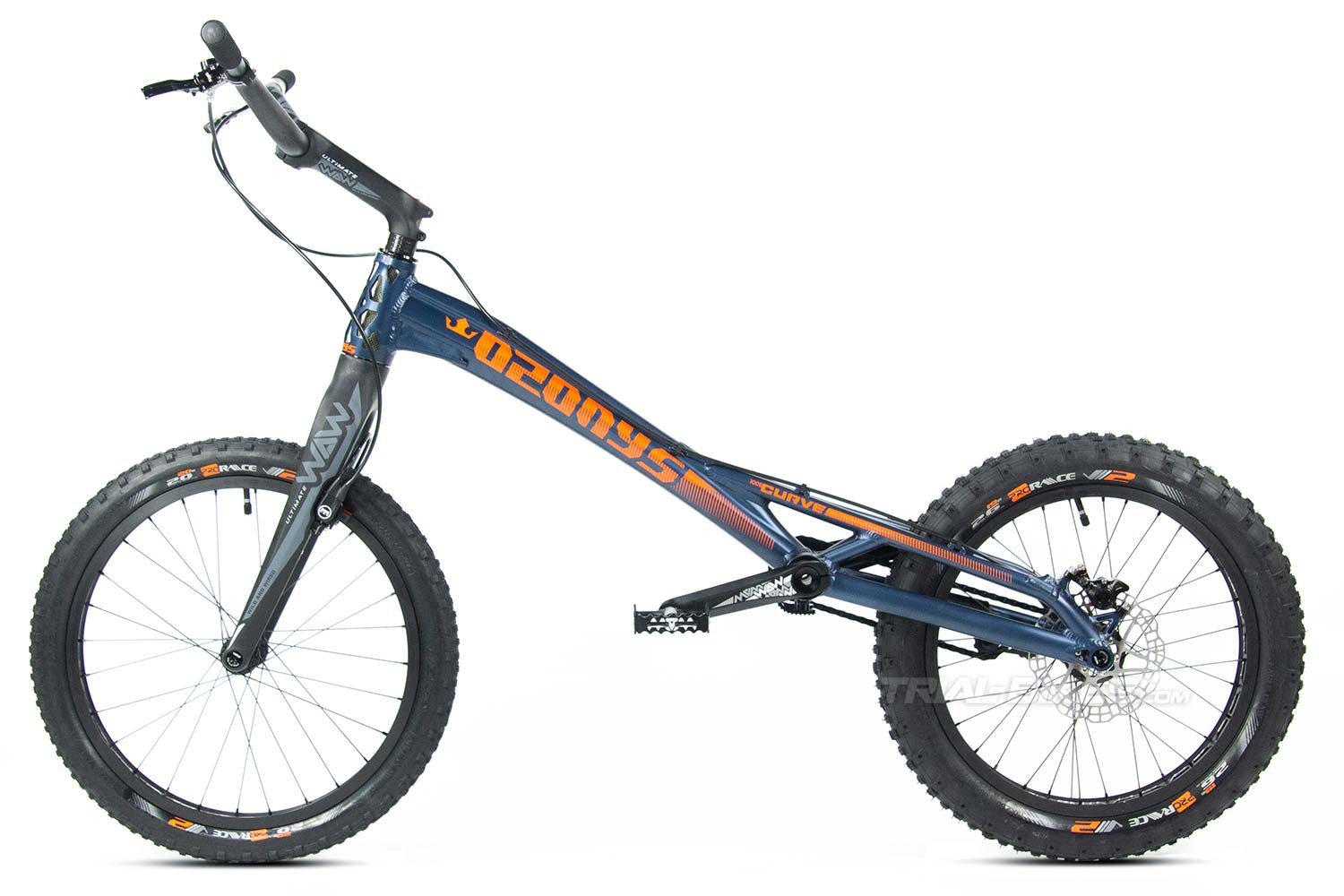

Ozonys Curve Pro 20" 970mm Bike 2024

Ozonys Curve Pro 20" 970 mm Disc Bike 2024

New in the Ozonys Curve 2024 Trials Bike:

• Hydroformed tube revision with the removal of the stamped crown and thickness adjustment to enhance reliability and dynamism.
• Equipped with all Crewkerz WAW Ultimate components and Hashtagg rims.
• 9 mm and 12 mm tru-axles.
• Ideal for riders up to 1.60 m tall.

Note: this bike is delivered on demand. Once the order is submitted, delivery times usually oscillate between 7-15 work days.

Frame and fork

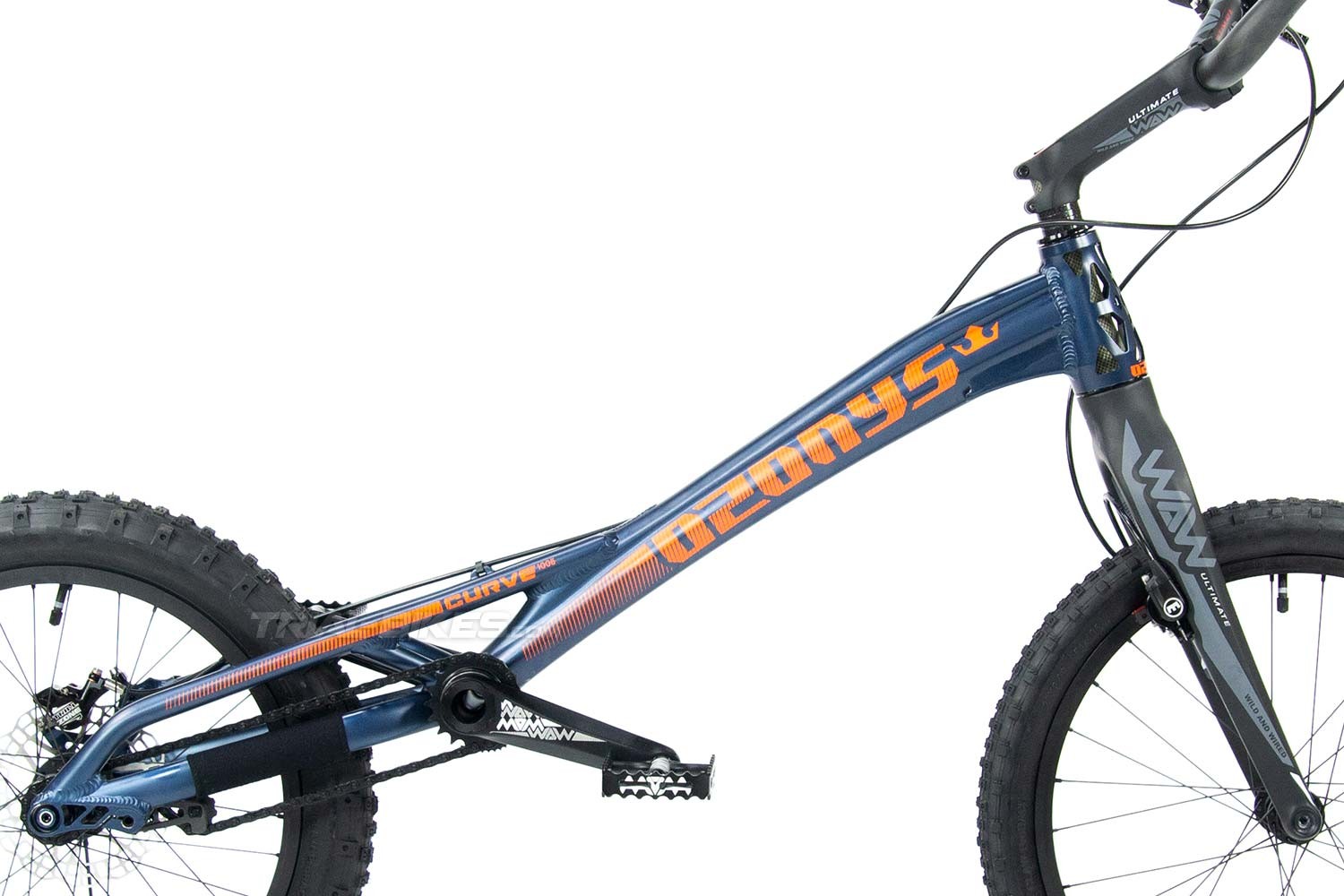

- Frame: Ozonys Curve 20" 970 mm, with tapered 1 1 1/8" - 1.5" head tube and Post Mount disc brake mounts, navy blue.

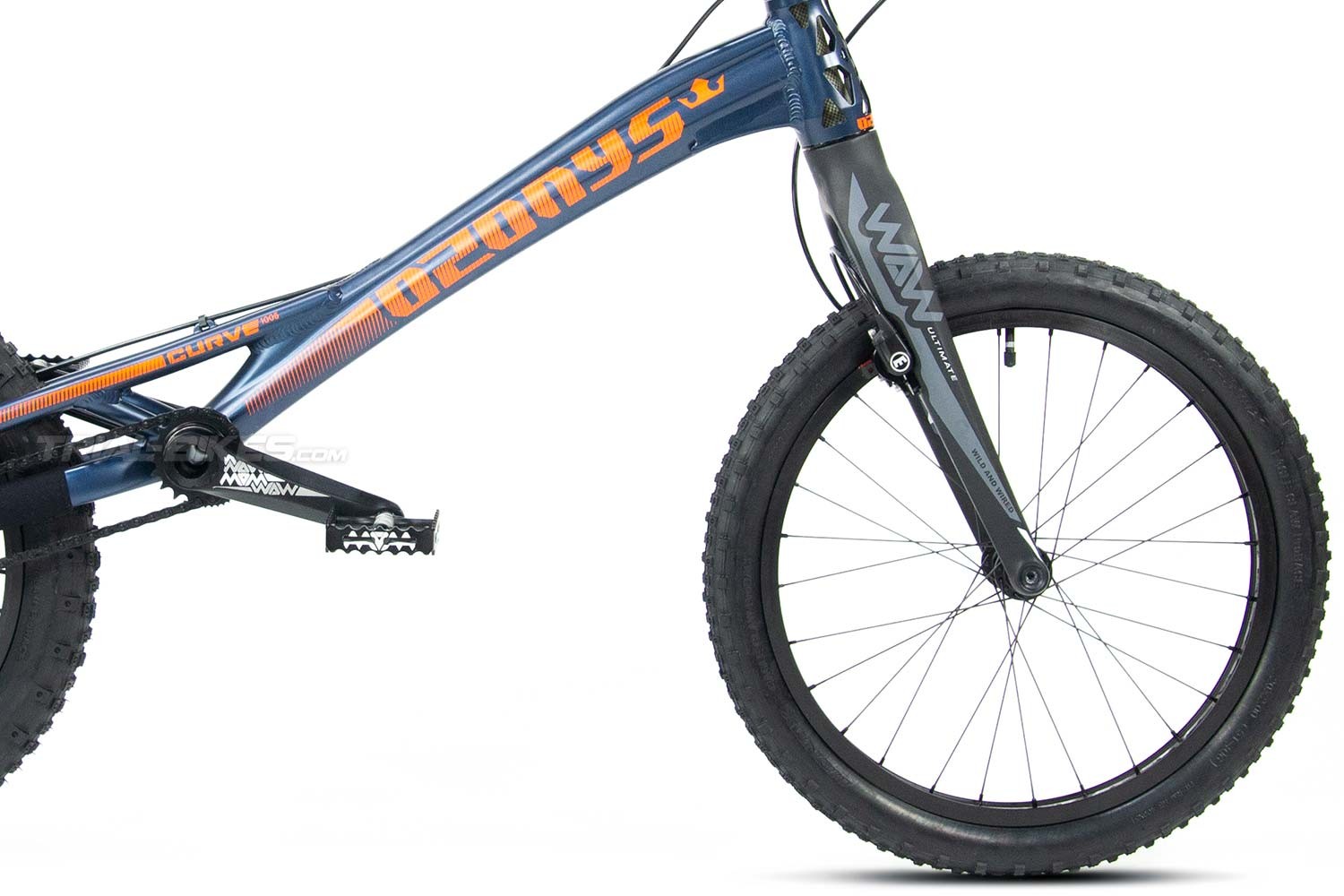

- Forks: Crewkerz Carbon 20”, with 1 1/8” – 1.5” tapered steerer tube.

Wheels
- Front hub: Crewkerz Waw Disc 100 mm 28 H, with 9 mm thru-axle.

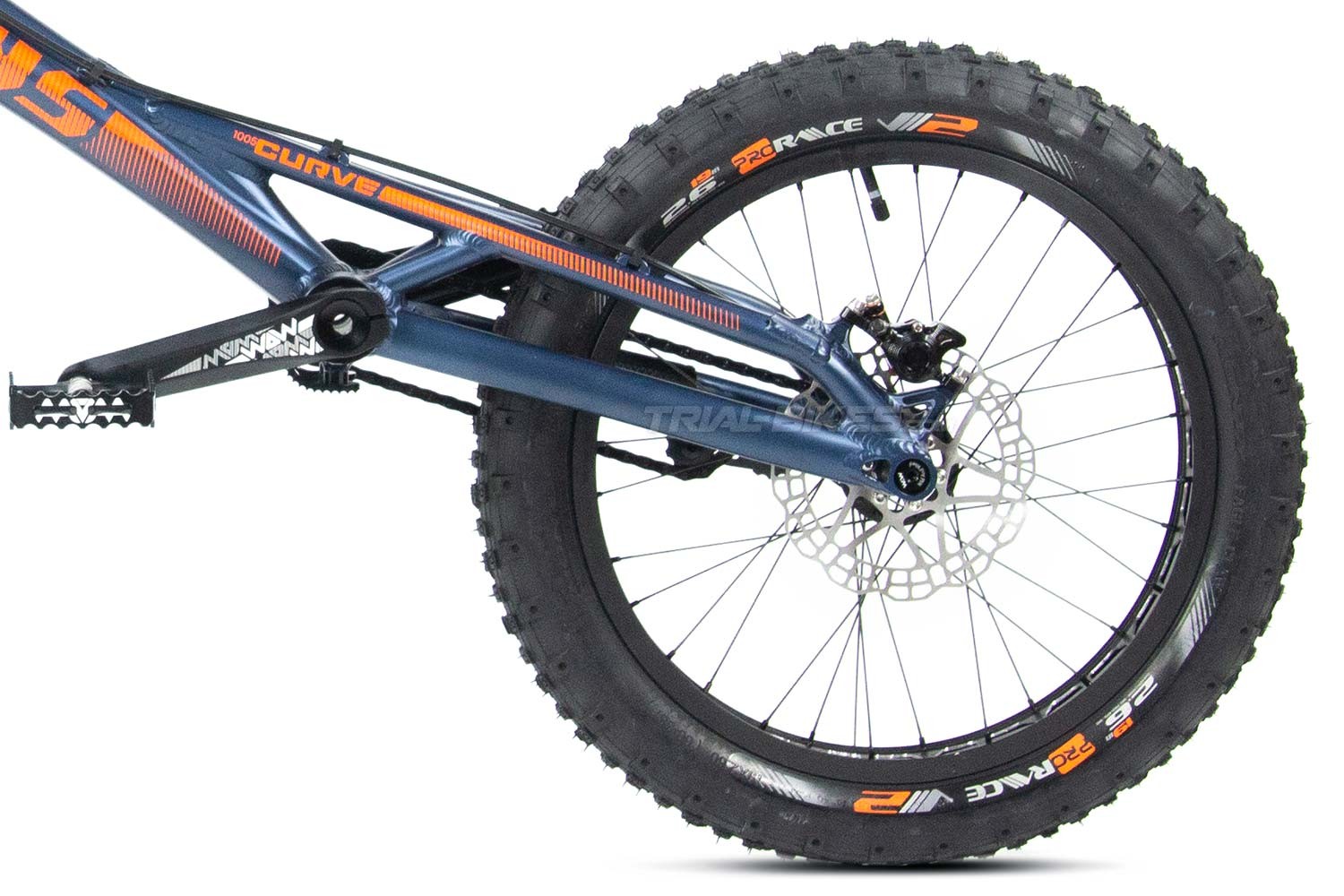

- Rear hub: Crewkerz Waw Disc 135 mm 32H, with 12 mm thru-axle.
- Chain tensioner: Crewkerz Waw Carbon.
- Front rim: Hashtagg 20”, 28 spoke holes.
- Rear rim: Hashtagg 19”, 32 spoke holes.
- Spokes: Crewkerz 1.8 mm.
- Spoke nipples: Aluminium, 15G, anodized red.
- Rim tape: black.
- Front inner tube: Maxxis 20”.
- Rear inner tube: Maxxis 20”.
- Front tyre: Monty Pro Race V2 20”x2.00”.
- Rear tyre: Monty Pro Race V2 19”x2.60”.

Brakes

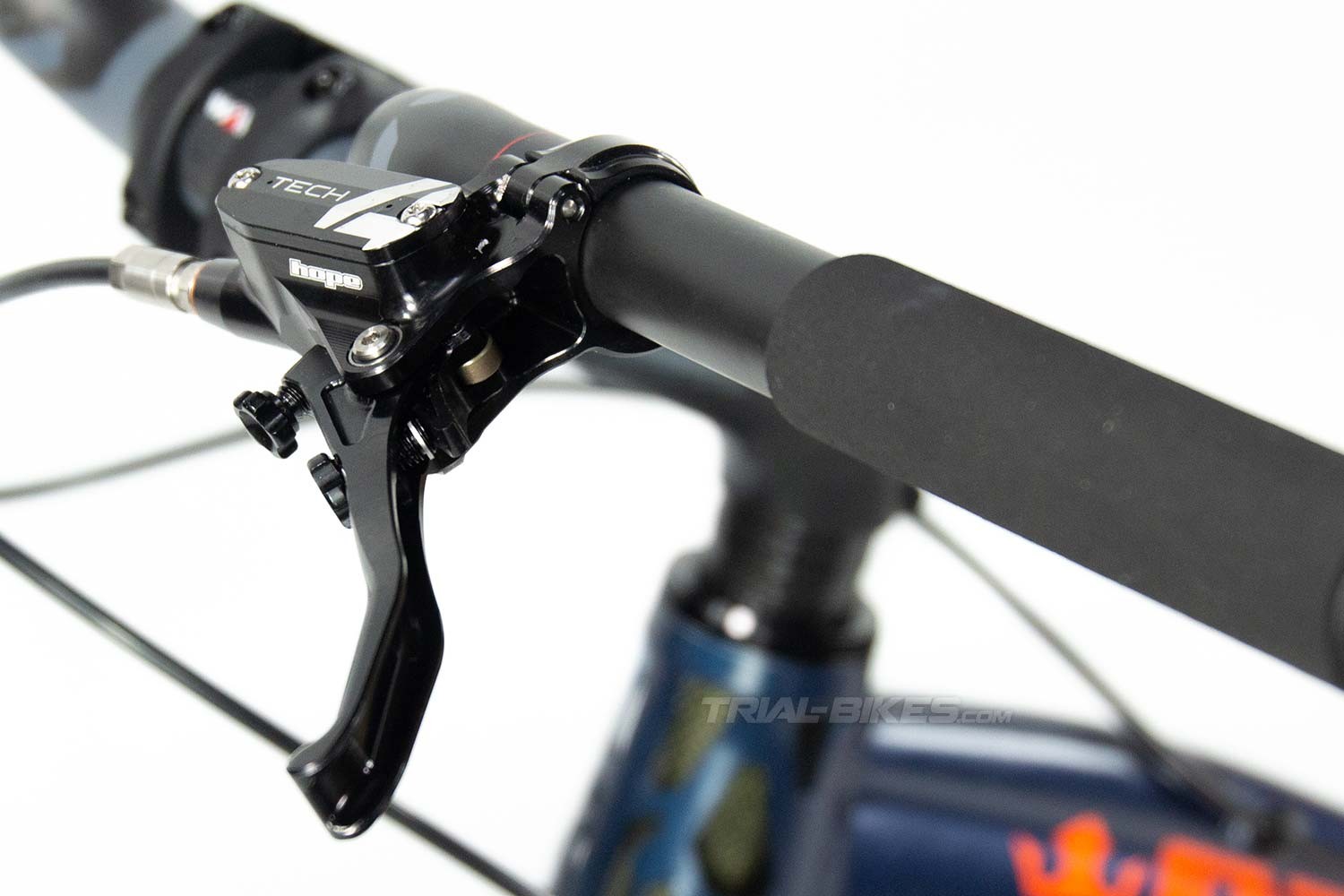

- Front brake: Trialtech Carthy Series V2 WC Edition rim brake or Hope Tech 4 Trial Zone.

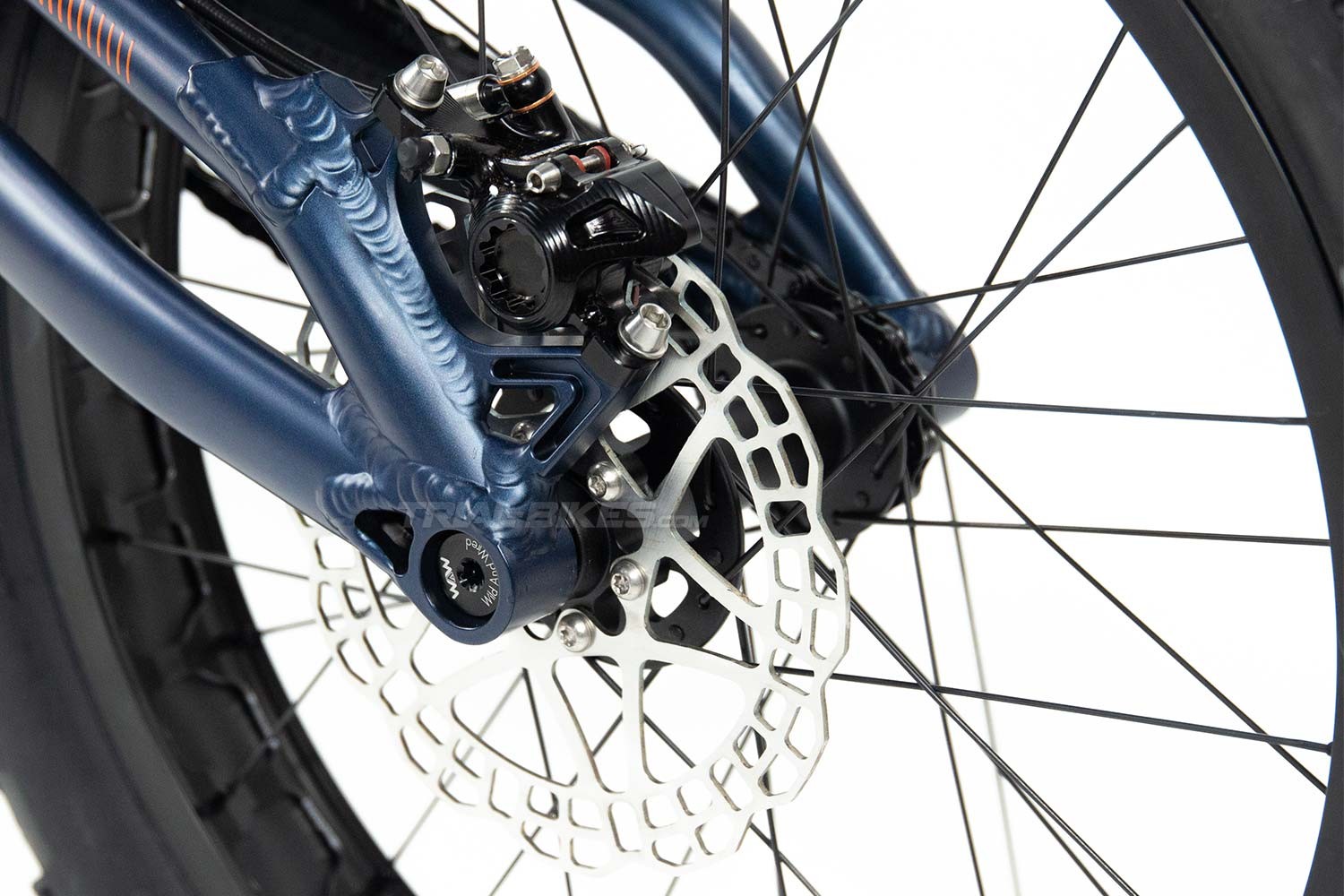

- Rear brake: Hope Tech 4 Trial Zone.

- Rear rotor: Hope Trial V2 160 mm.

Drivetrain
- Crankset: Crewkerz Waw AS30 160 mm.
- Freewheel: Crewkerz with 135 engagement points, 9 pawls and 18 teeth.
- Chain: KMC Z1 eHX narrow, black.
- Rear sprocket: Crewkerz 12T splined, made of steel.
- Pedals: Crewkerz WAW Single-cage 7075-T6.
- Basplate: Crewkerz WAW.

Steering
- Headset: Crewkerz Internal Tapered 1 1/8” – 1.5”, anodized black.
- Stem: Crewkerz WAW 150 mm x 35º.
- Top cap: Crewkerz WAW, anodized red.
- Grips: Bonz thin foam, black.
- Handlebar: Crewkerz Ultimate Carbon, 108 mm high, 720 mm long.

Geometry

(1) Wheelbase: 970 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +85 mm.
-----------------------------------------------
(4) Head Angle: 71.5°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 570 mm
-----------------------------------------------
(6) Reach: 455 mm
-----------------------------------------------
(7) Stack: 368 mm
-----------------------------------------------

Weight
- 7.70Kg

Additional information
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
