Ozonys Curve V8 Pro TB 20" Bike

Ozonys Curve V8 Pro TB 20" Bike

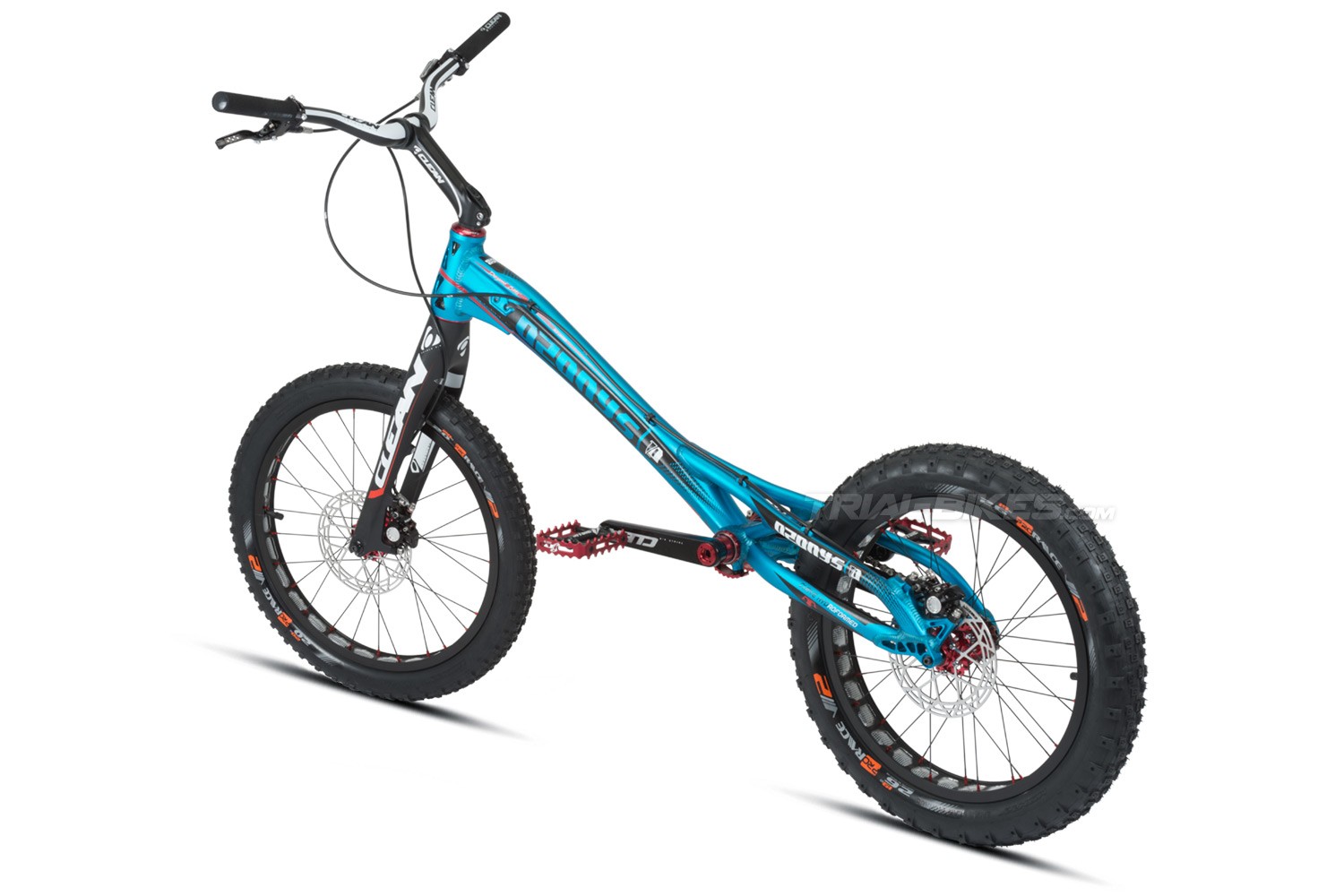

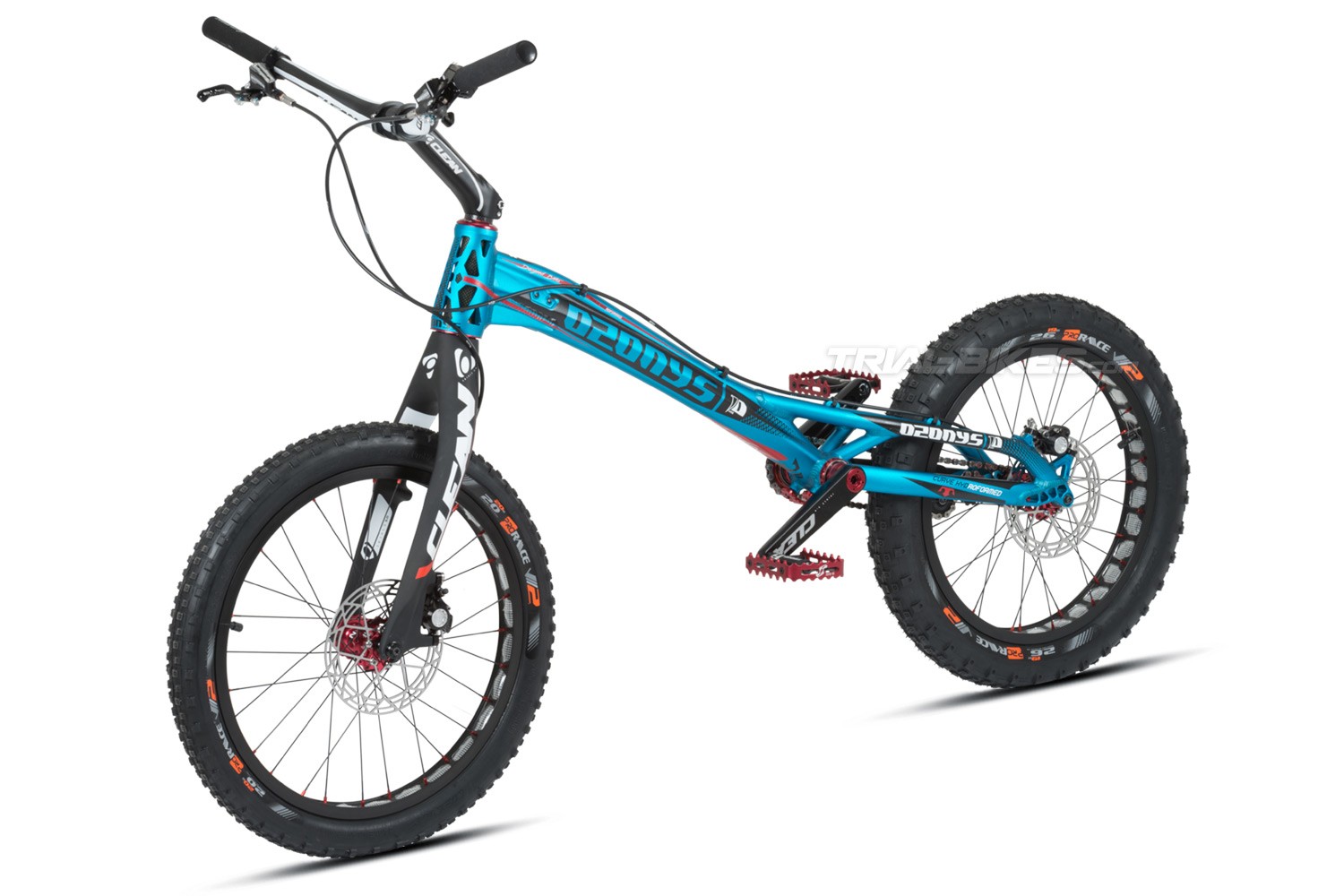

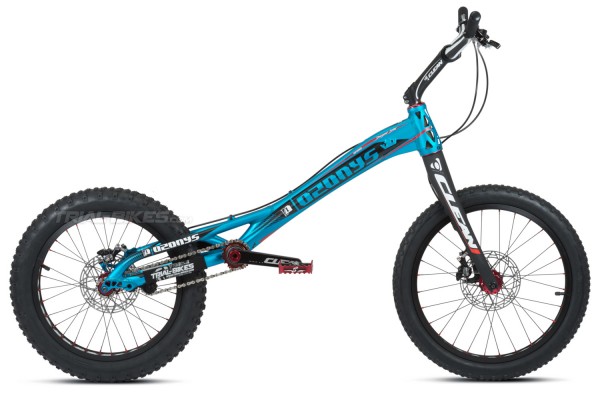

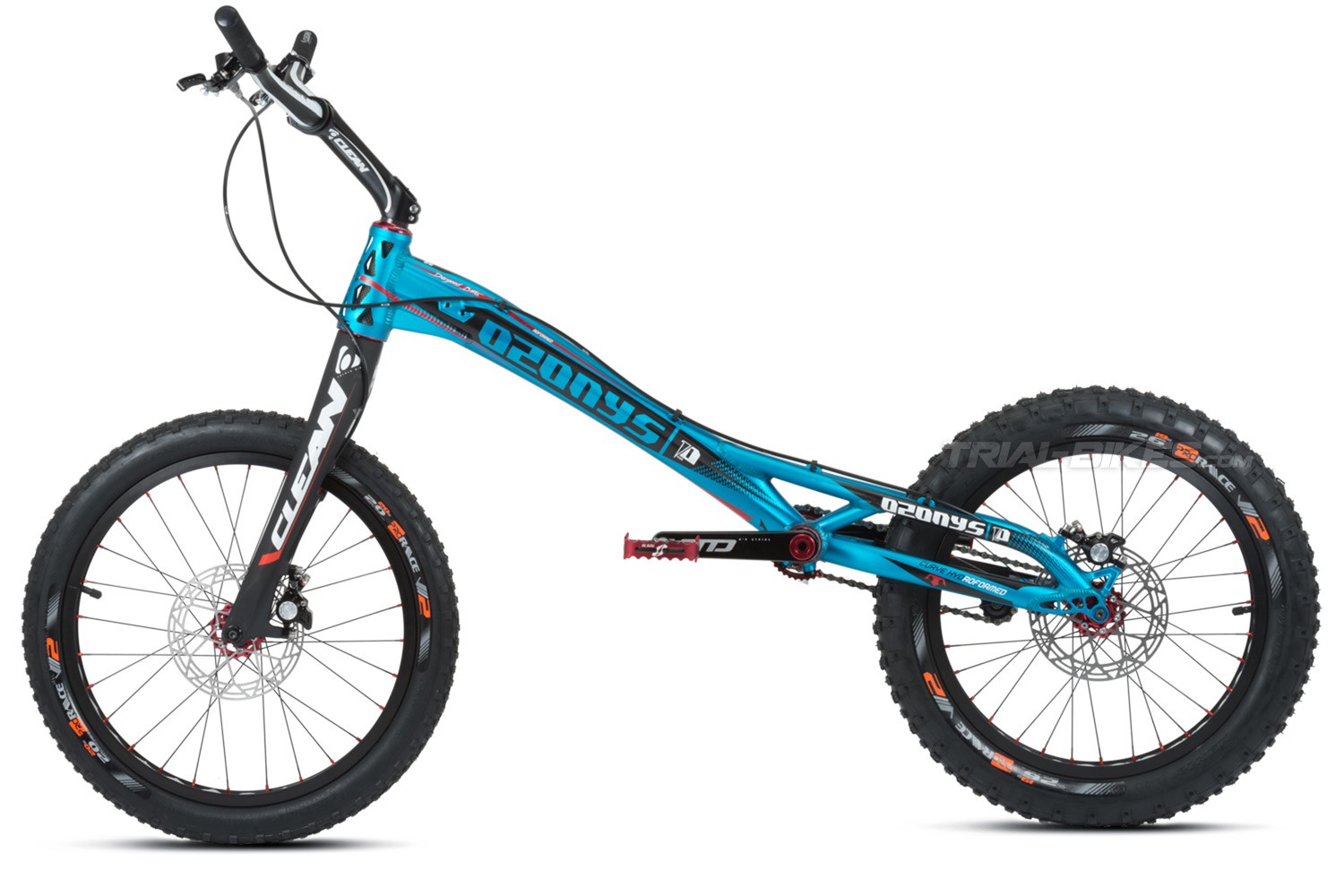

High-end Ozonys Curve Hyd V8 custom trials bike, carefully built at TrialBikes using the best parts available: this is the perfect competition bike! All the parts chosen are ultralight, top-of-the-range, pro-level Clean carbon fork and handlebar, Bonz Power-H hubs, Hope Tech 3 Trial Zone disc brakes, Clean X2 Crankset, etc.
If you want the very best bike for competition or simply to enjoy riding with a high-end machine: this is your bike!

Frame and fork
- Frame: Ozonys Curve Hyd V8 20”, with Post Mount disc brake mounts, in sky blue

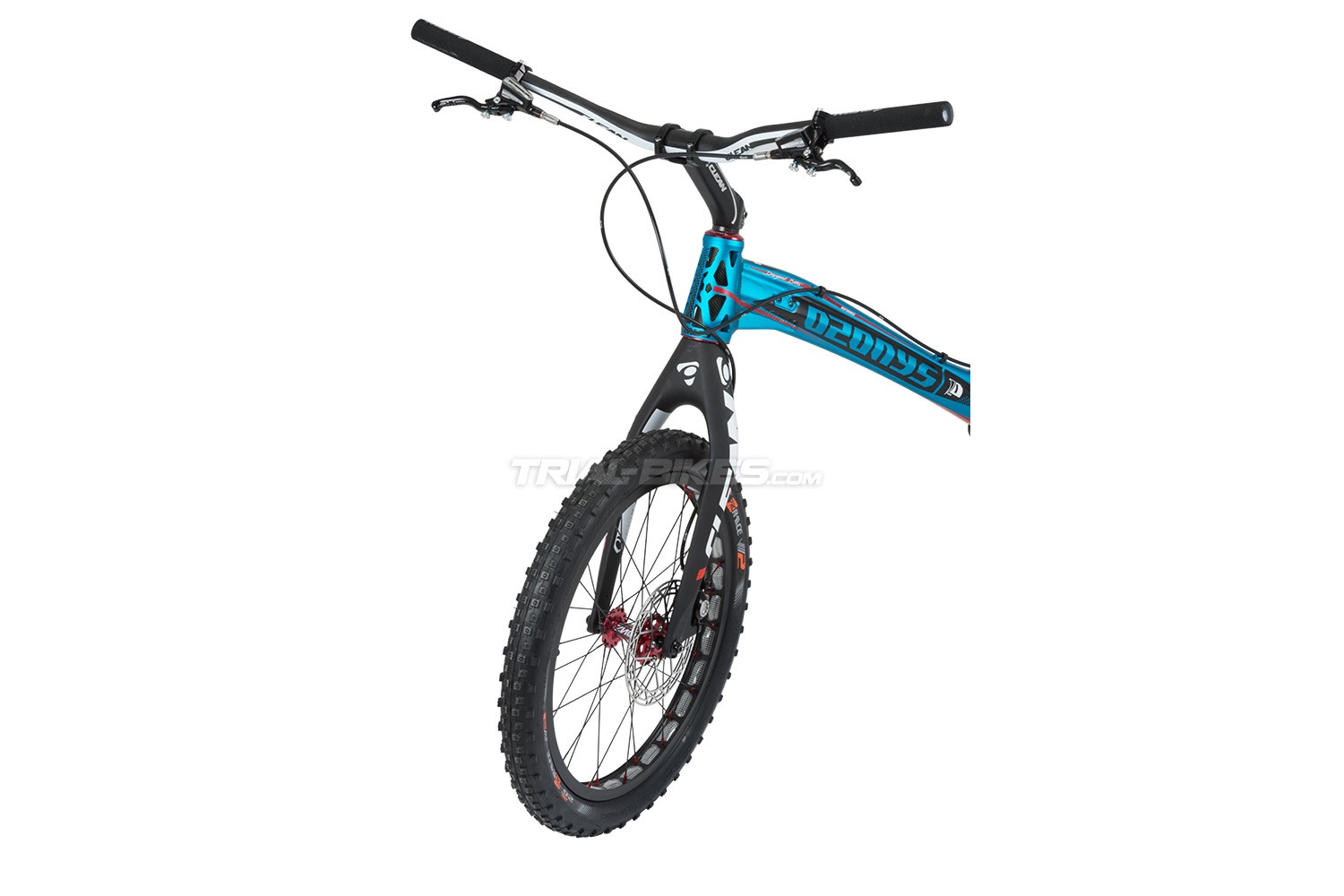

- Forks: Clean X2 20” Carbon tapered 1 1/8” – 1.5”, made from carbon fibre, with Post Mount disc brake mounts and 4-bolt rim brake mounts

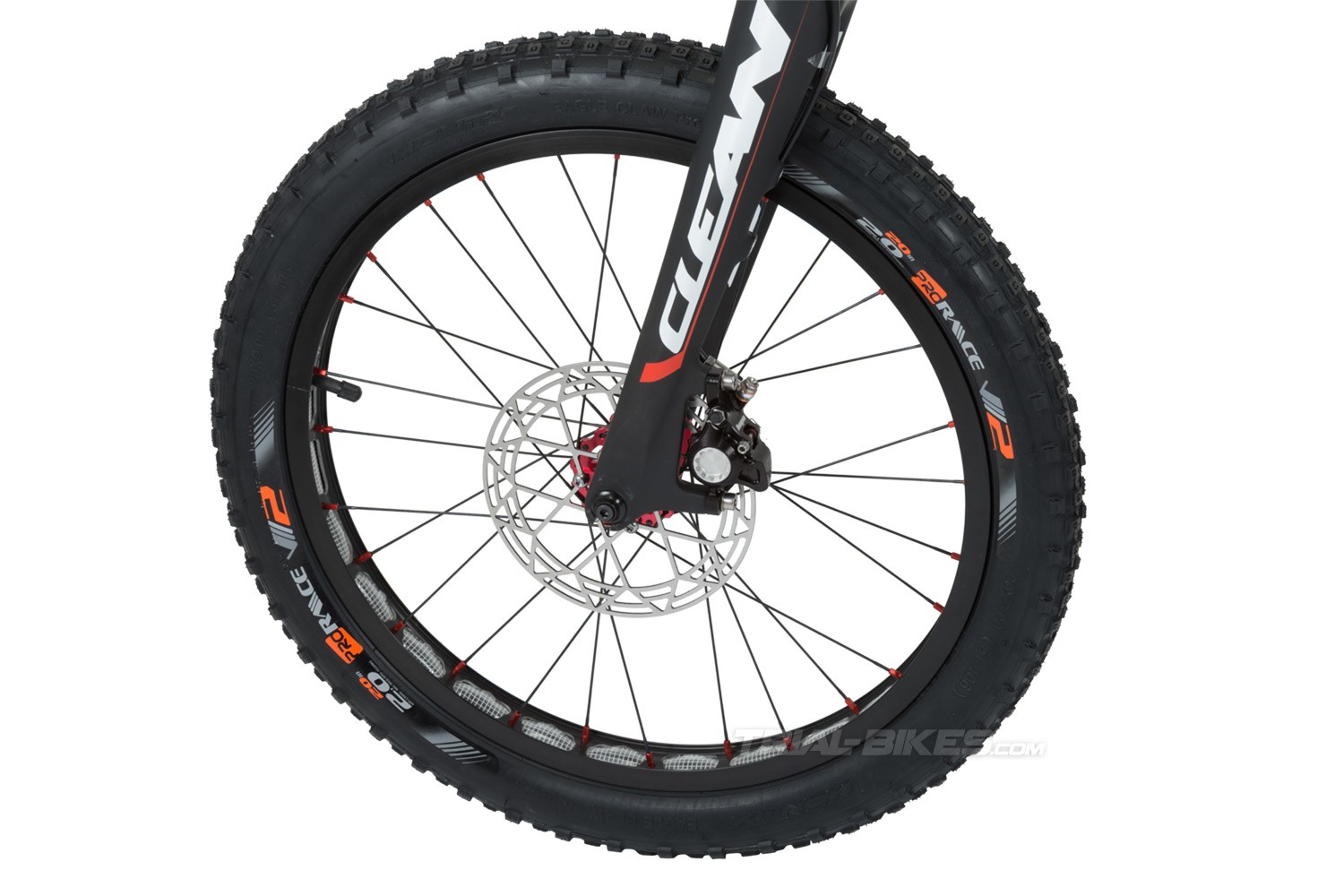

Wheels
- Front hub: Bonz Power-H 28 spoke holes, with rotor mounts, 100mm spacing, anodized red
- Rear hub: Bonz Power-H 28 spoke holes, with rotor mounts, 116mm spacing, anodized red
- Chain tensioner: Clean X2 integrated, with two 11T jockey wheels made of plastic, black
- Front rim: Hashtagg 20”, single wall, 32mm wide, 28 spoke holes, black
- Rear rim: Hashtagg 19”, single wall, 47mm wide, 32 spoke holes, black
- Spokes: Sapim Laser 2/1.5/2mm, black
- Spoke nipples: Sapim 14G Alu Polyax, anodized red
- Rim tape: TrialBikes Reinforced Ultralight
- Front inner tube: Jitsie Race Ultralight 20”
- Rear inner tube: Jitsie Race Ultralight 20”
- Front tyre: Monty Pro Race V2 20”x2.00”
- Rear tyre: Monty Pro Race V2 19”x2.60”

Brakes
- Front brake: Hope Tech 3 Trial Zone Post Mount
- Rear brake: Hope Tech 3 Trial Zone Post Mount

- Rotors: Clean X2, 160mm (front), 162.5mm (rear)

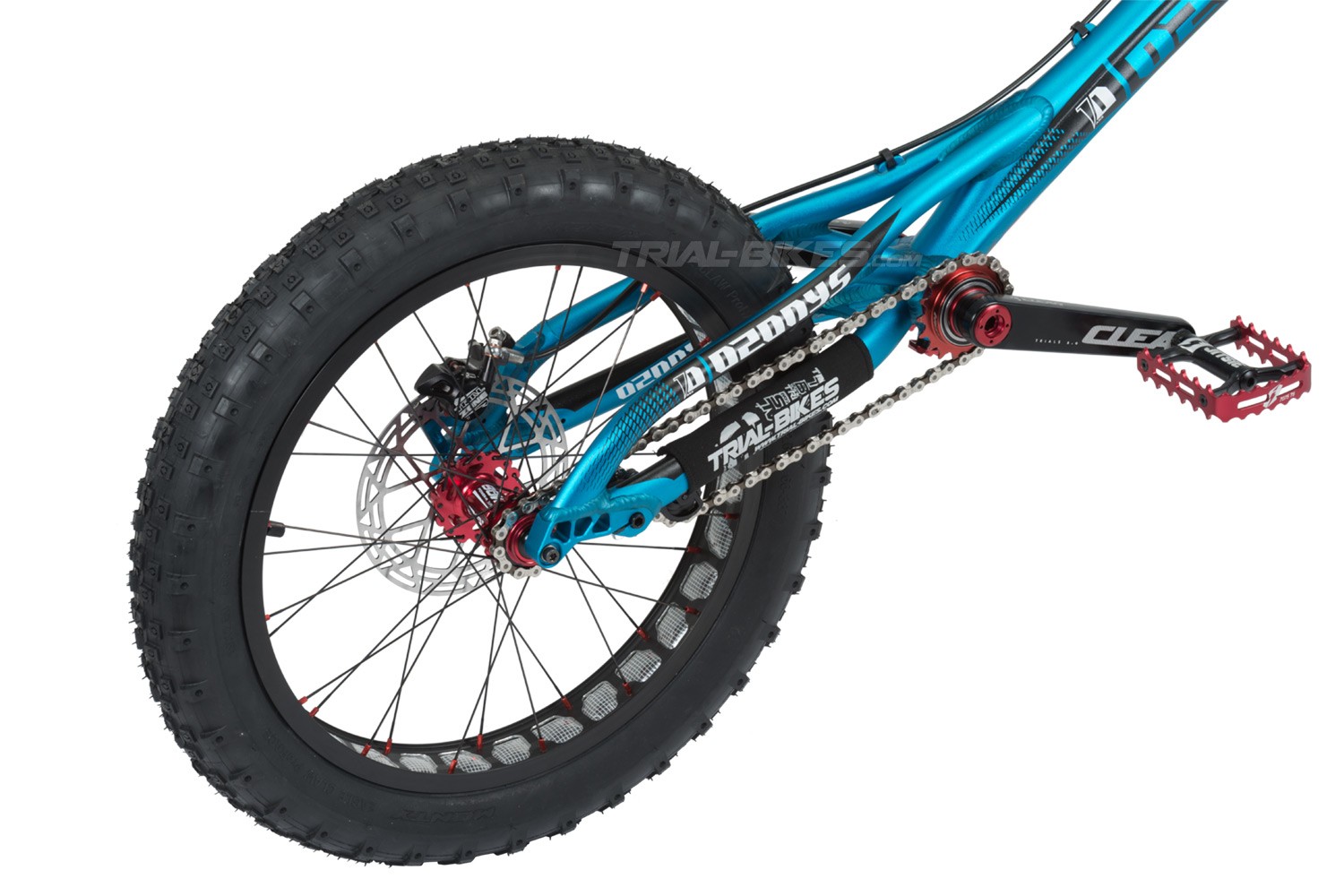

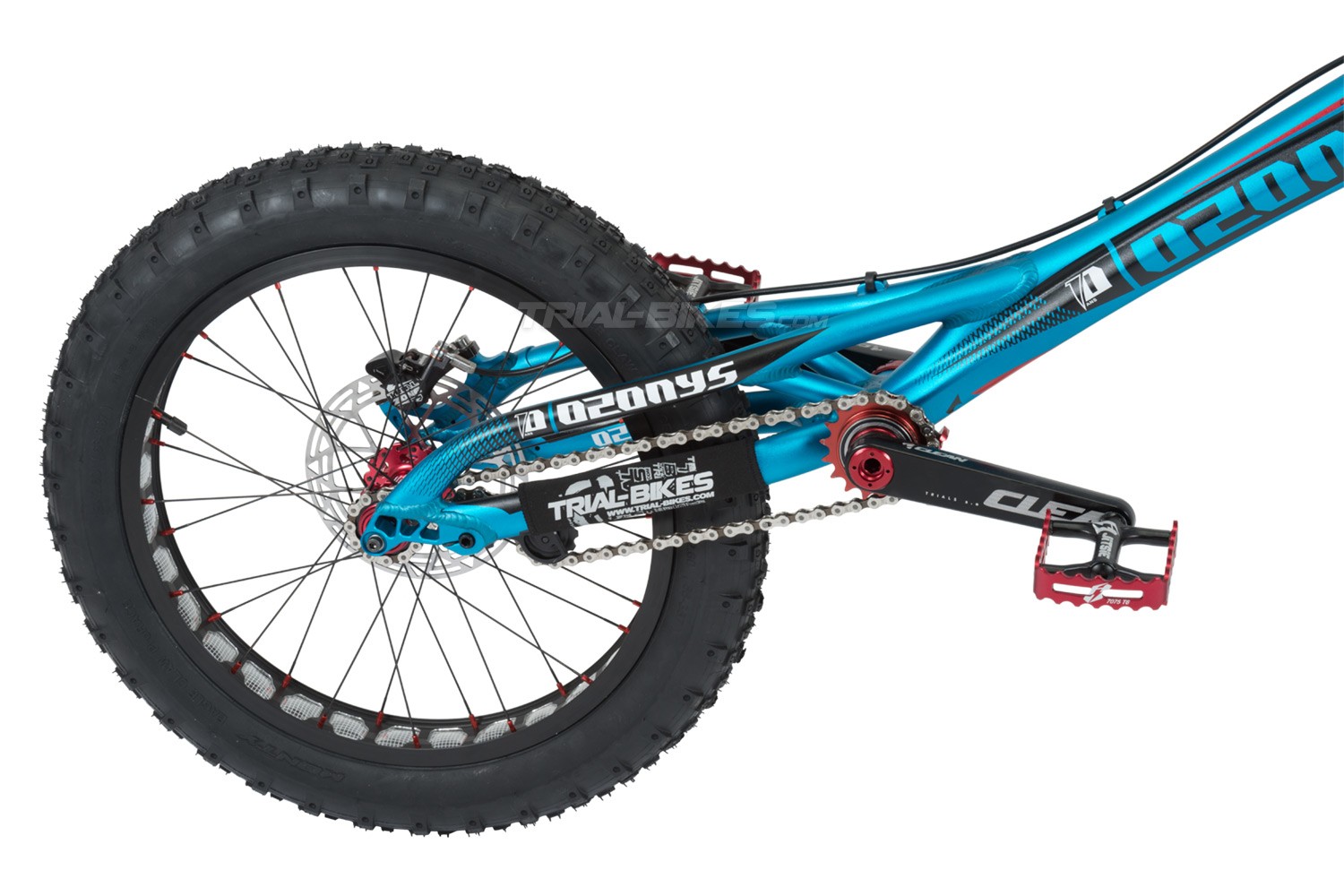

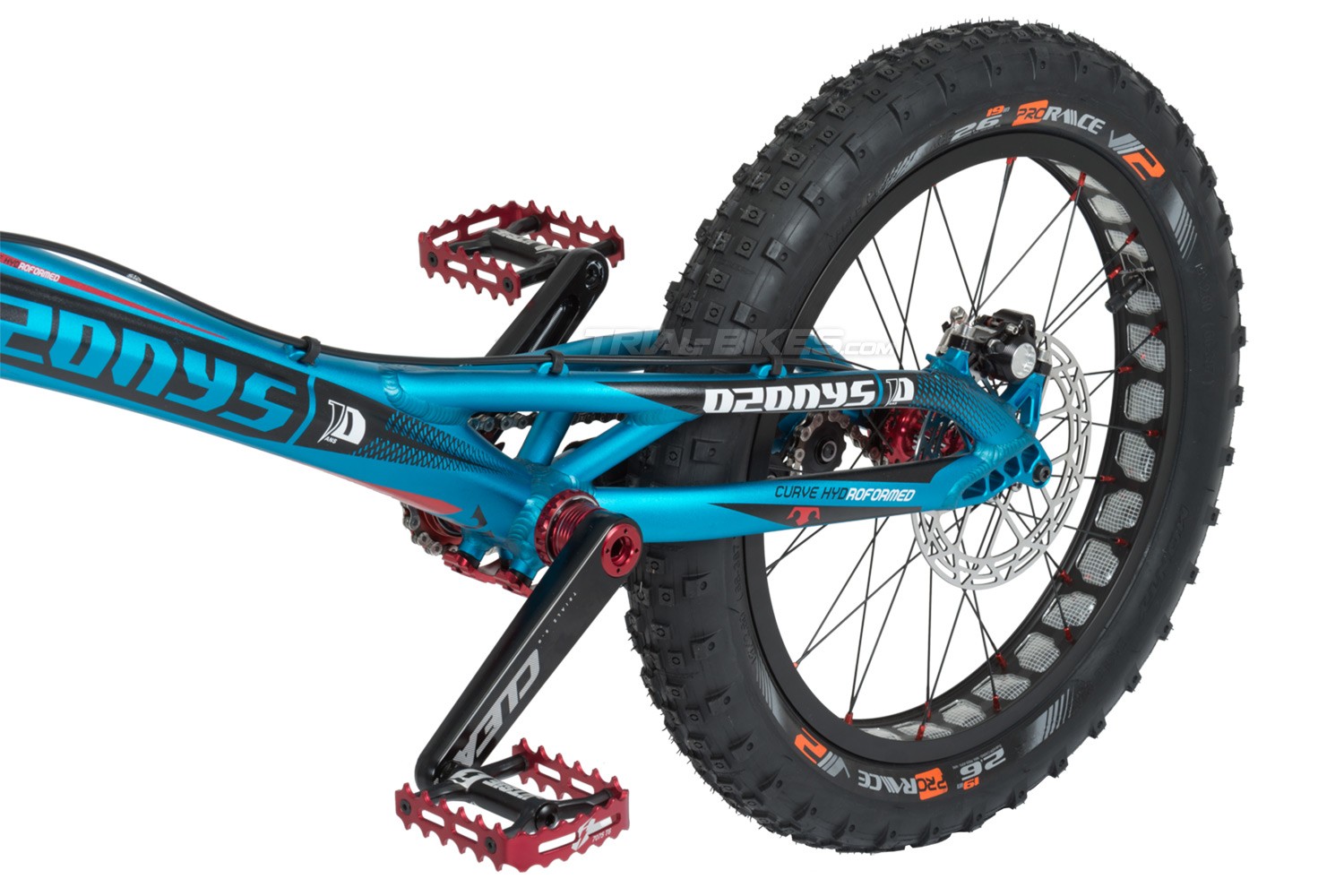

Drivetrain
- Crankset: Bonz Pro Light BB24 Crankset, 160mm long cranks, for Cassette   (NEW)
- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC X9-73
- Rear sprocket: Bonz 12T Cassette, made from 7075-T6 aluminium alloy, anodized red
- Pedals: Jitsie single cage, made from 7075-T6 aluminium alloy, anodized red
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red

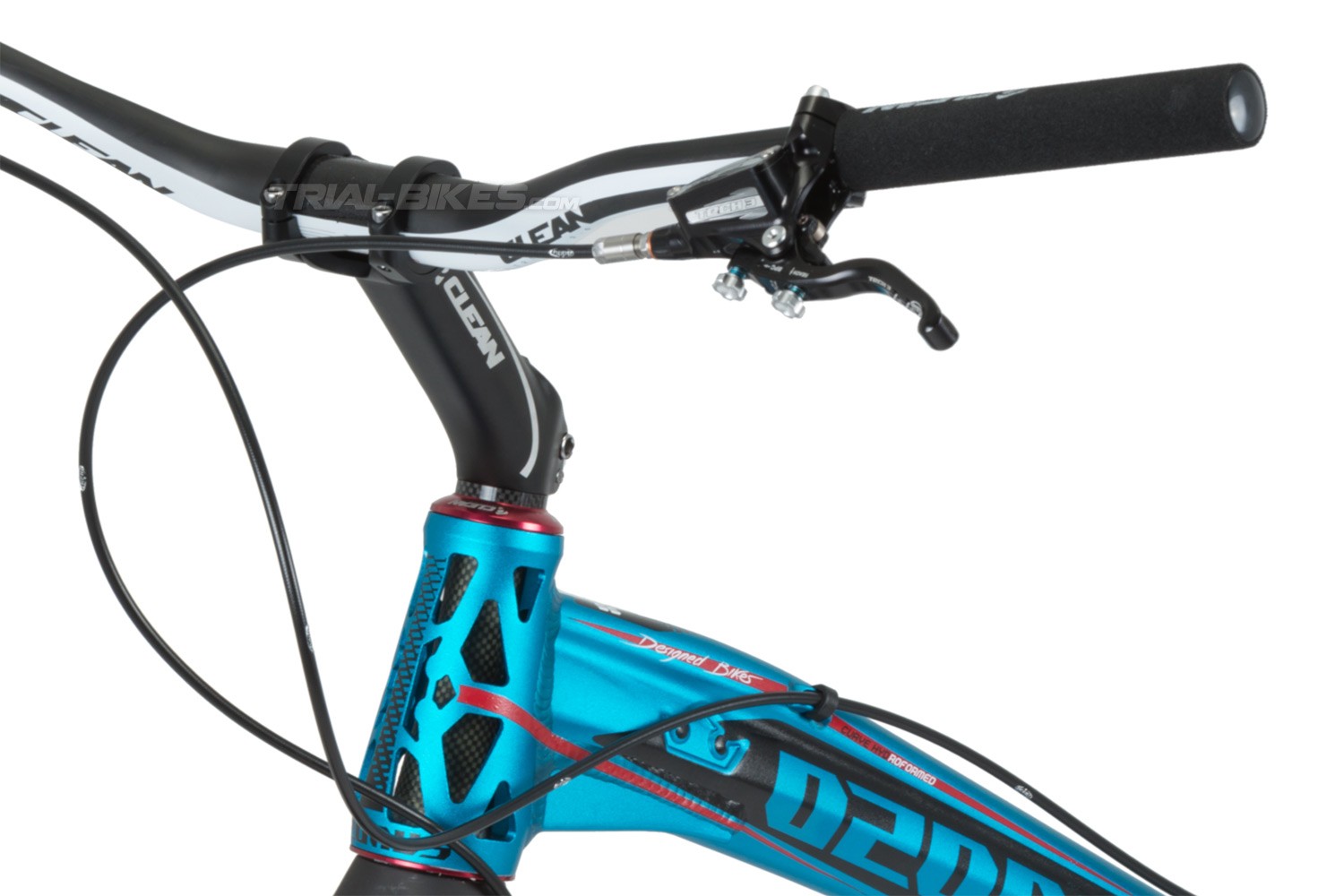

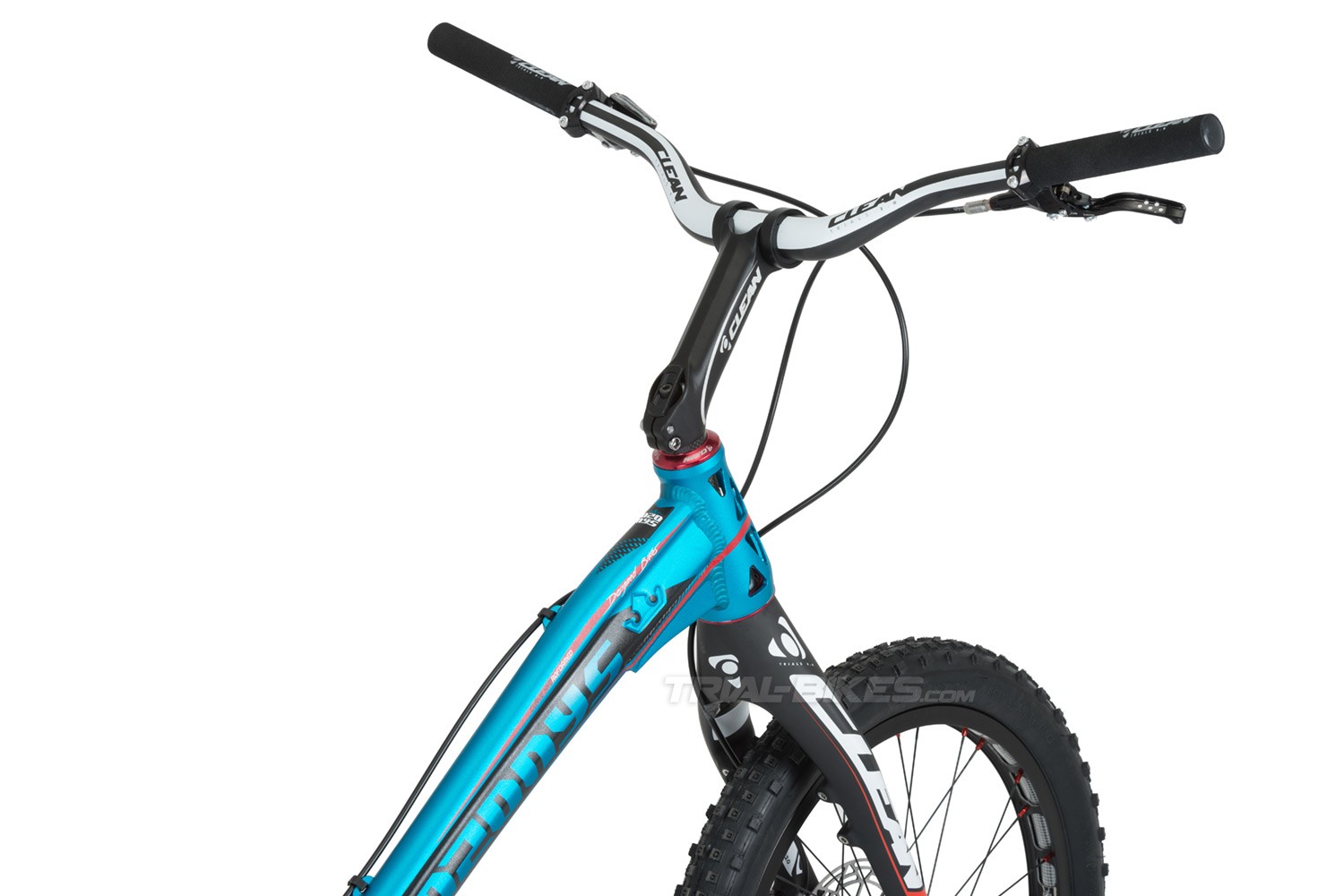

Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Clean 3D 152mm x 31.6º, 31.8mm Oversized handlebar diameter, black
- Grips: Clean foam extra thin, black
- Handlebar: Clean X2 103mm carbon fibre, 730mm long, 31.8mm Oversized handlebar diameter, black with white Clean graphics

Geometry:
- Wheelbase: 1005mm
- Chainstay length: 350mm
- Bottom bracket rise: +85mm
- Head angle: 72º

Weight
- 7.358Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully. This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com.

Watch the video below to see the key points of this new bike:
