Ozonys Curve V9 20” Full Disc high-end, ultralight trials bike, ideal for competition! Built with high-quality parts: Hope Tech 3 and Magura Hs33 brakes, Bonz Power-H hubs, Bonz BB24 crankset, etc.
This product is no longer in stock

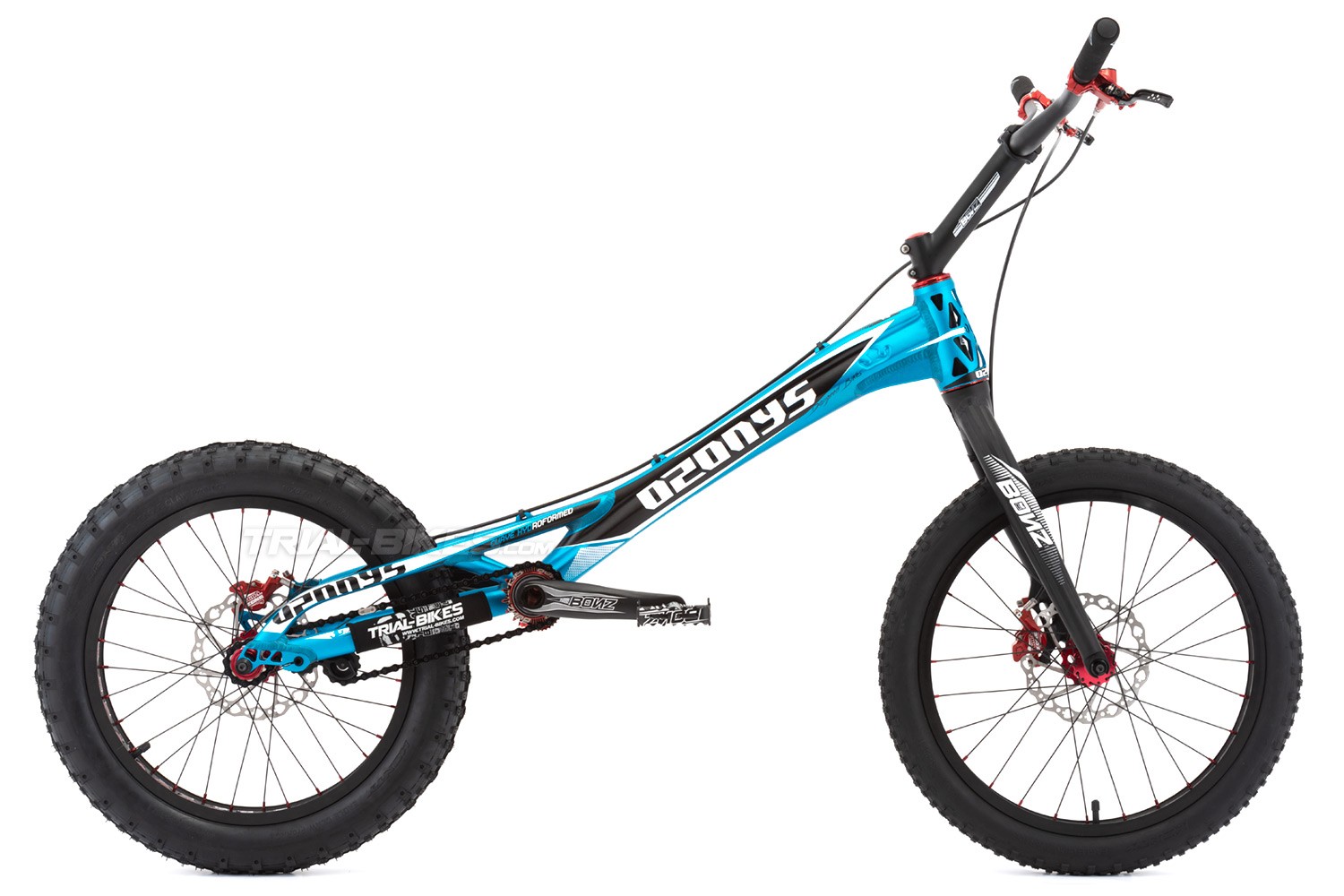

Ozonys Curve V9 20” Hs/Disc high-end, ultralight trials bike, ideal for competition! Built with high-quality parts: Hope Tech 3 and Magura Hs33 brakes, Bonz Power-H hubs, Bonz BB24 crankset, etc.
Frame and fork
- Frame: Ozonys Curve Hyd V9 20”, with Post Mount disc brake mounts, sky blue
- Forks: Bonz Pro Light tapered 1 1/8” – 1.5”, made of aluminium, with Hs brake mounts
Wheels
- Front hub: Jitsie ST 28 spoke holes, 100mm spacing, anodized black
- Rear hub: Bonz Power-H 32 spoke holes, with rotor mounts, 116mm spacing, anodized red
- Chain tensioner: Clean X2 integrated, with two 11T jockey wheels made of plastic, black
- Front rim: Hashtagg 20”, single wall, 32mm wide, 28 spoke holes, black
- Rear rim: Hashtagg 19”, single wall, 47mm wide, 32 spoke holes, black
- Spokes: 1.8mm, black
- Spoke nipples: Alu 14G, anodized red
- Rim tape: TrialBikes Reinforced Ultralight
- Front inner tube: Jitsie Race Ultralight 20”
- Rear inner tube: Jitsie Race Ultralight 20”
- Front tyre: OBR Gekok 20”x2.00”
- Rear tyre: OBR Gekok 19”x2.60”
Brakes
- Front brake: Magura Hs33
- Rear brake: Hope Tech 3 Trial Zone Post Mount, anodized red
Drivetrain
- Crankset: Bonz Pro Light BB24 crankset, 24mm diameter BB axle, CNC machined. 165mm long cranks, for Cassette Shimano HG-type freewheel, black
- Freewheel: Bonz 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC 610HX, black
- Rear sprocket: Bonz 12T Cassette, made from 7075-T6 aluminium alloy, silver
- Pedals: Bonz single cage, made from 7075-T6 aluminium alloy, anodized red
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red
Steering
- Headset: Bonz Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Bonz Forged 175mm x 35º, 31.8mm Oversized handlebar diameter, black
- Grips: Bonz foam, black
- Handlebar: Bonz 7075 high-rise, 720mm long, 31.8mm Oversized handlebar diameter
Geometry:
- Wheelbase: 1010mm
- Chainstay length: 350mm
- Bottom bracket rise: +83mm
- Head angle: 72º
Weight
- 8.00Kg
Additional information:
Some pictures may not match the item described, so please read the description carefully. This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com.
FRONT BRAKE | HS |
REAR BRAKE | Disc |
