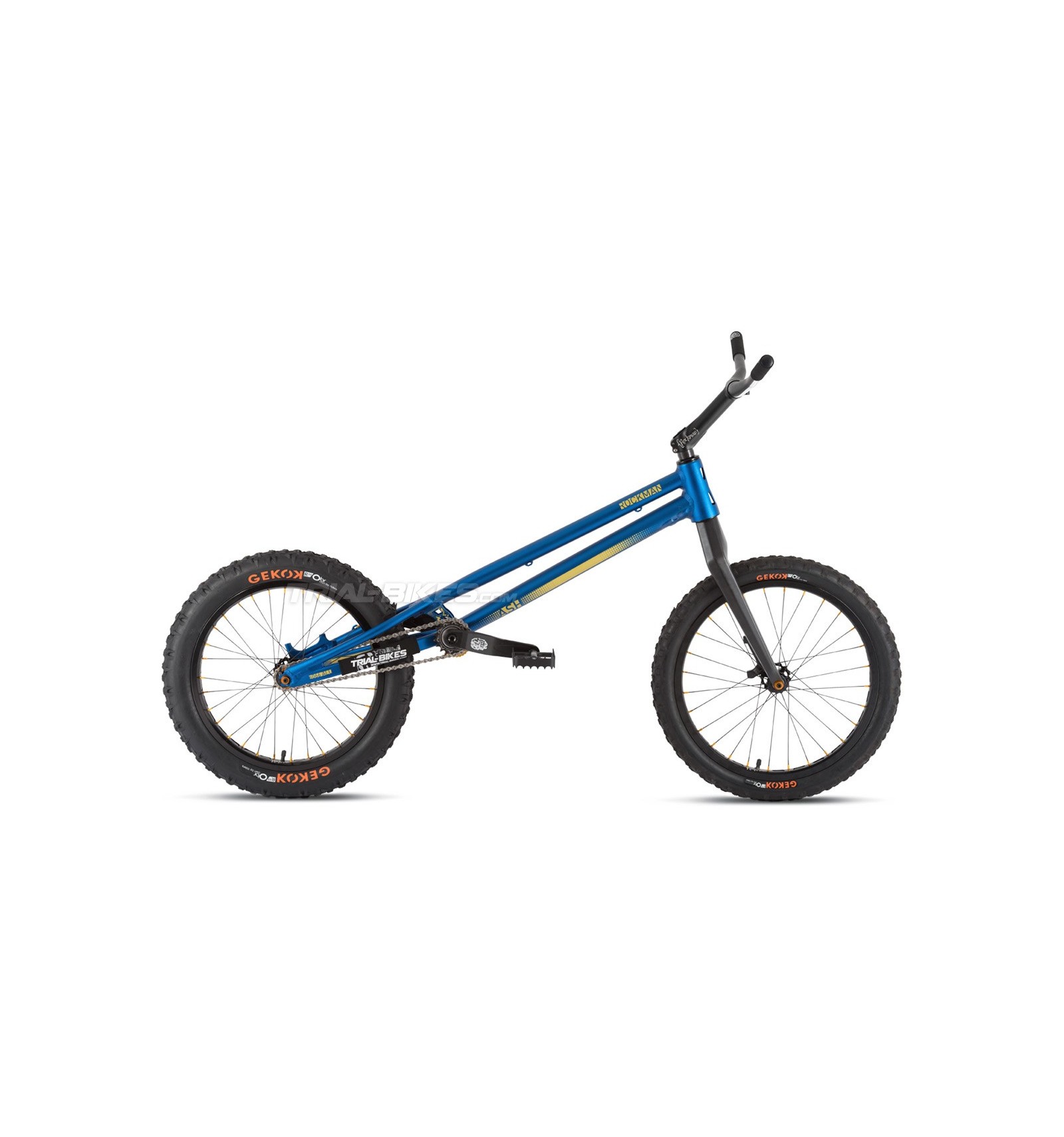

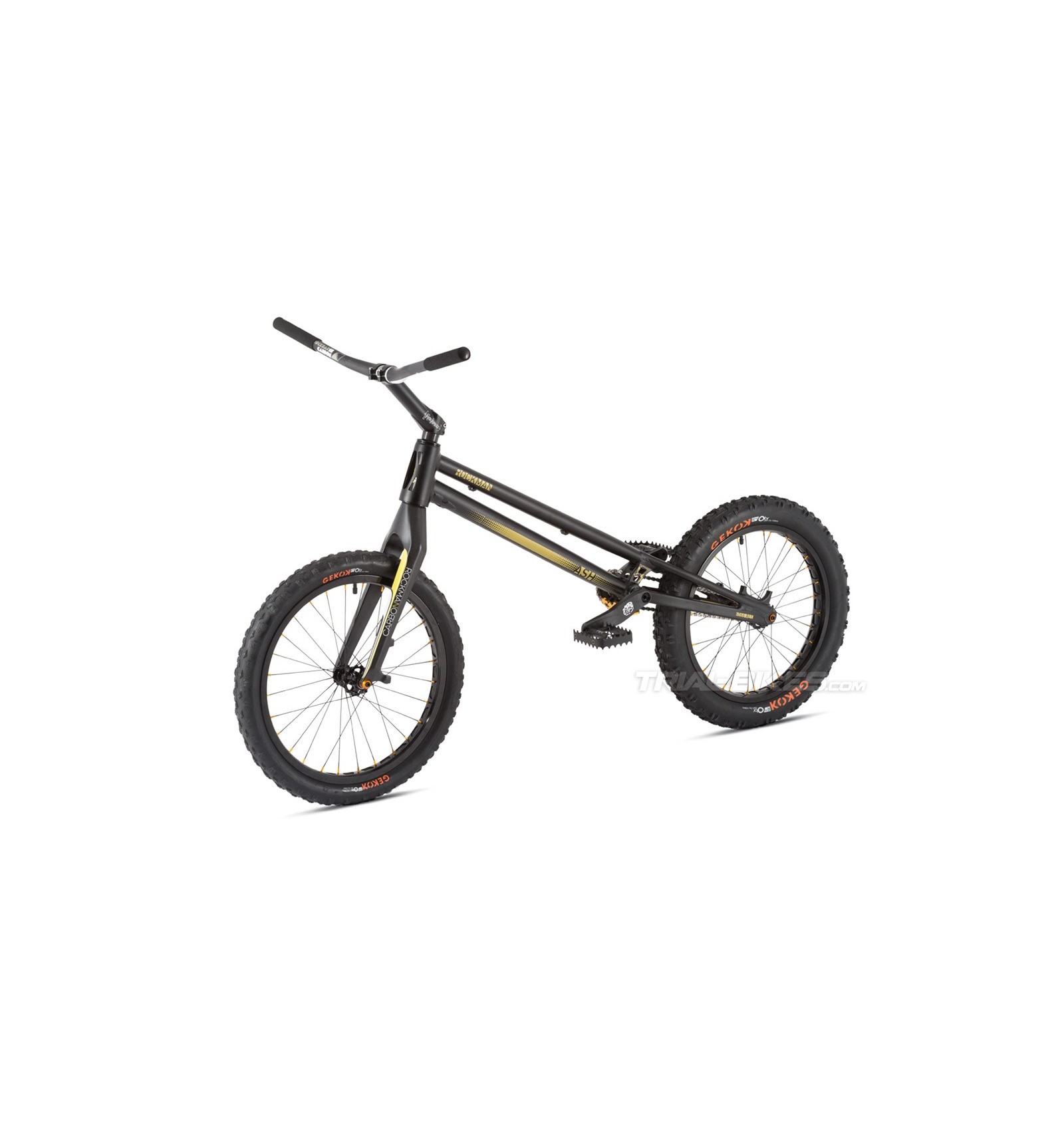

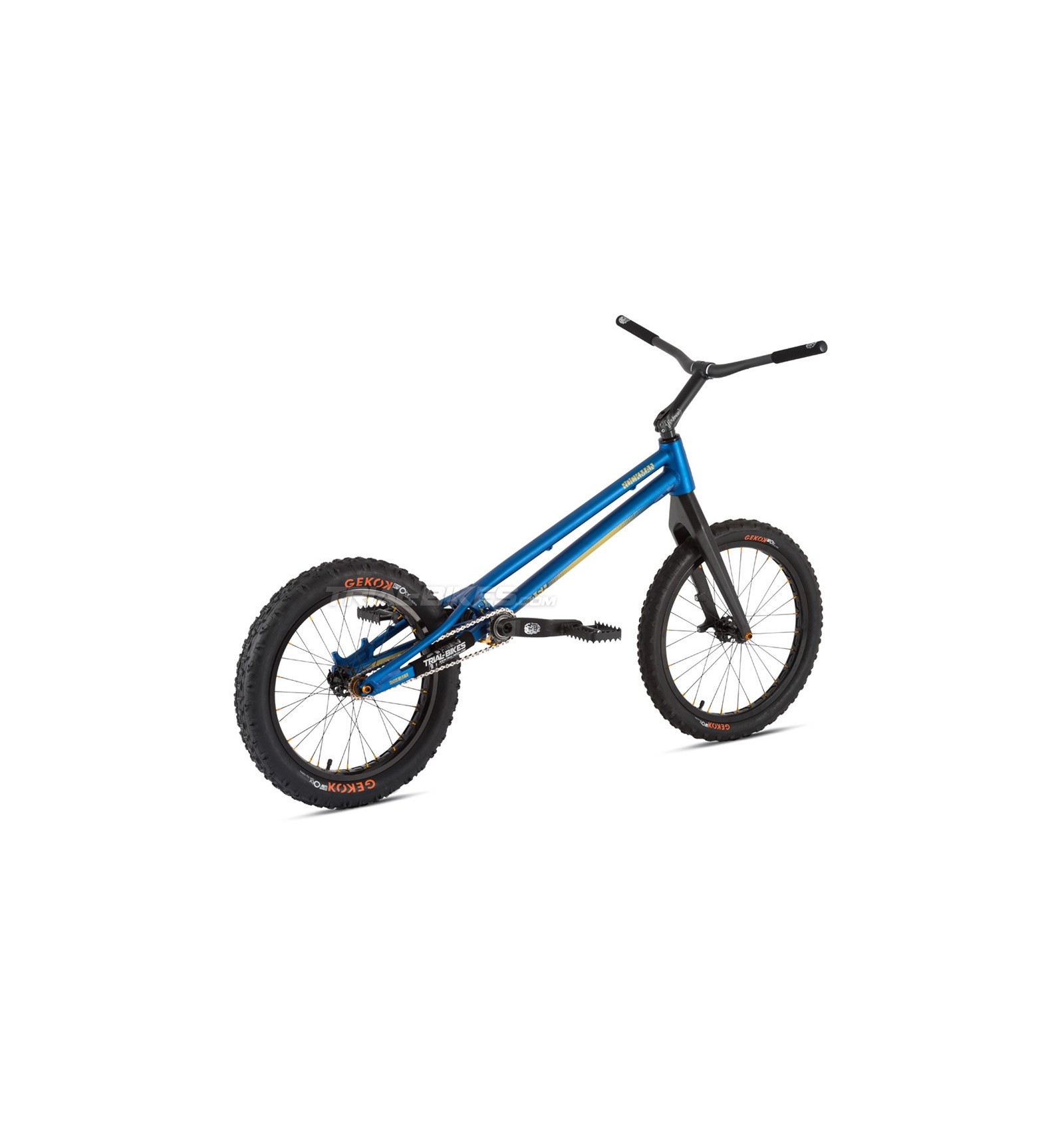

Rockman Ash 20'' Bike

The new Rockman Ash 20” bike gathers the highest quality components manufactured by renowned Singapore brand nowadays, built around the new Rockman Ash 20” frame. The result is an ultralight bike, highlighting the carbon fork, carbon handlebar, Slot hubs, 135.9 freewheels, OBR tyres…

Furthermore, now you can choose the brakes! Choose between:
· Complete bike without brakes.
· Complete bike with Magura MT2 disc brakes.
· Complete bike with Hope Trial Zone disc brakes.

Frame and fork
- Frame: Rockman Ash 20” Tapered, made from 6066-T6 aluminium alloy, with Post Mount disc brake mounts, anodized black or blue, with yellow Rockman Ash graphics.

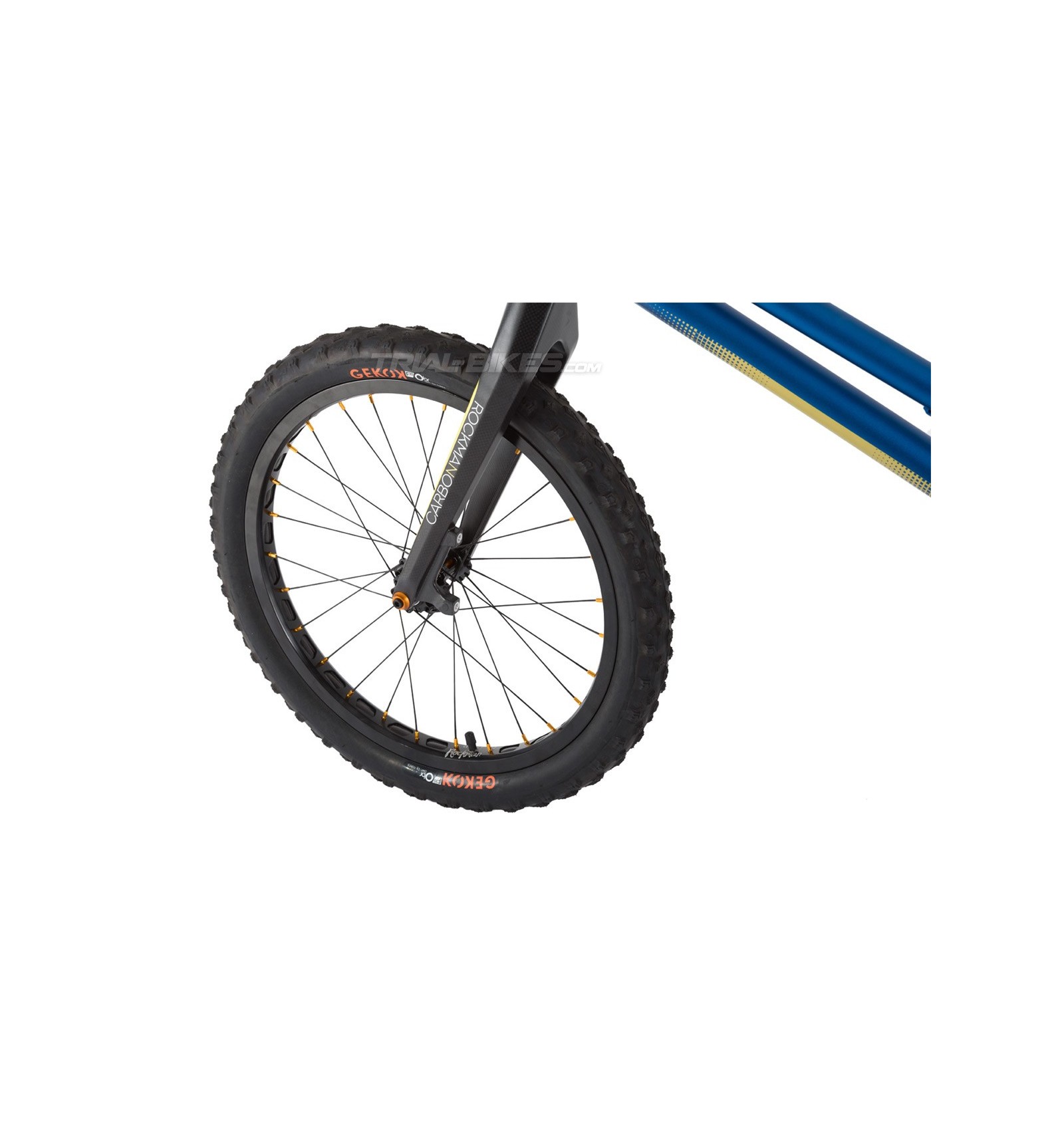

- Forks: Rockman Carbon 1 1/8” 20’’, with Post Mount disc brake mounts, black with white and yellow Rockman graphics.

Wheels
- Front hub: Rockman Slot, 28 spoke holes, with rotor mounts, 100mm spacing, anodized black and orange with white laser etched Rockman logo

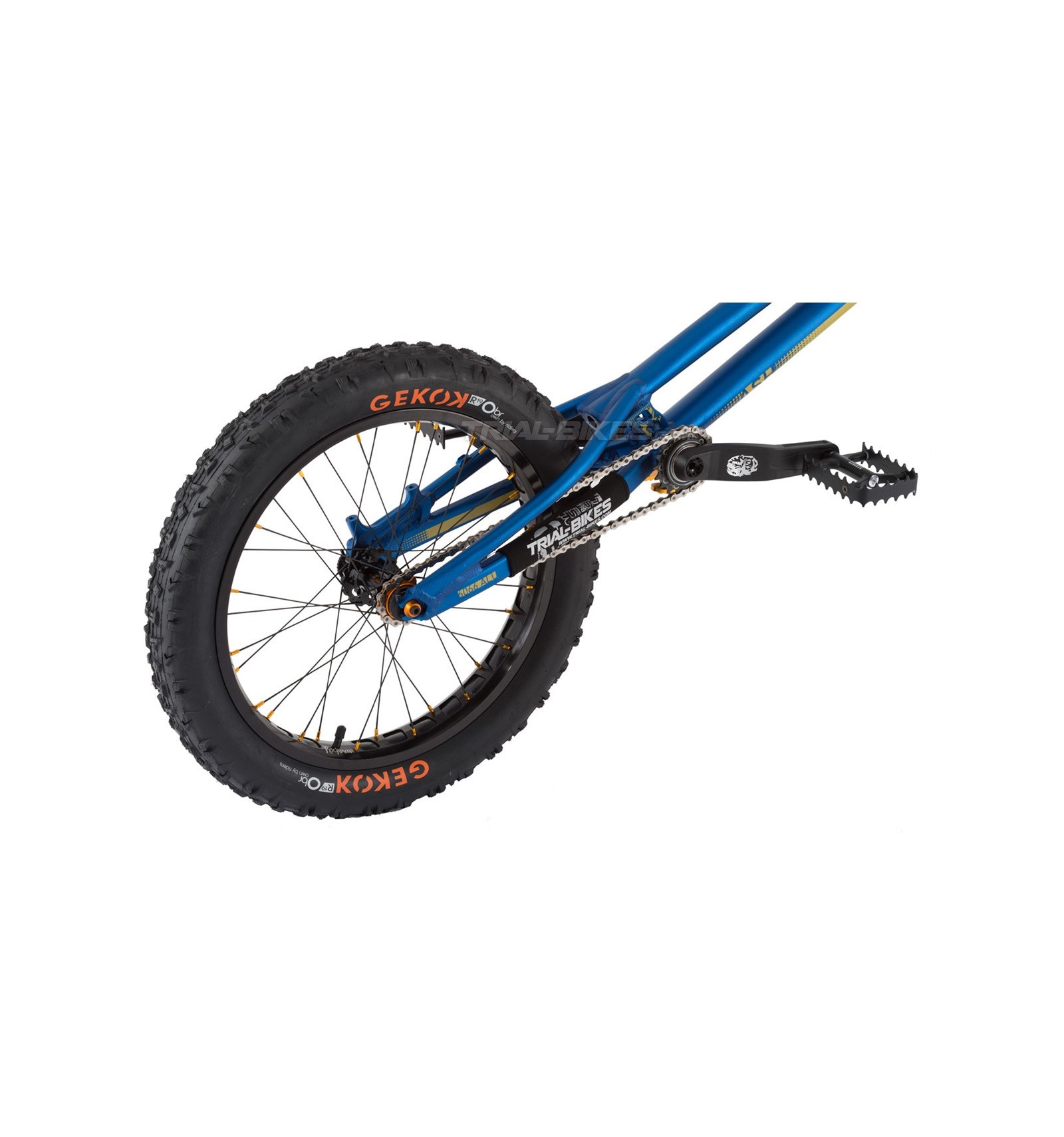

- Rear hub: Rockman Slot, 32 spoke holes, with rotor mounts, 116mm spacing, anodized black and orange with white laser etched Rockman logo

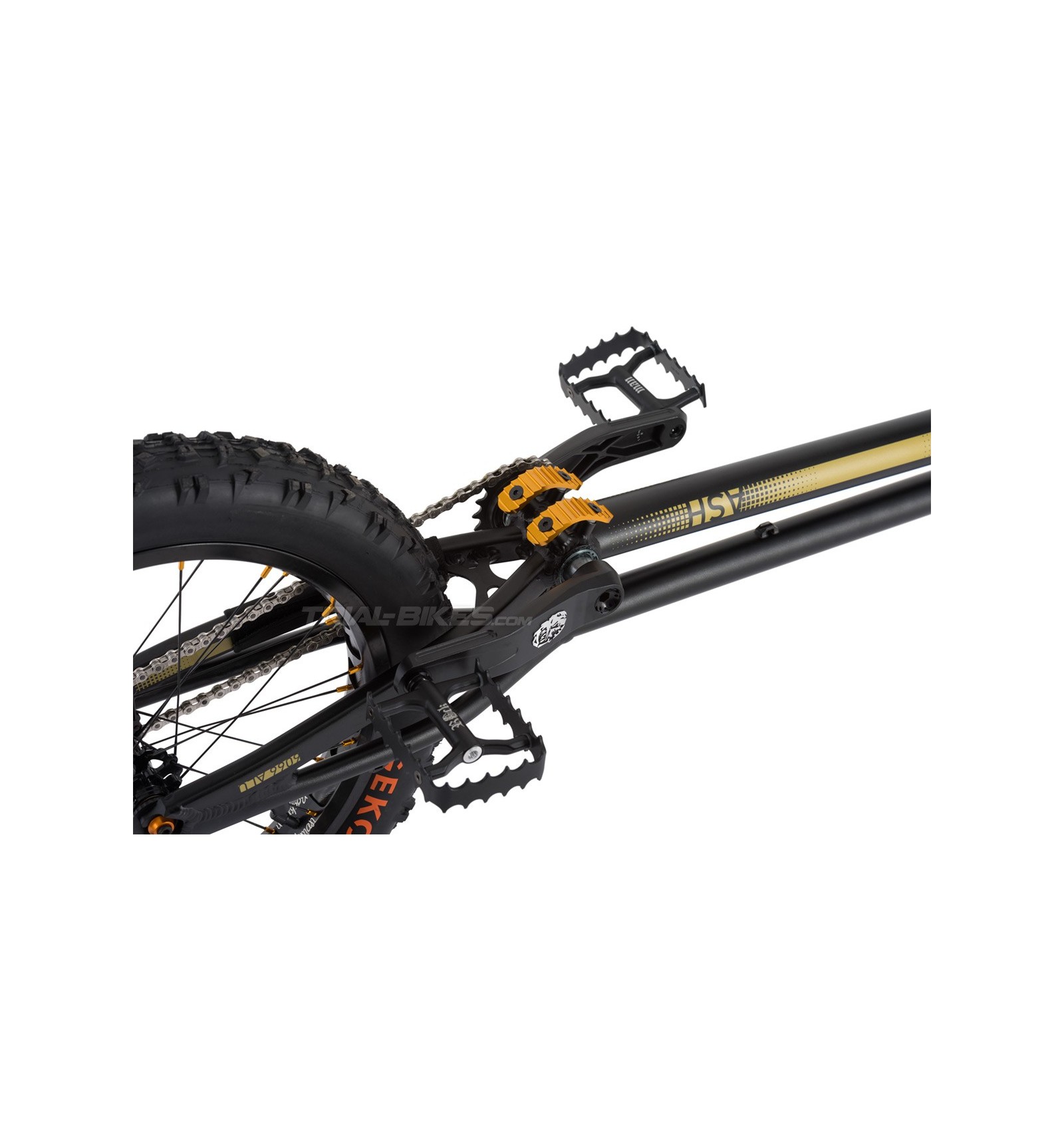

- Chain tensioner: Try-All CNC snail cams, black with white laser etched Try-All logo
- Front rim: Rockman 20”, single wall, 28 spoke holes, anodized black with white laser etched Rockman logo
- Rear rim: Rockman 19”, single wall, 32 spoke holes, anodized black with white laser etched Rockman logo
- Spokes: Rockman, black
- Spoke nipples: Rockman aluminium, anodized orange
- Front inner tube: Trial 20”
- Rear inner tube: Trial 20”
- Front tyre: OBR Gekok F20 20”x2.00”
- Rear tyre: OBR Gekok 19”x2.60”

Brakes
- Front brake: Depends on brake choice
- Rear brake: Depends on brake choice

- Rotors: Depends on brake choice

Drivetrain
- Cranks: Rockman ISIS 7075-T6 CNC, 165mm long, black with white Rockman graphics
- Bottom bracket: Rockman ISIS, 128mm long axle and standard 1.37’’x24tpi thread
- Freewheel: OBR 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, black with white OBR logos
- Chain: KMC X9 3/32”, silver
- Rear sprocket: Rockman CNC 12T Screw-on, made of 7075-T6 aluminium, anodized orange
- Pedals: Rockman Single Cage, with steel axle and 7075-T6 aluminium body, black with white Rockman graphics
- Bashplate: Rockman 2-piece mini bashplate, anodized orange

Steering
- Headset: Rockman 1 1/8” internal headset, with sealed bearings, anodized black
- Stem: Rockman 3D Forged, 150mm long and 30º angle, 31.8mm Oversized handlebar diameter, black with white Rockman graphics
- Grips: Rockman foam thin, black with white Rockman graphics

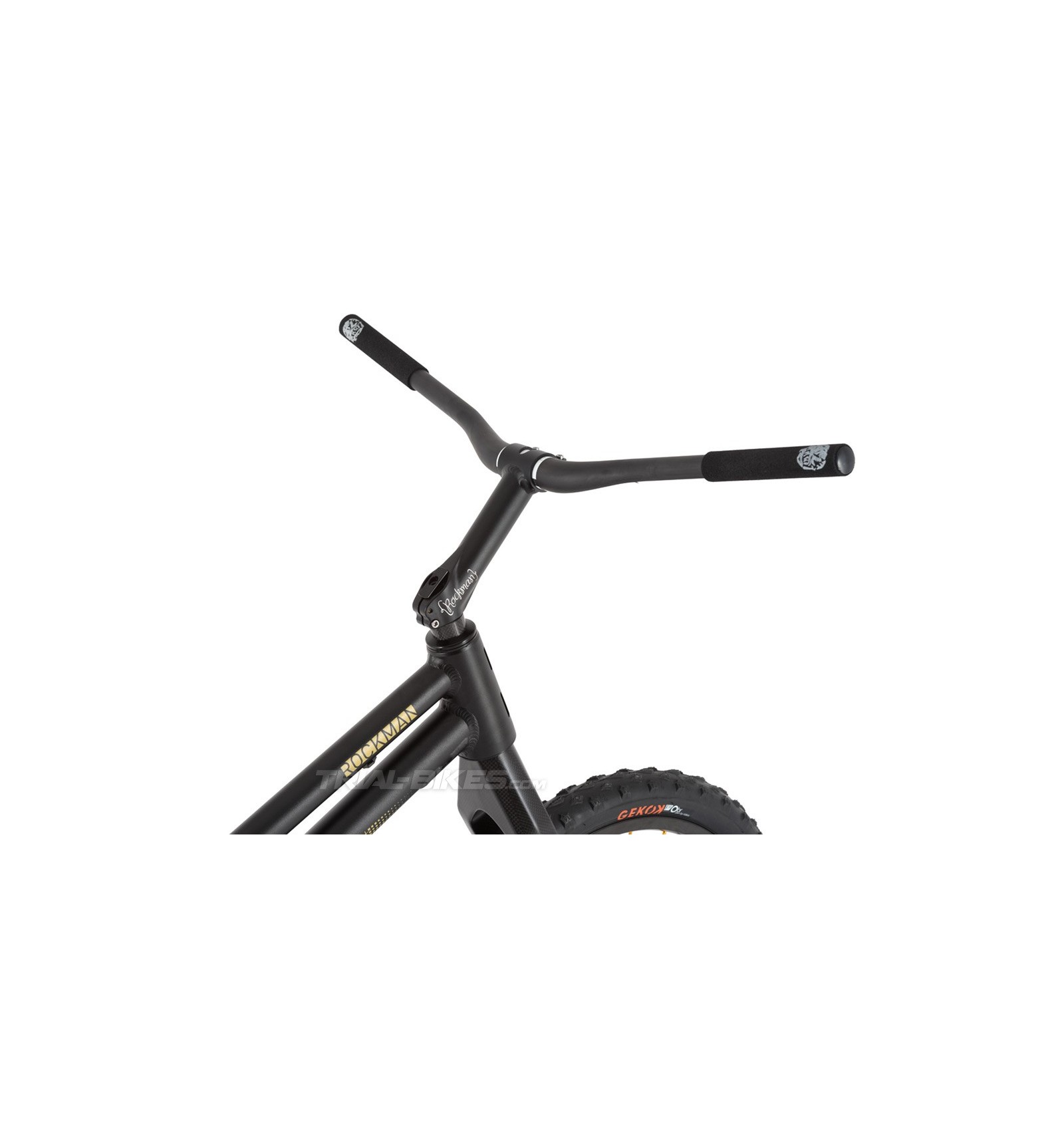

- Handlebar: Rockbar Carbon, 720mm long, 31.8mm Oversized diameter, black with white and silver Rockman graphics

Geometry
- Wheelbase: 1000mm
- Chainstay length: 350mm
- Bottom bracket rise: +95mm
- Head angle: 72º

Weight
- 6,94kg (without brakes)

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up at our workshop, so the customer will only have to install both the front wheel and the headset.
If you have any doubts, please contact us on info@trial-bikes.com
