TMS EVO6 20R 20" 2022 Bike Blue

TMS EVO6 20R 20" 2022 Bike Blue

✅ Option 1: Magura Mt2 front and rear disc brakes.
✅ Option 2: Hope Tech 3 Trial Zone front and rear disc brakes.
✅ Option 3: Hope Tech 3 Trial Zone rear disc brake and Hashtagg front HS brake.

Check the following list to see the components of each setup option.

Frame and fork

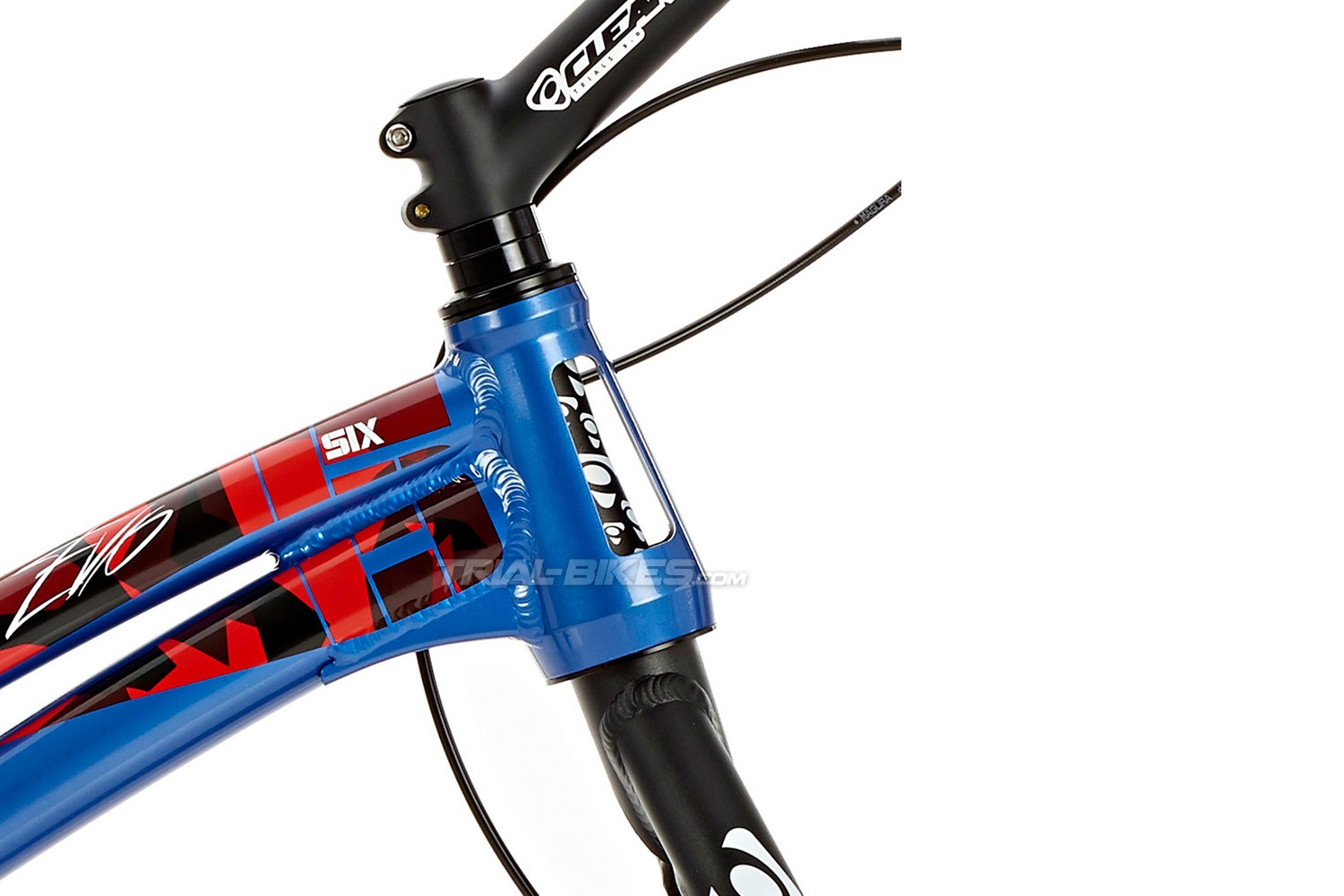

- Frame: TMS Evo6 20”, Aloy 6065 T6 aluminium alloy, 1 1/8” – 1.5” tapered, with Post Mount disc brake mounts, polished aluminium finish.

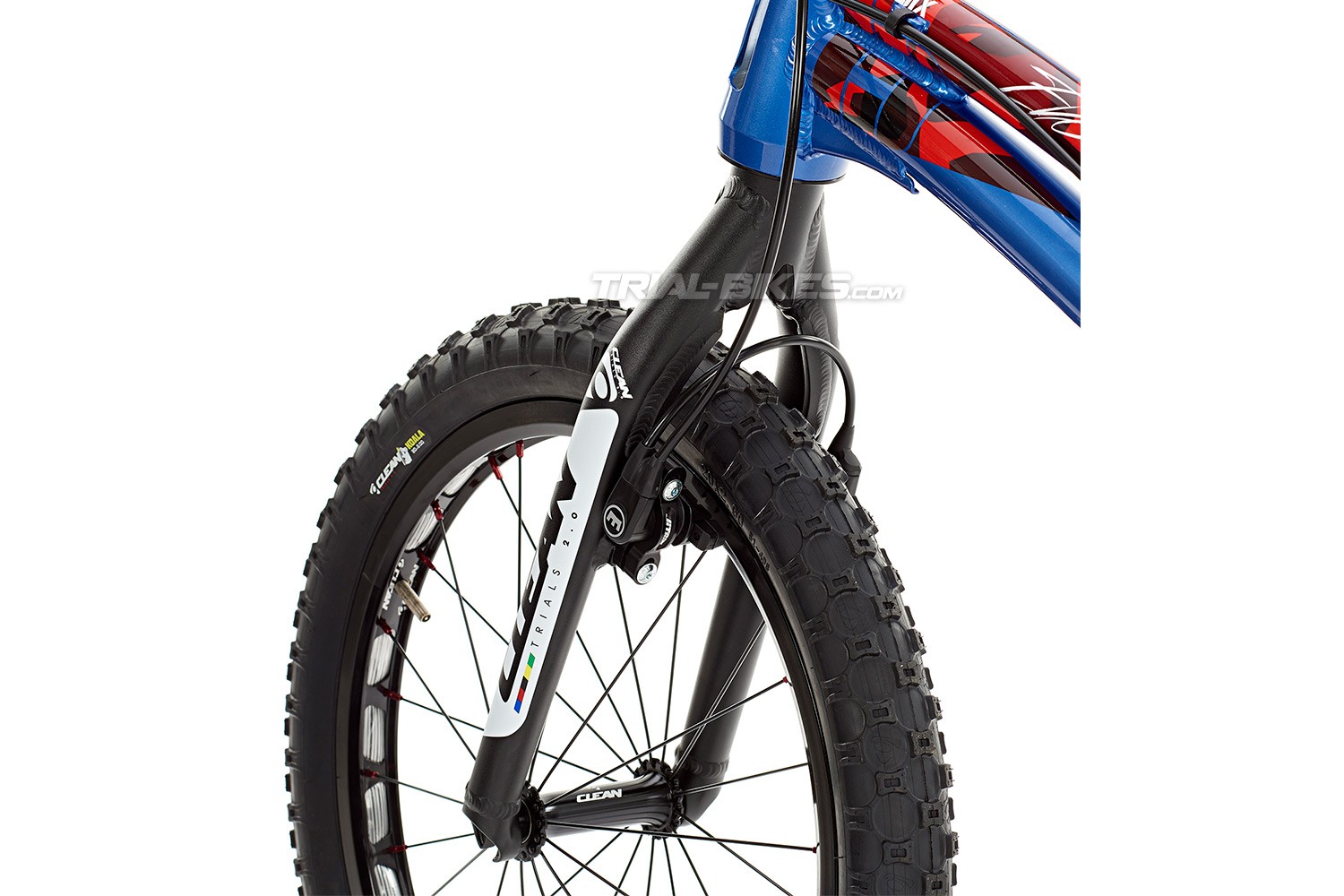

- Forks: Clean X2 20” Tapered 1 1/8” – 1.5”, black.

Wheels
- Front hub: Clean X1 28 spoke holes, 100mm, black.
- Rear hub: Clean X1 32 spoke holes, 116mm, black.
- Chain tensioner: Clean X2 integrated, with two 11T jockey wheels made of plastic.
- Front rim: Clean X2 High Profile 20”, single wall, 34mm wide, 28 spoke holes, anodized black
- Rear rim: Clean X2 High Profile 19”, single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: 2mm spokes, black
- Rim tape: Clean, grey
- Front inner tube: Maxxis
- Rear inner tube: Maxxis
- Front tyre: Clean Koala 20” x 2.00”
- Rear tyre: Clean Koala 19” x 2.60”

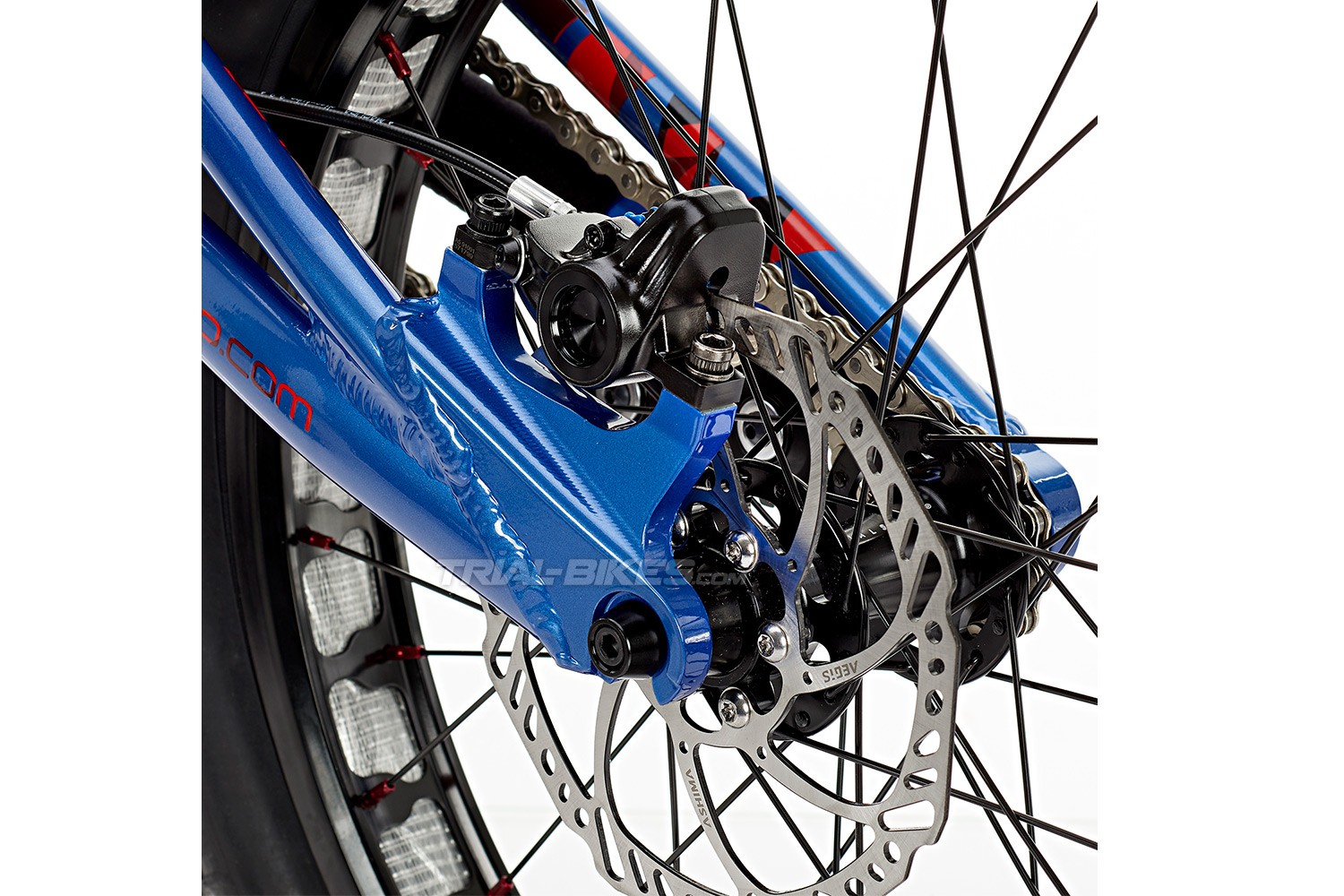

Brakes
- Front brake: Magura Mt2, Hope Tech 3 Trial Zone, Hashtagg HS (depending on brakes choice).
- Rear brake: Magura Mt2 or Hope Tech 3 Trial Zone (depending on brakes choice).
- Rotors: TMS, 160mm.
- Rim brake pads: TMS.
- Brake clamps: Clean X2 Washerless.

Drivetrain
- Cranks: Clean X1, ISIS, 160mm.
- Bottom Bracket: 128mm, BSA 68mm, 1.37”x24tpi, thread
- Freewheel: Clean 108.9 18T, with 108.9 engagement points, 9 pawls and 18 teeth, black.
- Chain: KMC, silver.
- Rear sprocket: TMS 12T Screw-on
- Pedals: Clean single cage, 7075-T6 aluminium alloy, anodized black.
- Bashplate: TMS, CNC, anodized red.

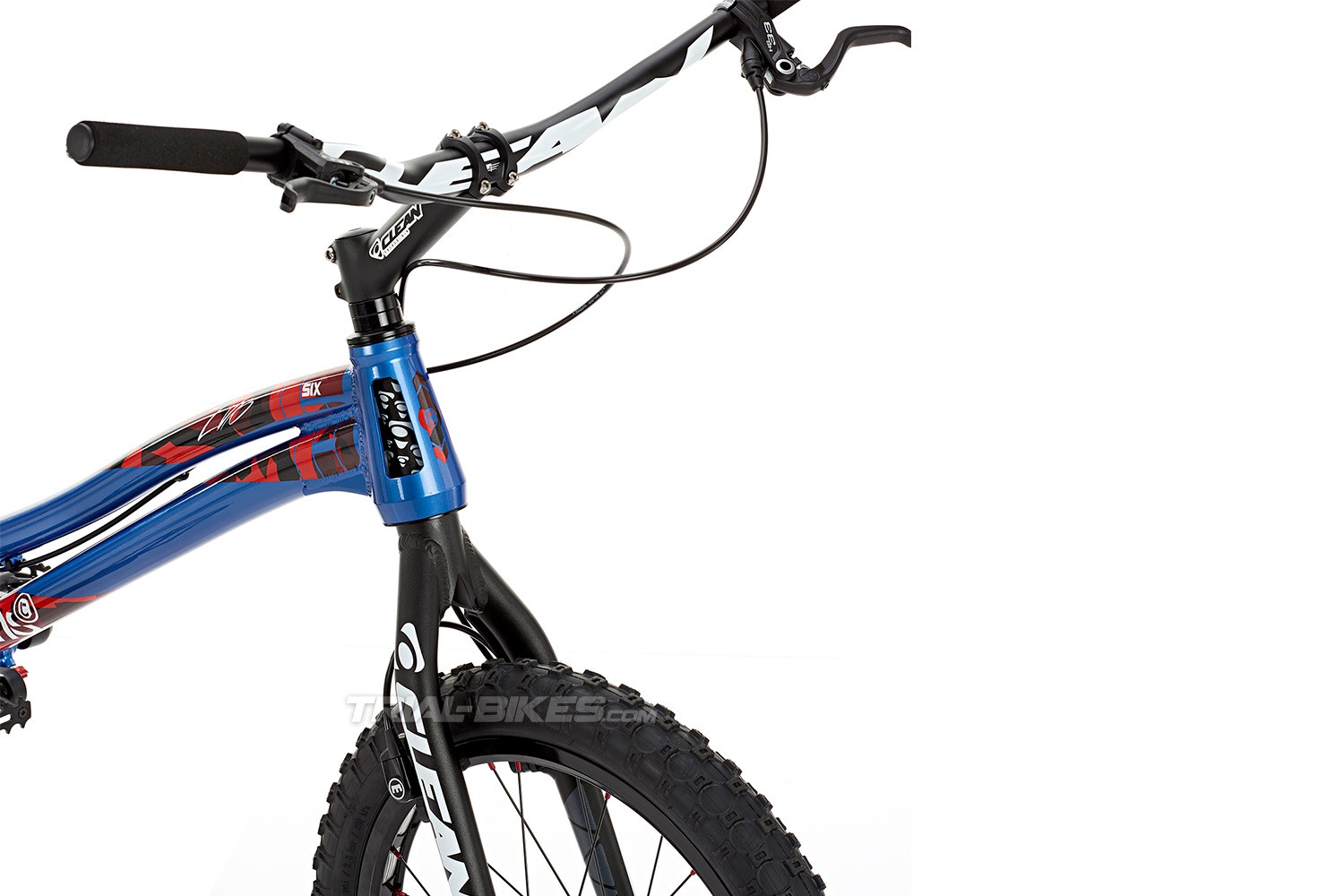

Steering
- Headset: Comas Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized black
- Stem: Clean, 145mm x 25º, 31.8mm Oversized handlebar diameter, black
- Grips: Extra-thin TMS foam, black
- Handlebar: Clean 7075-T6 high-rise aluminium, 720mm long, 31.8mm Oversized handlebar diameter, black finish.

Geometry

(1) Wheelbase: 1004 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +87 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------

Weight
- 7.7Kg (Hope Trial Zone full disc)

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.

Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.

If you have any doubts, please contact us on info@trial-bikes.com.
