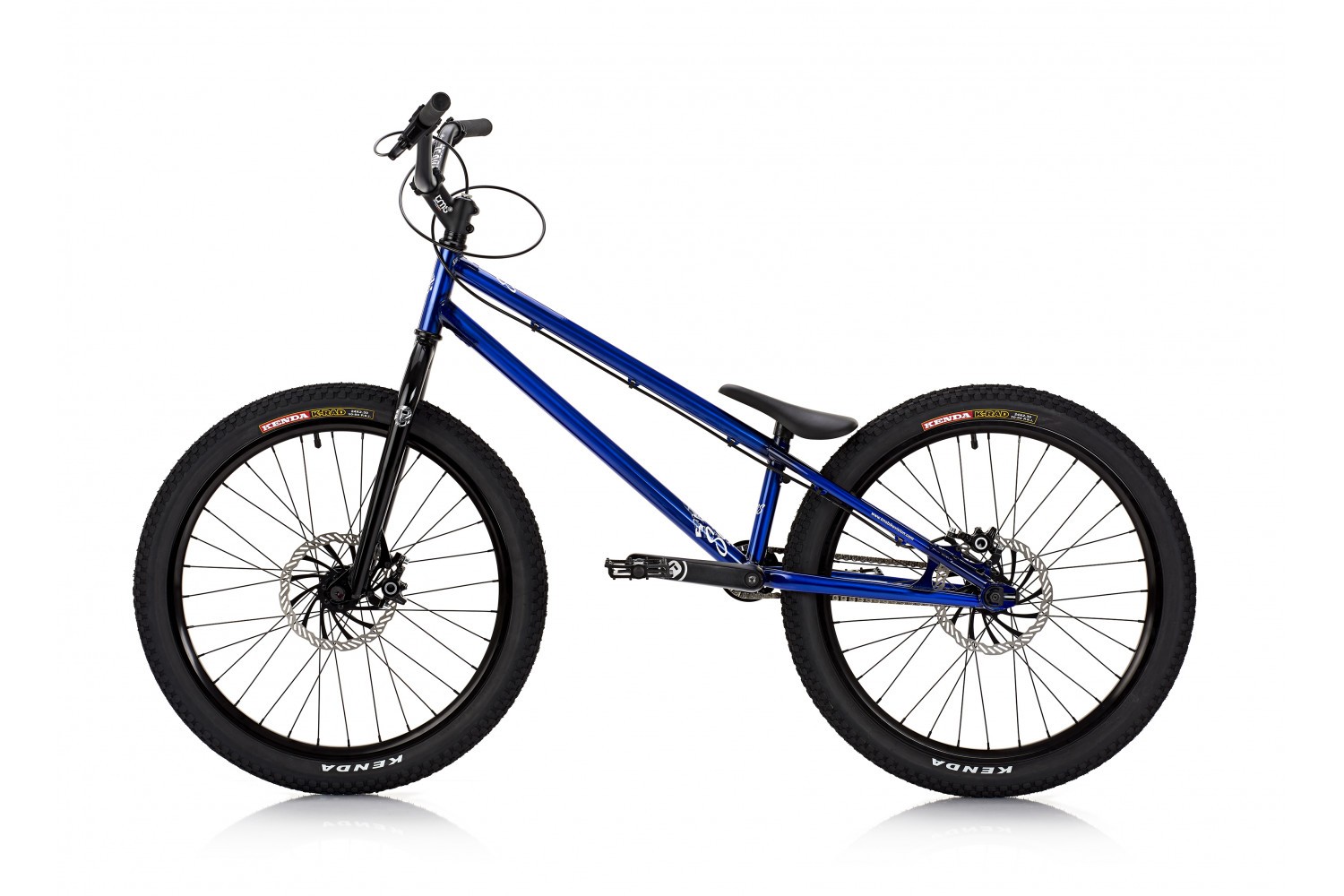

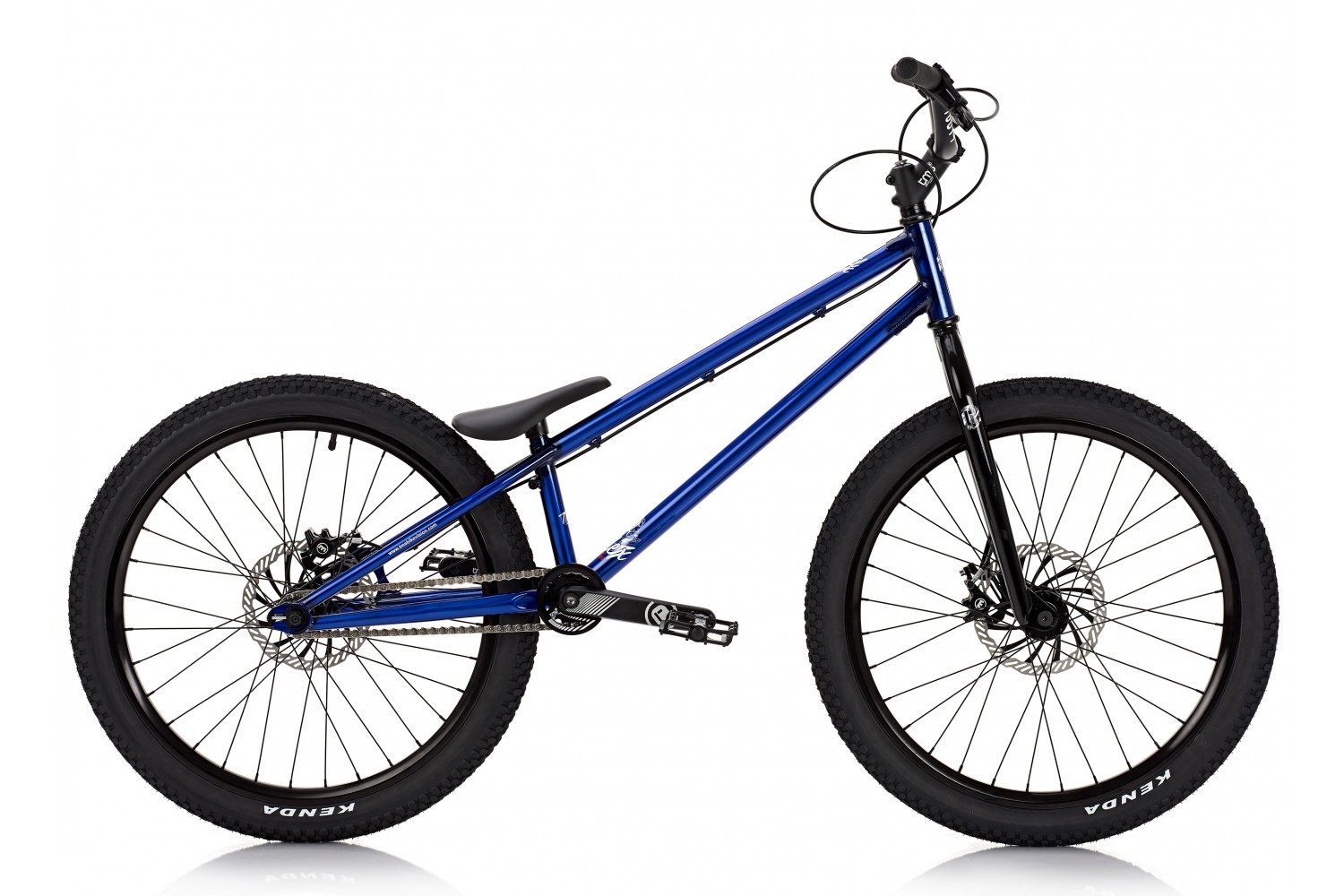

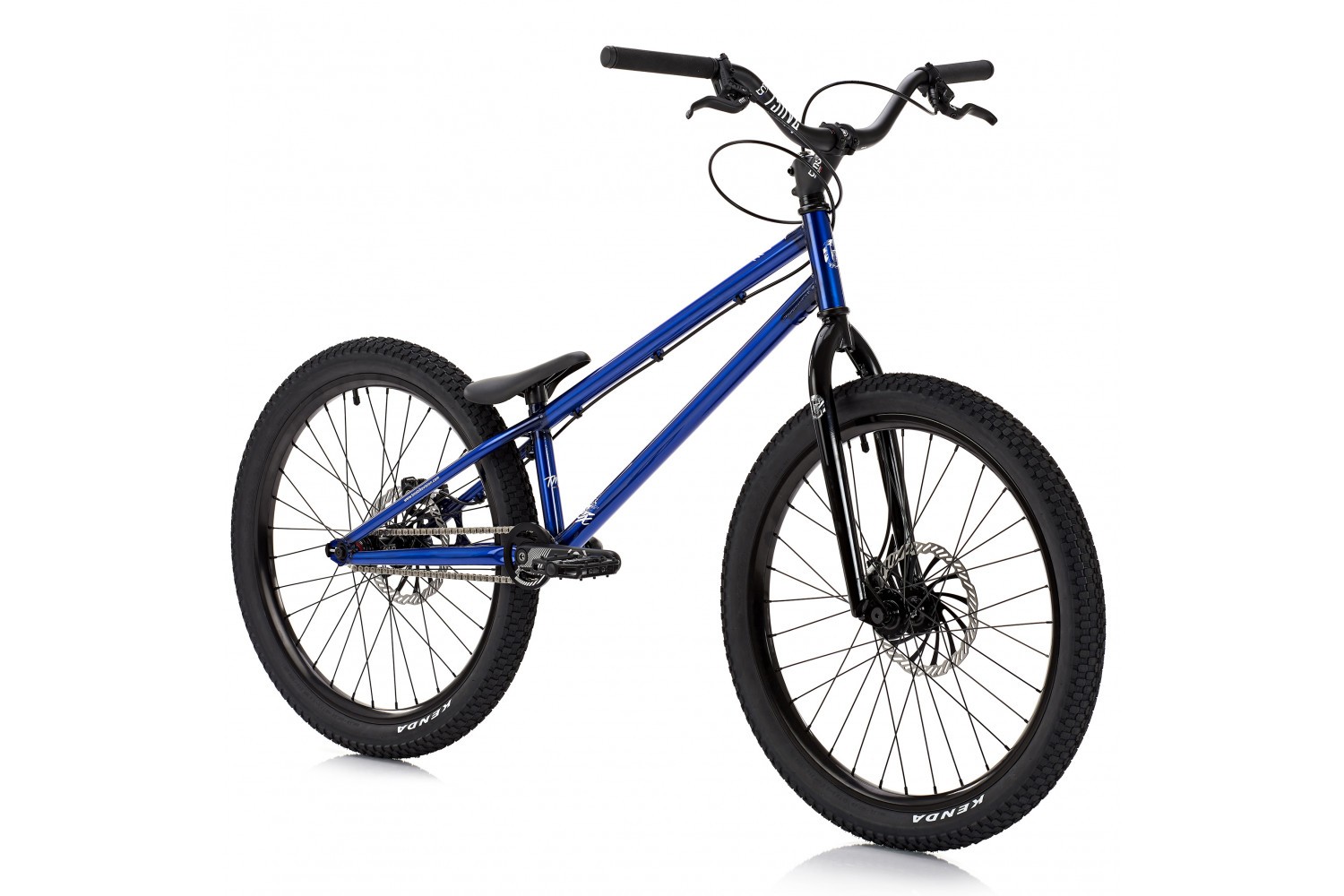

The SILEX V4 24" street trials bike combines design and functionality, offering a superior riding experience across a variety of urban and natural terrains.
The SILEX V4 is constructed with a steel frame, renowned for its capacity to absorb surface imperfections. This feature provides enhanced comfort and fluidity, making it ideal for any type of terrain, from city streets and natural trails to skateparks and pump tracks.

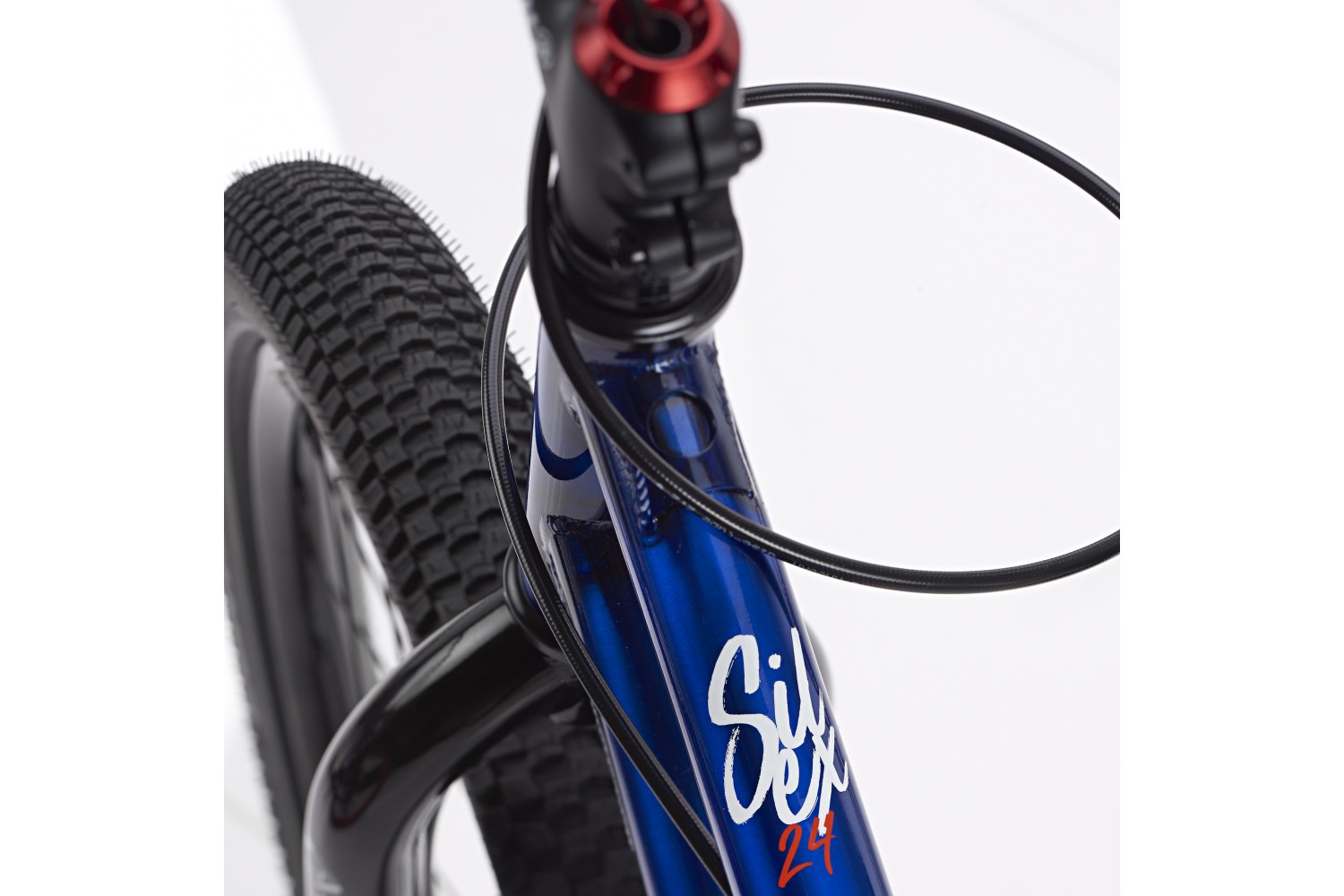

The durability of steel allows TMS to craft this model with thinner tubes, reducing the overall weight of the bike. The result is a sleek and refined aesthetic, further enhanced by logo designs and a "tattoo" style calligraphy created by the rider Yann Dunant.
The bike features a new varnished blue color, applied over a raw base that reveals the darker areas of the steel affected by heat, providing a visually distinctive finish.
The Silex V4 from TMS offers an unbeatable combination of quality, price, performance, and aesthetics in the street trials bike market, setting a new standard in the category.
Frame and Fork

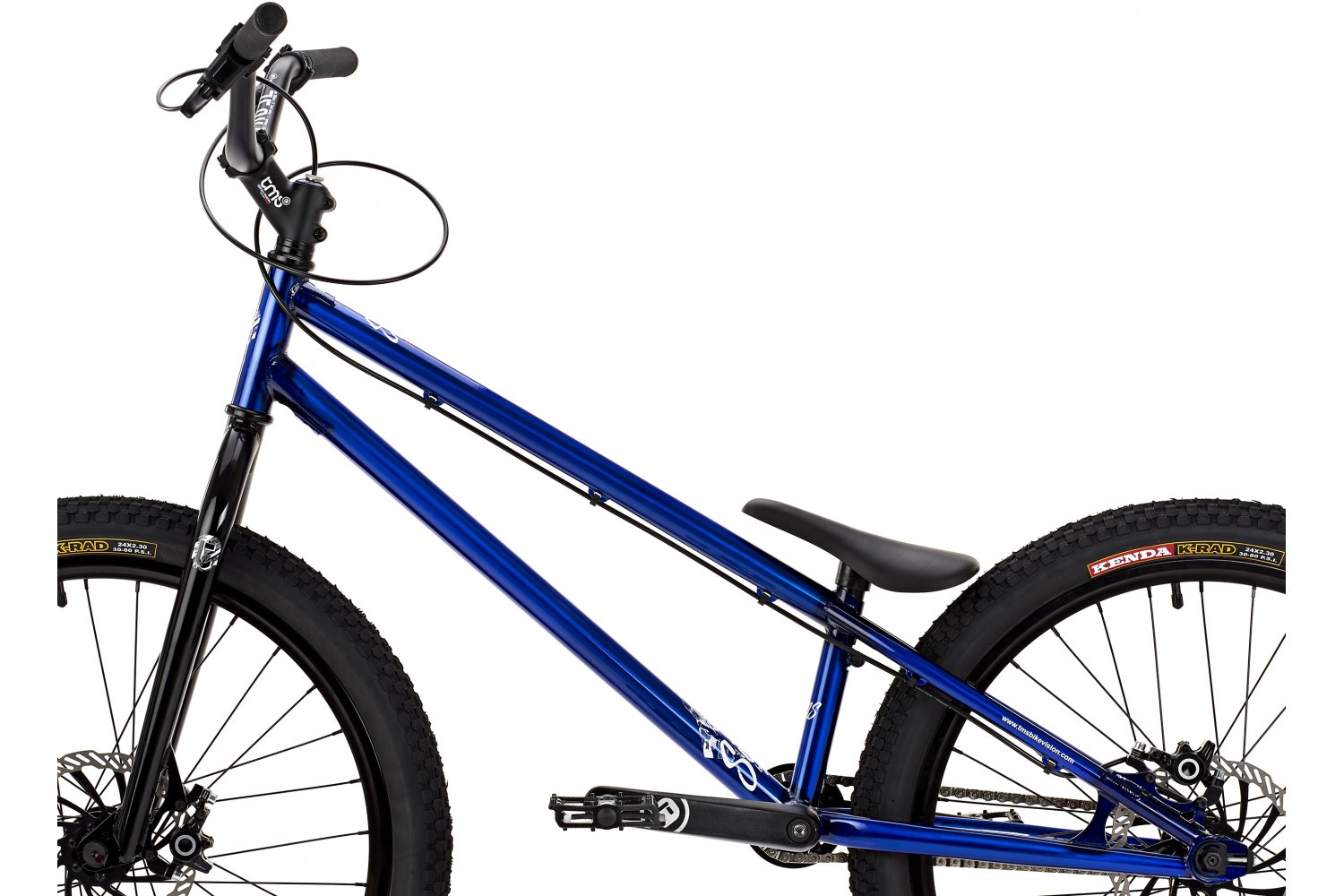

Frame: TMS Silex V4 24", made of high-quality Cr-Moly steel, with IS +20 mm disc brake mounts (ISR160 adapter required for mounting a 180 mm rotors), Euro 68 mm bottom bracket, 25.4 mm seat tube, and 135 mm rear hub dropouts with 10 mm axle. Dropouts modified with a thickness of 6 mm for increased rigidity.

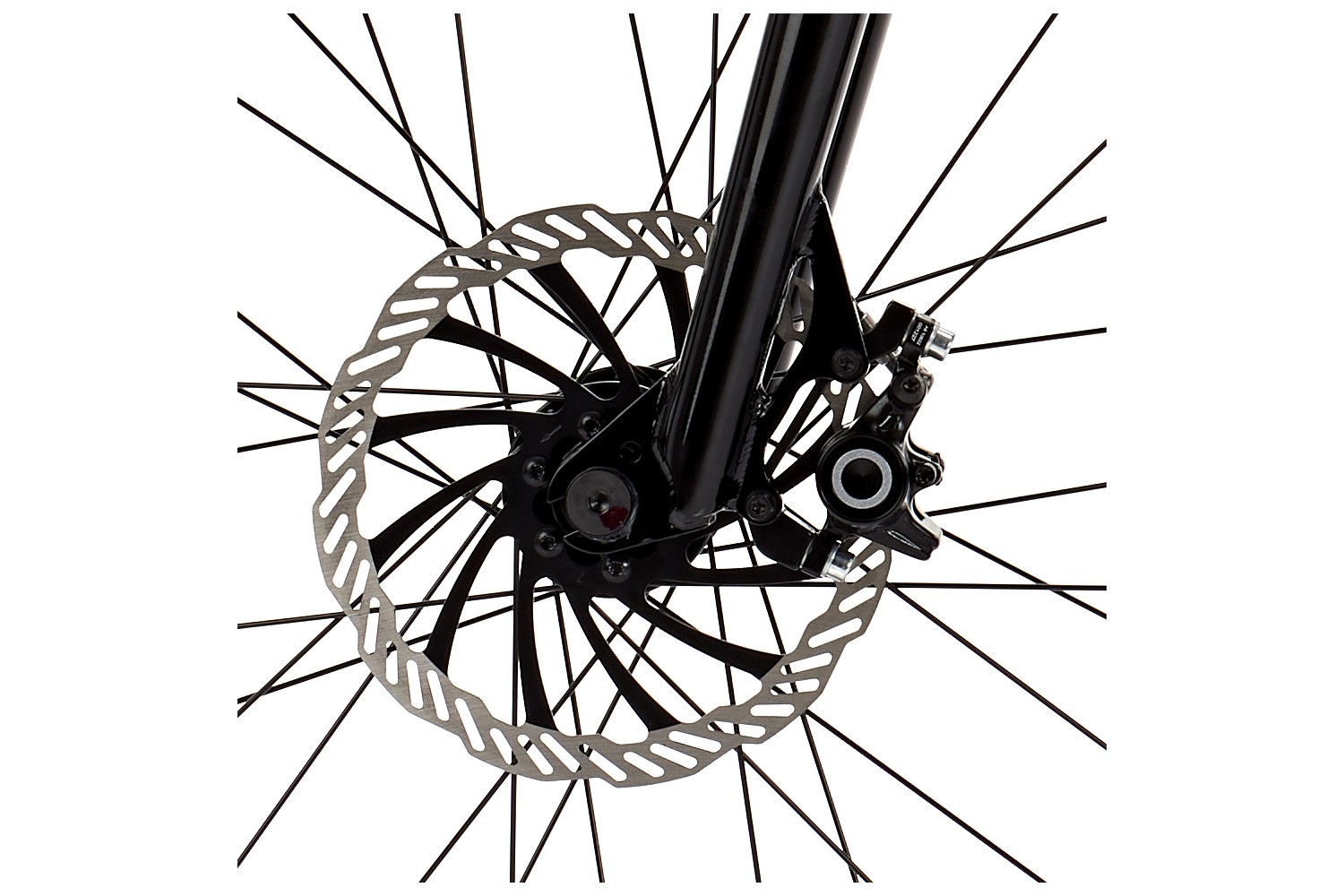

Fork: TMS Silex V4 24", made of high-quality Cr-Moly steel, 400 mm length and 30 mm offset, with ISF160 disc brake support, compatible with Ø15 mm thru-axle.
Wheels
Front Hub: TMS Disc Street, 32 spokes, ball bearings, 15 mm thru-axle, black.

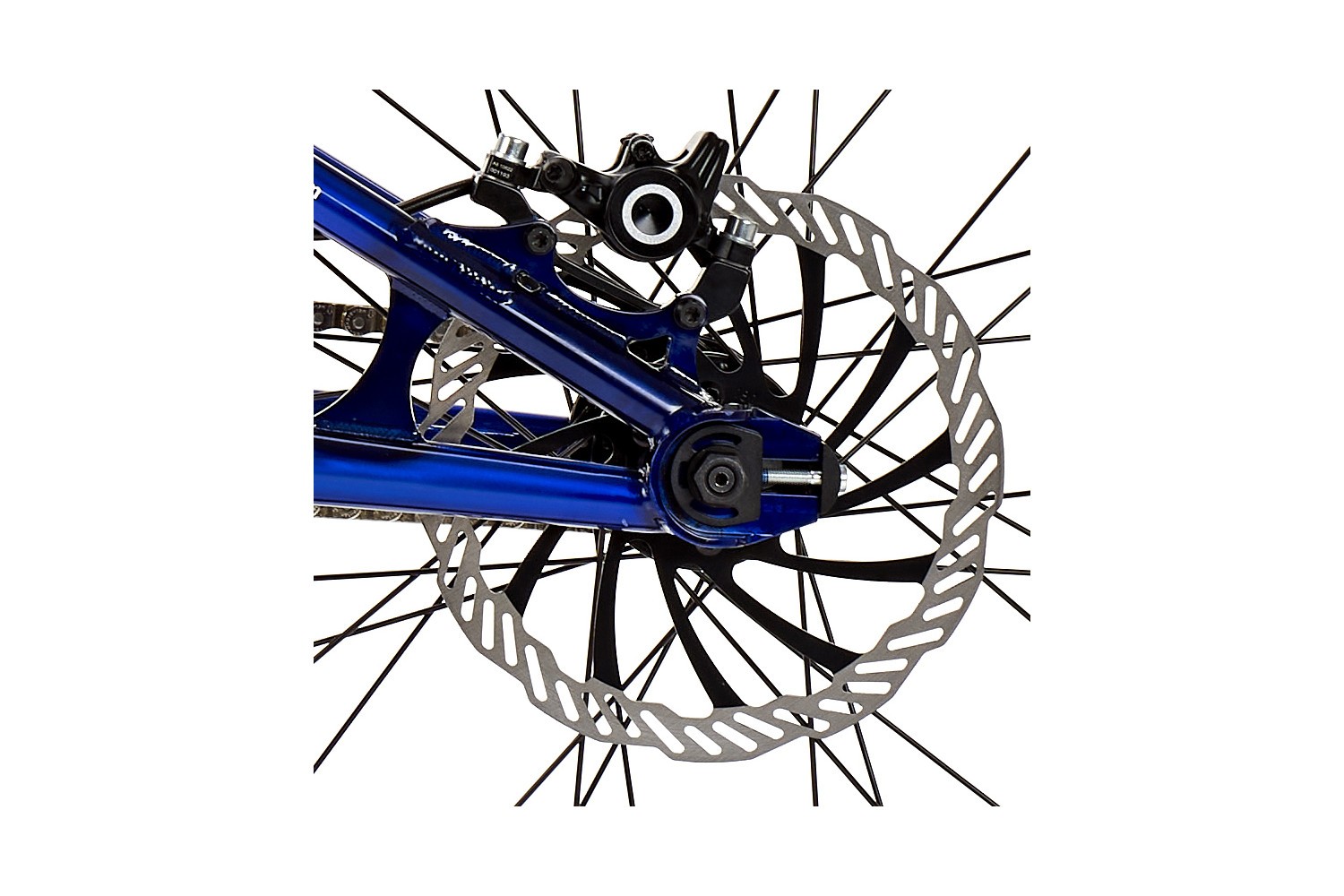

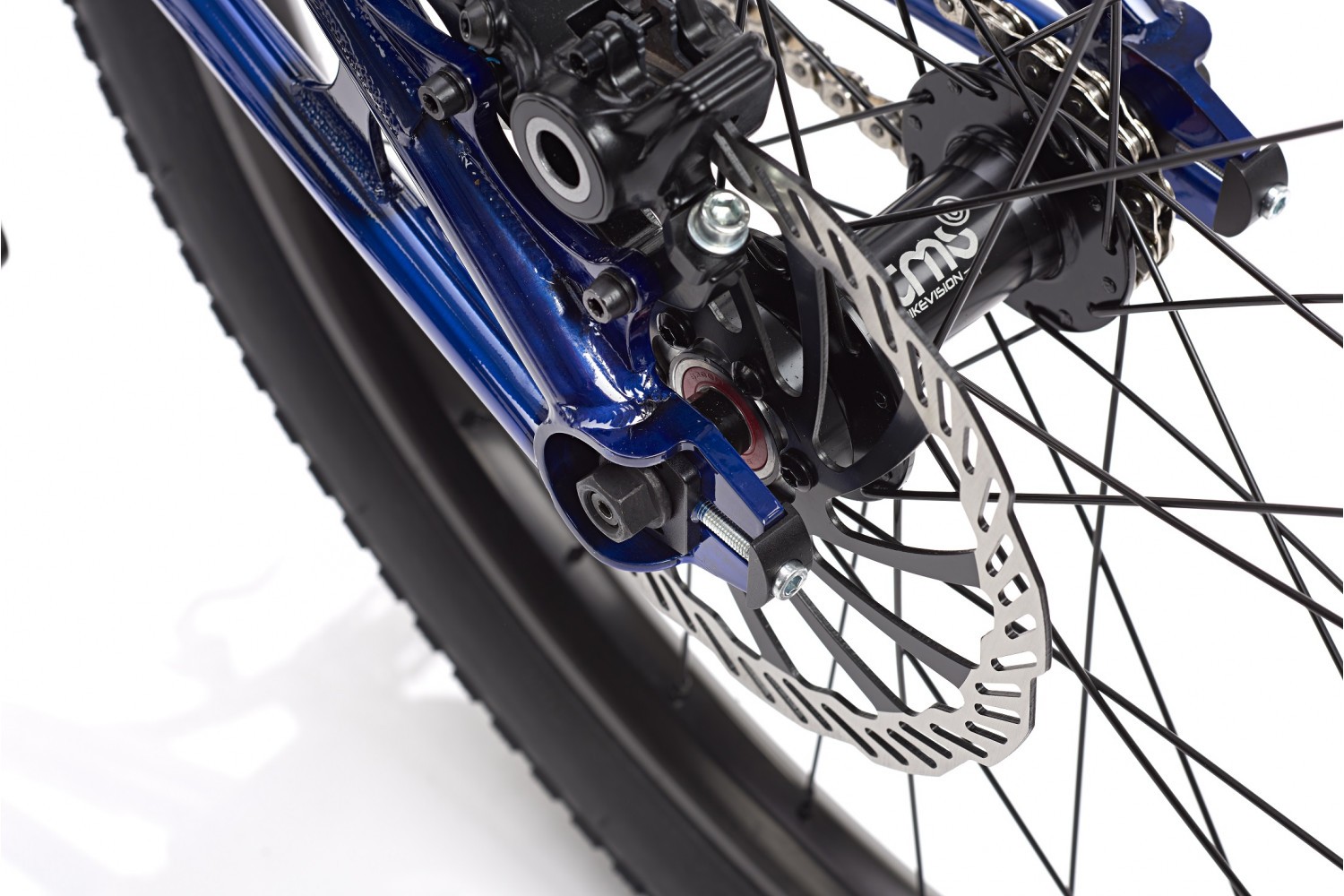

Rear Hub: TMS Disc Street 135 mm, 32 spokes, annular bearings, 10 mm axle, black.
Chain Tensioner: TMS screw tensioner + guide.
Front Rim: TMS 24" Street, double-layer design, black.
Rear Rim: TMS 24" Street, double-layer design, black.
Spokes: TMS steel, black.
Rim Tape: TMS
Front Inner Tube: Vee Rubber 24"
Rear Inner Tube: Vee Rubber 24"
Tires: Kenda K-Rad 24"x2.30"
Brakes
Brakes: Shimano MT400 black.
Brake rotors: TMS 180 mm.
Brake adapters: TMS ISF180 front, TMS ISR160 rear.
Drivetrain
Bottom Bracket: TMS ISIS 128 mm.
Cranks: TMS ISIS, 170 mm length.
Freewheel: TMS 18T, with 78 engagement points.
Chain: YBN half-link.
Sprocket: TMS 13T threaded, black.
Pedals: Wellgo plastic.
Saddle
Saddle: TMS Nylon, black color.
Seatpost Ø25.4 mm.
Steering Assembly
Headset: First external 1 1/8".

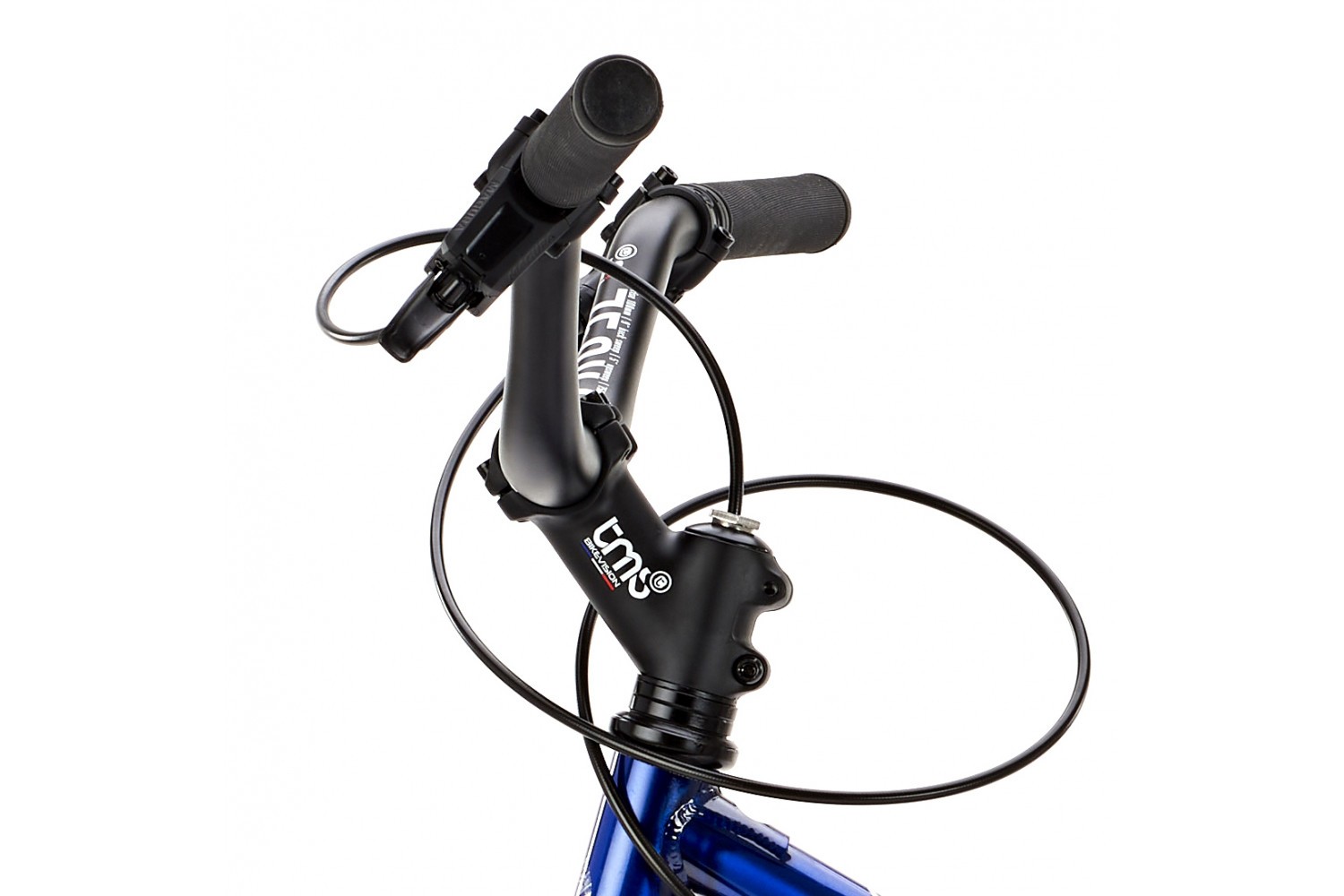

Stem: TMS, 80 mm length and 40º rise, Oversized Ø31.8 mm handlebar diameter.
Grips: TMS rubber grips, black.
Handlebar: TMS V4, 750 mm length.
(1) Wheelbase: 980Â mm
-----------------------------------------------
(2) Rear End: 360 mm
-----------------------------------------------
(3) Bottom Bracket Height: +22 mm.
-----------------------------------------------
(4) Head Angle: 74.5°.
-----------------------------------------------
(6)Â Reach:Â 690 mm
-----------------------------------------------
WeightÂ
- 11.2KgÂ
Additional Information:
The component configuration listed is subject to possible changes. Any change or modification regarding the listed components will be communicated to the customer before delivery, ensuring that any modification is always with another component of equal or superior quality to the one listed.
Some of the images may not correspond with the product description, so please read the features carefully.
This bike is supplied partially assembled. The customer will only need to install the front wheel and the steering assembly. You can follow the best assembly recommendations in this video, presented by TMS founder, Thibaut Marriaux.
For any questions or additional modifications, please contact us at info@trial-bikes.com.
| FRONT BRAKE | Disc |
| REAR BRAKE | Disc |
