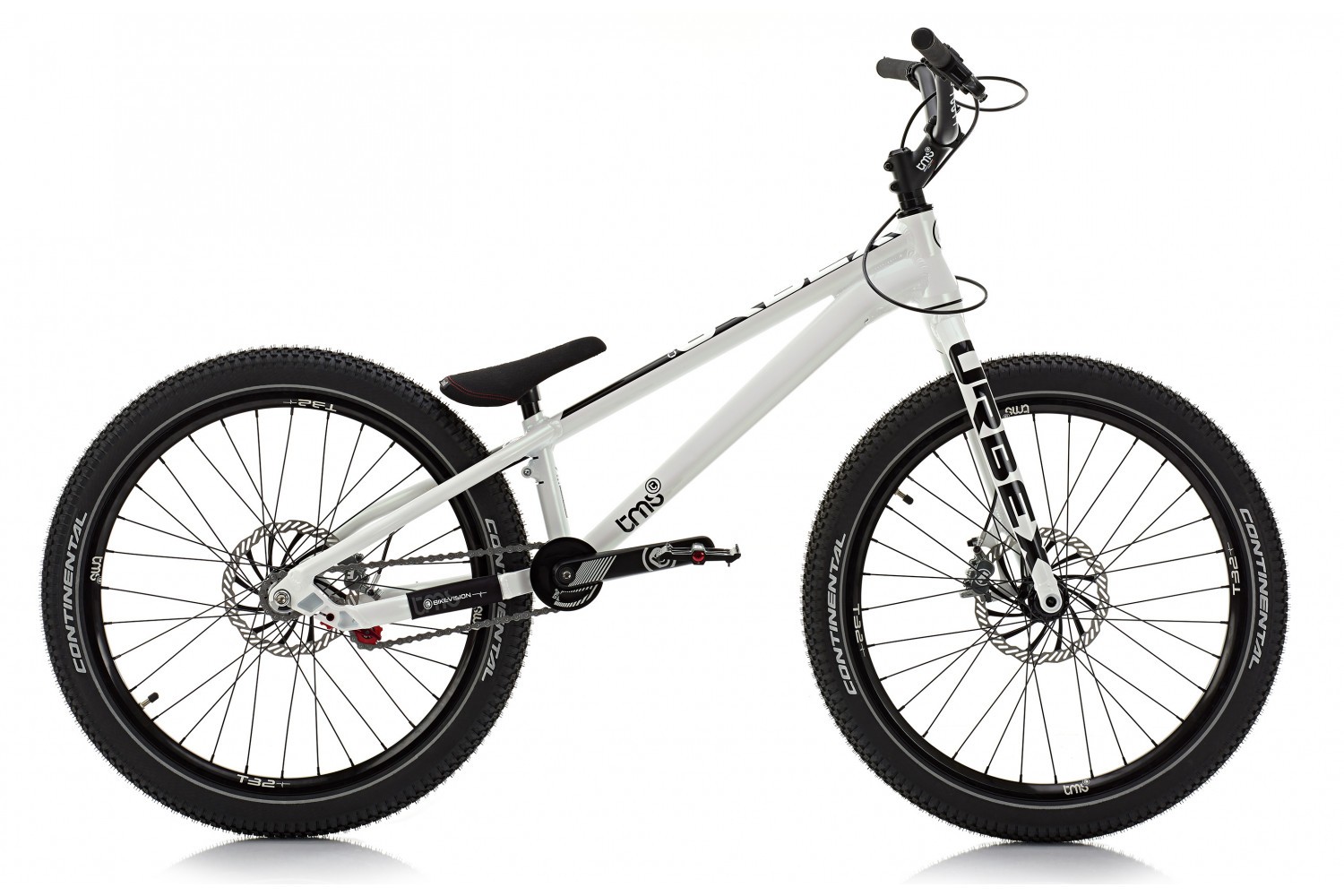

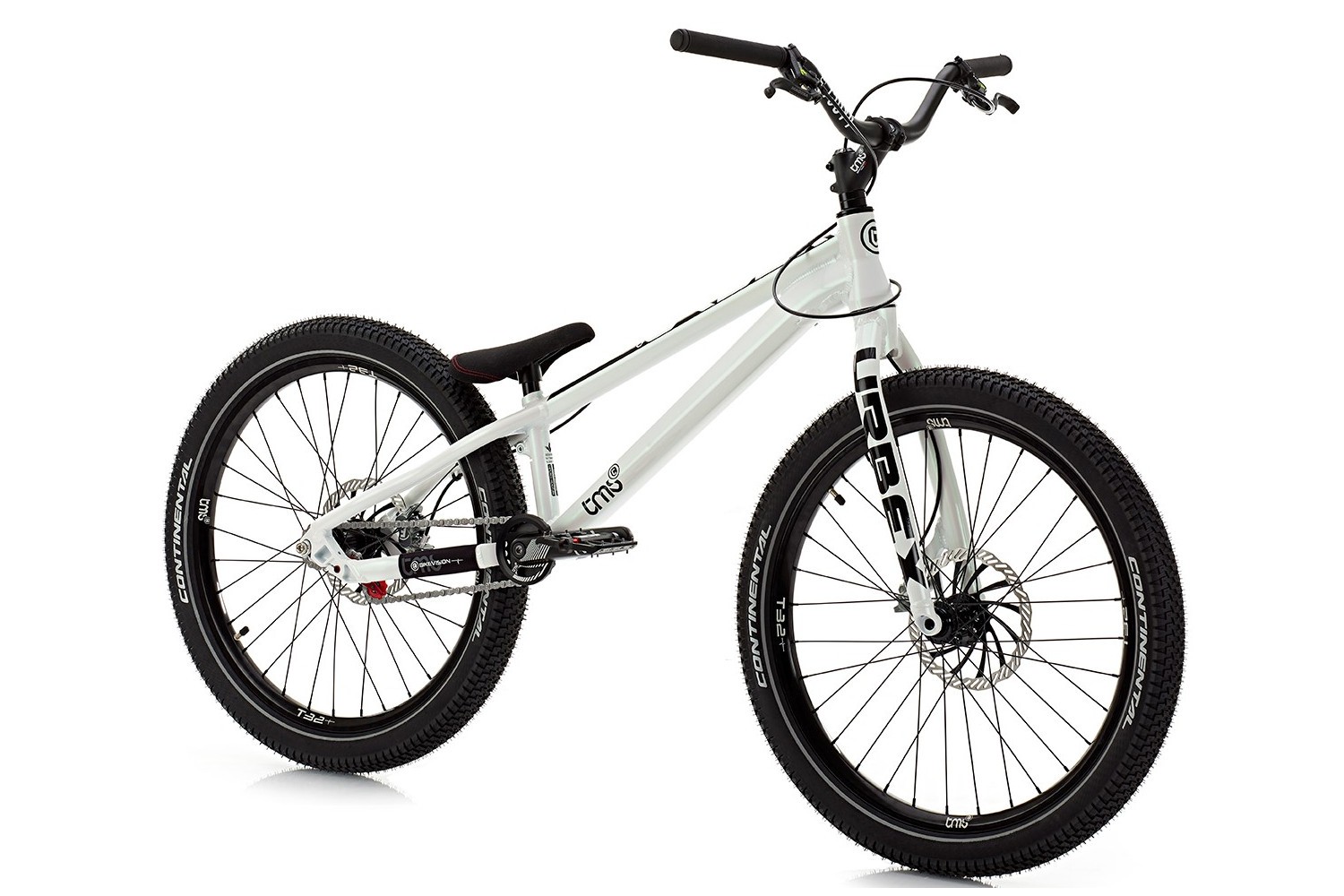

The TMS Urbex is the result of 12+ years of experience in manufacturing and development of TMS trials and street trials bikes. With an exclusive design, featuring hydroformed main tubes that increase stiffness by 15-20%. Its new geometry, now with a shorter 985mm wheelbase, allows for easier maneuverability. The CNC machined dropouts add extra strength and quality, and help neatly integrate the sprung chain tensioner and rear disc brake mounts.
Note: this bike is delivered on demand. Once the order is submitted, delivery times usually oscillate between 10-15 work days.
Frame and Forks

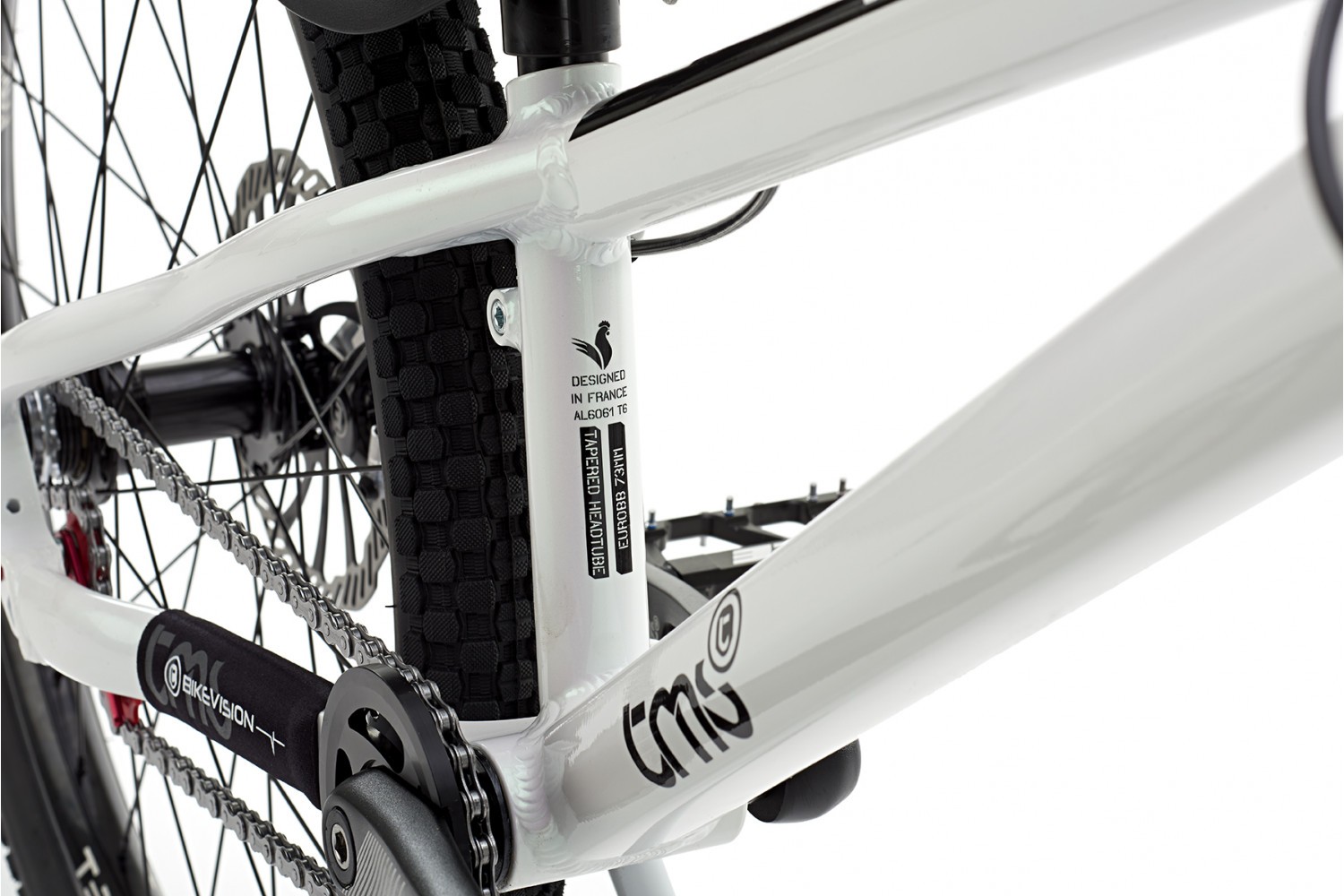

- Frame: TMS Urbex 24" Tapered 1 1/5", made of 6061-T6 aluminium alloy, white colour with URBEX PRO black graphics

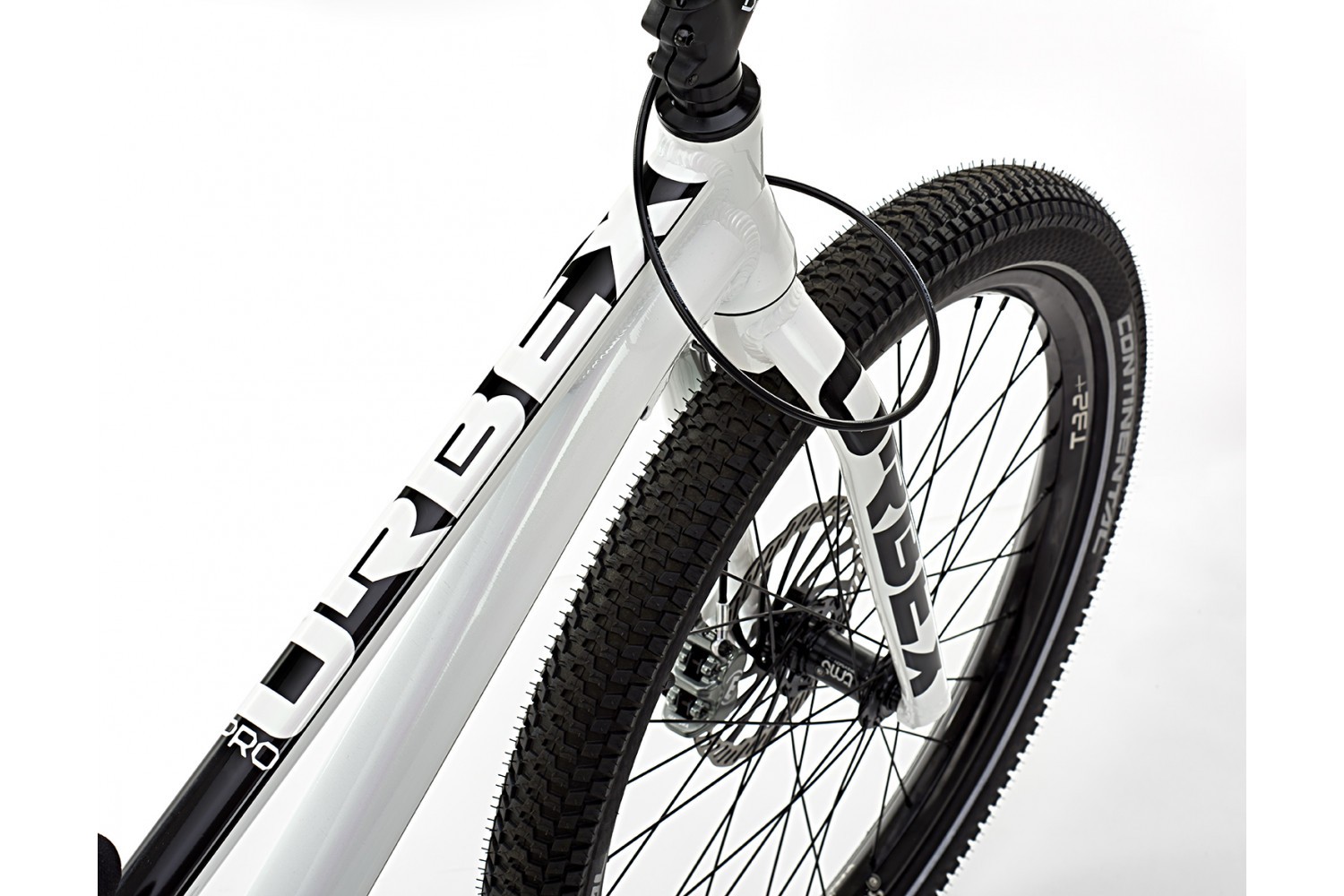

- Fork: TMS Urbex 24" Tapered 1 1/5", for Ø15 mm through-axle, made of aluminium alloy, white colour with URBEX PRO black graphics
Wheels
- Front hub: TMS Disc Street Noir, 32h, Ø15 mm through-axle, Sealed Bearings, Black
- Rear hub: TMS Disc Freehub, 32h, 135 mm, Annular Sealed Bearings, Black
- Chain tensioner: TMS Urbex sprung tensioner
- Front rim: TMS Street 24", double-wall, Black
- Rear rim: TMS Street 24", double-wall, Black
- Spokes: TMS, Black
- Inner tube: Kenda
- Tyres:Â Continental Air King Danny MacAskill 24" x 2.4" tyres
Brakes

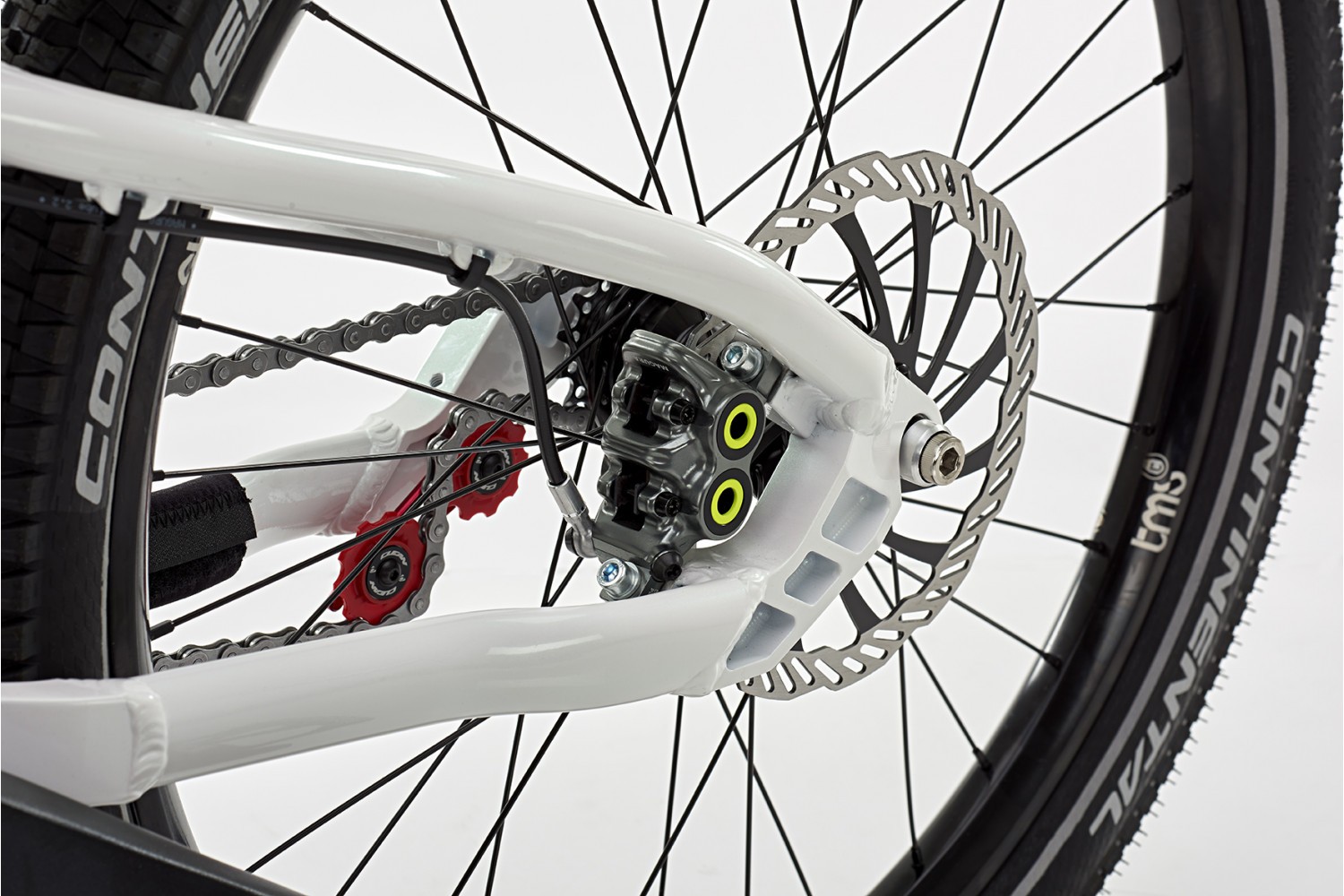

- Magura MT7 brakes, with TMS 180 mm rotors.
Drivetrain

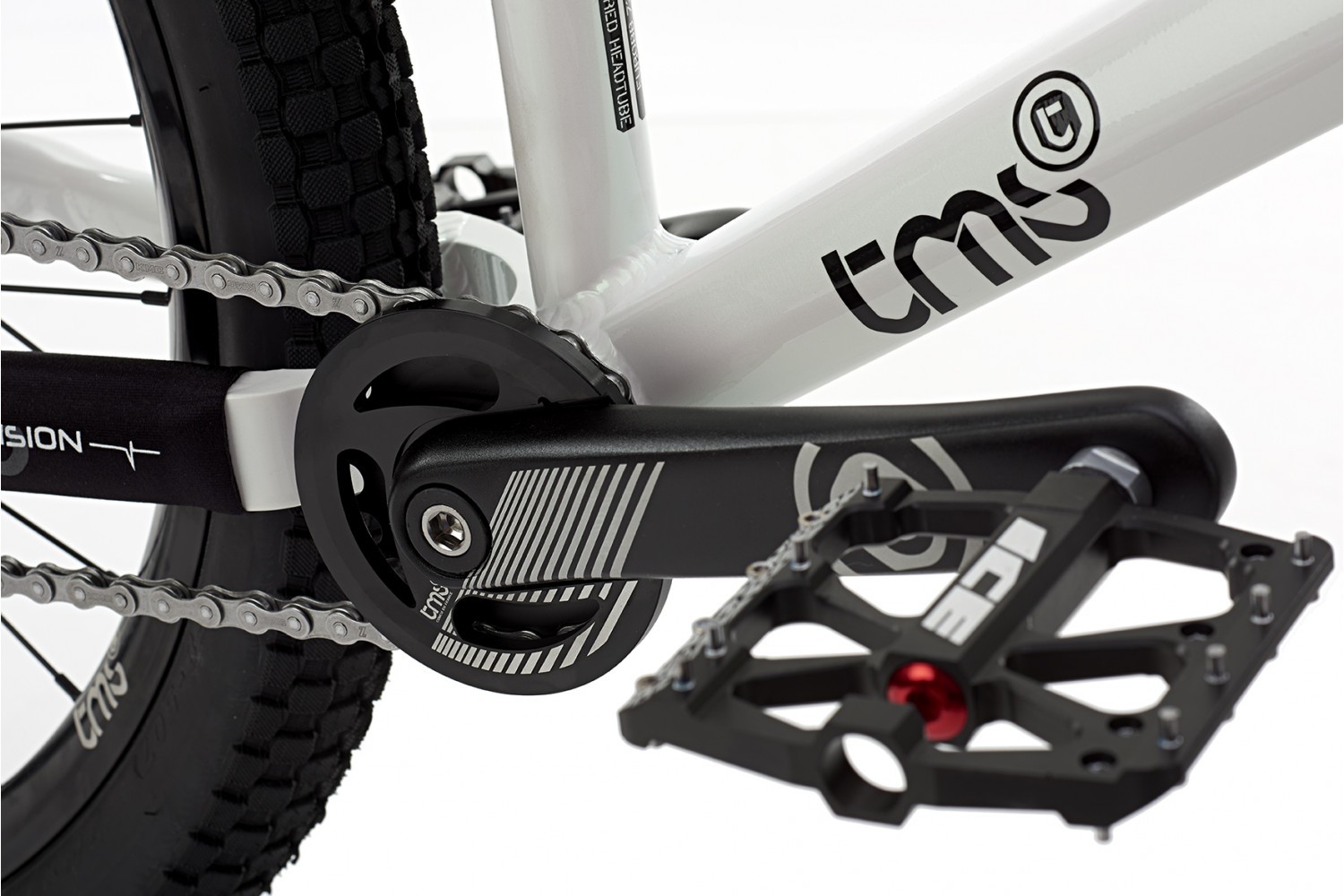

- Cranks: TMS Noire, 170mm long, Black with white TMS graphics
- Front Sprocket: TMS, 18T, 3/32", Black
- Bashring: TMS Noire, Black with white TMS graphics
- Chain: KMC Z610
- Pedals: Wellgo Alu Platform, Black
- Bottom bracket: TMS ISIS 128 mm
Seating
- Seat clamp: Integrated into the frame

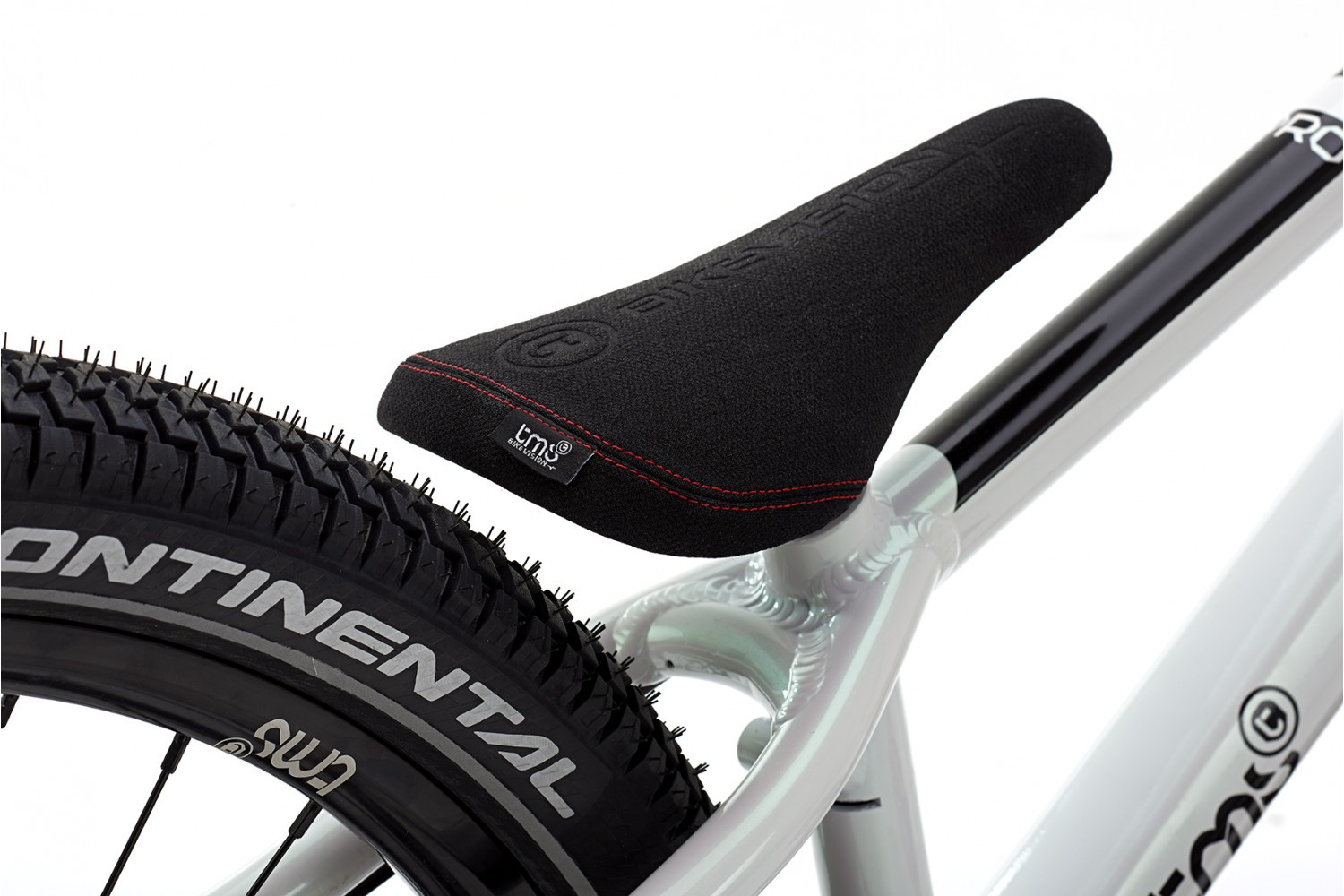

- Saddle: TMS BIKEVISION black seat
Steering

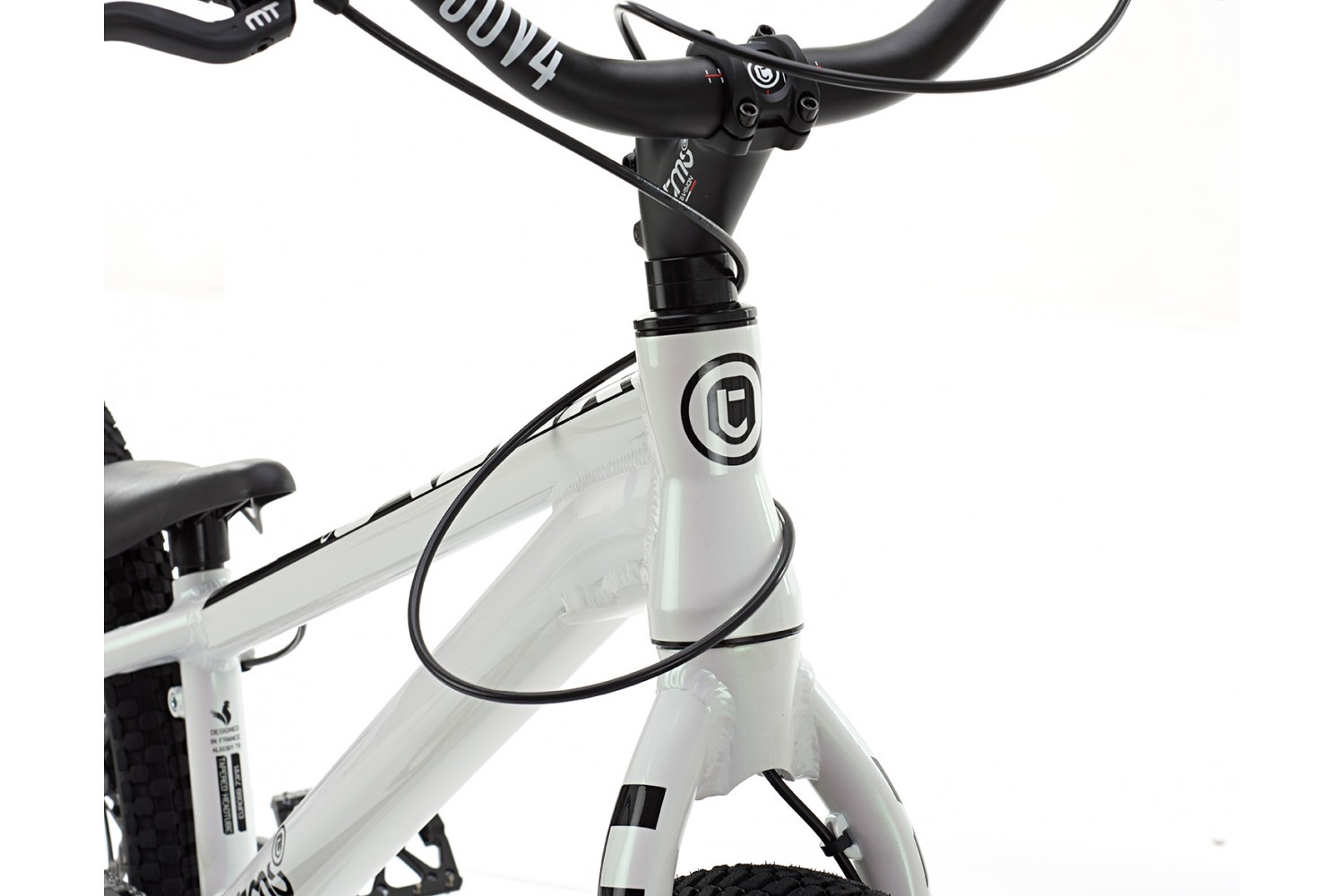

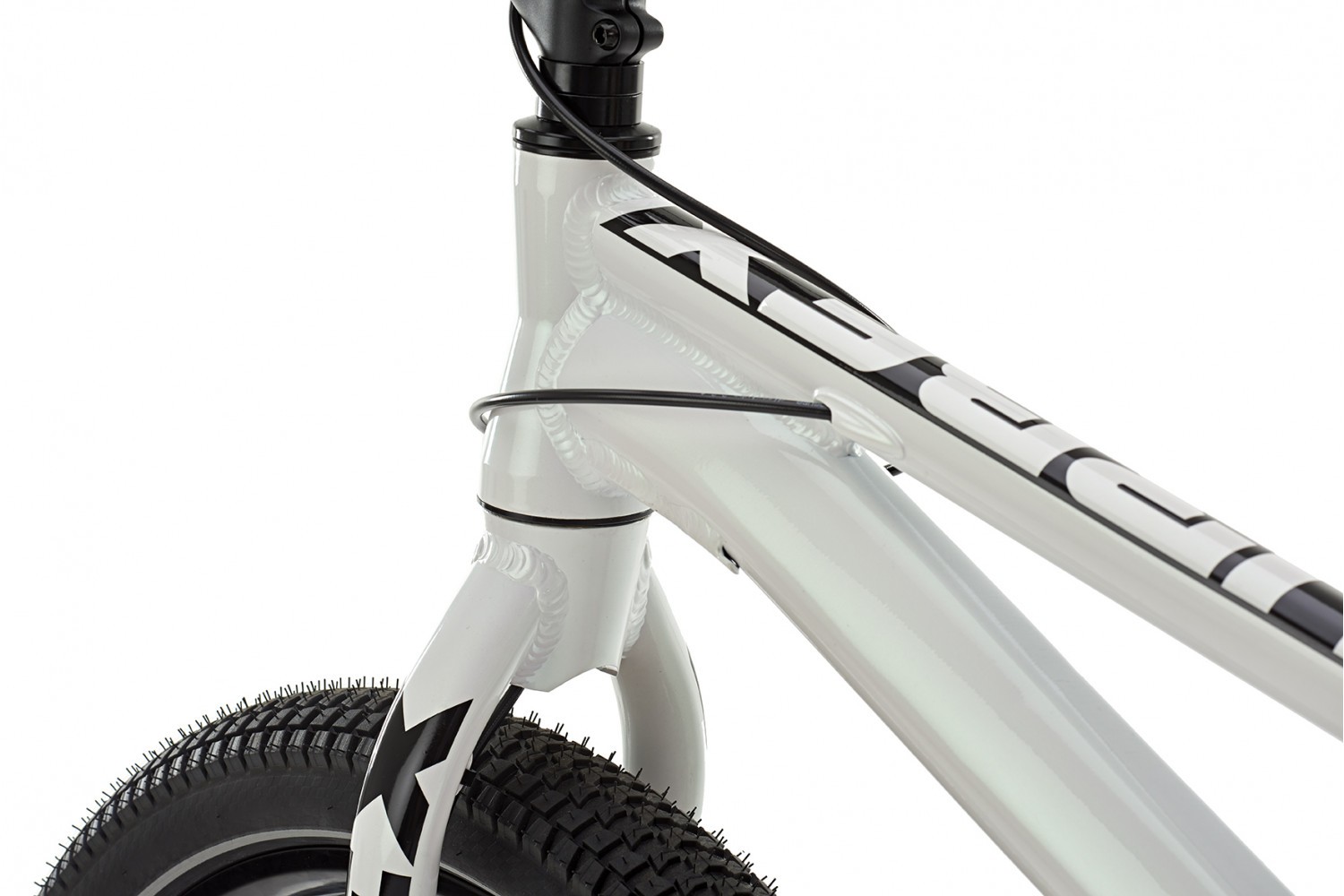

- Headset: TMS 1 1/5" Tapered, internal, Black
- Grips: TMS Noire Thin Rubber Grips, Extra Long, Black
- Handlebars: TMS H750, Black with white TMS graphics
- Stem: TMS 90 mm x 35º stem
Geometry
(1) Wheelbase:Â 985 mm
-----------------------------------------------
(2) Rear End: 362 mm
-----------------------------------------------
(3) Bottom Bracket Height: +30 mm.
-----------------------------------------------
(4) Head Angle: 74°.
-----------------------------------------------
Weight
- 10.5 kg
Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop.
Also available on our website here, with diferent setup option:Â
If you have any doubts, please contact us on info@trial-bikes.com.
