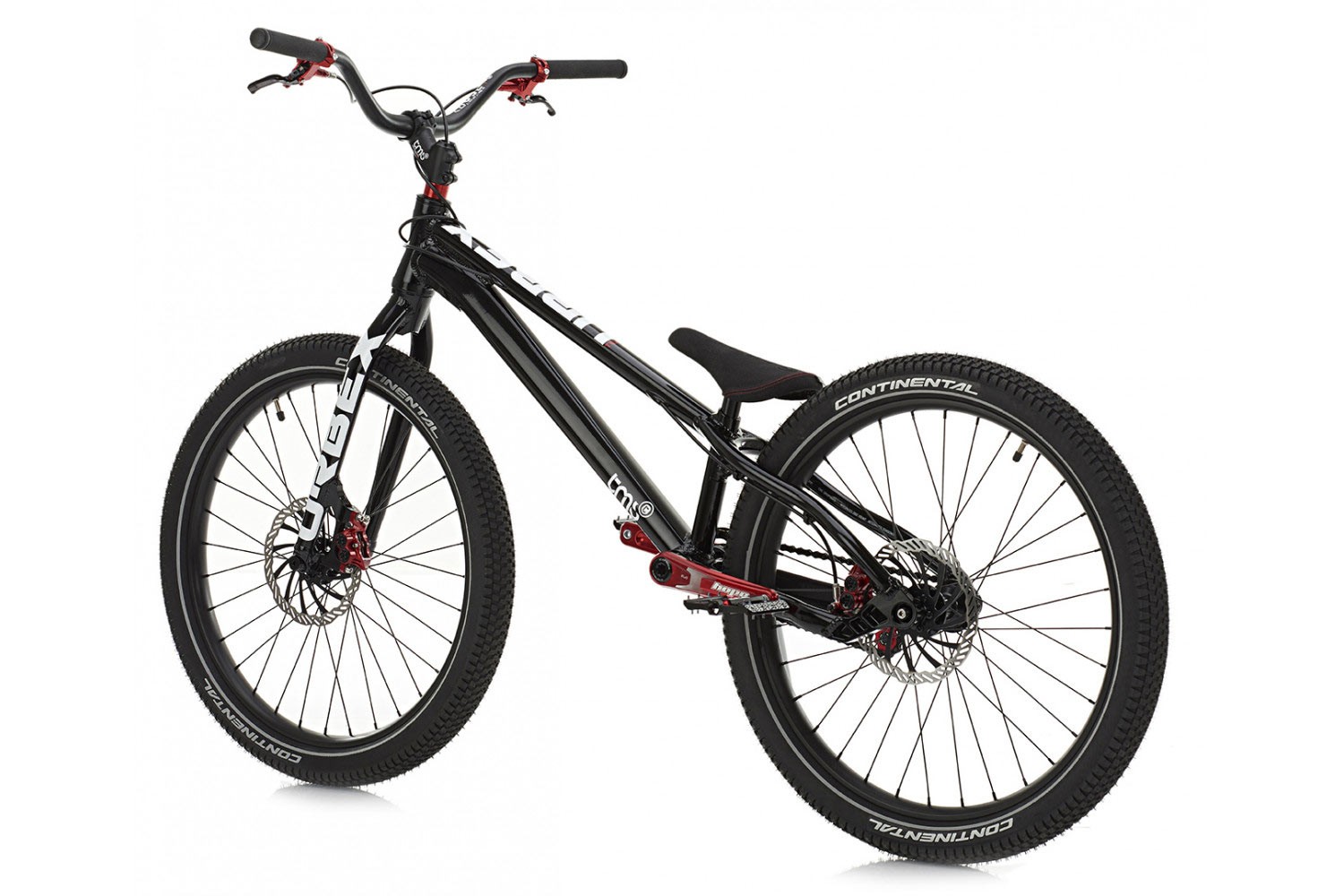

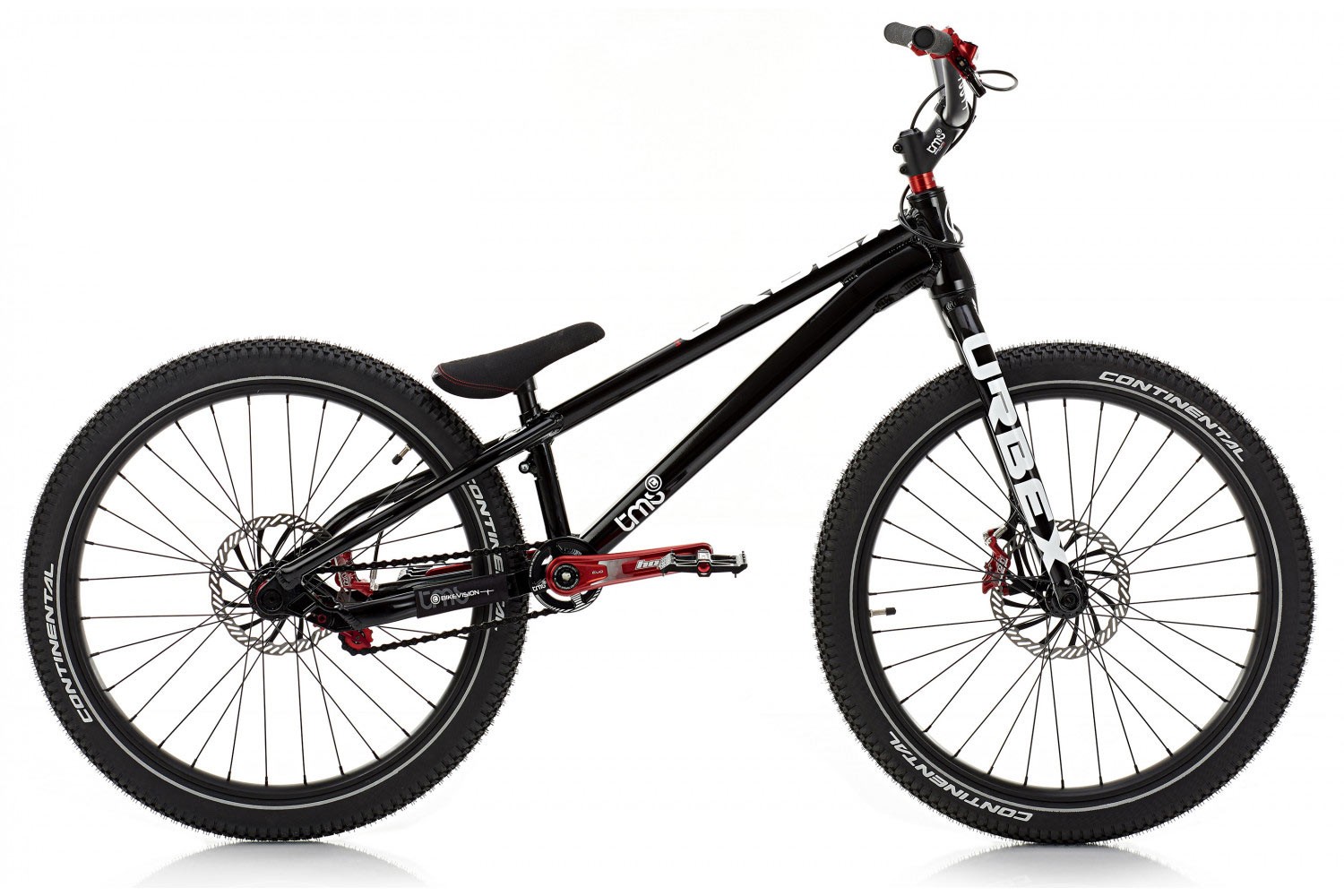

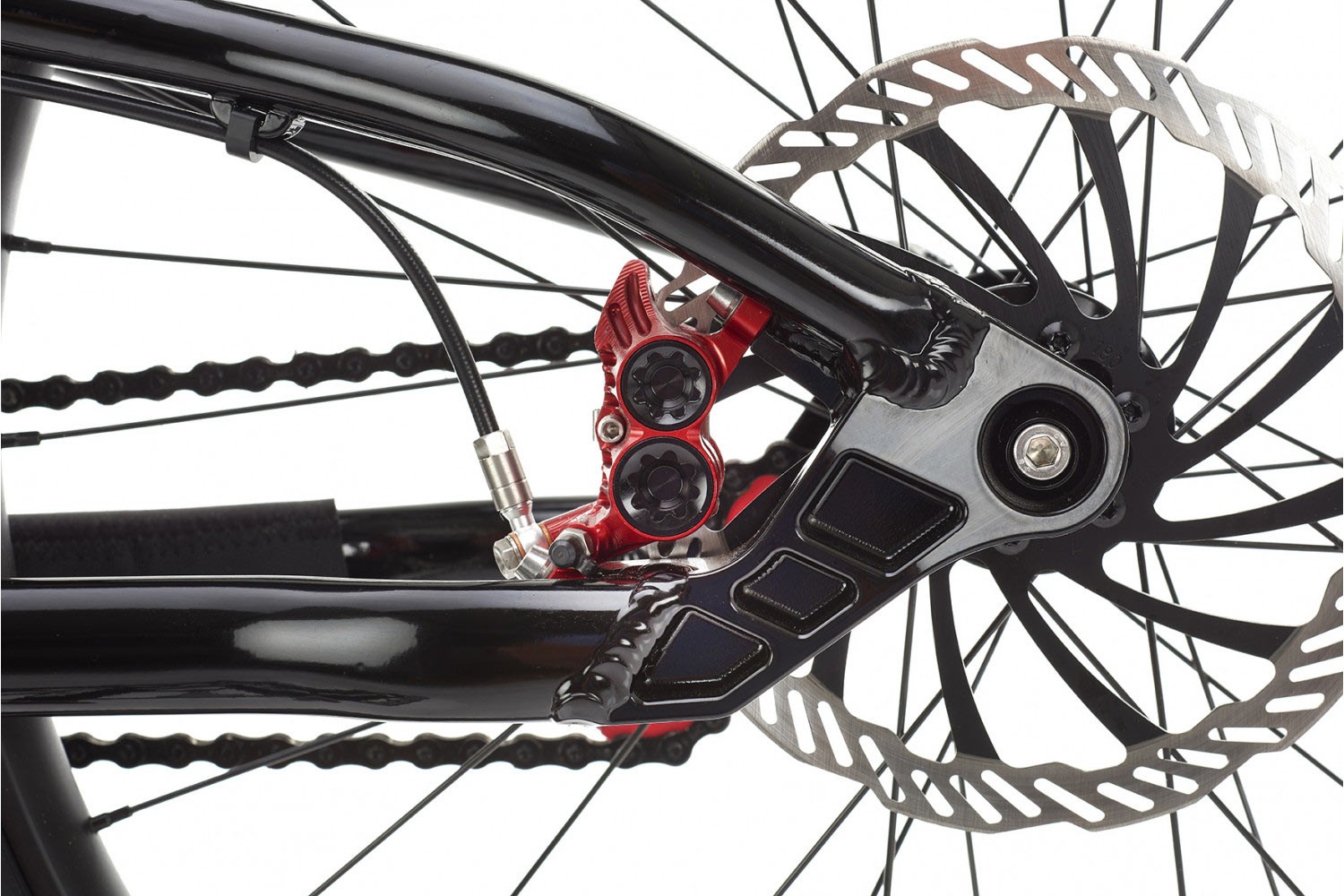

The TMS Urbex is the result of 12+ years of experience in manufacturing and development of TMS trials and street trials bikes. With an exclusive design, featuring hydroformed main tubes that increase stiffness by 15-20%. Its new geometry, now with a shorter 985mm wheelbase, allows for easier maneuverability. The CNC machined dropouts add extra strength and quality, and help neatly integrate the sprung chain tensioner and rear disc brake mounts.
This TEAM Hope edition is the highest-end street trials bike from TMS, featuring Hope Tech3 E4 brakes, Hope EVO crankset, front and rear through-axles, exclusive graphics and the best TMS parts available.
Note: this bike is delivered on demand. Once the order is submitted, delivery times usually oscillate between 10-15 work days.
Frame and Forks

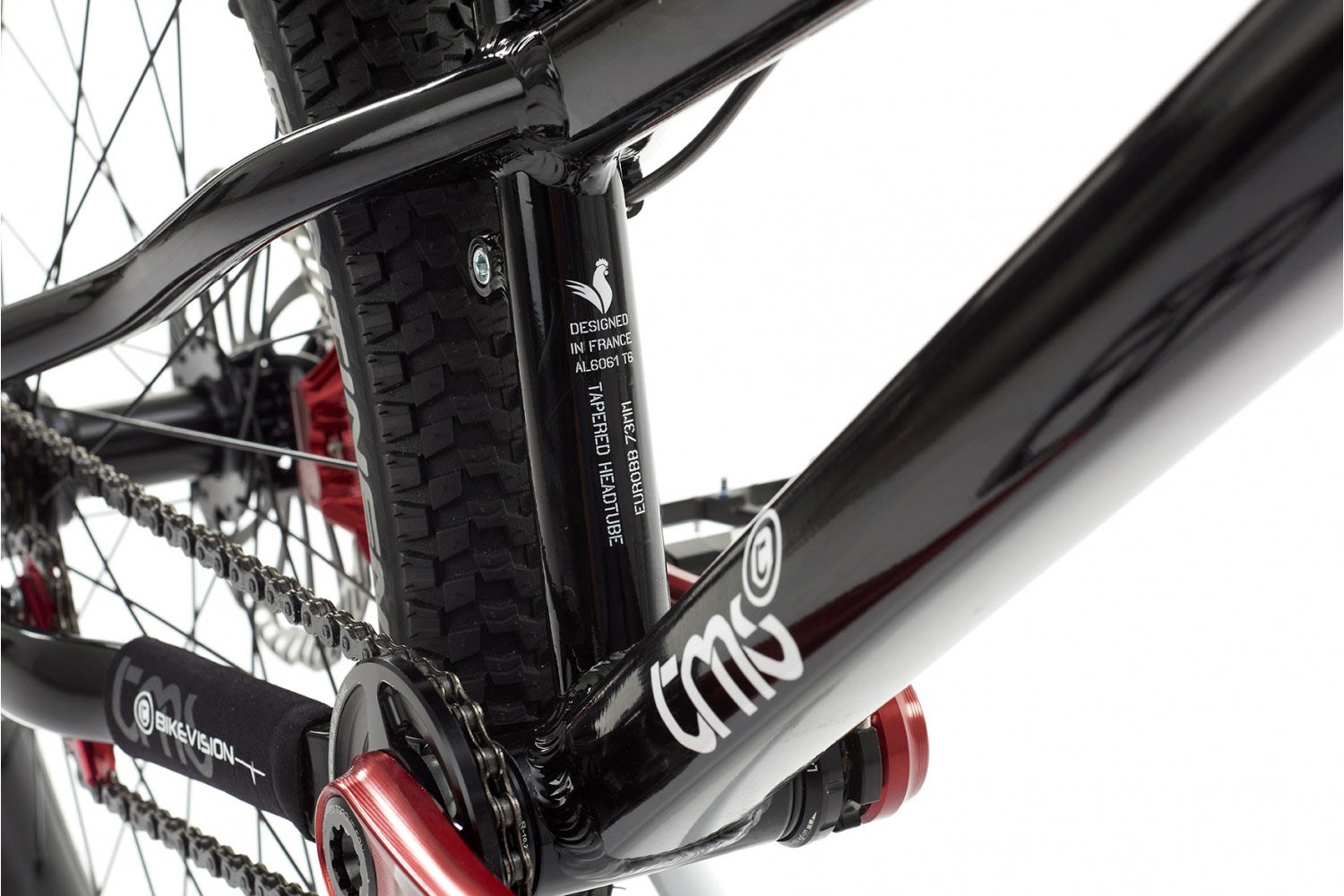

- Frame: TMS Urbex 24" Tapered 1 1/5", for Ø12 mm through-axle, made of 6061-T6 aluminium alloy, gloss black colour with URBEX TEAM white graphics
- Fork: TMS Urbex 24" Tapered 1 1/5", for Ø15 mm through-axle, made of aluminium alloy, gloss black colour with URBEX TEAM white graphics
Wheels
- Front hub: TMS Disc Street Noir, 32h, Ø15 mm through-axle, Sealed Bearings, Black
- Rear hub: TMS Disc Freehub, 32h, Ø12 mm through-axle, 135mm, Annular Sealed Bearings, Black

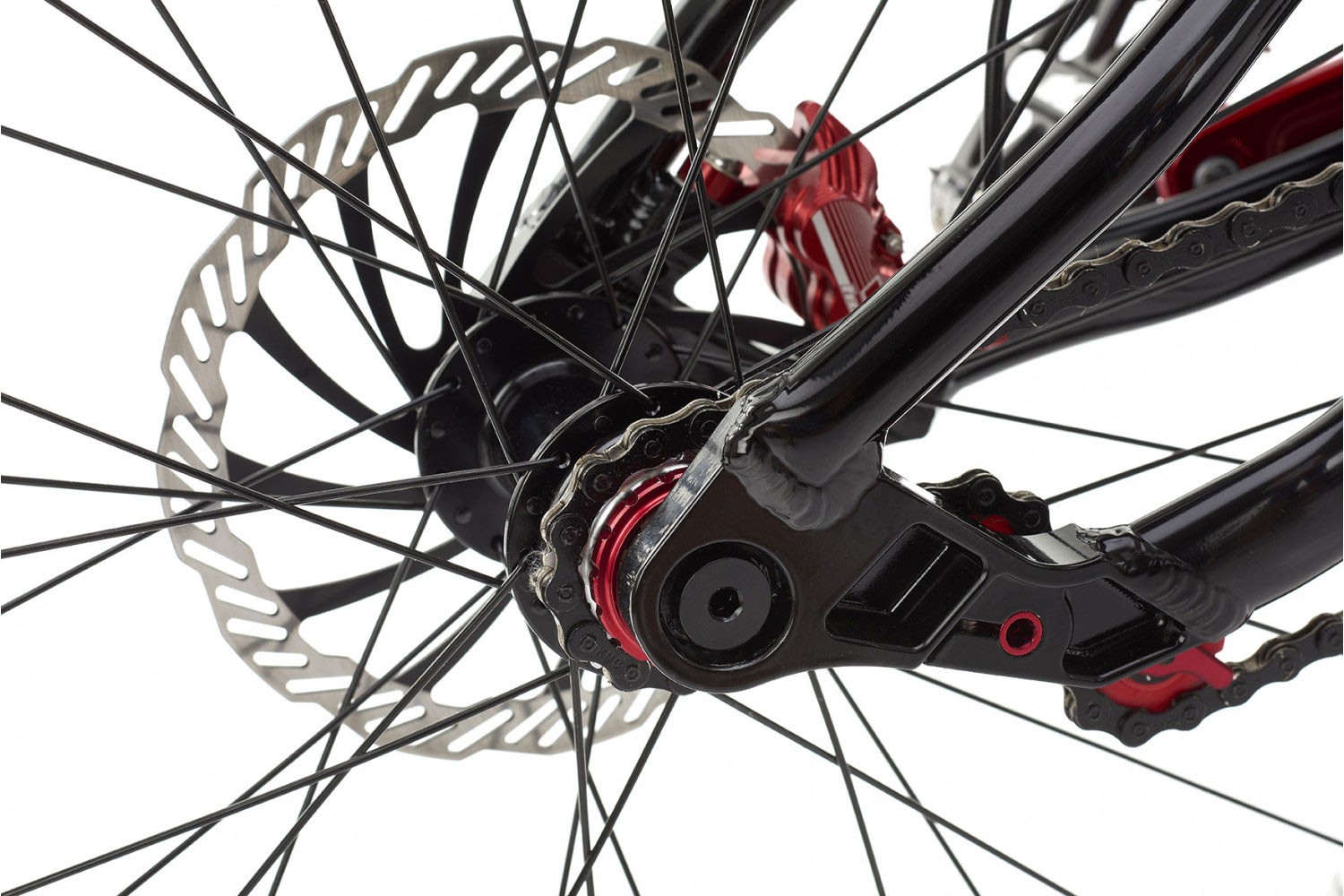

- Chain tensioner: TMS Urbex sprung tensioner
- Front rim: TMS T32 24", double-wall, Black
- Rear rim: TMS T32 24", double-wall, Black
- Spokes: TMS, Black
- Inner tubes: Kenda
- Tyres: Continental Air King Danny MacAskill 24" x 2.4"
Brakes

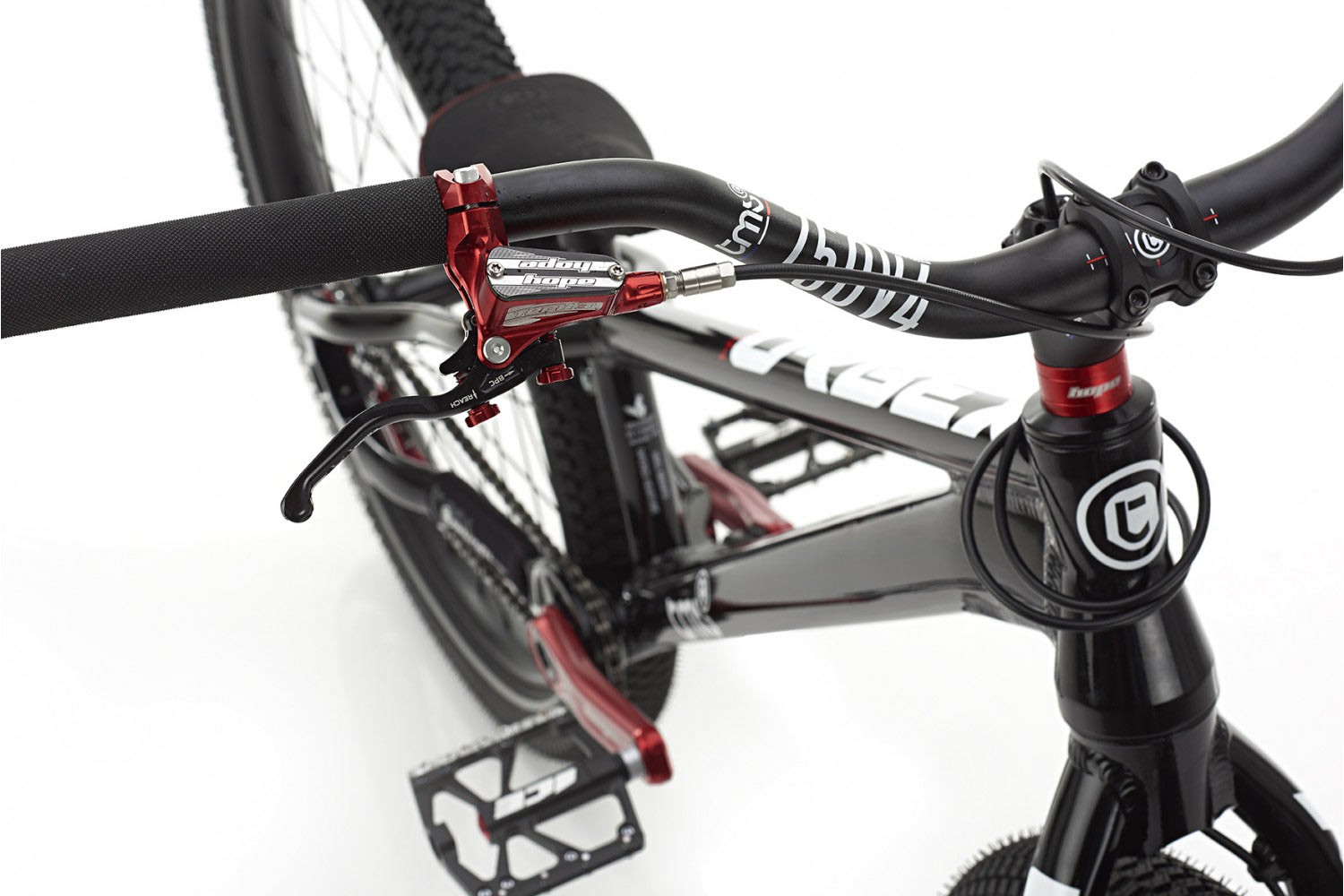

- Front and rear Hope Tech3 E4 brakes in anodized red colour, with 180mm TMS rotors.
Drivetrain

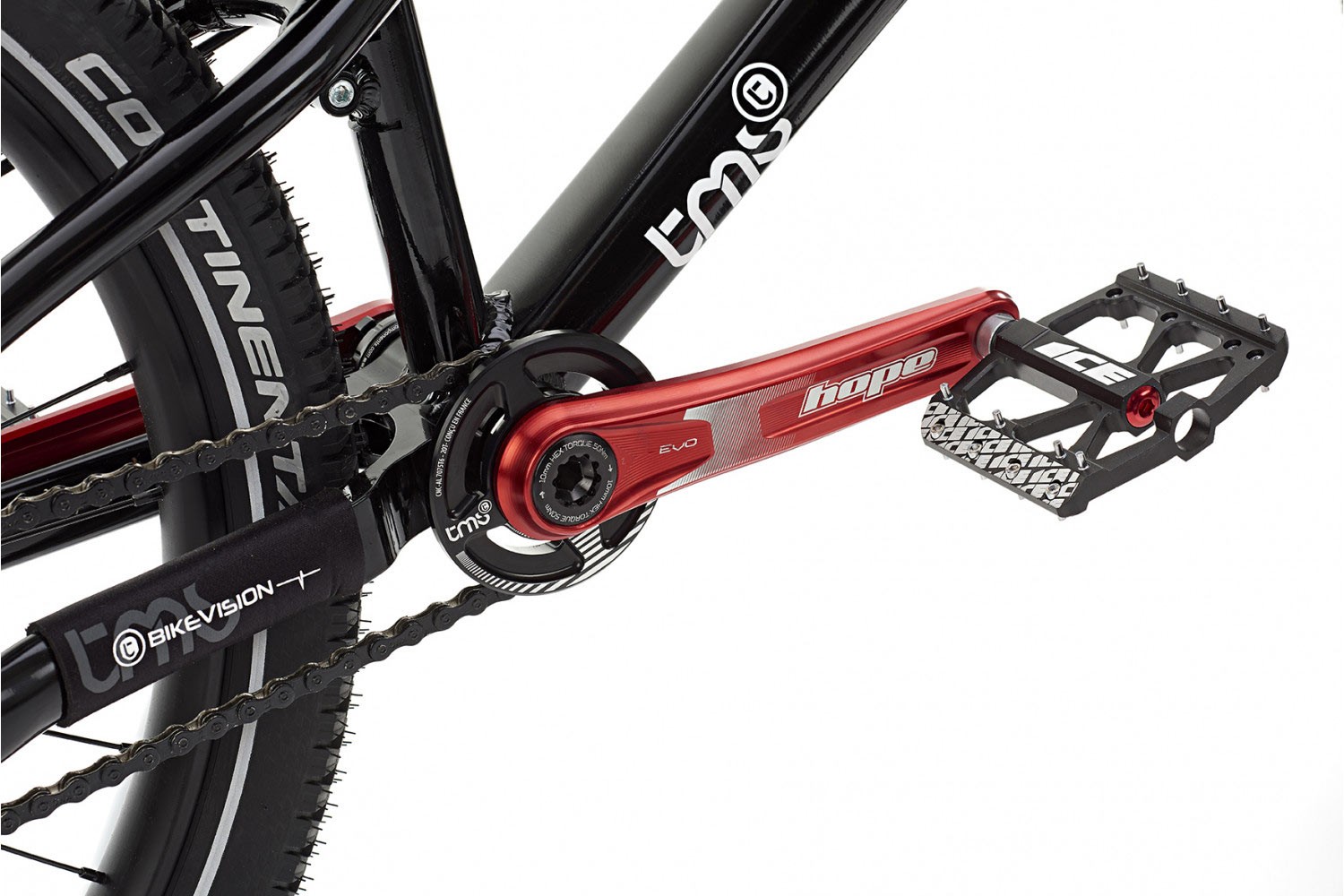

- Cranks: Hope EVO, 170 mm long, anodized red
- Bottom bracket: TMS BSA30, Black
- Front sprocket: TMS, 18T, 3/32", Black
- Bashring: TMS V2 Integrated, Black with white TMS graphics
- Chain: KMC Z610, Black
- Pedals: ICE Fast Platform, Black
Seating
- Seat clamp: Integrated into the frame
- Saddle: TMS BIKEVISION Noire
Steering

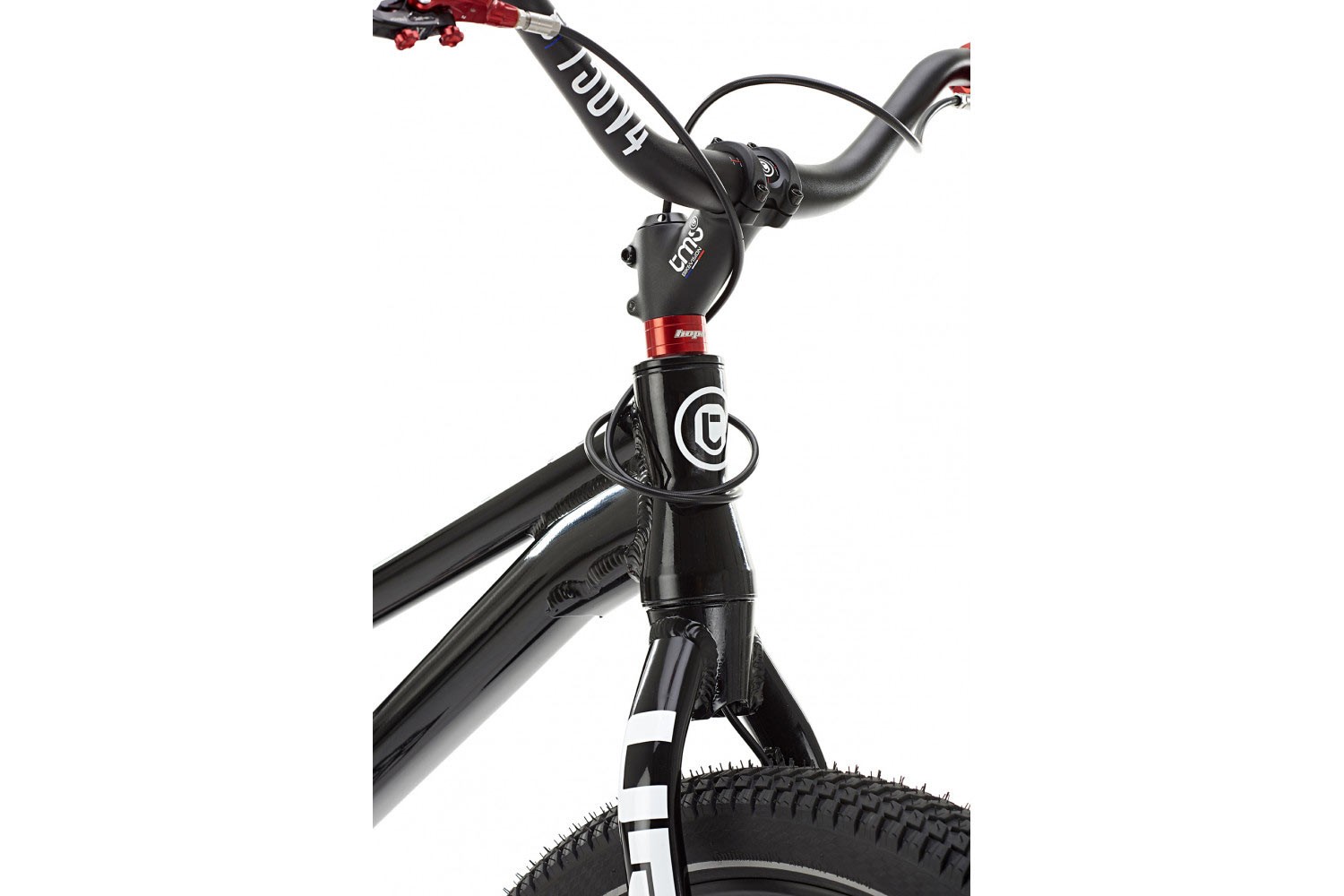

- Headset: TMS 1 1/5" Tapered, internal, Black
- Grips: TMS Noire Thin Rubber Grips, Extra Long, Black
- Handlebars: TMS H750, Black with white TMS graphics

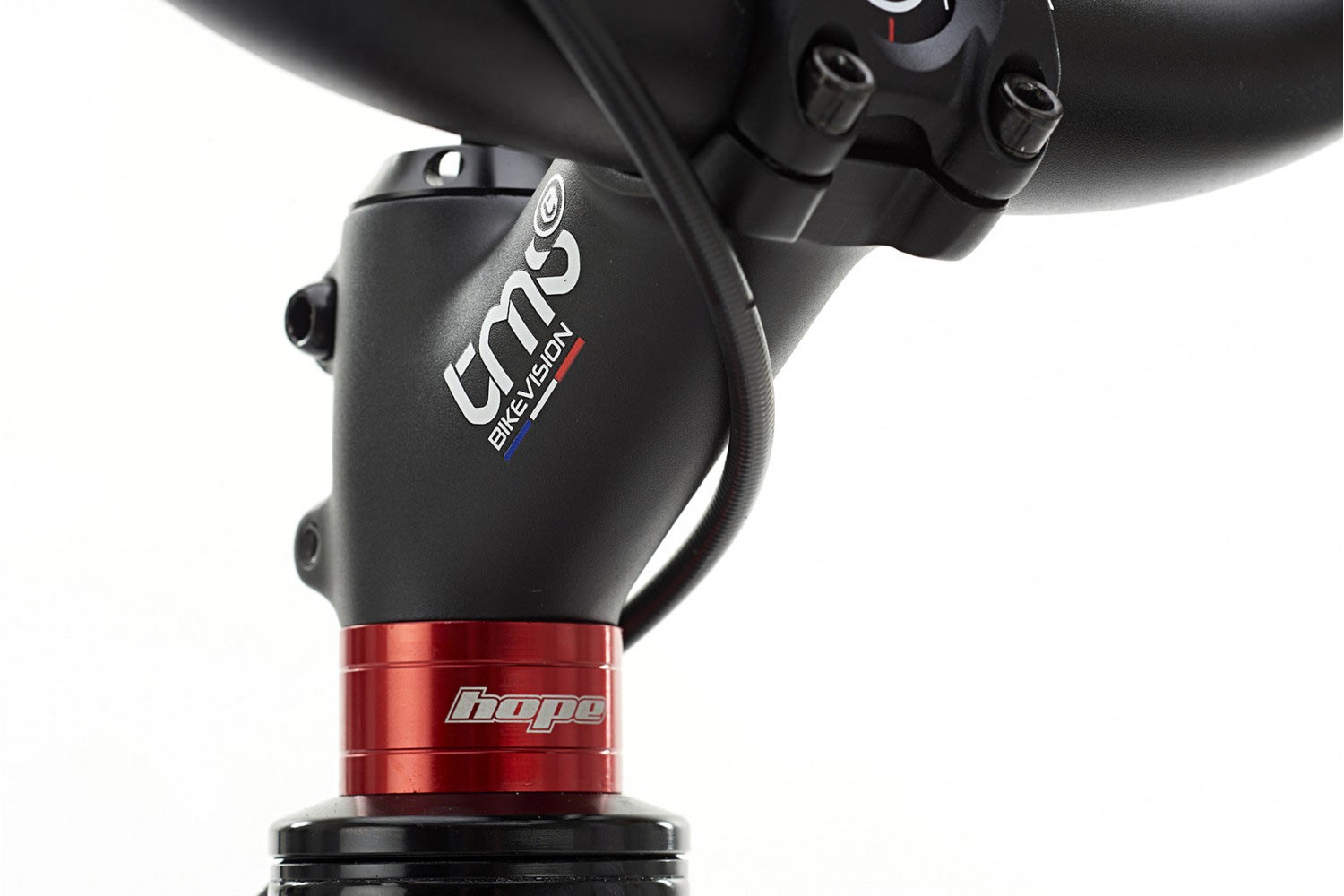

- Stem: TMS 80 mm x 40º
Geometry
(1) Wheelbase: 985 mm
-----------------------------------------------
(2) Rear End: 362 mm
-----------------------------------------------
(3) Bottom Bracket Height: +30 mm.
-----------------------------------------------
(4) Head Angle: 74°.
-----------------------------------------------
Weight
- 10.2 kg (without pedals)
Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop.
If you have any doubts, please contact us on info@trial-bikes.com.
| FRONT BRAKE | Disc |
| REAR BRAKE | Disc |
