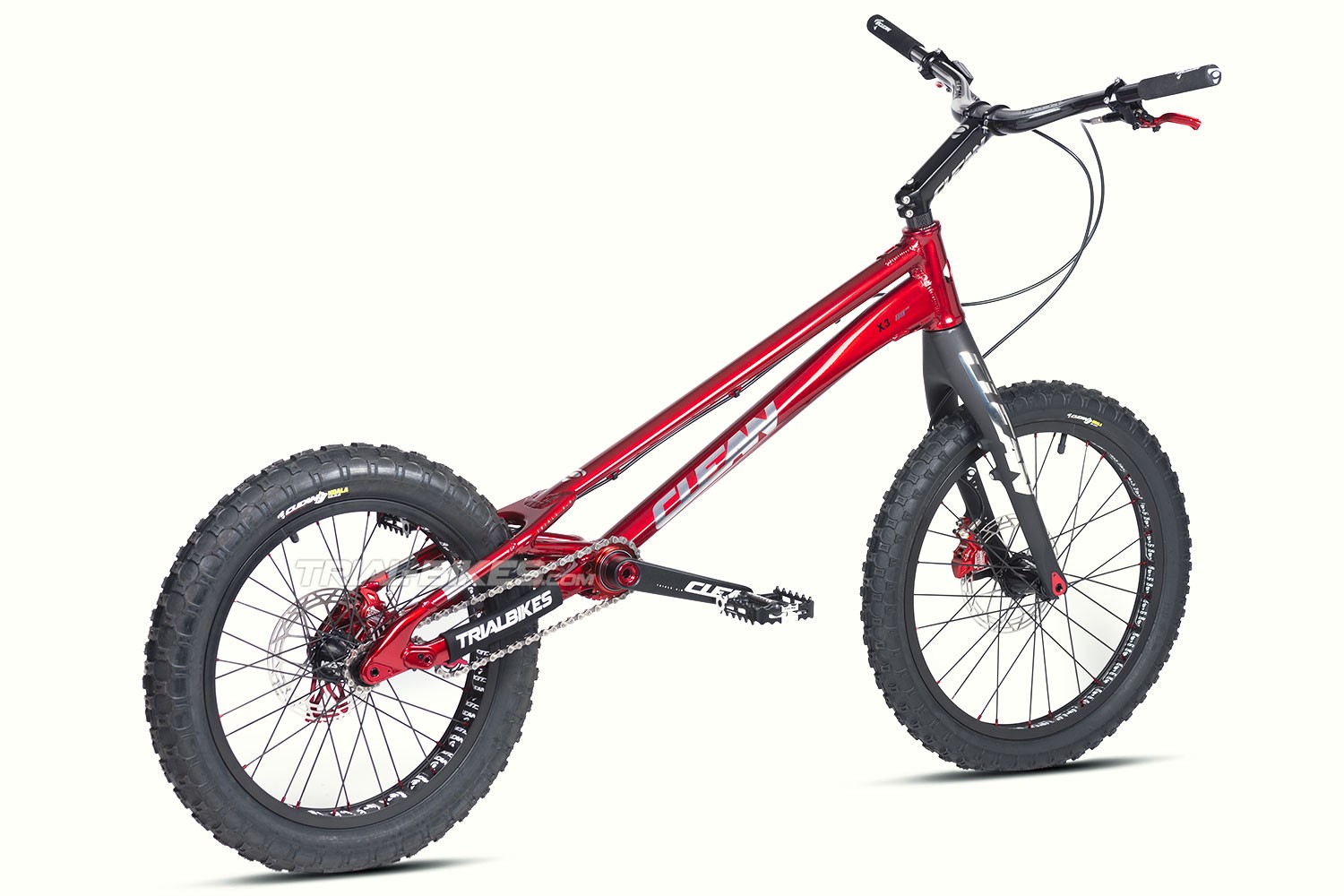

Clean X3 Pro 20" Bike

Clean X3 Pro 2023 20" Bike

· Option 1: Hope Tech 4 Trial Zone front and rear disc brakes (Disc/Disc).

· Option 2: Clean HS front rim brake and Hope Tech 4 Trial Zone rear disc brake (HS/Disc).

Check the following list to see the components of each setup option.

Frame and fork
- Frame: Clean X3 2023 20”, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts and exchangeable dropout inserts
- Forks: Clean K1 2022 20” Carbon tapered 1 1/8” – 1.5”, made of carbon fibre, with Post Mount disc brake mounts, 4-bolt rim brake mounts and exchangeable dropout inserts

Wheels
- Front hub: Clean X3 28 spoke holes, 12 mm through-axle, 104 mm spacing
- Rear hub: Clean X3 32 spoke holes, 12 mm through-axle and rotor mounts, 120 mm spacing, Shimano HG splines.
- Chain tensioner: Clean X2 PRO integrated, with two 10T jockey wheels made of 7075 T6 aluminium
- Front rim: Clean Trials PRO 20”, single wall, 34 mm wide, 28 spoke holes, anodized black
- Rear rim: Clean Trials PRO 19”, single wall, 48 mm wide, 32 spoke holes, anodized black
- Spokes: Aero Ultra light spokes, black
- Rim tape: Clean, black
- Front inner tube: Clean 20"
- Rear inner tube: Clean 20"
- Front tyre: Clean Koala 20” x 2.00”
- Rear tyre: Clean Koala 19” x 2.60”

Brakes

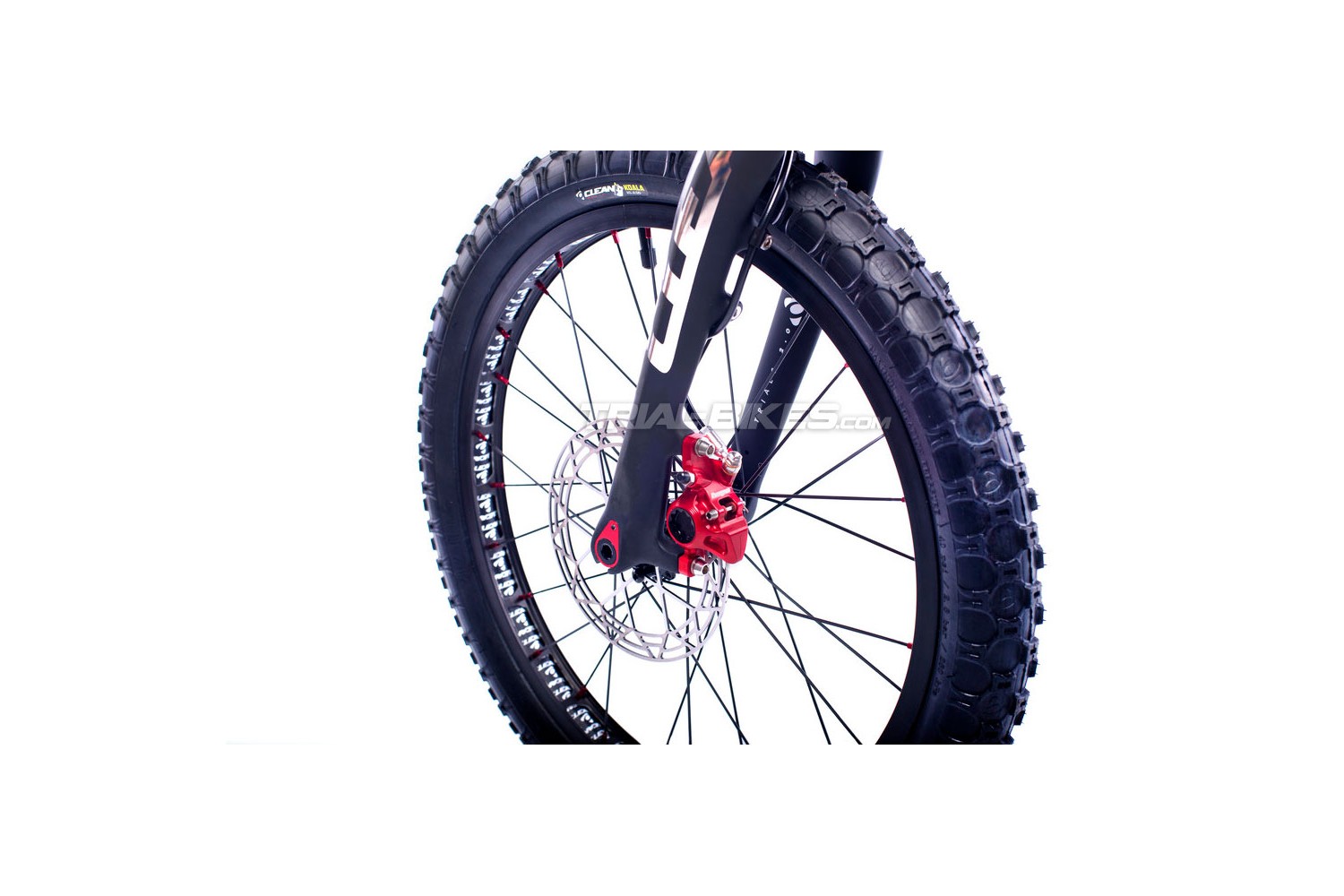

- Front brake: Hope Tech 4 Trial Zone or Clean HS rim brake (depending on brakes choice)
- Rear brake: Hope Tech 4 Trial Zone
- Rotors: Clean RS, 160 mm (front), 160 mm (rear)
- Disc protector: Clean
- Rim brake pads: Clean X2 or Magura black
- Brake clamps: Clean X2 Washerless

Drivetrain
- Crankset: New Clean X2 3-piece set, with Press Fit BB30 30 mm diameter BB axle, CNC machined, with a new adjustment system(without cups, integrated bearings). 160 mm long cranks, for Shimano HG-splined freewheel, available in black with Clean silver graphics
- Freewheel: Clean 135.9 eng, 18 teeth, black
- Chain: KMC X9, silver
- Rear sprocket: Clean 12T splined, made steel from , black
- Pedals: Clean single cage, 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red

Steering
- Headset: Clean X2 Superlight Tapered 1 1/8”-1.5”, sealed bearings, anodized red
- Grips: Extra-thin Clean foam, black
- Steam: Clean Trials Pro 24º Stem, 145 mm.
- Handlebar: 103 mm Clean X2 Carbon Handlebar, silver.

Geometry

(1) Wheelbase: 1010 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +87 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 610 mm
-----------------------------------------------
(6) Reach: 469 mm
-----------------------------------------------
(7) Stack: 373 mm
-----------------------------------------------

Weight
- 8.160 kg (full disc version), verified by TrialBikes.

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.
Some pictures may not match the item described, so please read the description carefully.
Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.
If you have any doubts, please contact us on info@trial-bikes.com.
