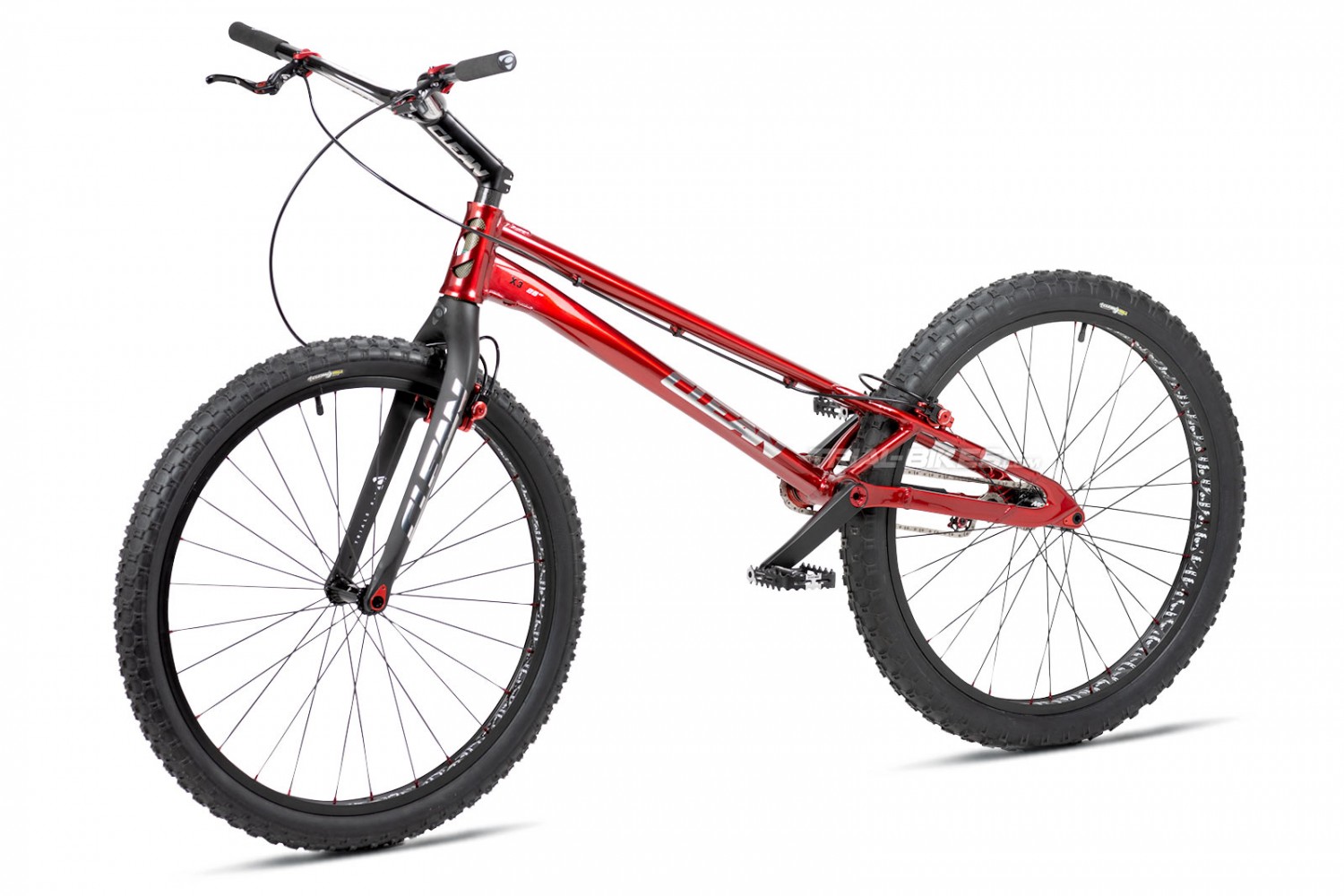

Clean X3 Pro 26" Bike

Clean X3 Pro 26" Bike

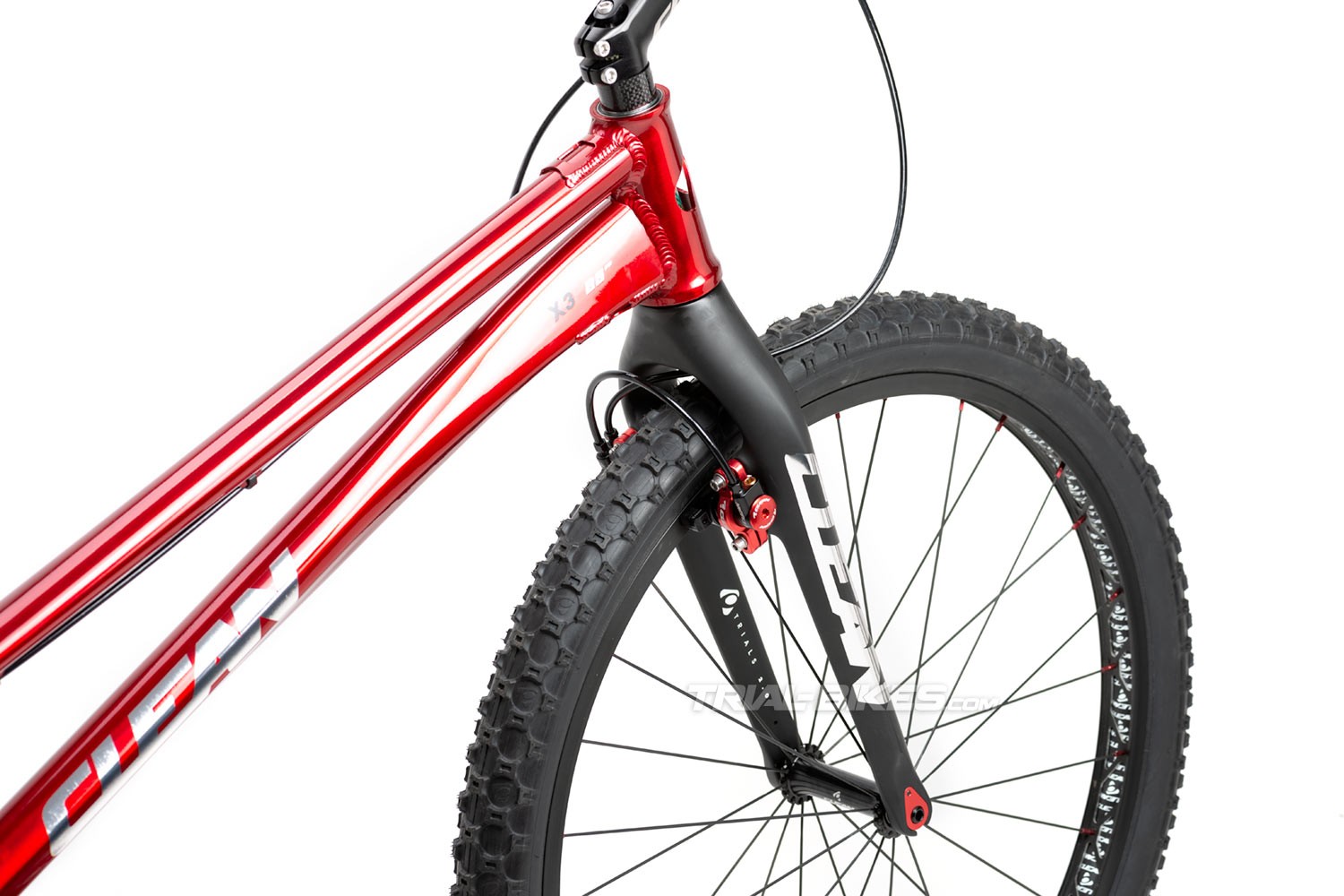

Frame and fork

- Frame: Clean X3 26”, made from 6061-T6 + 7075-T6 aluminium alloys, with 4-bolt rim brake mounts.
- Forks: Clean K1 26” Carbon tapered 1 1/8” – 1.5”, made of carbon fibre, with 4-bolt rim brake mounts and exchangeable dropout inserts

Wheels

- Front hub: Clean X3, 12mm through-axle, 28 spoke holes, without rotor mounts, 104 mm spacing, anodized black
- Rear hub: Clean X3, 12mm through-axle, 32 spoke holes, without rotor mounts, 120 mm spacing, anodized black
- Chain tensioner: Clean X2 integrated, with two 10T aluminium jockey wheels
- Front rim: Clean X2 High Profile 26”, single wall, 32 mm wide, 28 spoke holes, anodized black
- Rear rim: Clean X2 High Profile 26”, single wall, 49 mm wide, 32 spoke holes, anodized black
- Spokes: Stainless lightweight spokes, black
- Rim tape: Clean
- Front inner tube: Clean 26"
- Rear inner tube: Clean 26"
- Front tyre: Clean Koala, 26" x 2.0"
- Rear tyre: Clean Koala, 26" x 2.5"

Brakes

- Front brake: Clean Trials HS
- Rear brake: Clean Trials HS

- Rim brake pads: Clean X2, black
- Brake clamps: Clean X2 Washerless

Drivetrain

- Crankset: Clean X2 3-piece set, with Press Fit BB30 30 mm diameter BB axle, CNC machine, new adjustment system, 170 mm long cranks, for Cassette Shimano HG-type freewheel
- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC X9, silver
- Rear sprocket: Clean 15T Shimano HG splined, steel, black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashring: Clean Ring, anodized red

Steering

- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red

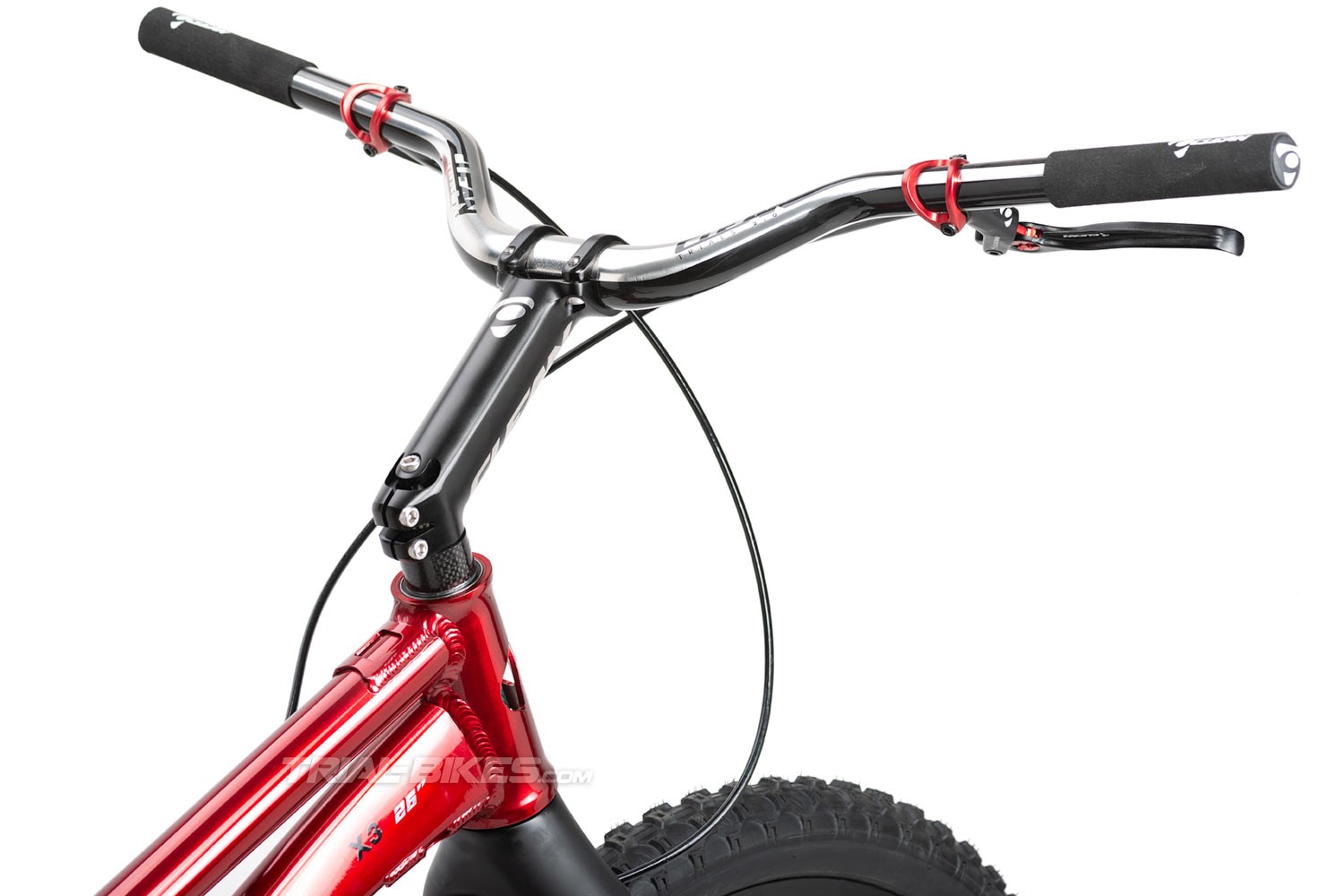

- Stem: Clean 145 mm x 24°, 31.8 mm Oversized handlebar diameter
- Grips: Clean foam, black

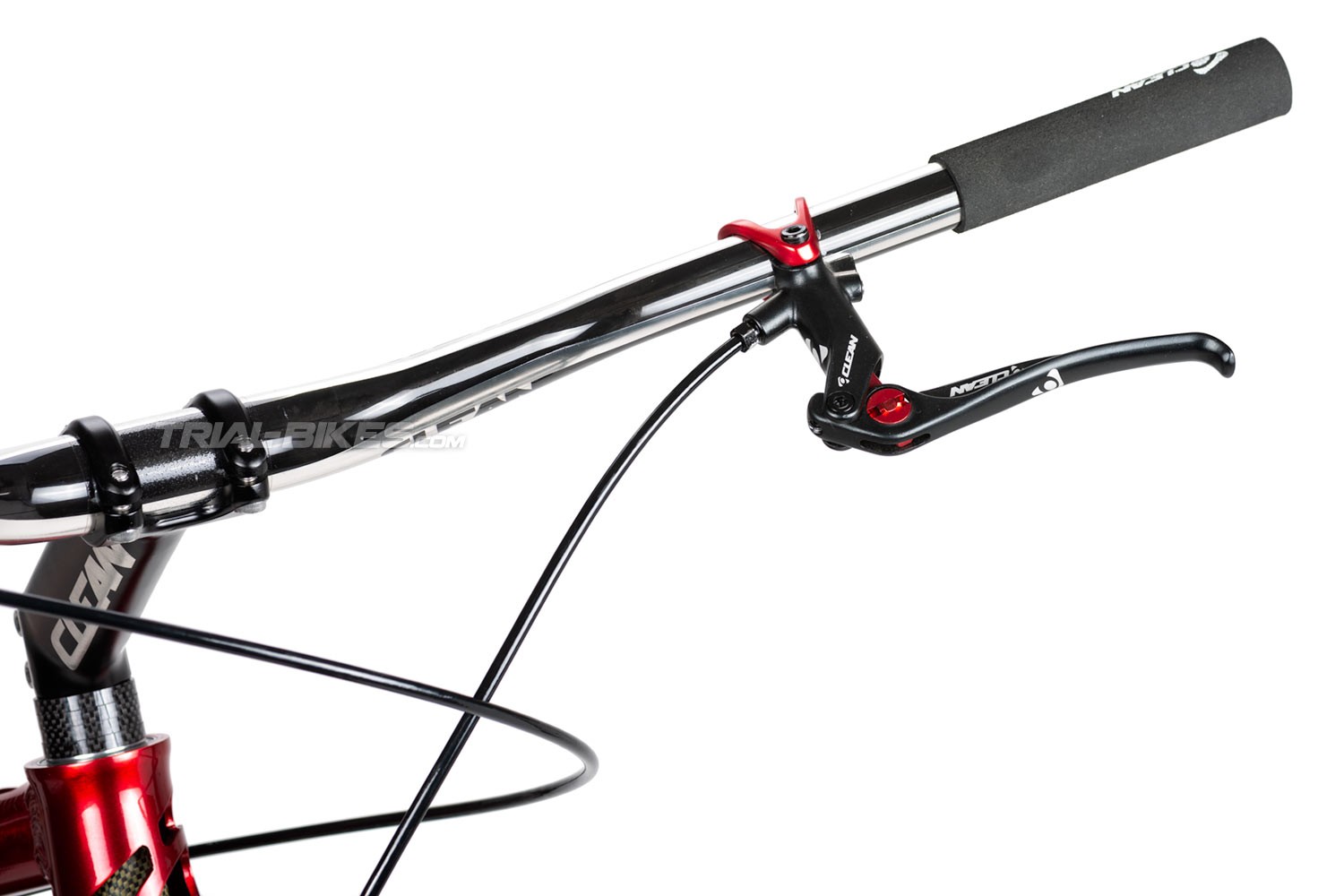

- Handlebar: Clean X2 107 mm carbon fibre, 730 mm long, 31.8 mm Oversized handlebar diameter, silver finish

Geometry

(1) Wheelbase: 1070 mm (short) and 1090 mm (long)
-----------------------------------------------
(2) Rear End: 370 mm
-----------------------------------------------
(3) Bottom Bracket Height: +66 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(6) Reach: 693 mm (short) y 713 mm (long)
-----------------------------------------------

Weight

- 8.74 kg, verified by TrialBikes.

Additional information:

The list of components may change. Any change on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com.
