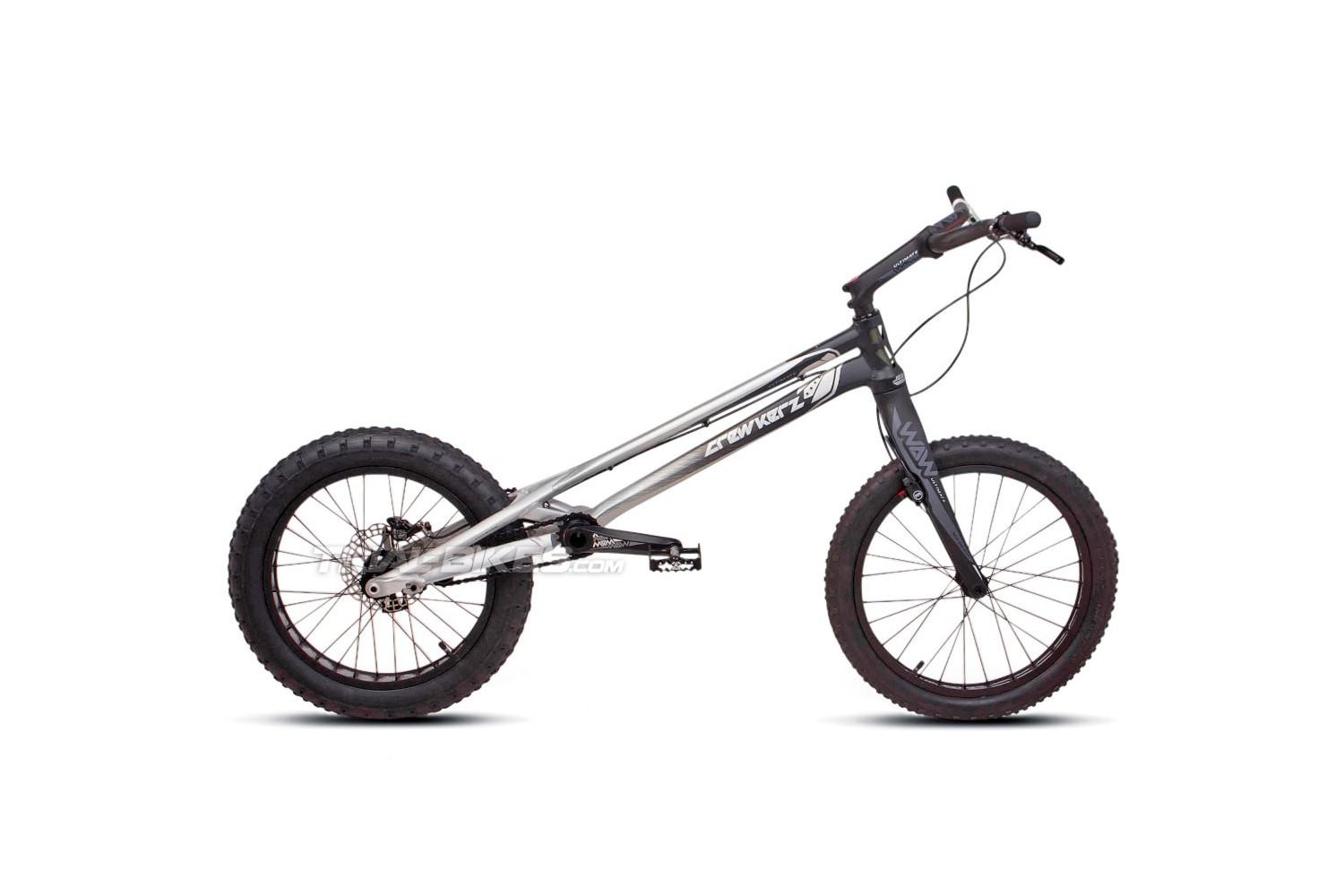

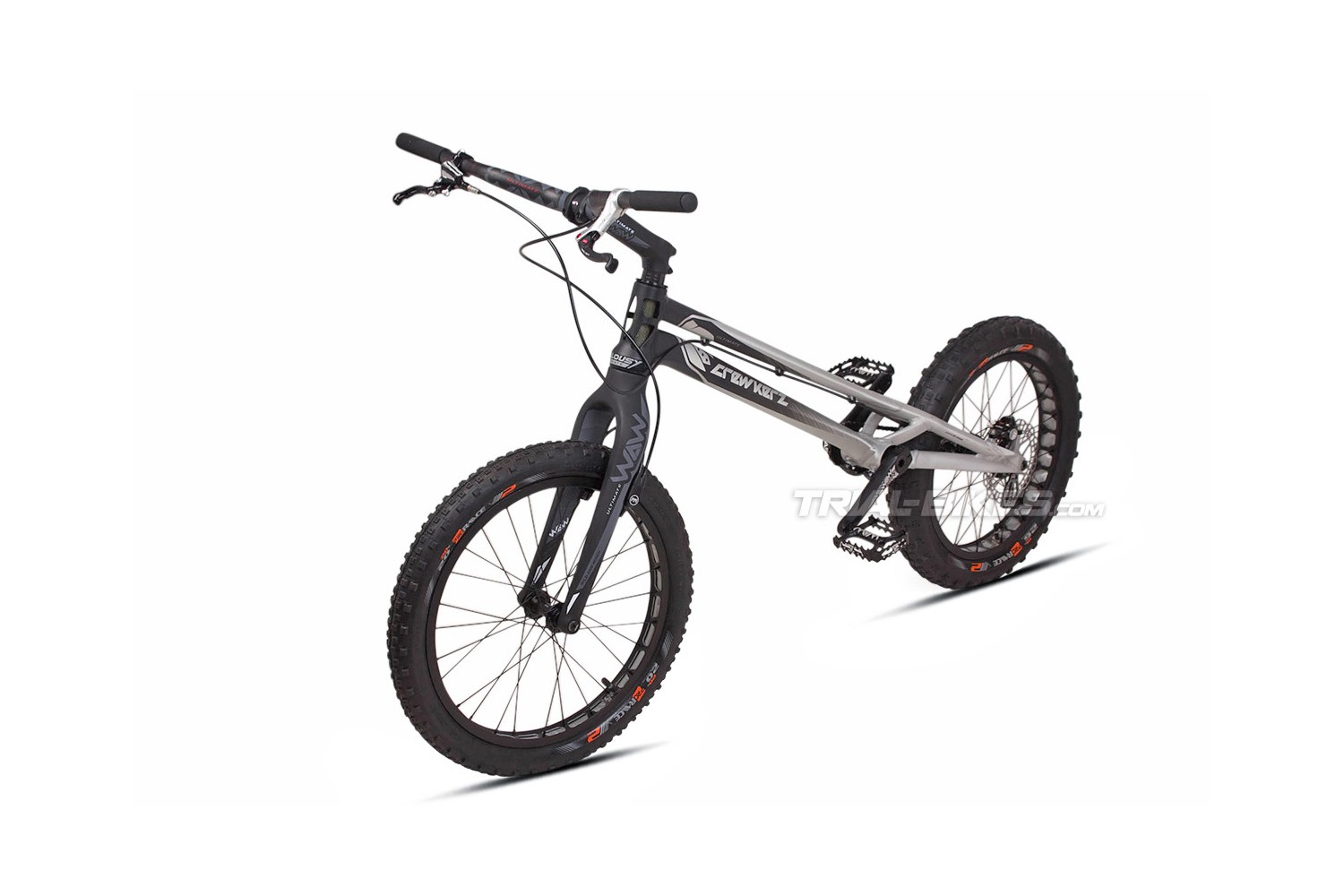

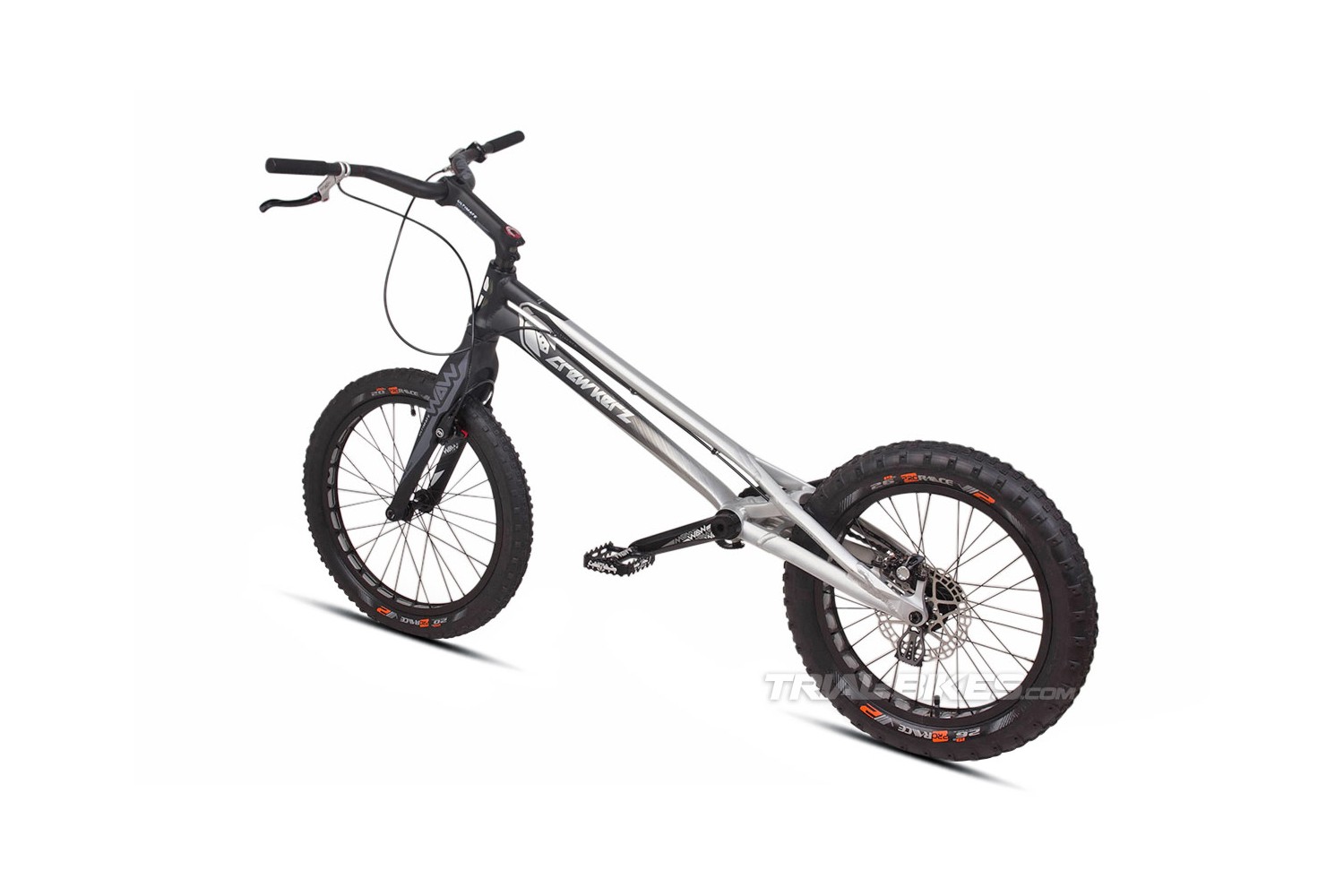

Crewkerz Jealousy Ultimate  20" HS/Disc 2024 Trials Bike

The Crewkerz Jealousy 2024 Trials Bike, used by World Uci Trials champions Charlie Rolls and Robin Berchiatti, launches essential improvements aimed at ensuring superior performance.

• Redesigned Tubes: Adjustments in tube thickness to improve reliability and responsiveness.


• Integrated Tapered Headset: Updated to a more compact 120 mm head tube, which, by reducing the height by 9 mm, significantly improves precision and responsiveness at the front of the bike.


• Lightweight Carbon Tensioner: New and advanced chain tensioner, 50% lighter thanks to carbon, with a 9T pulley that ensures ideal tension and significantly reduces the overall weight.


• WAW Ultimate Handlebars and Stem: New carbon handlebars available in 102 and 108 mm rise, and WAW Ultimate stem, with a renewed and understated aesthetic.


• Ultimate Carbon Fork: Exclusive decoration with improved performance and reduced weight for high-level riding.


• High-Performance Brakes: Incorporation of the 2023 Trialtech Carthy Signature brakes and Hope Tech 4 for unmatched braking power.


• Hashtagg Rims: Equipped to maximize weight reduction and improve surface and braking power, optimized for rim brakes.

In the following list, you can see the components of this bike:

Frame and fork
- Frame: Crewkerz Jealousy Ultimate 20” 2022 1 1/8” – 1.5” tapered, with Post Mount disc brake mounts, polished aluminium finish.

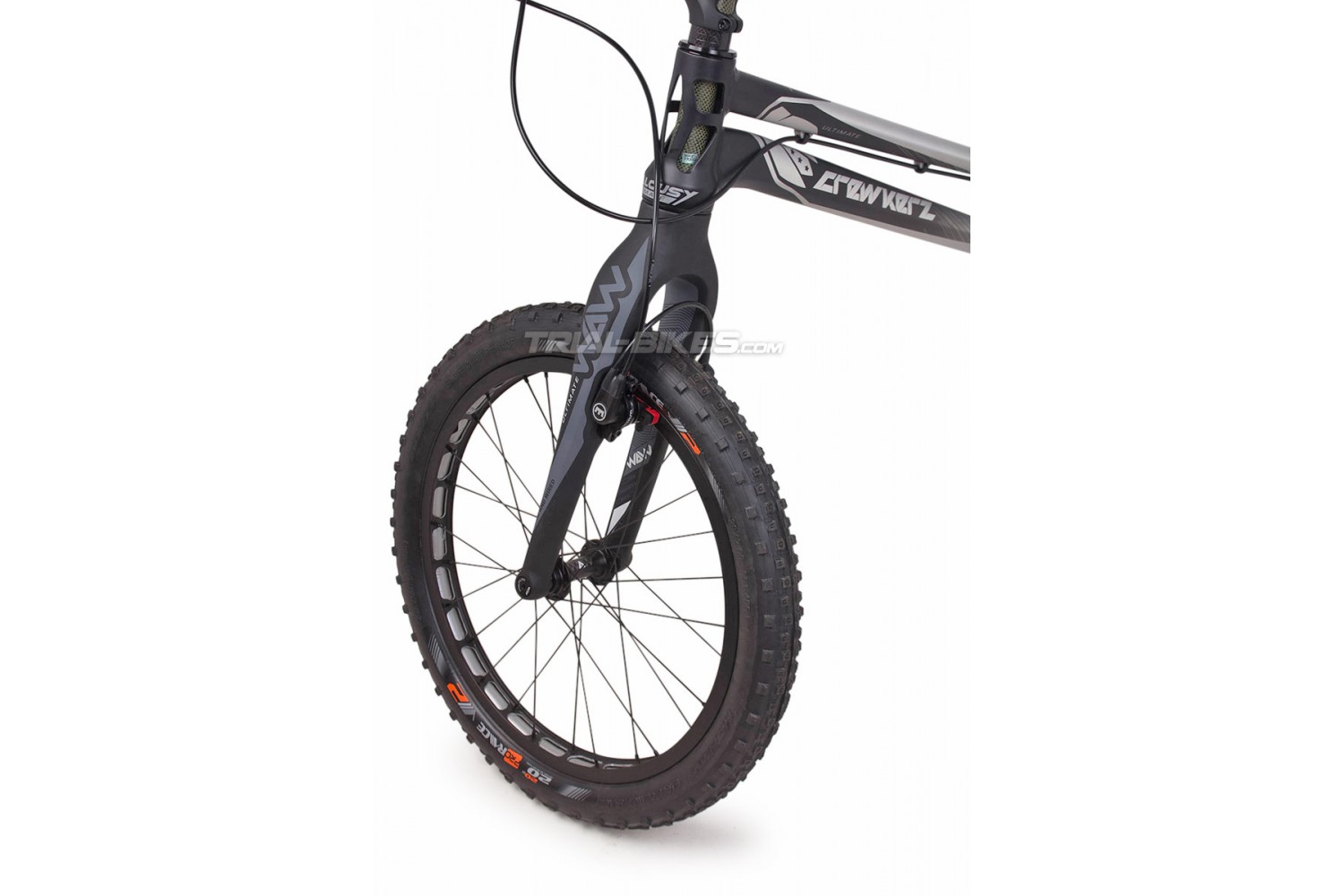

- Forks: Crewkerz Waw Ultimate Carbon 20”, with 1 1/8” – 1.5” tapered steerer tube.

Wheels
- Front hub: Crewkerz Waw HS 100 mm 28H, with 9 mm thru-axle.

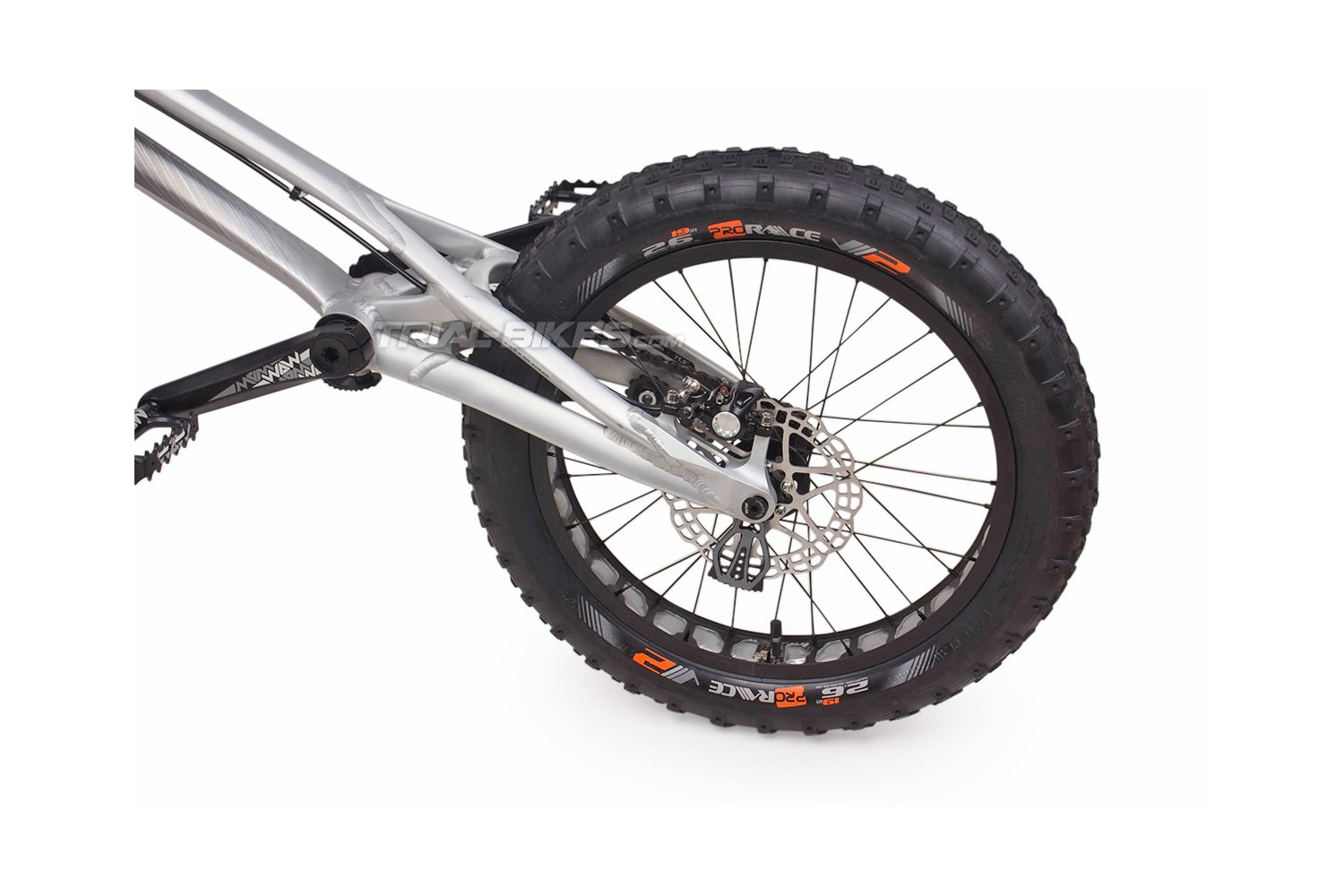

- Rear hub: Crewkerz Waw Disc 135 mm 32H, with 12 mm thru-axle.
- Chain tensioner: Crewkerz Waw carbon, with two 9T plastic wheels.
- Front rim: Hashtagg 20”, 28 spoke holes.
- Rear rim: Hashtagg 19”, 32 spoke holes.
- Spokes: Crewkerz 1.8 mm.
- Spoke nipples: Aluminium, anodized red.
- Rim tape: Ultralight, black.
- Front inner tube: Maxxis 20”.
- Rear inner tube: Maxxis 20”.
- Front tyre: Monty Pro Race 20”x2.00”.
- Rear tyre: Monty Pro Race 19”x2.60”.

Brakes
- Front brake: Trialtech Carthy Signature Series Rim Brake.
- Rear brake: Hope Tech 4 Trial Zone Post Mount, black.

- Rear rotor: Hope Trial V2 160 mm.

Drivetrain
- Crankset: Crewkerz WAW AS30 crankset, CNC machined from 7075-T6 aluminium alloy. Comes with 160 mm cranks and Shimano HG splines, black
- Freewheel: Crewkerz 135.9, with 18 teeth.
- Chain: KMC 610HX, black.
- Rear sprocket: Crewkerz 12T splined, made of steel.
- Pedals: Crewkerz WAW Single-cage 7075-T6.
- Basplate: Crewkerz WAW, anodized red.

Steering
- Headset: Crewkerz Internal Tapered 1 1/8” – 1.5”, anodized black.
- Stem: Crewkerz WAW Ulimate 155 mm x 20º.
- Top cap: Crewkerz WAW, anodized red.
- Grips: TrialBikes super-thin foam, black.

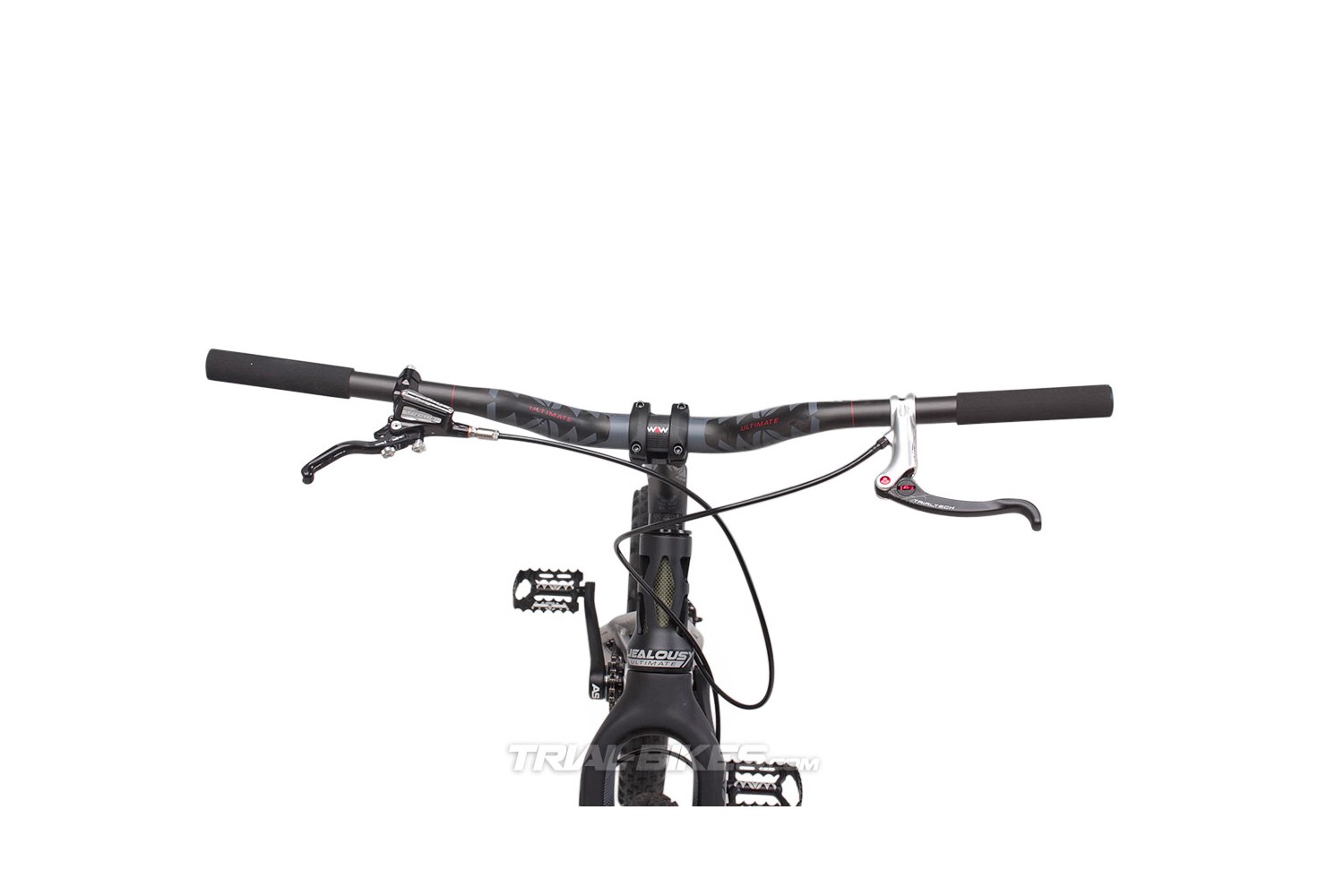

- Handlebar: Crewkerz Ultimate Carbon, 108 mm high, 720 mm long.

Geometry

(1) Wheelbase: 1005 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +85 mm.
-----------------------------------------------
(4) Head Angle: 71.5°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 610 mm
-----------------------------------------------
(6) Reach: 463 mm
-----------------------------------------------
(7) Stack: 378 mm
-----------------------------------------------

Weight
- 7.70 Kg (To be confirmed).

Additional information:
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
