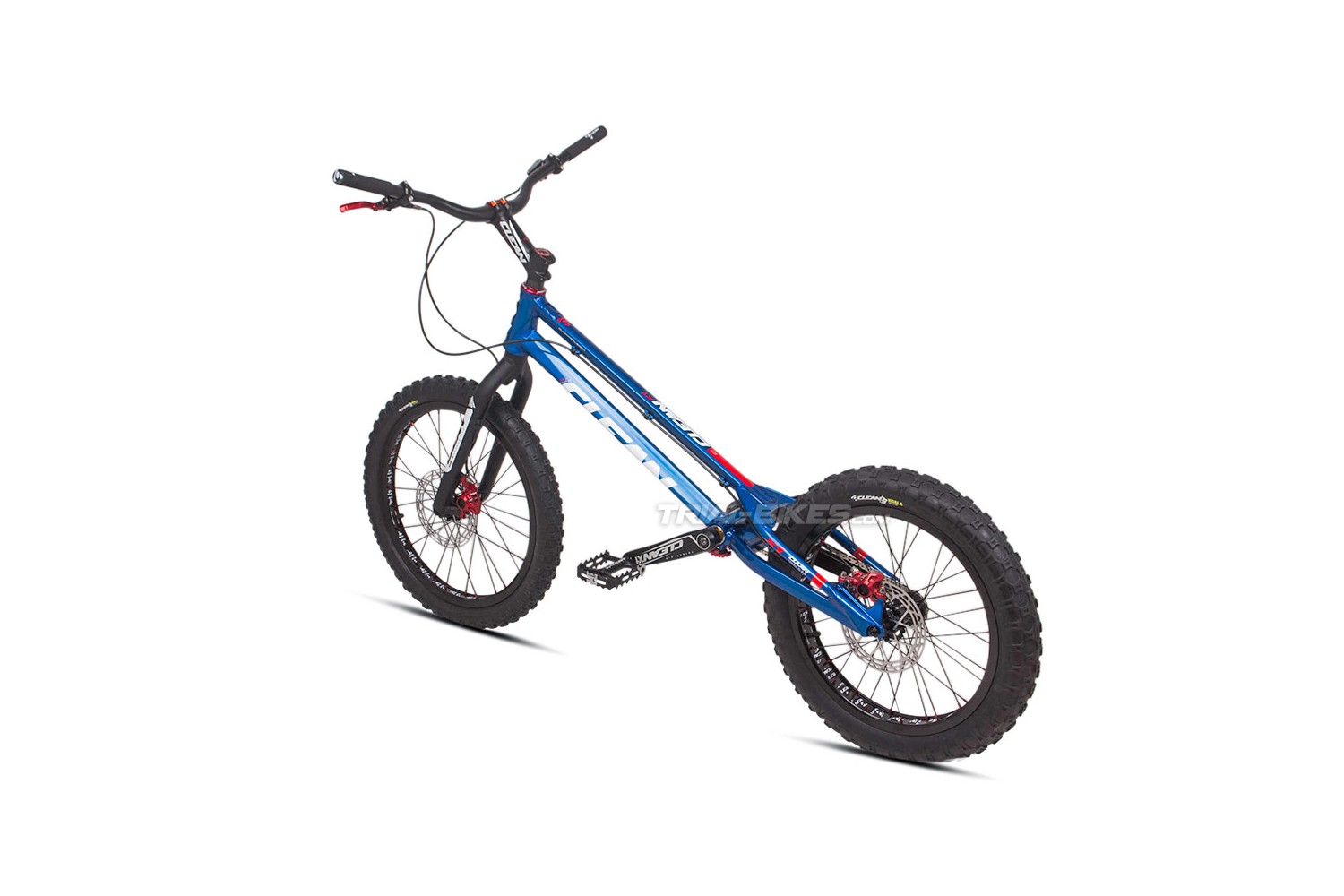

The new Clean X1 20" 1010 mm 2022 is a 20" aluminium trials bike sized down for riders up to 1.60m (illustrative ages between 12-14). Its 970 mm long geo is shorter than the 20" Clean bike for adults, so it’s ideal for shorter riders or riders growing up, as it makes for easier riding and faster learning of high-level bike trials techniques.
✅ Ideal for riders up to 1.60 m (12-14 years old).
✅ New 2022 finish, in anodized blue colour.
✅ 2 versions: ECO (Magura MT Sport brakes) or Hope (Hope Tech3 Trialzone brakes + Clean rear disc protector).
Frame and forkÂ
- Frame: Clean X1 20" 970 mm, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts.
- Forks: Clean X2 20" tapered 1 1/8" – 1.5" frame, made from 7005-T6 aluminium alloy, with Post Mount disc brake mounts.
Wheels –Â
- Front hub: Clean X2 28 spoke holes, with rotor mounts.
- Rear hub: Clean X2 32 spoke holes, with rotor mounts.
- Chain tensioner: Clean X2 integrated, with two 10T jockey wheels made of plastic, black
- Front rim: Clean V2 20", single wall, 34 mm wide, 28 spoke holes, anodized black
- Rear rim: Clean 19", single wall, 48 mm wide, 32 spoke holes, anodized black
- Spokes: 1.8mm spokes, black
- Rim tape: Clean, grey
- Front inner tube: Maxxis Extra Light
- Rear inner tube: Maxxis Extra Light
- Front tyre: Clean Koala 20"x2.00"
- Rear tyre: Clean Koala 19"x2.60"
BrakesÂ
- Front brake:Â Bengal Ares 3 (Eco version) or Hope Tech3 (Hope version).
- Rear brake: Bengal Ares 3 (Eco version) or Hope Tech3 (Hope version).
- Rotors: Clean RS, 160 mm (front), 162.5 mm (rear)
- Disc protector: Clean (Hope version).
DrivetrainÂ
- Cranks: Clean ISIS 7075-T6 160 mm, black with silver Clean graphics
- Bottom Bracket: Clean 128 mm, BSA 68mm, 1.37"x24tpi, thread
- Freewheel: Clean X2 108.9 18T screw-on, with 108 engagement points, 9 pawls and 18 teeth
- Chain: KMC Z1 eHX Narrow, silver
- Rear sprocket: Clean 13T Screw-on, made steel, black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red
SteeringÂ
- Headset: Clean Internal Tapered 1 1/8" - 1.5", with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Clean 135 mm x 25º, 31.8 mm Oversized handlebar diameter, black with silver Clean graphics
- Grips: Clean foam, black
- Handlebar: Clean 7075 103 mm, 31.8 mm Oversized handlebar diameter, black finish with white and red Clean graphics.
Geometry
(1) Wheelbase:Â 970 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +87 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube:Â 580 mm
-----------------------------------------------
Weight
-Â 8.100 Kg (Eco version) and 8.140 Kg (Hope Version)
Additional information:Â
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .
| SIZE | 20" |
| RIDER HEIGHT | 140cm-160cm |
| FRONT BRAKE | Disc |
| REAR BRAKE | Disc |
