TRRS X1 20'' Bike 930mm By Clean

Reference: CL0040

Condition: New

This product is no longer in stock

Notify me when available

Ask a question

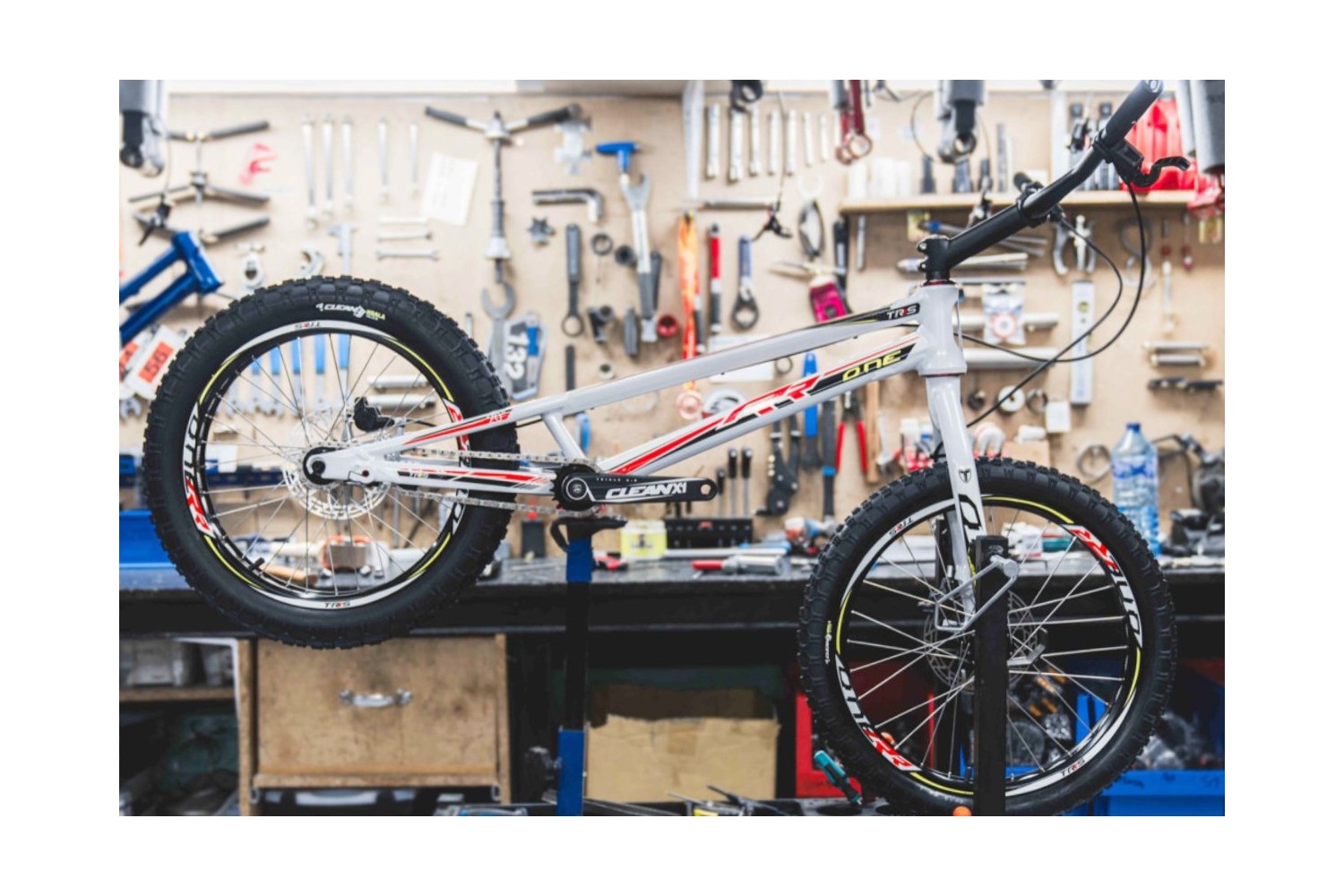

Clean TRRS 20" Trials Bike 930 mm By Clean

The new Clean TRRS 20" 930 mm is a 20" aluminium trials bike sized down for riders up to 1.40m (illustrative ages up to 10 years). Its 930 mm long geo is shorter than the 20" Clean bike for adults, so it’s ideal for shorter riders or riders growing up, as it makes for easier riding and faster learning of high-level bike trials techniques.

✅ Children's trials bike, ideal for riders up to 10 years old or with a height below 1.40 m, approximately.
✅ Customized and assembled by Clean Trials for the prestigious TRRS brand.
✅ Magura MT Sport hydraulic disc brakes for superior braking power.
✅ Wide 19" rear wheel for greater control and stability.

Frame and fork

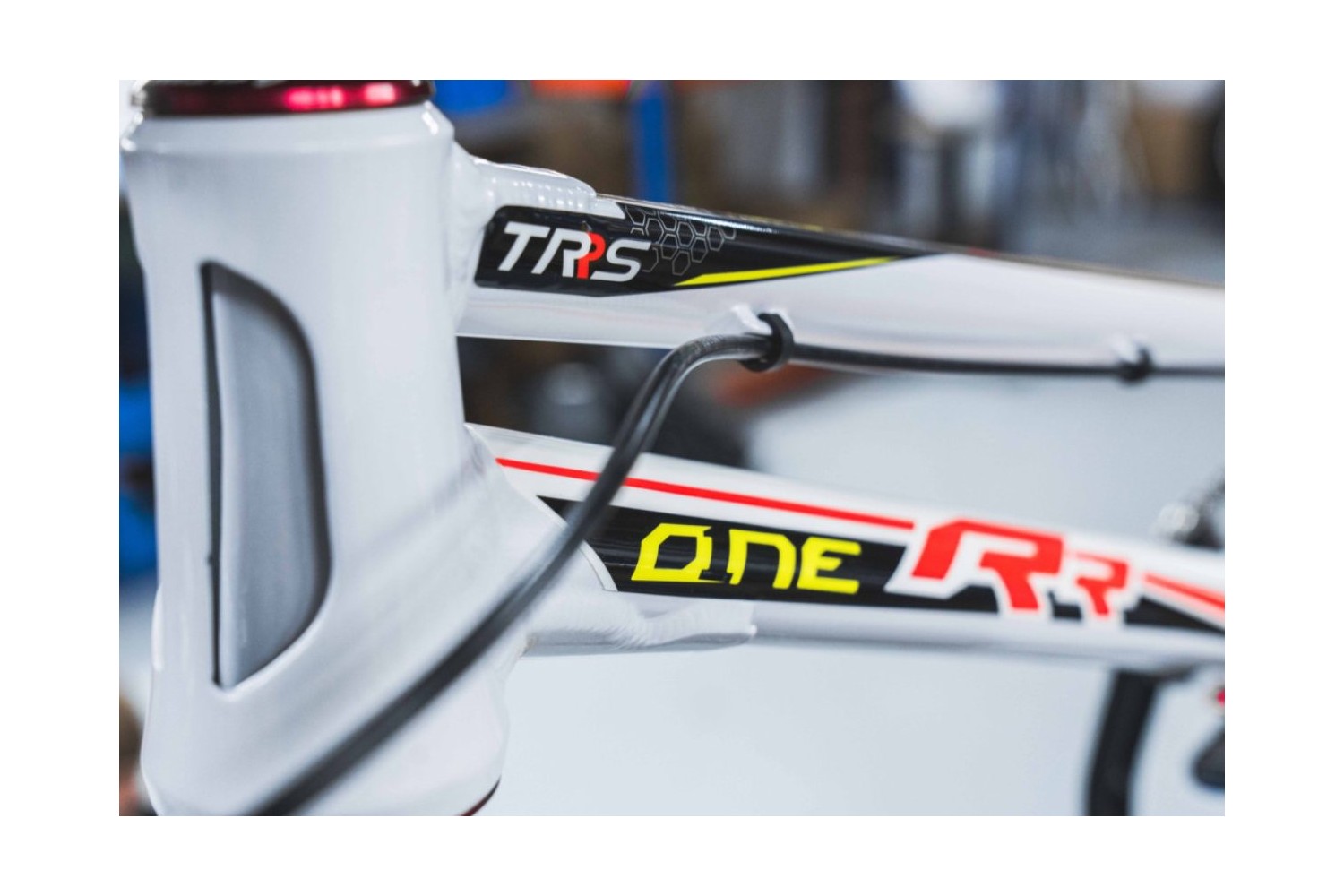

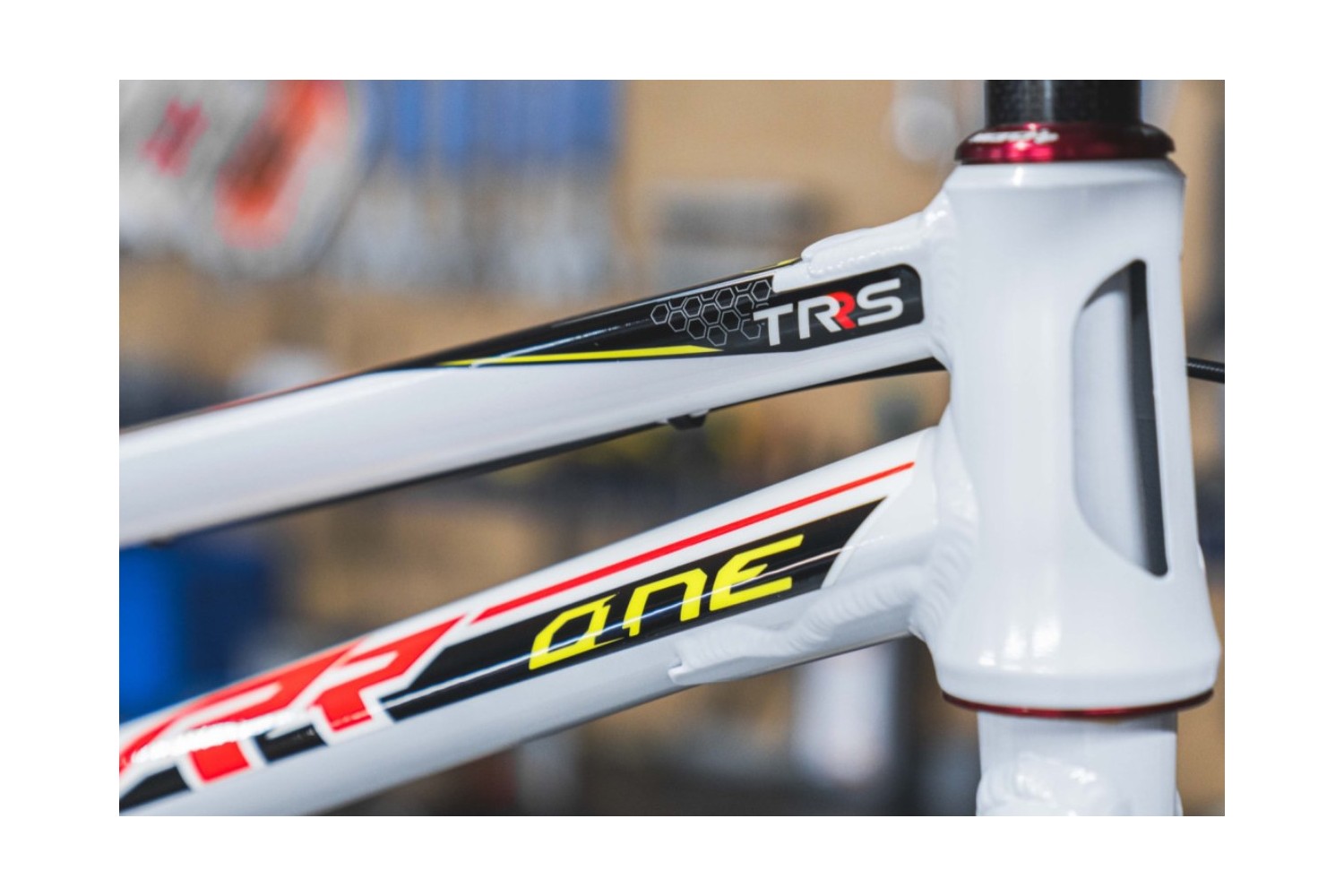

- Frame: Clean X1 20" 930 mm, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts.
- Forks: Clean X2 20" tapered 1 1/8" – 1.5" frame, made from 7005-T6 aluminium alloy, with Post Mount disc brake mounts.

Wheels –
- Front hub: Clean X2 28 spoke holes, with rotor mounts.
- Rear hub: Clean X2 32 spoke holes, with rotor mounts.

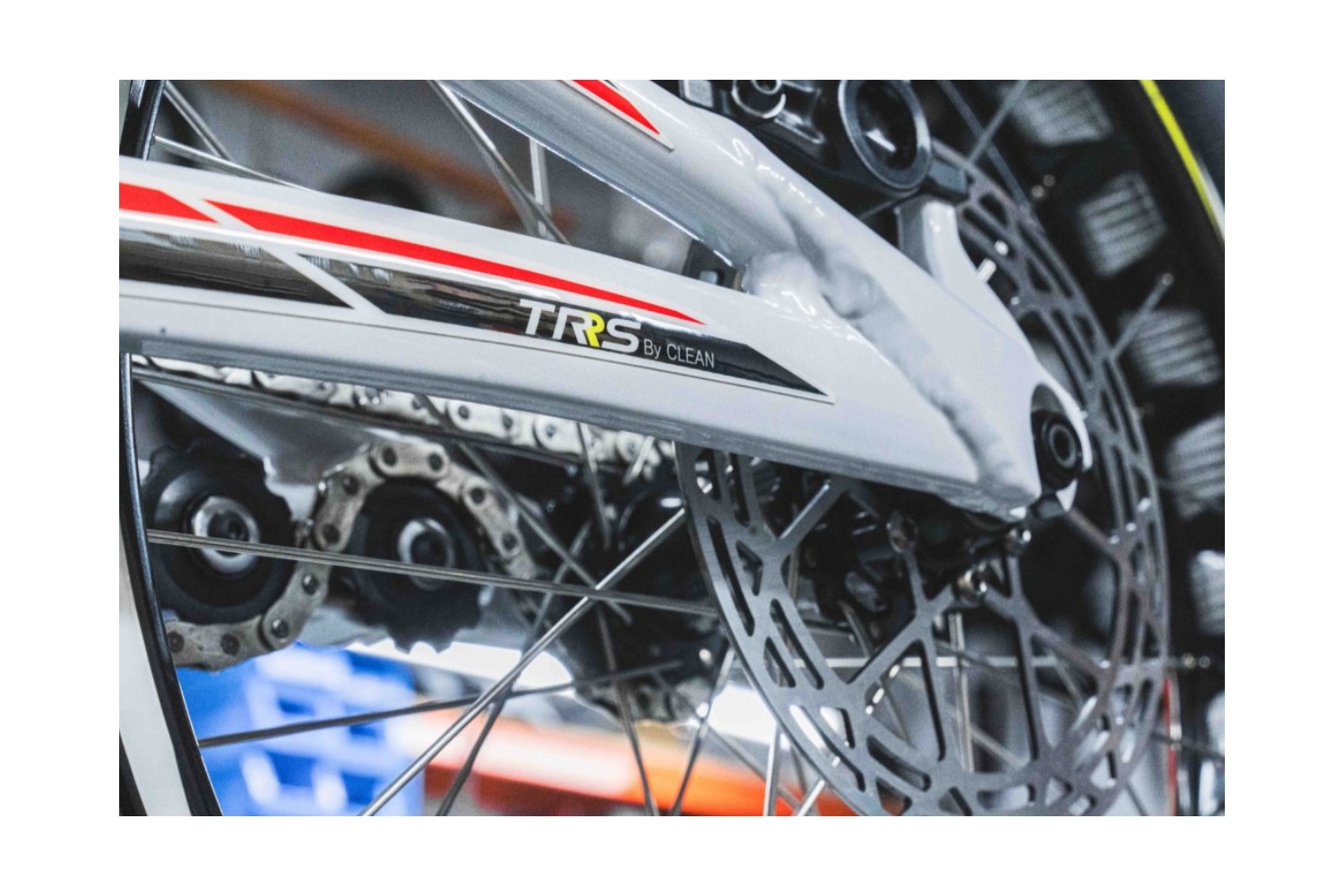

- Chain tensioner: Clean X2 integrated, with two 10T jockey wheels made of plastic, black
- Front rim: Clean V2 20", single wall, 34 mm wide, 28 spoke holes, anodized black
- Rear rim: Clean 19", single wall, 48 mm wide, 32 spoke holes, anodized black
- Spokes: 1.8 mm spokes, black
- Rim tape: Clean, grey
- Front inner tube: Clean 20"
- Rear inner tube: Clean 20"
- Front tyre: Clean Koala 20"x2.00"
- Rear tyre: Clean Koala 19"x2.60"

Brakes
- Front brake: Magura MT Sport
- Rear brake: Magura MT Sport

- Rotors: Clean 160 mm

Drivetrain
- Cranks: Clean ISIS 7075-T6 160 mm, black with silver Clean graphics
- Bottom Bracket: Clean 123 mm, BSA 68 mm, 1.37"x24tpi, thread
- Freewheel: Clean X2 108.9 18T screw-on, with 108 engagement points, 9 pawls and 18 teeth
- Chain: KMC Z1 eHX Narrow, silver
- Rear sprocket: Clean 15T Screw-on, made steel, black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Strong 2-piece mini-bashplate, anodized red

Steering

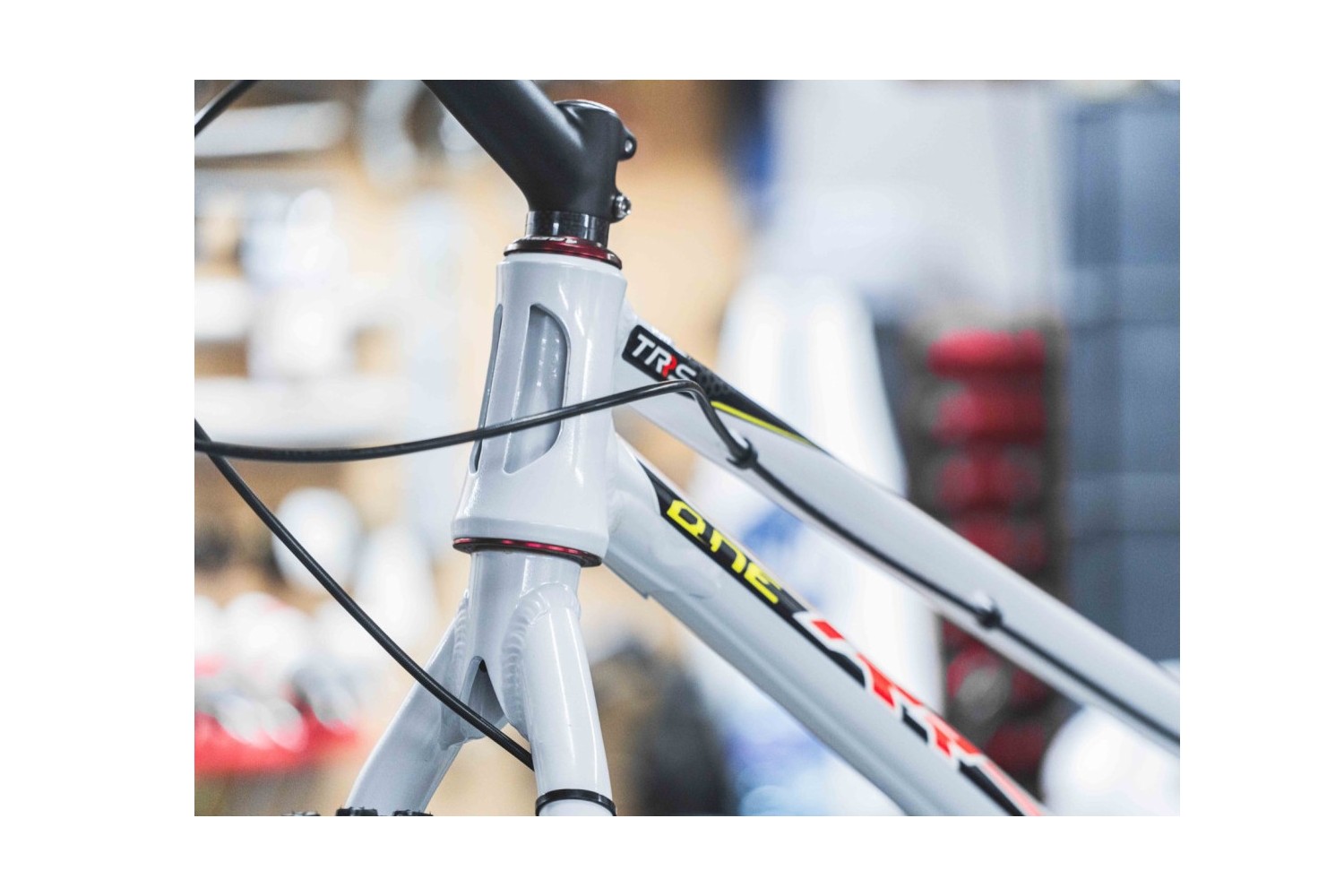

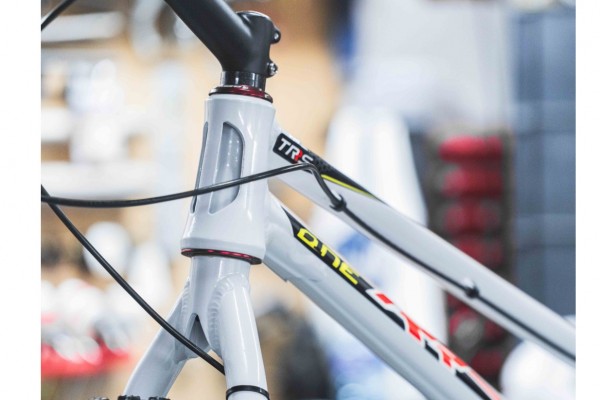

- Headset: Clean Tapered 1 1/8" - 1.5", with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Clean 135 mm x 25º, 31.8 mm Oversized handlebar diameter, black, without graphics
- Grips: Clean foam, black
- Handlebar: Clean 7075 103 mm, 31.8 mm Oversized handlebar diameter, black finish with white Clean graphics.

Geometry

(1) Wheelbase: 930 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +87 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 540 mm
-----------------------------------------------
Geometrias en bicicletas de Trial

Weight
- 8.04 Kg (verified by TrialBikes).

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any doubts, please contact to info@trial-bikes.com .
