Breeth Trials Cranks

Breeth Trials Cranks

Description and materials

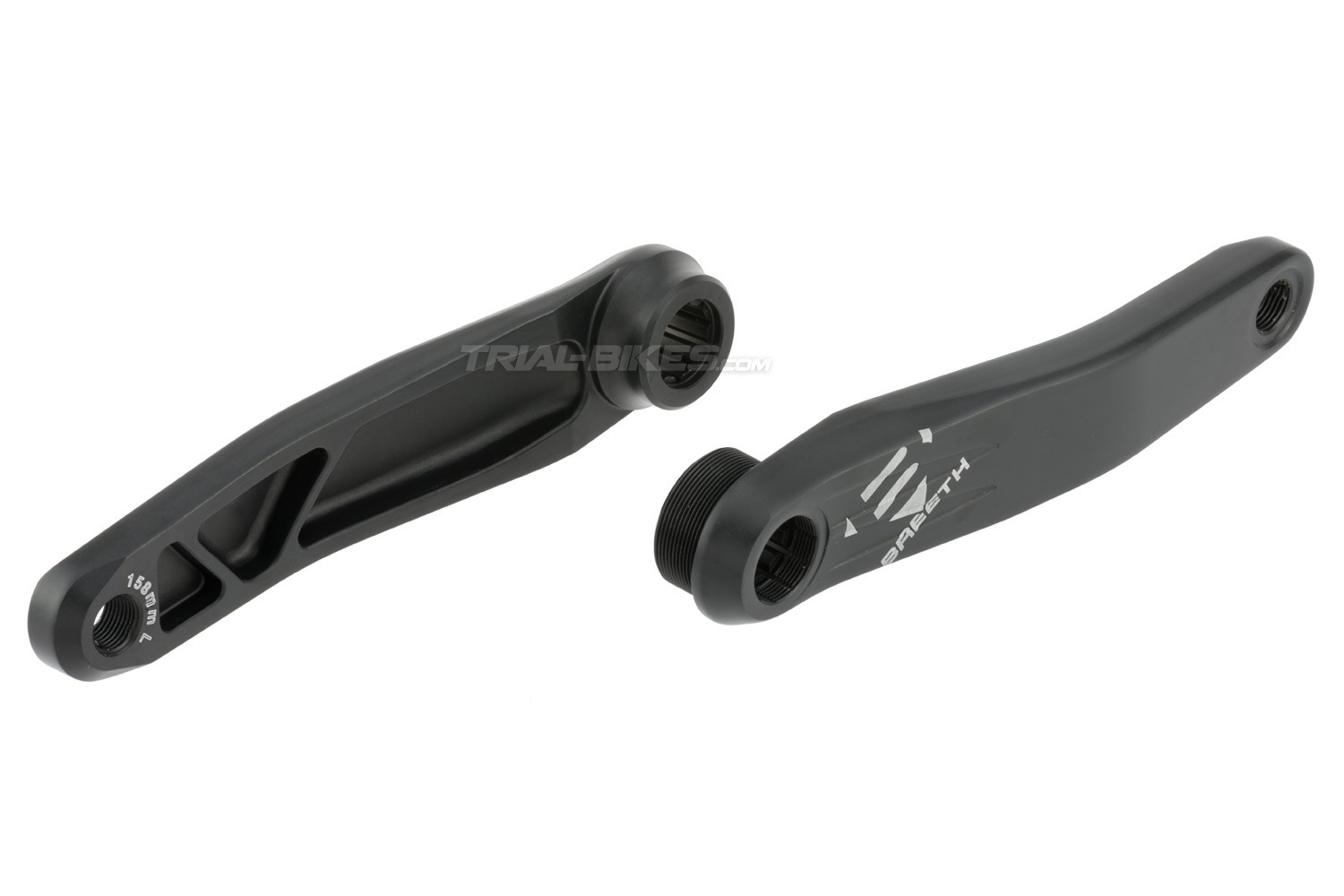

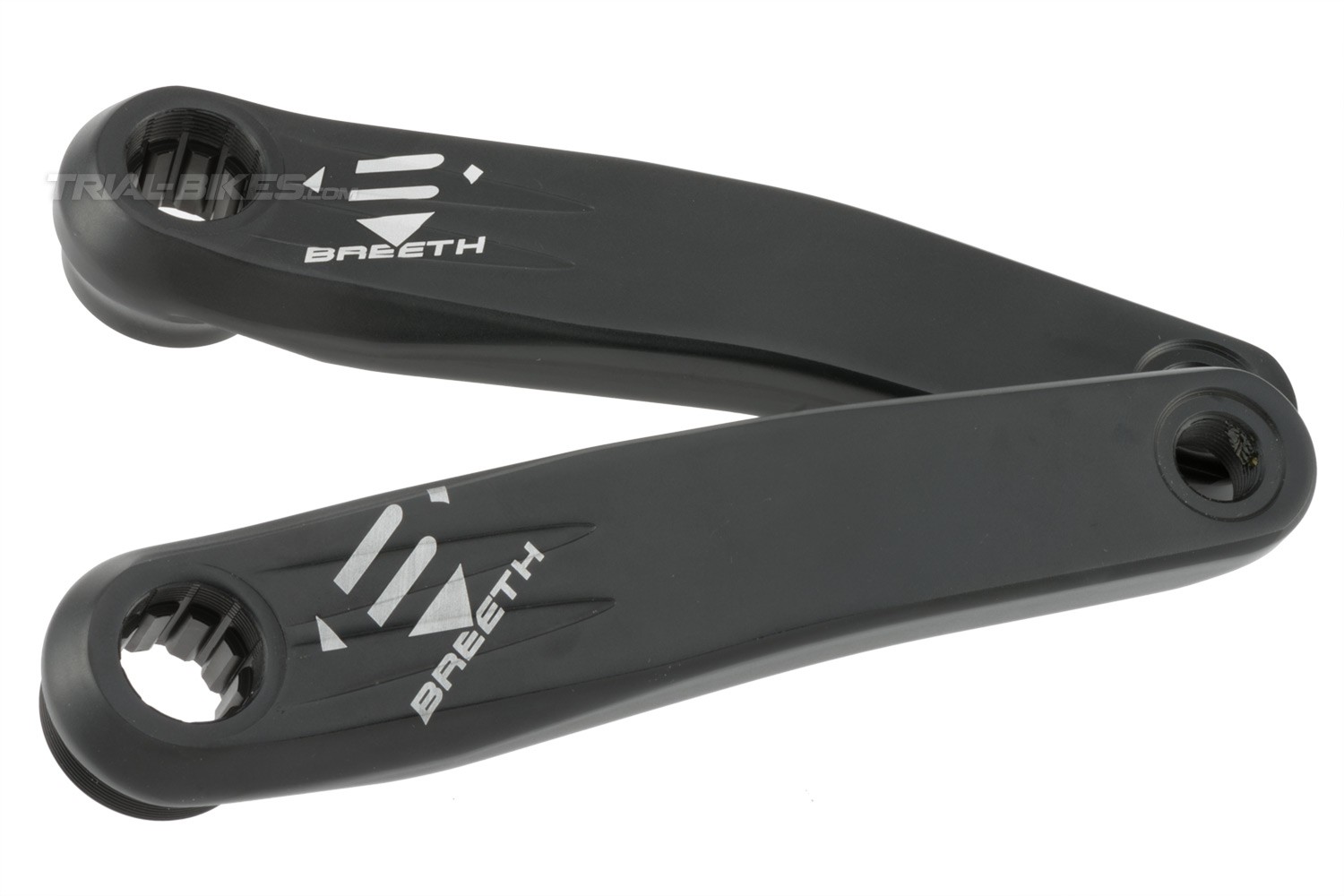

- New Breeth Trials cranks from Breath’s new bike trials brand, Breeth.
- Developed and tested for months by Breeth team rider Zhao Xuan.

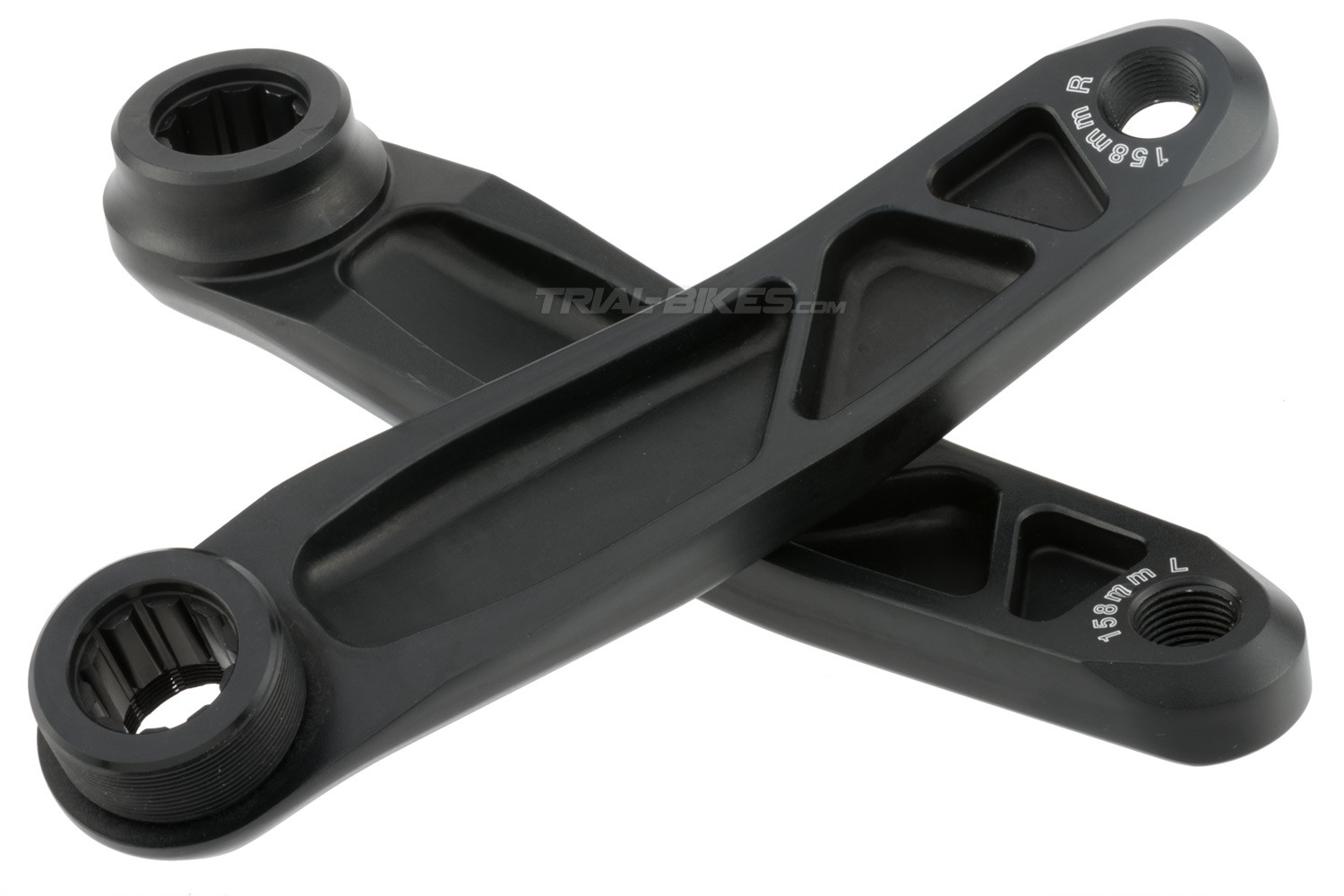

- Forged from top quality 7075-T6 aluminium alloy, with large recesses that remove any excess material from the back of the arm.
- Its 34mm offset helps prevent any rubbing between cranks and frame or slave cylinders.
- Standard ISIS bottom bracket interface.

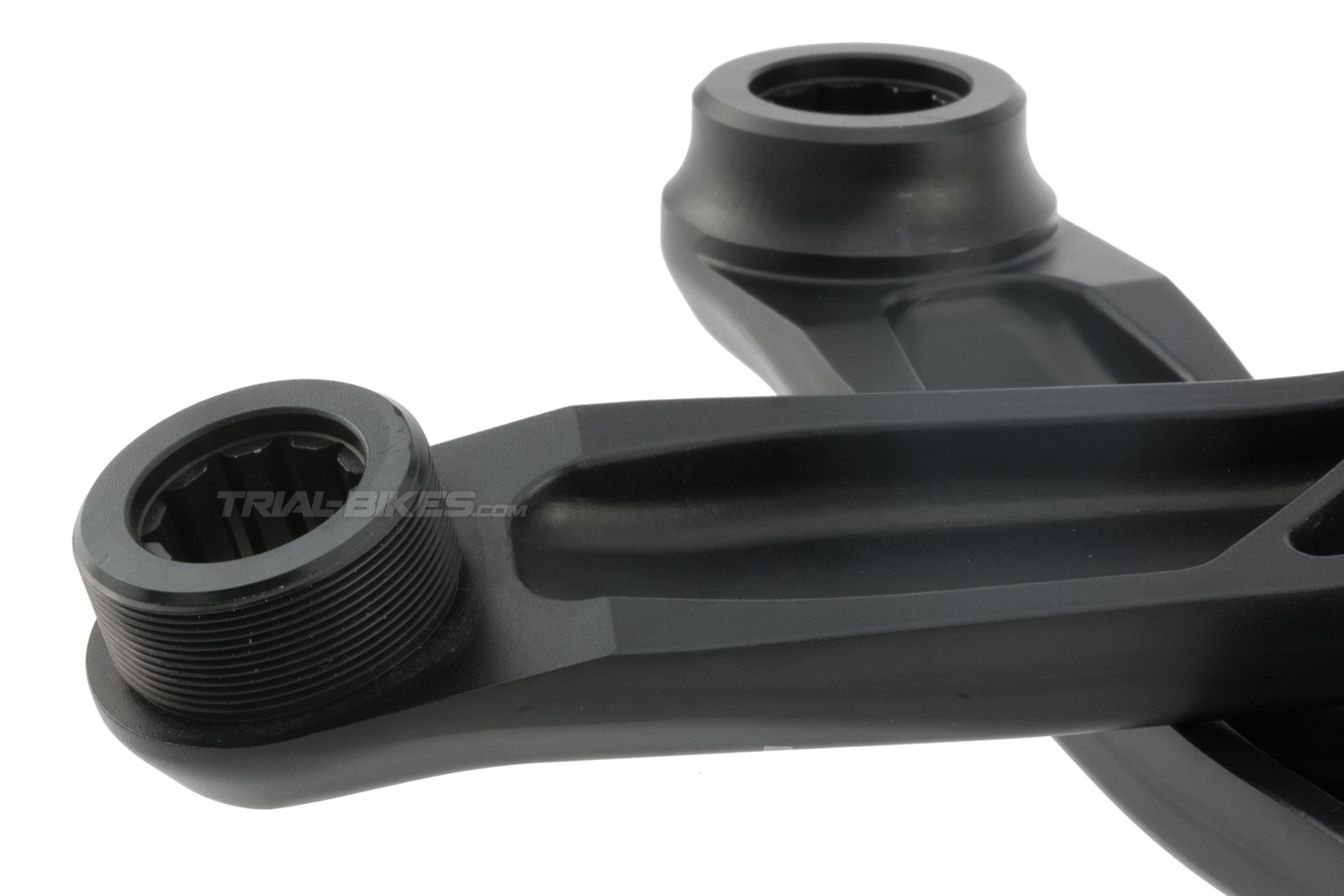

- Standard 1.37’’ x 24 tpi thread, with a 15mm base that allows to be used with a bashring if you wish.
- Standard 9/16’’ pedal thread (most pedals).
- 4 sizes available: 158mm, 160mm, 170mm or 175mm long.
- Sold as a pair.

Compatible with:
- ISIS bottom brackets.
- Pedals with 9/16’’ thread.
- Freewheels/sprockets with 1.37’’ x 24tpi thread (35mm diameter).

Dimensions
- Length: 158mm, 160mm, 170mm or 175mm
- Offset: 34mm
- Threaded base: 15mm
- Freewheel thread: 1.37’’ x 24tpi
- Pedal thread: 9/16’’

Colour
- Anodized black, with white Breeth graphics.

Weight
- 416.74g (158mm), 420.08g (160mm), 436.18g (170mm) and 439.48g (175mm)
