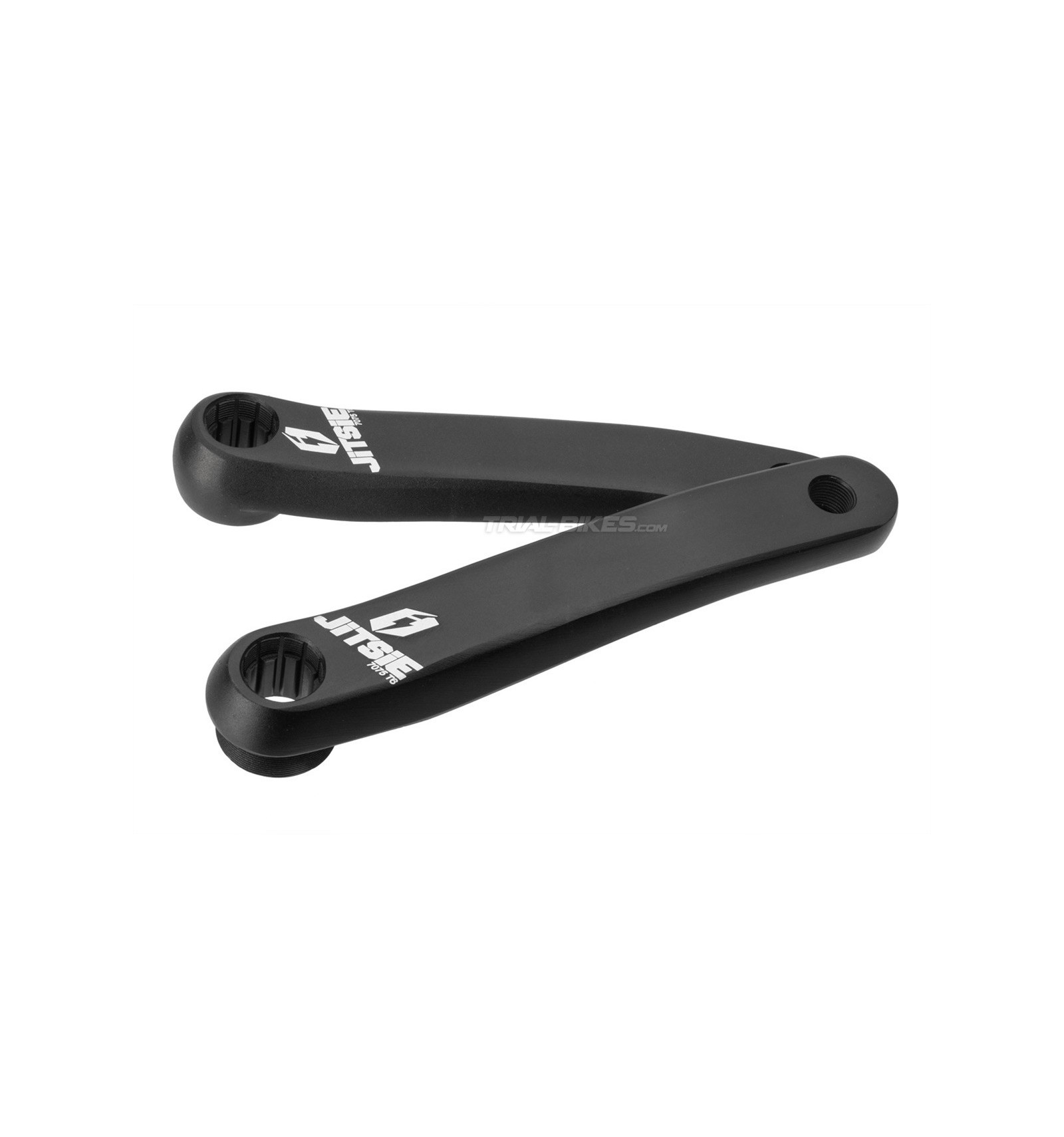

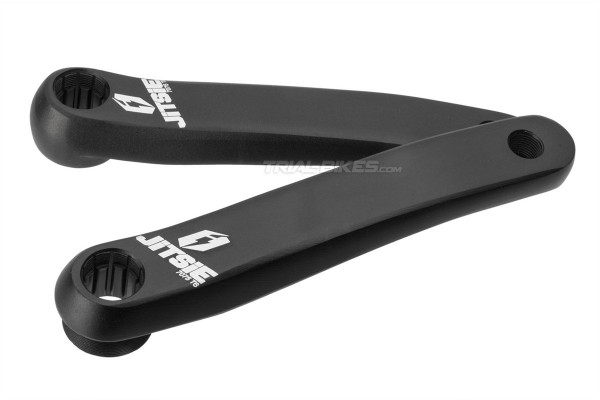

Jitsie ISIS 7075 Cranks

Description and materials
- New high quality ISIS cranks from Belgian brand Jitsie.
- Developed and tested for months by the Jitsie Team riders Rick Koekoek, Dani Comas, etc.
- Traditional design is stiff and strong, with a recess at the back of the arms that helps save unnecessary weight.
- Standard 1.37”x 24tpi thread, suitable for most  freewheels and sprockets.
- Wide threaded section (13mm) allows you to run a bashring together with the freewheel/sprocket.
- Suitable for most ISIS bottom brackets.
- An offset of 33mm provides enough clearance to avoid rubbing the stays or brake cylinders.
- Anodized matt black with white laser etched Jitsie graphics.
- Available in 150mm, 160mm, 165mm, 170mm or 175mm long.

Sizes
- Length: 150mm, 160mm, 165mm, 170mm or 175mm
- Offset: 33mm

Finishes
- Anodized matt black
- White laser etched Jitsie graphics

Weight
- 482g (150mm), 515g (160mm),  524g (165mm), 547g (170mm ) and 547g (175mm)

Additional information
- Please bear in mind that there must be at least a 7mm thread in contact between freewheel and crank. Furthermore, a 1.37” freewheel/sprocket must be used with a maximum internal diameter of 33.8mm (and not the 1.375” ones). Not following these instructions may lead to thread damage (not covered under warranty).
