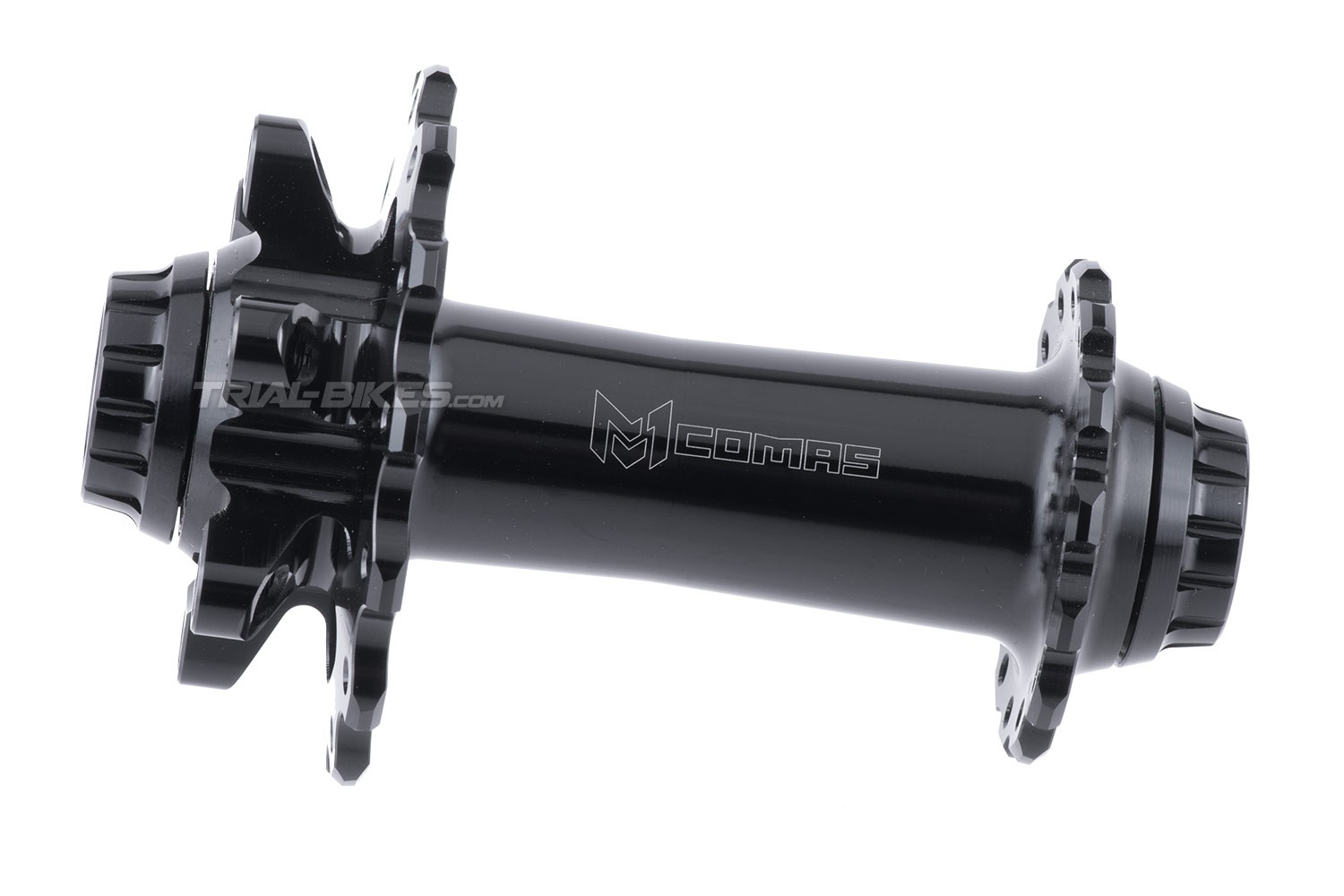

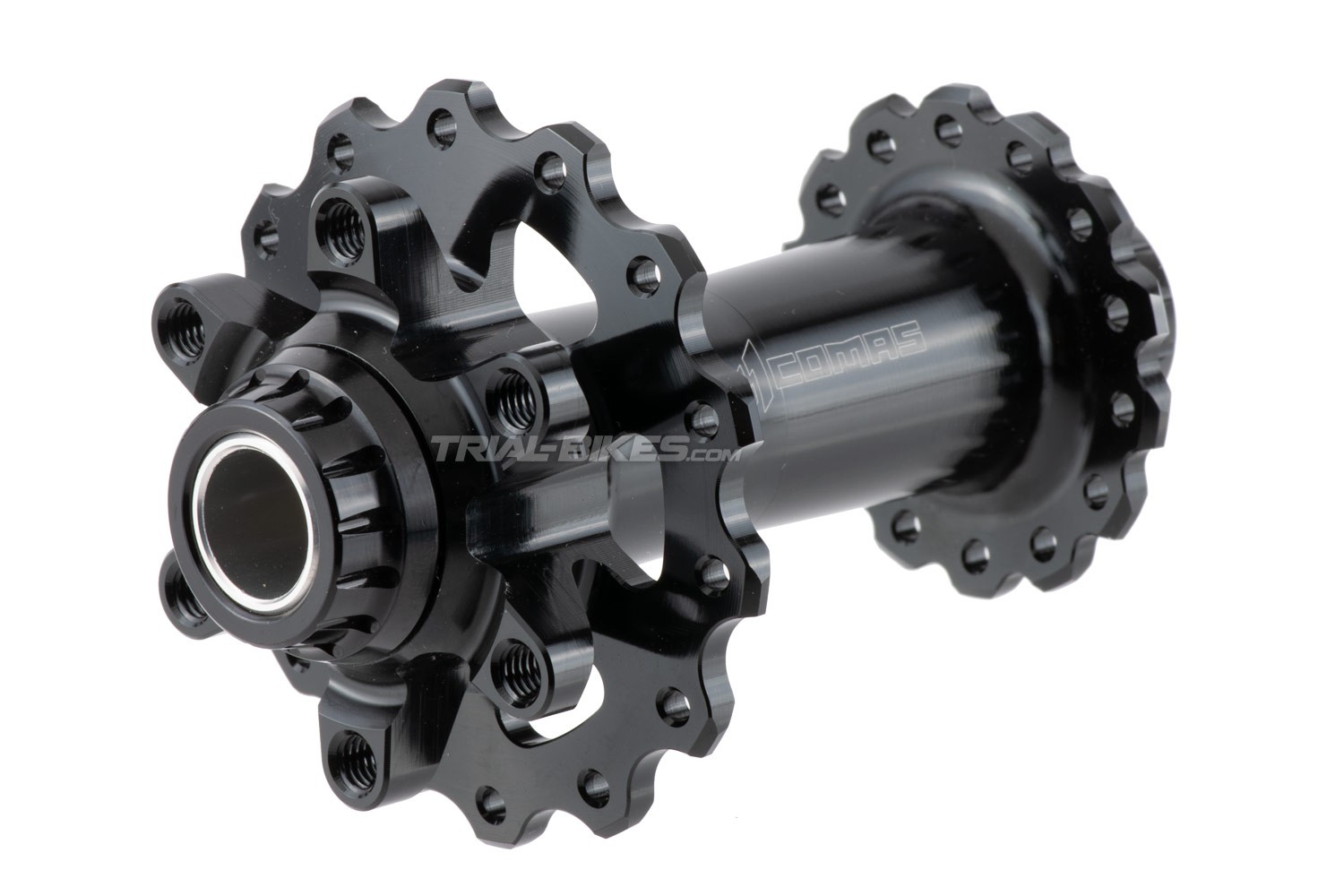

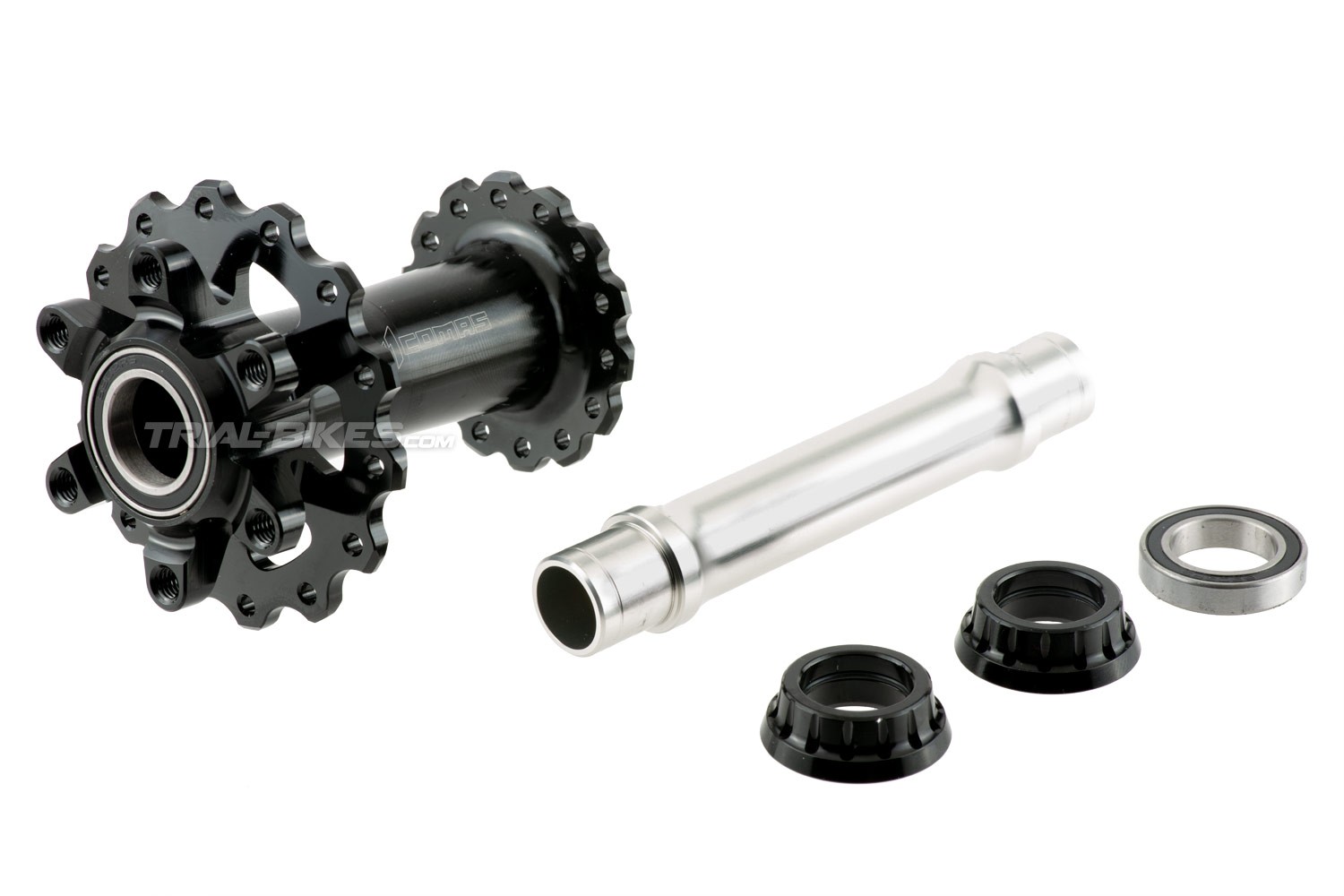

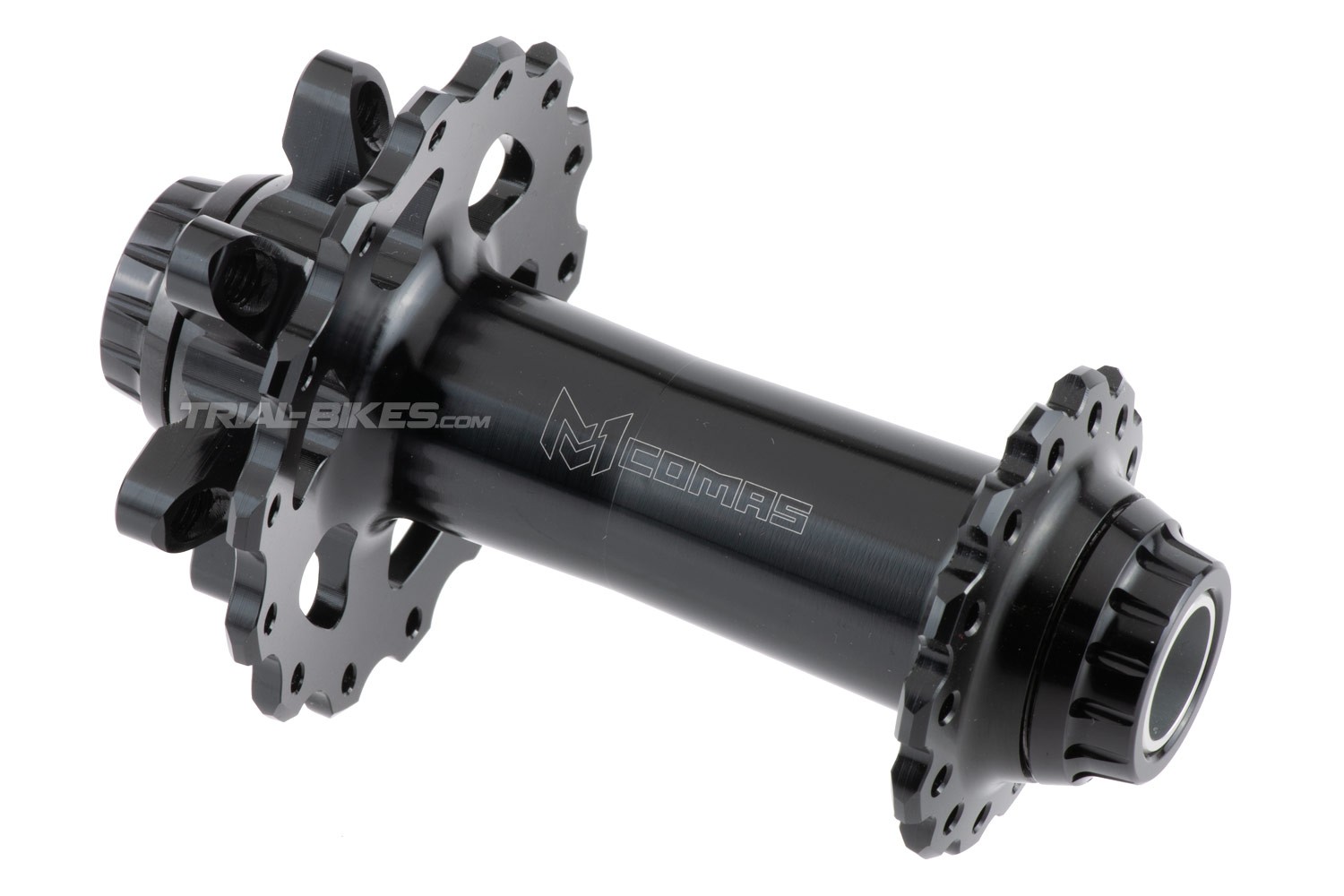

Ultralight 100 mm front hub for 12 mm thru-axle and disc brakes, designed by the renowned Spanish brand Comas Trials, ideal for Comas Kala bikes.
- Exclusive and minimalist design of the highest quality, CNC machined from a single piece of 6061-T6 aluminum.
- Oversized hollow AL7075-T6 bushing to accommodate Ø12mm diameter thru-axle.
- Standard disc brake mounts with 6-bolt attachment.
- Replaceable sealed bearings offer smooth and efficient performance.
- Angled flanges to facilitate the positioning of the spokes once mounted on the rim.
- 6061-T6 aluminum side bushings with internal sealing washer.
- 28 holes of 2.5 mm to mount J-bend spokes.
- Supplied individually, without the 12mm thru axle, available separately here.
Compatible with
- Forks designed for 12 mm axle and inner spacing between dropouts of 100 mm (most).
- Clean K1 Forks: Note that the fork will close 2 mm on each side. Additionally, it is necessary to reduce the outer diameter of the spacers to ensure a flat support. If you have any questions, please do not hesitate to contact us.
- 28-hole rims for spokes (28H).
- Disc brake rotors with 6-bolt fittings.
- Bearing reference: 6902RS.
Dimensions
- Spacing length: 100 mm.
- Axle diameter: (not included with the hub).
- Spacers: 9 mm (thickness), Ø 15 mm (inner).
- Number of spoke holes: 28 (28H).
- Flange diameter: Ø56 mm (disc side) and Ø36 mm (non-disc side).
Finish
- Black anodized, with laser-engraved Comas logos.
Weight
- 104.12 g.
| COLOR | Black |
| SPOKE HOLES | 28 spokes |
| BRAKE MOUNTS | Disc |
