GW 32H Disc Front Hub

Reference: 539199

Condition: New

Ask a question

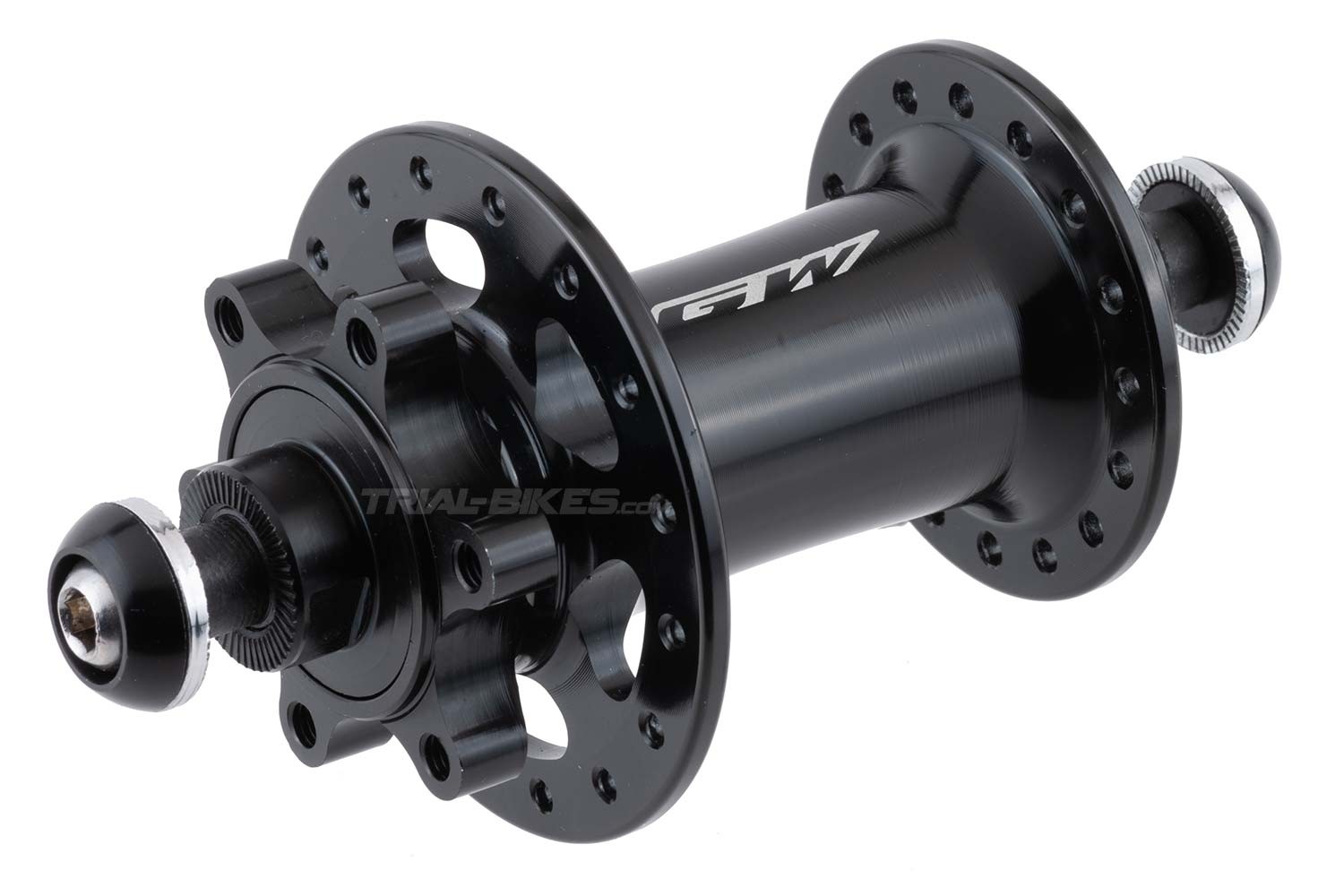

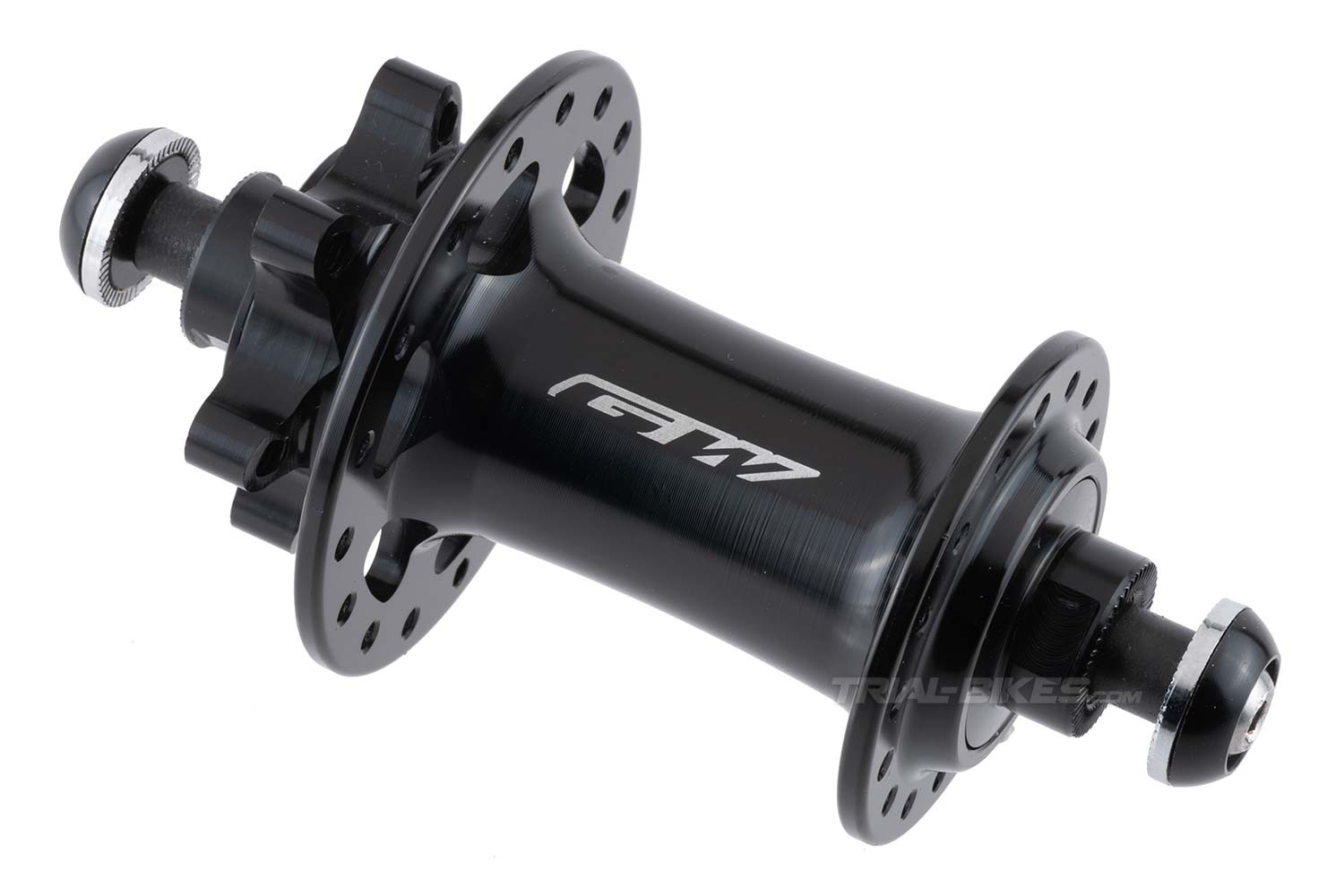

GW 32H Disc Front Hub

Front hub from the renowned GW brand, designed for use with disc brakes in both BMX and bike trials.

- High-strength aluminium shell, engineered to withstand the demands of biketrials.
- The hollow steel axle features a 10 mm diameter and an internal M6 thread.
- Compatible with 32-hole front rims, ensuring versatility and a perfect fit.
- Equipped with high-quality, replaceable sealed bearings for smooth, reliable, and long-lasting performance.
- Includes IS standard mounts for 6-bolt disc brakes, allowing quick and precise installation.
- Supplied with bolts and washers, ready for immediate assembly.

Compatibility:
- Compatible with those forks that have 100 mm spacing between the inner side of the dropouts.
- Compatible with rims that have 32 spoke holes.
- Compatible with those disc brake rotors with standard IS 6-bolt fitting

Dimensions:
- Spacing length: 100 mm.
- Axle diameter: 10 mm.
- Number of spoke holes: 32 (32H).

- Flange Diameters: Disc side: 56 mm / Non disc side: 44 mm
- Distance between flanges: 56 mm.

- Allen bolts: M6x25 mm.
- Spacers: 9 mm.
- Bearing reference: 16001RS.

Colour:
- Black, with white GW screen-printed graphics.

Weight:
- 234.62 g (+ 21.46 g for bolts and spacers).
