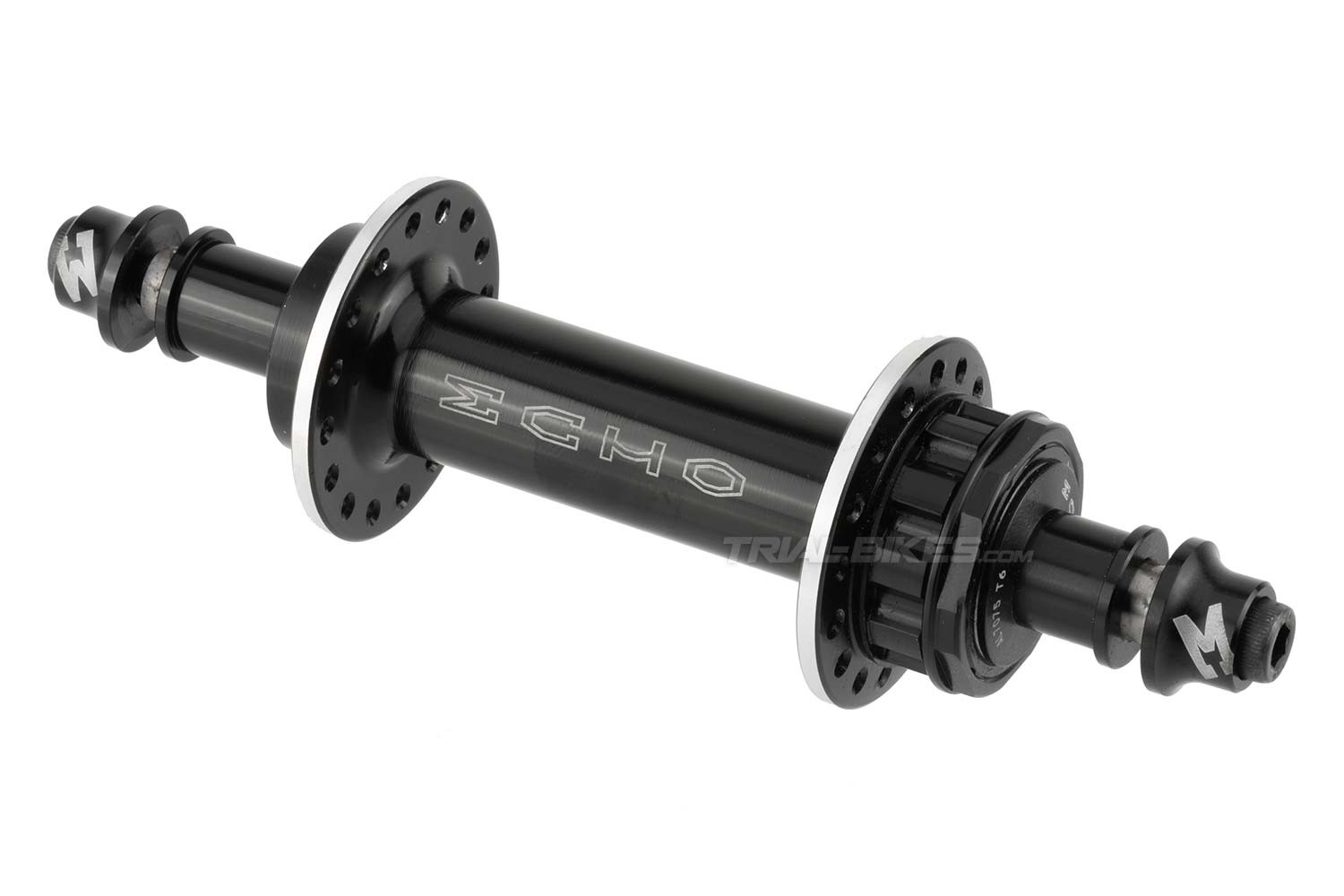

- High quality Echo Splined rear non-disc hub.
- Hub shell is mechanized from 2014 aluminium.
- Ø 10 mm, 135 mm long Aluminium 7075-T6 axle, suitable for the new Zoo! And Echo frames, which feature an integrated chain tensioner.
- Sealed bearings keep out all the mud and water, and offer a smooth running.
- Echo’s own splined interface eases sprocket installation/removal. The sprocket is installed/removed by hand, and is kept in place with an aluminium threaded lockring that can be tightened with a 34 mm spanner.
- M6x30 mm Bolts and washers included.
- 32 holes only.
- Sprocket and snail cams not included.
- Note: the spacing on this hub is 135Â mm instead of the usual 129Â mm. This is due to Echo frames having an integrated tensioner and not needing 3Â mm snail cams.
- Available en black.
Compatible with:
- Echo frames and other frames by shortening 3 mm each spacer in order to use 3 mm snail cams.
- Rims with 32 spoke holes.
- Rotors with standard IS 6-bolt fitting.
- Only compatible with freewheels/sprockets with Echo splines.
- Bearings reference: 6000-2RS.
Sizes
- Length: 135Â mm spacing.
- 32 holes.
Finishes
- Anodised black.
- Washers in black.
- Grey laser etched Echo logo.
Weight
- 204.7 g (+ bolts and washers at 21.72 g).
Additional information
Make sure your rim has 32 holes to fit this hub. If you have any questions, contact us.
| WEIGHT | 0.206 |
| COLOR | Black |
| BRAKE MOUNTS | Non disc |
