Rockman 116mm non-disc rear hub

Rockman 116mm, non-disc, splined rear hub.
Compatible with the Rockman splined sprocket and those with the same type of splines.

Description and materials
- Rockman 116mm rear hub, for rim brakes.
- The hub shell is made of high-quality 7075 T6 aluminium alloy.
- 7075 T6 aluminium alloy axle, 110mm long and ø10mm in diameter.
- Replaceable sealed bearings keep out mud and water, with smooth spinning no matter what the conditions are.
- Splined interface means the sprocket is pressed onto the hub’s splines, without threads.
- Includes M6 bolts, serrated washers and screw-on 30mm lock ring to keep a splined sprocket in place.
- Available with 32 spoke holes.
- Sols individually, does not include a sprocket or chain tensioners.

Compatible with:
- Frames with 135mm dropout spacing.
- Splined sprockets from Rockman, ZHI, Racing Line and Echo using splines with the following dimensions:
· Splines width: 3.65mm
· Spacing between splines: 6.02mm
- Rear rim brakes (this hub doesn’t have disc brake mounts).

Dimensions
- Spoke holes: 32 (32H).
- Spacing: 110mm. To obtain the 116mm spacing, two 3mm-wide snail cams must be installed (not included).

Colours
- Two finishes available:

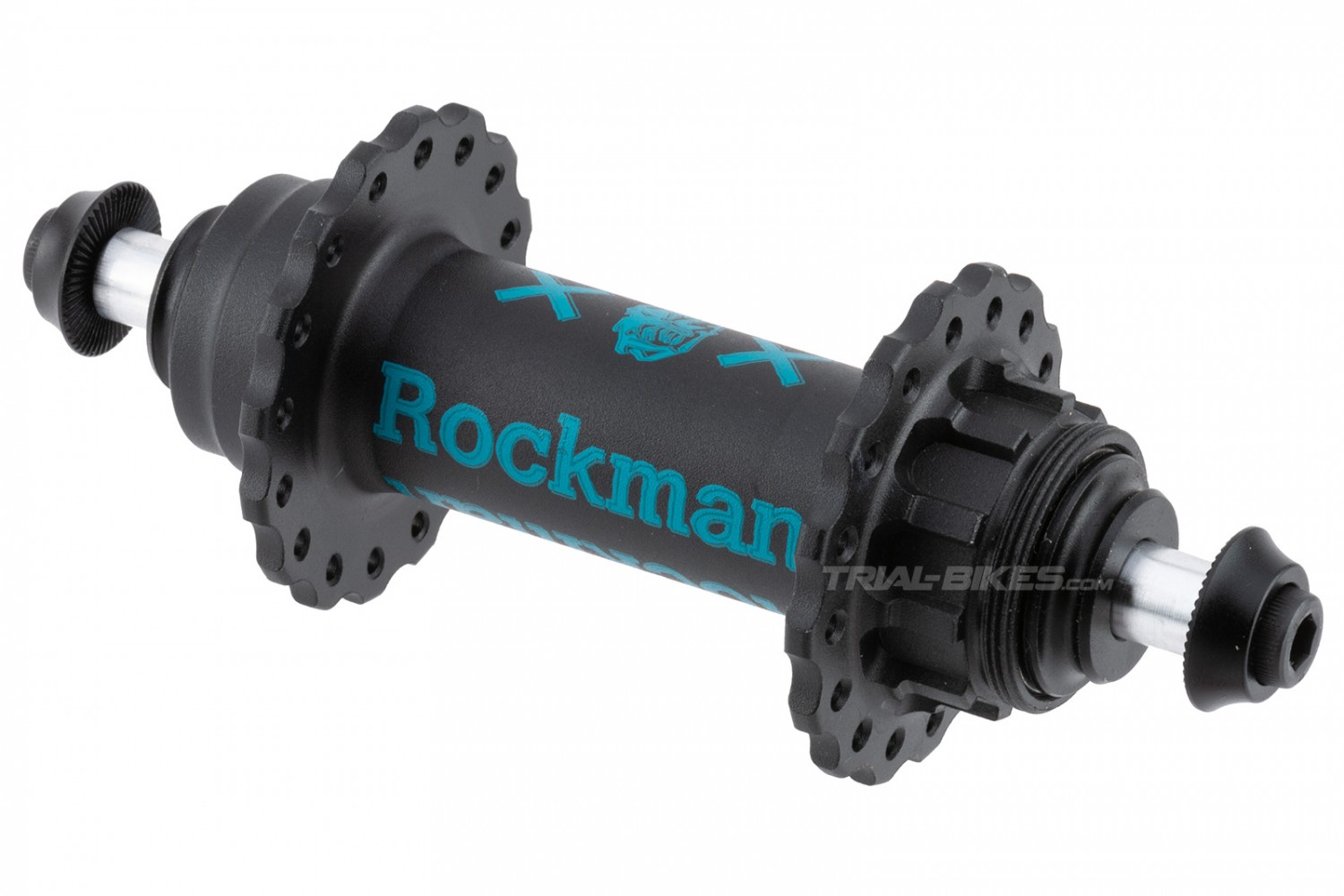

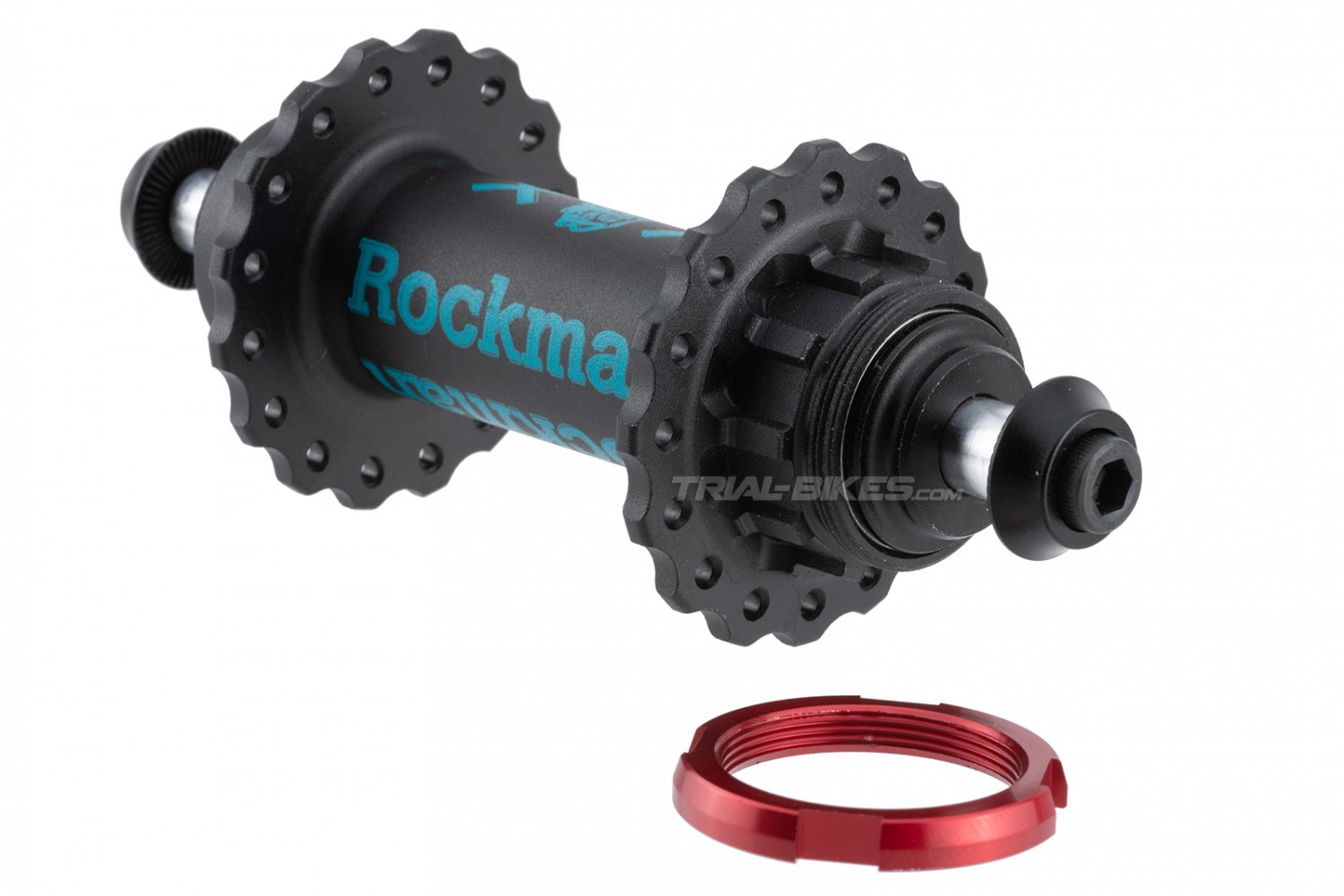

· Anodized matt black, with sky blue laser etched Rockman graphics.

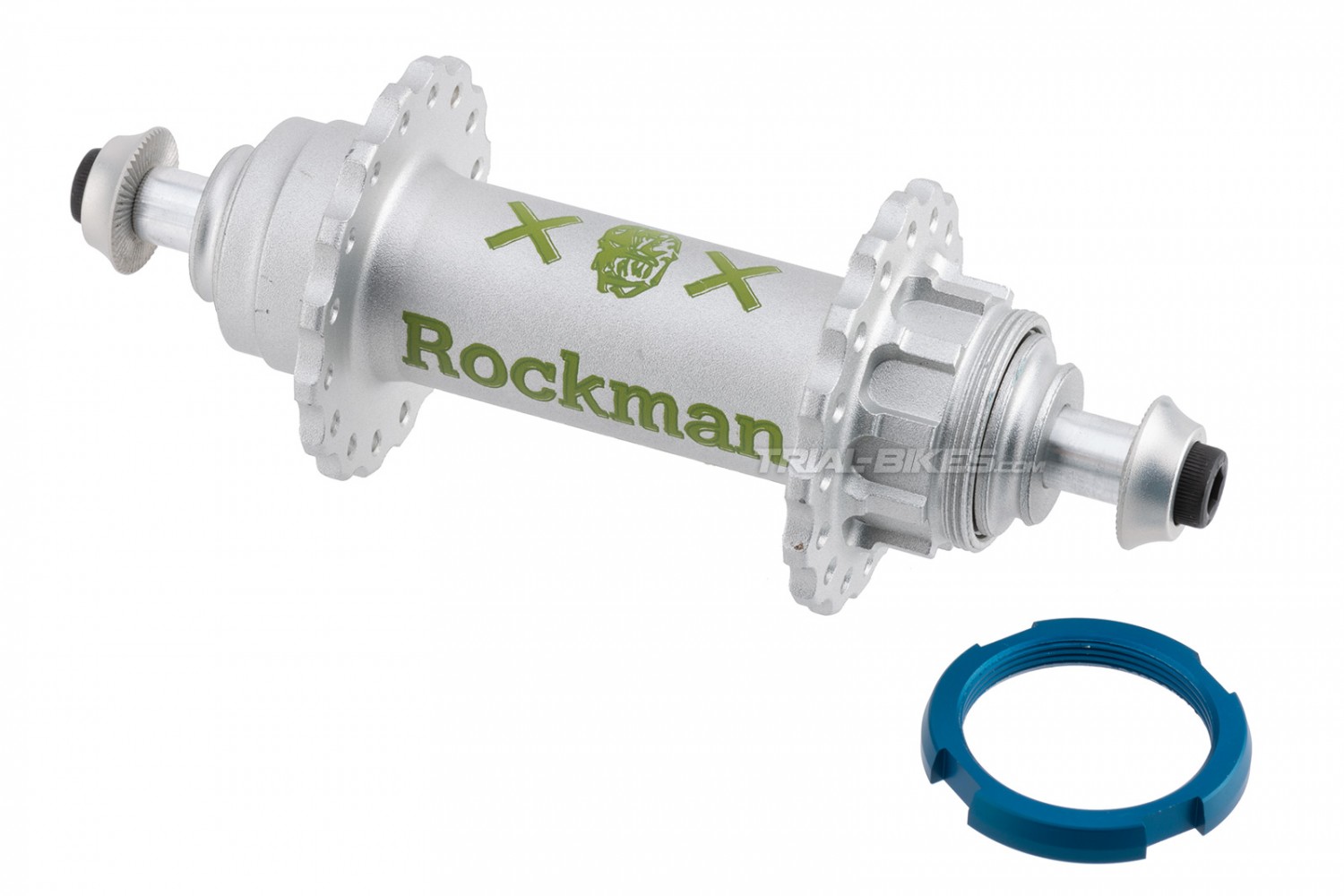

· Anodized silver, with green laser etched Rockman graphics.

Weight
- 144.80g, + bolts at 17.14g and lock ring at 5.46g.
