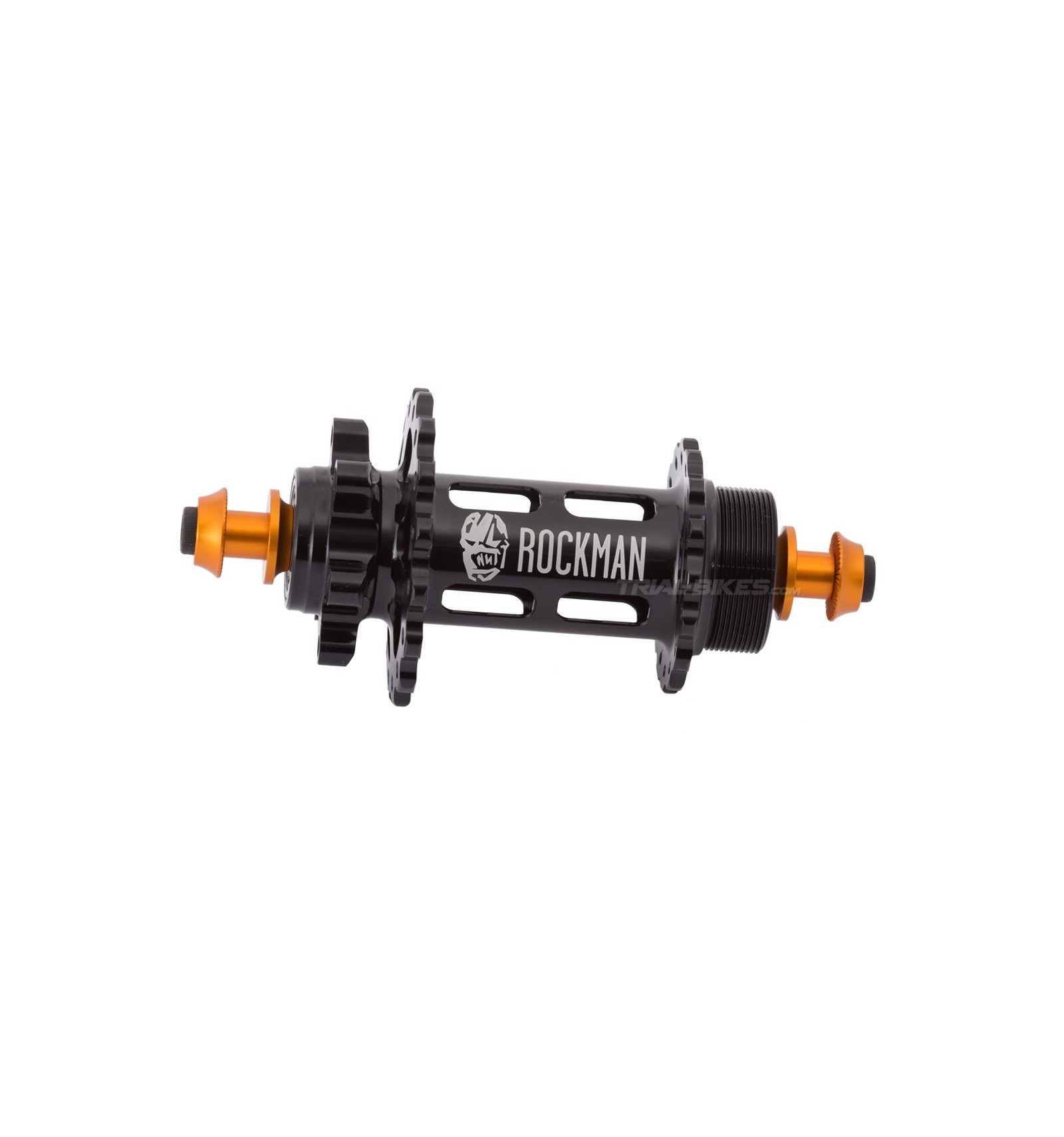

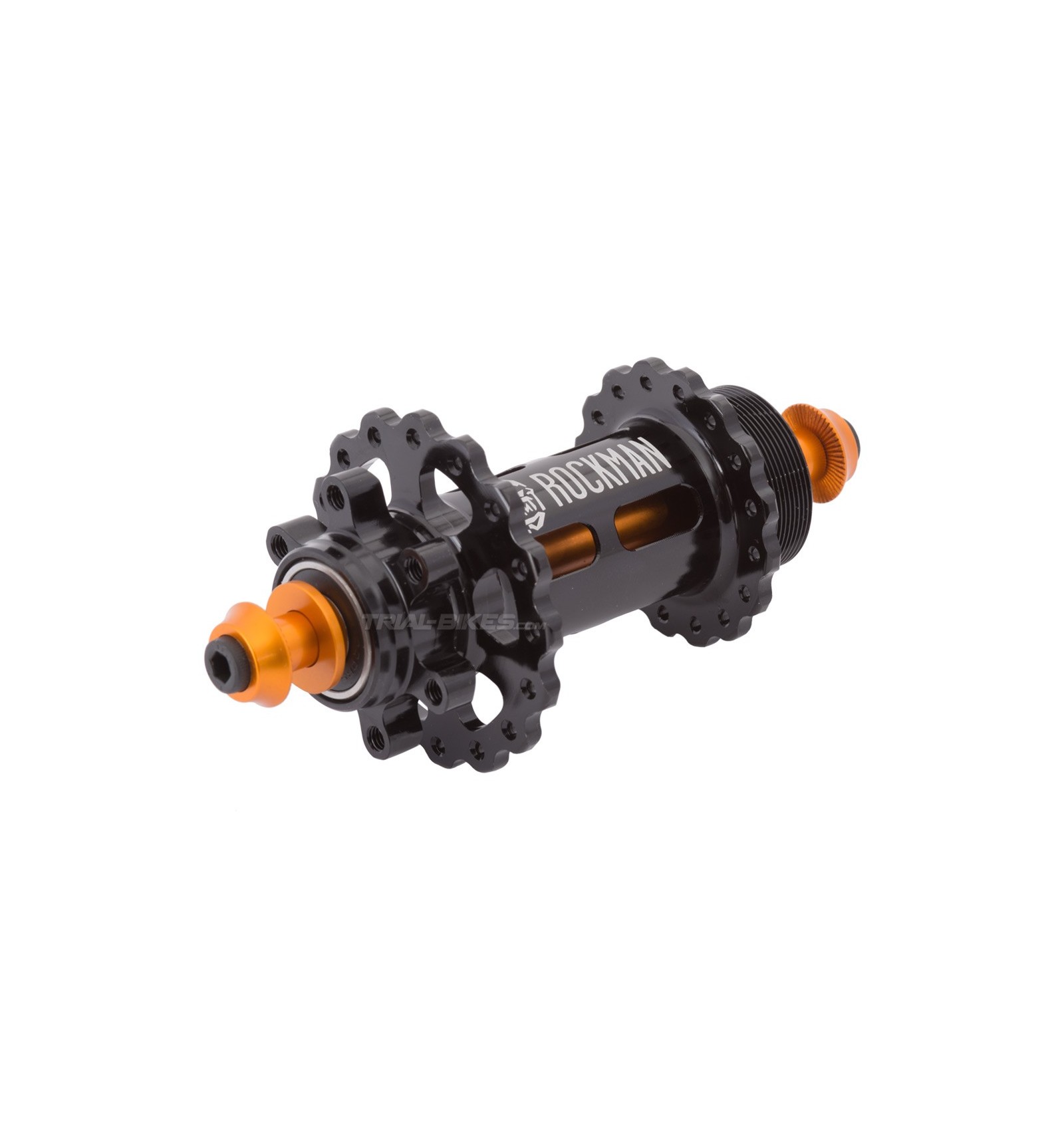

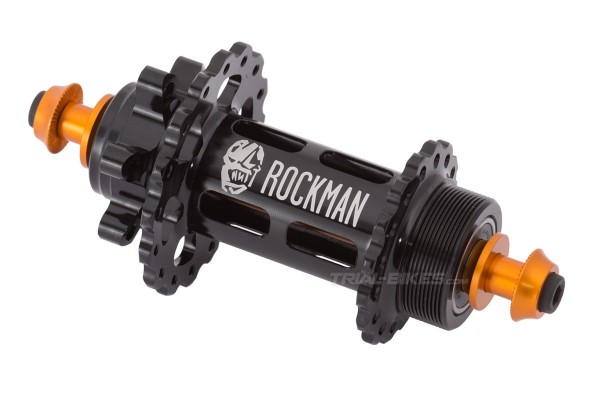

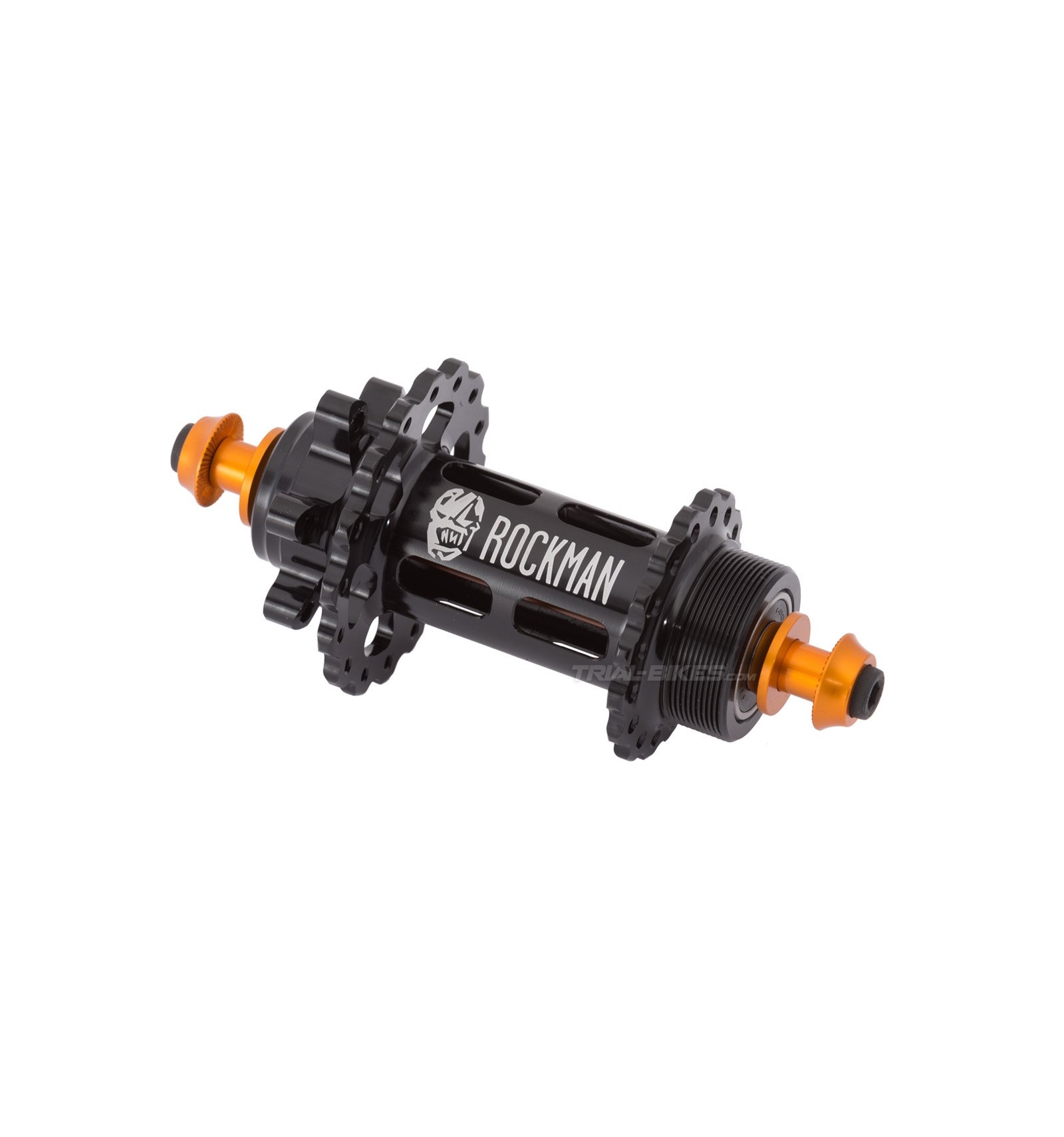

Rockman Slot Disc 32H 116mm Rear Hub

Description and materials
- New Rockman Slot disc rear hub, manufactured by renowned bike trials brand Rockman.
- Completely exclusive design by Rockman, featuring slots in the hub shell. These slots have round edges to prevent cracks, as seen with other hubs.
- This, along with the recesses around the spoke holes and rotor mounts, helps save a lot of weight without compromising strength.
- Both the axle and shell are CNC machined from high quality 7075-T6 aluminium alloy, which ensures extraordinary mechanical properties.
- Uses a hollow axle with M6 internal thread and 116mm spacing, therefore it’s compatible with most frames available.
- 13mm threaded base for the freewheel/sprocket, with standard 1,37”x24 tpi thread that is compatible with most freewheel and sprockets.
- 32 spoke holes, compatible with most rear rims designed for bike trials.
- High quality replaceable sealed bearings ensure a smooth, reliable, durable running.
- Standard IS 6-bolt disc rotor fitting.
- Includes M6x20mm steel bolts and serrated tapered aluminium washers.

Compatibility
- Compatible with those frames that have 116mm spacing between the inner side of the dropouts.
- Compatible with rims that have 32 spoke holes.
- Compatible with those disc brake rotors with standard IS 6-bolt fitting.
- Only compatible with freewheels/sprockets with standard 1,37”x24 tpi thread.

Dimensions
- Axle length: 116mm
- Axle diameter: 10mm
- Number of spoke holes: 32 (32H)
- M6x20mm Allen bolts

Finishes
- Gloss black hub shell, with white laser etched Rockman graphics, and anodized orange axle, spacers and washers.

Weight
- 148,84g!! (+17,29g of bolts and washers)
